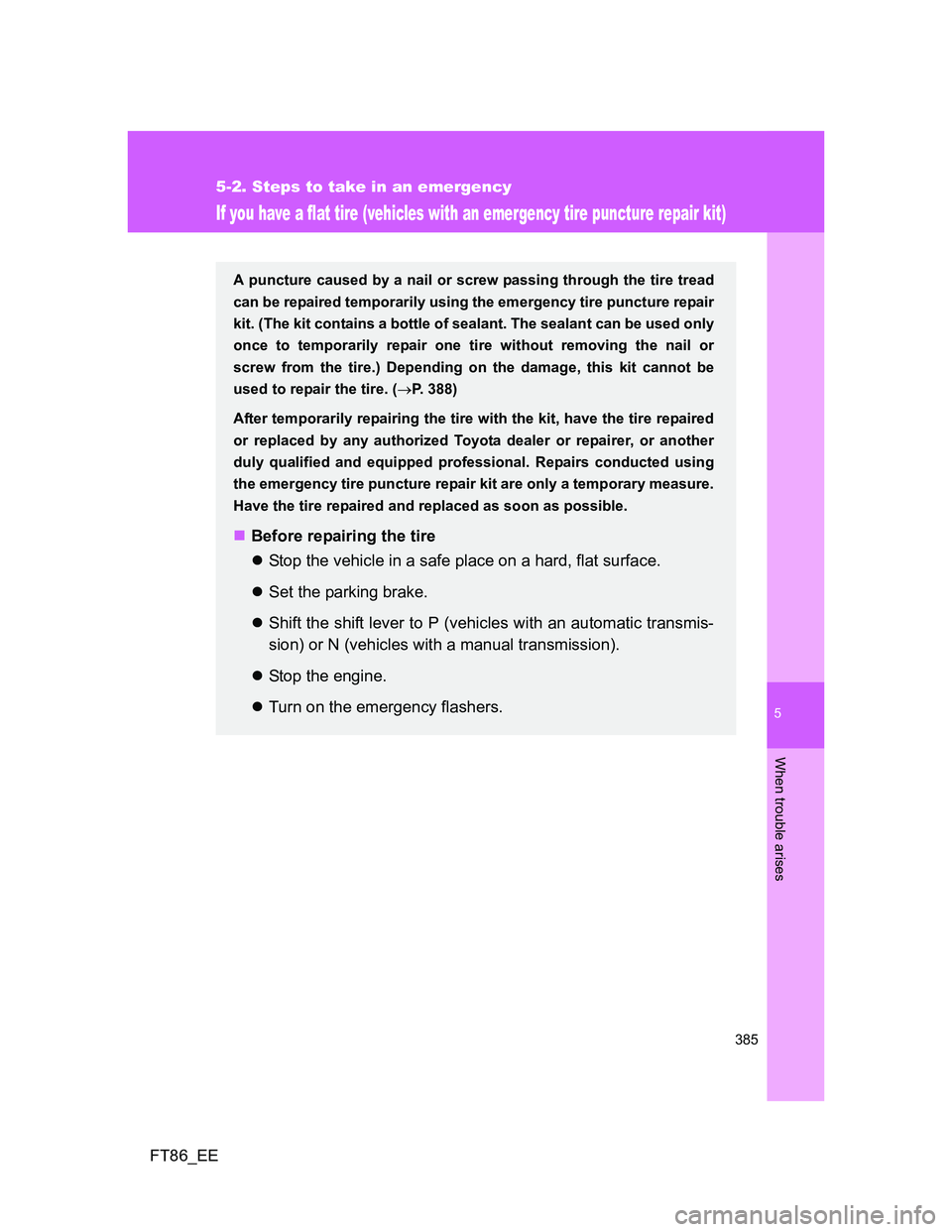

2014 TOYOTA GT86 Owners Manual (in English)

Page 385 of 452

TOYOTA GT86 2014  Owners Manual (in English) 5
385
5-2. Steps to take in an emergency
When trouble arises
FT86_EE
If you have a flat tire (vehicles with an emergency tire puncture repair kit)
A puncture caused by a nail or screw passing through

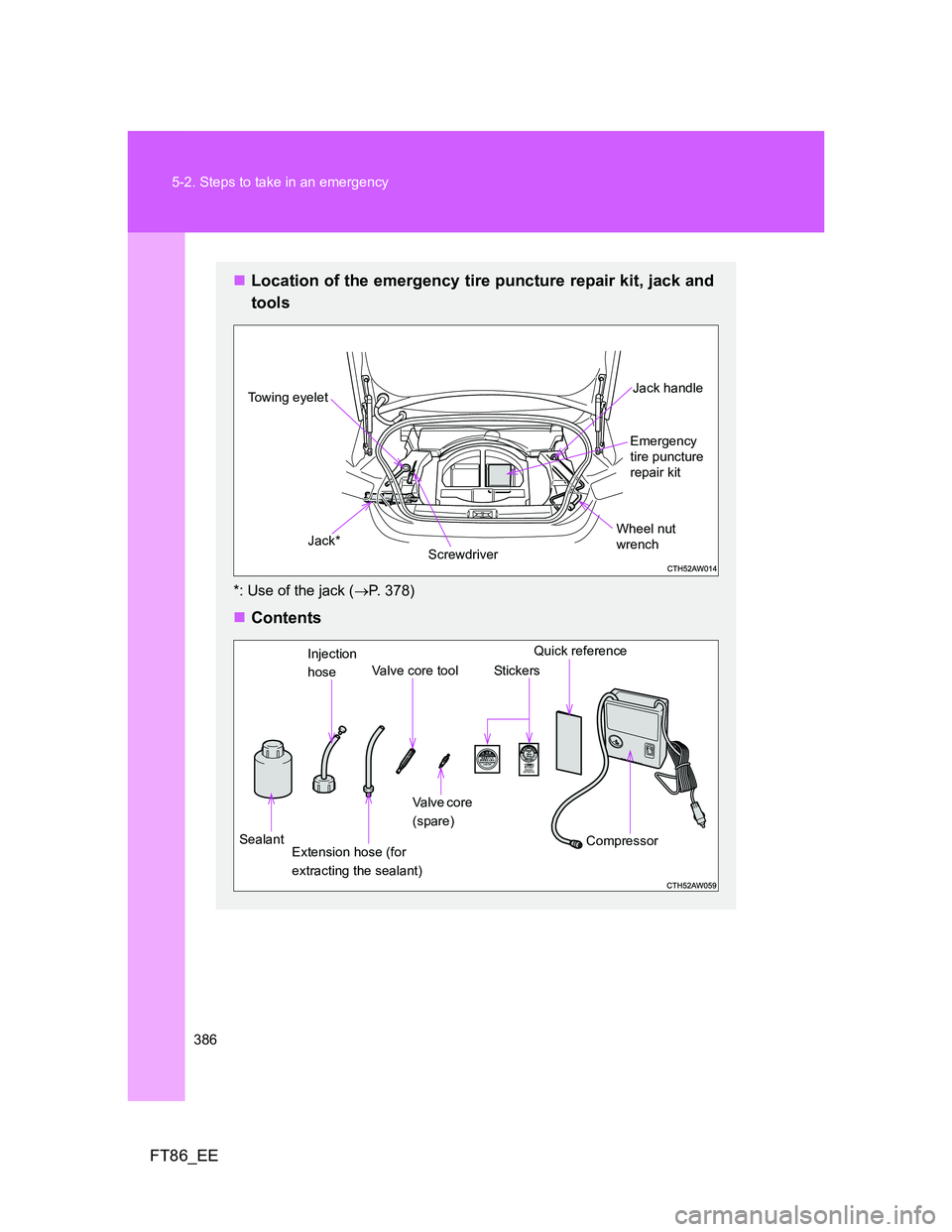

Page 386 of 452

TOYOTA GT86 2014  Owners Manual (in English) 386 5-2. Steps to take in an emergency
FT86_EE
Location of the emergency tire puncture repair kit, jack and
tools
*: Use of the jack (P. 378)
Contents
ScrewdriverEmergency
tire puncture
repa

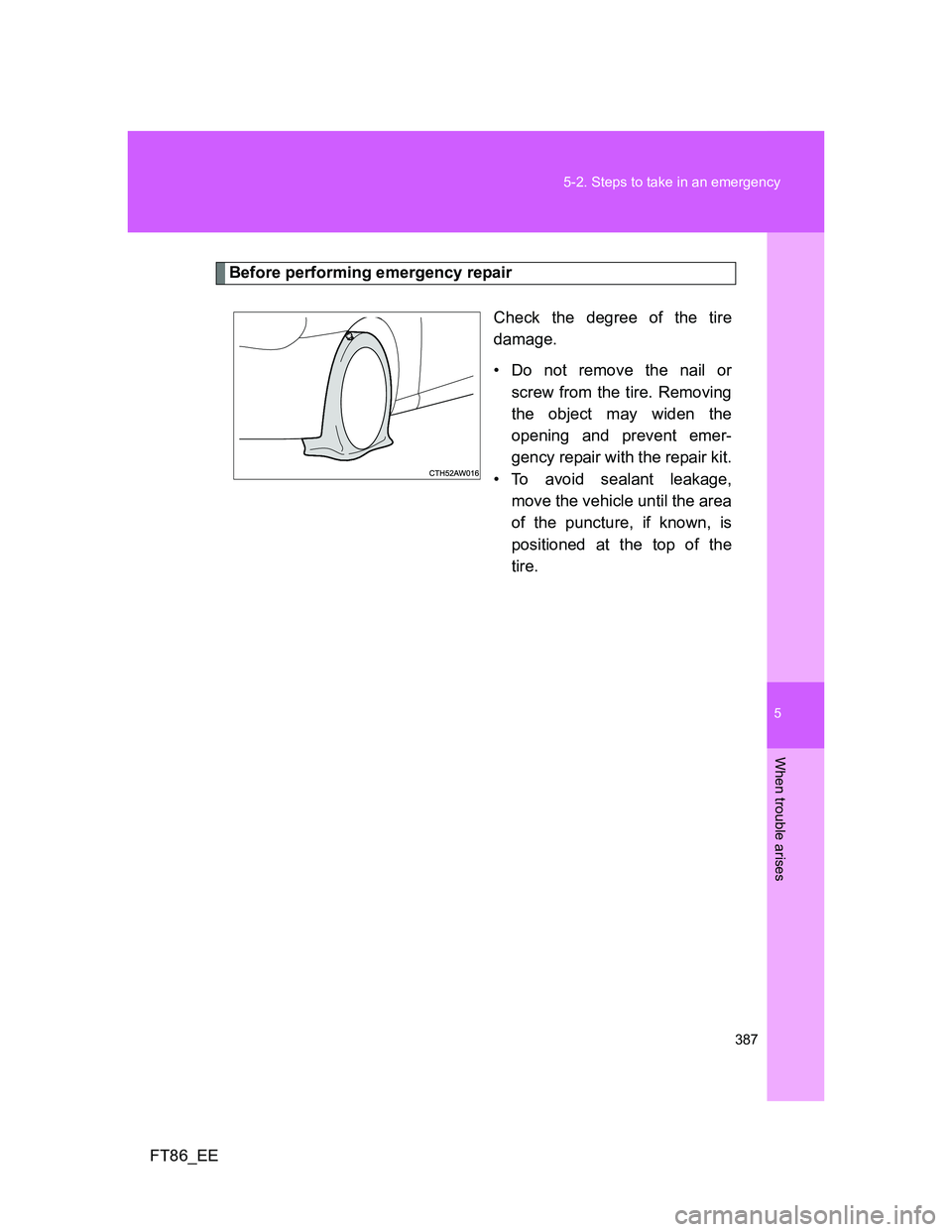

Page 387 of 452

TOYOTA GT86 2014  Owners Manual (in English) 5
387 5-2. Steps to take in an emergency
When trouble arises
FT86_EE
Before performing emergency repair
Check the degree of the tire
damage.
• Do not remove the nail or
screw from the tire. Removing

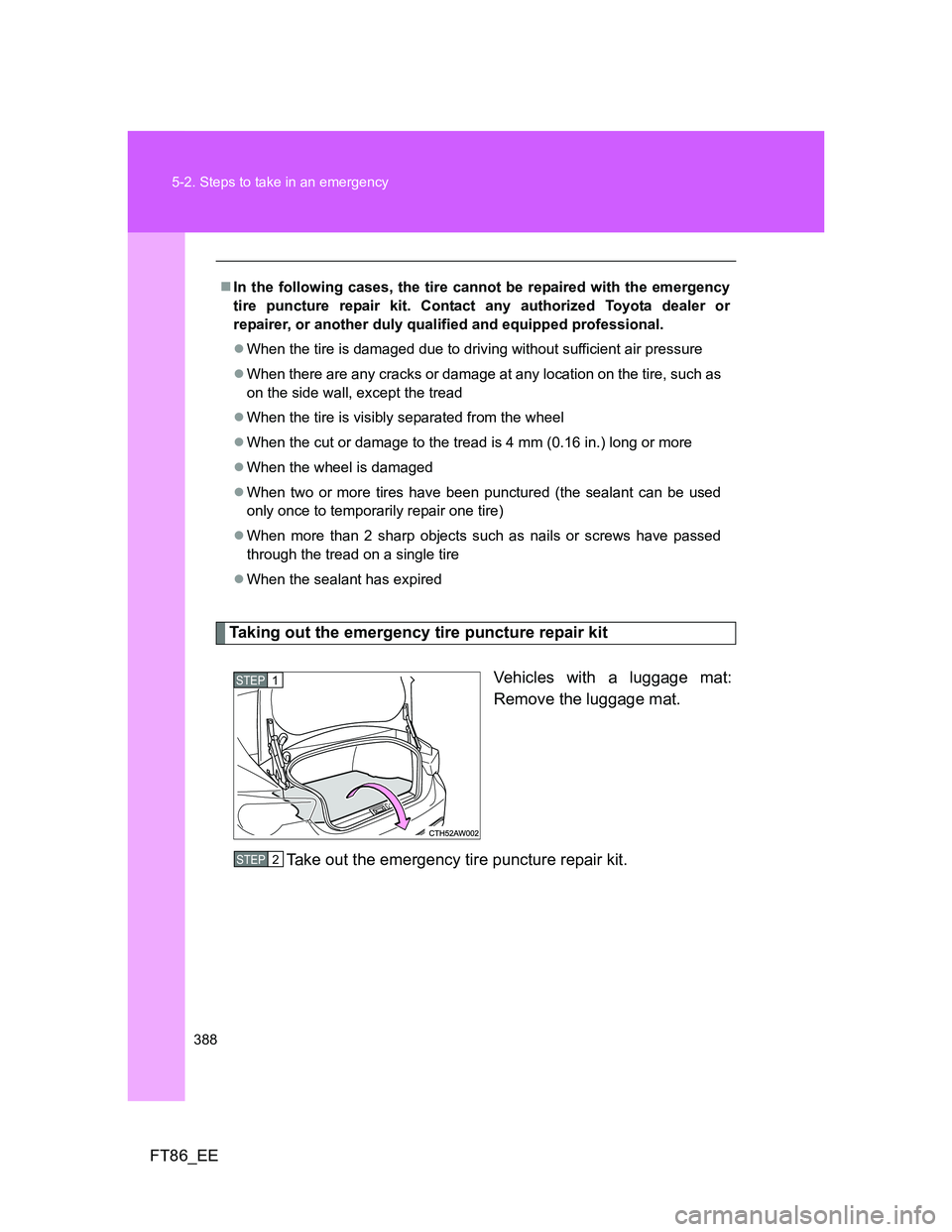

Page 388 of 452

TOYOTA GT86 2014  Owners Manual (in English) 388 5-2. Steps to take in an emergency
FT86_EE
Taking out the emergency tire puncture repair kit
Vehicles with a luggage mat:
Remove the luggage mat.
Take out the emergency tire puncture repair kit.

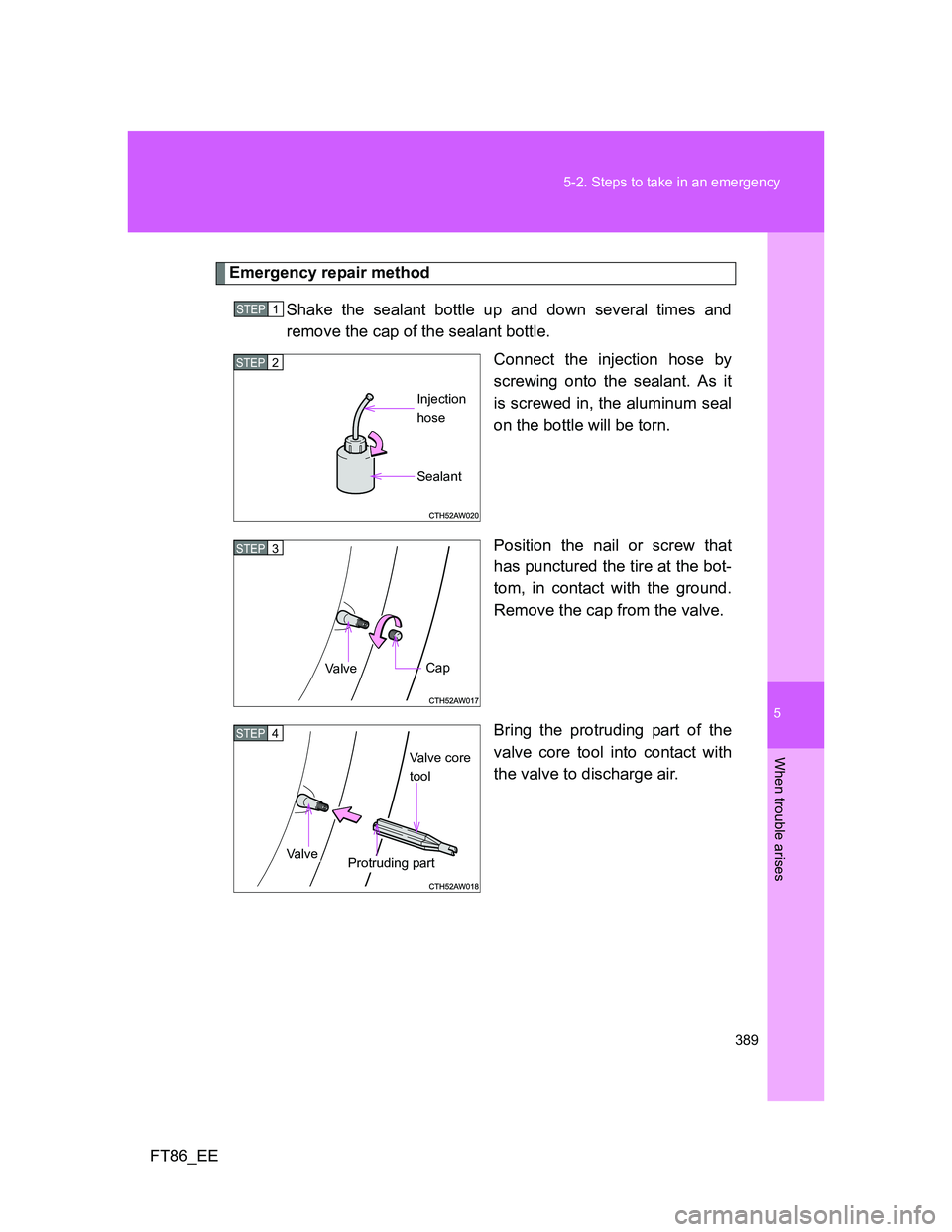

Page 389 of 452

TOYOTA GT86 2014  Owners Manual (in English) 5
389 5-2. Steps to take in an emergency
When trouble arises
FT86_EE
Emergency repair method
Shake the sealant bottle up and down several times and
remove the cap of the sealant bottle.
Connect the in

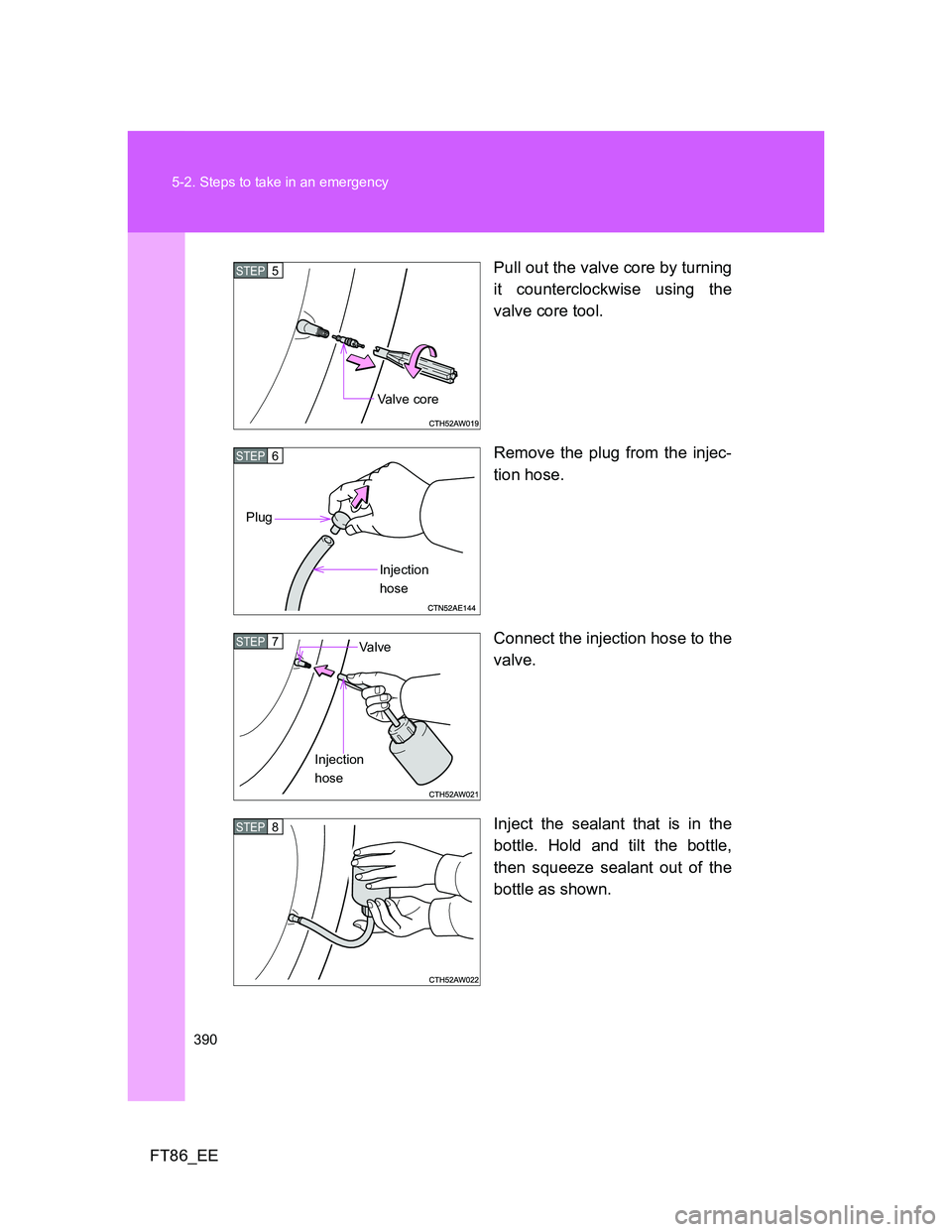

Page 390 of 452

TOYOTA GT86 2014  Owners Manual (in English) 390 5-2. Steps to take in an emergency
FT86_EEPull out the valve core by turning
it counterclockwise using the
valve core tool.
Remove the plug from the injec-
tion hose.
Connect the injection hose to

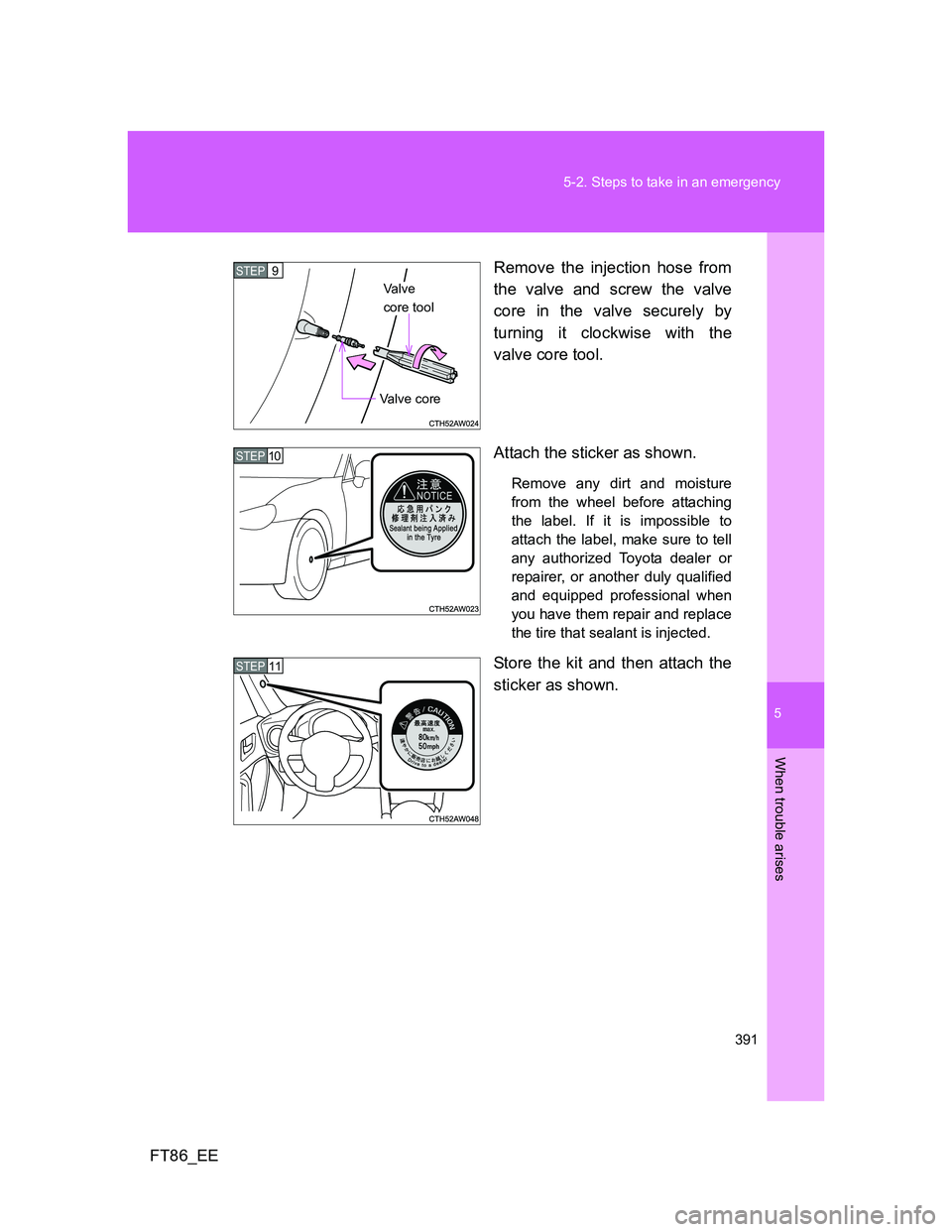

Page 391 of 452

TOYOTA GT86 2014  Owners Manual (in English) 5
391 5-2. Steps to take in an emergency
When trouble arises
FT86_EERemove the injection hose from
the valve and screw the valve
core in the valve securely by
turning it clockwise with the
valve core

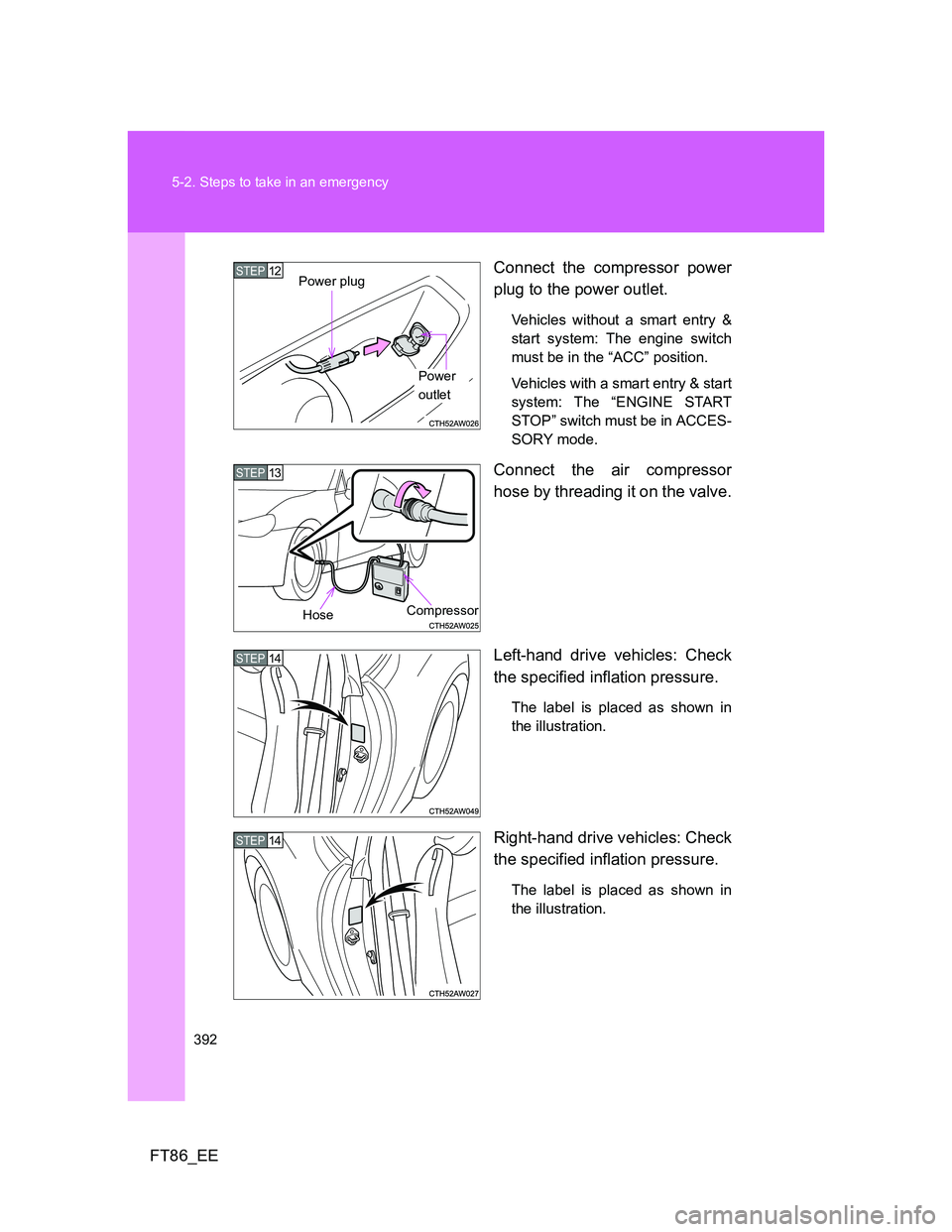

Page 392 of 452

TOYOTA GT86 2014  Owners Manual (in English) 392 5-2. Steps to take in an emergency
FT86_EEConnect the compressor power
plug to the power outlet.
Vehicles without a smart entry &
start system: The engine switch
must be in the “ACC” position.
