34 1-2. Opening, closing and locking the doors and trunk
FT86_EEEffective range (areas within which the electronic key is
detected)
When locking or unlocking
the doors
The system can be operated
when the electronic key is
within about 0.4 - 0.8 m (1.3 -
2.6 ft.) of either of the outside
door handles. (Only the
doors detecting the key can
be operated.)
When unlocking the trunk
The system can be operated
when the electronic key is
within about 0.4 - 0.8 m (1.3 -
2.6 ft.) of the trunk release
button.
When starting the engine
or changing “ENGINE
START STOP” switch
modes
The system can be operated
when the electronic key is
inside the vehicle.

56
1-2. Opening, closing and locking the doors and trunk
FT86_EE
Trunk
The trunk can be opened using the key, trunk opener, entry function
or wireless remote control.
Opening the trunk from inside the vehicle
Press and hold the opener
switch to release the trunk lid.
Opening the trunk from outside the vehicle
Key (vehicles without a smart entry & start system and the
double locking system)
Turn the master key clockwise
to release the trunk lid.
Entry function (vehicles with a smart entry & start system)
P. 3 3
Wireless remote control
P. 4 9

65
1
1-3. Adjustable components (seats, mirrors, steering wheel)
Before driving
FT86_EE

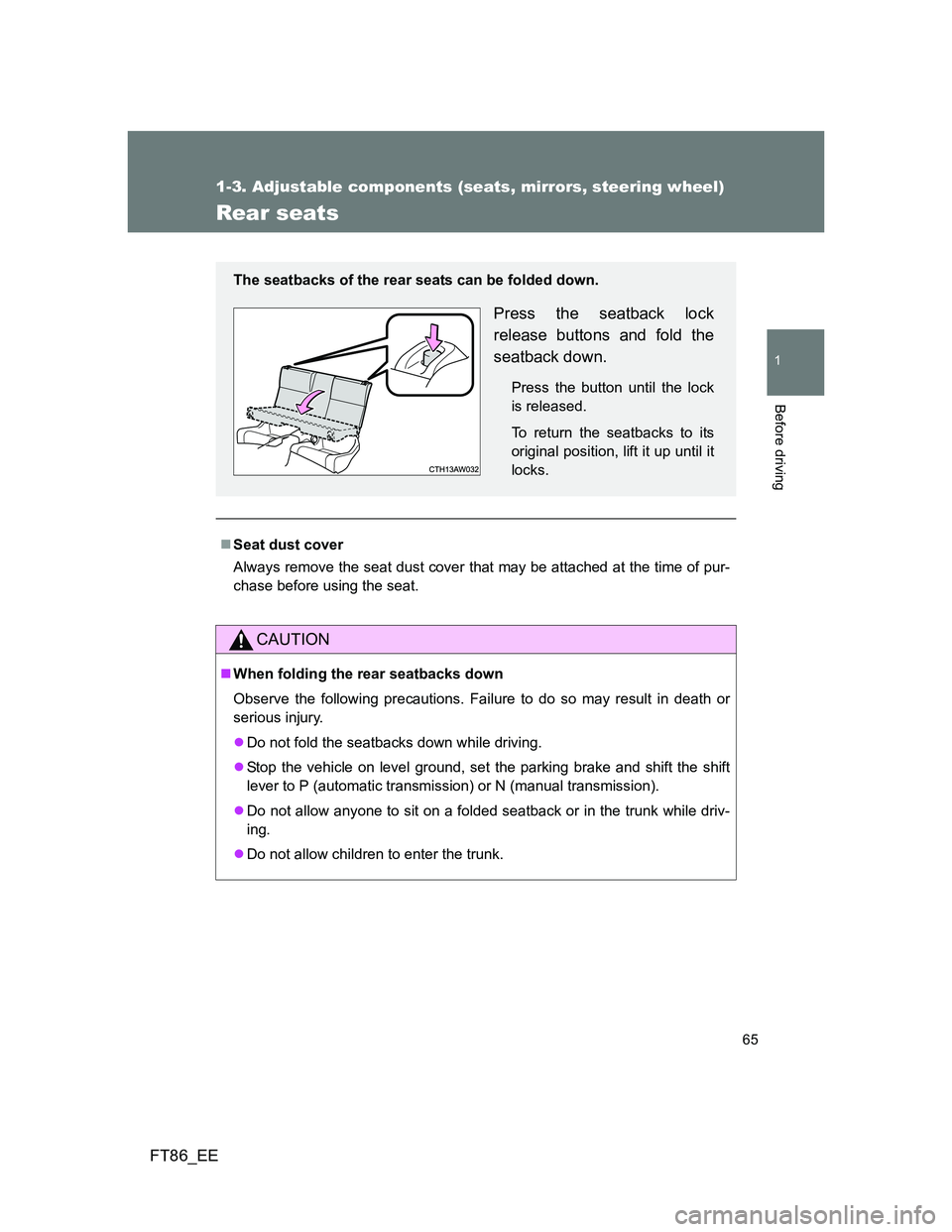

Rear seats
Seat dust cover
Always remove the seat dust cover that may be attached at the time of pur-
chase before using the seat.
CAUTION
When folding the rear seatbacks down
Observe the following precautions. Failure to do so may result in death or
serious injury.
Do not fold the seatbacks down while driving.
Stop the vehicle on level ground, set the parking brake and shift the shift
lever to P (automatic transmission) or N (manual transmission).
Do not allow anyone to sit on a folded seatback or in the trunk while driv-
ing.
Do not allow children to enter the trunk.
The seatbacks of the rear seats can be folded down.
Press the seatback lock
release buttons and fold the
seatback down.
Press the button until the lock
is released.
To return the seatbacks to its
original position, lift it up until it
locks.

163 2-1. Driving procedures
2
When driving
FT86_EE

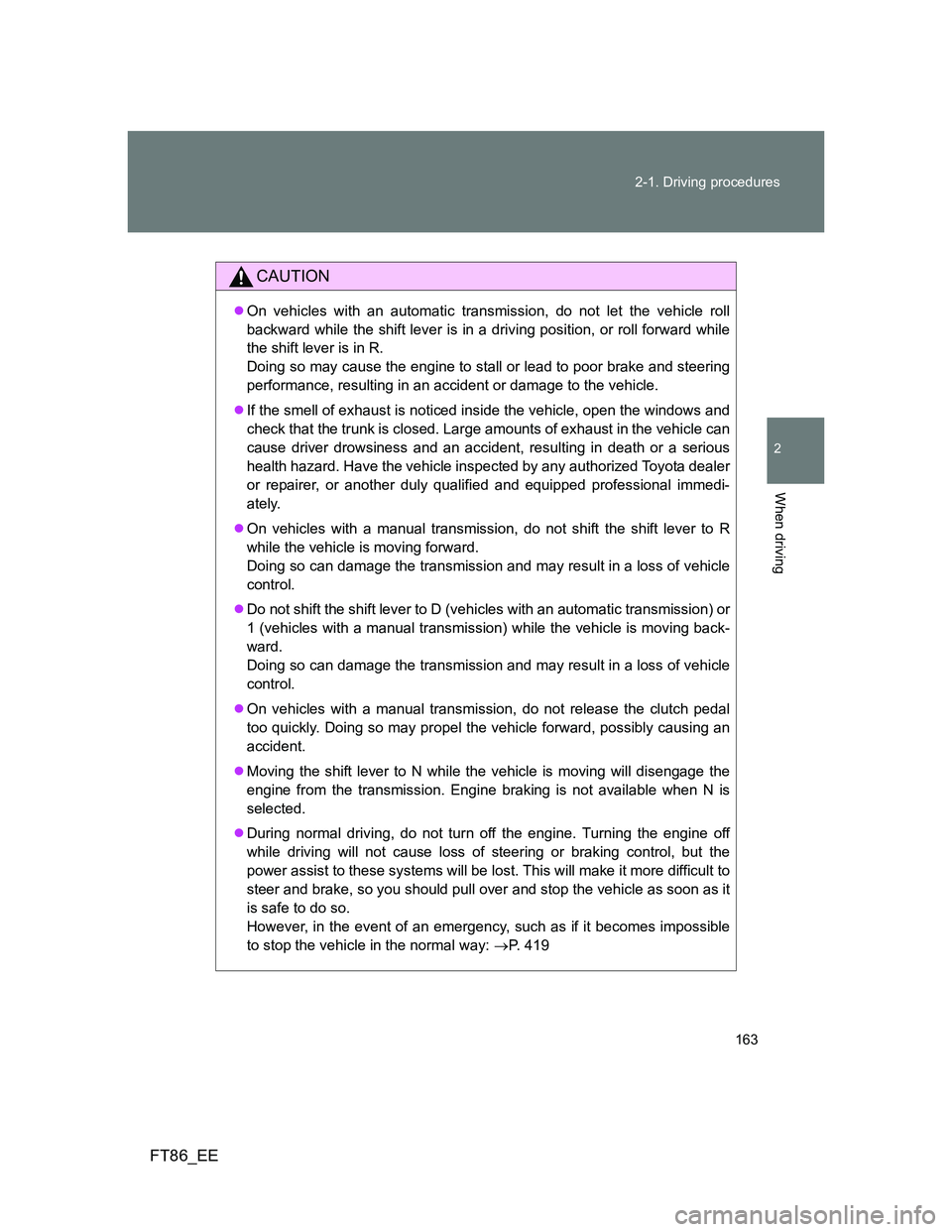

CAUTION
On vehicles with an automatic transmission, do not let the vehicle roll
backward while the shift lever is in a driving position, or roll forward while
the shift lever is in R.
Doing so may cause the engine to stall or lead to poor brake and steering
performance, resulting in an accident or damage to the vehicle.
If the smell of exhaust is noticed inside the vehicle, open the windows and
check that the trunk is closed. Large amounts of exhaust in the vehicle can
cause driver drowsiness and an accident, resulting in death or a serious
health hazard. Have the vehicle inspected by any authorized Toyota dealer
or repairer, or another duly qualified and equipped professional immedi-
ately.
On vehicles with a manual transmission, do not shift the shift lever to R
while the vehicle is moving forward.
Doing so can damage the transmission and may result in a loss of vehicle
control.
Do not shift the shift lever to D (vehicles with an automatic transmission) or
1 (vehicles with a manual transmission) while the vehicle is moving back-
ward.
Doing so can damage the transmission and may result in a loss of vehicle
control.
On vehicles with a manual transmission, do not release the clutch pedal
too quickly. Doing so may propel the vehicle forward, possibly causing an
accident.
Moving the shift lever to N while the vehicle is moving will disengage the
engine from the transmission. Engine braking is not available when N is
selected.
During normal driving, do not turn off the engine. Turning the engine off
while driving will not cause loss of steering or braking control, but the
power assist to these systems will be lost. This will make it more difficult to
steer and brake, so you should pull over and stop the vehicle as soon as it
is safe to do so.
However, in the event of an emergency, such as if it becomes impossible
to stop the vehicle in the normal way: P. 419

452
FT86_EE

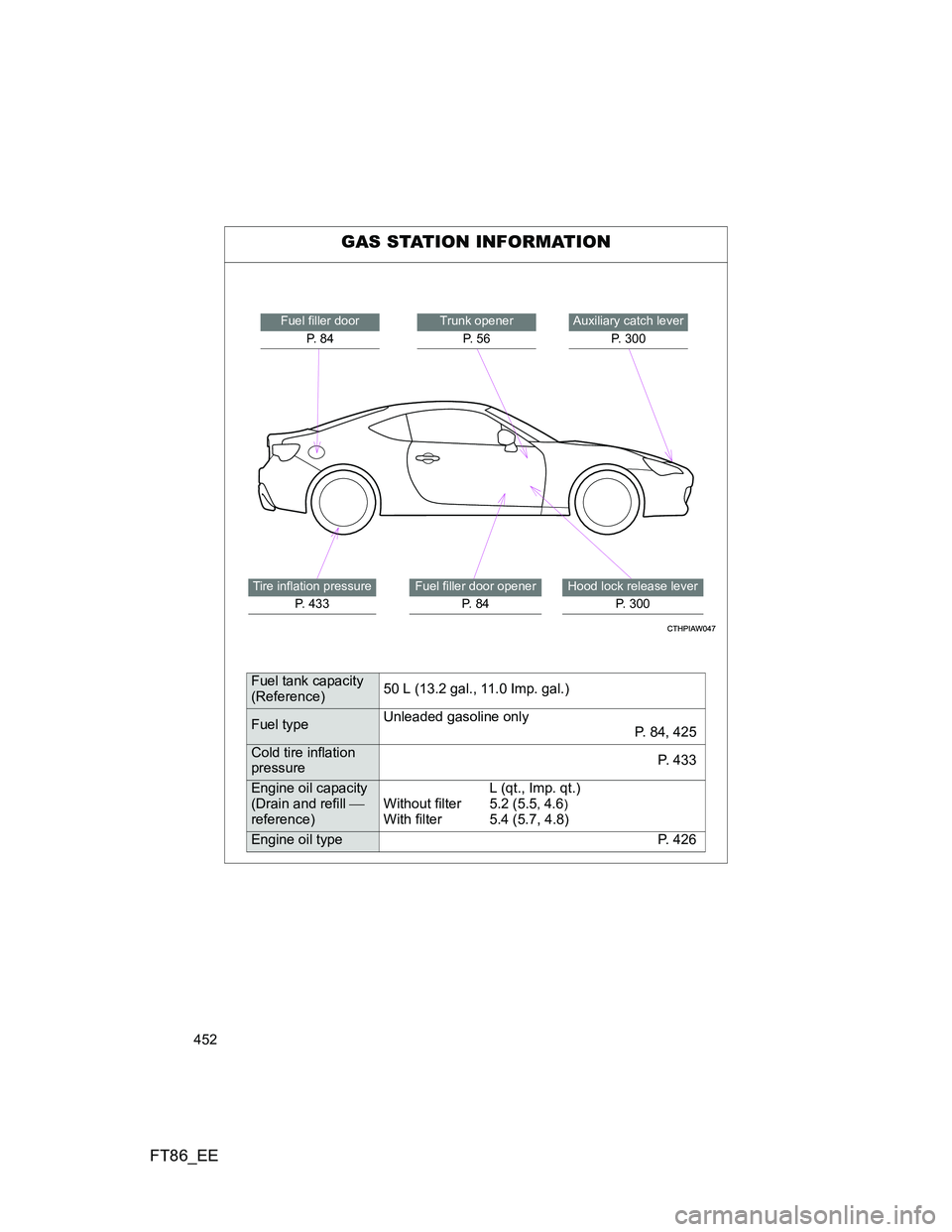

GAS STATION INFORMATION
Auxiliary catch lever
P. 3 0 0Trunk opener
P. 5 6
Hood lock release lever
P. 300
Fuel filler door
P. 8 4
Tire inflation pressure
P. 433Fuel filler door opener
P. 8 4
Fuel tank capacity
(Reference)50 L (13.2 gal., 11.0 Imp. gal.)
Fuel typeUnleaded gasoline only
P. 8 4 , 4 2 5
Cold tire inflation
pressureP. 4 3 3
Engine oil capacity
(Drain and refill 
reference)L (qt., Imp. qt.)
Without filter 5.2 (5.5
, 4.6)
With filter 5.4 (5.7, 4.8)
Engine oil type P. 426
