6497-2. Steps to take in an emergency
UK_AURIS/AURIS_HV_EE (OM12G88E)
7
When trouble arises
Once
Contin-
uous
(5 sec-
onds)
An attempt was
made to lock
either front door
by opening a door
and putting the
inside lock button
into the lock posi-
tion, then closing
the door by pull-
ing on the outside
door handle with
the electronic key
still inside the
vehicle.
Retrieve
the elec-
tronic key
from the
vehicle and
lock the
doors
again.
Once
• When the doors
were unlocked
with the
mechanical key
and then the
engine switch
was pressed,
the electronic
key could not
be detected in
the vehicle.
• The electronic
key could not
be detected in
the vehicle
even after the
engine switch
was pressed
two consecu-
tive times.
Touch the
electronic
key to the
engine
switch
while
depress-
ing the
brake
pedal.
Interior
buzzerExterior
buzzerWarning messageDetailsCorrection
procedure
(Flashes)
*1, 2
(Flashes)
(Vehicles with a Multid-
rive or multi-mode
manual transmis-
sion)
*1

6507-2. Steps to take in an emergency
UK_AURIS/AURIS_HV_EE (OM12G88E)
Once
• When the doors
were unlocked
with the
mechanical key
and then the
engine switch
was pressed,
the electronic
key could not
be detected in
the vehicle.
• The electronic
key could not
be detected in
the vehicle
even after the
engine switch
was pressed
two consecu-
tive times.
Touch the
electronic
key to the
engine
switch
while
depress-
ing the
clutch
pedal.
• When the doors
were unlocked
with the
mechanical key
and then the
power switch
was pressed,
the electronic
key could not
be detected in
the vehicle.
• The electronic
key could not
be detected in
the vehicle
even after the
power switch
was pressed
two consecu-
tive times.
Touch the
electronic
key to the
power
switch
while
depress-
ing the
brake
pedal.
Interior
buzzerExterior
buzzerWarning messageDetailsCorrection
procedure
(Flashes)
(Vehicles with manual
transmission)
*1
(Flashes)
(Hybrid model)
*1, 2

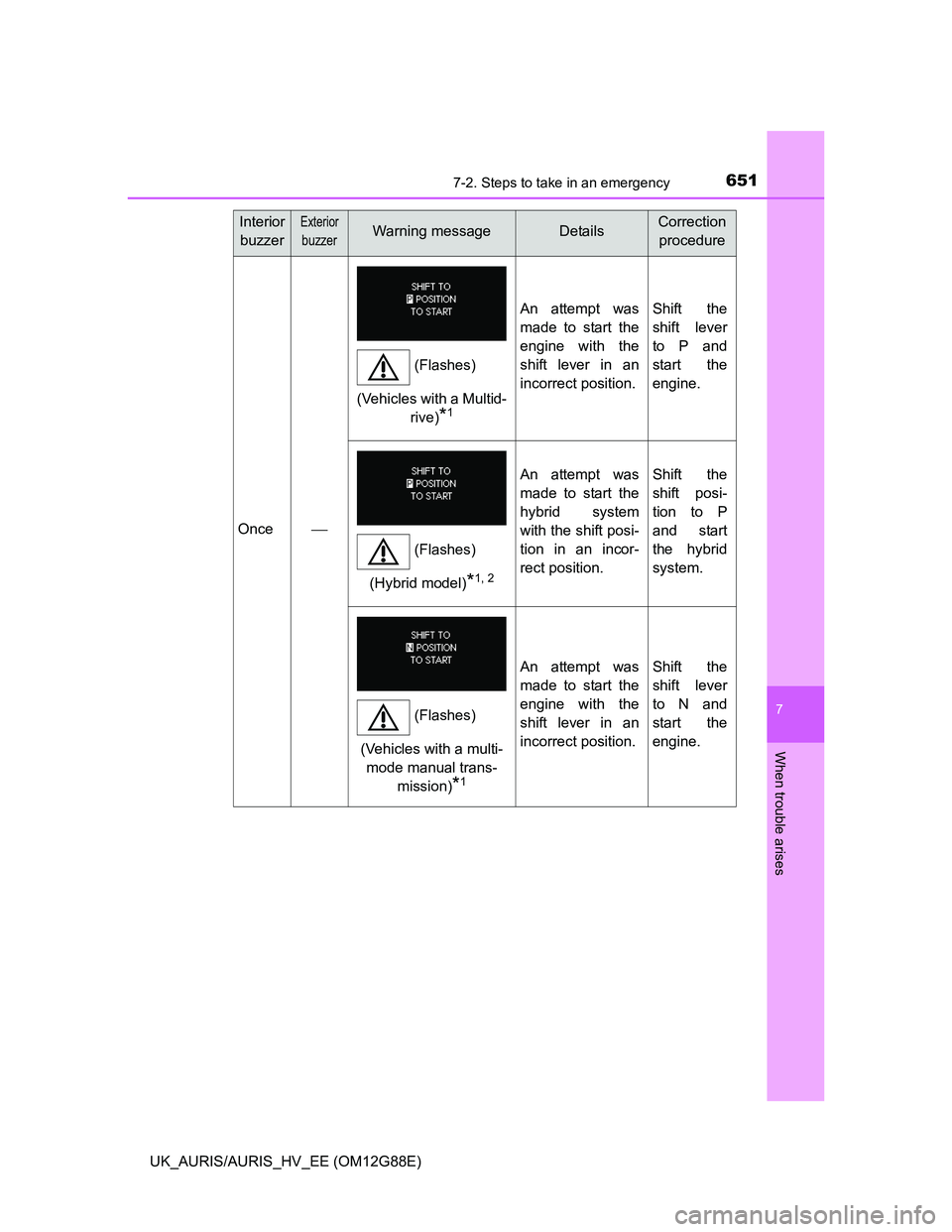

6517-2. Steps to take in an emergency
UK_AURIS/AURIS_HV_EE (OM12G88E)
7
When trouble arises
Once
An attempt was
made to start the
engine with the
shift lever in an
incorrect position.Shift the
shift lever
to P and
start the
engine.
An attempt was
made to start the
hybrid system
with the shift posi-
tion in an incor-
rect position.Shift the
shift posi-
tion to P
and start
the hybrid
system.
An attempt was
made to start the
engine with the
shift lever in an
incorrect position.Shift the
shift lever
to N and
start the
engine.
Interior
buzzerExterior
buzzerWarning messageDetailsCorrection
procedure
(Flashes)
(Vehicles with a Multid-
rive)
*1
(Flashes)
(Hybrid model)
*1, 2
(Flashes)
(Vehicles with a multi-
mode manual trans-
mission)
*1

6527-2. Steps to take in an emergency
UK_AURIS/AURIS_HV_EE (OM12G88E)

Power was turned
off due to the
automatic power
off function.
Next time
when start-
ing the
engine,
increase
the engine
speed
slightly and
maintain
that level
for approxi-
mately 5
minutes to
recharge
the battery.
Power was turned
off due to the
automatic power
off function.
Next time
when start-
ing the
hybrid sys-
tem,
increase
the engine
speed
slightly and
maintain
that level
for approxi-
mately 5
minutes to
recharge
the battery.
OnceThe electronic key
has a low battery.
Replace
the elec-
tronic key
battery.
(P. 555)
Interior
buzzerExterior
buzzerWarning messageDetailsCorrection
procedure
(Vehicles with a Multid-
rive)
*1
(Hybrid model)*1, 2
*1, 2

6537-2. Steps to take in an emergency
UK_AURIS/AURIS_HV_EE (OM12G88E)
7
When trouble arises
Once
The driver’s door
was opened and
closed with the
engine switch
turned off and
then the engine
switch was put in
ACCESSORY or
IGNITION ON
mode twice with-
out the engine
being started.
Press the
engine
switch
while
depress-
ing the
brake
pedal.
During an engine
starting proce-
dure in the event
that the electronic
key was not func-
tioning properly
(P. 7 0 5 ) , t h e
engine switch was
touched with the
electronic key.
Press the
engine
switch
while
depress-
ing the
brake
pedal
within 10
seconds of
the buzzer
sounding.
Interior
buzzerExterior
buzzerWarning messageDetailsCorrection
procedure
(Flashes)
(Vehicles with a Multid-
rive or multi-mode
manual transmis-
sion)
*1

6547-2. Steps to take in an emergency
UK_AURIS/AURIS_HV_EE (OM12G88E)
Once
The driver’s door
was opened and
closed with the
engine switch
turned off and
then the engine
switch was put in
ACCESSORY or
IGNITION ON
mode twice with-
out the engine
being started.
Press the
engine
switch
while
depress-
ing the
clutch
pedal.
During an engine
starting proce-
dure in the event
that the electronic
key was not func-
tioning properly
(P. 7 0 5 ) , t h e
engine switch was
touched with the
electronic key.
Press the
engine
switch
while
depress-
ing the
clutch
pedal
within 10
seconds of
the buzzer
sounding.
Interior
buzzerExterior
buzzerWarning messageDetailsCorrection
procedure
(Flashes)
(Vehicles with manual
transmission)
*1

6557-2. Steps to take in an emergency
UK_AURIS/AURIS_HV_EE (OM12G88E)
7
When trouble arises
Once
The driver’s door
was opened and
closed with the
power switch
turned off and
then the power
switch was put in
ACCESSORY or
ON mode twice
without the hybrid
system being
started.
Press the
power
switch
while
depress-
ing the
brake
pedal.
During a hybrid
system starting
procedure in the
event that the
electronic key was
not functioning
properly
(P. 705), the
power switch was
touched with the
electronic key.Press the
power
switch
while
depress-
ing the
brake
pedal
within 10
seconds of
the buzzer
sounding.
Interior
buzzerExterior
buzzerWarning messageDetailsCorrection
procedure
(Flashes)
(Hybrid model)
*1, 2

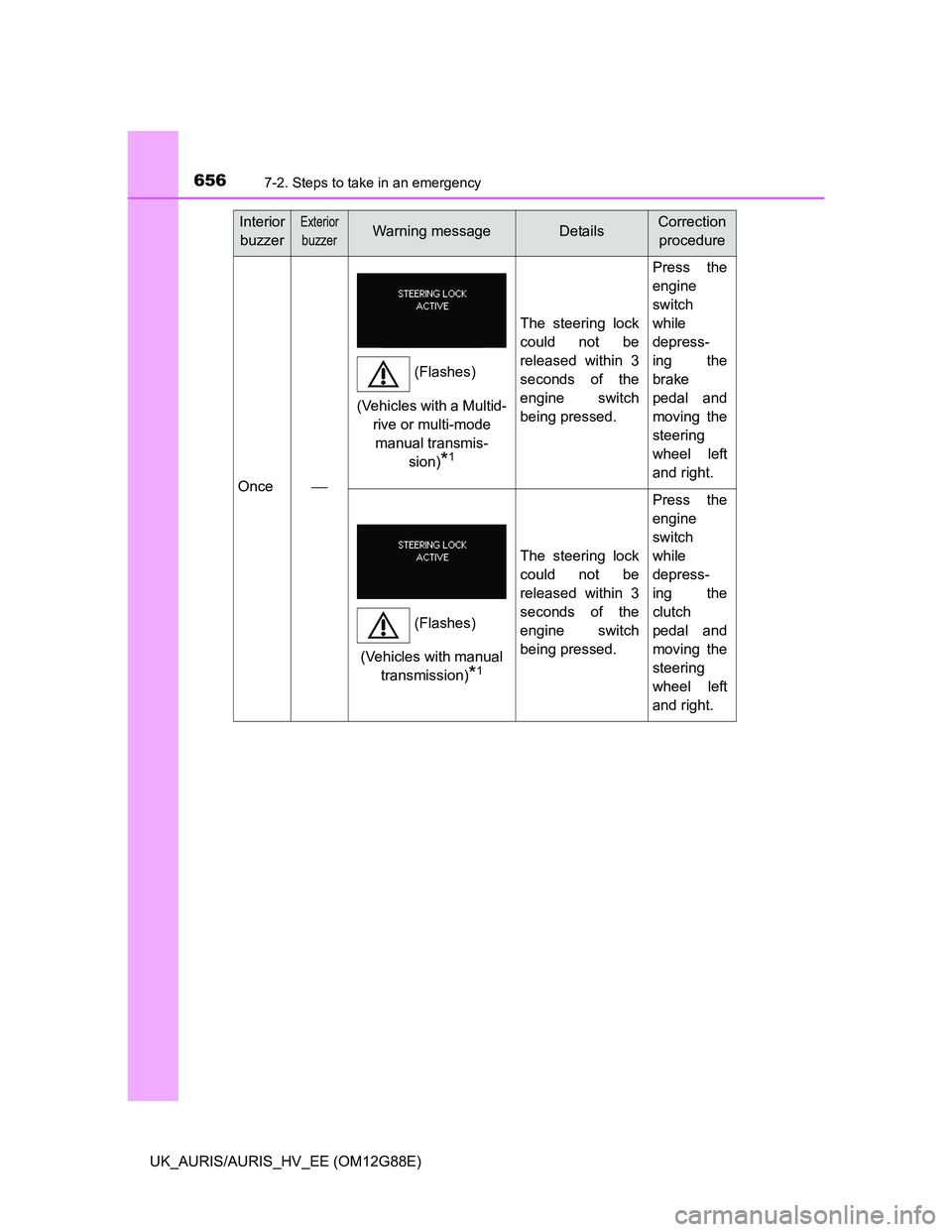

6567-2. Steps to take in an emergency
UK_AURIS/AURIS_HV_EE (OM12G88E)
Once
The steering lock
could not be
released within 3
seconds of the
engine switch
being pressed.
Press the
engine
switch
while
depress-
ing the
brake
pedal and
moving the
steering
wheel left
and right.
The steering lock
could not be
released within 3
seconds of the
engine switch
being pressed.
Press the
engine
switch
while
depress-
ing the
clutch
pedal and
moving the
steering
wheel left
and right.
Interior
buzzerExterior
buzzerWarning messageDetailsCorrection
procedure
(Flashes)
(Vehicles with a Multid-
rive or multi-mode
manual transmis-
sion)
*1
(Flashes)
(Vehicles with manual
transmission)
*1
