571-1. For safe use
1
For safety and security
UK_AURIS/AURIS_HV_EE (OM12G88E)
Insert the key into the cylinder and
turn it to the “OFF” position.
The “OFF” indicator light turns on.
(Except hybrid model [vehicles
without a smart entry & start sys-
tem]: Only when the engine switch
is in the “ON” position.
Except hybrid model [vehicles with
a smart entry & start system]: Only
when the engine switch is in IGNI-
TION ON mode.
Hybrid model: Only when the
power switch is in ON mode)
“PASSENGER AIR BAG” indicator information
If any of the following problems occur, it is possible that there is a malfunction
in the system. Have the vehicle inspected by any authorized Toyota dealer or
repairer, or another duly qualified and equipped professional.
Neither “ON” nor “OFF” comes on.
The indicator light does not change when the airbag manual on-off switch is
switched to “ON” or “OFF”.
Deactivating the front seat passenger airbag
CAUTION
When installing a child restraint system
For safety reasons, always install a child restraint system in a rear seat. In
the event that the rear seat cannot be used, the front seat can be used as
long as the airbag manual on-off system is set to off. If the airbag manual
on-off system is left on, the strong impact of the airbag deployment (infla-
tion) may cause serious injury or even death.
When a child restraint system is not installed on the front passenger
seat
Ensure that the airbag manual on-off system is set to on.
If it is left off, the airbag may not deploy in the event of an accident, which
may result in serious injury or even death.

581-1. For safe use
UK_AURIS/AURIS_HV_EE (OM12G88E)
It is recommended that children sit in the rear seats to avoid acci-
dental contact with the shift lever, wiper switch etc.
Use the rear door child-protector lock or the window lock switch to
avoid children opening the door while driving or operating the
power window accidentally.
Do not let small children operate equipment which may catch or
pinch body parts, such as the power window, hood, back door,
seats etc.
Safety infor mation for children
Observe the following precautions when children are in the vehi-
cle.
Use a child restraint system appropriate for the child, until the
child becomes large enough to properly wear the vehicle’s seat
belt.
CAUTION
Never leave children unattended in the vehicle, and never allow children to
have or use the key.
Children may be able to start the vehicle or shift the vehicle into neutral.
There is also a danger that children may injure themselves by playing with
the windows or other features of the vehicle. In addition, heat build-up or
extremely cold temperatures inside the vehicle can be fatal to children.

591-1. For safe use
1
For safety and security
UK_AURIS/AURIS_HV_EE (OM12G88E)
Studies have shown that installing a child restraint on a rear seat is
much safer than installing one on the front passenger seat.
Choose a child restraint system that suits your vehicle and is appro-
priate to the age and size of the child.
For installation details, follow the instructions provided with the child
restraint system.
General installation instructions are provided in this manual.
(P. 68)
If child restraint system regulations exist in the country where you
reside, please contact any authorized Toyota dealer or repairer, or
another duly qualified and equipped professional for the child
restraint system installation.
Toyota recommends that you use a child restraint system which
conforms to the regulation ECE No.44.

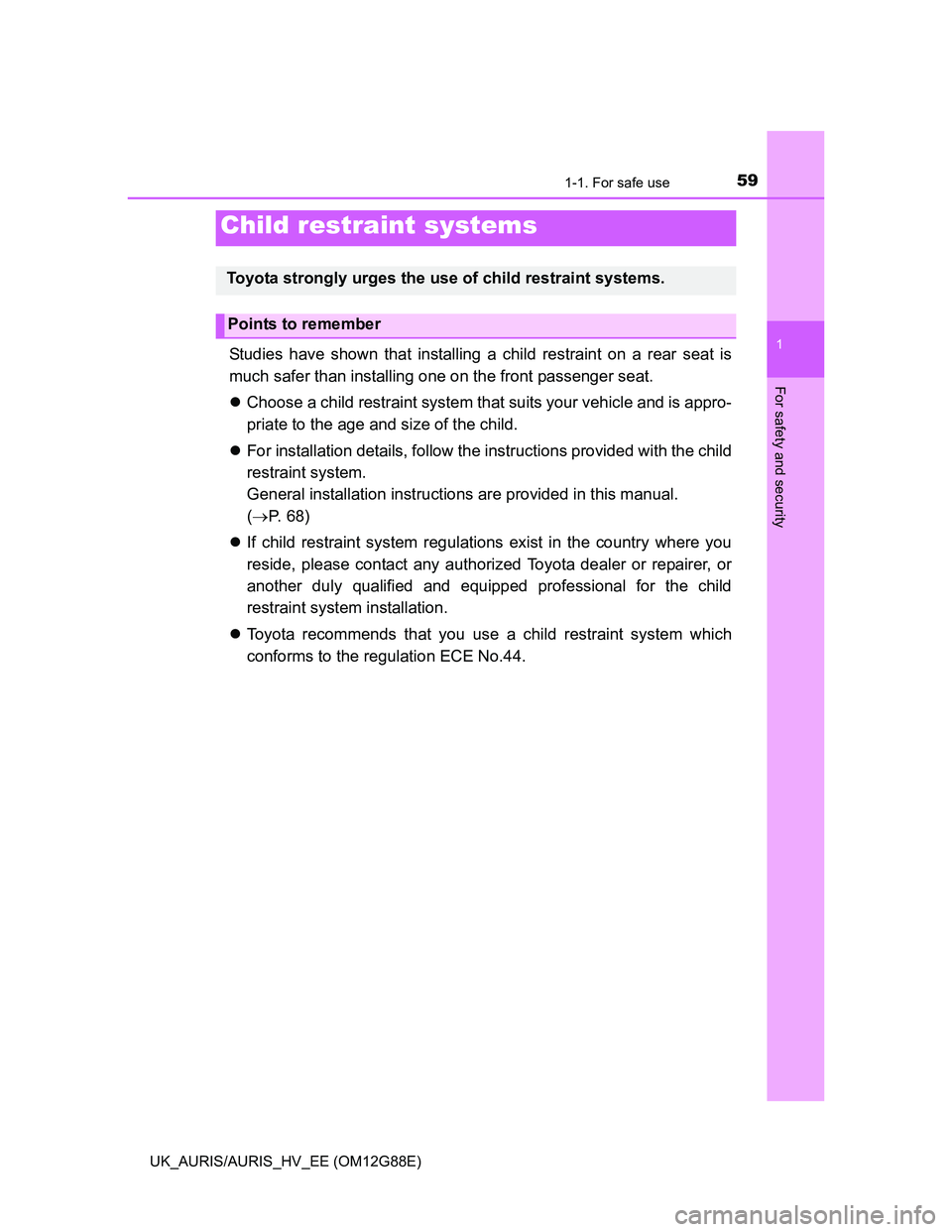

Child restraint systems
Toyota strongly urges the use of child restraint systems.
Points to remember

601-1. For safe use
UK_AURIS/AURIS_HV_EE (OM12G88E)

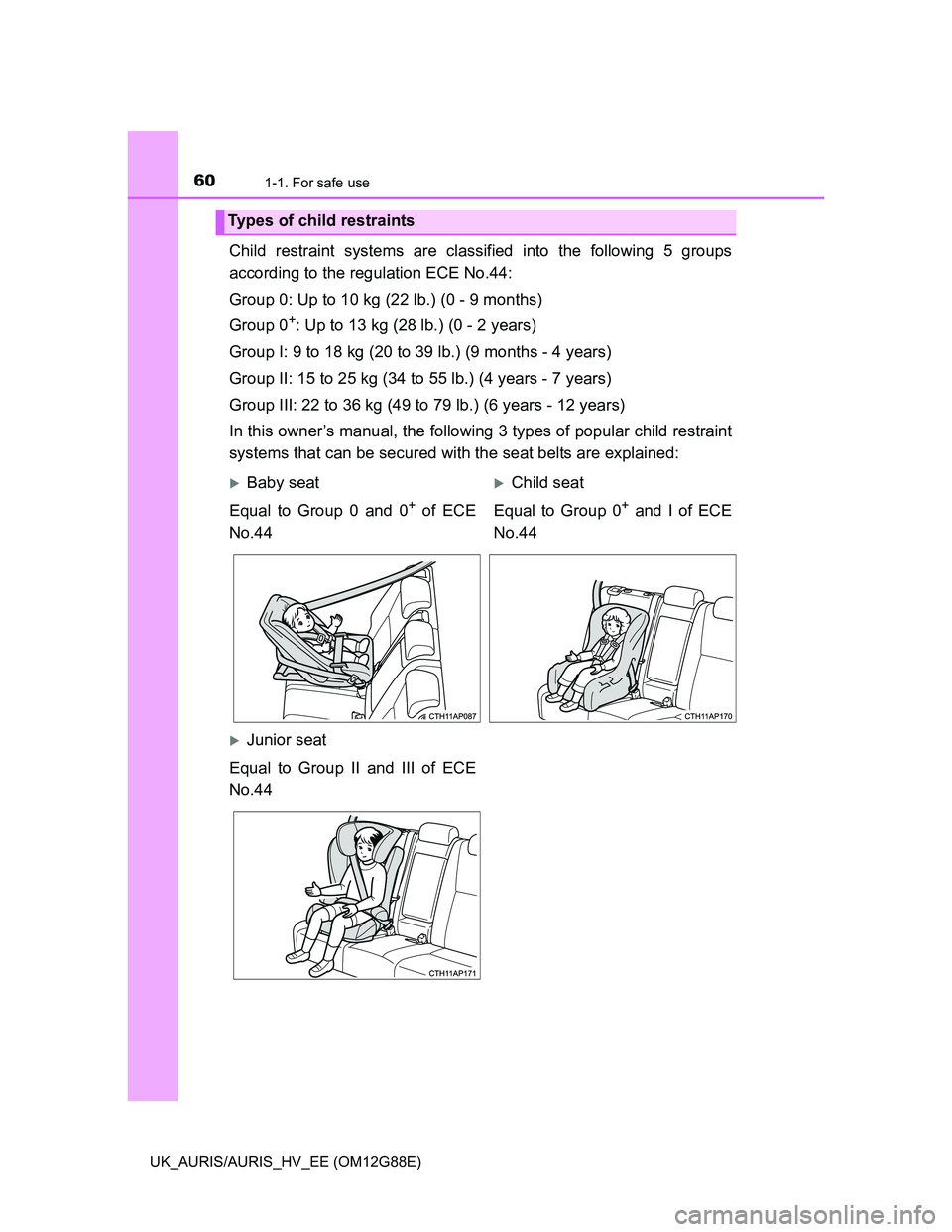

Child restraint systems are classified into the following 5 groups
according to the regulation ECE No.44:
Group 0: Up to 10 kg (22 lb.) (0 - 9 months)
Group 0
+: Up to 13 kg (28 lb.) (0 - 2 years)
Group I: 9 to 18 kg (20 to 39 lb.) (9 months - 4 years)
Group II: 15 to 25 kg (34 to 55 lb.) (4 years - 7 years)
Group III: 22 to 36 kg (49 to 79 lb.) (6 years - 12 years)
In this owner’s manual, the following 3 types of popular child restraint
systems that can be secured with the seat belts are explained:
Types of child restraints
Baby seatChild seat
Equal to Group 0 and 0
+ of ECE
No.44Equal to Group 0+ and I of ECE
No.44
Junior seat
Equal to Group II and III of ECE
No.44

611-1. For safe use
1
For safety and security
UK_AURIS/AURIS_HV_EE (OM12G88E)

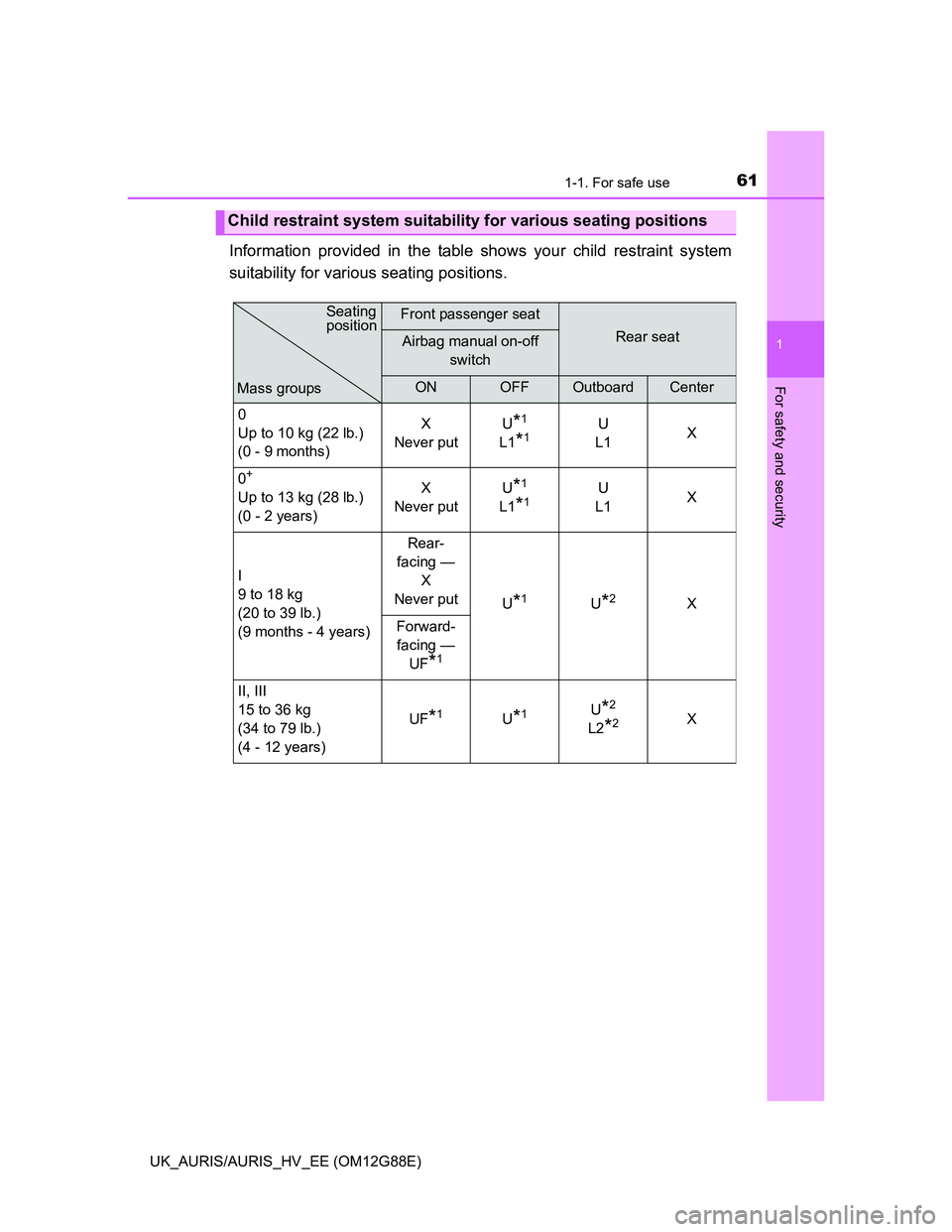

Information provided in the table shows your child restraint system
suitability for various seating positions.
Child restraint system suitability for various seating positions
Front passenger seat
Rear seatAirbag manual on-off
switch
ONOFFOutboardCenter
0
Up to 10 kg (22 lb.)
(0 - 9 months)X
Never putU
*1
L1*1U
L1X
0
+
Up to 13 kg (28 lb.)
(0 - 2 years)X
Never putU*1
L1*1U
L1X
I
9 to 18 kg
(20 to 39 lb.)
(9 months - 4 years)Rear-
facing —
X
Never put
U
*1U*2X
Forward-
facing —
UF
*1
II, III
15 to 36 kg
(34 to 79 lb.)
(4 - 12 years)UF
*1U*1U*2
L2*2X
Mass groupsSeating
position

621-1. For safe use
UK_AURIS/AURIS_HV_EE (OM12G88E)
Key of letters inserted in the above table:
U: Suitable for “universal” category child restraint system approved
for the use in this mass group.
UF: Suitable for forward-facing “universal” category child restraint
system approved for the use in this mass group.
L1: Suitable for “TOYOTA G 0
+, BABY SAFE PLUS with SEAT BELT
FIXATION, BASE PLATFORM” (0 to 13 kg [0 to 28 lb.]) approved
for the use in this mass group.
L2: Suitable for “TOYOTA KIDFIX” (15 to 36 kg [34 to 79 lb.])
approved for the use in this mass group.
X: Not suitable seat position for children in this mass group.
*1: Adjust the front seatback to the most upright position. Move the front seat
cushion to the fully rearward.
Remove the head restraint if it interferes with your child restraint system.
Vehicles with a vertical height adjustment lever: Adjust the seat cushion to
the highest position.
Follow these procedures
• For installing a baby seat with support base
If the baby seat interferes with the seatback when latching the baby seat
into the support base, adjust the seatback rearward until there is no
interference.
• For installing a forward-facing child seat
If the seat belt shoulder anchor is ahead of the child seat belt guide,
move the seat cushion forward.
• For installing a junior seat
If the child in your child restraint system is in a very upright position,
adjust the seatback to the most comfortable position.
If the seat belt shoulder anchor is ahead of the child seat belt guide,
move the seat cushion forward.
*2: Remove the head restraint if it interferes with your child restraint system.
The child restraint system mentioned in the table may not be available
outside of the EU area.
Other child restraint system which is different from the system men-
tioned in the table can be used, but the suitability of the systems must
be carefully checked with the child restraint system manufacturer con-
cerned and the seller of those seats.

631-1. For safe use
1
For safety and security
UK_AURIS/AURIS_HV_EE (OM12G88E)

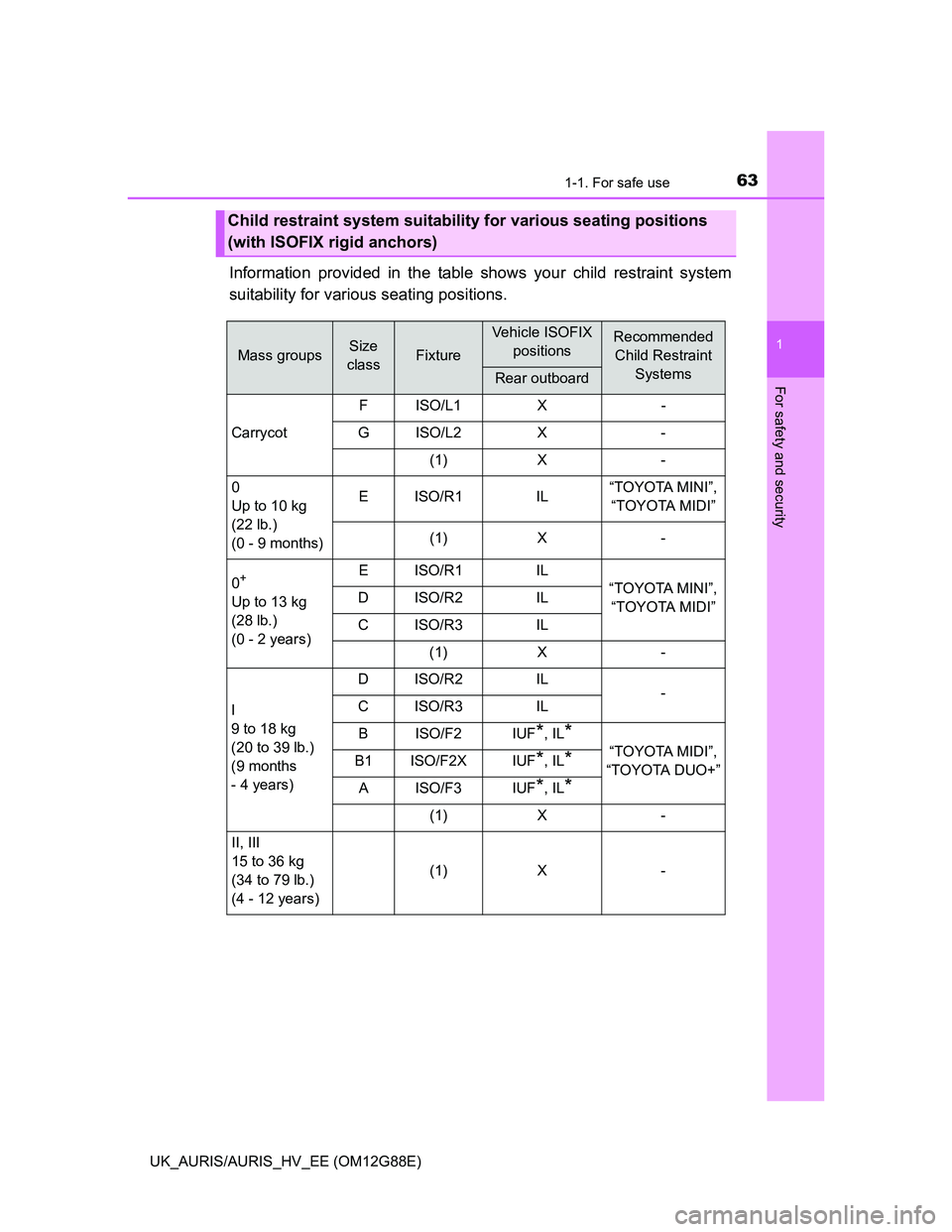

Information provided in the table shows your child restraint system
suitability for various seating positions.
Child restraint system suitability for various seating positions
(with ISOFIX rigid anchors)
Mass groupsSize
classFixture
Vehicle ISOFIX
positionsRecommended
Child Restraint
Systems
Rear outboard
CarrycotFISO/L1 X -
GISO/L2 X -
(1) X -
0
Up to 10 kg
(22 lb.)
(0 - 9 months)E ISO/R1 IL“TOYOTA MINI”,
“TOYOTA MIDI”
(1) X -
0
+
Up to 13 kg
(28 lb.)
(0 - 2 years)E ISO/R1 IL
“TOYOTA MINI”,
“TOYOTA MIDI” D ISO/R2 IL
C ISO/R3 IL
(1) X -
I
9 to 18 kg
(20 to 39 lb.)
(9 months
- 4 years)D ISO/R2 IL
-
C ISO/R3 IL
B ISO/F2 IUF
*, IL*
“TOYOTA MIDI”,
“TOYOTA DUO+” B1 ISO/F2X IUF*, IL*
A ISO/F3 IUF*, IL*
(1) X -
II, III
15 to 36 kg
(34 to 79 lb.)
(4 - 12 years)(1) X -

641-1. For safe use
UK_AURIS/AURIS_HV_EE (OM12G88E)
(1) For the child restraint system which do not carry the ISO/XX size
class identification (A to G), for the applicable mass group, the
car manufacturer shall indicate the vehicle specific ISOFIX child
restraint system(s) recommended for each position.
Key of letters inserted in the above table:
IUF: Suitable for ISOFIX forward-facing child restraint systems of uni-
versal category approved for use in this mass group.
IL: Suitable for ISOFIX child restraint systems of the categories for
“specific vehicles”, “restricted”, or “semi-universal”, approved for
use in this mass group.
X: ISOFIX position not suitable for ISOFIX child restraint systems in
this mass group and/or this size class.
*: Remove the head restraint if it interferes with your child restraint system.
When using a “TOYOTA MINI” or “TOYOTA MIDI”, adjust the support
leg and the ISOFIX connectors as follows:
Lock the support leg where
5th hole can be seen.
Lock the ISOFIX connectors
where numbers 4 and 5 can
be seen.
When using the right side seat for the child restraint system, do not sit
in the center seat.
The child restraint system mentioned in the table may not be available
outside of the EU area.
Other child restraint systems different from the systems mentioned in
the table can be used, but the suitability of the systems must be care-
fully checked with the child restraint system manufacturer and retailer.
