2014 TOYOTA AURIS HYBRID clock setting

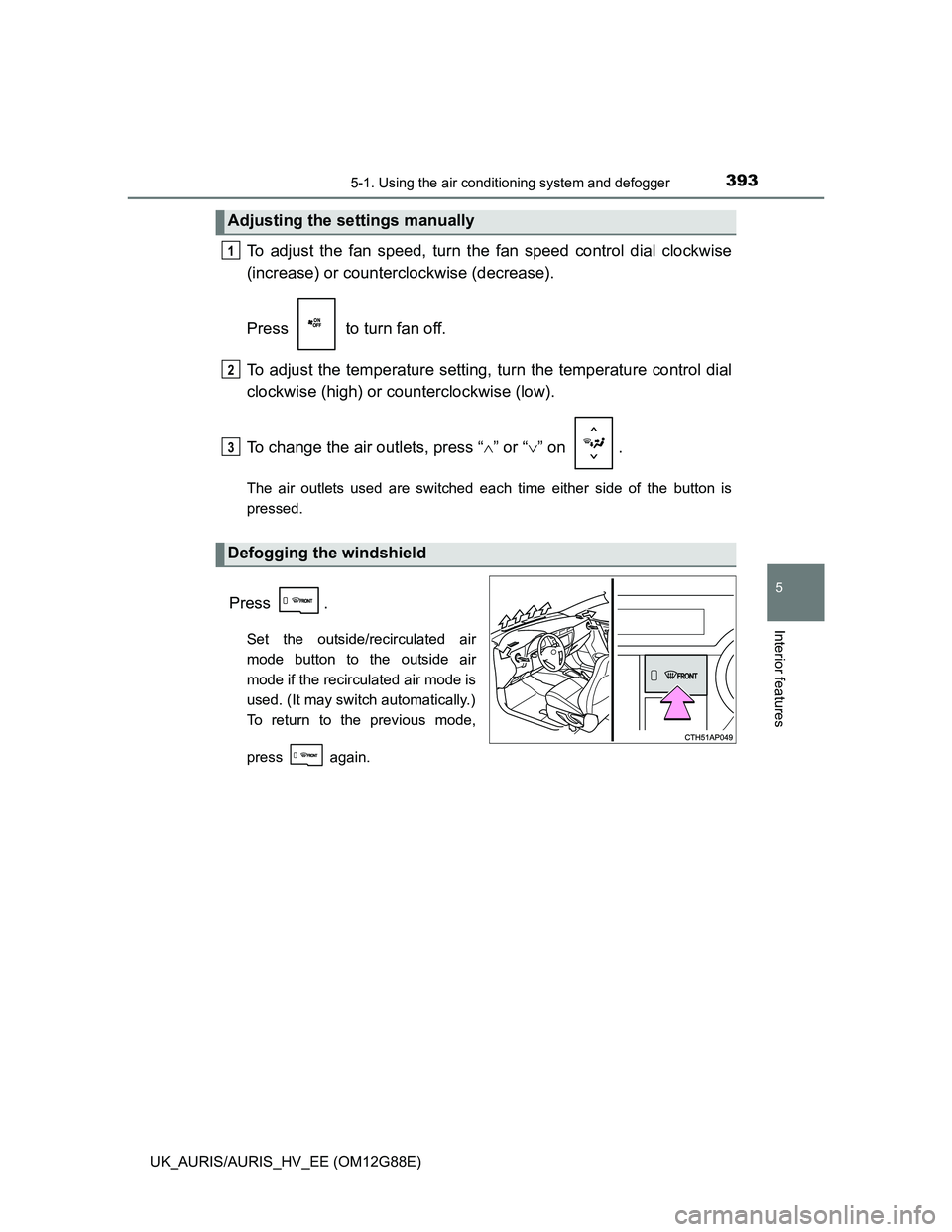

3935-1. Using the air conditioning system and defogger
UK_AURIS/AURIS_HV_EE (OM12G88E)
5
Interior features
To adjust the fan speed, turn the fan speed control dial clockwise
(increase) or counterclockwise (decrease).
Press to turn fan off.
To adjust the temperature setting, turn the temperature control dial
clockwise (high) or counterclockwise (low).
To change the air outlets, press “” or “” on .
The air outlets used are switched each time either side of the button is
pressed.
Press .
Set the outside/recirculated air
mode button to the outside air
mode if the recirculated air mode is
used. (It may switch automatically.)
To return to the previous mode,
press again.
Adjusting the settings manually
Defogging the windshield
1
2
3

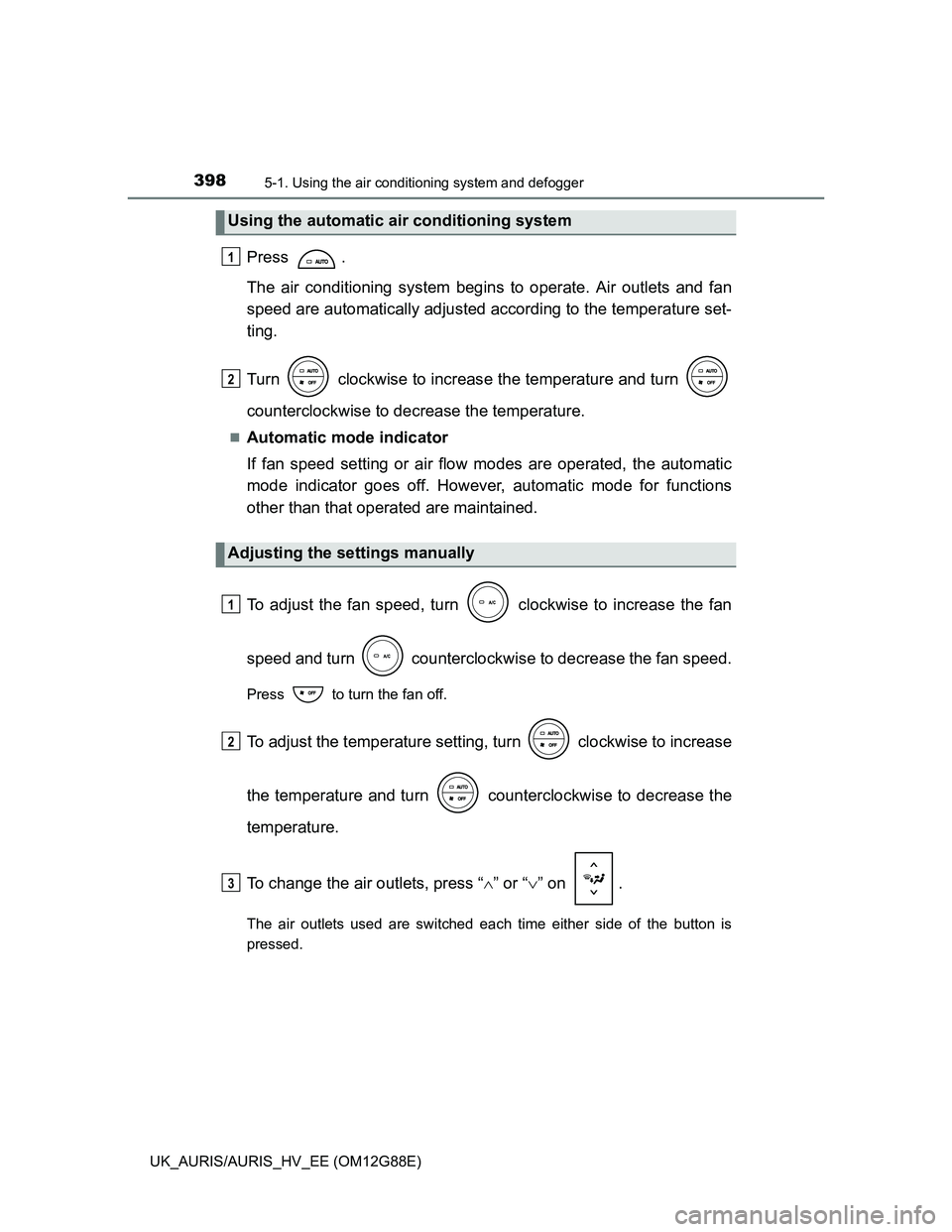

3985-1. Using the air conditioning system and defogger
UK_AURIS/AURIS_HV_EE (OM12G88E)
Press .
The air conditioning system begins to operate. Air outlets and fan
speed are automatically adjusted according to the temperature set-
ting.
Turn clockwise to increase the temperature and turn
counterclockwise to decrease the temperature.
Automatic mode indicator
If fan speed setting or air flow modes are operated, the automatic
mode indicator goes off. However, automatic mode for functions
other than that operated are maintained.
To adjust the fan speed, turn clockwise to increase the fan
speed and turn counterclockwise to decrease the fan speed.
Press to turn the fan off.
To adjust the temperature setting, turn clockwise to increase
the temperature and turn counterclockwise to decrease the
temperature.
To change the air outlets, press “” or “” on .
The air outlets used are switched each time either side of the button is
pressed.
Using the automatic air conditioning system
Adjusting the settings manually
1
2
1
2
3

4075-1. Using the air conditioning system and defogger
UK_AURIS/AURIS_HV_EE (OM12G88E)
5
Interior features
Press .
The air conditioning system begins to operate. Air outlets and fan
speed are automatically adjusted according to the temperature set-
ting.
Turn clockwise to increase the temperature and turn
counterclockwise to decrease the temperature.
When is pressed (the indicator is on) or the passenger’s side
temperature control dial is turned, the temperature for the driver and pas-
senger seats can be adjusted separately.

Automatic mode indicator
If fan speed setting or air flow modes are operated, the automatic
mode indicator goes off. However, automatic mode for functions
other than that operated are maintained.
To adjust the fan speed, press “” on to increase the fan
speed and “” to decrease the fan speed.
Press to turn the fan off.
To adjust the temperature setting, turn clockwise to increase
the temperature and turn counterclockwise to decrease the
temperature.
When is pressed (the indicator is on) or the passenger’s side
temperature control dial is turned, the temperature for the driver and pas-
senger seats can be adjusted separately.
Using the automatic air conditioning system
Adjusting the settings manually
1
2
1
2
