2014 TOYOTA AURIS HYBRID Owners Manual

4255-2. Using the audio system
UK_AURIS/AURIS_HV_EE (OM12G88E)
5
Interior features

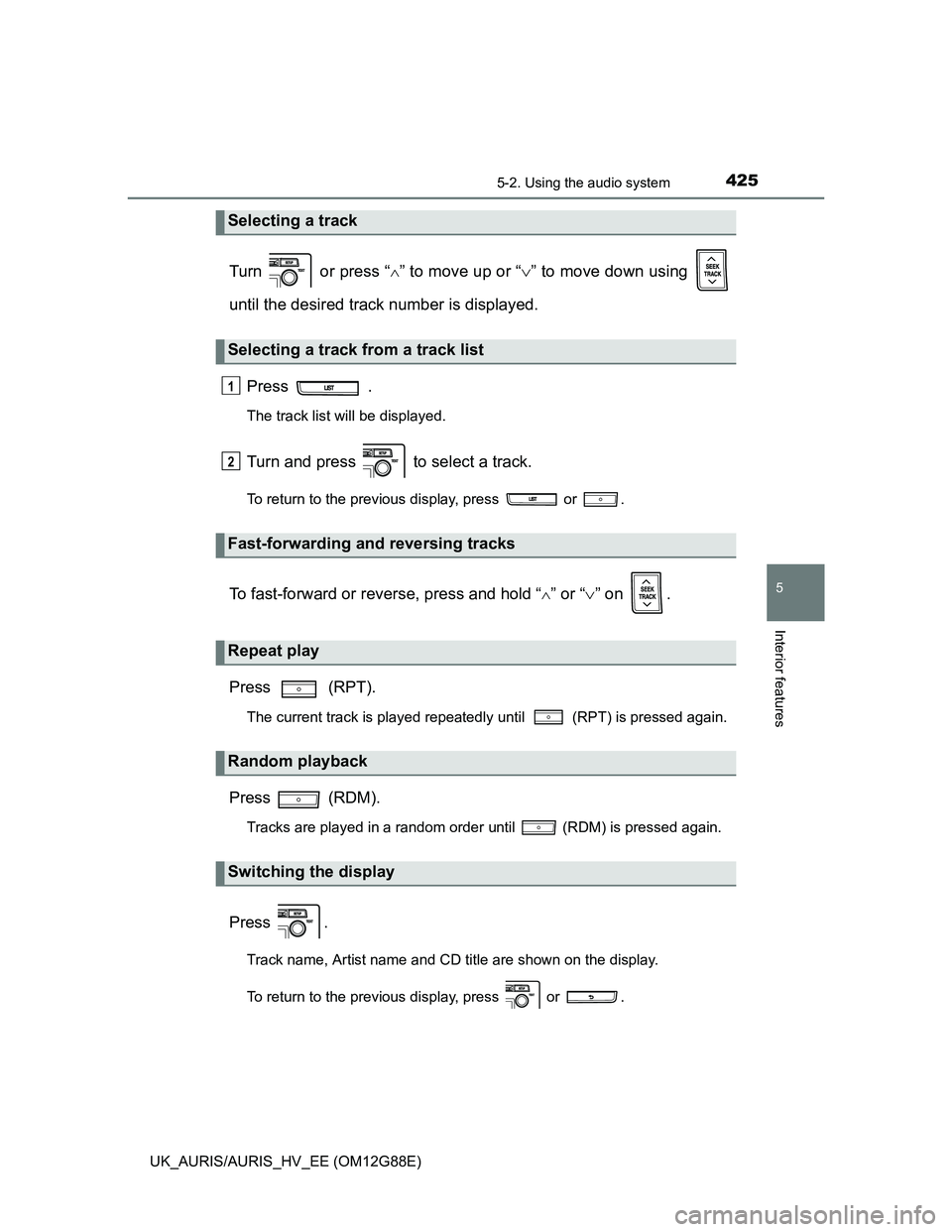

Turn or press “” to move up or “” to move down using
until the desired track number is displayed.
Press .
The track list will be displayed.
Turn and press to select a track.
To return to the previous display, press or .
To fast-forward or reverse, press and hold “” or “” on .
Press (RPT).
The current track is played repeatedly until (RPT) is pressed again.
Press (RDM).
Tracks are played in a random order until (RDM) is pressed again.
Press .
Track name, Artist name and CD title are shown on the display.
To return to the previous display, press or .
Selecting a track
Selecting a track from a track list
Fast-forwarding and reversing tracks
Repeat play
Random playback
Switching the display
1
2

4265-2. Using the audio system
UK_AURIS/AURIS_HV_EE (OM12G88E)

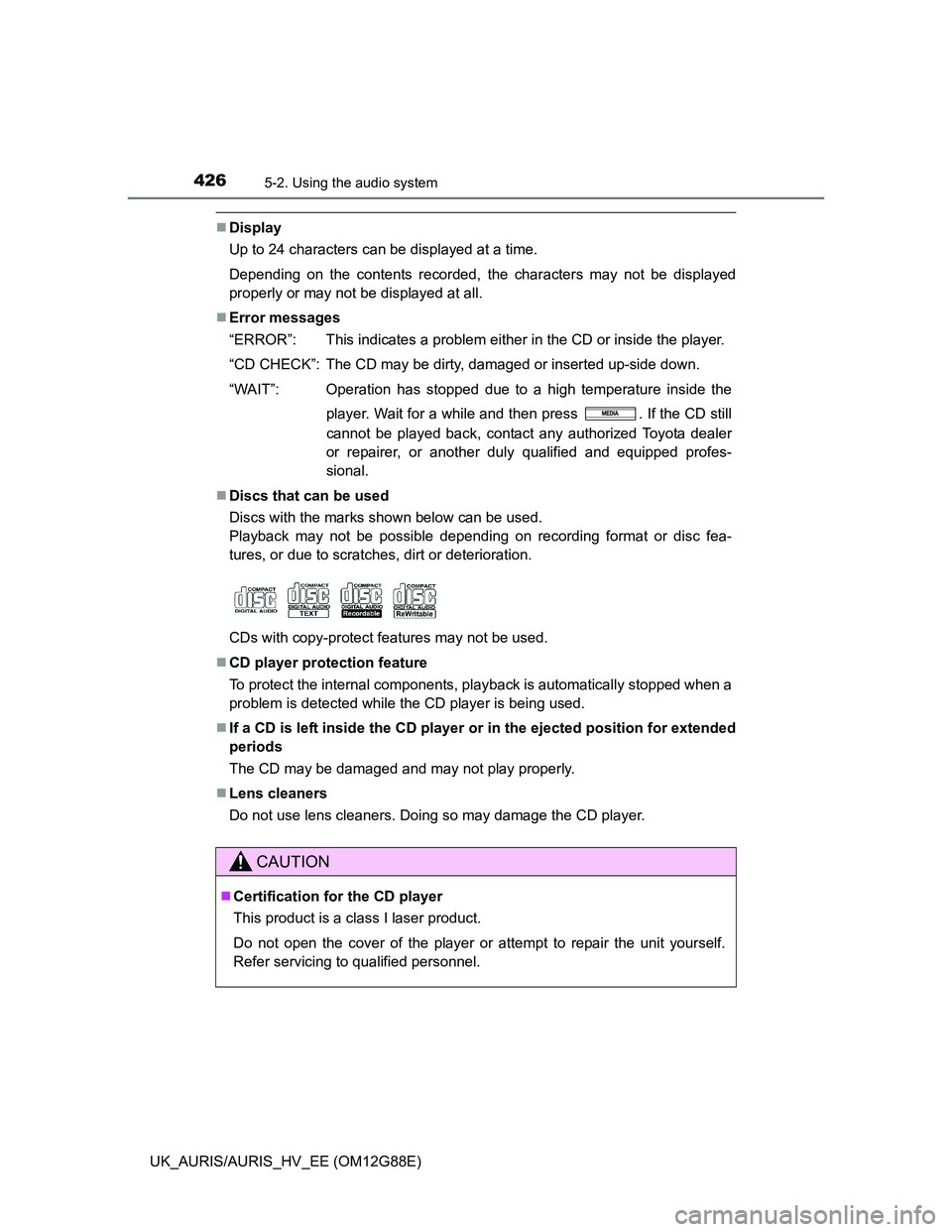

Display
Up to 24 characters can be displayed at a time.
Depending on the contents recorded, the characters may not be displayed
properly or may not be displayed at all.
Error messages
“ERROR”: This indicates a problem either in the CD or inside the player.
“CD CHECK”: The CD may be dirty, damaged or inserted up-side down.
“WAIT”: Operation has stopped due to a high temperature inside the
player. Wait for a while and then press . If the CD still
cannot be played back, contact any authorized Toyota dealer
or repairer, or another duly qualified and equipped profes-
sional.
Discs that can be used
Discs with the marks shown below can be used.
Playback may not be possible depending on recording format or disc fea-
tures, or due to scratches, dirt or deterioration.
CDs with copy-protect features may not be used.
CD player protection feature
To protect the internal components, playback is automatically stopped when a
problem is detected while the CD player is being used.
If a CD is left inside the CD player or in the ejected position for extended
periods
The CD may be damaged and may not play properly.
Lens cleaners
Do not use lens cleaners. Doing so may damage the CD player.
CAUTION
Certification for the CD player
This product is a class I laser product.
Do not open the cover of the player or attempt to repair the unit yourself.
Refer servicing to qualified personnel.

4275-2. Using the audio system
UK_AURIS/AURIS_HV_EE (OM12G88E)
5
Interior features

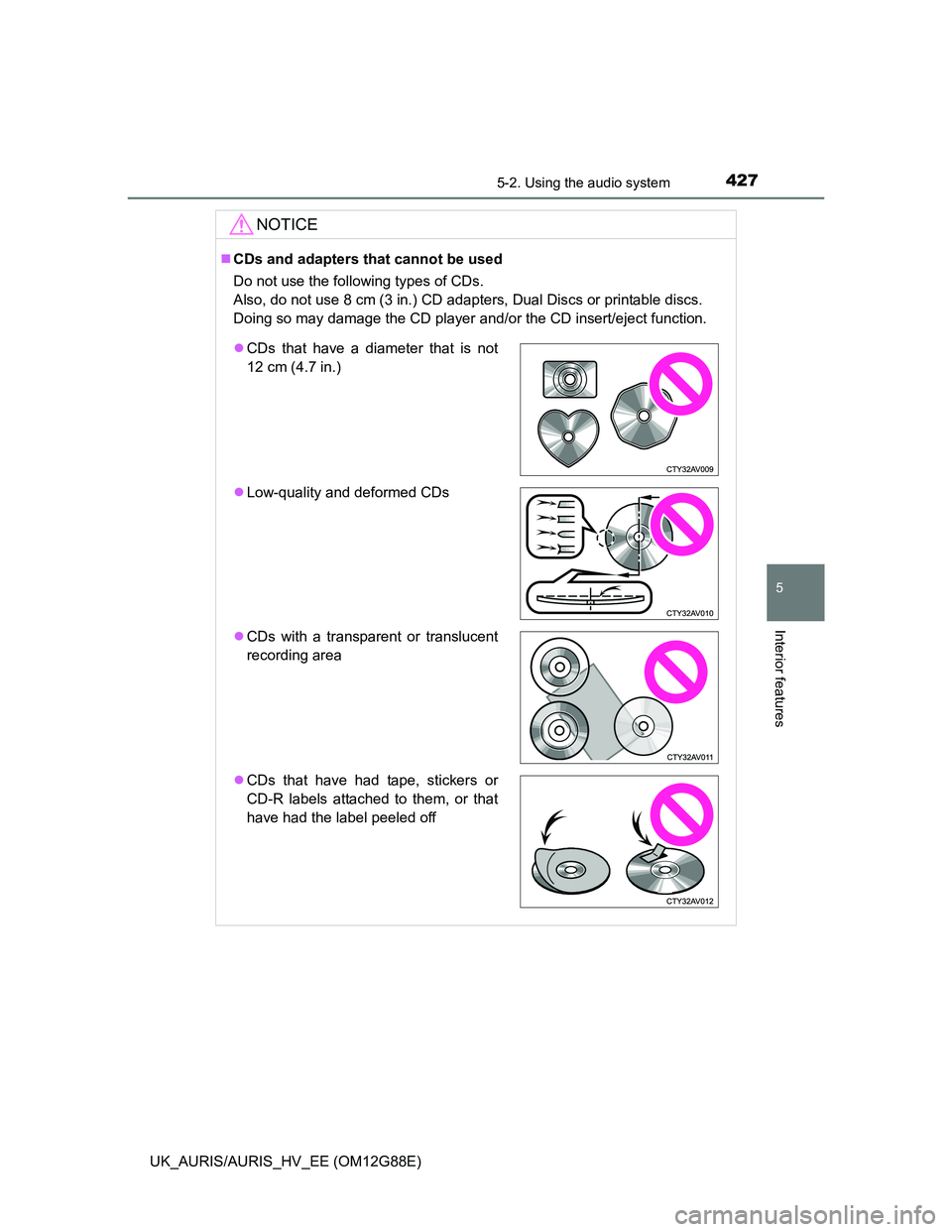

NOTICE
CDs and adapters that cannot be used
Do not use the following types of CDs.
Also, do not use 8 cm (3 in.) CD adapters, Dual Discs or printable discs.
Doing so may damage the CD player and/or the CD insert/eject function.
CDs that have a diameter that is not
12 cm (4.7 in.)
Low-quality and deformed CDs
CDs with a transparent or translucent
recording area
CDs that have had tape, stickers or
CD-R labels attached to them, or that
have had the label peeled off

4285-2. Using the audio system
UK_AURIS/AURIS_HV_EE (OM12G88E)

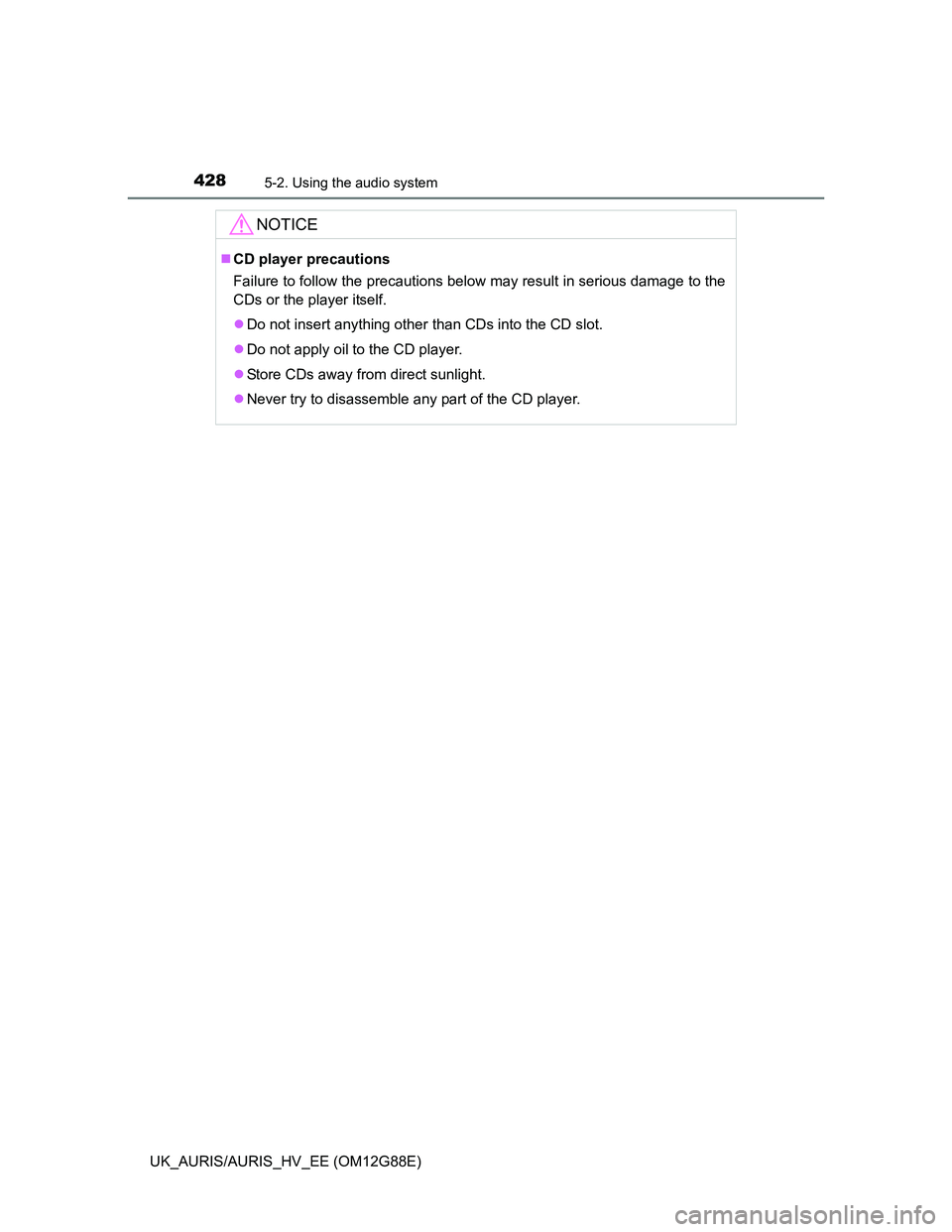

NOTICE
CD player precautions
Failure to follow the precautions below may result in serious damage to the
CDs or the player itself.
Do not insert anything other than CDs into the CD slot.
Do not apply oil to the CD player.
Store CDs away from direct sunlight.
Never try to disassemble any part of the CD player.

4295-2. Using the audio system
UK_AURIS/AURIS_HV_EE (OM12G88E)
5
Interior features
P. 4 2 4

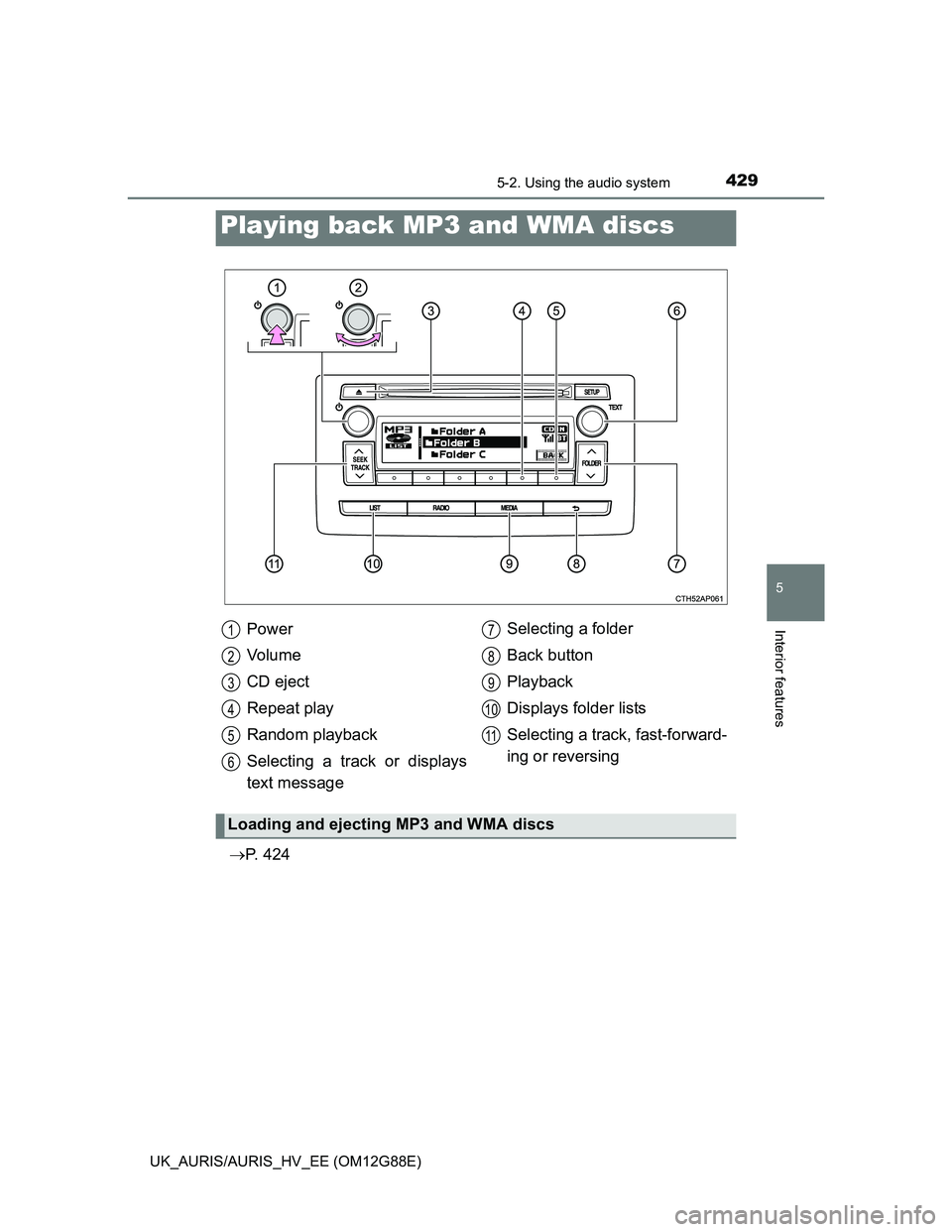

Playing back MP3 and WMA discs
Power
Vo l u m e
CD eject
Repeat play
Random playback
Selecting a track or displays
text messageSelecting a folder
Back button
Playback
Displays folder lists
Selecting a track, fast-forward-
ing or reversing
Loading and ejecting MP3 and WMA discs
1
2
3
4
5
6
7
8
9
10
11

4305-2. Using the audio system
UK_AURIS/AURIS_HV_EE (OM12G88E)

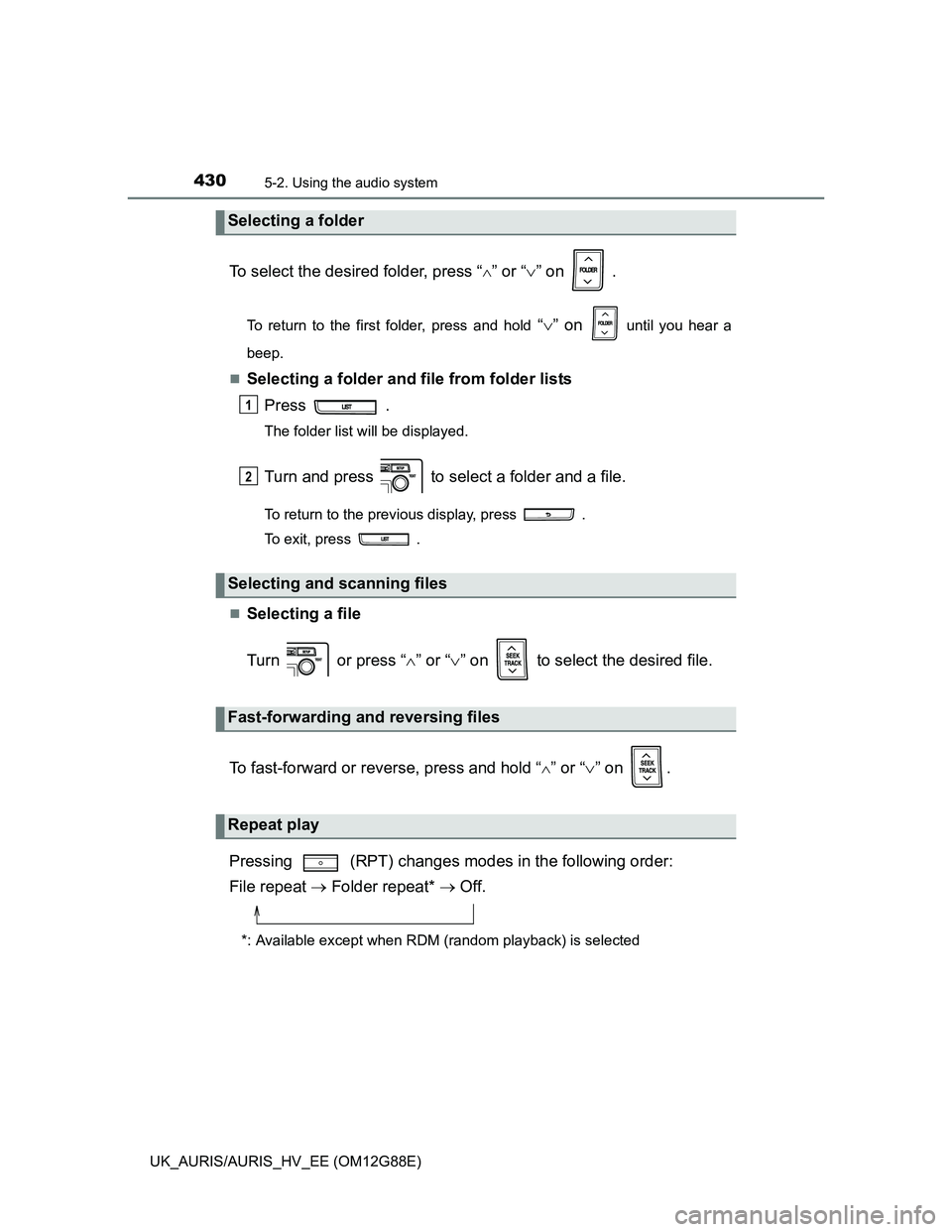

To select the desired folder, press “” or “” on .
To return to the first folder, press and hold “” on until you hear a
beep.

Selecting a folder and file from folder lists
Press .
The folder list will be displayed.
Turn and press to select a folder and a file.
To return to the previous display, press .
To exit, press .

Selecting a file
Turn or press “” or “” on to select the desired file.
To fast-forward or reverse, press and hold “
” or “” on .
Pressing (RPT) changes modes in the following order:
File repeat  Folder repeat*  Off.
*: Available except when RDM (random playback) is selected
Selecting a folder
Selecting and scanning files
Fast-forwarding and reversing files
Repeat play
1
2

4315-2. Using the audio system
UK_AURIS/AURIS_HV_EE (OM12G88E)
5
Interior features

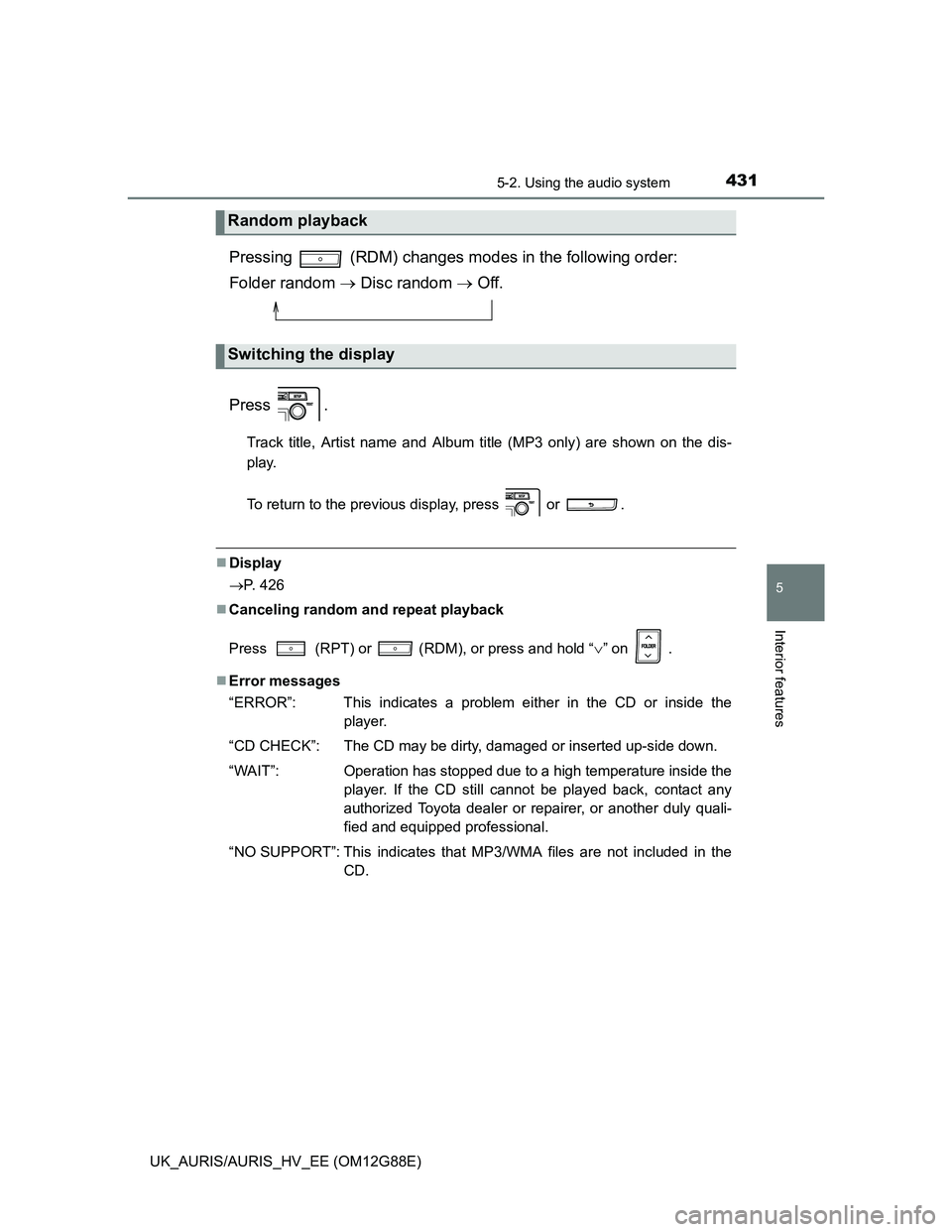

Pressing (RDM) changes modes in the following order:
Folder random  Disc random  Off.
Press .
Track title, Artist name and Album title (MP3 only) are shown on the dis-
play.
To return to the previous display, press or .
Display
P. 426
Canceling random and repeat playback
Press
(RPT) or (RDM), or press and hold “” on .
Error messages
“ERROR”: This indicates a problem either in the CD or inside the
player.
“CD CHECK”: The CD may be dirty, damaged or inserted up-side down.
“WAIT”: Operation has stopped due to a high temperature inside the
player. If the CD still cannot be played back, contact any
authorized Toyota dealer or repairer, or another duly quali-
fied and equipped professional.
“NO SUPPORT”: This indicates that MP3/WMA files are not included in the
CD.
Random playback
Switching the display

4325-2. Using the audio system
UK_AURIS/AURIS_HV_EE (OM12G88E)Discs that can be used
Discs with the marks shown below can be used.
Playback may not be possible depending on recording format or disc fea-
tures, or due to scratches, dirt or deterioration.
CD player protection feature
To protect the internal components, playback is automatically stopped when a
problem is detected while the CD player is being used.
If a CD is left inside the CD player or in the ejected position for extended
periods
The CD may be damaged and may not play properly.
Lens cleaners
Do not use lens cleaners. Doing so may damage the CD player.
MP3 and WMA files
MP3 (MPEG Audio LAYER3) is a standard audio compression format.
Files can be compressed to approximately 1/10 of their original size by using
MP3 compression.
WMA (Windows Media Audio) is a Microsoft audio compression format.
This format compresses audio data to a size smaller than that of the MP3 for-
mat.
There is a limit to the MP3 and WMA file standards and to the media/formats
recorded by them that can be used.
MP3 file compatibility
• Compatible standards
MP3 (MPEG1 LAYER3, MPEG2 LSF LAYER3)
• Compatible sampling frequencies
MPEG1 LAYER3: 32, 44.1, 48 (kHz)
MPEG2 LSF LAYER3: 16, 22.05, 24 (kHz)
• Compatible bit rates (Compatible with VBR)
MPEG1 LAYER3: 32, 40, 48, 56, 64, 80, 96, 112, 128, 160, 192, 224,
256, 320 (kbps)
MPEG2 LSF LAYER3: 8, 16, 24, 32, 40, 48, 56, 64, 80, 96, 112, 128, 144,
160 (kbps)
• Compatible channel modes: stereo, joint stereo, dual channel and mon-
aural
