2014 TOYOTA AURIS HYBRID Owners Manual

457
UK_AURIS/AURIS_HV_EE (OM12G88E)
5
Interior features
5-3. Using the interior lights
Vanity lights (if equipped) (P. 458)
Interior/front personal lights (P. 458, 459)
Shift lever light (hybrid model)
Interior/rear personal lights (if equipped) (P. 458, 459)
Except hybrid model (vehicles with a smart entry & start system):
engine switch light
Hybrid model: power switch light
Interior lights list
1
2
3
4
5
5

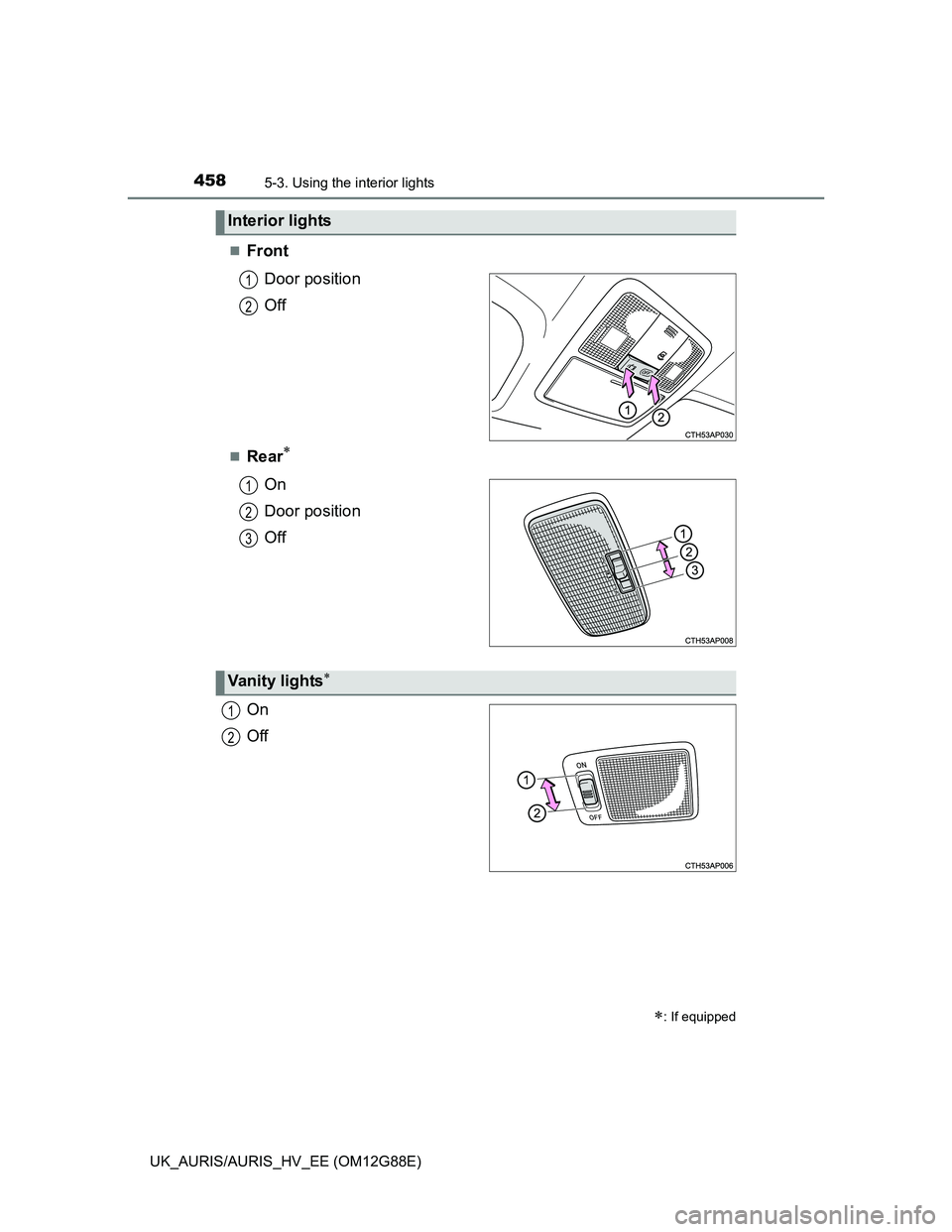

4585-3. Using the interior lights
UK_AURIS/AURIS_HV_EE (OM12G88E)
Front
Door position
Off
Rear
On
Door position
Off
On
Off
Interior lights
: If equipped
1
2
1
2
3
Vanity lights
1
2

4595-3. Using the interior lights
UK_AURIS/AURIS_HV_EE (OM12G88E)
5
Interior features
Front
On/off
When a light is on due to its door
link switch, the light will not turn
off even if the lens is pressed.

Rear
On/off
When a front interior light is on
due to its door link switch, the
light will not turn off even if the
lens is pressed.
Personal lights
: If equipped

4605-3. Using the interior lights
UK_AURIS/AURIS_HV_EE (OM12G88E)
Illuminated entry system
Vehicles without a smart entry & start system (except hybrid model)
When the interior light switch is in the “DOOR” position, the interior light auto-
matically turns on/off according to the engine switch position, whether the
doors are locked/unlocked and whether the doors are open/closed.
Vehicles with a smart entry & start system (except hybrid model)
When the interior light switch is in the “DOOR” position, the interior light and
engine switch light automatically turn on/off according to engine switch mode,
the presence of the electronic key, whether the doors are locked/unlocked
and whether the doors are open/closed.
Hybrid model
When the interior light switch is in the “DOOR” position, the interior light and
power switch light automatically turn on/off according to power switch mode,
the presence of the electronic key, whether the doors are locked/unlocked
and whether the doors are open/closed.
To prevent 12-volt battery discharge (except hybrid model)
The following lights will go off automatically after 20 minutes:
Personal/interior lights
Luggage compartment light
Vanity lights (if equipped)
To prevent 12-volt battery discharge (hybrid model)
The following lights will go off automatically after 20 minutes:
Personal/interior lights
Luggage compartment light
Vanity lights
Customization that can be configured at any authorized Toyota dealer or
repairer, or another duly qualified and equipped professional
Setting (e.g. the time elapsed before lights turn off) can be changed.
(Customizable features: P. 757)

461
UK_AURIS/AURIS_HV_EE (OM12G88E)
5
Interior features
5-4. Using the storage features
List of storage features
Auxiliary boxes (P. 465)
Glove box (P. 462)
Bottle holders (P. 463)Cup holders (P. 464)
Console box (P. 462)
CAUTION
Items that should not be left in the storage spaces
Do not leave glasses, lighters or spray cans in the storage spaces, as this
may cause the following when cabin temperature becomes high:
Glasses may be deformed by heat or cracked if they come into contact
with other stored items.
Lighters or spray cans may explode. If they come into contact with other
stored items, the lighter may catch fire or the spray can may release gas,
causing a fire hazard.
When driving or when the storage compartments are not in use
Keep the lids closed.
In the event of sudden braking or sudden swerving, an accident may occur
due to an occupant being struck by an open lid or the items stored inside.
1
2
3
4
5

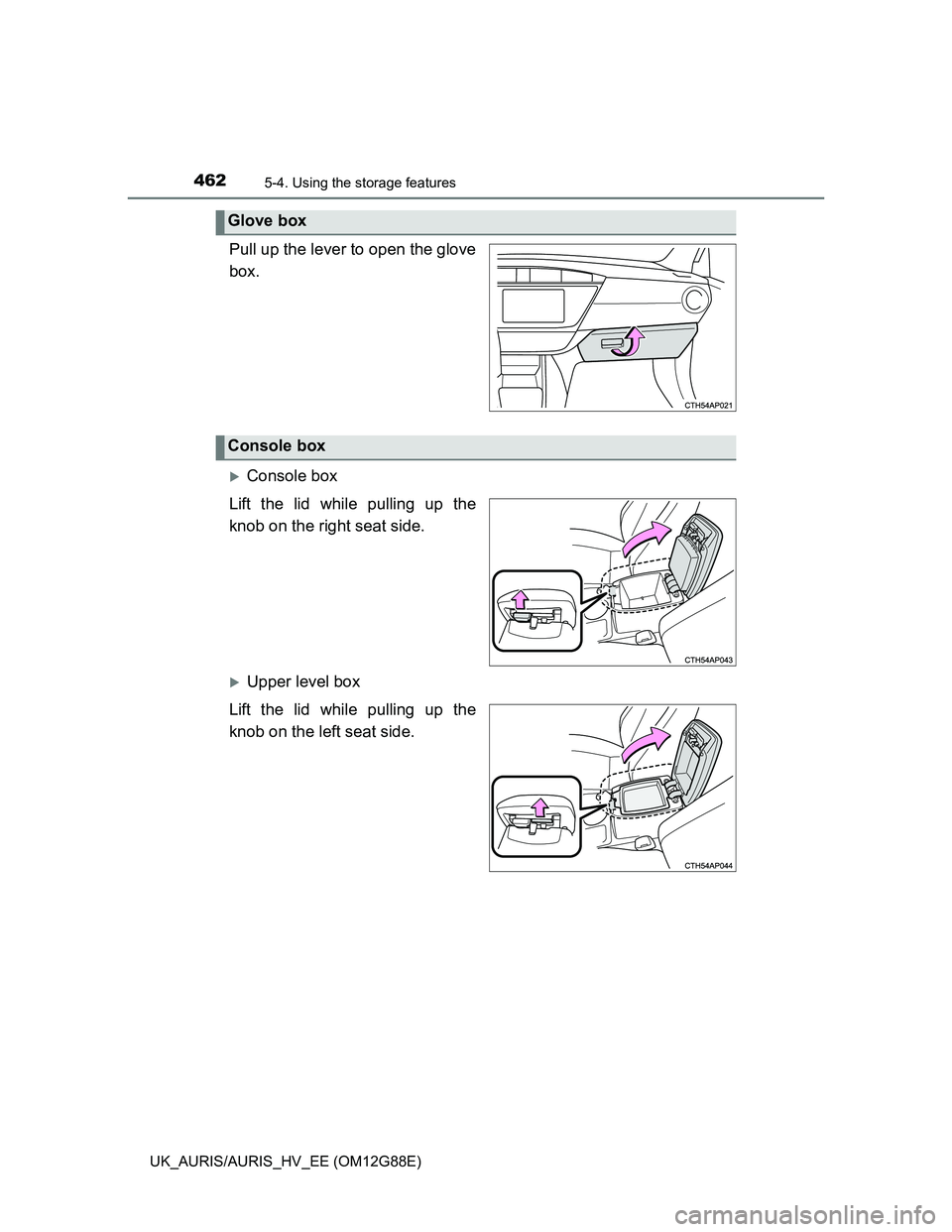

4625-4. Using the storage features
UK_AURIS/AURIS_HV_EE (OM12G88E)
Pull up the lever to open the glove
box.
Console box
Lift the lid while pulling up the
knob on the right seat side.
Upper level box
Lift the lid while pulling up the
knob on the left seat side.
Glove box
Console box

4635-4. Using the storage features
UK_AURIS/AURIS_HV_EE (OM12G88E)
5
Interior features
Console box lid

Front
Rear
When using the holder as a bottle holder
When storing a bottle, close the cap.
The bottle may not be stored depending on its size or shape. The console box lid can be slid forward or
backward. (with a slide function)
Bottle holders

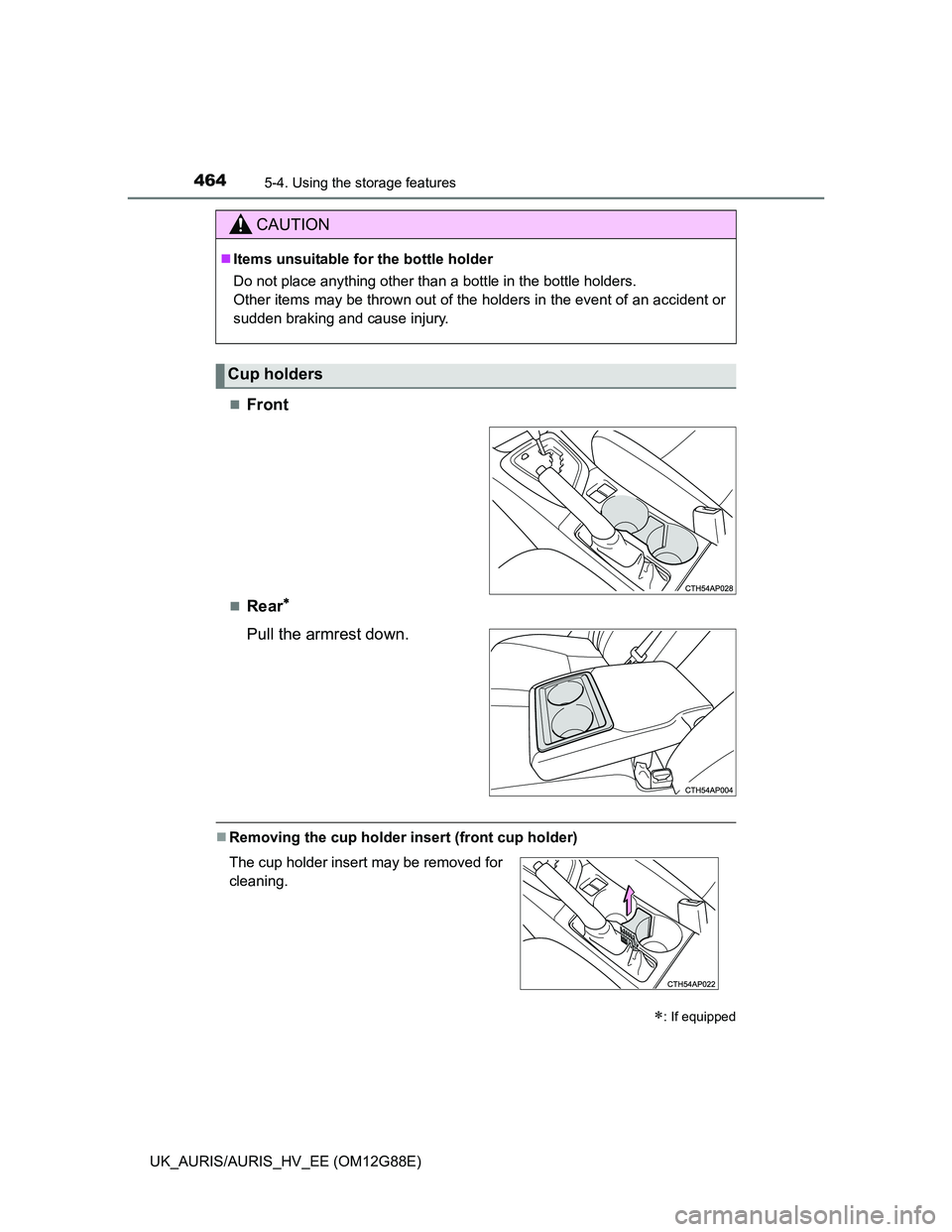

4645-4. Using the storage features
UK_AURIS/AURIS_HV_EE (OM12G88E)
Front
Rear
Pull the armrest down.
Removing the cup holder insert (front cup holder)
CAUTION
Items unsuitable for the bottle holder
Do not place anything other than a bottle in the bottle holders.
Other items may be thrown out of the holders in the event of an accident or
sudden braking and cause injury.
Cup holders
: If equipped
The cup holder insert may be removed for
cleaning.
