Instrument cluster

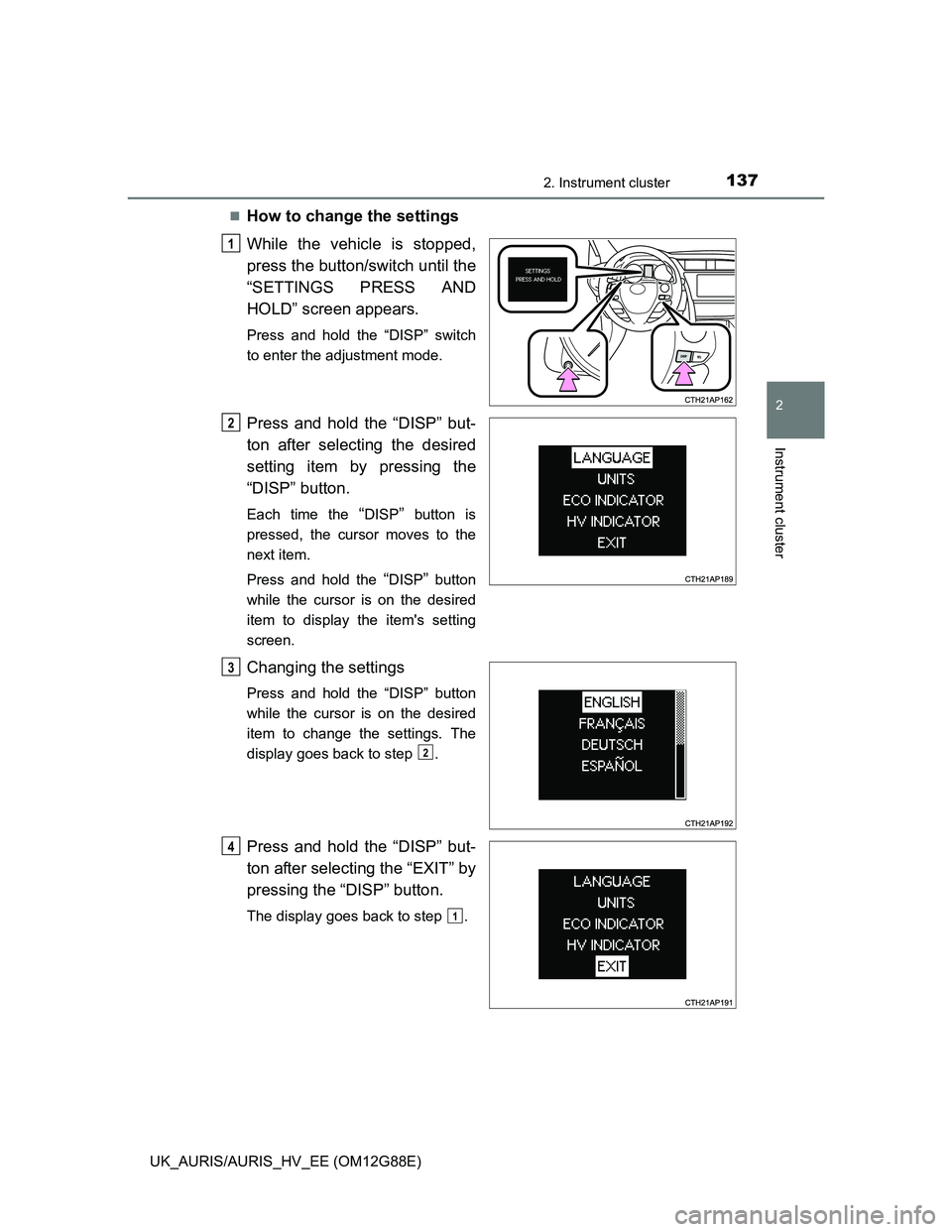

How to change the settings
While the vehicle is stopped,
press the button/switch until the
“SETTINGS PRESS AND
HOLD” screen appears.
Press and hold the “DISP” switch
to enter the adjustment mode.
Press and hold the “DISP” but-
ton after selecting the desired
setting item by pressing the
“DISP” button.
Each time the “DISP” button is
pressed, the cursor moves to the
next item.
Press and hold the
“DISP” button
while the cursor is on the desired
item to display the item's setting
screen.
Changing the settings
Press and hold the “DISP” button
while the cursor is on the desired
item to change the settings. The
display goes back to step .
Press and hold the “DISP” but-
ton after selecting the “EXIT” by
pressing the “DISP” button.
The display goes back to step .
1
2
3
2
4
1

1382. Instrument cluster
UK_AURIS/AURIS_HV_EE (OM12G88E)
Hybrid System Indicator (hybrid model)
By keeping the indicator needle within Eco area, more Eco-friendly driving
can be achieved.
Charge area indicates regeneration* status. Regenerated energy will be
used to charge the battery.
*: When used in this manual, “regeneration” refers to the conversion of
energy created by the movement of the vehicle into electrical energy.
The meters and display illuminate when
Except hybrid model (vehicles without a smart entry & start system)
The engine switch is in the “ON” position.
Except hybrid model (vehicles with a smart entry & start system)
The engine switch is in IGNITION ON mode.
Hybrid model
The power switch is in ON mode. Charge area
Shows regenerative charging.
Hybrid Eco area
Shows that the vehicle is driven in a
condition that promotes frequent motor-
only operation. (When the vehicle is
operating low driving load, such as
when driving slowly, using hybrid Eco
area leads Eco-friendly driving.)
Eco area
Shows that the vehicle is being driven in
an Eco-friendly manner.
Power area
Shows the driving power is more than
the upper limit of Eco driving.
1
2
3
4

1392. Instrument cluster
UK_AURIS/AURIS_HV_EE (OM12G88E)
2
Instrument cluster
When disconnecting and reconnecting 12-volt battery terminals
The following information data will be reset:
Elapsed time
Average fuel consumption
Driving range
Average vehicle speed
Liquid crystal display
Small spots or light spots may appear on the display. This phenomenon is
characteristic of liquid crystal displays, and there is no problem continuing to
use the display.
Engine speed (hybrid model)
On hybrid vehicles, engine speed is precisely controlled in order to help
improve fuel efficiency and reduce exhaust emissions etc.
There are times when the engine speed that is displayed may differ even
when vehicle operation and driving conditions are the same.
Setting display automatic suspension
In the following situations, the setting display will be suspended.
When a message appears.
When the vehicle begins to move.

1402. Instrument cluster
UK_AURIS/AURIS_HV_EE (OM12G88E)
During Eco-friendly acceleration
operation (Eco driving), Eco Driv-
ing Indicator Light will turn on.
When the accelerator pedal is
depressed excessively, and when
the vehicle is stopped, the light
turns off.

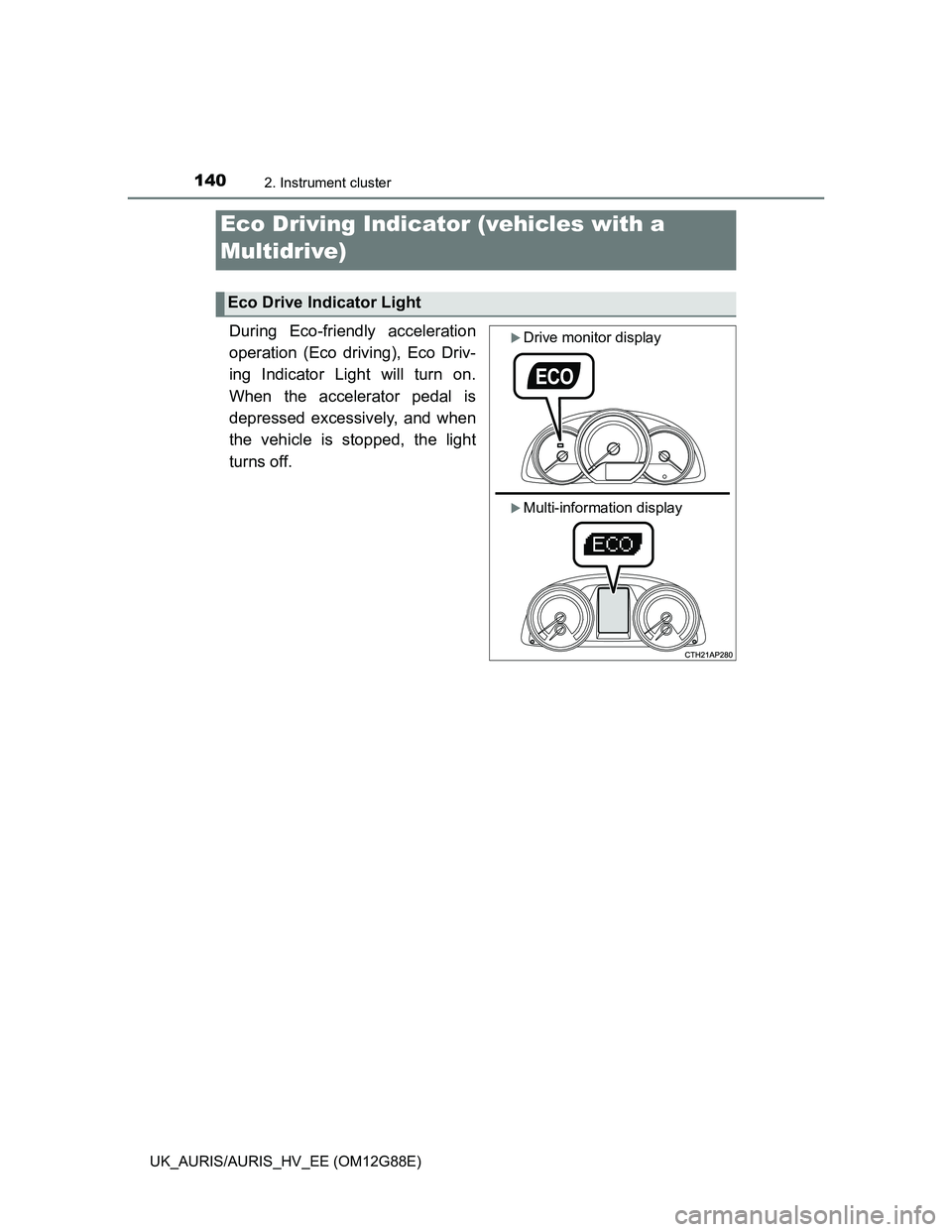

Eco Driving Indicator (vehicles with a
Multidrive)
Eco Drive Indicator Light
Drive monitor display
Multi-information display

1412. Instrument cluster
UK_AURIS/AURIS_HV_EE (OM12G88E)
2
Instrument cluster

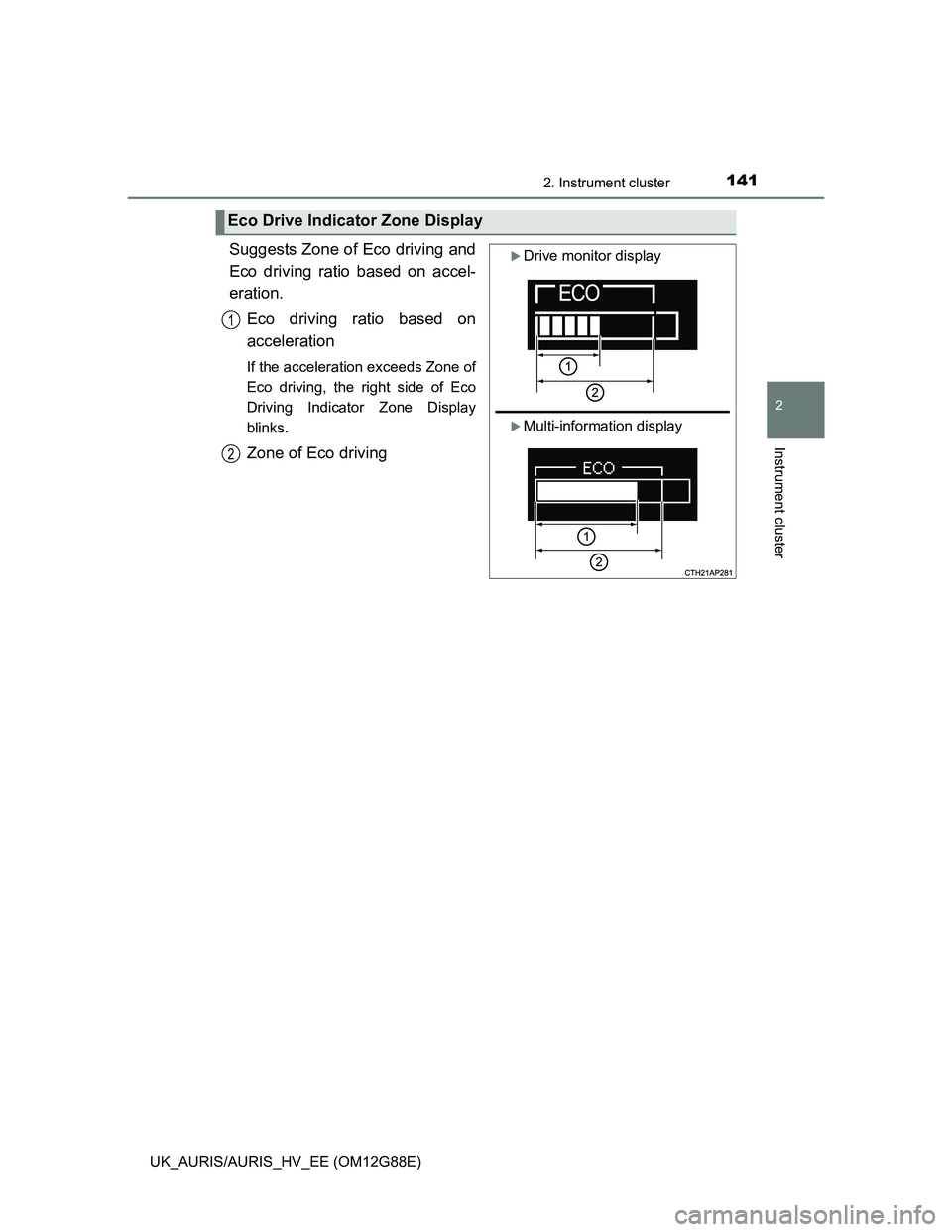

Suggests Zone of Eco driving and
Eco driving ratio based on accel-
eration.
Eco driving ratio based on
acceleration
If the acceleration exceeds Zone of
Eco driving, the right side of Eco
Driving Indicator Zone Display
blinks.
Zone of Eco driving
Eco Drive Indicator Zone Display
Drive monitor display
Multi-information display
1
2

1422. Instrument cluster
UK_AURIS/AURIS_HV_EE (OM12G88E)
Drive monitor display
Multi-information display
The settings can be changed by pressing the “DISP” button.
(P. 136)
Operation of Eco Driving Indicator
Eco Driving Indicator will not operate in the following conditions:
The shift lever is in any position other than D.
Paddle shift switch
* is operated.
Sport mode is selected.
The vehicle speed is approximately 130 km/h (80 mph) or higher.
*: If equipped

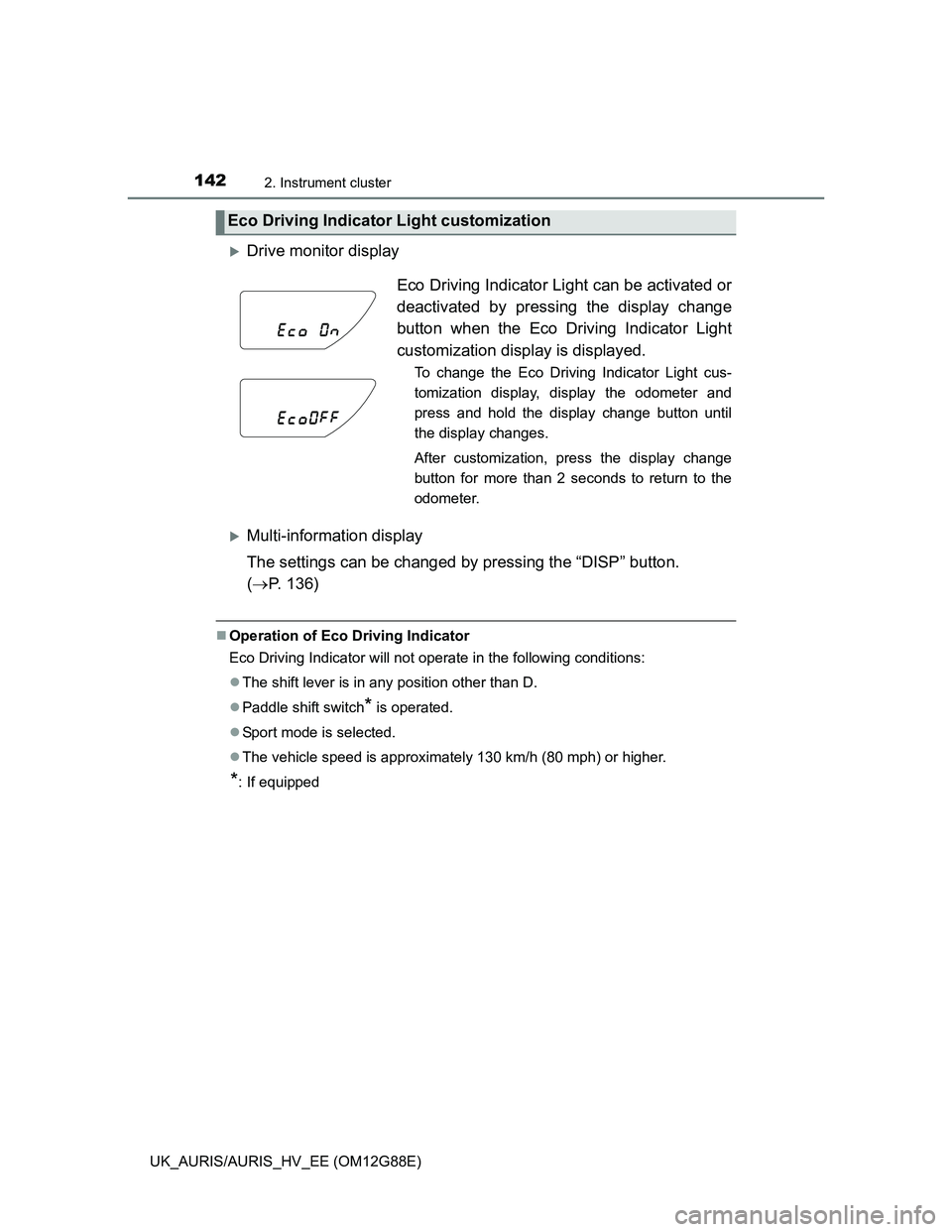

Eco Driving Indicator Light customization
Eco Driving Indicator Light can be activated or
deactivated by pressing the display change
button when the Eco Driving Indicator Light
customization display is displayed.
To change the Eco Driving Indicator Light cus-
tomization display, display the odometer and
press and hold the display change button until
the display changes.
After customization, press the display change
button for more than 2 seconds to return to the
odometer.

1432. Instrument cluster
UK_AURIS/AURIS_HV_EE (OM12G88E)
2
Instrument cluster
CAUTION
The display at low temperatures
Allow the interior of the vehicle to warm up before using the display. At
extremely low temperatures, the display monitor may respond slowly, and
display changes may be delayed.
For example, there is a lag between the driver’s shifting and the new gear
number appearing on the display. This lag could cause the driver to down-
shift again, causing rapid and excessive engine braking and possibly an
accident resulting in death or injury.
Cautions during setting up the display
As the engine needs to be running during setting up the display, ensure that
the vehicle is parked in a place with adequate ventilation. In a closed area
such as a garage, exhaust gases including harmful carbon monoxide (CO)
may collect and enter the vehicle. This may lead to death or a serious
health hazard.
NOTICE
To prevent damage to the engine and its components
Do not let the indicator needle of the tachometer enter the red zone, which
indicates the maximum engine speed.
The engine may be overheating in the following situations. Immediately
stop the vehicle in a safe place, and check the engine after it has cooled
down completely. (P. 720, 723)
Drive monitor display: When the high engine coolant temperature warning
light comes on.
Multi-information display: When the indicator needle of the engine coolant
temperature gauge enters the red zone (except hybrid model), or the
engine coolant temperature warning message is shown on the multi-infor-
mation display (hybrid model).

1442. Instrument cluster
UK_AURIS/AURIS_HV_EE (OM12G88E)
Navigation/multimedia system
Press the “CAR” button on the
navigation/multimedia system.
Select “Trip information”.
Average vehicle speed since
the engine was started.
Cruising range (P. 146)
Fuel consumption in the past
15 minutes
Elapsed time since the
engine was started.
Resetting the consumption
data
Fuel consumption information
(except hybrid model)
: If equipped
Fuel consumption information can be displayed on the naviga-
tion/multimedia system.
Trip information (navigation/multimedia system)
1
2
1
2
3
4
