2014 TOYOTA AURIS HYBRID Owners Manual

6097-2. Steps to take in an emergency
UK_AURIS/AURIS_HV_EE (OM12G88E)
7
When trouble arises

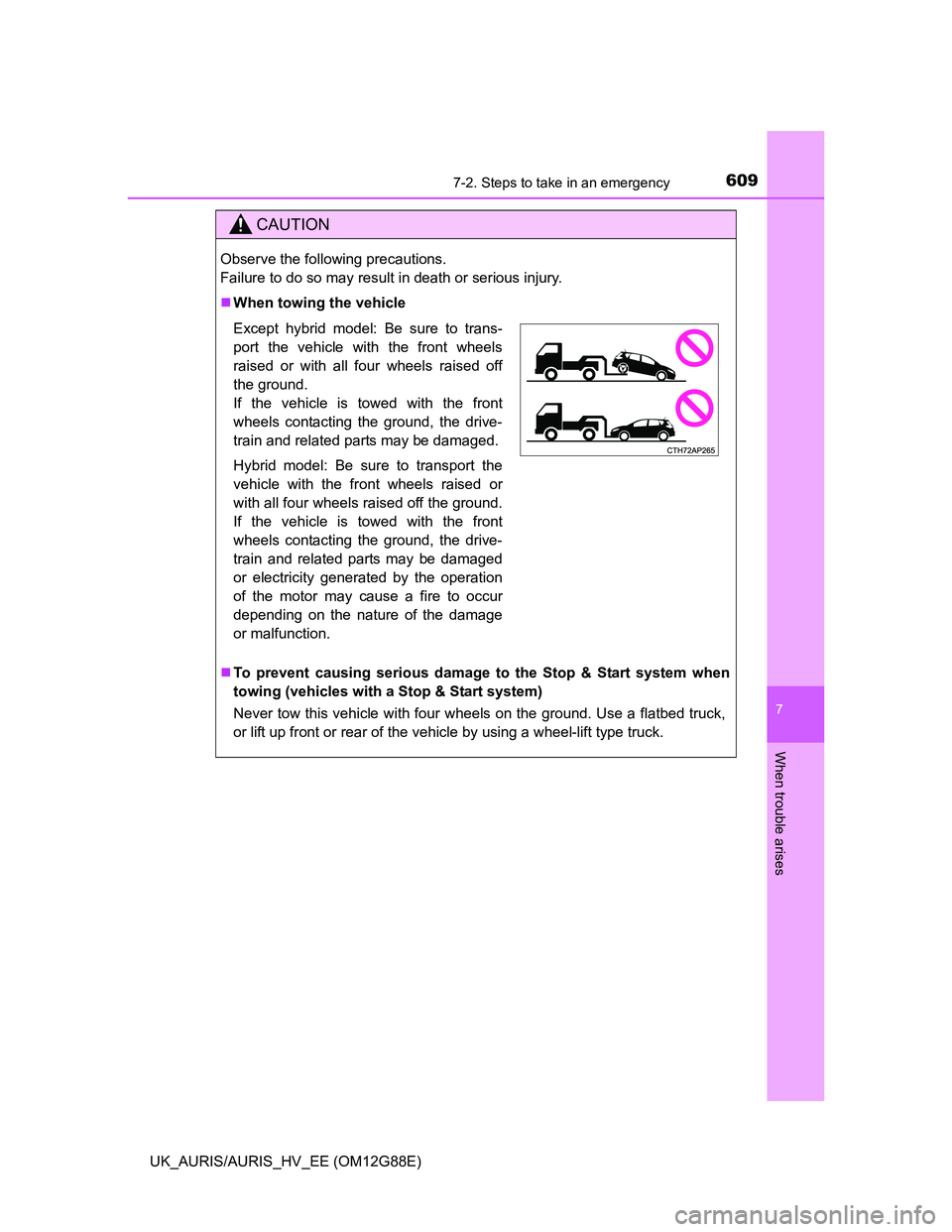

CAUTION
Observe the following precautions.
Failure to do so may result in death or serious injury.
When towing the vehicle
To prevent causing serious damage to the Stop & Start system when
towing (vehicles with a Stop & Start system)
Never tow this vehicle with four wheels on the ground. Use a flatbed truck,
or lift up front or rear of the vehicle by using a wheel-lift type truck.
Except hybrid model: Be sure to trans-
port the vehicle with the front wheels
raised or with all four wheels raised off
the ground.
If the vehicle is towed with the front
wheels contacting the ground, the drive-
train and related parts may be damaged.
Hybrid model: Be sure to transport the
vehicle with the front wheels raised or
with all four wheels raised off the ground.
If the vehicle is towed with the front
wheels contacting the ground, the drive-
train and related parts may be damaged
or electricity generated by the operation
of the motor may cause a fire to occur
depending on the nature of the damage
or malfunction.

6107-2. Steps to take in an emergency
UK_AURIS/AURIS_HV_EE (OM12G88E)

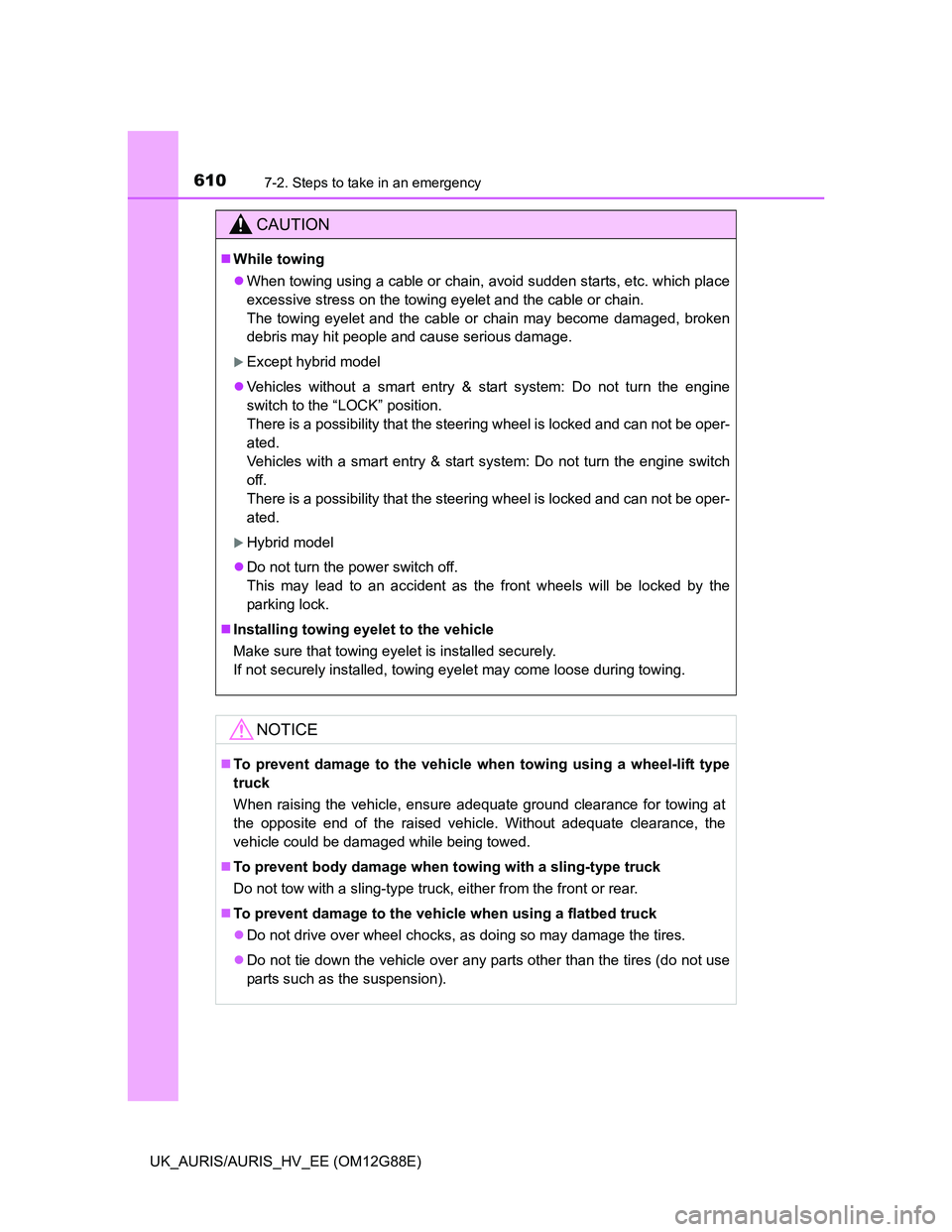

CAUTION
While towing
When towing using a cable or chain, avoid sudden starts, etc. which place
excessive stress on the towing eyelet and the cable or chain.
The towing eyelet and the cable or chain may become damaged, broken
debris may hit people and cause serious damage.
Except hybrid model
Vehicles without a smart entry & start system: Do not turn the engine
switch to the “LOCK” position.
There is a possibility that the steering wheel is locked and can not be oper-
ated.
Vehicles with a smart entry & start system: Do not turn the engine switch
off.
There is a possibility that the steering wheel is locked and can not be oper-
ated.
Hybrid model
Do not turn the power switch off.
This may lead to an accident as the front wheels will be locked by the
parking lock.
Installing towing eyelet to the vehicle
Make sure that towing eyelet is installed securely.
If not securely installed, towing eyelet may come loose during towing.
NOTICE
To prevent damage to the vehicle when towing using a wheel-lift type
truck
When raising the vehicle, ensure adequate ground clearance for towing at
the opposite end of the raised vehicle. Without adequate clearance, the
vehicle could be damaged while being towed.
To prevent body damage when towing with a sling-type truck
Do not tow with a sling-type truck, either from the front or rear.
To prevent damage to the vehicle when using a flatbed truck
Do not drive over wheel chocks, as doing so may damage the tires.
Do not tie down the vehicle over any parts other than the tires (do not use
parts such as the suspension).

6117-2. Steps to take in an emergency
UK_AURIS/AURIS_HV_EE (OM12G88E)
7
When trouble arises
Fluid leaks under the vehicle.
(Water dripping from the air conditioning after use is normal.)
Flat-looking tires or uneven tire wear
Except hybrid model (vehicles without a multi-information display):
High engine coolant temperature warning light comes on.
Except hybrid model (vehicles with a multi-information display):
High engine coolant temperature gauge needle continually points
higher than normal.
Hybrid model: The high engine coolant temperature display is
shown on the multi-information display.
Changes in exhaust sound
Excessive tire squeal when cornering
Strange noises related to the suspension system
Pinging or other noises related to the engine
Engine missing, stumbling or running roughly
Appreciable loss of power
Vehicle pulls heavily to one side when braking
Vehicle pulls heavily to one side when driving on a level road
Loss of brake effectiveness, spongy feeling, pedal almost touches
the floor
If you think something is wrong
If you notice any of the following symptoms, your vehicle proba-
bly needs adjustment or repair. Contact any authorized Toyota
dealer or repairer, or another duly qualified and equipped pro-
fessional as soon as possible.
Visible symptoms
Audible symptoms
Operational symptoms

6127-2. Steps to take in an emergency
UK_AURIS/AURIS_HV_EE (OM12G88E)
Follow the procedure below to restart the engine after the system is
activated.
Vehicles without a smart entry & start system
Turn the engine switch to the “ACC” or “LOCK” position.
Restart the engine.
Vehicles with a smart entry & start system
Turn the engine switch to ACCESSORY mode or turn it off.
Restart the engine.

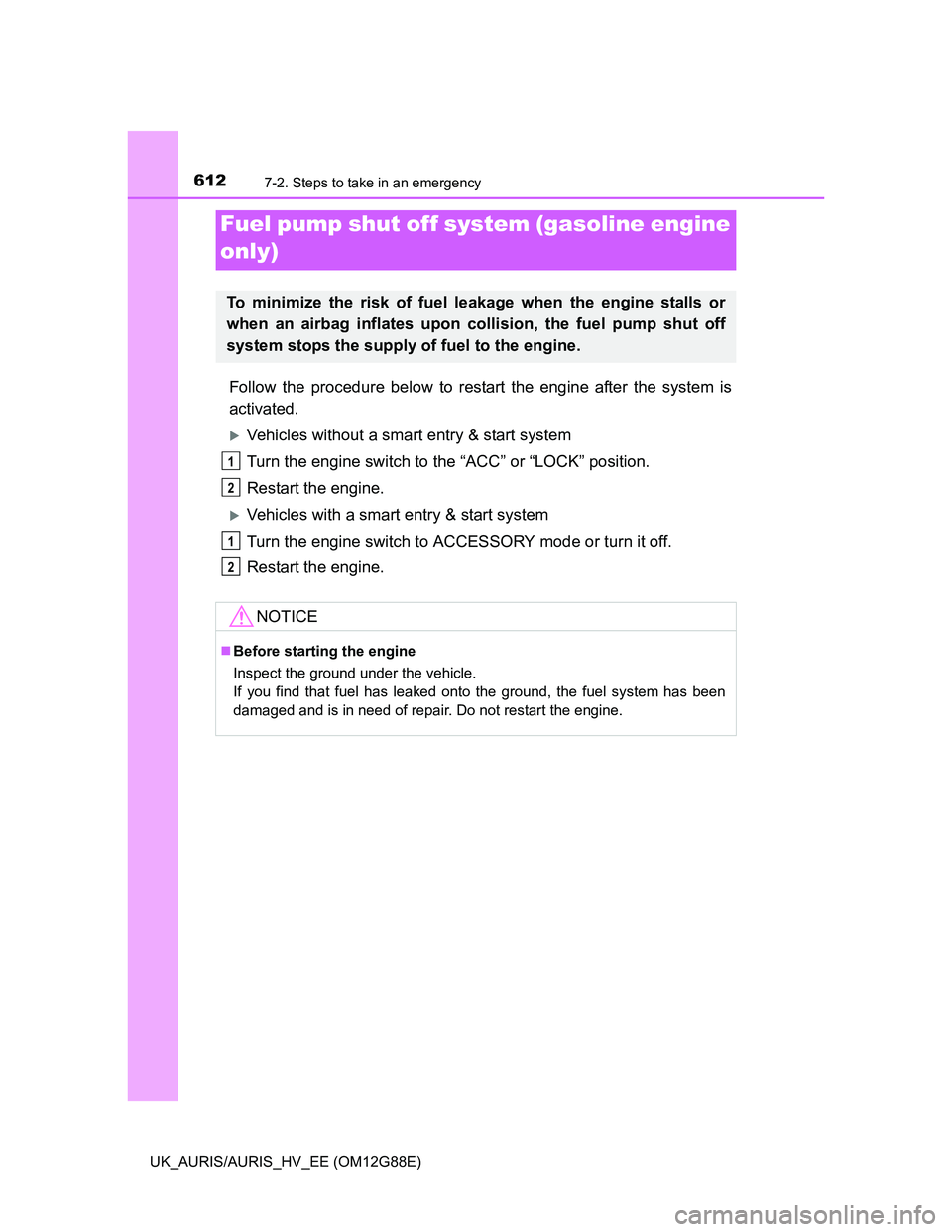

Fuel pump shut off system (gasoline engine
only)
To minimize the risk of fuel leakage when the engine stalls or
when an airbag inflates upon collision, the fuel pump shut off
system stops the supply of fuel to the engine.
NOTICE
Before starting the engine
Inspect the ground under the vehicle.
If you find that fuel has leaked onto the ground, the fuel system has been
damaged and is in need of repair. Do not restart the engine.
1
2
1
2

6137-2. Steps to take in an emergency
UK_AURIS/AURIS_HV_EE (OM12G88E)
7
When trouble arises
The following warning indicates a possible problem in the brake sys-
tem. Immediately stop the vehicle in a safe place and contact any
authorized Toyota dealer or repairer, or another duly qualified and
equipped professional.
*: Parking brake engaged warning buzzer:
The buzzer sounds to indicate that the parking brake is still engaged (with
the vehicle having reached a speed of 5 km/h [3 mph]).

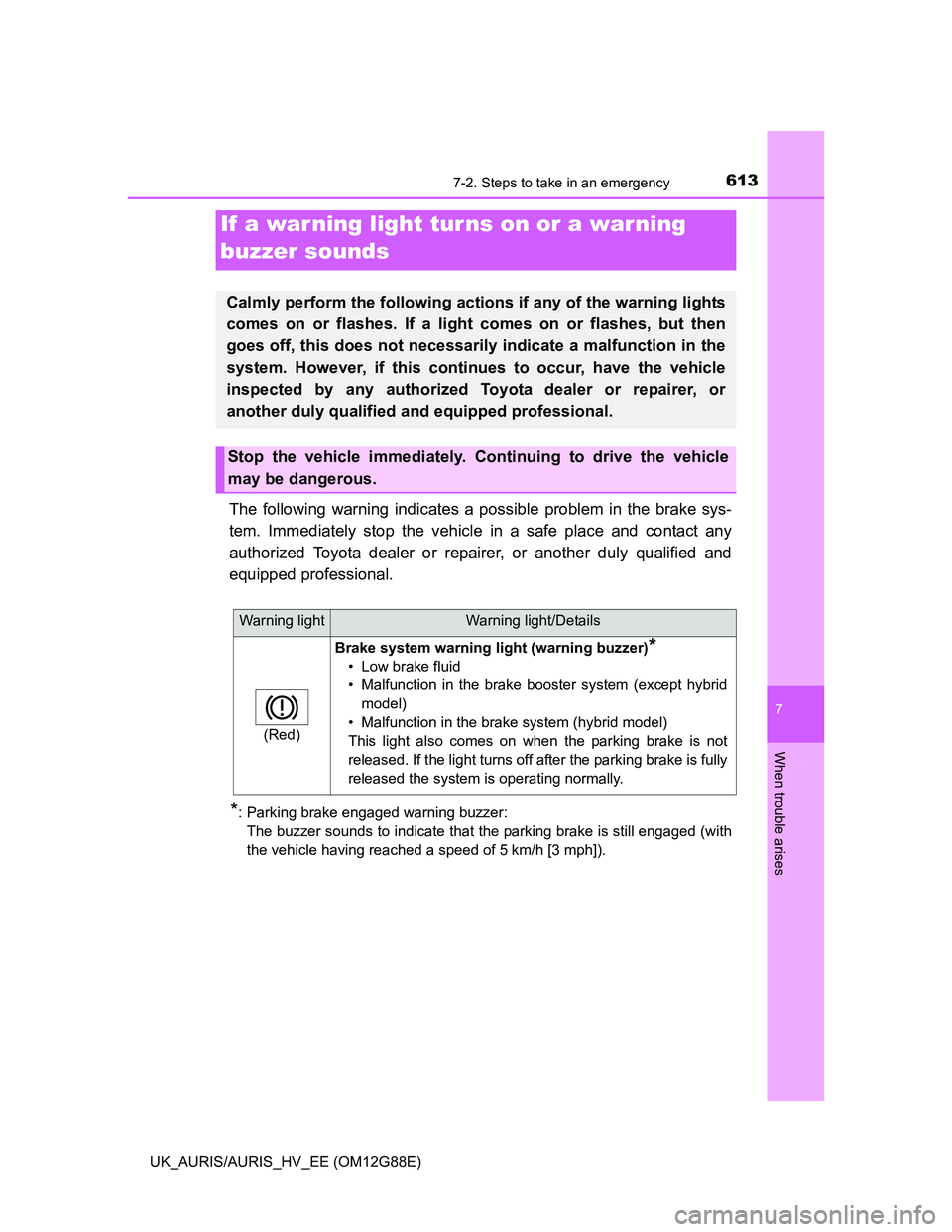

If a warning light turns on or a warning
buzzer sounds
Calmly perform the following actions if any of the warning lights
comes on or flashes. If a light comes on or flashes, but then
goes off, this does not necessarily indicate a malfunction in the
system. However, if this continues to occur, have the vehicle
inspected by any authorized Toyota dealer or repairer, or
another duly qualified and equipped professional.
Stop the vehicle immediately. Continuing to drive the vehicle
may be dangerous.
Warning lightWarning light/Details
(Red)
Brake system warning light (warning buzzer)*
• Low brake fluid
• Malfunction in the brake booster system (except hybrid
model)
• Malfunction in the brake system (hybrid model)
This light also comes on when the parking brake is not
released. If the light turns off after the parking brake is fully
released the system is operating normally.

6147-2. Steps to take in an emergency
UK_AURIS/AURIS_HV_EE (OM12G88E)
The following warning indicates the possibility of damage to the vehi-
cle that may lead to an accident. Immediately stop the vehicle in a
safe place and contact any authorized Toyota dealer or repairer, or
another duly qualified and equipped professional.
The following warning indicates the possibility of damage to the
vehicle that may lead to an accident. Immediately stop the vehicle
in a safe place and take the specified steps to correct the sus-
pected problem.
Stop the vehicle immediately.
Warning lightWarning light/Details
Charging system warning light (vehicles with a drive
monitor display)
Indicates a malfunction in the vehicle’s charging system
Low engine oil pressure warning light (vehicles with a
drive monitor display)
Indicates that the engine oil pressure is too low.
andHigh engine coolant temperature warning light (vehicles
with a drive monitor display)
Indicates that the engine is almost overheating. (P. 720)
Warning lightWarning light/DetailsCorrection procedure
(Comes on)Multi-mode manual trans-
mission warning light
(vehicles with a multi-
mode manual transmis-
sion)
Indicates a malfunction in
the multi-mode manual
transmission system. Have the system checked
by any authorized Toyota
dealer or repairer, or
another duly qualified and
equipped professional.

6157-2. Steps to take in an emergency
UK_AURIS/AURIS_HV_EE (OM12G88E)
7
When trouble arises

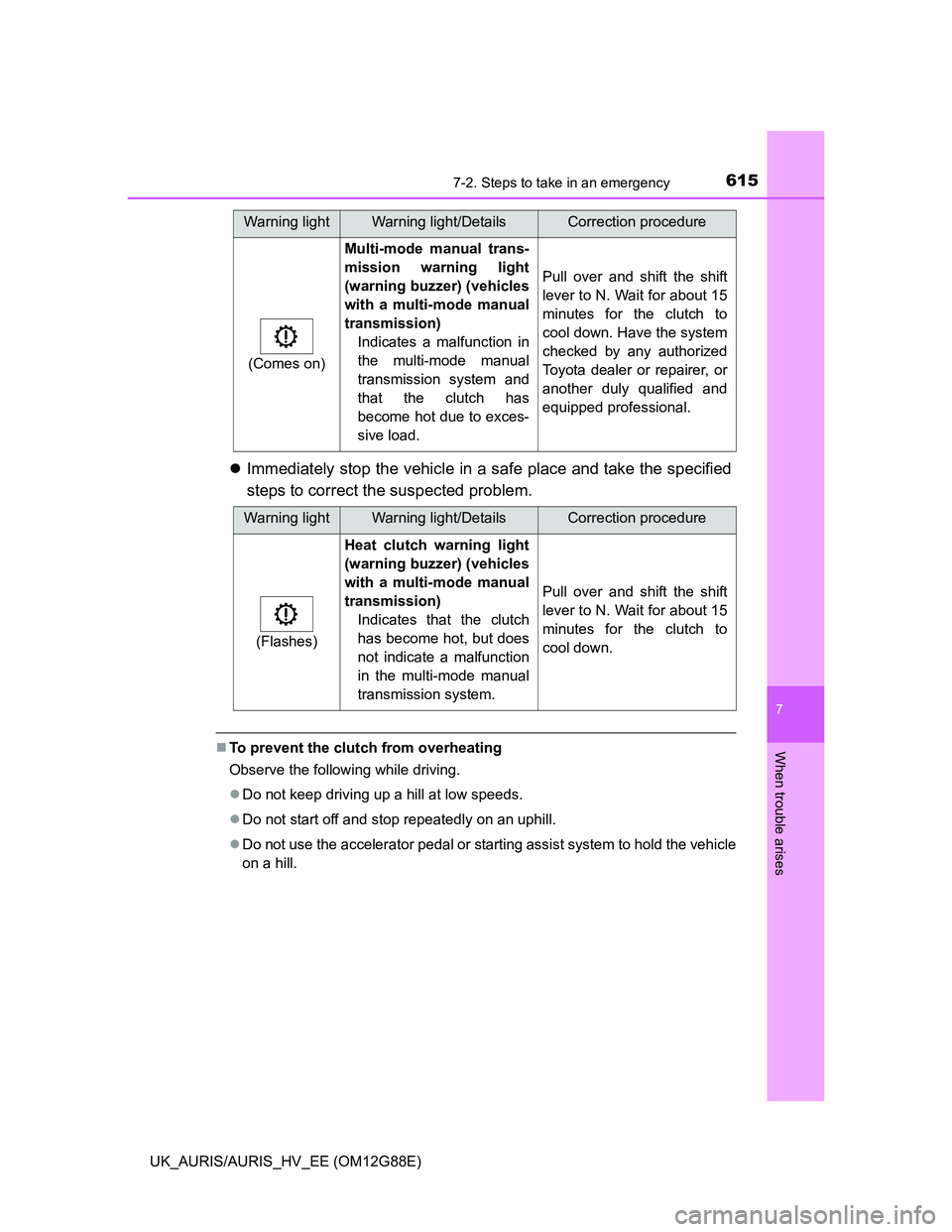

Immediately stop the vehicle in a safe place and take the specified
steps to correct the suspected problem.
To prevent the clutch from overheating
Observe the following while driving.
Do not keep driving up a hill at low speeds.
Do not start off and stop repeatedly on an uphill.
Do not use the accelerator pedal or starting assist system to hold the vehicle
on a hill.(Comes on)
Multi-mode manual trans-
mission warning light
(warning buzzer) (vehicles
with a multi-mode manual
transmission)
Indicates a malfunction in
the multi-mode manual
transmission system and
that the clutch has
become hot due to exces-
sive load.
Pull over and shift the shift
lever to N. Wait for about 15
minutes for the clutch to
cool down. Have the system
checked by any authorized
Toyota dealer or repairer, or
another duly qualified and
equipped professional.
Warning lightWarning light/DetailsCorrection procedure
(Flashes)Heat clutch warning light
(warning buzzer) (vehicles
with a multi-mode manual
transmission)
Indicates that the clutch
has become hot, but does
not indicate a malfunction
in the multi-mode manual
transmission system.Pull over and shift the shift
lever to N. Wait for about 15
minutes for the clutch to
cool down.
Warning lightWarning light/DetailsCorrection procedure

6167-2. Steps to take in an emergency
UK_AURIS/AURIS_HV_EE (OM12G88E)

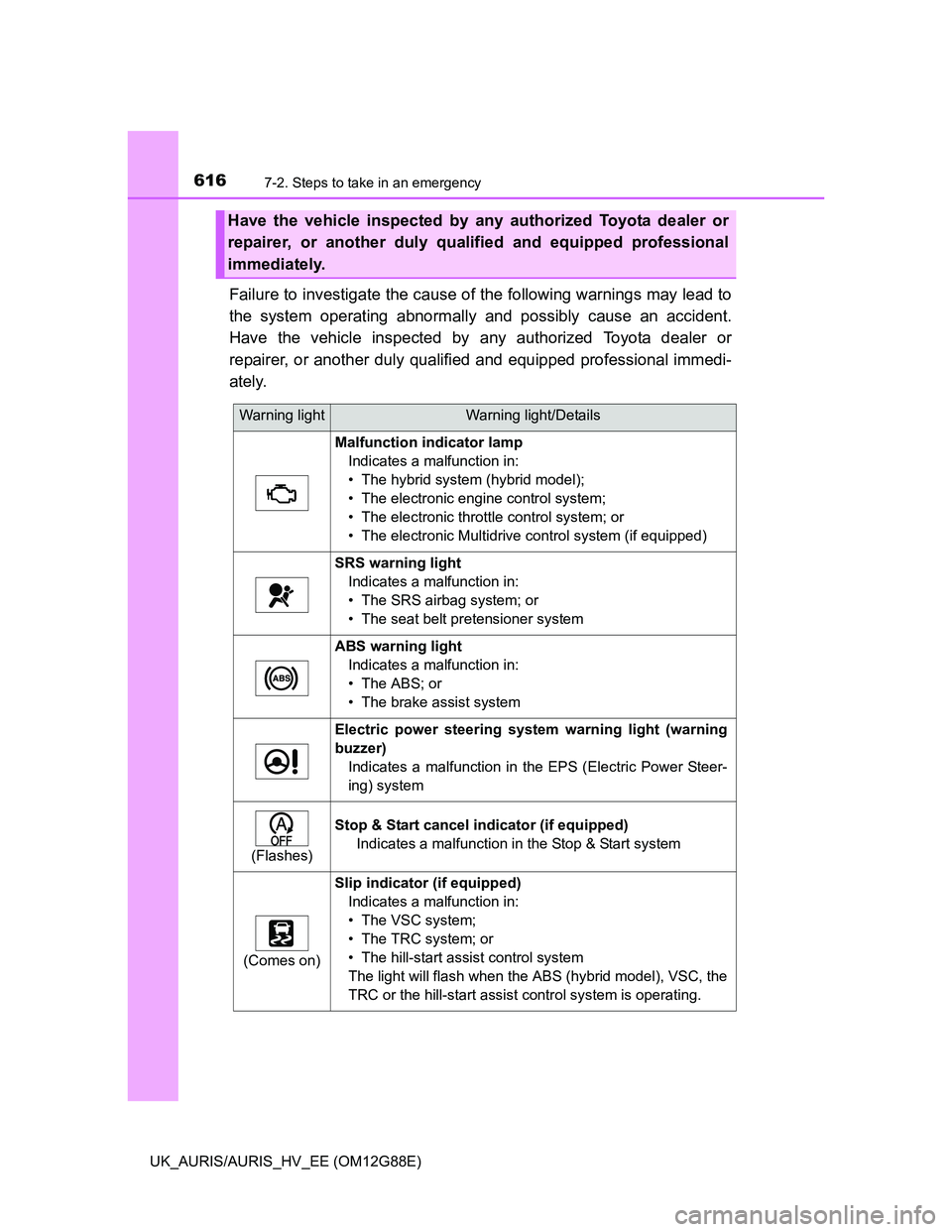

Failure to investigate the cause of the following warnings may lead to
the system operating abnormally and possibly cause an accident.
Have the vehicle inspected by any authorized Toyota dealer or
repairer, or another duly qualified and equipped professional immedi-
ately.
Have the vehicle inspected by any authorized Toyota dealer or
repairer, or another duly qualified and equipped professional
immediately.
Warning lightWarning light/Details
Malfunction indicator lamp
Indicates a malfunction in:
• The hybrid system (hybrid model);
• The electronic engine control system;
• The electronic throttle control system; or
• The electronic Multidrive control system (if equipped)
SRS warning light
Indicates a malfunction in:
• The SRS airbag system; or
• The seat belt pretensioner system
ABS warning light
Indicates a malfunction in:
• The ABS; or
• The brake assist system
Electric power steering system warning light (warning
buzzer)
Indicates a malfunction in the EPS (Electric Power Steer-
ing) system
(Flashes)
Stop & Start cancel indicator (if equipped)
Indicates a malfunction in the Stop & Start system
(Comes on)
Slip indicator (if equipped)
Indicates a malfunction in:
• The VSC system;
• The TRC system; or
• The hill-start assist control system
The light will flash when the ABS (hybrid model), VSC, the
TRC or the hill-start assist control system is operating.
