2014 TOYOTA AURIS HYBRID Owners Manual

9
UK_AURIS/AURIS_HV_EE (OM12G88E)The installation of an RF-transmitter system in your vehicle could affect elec-
tronic systems such as:
Multiport fuel injection system/sequential multiport fuel injection system
Cruise control system (if equipped)
Anti-lock brake system
SRS airbag system
Seat belt pretensioner system
Be sure to check with any authorized Toyota dealer or repairer, or another
duly qualified and equipped professional for precautionary measures or spe-
cial instructions regarding installation of an RF-transmitter system.
Further information regarding frequency bands, power levels, antenna posi-
tions and installation provisions for the installation of RF-transmitters, is avail-
able on request at any authorized Toyota dealer or repairer, or another duly
qualified and equipped professional.
Hybrid model: High voltage parts and cables on the hybrid vehicles emit
approximately the same amount of electromagnetic waves as the conven-
tional gasoline powered vehicles or home electronic appliances despite of
their electromagnetic shielding.
Hybrid model: Unwanted noise may occur in the reception of the radio fre-
quency transmitter (RF-transmitter).
The SRS airbag and seat belt pretensioner devices in your Toyota contain
explosive chemicals. If the vehicle is scrapped with the airbags and seat belt
pretensioners left as they are, this may cause an accident such as fire. Be
sure to have the systems of the SRS airbag and seat belt pretensioner
removed and disposed of by a qualified service shop or by any authorized
Toyota dealer or repairer, or another duly qualified and equipped professional,
before you scrap your vehicle.
Installation of an RF-transmitter system
Scrapping of your Toyota
Your vehicle contains batteries and/or accumulators. Do not discard them
into the environment but cooperate with separate collection (Directive 2006/
66/EC).

10
UK_AURIS/AURIS_HV_EE (OM12G88E)

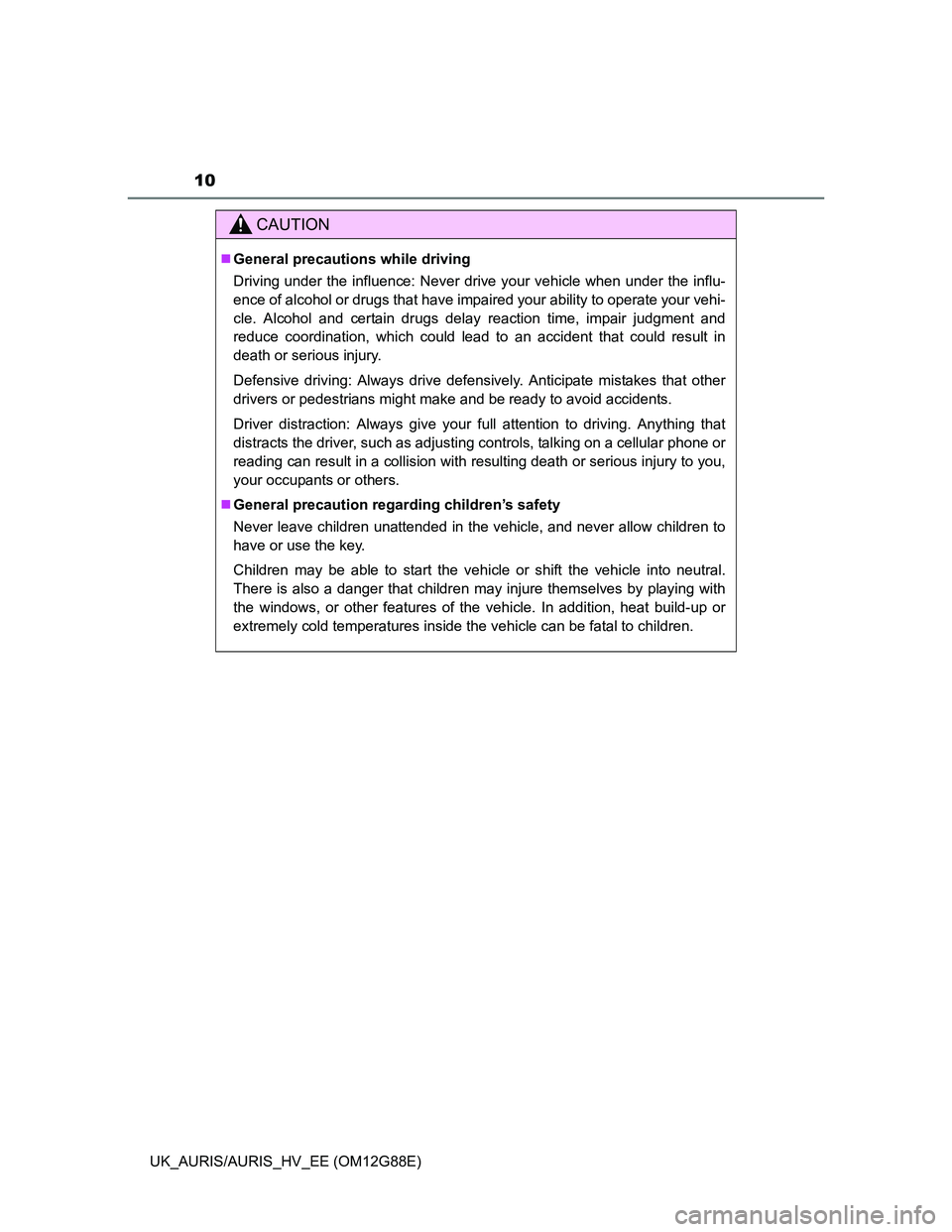

CAUTION
General precautions while driving
Driving under the influence: Never drive your vehicle when under the influ-
ence of alcohol or drugs that have impaired your ability to operate your vehi-
cle. Alcohol and certain drugs delay reaction time, impair judgment and
reduce coordination, which could lead to an accident that could result in
death or serious injury.
Defensive driving: Always drive defensively. Anticipate mistakes that other
drivers or pedestrians might make and be ready to avoid accidents.
Driver distraction: Always give your full attention to driving. Anything that
distracts the driver, such as adjusting controls, talking on a cellular phone or
reading can result in a collision with resulting death or serious injury to you,
your occupants or others.
General precaution regarding children’s safety
Never leave children unattended in the vehicle, and never allow children to
have or use the key.
Children may be able to start the vehicle or shift the vehicle into neutral.
There is also a danger that children may injure themselves by playing with
the windows, or other features of the vehicle. In addition, heat build-up or
extremely cold temperatures inside the vehicle can be fatal to children.

11
UK_AURIS/AURIS_HV_EE (OM12G88E)

12
UK_AURIS/AURIS_HV_EE (OM12G88E)

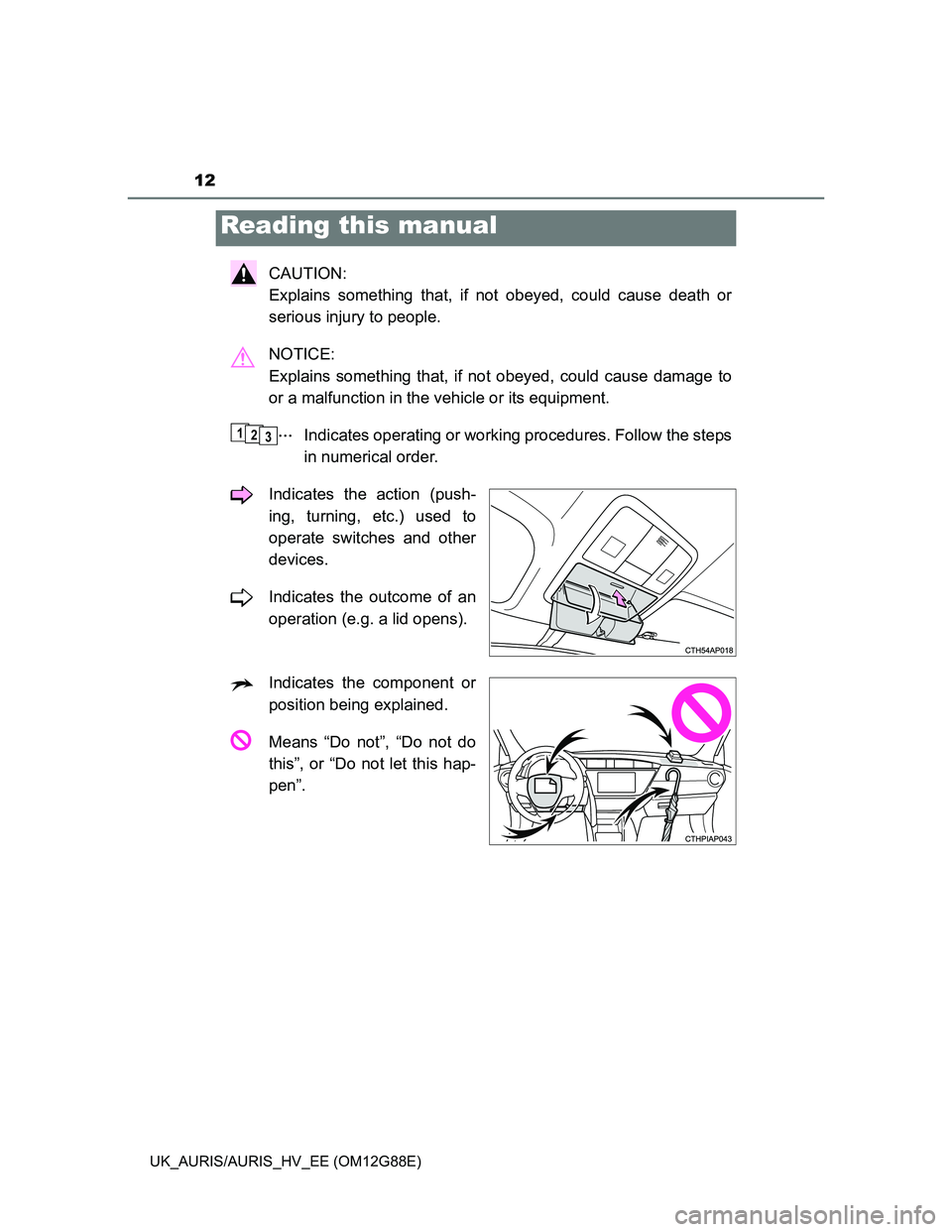

CAUTION:
Explains something that, if not obeyed, could cause death or
serious injury to people.
NOTICE:
Explains something that, if not obeyed, could cause damage to
or a malfunction in the vehicle or its equipment.
Indicates operating or working procedures. Follow the steps
in numerical order.
Indicates the action (push-
ing, turning, etc.) used to
operate switches and other
devices.
Indicates the outcome of an
operation (e.g. a lid opens).
Indicates the component or
position being explained.
Means “Do not”, “Do not do
this”, or “Do not let this hap-
pen”.
Reading this manual
123

13
UK_AURIS/AURIS_HV_EE (OM12G88E)

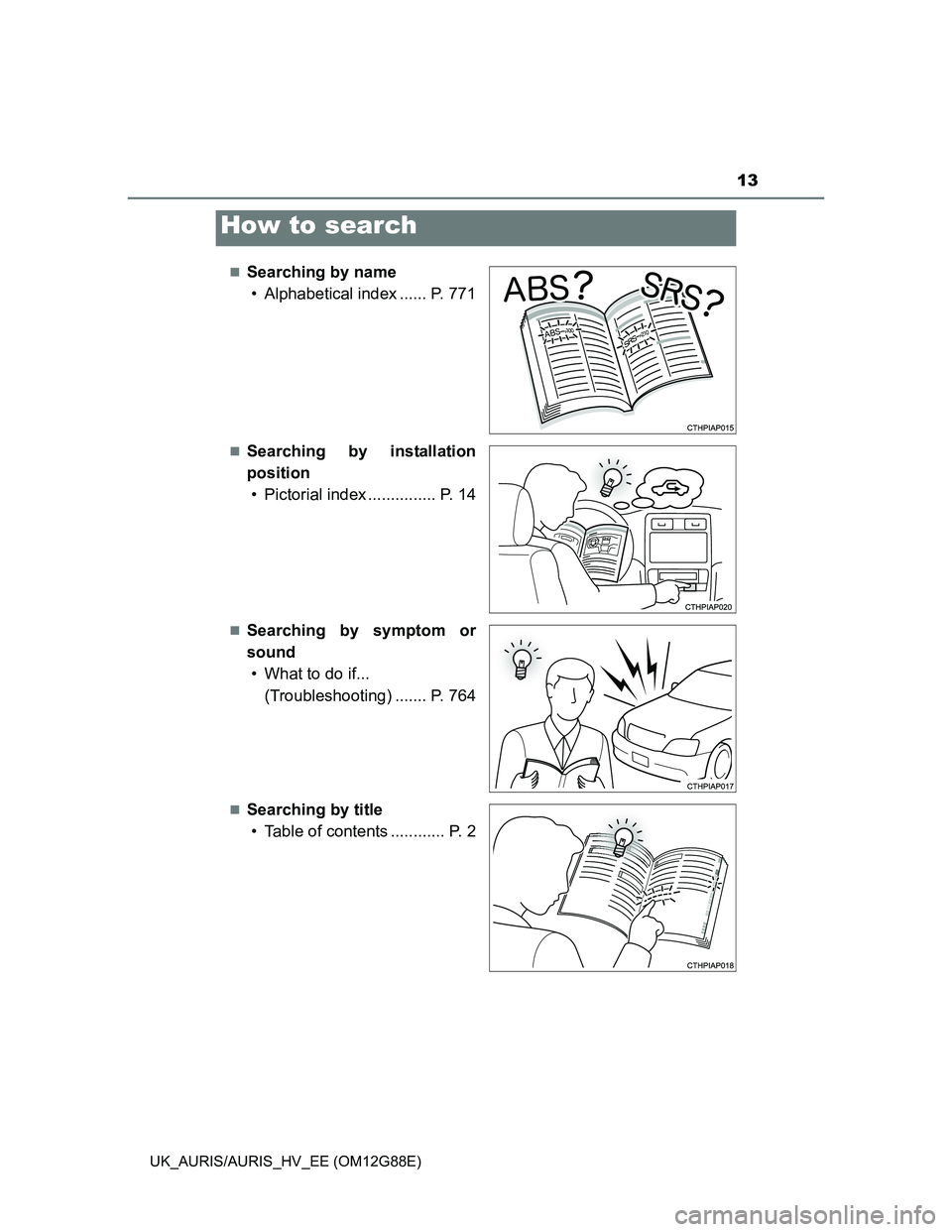

Searching by name
• Alphabetical index ...... P. 771
Searching by installation
position
• Pictorial index ............... P. 14
Searching by symptom or
sound
• What to do if...
(Troubleshooting) ....... P. 764
Searching by title
• Table of contents ............ P. 2
How to search

14
UK_AURIS/AURIS_HV_EE (OM12G88E)

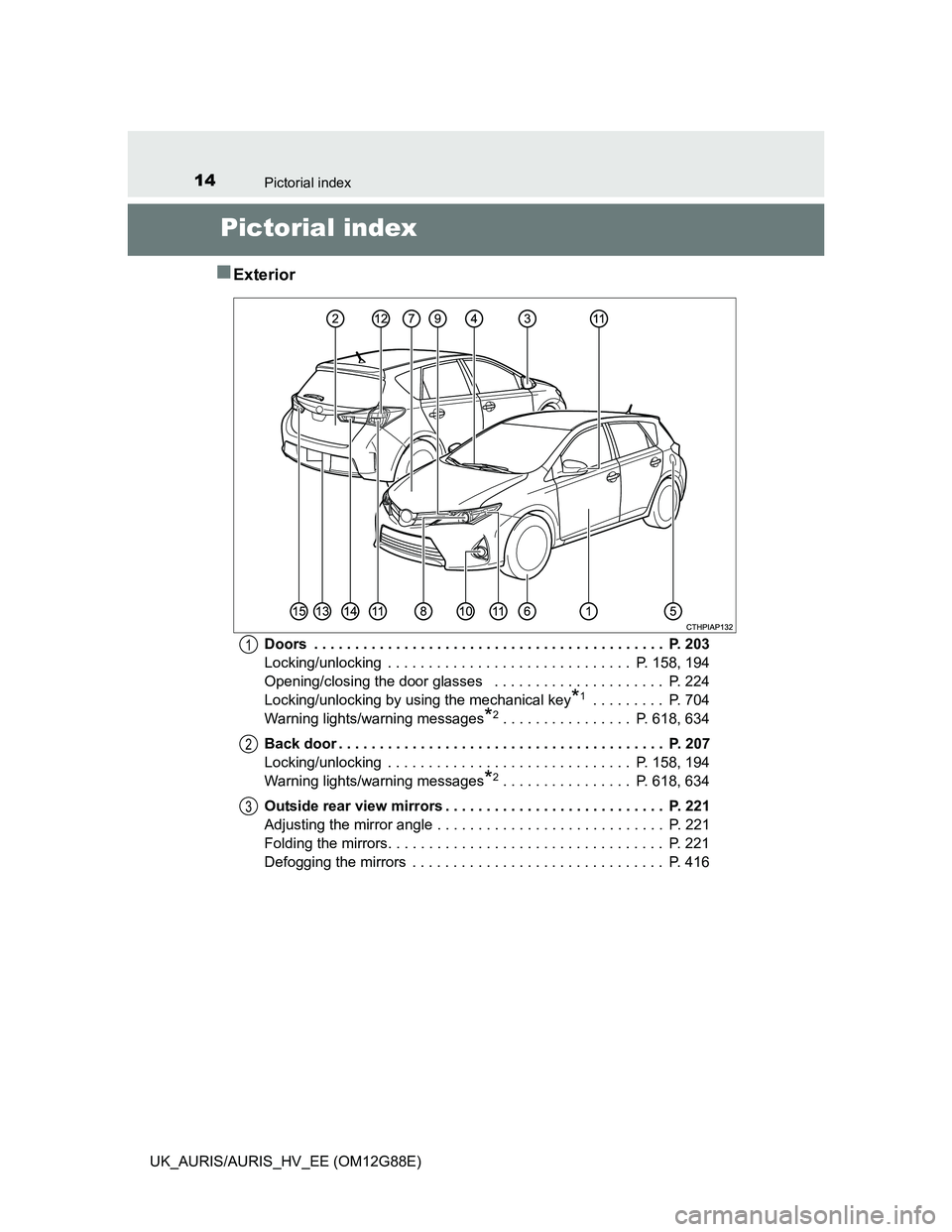

Pictorial index
Pictorial index
Exterior
Doors . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 203
Locking/unlocking . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 158, 194
Opening/closing the door glasses . . . . . . . . . . . . . . . . . . . . . P. 224
Locking/unlocking by using the mechanical key
*1 . . . . . . . . . P. 704
Warning lights/warning messages
*2. . . . . . . . . . . . . . . . P. 618, 634
Back door . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 207
Locking/unlocking . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 158, 194
Warning lights/warning messages
*2. . . . . . . . . . . . . . . . P. 618, 634
Outside rear view mirrors . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 221
Adjusting the mirror angle . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 221
Folding the mirrors. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 221
Defogging the mirrors . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 416
1
2
3

15Pictorial index
UK_AURIS/AURIS_HV_EE (OM12G88E)Windshield wipers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 328
Precautions against winter season . . . . . . . . . . . . . . . . . . . . . P. 386
Precautions against car wash . . . . . . . . . . . . . . . . . . . . . . . . . P. 492
Fuel filler door . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 334
Refueling method . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 334
Fuel type/fuel tank capacity . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 739
Tires . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 535
Tire size/inflation pressure . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 750
Winter tires/tire chain . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 386
Checking/rotation/tire pressure warning system
*1 . . . . . . . . . P. 535
Coping with flat tires . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 659
Hood . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 504
Opening . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 504
Engine oil . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 741
Coping with overheat . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 720
Headlights . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 314
Front position lights/daytime running lights . . . . . . . . . . . P. 314
Front fog lights
*1. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 326
Turn signal lights . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 311
Stop/tail lights . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 314
Hill-start assist control
*1 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 380
License plate lights . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 314
Rear fog light
*4 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 326
Back-up light
*3
Shifting the shift lever to R. . . . . . . . . . . . . . . . P. 290, 295, 300, 303
Rear fog light
*3 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 326
Back-up light
*4
Shifting the shift lever to R. . . . . . . . . . . . . . . . P. 290, 295, 300, 303
4
5
6
7
Light bulbs of the exterior lights for driving
(Replacing method: P. 582, Watts: P. 754)
*1: If equipped
*2: Vehicles with a multi-information display
*3: Left-hand drive vehicles
*4: Right-hand drive vehicles
8
9
10
11
12
13
14
15

16Pictorial index
UK_AURIS/AURIS_HV_EE (OM12G88E)
Instrument panel (Left-hand drive vehicles)
Except hybrid model
Engine switch . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 268, 272
Starting the engine/changing the modes . . . . . . . . . . . . . P. 268, 272
Emergency stop of the engine . . . . . . . . . . . . . . . . . . . . . . . . . P. 601
When the engine will not start . . . . . . . . . . . . . . . . . . . . . . . . . P. 698
Warning messages
*1 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 644
Shift lever . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 290, 295, 300
Changing the shift position . . . . . . . . . . . . . . . . . . . P. 290, 295, 300
Precautions against towing . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 603
When the shift lever does not move
*2. . . . . . . . . . . . . . . P. 702, 703
Meters . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 124, 128
Reading the meters/adjusting the meter light . . . . . . . . . P. 124, 128
Warning lights/indicator lights . . . . . . . . . . . . . . . . . . . . . . . . . P. 116
When the warning lights come on . . . . . . . . . . . . . . . . . . . . . . P. 613
1
2
3
