2014 TOYOTA AURIS HYBRID Owners Manual

1853-2. Opening, closing and locking the doors
UK_AURIS/AURIS_HV_EE (OM12G88E)
3
Operation of each component
Electronic key battery depletion
The standard battery life is 1 to 2 years.
If the battery becomes low, an alarm will sound in the cabin when the hybrid
system stops. (P. 644)
As the electronic key always receives radio waves, the battery will become
depleted even if the electronic key is not used. The following symptoms indi-
cate that the electronic key battery may be depleted. Replace the battery
when necessary. (P. 555)
• The push button start or the wireless remote control does not operate.
• The detection area becomes smaller.
• The LED indicator on the key surface does not turn on.
To avoid serious deterioration, do not leave the electronic key within 1 m (3
ft.) of the following electrical appliances that produce a magnetic field.
•TVs
• Personal computers
• Cellular phones, cordless phones and battery chargers
• Recharging cellular phones or cordless phones
• Table lamps
• Induction cookers
To operate the system properly
Make sure to carry the electronic key when operating the system.
Depending on the position and holding condition of the electronic key, the key
may not be detected correctly and the system may not operate properly.
Alarms and warning messages
P. 644
If the push button start does not operate properly
Starting the hybrid system: P. 282
When the electronic key battery is fully depleted
P. 555
Customization that can be configured at any authorized Toyota dealer or
repairer, or another duly qualified and equipped professional
It is possible to deactivate the push button start.
(Customizable features P. 757)
If the push button start has been deactivated in a customized setting
Starting the hybrid system and changing power switch modes: P. 7 0 6
Stopping the hybrid system: P. 283

1863-2. Opening, closing and locking the doors

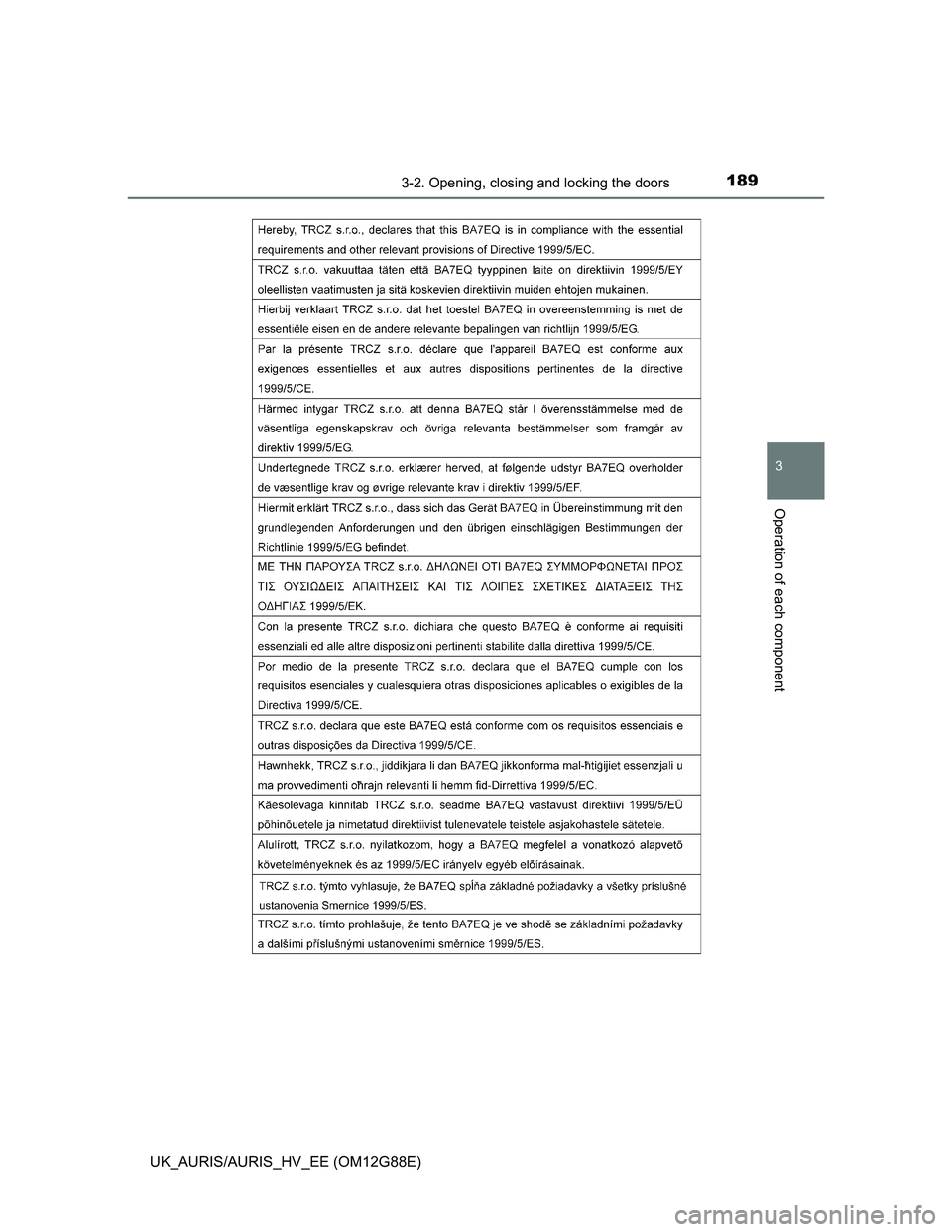

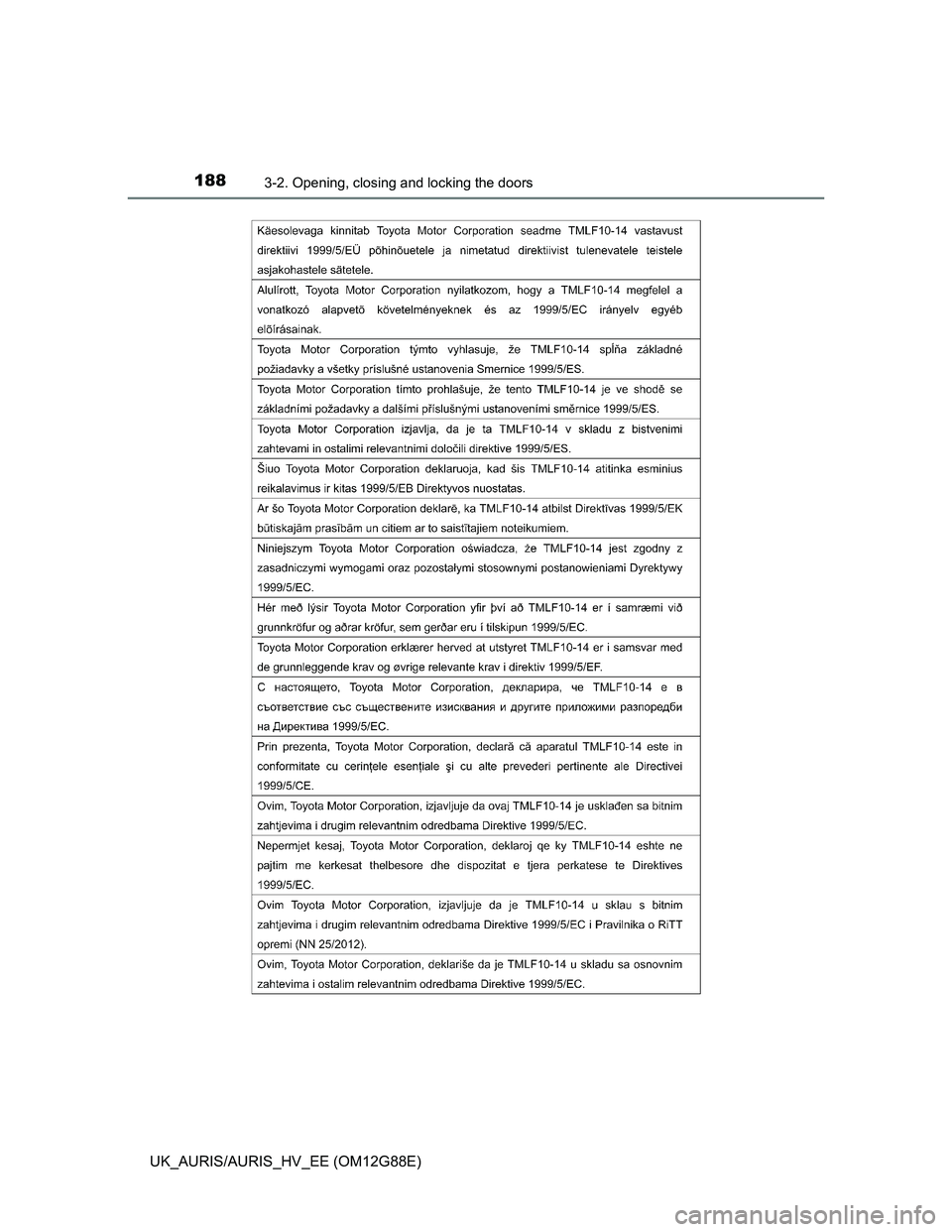

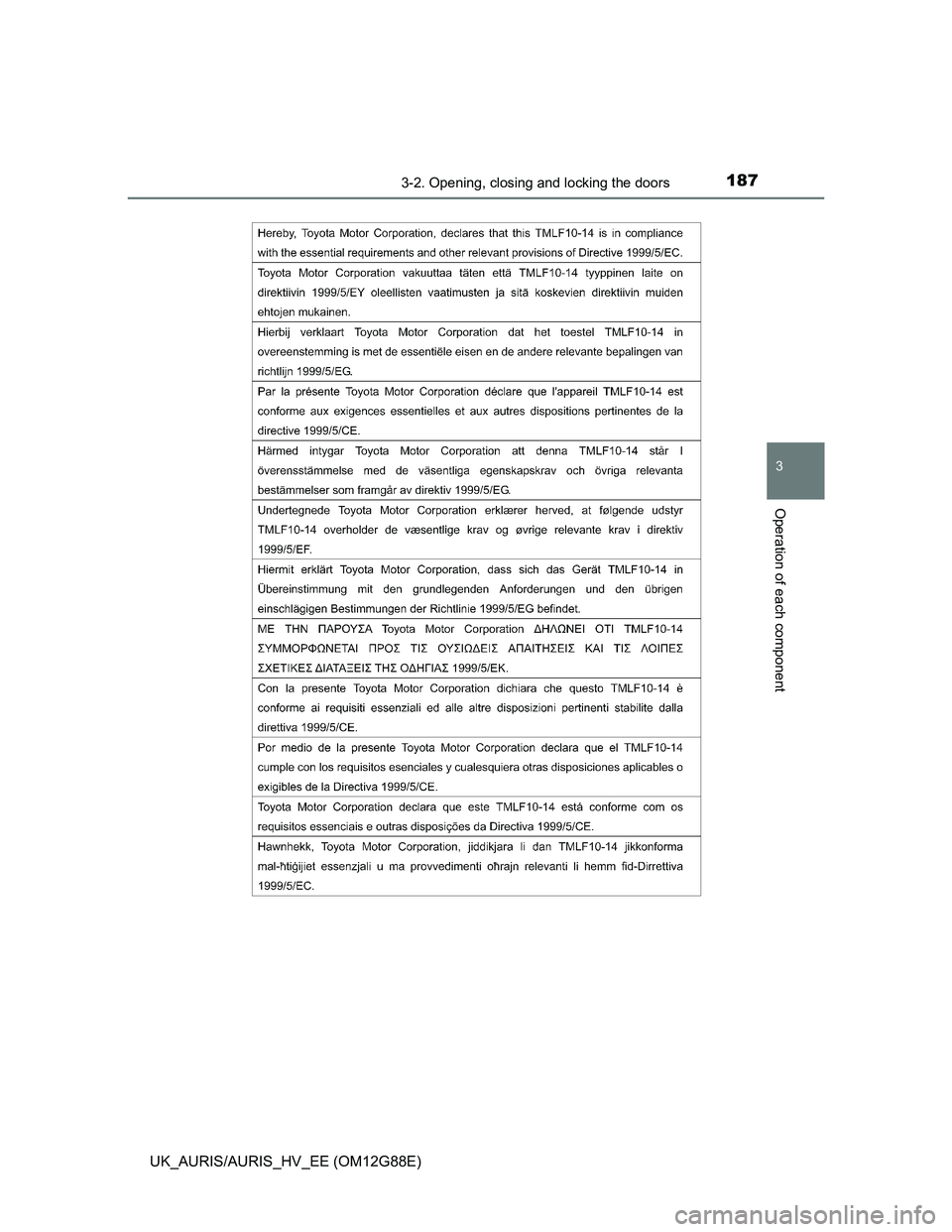

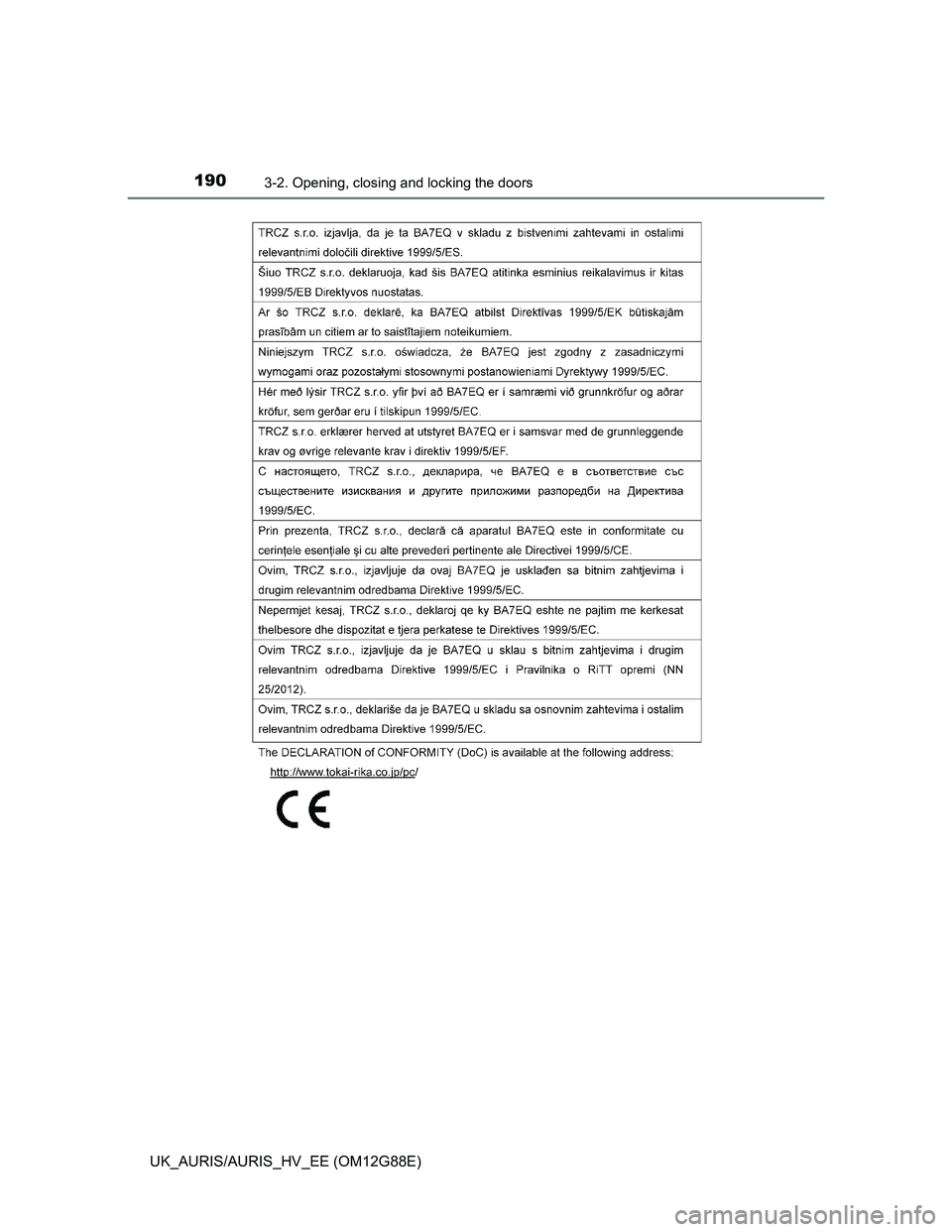

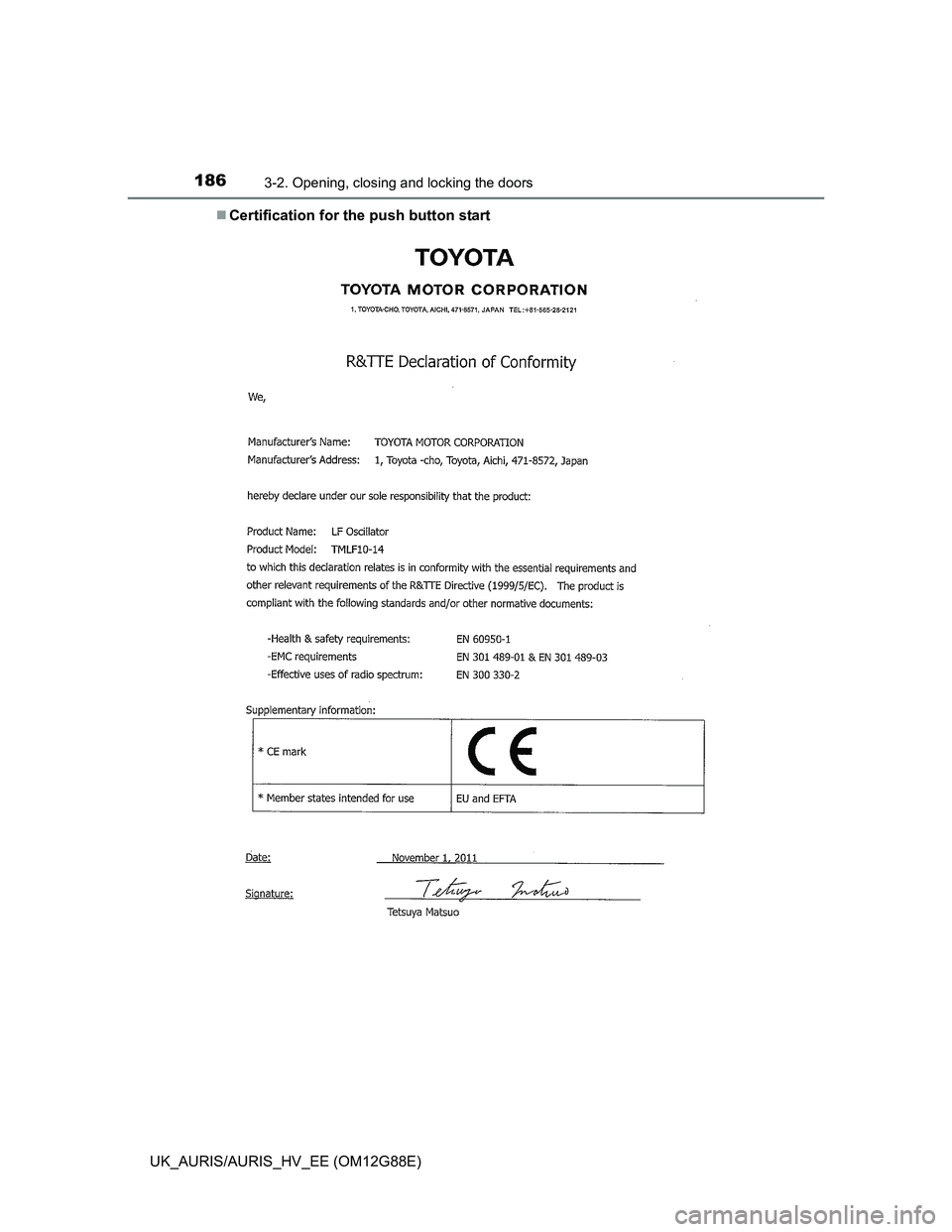

UK_AURIS/AURIS_HV_EE (OM12G88E)Certification for the push button start

1873-2. Opening, closing and locking the doors
UK_AURIS/AURIS_HV_EE (OM12G88E)
3
Operation of each component

1883-2. Opening, closing and locking the doors
UK_AURIS/AURIS_HV_EE (OM12G88E)

1893-2. Opening, closing and locking the doors
UK_AURIS/AURIS_HV_EE (OM12G88E)
3
Operation of each component

1903-2. Opening, closing and locking the doors
UK_AURIS/AURIS_HV_EE (OM12G88E)

1913-2. Opening, closing and locking the doors
UK_AURIS/AURIS_HV_EE (OM12G88E)
3
Operation of each component

1923-2. Opening, closing and locking the doors
UK_AURIS/AURIS_HV_EE (OM12G88E)
