2014 TOYOTA AURIS HYBRID Owners Manual

891-2. Hybrid system
1
For safety and security
UK_AURIS/AURIS_HV_EE (OM12G88E)

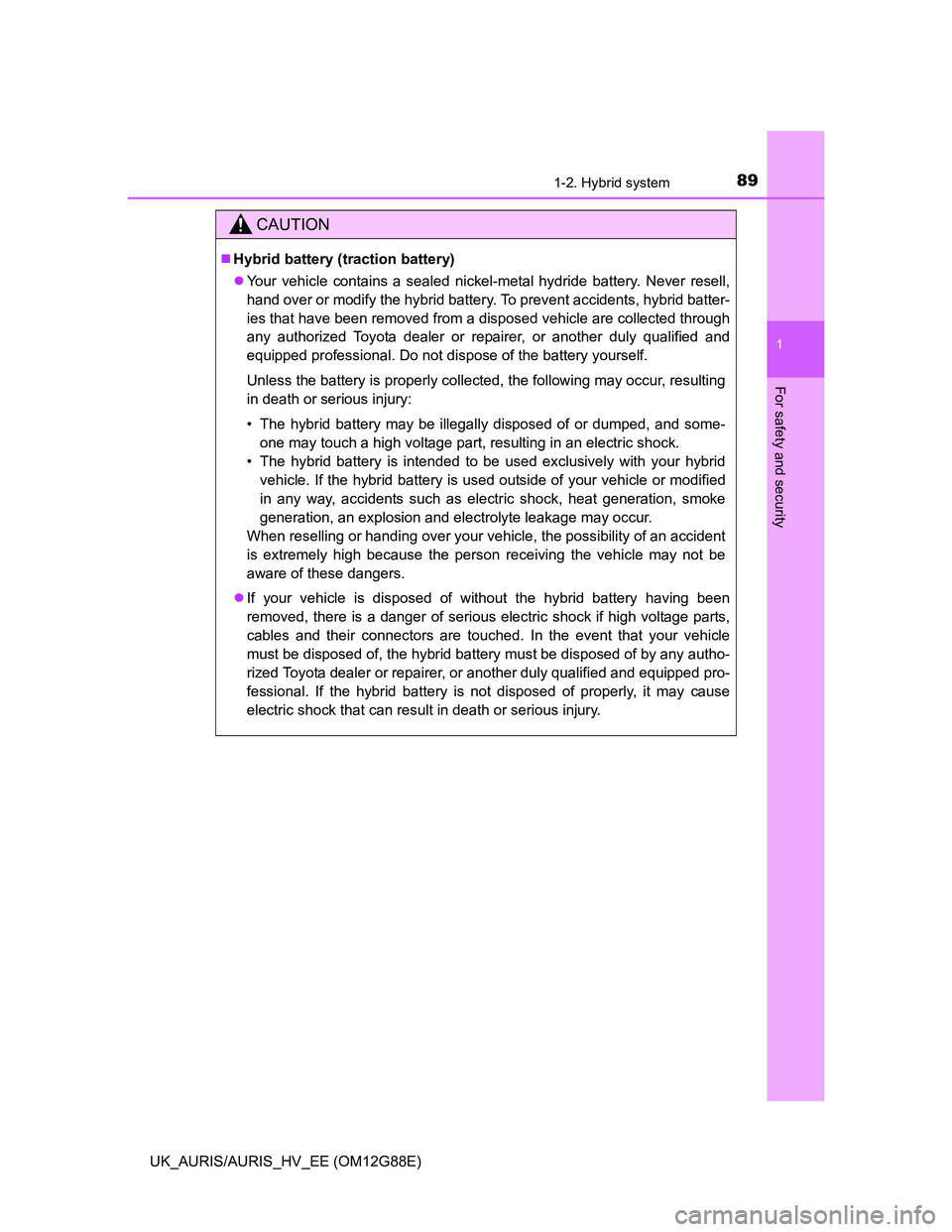

CAUTION
Hybrid battery (traction battery)
Your vehicle contains a sealed nickel-metal hydride battery. Never resell,
hand over or modify the hybrid battery. To prevent accidents, hybrid batter-
ies that have been removed from a disposed vehicle are collected through
any authorized Toyota dealer or repairer, or another duly qualified and
equipped professional. Do not dispose of the battery yourself.
Unless the battery is properly collected, the following may occur, resulting
in death or serious injury:
• The hybrid battery may be illegally disposed of or dumped, and some-
one may touch a high voltage part, resulting in an electric shock.
• The hybrid battery is intended to be used exclusively with your hybrid
vehicle. If the hybrid battery is used outside of your vehicle or modified
in any way, accidents such as electric shock, heat generation, smoke
generation, an explosion and electrolyte leakage may occur.
When reselling or handing over your vehicle, the possibility of an accident
is extremely high because the person receiving the vehicle may not be
aware of these dangers.
If your vehicle is disposed of without the hybrid battery having been
removed, there is a danger of serious electric shock if high voltage parts,
cables and their connectors are touched. In the event that your vehicle
must be disposed of, the hybrid battery must be disposed of by any autho-
rized Toyota dealer or repairer, or another duly qualified and equipped pro-
fessional. If the hybrid battery is not disposed of properly, it may cause
electric shock that can result in death or serious injury.

901-2. Hybrid system
UK_AURIS/AURIS_HV_EE (OM12G88E)

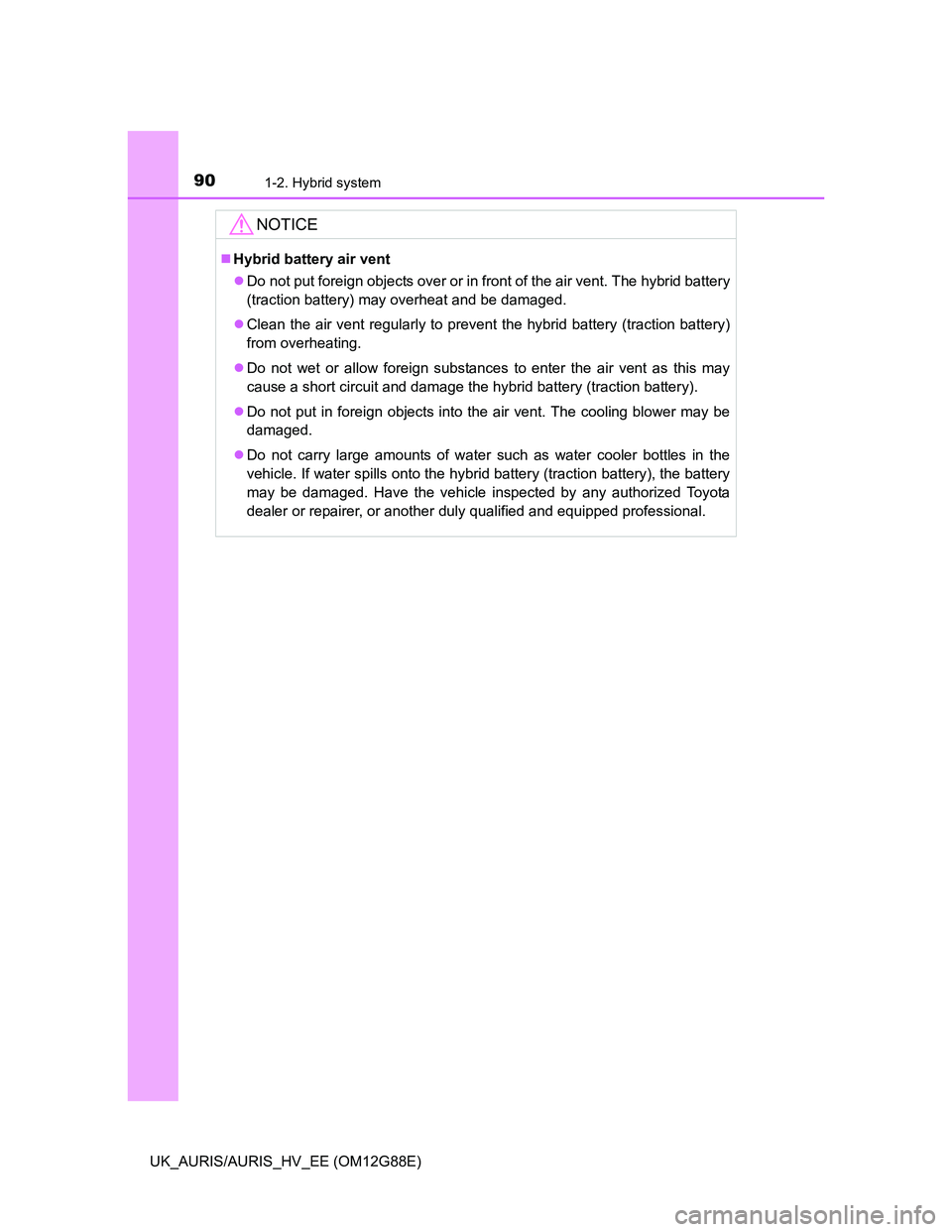

NOTICE
Hybrid battery air vent
Do not put foreign objects over or in front of the air vent. The hybrid battery
(traction battery) may overheat and be damaged.
Clean the air vent regularly to prevent the hybrid battery (traction battery)
from overheating.
Do not wet or allow foreign substances to enter the air vent as this may
cause a short circuit and damage the hybrid battery (traction battery).
Do not put in foreign objects into the air vent. The cooling blower may be
damaged.
Do not carry large amounts of water such as water cooler bottles in the
vehicle. If water spills onto the hybrid battery (traction battery), the battery
may be damaged. Have the vehicle inspected by any authorized Toyota
dealer or repairer, or another duly qualified and equipped professional.

91
1
For safety and security
UK_AURIS/AURIS_HV_EE (OM12G88E)
1-3. Theft deterrent system
Vehicles without a smart entry &
start system:
The indicator light flashes after
the key has been removed from
the engine switch to indicate that
the system is operating.
The indicator light stops flashing
after the registered key has been
inserted into the engine switch to
indicate that the system has been
canceled.
Vehicles with a smart entry & start
system:
The indicator light flashes after
the engine switch has been turned
off to indicate that the system is
operating.
The indicator light stops flashing
after the engine switch has been
turned to ACCESSORY or IGNI-
TION ON mode to indicate that
the system has been canceled.
Engine immobilizer system (except hybrid
model)
The vehicle’s keys have built-in transponder chips that prevent
the engine from starting if a key has not been previously regis-
tered in the vehicle’s on-board computer.
Never leave the keys inside the vehicle when you leave the vehi-
cle.
This system is designed to help prevent vehicle theft but does
not guarantee absolute security against all vehicle thefts.

921-3. Theft deterrent system
UK_AURIS/AURIS_HV_EE (OM12G88E)
System maintenance
The vehicle has a maintenance-free type engine immobilizer system.
Conditions that may cause the system to malfunction
If the grip portion of the key is in contact with a metallic object
If the key is in close proximity to or touching a key to the security system
(key with a built-in transponder chip) of another vehicle

931-3. Theft deterrent system
1
For safety and security

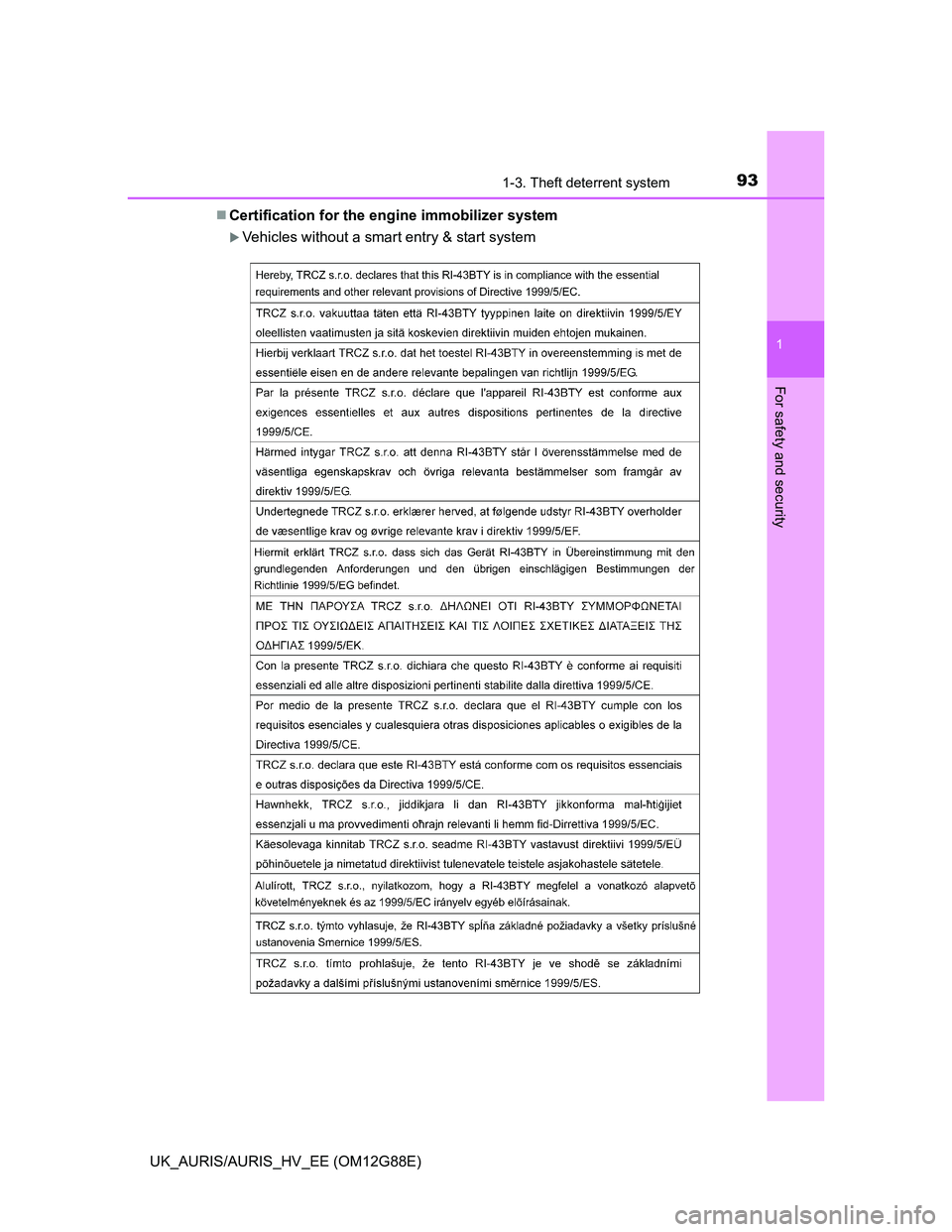

UK_AURIS/AURIS_HV_EE (OM12G88E)Certification for the engine immobilizer system
Vehicles without a smart entry & start system

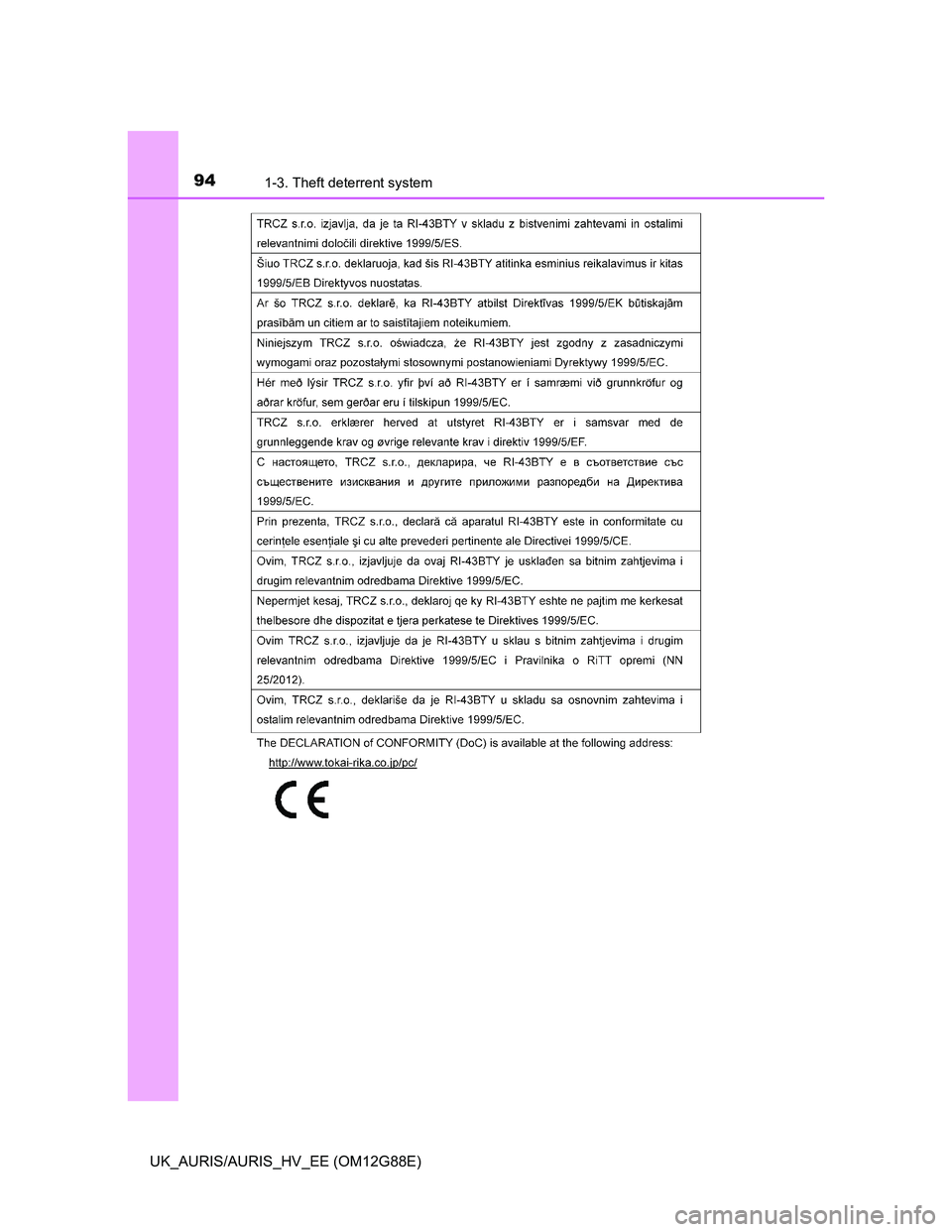

941-3. Theft deterrent system
UK_AURIS/AURIS_HV_EE (OM12G88E)

951-3. Theft deterrent system
1
For safety and security
UK_AURIS/AURIS_HV_EE (OM12G88E)

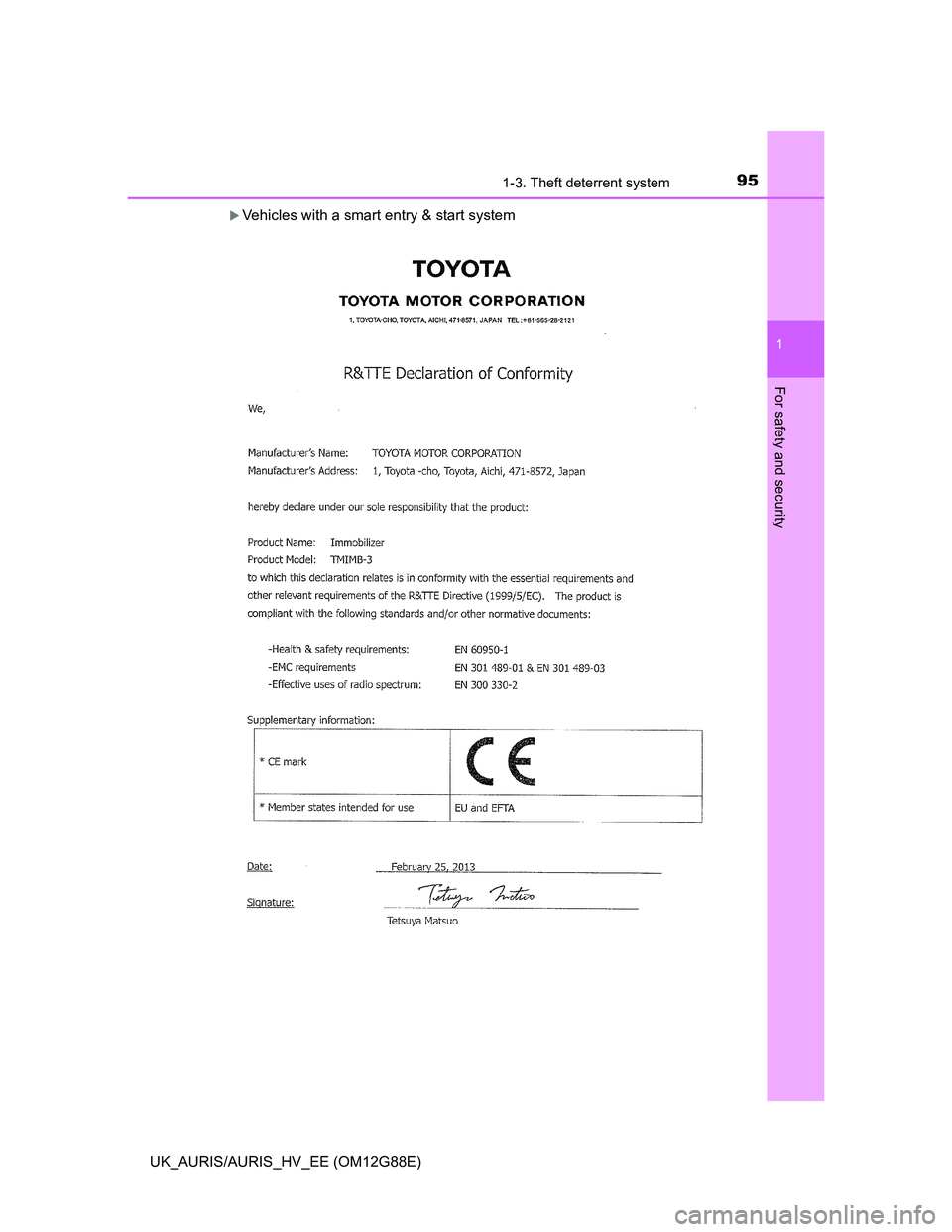

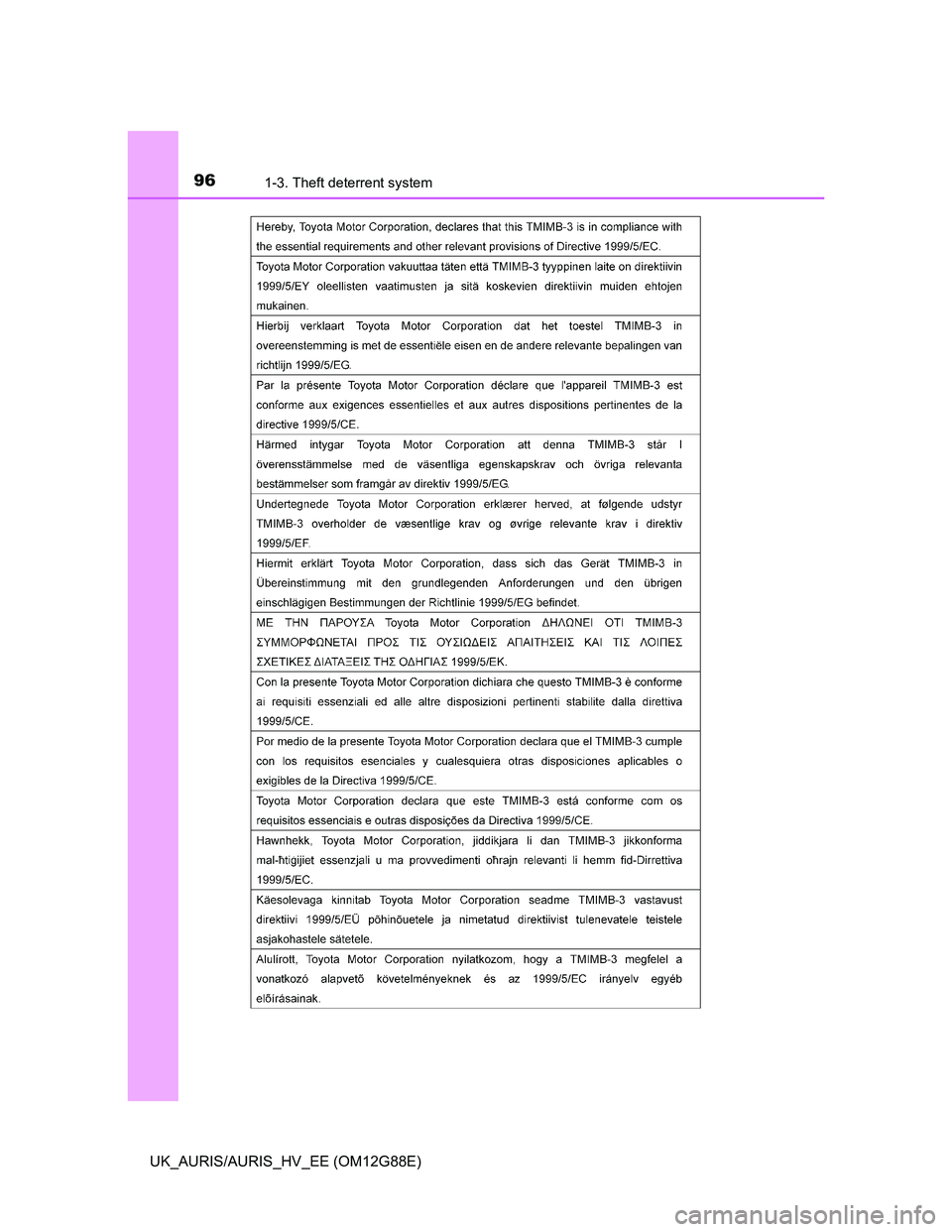

Vehicles with a smart entry & start system

961-3. Theft deterrent system
UK_AURIS/AURIS_HV_EE (OM12G88E)
