2014 TOYOTA AURIS HYBRID Owners Manual

5616-3. Do-it-yourself maintenance
UK_AURIS/AURIS_HV_EE (OM12G88E)
6
Maintenance and care

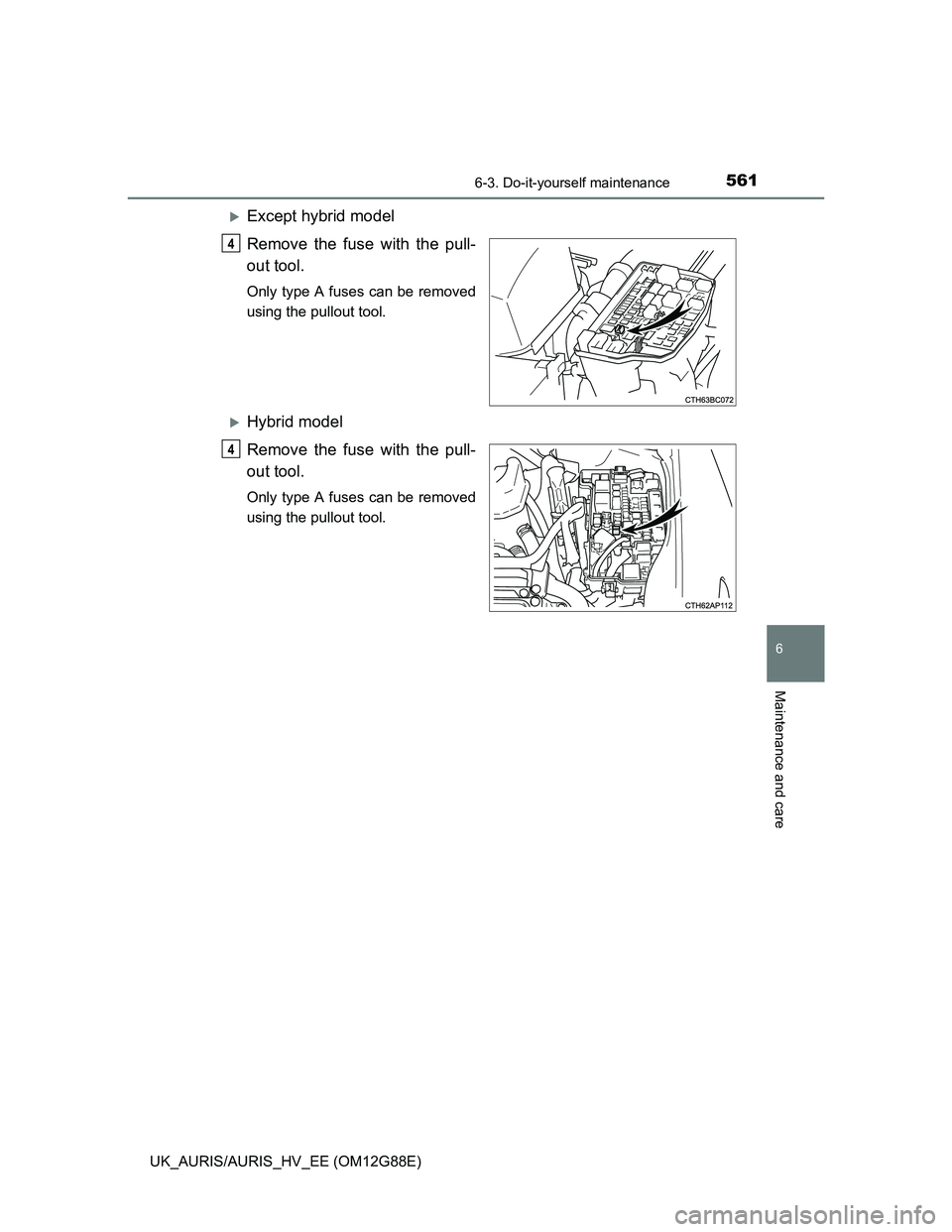

Except hybrid model
Remove the fuse with the pull-
out tool.
Only type A fuses can be removed
using the pullout tool.
Hybrid model
Remove the fuse with the pull-
out tool.
Only type A fuses can be removed
using the pullout tool.
4
4

5626-3. Do-it-yourself maintenance
UK_AURIS/AURIS_HV_EE (OM12G88E)
Check if the fuse is blown.
Normal fuse
Blown fuse
Type A, B, C and D:
Replace the blown fuse with a new fuse of an appropriate amperage rat-
ing. The amperage rating can be found on the fuse box lid.
Type E:
Contact any authorized Toyota dealer or repairer, or another duly qualified
and equipped professional.
5
1
2
Ty p e AType B
Ty p e CType D
Ty p e E

5636-3. Do-it-yourself maintenance
UK_AURIS/AURIS_HV_EE (OM12G88E)
6
Maintenance and care

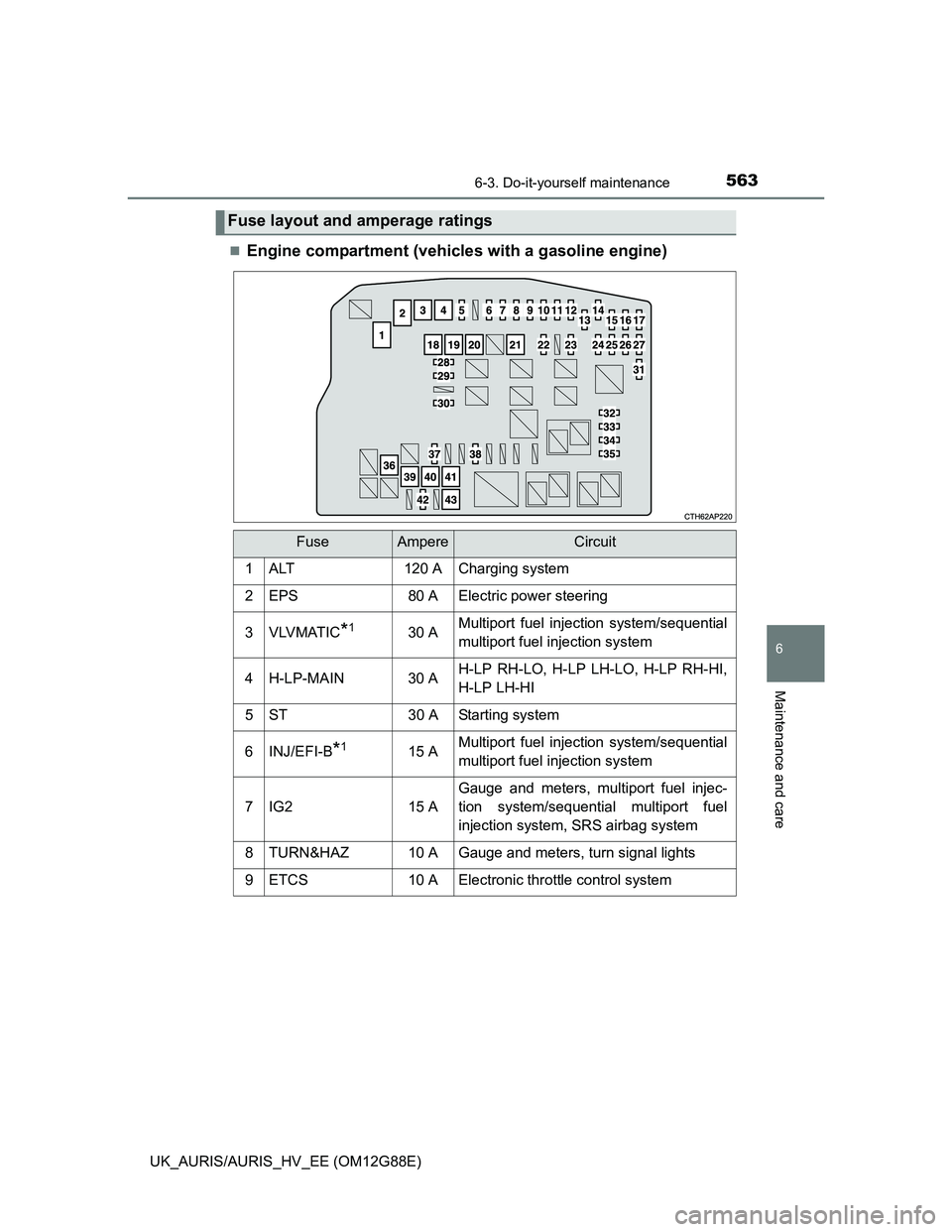

Engine compartment (vehicles with a gasoline engine)
Fuse layout and amperage ratings
FuseAmpereCircuit
1ALT120 ACharging system
2EPS80 AElectric power steering
3VLVMATIC*130 AMultiport fuel injection system/sequential
multiport fuel injection system
4H-LP-MAIN30 AH-LP RH-LO, H-LP LH-LO, H-LP RH-HI,
H-LP LH-HI
5ST30 A Starting system
6INJ/EFI-B*115 AMultiport fuel injection system/sequential
multiport fuel injection system
7IG215 A
Gauge and meters, multiport fuel injec-
tion system/sequential multiport fuel
injection system, SRS airbag system
8TURN&HAZ10 AGauge and meters, turn signal lights
9ETCS10 AElectronic throttle control system

5646-3. Do-it-yourself maintenance
UK_AURIS/AURIS_HV_EE (OM12G88E)
10ICS/ALT-S5 ACharging system
11EFI-MAIN
25 A*1Multiport fuel injection system/sequential
multiport fuel injection system, EFI NO.1,
EFI NO.2, fuel pump
20 A*2
12HORN10 AHorn
13D/C CUT30 ADOME, ECU-B No.1, RADIO
14AM27.5 A
Multiport fuel injection system/sequential
multiport fuel injection system, starting
system, IG2, Stop & Start system
15ECU-B NO.35 AElectric power steering
16ECU-B NO.210 A
Air conditioning system, power windows,
smart entry & start system, outside rear
view mirrors, gauge and meters
17SPARE30 ASpare fuse
18HTR50 AAir conditioning system
19ABS NO.150 AABS, VSC
20DEF30 ARear window defogger, outside rear view
mirror defoggers
21RDI40 AElectric cooling fan
22ABS NO.230 AABS, VSC
23DRL10 ADaytime running lights
24RADIO20 AAudio system
25DOME7.5 AInterior lights, vanity lights, luggage com-
partment light, main body ECU
26ECU-B NO.110 A
Wireless remote control, main body ECU,
smart entry & start system, clock, VSC,
power door lock system, tire pressure
warning system
27SPARE20 ASpare fuse
28EFI NO.210 AMultiport fuel injection system/sequential
multiport fuel injection system
FuseAmpereCircuit

5656-3. Do-it-yourself maintenance
UK_AURIS/AURIS_HV_EE (OM12G88E)
6
Maintenance and care
*1: Vehicles with 1ZR-FAE engine
*2: Vehicles with 1NR-FE engine
*3: Vehicles without discharge headlights (low beam)
*4: Vehicles with discharge headlights (low beam)
*5: Vehicles without PTC 600W heater
*6: Vehicles with PTC 600W heater
29EFI NO.110 A
Multiport fuel injection system/sequential
multiport fuel injection system, Stop &
Start system
30MIR-HTR10 A
Multiport fuel injection system/sequential
multiport fuel injection system, outside
rear view mirror defoggers
31SPARE10 ASpare fuse
32H-LP RH-LO10 A*3
Right-hand headlight (low beam)15 A*4
33H-LP LH-LO10 A*3Left-hand headlight (low beam), manual
headlight leveling dial
15 A*4Left-hand headlight (low beam)
34H-LP RH-HI7.5 ARight-hand headlight (high beam)
35H-LP LH-HI7.5 ALeft-hand headlight (high beam), gauge
and meters
36BBC*240 AStop & Start system
37STRG LOCK20 ASteering lock system
38AMP15 AAudio system
39H-LP CLN30 AHeadlight cleaner
40PTC HIR NO.130 A*5
Air conditioning system50 A*6
41PTC HIR NO.230 AAir conditioning system
42S-HORN10 AS-HORN
43PTC HIR NO.330 AAir conditioning system
FuseAmpereCircuit

5666-3. Do-it-yourself maintenance
UK_AURIS/AURIS_HV_EE (OM12G88E)
Under the instrument panel (vehicles with a gasoline engine)
Ty p e A
FuseAmpereCircuit
1P/OUTLET15 APower outlet (luggage compartment)
2OBD7.5 AOn-board diagnosis system
3STOP7.5 A
Stop lights, multiport fuel injection sys-
tem/sequential multiport fuel injection
system, high mounted stoplight, ABS,
VSC, shift lock control system
4FOG RR7.5 A Rear fog light, gauge and meters
5D/L NO.320 APower door lock system
6S/ROOF20 APanoramic roof shade
7FOG FR7.5 AFront fog lights, gauge and meters
8AM15 AIG1 RLY, ACC RLY
9D/L NO.210 ABack door lock system, power door lock
system
10DOOR NO.220 APower windows
11DOOR R/R20 APower windows
12DOOR R/L20 APower windows
13WASHER15 AWindshield washer
14WIPER NO.225 AWindshield wipers
15WIPER RR15 ARear window wiper

5676-3. Do-it-yourself maintenance
UK_AURIS/AURIS_HV_EE (OM12G88E)
6
Maintenance and care
16WIPER NO.125 AWindshield wipers
17CIG15 APower outlet
18ACC7.5 A
Outside rear view mirrors, audio system,
main body ECU, clock, charging system,
power outlet, Stop & Start system, audio
system
19SFT LOCK-ACC5 AShift lock control system
20TA I L10 AFront position lights, tail lights, license
plate lights, front fog lights, rear fog light
21PA N E L7.5 ASwitch illumination, instrument cluster
lights, glove box light, main body ECU
22WIPER-S5 ACharging system
23ECU-IG NO.17.5 AElectric cooling fan, AFS, charging sys-
tem, ABS, VSC
24ECU-IG NO.27.5 A
Back-up lights, multiport fuel injection
system/sequential multiport fuel injection
system, audio system, AFS, Toyota park-
ing assist-sensor
25ECU-IG NO.37.5 A
Multiport fuel injection system/sequential
multiport fuel injection system, inside rear
view mirror, shift lock control system,
headlight cleaner, audio system, AFS,
panoramic roof shade, windshield
washer, tire pressure warning system
26HTR-IG7.5 AAir conditioning system, rear window
defogger, Stop & Start system
27ECU-IG NO.47.5 A
Main body ECU, front passenger seat
belt reminder light, airbag manual on-off
system, outside rear view mirrors, Toyota
parking assist-sensor
28ECU-IG NO.55 AElectric power steering, Stop & Start sys-
tem
29IGN7.5 A
Smart entry & start system, multiport fuel
injection system/sequential multiport fuel
injection system, steering lock system
FuseAmpereCircuit

5686-3. Do-it-yourself maintenance
UK_AURIS/AURIS_HV_EE (OM12G88E)

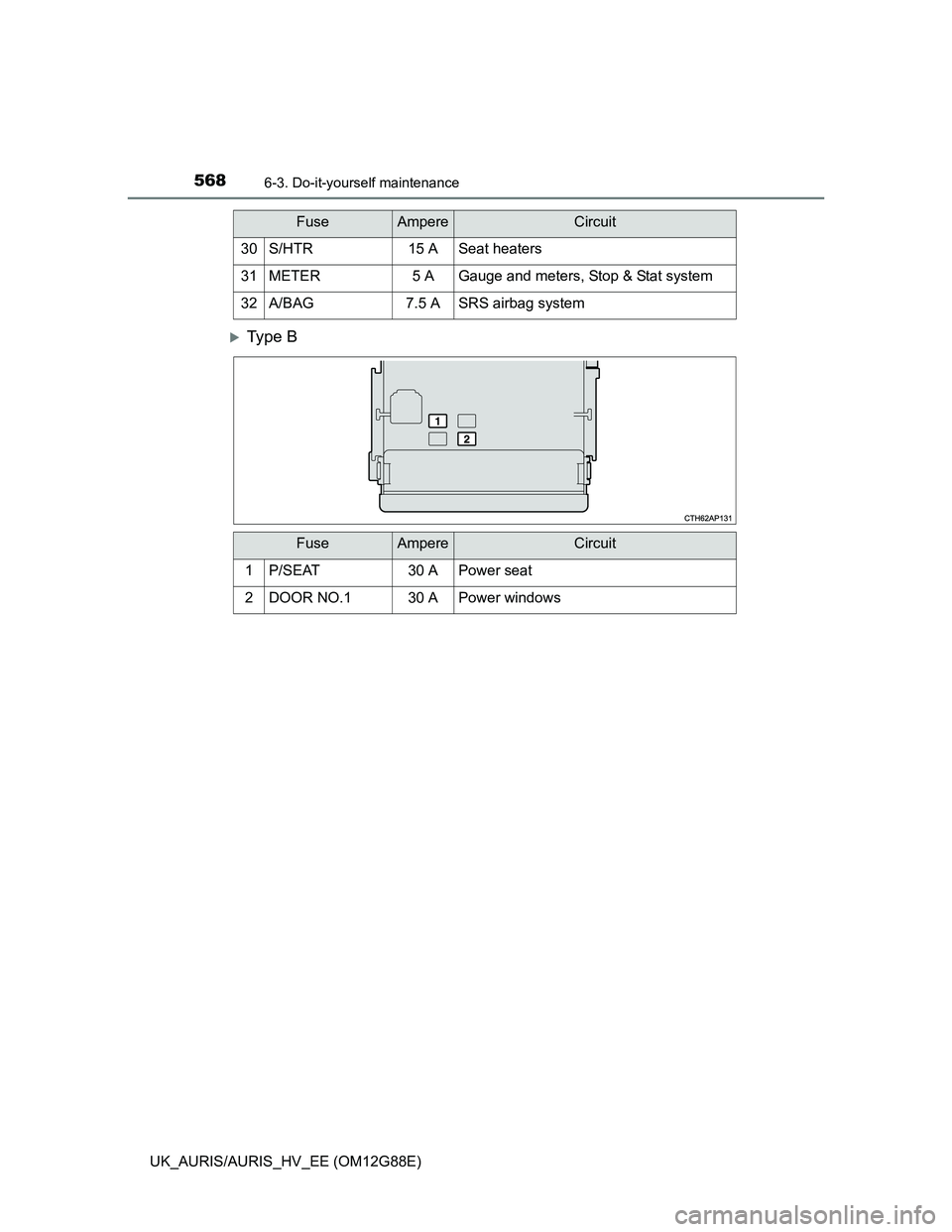

Ty p e B
30S/HTR15 ASeat heaters
31METER5 AGauge and meters, Stop & Stat system
32A/BAG7.5 ASRS airbag system
FuseAmpereCircuit
FuseAmpereCircuit
1P/SEAT30 APower seat
2DOOR NO.130 APower windows
