2014 Peugeot 207 CC Owner's Manual

8
!
CHECKS
127
207CC_EN_CHAP08_VERIFICATIONS_ED01-2014
Only use products recommended by
PEUGEOT or products of equivalent
quality and specifi cations.
In order to optimise the operation
of units as important as the braking
system, PEUGEOT selects and of-
fers very specifi c products.
To avoid damaging the electrical
units, the use of a high pressure
washer in the engine compartment
is strictly prohibited .
After washing the vehicle, or in hu-
mid or wintry conditions, ice can
form on the brake discs and pads
with a resulting loss of effi ciency of
the brakes. Make a few light brake
applications to defrost and dry the
brakes.
Automatic gearbox
The gearbox does not re-
quire any maintenance (no oil
change).
Refer to the warranty and
maintenance record for de-
tails of the checking intervals
for this component.
Brake disc and drum wear
For any information relating
to checking of the brake disc
and/or drum wear, contact a
PEUGEOT dealer or a quali-
fi ed workshop.
Manual gearbox
The gearbox does not re-
quire any maintenance (no oil
change).
Refer to the warranty and
maintenance record for details
of the level checking intervals
for this component.
Brake pads
Brake wear depends on the
style of driving, particularly in
the case of vehicles used in
town, over short distances. It
may be necessary to have the
condition of the brakes checked, even
between vehicle services.
Unless there is a leak on the circuit, a
drop in the brake fl uid level indicates
that the brake pads are worn.
Parking brake
If the parking brake travel is
too long or if you notice a loss
of effectiveness of this sys-
tem, the parking brake must
be adjusted, even between
two services.
This system must be checked by a
PEUGEOT dealer or a qualifi ed work-
shop.

9
i
i
PRACTICAL INFORMATION
128
207CC_EN_CHAP09_INFO PRATIQUES_ED01-2014

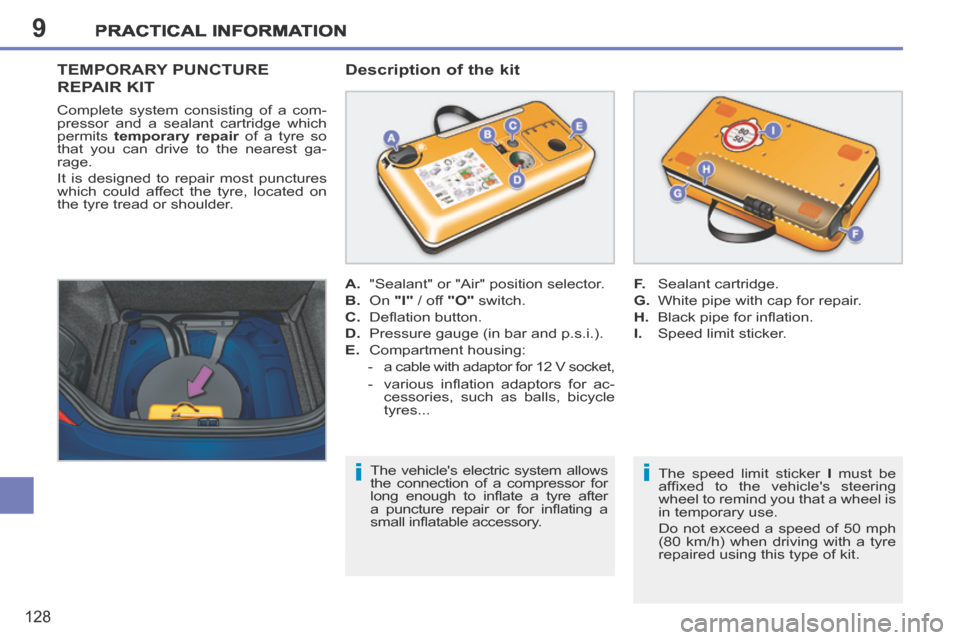

TEMPORARY PUNCTURE
REPAIR KIT
Description of the kit
The speed limit sticker
I must be
affi xed to the vehicle's steering
wheel to remind you that a wheel is
in temporary use.
Do not exceed a speed of 50 mph
(80 km/h) when driving with a tyre
repaired using this type of kit.
A. "Sealant" or "Air" position selector.
B. On "I" / off
"O" switch.
C. Defl ation button.
D. Pressure gauge (in bar and p.s.i.).
E. Compartment housing: - a cable with adaptor for 12 V socket,
- various infl ation adaptors for ac-cessories, such as balls, bicycle
tyres... F.
Sealant cartridge.
G. White pipe with cap for repair.
H. Black pipe for infl ation.
I. Speed limit sticker.
Complete system consisting of a com-
pressor and a sealant cartridge which
permits
temporary repair of a tyre so
that you can drive to the nearest ga-
rage.
It is designed to repair most punctures
which could affect the tyre, located on
the tyre tread or shoulder.
The vehicle's electric system allows
the connection of a compressor for
long enough to infl ate a tyre after
a puncture repair or for infl ating a
small infl atable accessory.

9
i!!
PRACTICAL INFORMATION
129
207CC_EN_CHAP09_INFO PRATIQUES_ED01-2014
Avoid removing any foreign bodies
which have penetrated into the tyre. Take care, this product is harmful
(e.g. ethylene-glycol, colophony...)
if swallowed and causes irritation
to the eyes.
Keep this product out of the reach
of children.
Repair procedure
1. Sealing
 Switch off the ignition.
 Uncoil the white pipe G fully.
 Unscrew the cap from the white pipe.
 Connect the white pipe to the valve of the tyre to be repaired.  Connect the compressor's electric
plug to the vehicle's 12 V socket.
 Start the vehicle and leave the engine running.
Do not start the compressor be-
fore connecting the white pipe to
the tyre valve: the sealant product
would be expelled through the pipe.
 Turn the selector
A to the
"sealant" position.
 Check that the switch B is in
position "O" .

9
i
PRACTICAL INFORMATION
130
207CC_EN_CHAP09_INFO PRATIQUES_ED01-2014
If after around 5 to 7 minutes the
pressure is not attained, this indi-
cates that the tyre is not repairable;
contact a PEUGEOT dealer or a
qualifi ed workshop for assistance.
 Switch on the compressor by mov-
ing the switch B to position "I" until
the tyre pressure reaches 2.0 bars.
The sealant is injected into the tyre under pressure; do not disconnect
the pipe from the valve during this
operation (risk of splashing).  Remove the kit and screw the cap
back on the white pipe.
Take care to avoid staining your ve- hicle with traces of fl uid. Keep the kit
to hand.

Drive immediately for approximately
three miles (fi ve kilometres), at reduced
speed (between 15 and 35 mph (20 and
60 km/h)), to plug the puncture.
 Stop to check the repair and the tyre pressure using the kit.

9
!
PRACTICAL INFORMATION
131
207CC_EN_CHAP09_INFO PRATIQUES_ED01-2014
As soon as possible, go to a
PEUGEOT dealer or a qualifi ed
workshop.
You must inform the technician
that you have used this kit. Af-
ter inspection, the technician will
advise you on whether the tyre
can be repaired or if it must be
replaced.
2. Infl ation
 Turn the selector
A to the
"air" position.
 Uncoil the black pipe H fully.
 Connect the black pipe to the valve of the wheel.  Connect the compressor's electric
plug to the vehicle's 12 V socket.
 Start the vehicle again and leave the engine running.  Adjust the pressure using the com-
pressor (to infl ate: switch B in po-
sition "I" ; to defl ate: switch B in
position "O" and press button C ),
in accordance with the vehicle's tyre
pressure label (located on the left
hand door aperture).
A loss of pressure indicates that the puncture has not been fully plugged;
contact a PEUGEOT dealer or qual-
ifi ed workshop for assistance.
 Remove and stow the kit.
 Drive at reduced speed (50 mph [80 km/h] max) limiting the distance
travelled to approximately 120 miles
(200 km).

9
!
PRACTICAL INFORMATION
132
207CC_EN_CHAP09_INFO PRATIQUES_ED01-2014
Beware of discharges of fl uid.
The expiry date of the fl uid is indi-
cated on the cartridge.
The sealant cartridge is designed
for single use; even if only partly
used, it must be replaced.
After use, do not discard the car-
tridge into the environment, take
it to an authorised waste disposal
site or a PEUGEOT dealer.
Do not forget to obtain a new
sealant cartridge, available from
PEUGEOT dealers or from a qual-
ifi ed workshop.
Removing the cartridge
 Stow the black pipe.
 Detach the angled base from the white pipe.
 Support the compressor vertically.

Unscrew the cartridge from the bottom.
Checking tyre pressures / inflating accessories
You can also use the compressor, with-
out injecting any product, to:
- check or adjust the pressure of your tyres,
- infl ate other accessories (balls, bi- cycle tyres...).
 Turn the selector A to the
"Air" position.
 Uncoil the black pipe H fully.
 Connect the black pipe to the valve of the wheel or accessory.
If necessary, fi t one of the adaptors supplied with the kit fi rst.  Connect the compressor's electri-
cal connector to the vehicle's 12 V
socket.
 Start the vehicle and let the engine run.
 Adjust the pressure using the com- pressor (to infl ate: switch B in po-
sition "I" ; to defl ate: switch B in
position "O" and press button C ),
according to the vehicle's tyre pres-
sure label or the accessory's pres-
sure label.
 Remove the kit then stow it.

9
i
PRACTICAL INFORMATION
133
207CC_EN_CHAP09_INFO PRATIQUES_ED01-2014
* According to country.
CHANGING A WHEEL *
Procedure for changing a faulty wheel
for the spare wheel using the tools pro-
vided with the vehicle.
Access to the tools
The tools are installed in a box at the
bottom of the boot under the spare
wheel.
For access to them, refer to the para-
graph "Access to the spare wheel" on
the following page. List of tools
1. Wheelbrace.
For removal of the wheel trim and
removal of the wheel fi xing bolts.
2. Jack with integral handle.
For raising the vehicle.
3. "Bolt cover" tool.
For removal of the bolt protectors (covers) on alloy wheels.
4.
Socket for the security bolts (located
in the glove box).
For adaptation of the wheelbrace to the special "security" bolts. 5. Removable towing eye.
Refer to the paragraph "Towing the vehicle".
All of these tools are specifi c to your
vehicle. Do not use them for other
purposes.
Other accessories
Wheel with trim
When removing the wheel ,
detach the trim fi rst using the
wheelbrace 1 pulling at the valve
passage hole.
When refi tting the wheel , re-
fi t the trim starting by placing its
notch facing the valve and press
around its edge with the palm of
your hand.

9
i
i
PRACTICAL INFORMATION
134
207CC_EN_CHAP09_INFO PRATIQUES_ED01-2014
Access to the spare wheel
The "space-saver" spare wheel is in-
stalled in the boot under the fl oor.
To gain access to it:
 place the vehicle in the "coupé" con-fi guration,
 open the boot,
 raise the fl oor.
Fixing the "space-saver" spare
wheel
If your vehicle is fi tted with alloy
wheels, it is normal to notice, when
tightening the bolts on fi tting, that
the washers do not come into con-
tact with the "space-saver" spare
wheel. The wheel is secured by the
conical contact of each bolt.
Taking out the wheel
 Slacken and remove the retaining
strap.
 Raise the spare wheel towards you from the rear.
 Take the wheel out of the boot.
Putting the wheel back in place
 Put the spare wheel back in its housing.
 Put the retaining strap back in place and tighten it.
 Put the boot fl oor back in place.
Tyre under-infl ation detection
The spare wheel is not fi tted with a
sensor. The punctured wheel must
be repaired by a PEUGEOT dealer.
