2014 Peugeot 207 CC Owner's Manual

207CC_EN_CHAP00_COUV_DEBUT_ED01-2014
HANDBOOK

207CC_EN_CHAP00_COUV_DEBUT_ED01-2014
Please note the following point: The fitting of electrical equipment or accessories which are not recommended by PEUGEOT may result in a failure of your vehicle's electronic system. Please note this specific warning. It is advisable to contact a PEUGEOT dealer to be shown the recommended equipment and accessories.
On-line handbook
You can find your handbook on the PEUGEOT website, under "MyPEUGEOT". Referring to the handbook on-line also gives you access to the latest information available, easily identified by the bookmark, associated with this symbol:
If the "MyPEUGEOT" function is not available on the PEUGEOTpublic website for your country, you can find your handbook at the following address: http://public.servicebox.peugeot.com/ddb/
The Vehicle documentation link in the home page (no registration is needed), the language, the vehicle, its body style, the print edition of your handbook appropriate for the date of registration of your vehicle.
Select:
You have access to your handbook on line, together with the latest information, identified by the symbol:

!
i
1
207CC_EN_CHAP00A_SOMMAIRE_ED01-2014
Thank you for choosing a 207 CC, a
symbol of confi dence, passion and in-
spiration.
This handbook has been designed to
enable you to make the most of your
207 CC.
On the fi rst few pages, you will fi nd a
detailed summary, followed by a quick
reference guide intended to make it
easier for you to become familiar with
your coupé-cabriolet.
All of the details specifi c to your 207 CC,
comfort, safety, driving, are then pre-
sented in this handbook, to increase
your appreciation of the vehicle help
you get the most from it.
Each model may only be fi tted with
some of the equipment mentioned in
this handbook, depending on its version
and the specifi cation for the country in
which it is sold.
Page reference:
this symbol invites you to refer to
the pages which provide details
of the function.
Key
Protection of the environment:
this symbol accompanies advice
relating to protection of the envi-
ronment.
Information:
this symbol draws your attention
to additional information for better
use of your vehicle.
Warning:
this symbol marks warnings which
it is essential to observe for your
own safety, for the safety of others
or to avoid any risk of damaging
your vehicle.
Welcome

2
CONTENTS
207CC_EN_CHAP00A_SOMMAIRE_ED01-2014

■ Instrument panels 20

■ Indicator and warning lamps 21

■ Indicators 28

■ Adjustment buttons 32

■ Screens without audio
equipment 33

■ Screens with audio equipment 35

■ 16/9 colour screen
(PEUGEOT Connect Navigation) 40

■ Trip computer 42
■ Ventilation 45

■ Heating 47

■ Manual air conditioning 47

■ Rear screen demist - defrost 49

■ Digital air conditioning 50

■ Seats 52

■ Steering wheel adjustment 54

■ Mirrors 55

■ Interior fi ttings 57

■ Windstop 62
COMFORT 45  64

■ Remote control key 65

■ Alarm 69

■ Window controls 71

■ Doors 73

■ Boot 76

■ Fuel tank 77

■ Misfuel prevention (Diesel) 79
ACCESS 65  79

■ Lighting control stalk 80

■ Static directional lighting 83

■ Headlamp adjustment 83

■ Wiper control stalk 84

■ Courtesy lamp 85
VISIBILITY 80  85

■ Conventional child seats 86

■ Deactivating the passenger's
front airbag 87

■ ISOFIX child seats 94
CHILD
SAFETY 86  96
FAMILIARISATION 4
 17
MONITORING
20  445
4
3
2
1
ECO-DRIVING 18  19

3
CONTENTS
207CC_EN_CHAP00A_SOMMAIRE_ED01-2014

■ Direction indicators 97

■ Emergency or assistance call 97

■ Warning triangle 97

■ Hazard warning lamps 98

■ Horn 98

■ Tyre under-infl ation detection 99

■ Braking assistance systems 100

■ Trajectory control systems 101

■ Seat belts 102

■ Airbags 105
SAFETY 97  108

■ Parking brake 109

■ Manual gearbox 109

■ Gear shift indicator 110

■ Automatic gearbox 111

■ Speed limiter 114

■ Cruise control 116

■ Parking sensors 118
DRIVING 109  11 9

■ Bonnet 121

■ Running out of fuel (Diesel) 121

■ Petrol engines 122

■ Diesel engine 123

■ Checking levels 124

■ Checks 126
CHECKS
120  127

■ Temporary puncture
repair kit 128

■ Changing a wheel 133

■ Snow chains 137

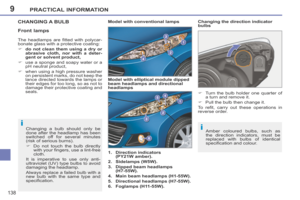

■ Changing a bulb 138

■ Changing a fuse 142

■ Battery 147

■ Energy economy mode 149

■ Changing a wiper blade 149

■ Towing the vehicle 150

■ Towing a trailer 151

■ Accessories 153
PRACTICAL
INFORMATION 128  153

■ Petrol engines 154

■ Weights (petrol) 155

■ Diesel engine 156

■ Weights (Diesel) 157

■ Dimensions 158

■ Identifi cation markings 159
TECHNICAL DATA 154  160
AUDIO EQUIPMENT and
TELEMATICS 161  214

■ Emergency or assistance 161
■ PEUGEOT Connect Navigation
(RNEG) 163
■ PEUGEOT Connect Sound (RD5) 195
ALPHABETICAL
INDEX 219 223
7
86
9
10
VISUAL
SEARCH 215  218

4
FAMILIARISATION
207CC_EN_CHAP00B_PRISE EN MAIN_ED01-2014

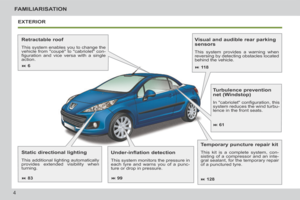

EXTERIOR
Retractable roof
This system enables you to change the
vehicle from "coupé" to "cabriolet" con-
fi guration and vice versa with a single
action.
Static directional lighting
This additional lighting automatically
provides extended visibility when
turning.
Visual and audible rear parking
sensors
This system provides a warning when
reversing by detecting obstacles located
behind the vehicle.
Under-inflation detection
This system monitors the pressure in
each tyre and warns you of a punc-
ture or drop in pressure.
Turbulence prevention
net (Windstop)
In "cabriolet" confi guration, this
system reduces the wind turbu-
lence in the front seats.
Temporary puncture repair kit
This kit is a complete system, con-
sisting of a compressor and an inte-
gral sealant, for the temporary repair
of a punctured tyre.
 6
 83
 99
 128 61
 11 8

ii
5
FAMILIARISATION
207CC_EN_CHAP00B_PRISE EN MAIN_ED01-2014
OPENING
Remote control key
A. Unfolding/Folding the key.
B. Unlocking the vehicle.
C. Unlocking and partially opening the boot.
Also...
D. Normal locking
or
Deadlocking the vehicle.
Fuel tank
1. Opening the fuel fi ller fl ap.
2. Removing and hooking the fuel fi ller cap.
Capacity of the tank: approximately
50 litres (petrol) or 48 litres (Diesel).
Boot
From outside
From inside 1. Unlocking the complete vehicle or unlocking the boot and the vehicle.
2. Opening the boot lid.
1. Key in the ignition switch.
2. Unlocking using the manual cen- tralised control or the door opening
control. On Diesel vehicles, the fuel fi ller
neck incorporates a misfuel preven-
tion device which prevents fi lling
with petrol.
 65
 76  77
 79

!
!
i
6
FAMILIARISATION
207CC_EN_CHAP00B_PRISE EN MAIN_ED01-2014
OPENING
Retractable roof
When washing your vehicle:
- lock the vehicle,
- avoid spraying the upper part
of the windows,
- keep the end of the high-pres- sure nozzle at least 1 metre
from the windows and door
seals.
After washing the vehicle or fol-
lowing rain, wait until the roof has
dried before opening it.
The roof is operated under the
sole responsibility of the driver.
During operation of the roof, to
avoid the risk of injury, ensure that
no one is in the vicinity of the mov-
ing parts.
You are strongly advised not to op-
erate the roof in strong winds. It is preferable to operate the roof
with the engine running.
The roof can be operated at
speeds below 6 mph (10 km/h).
It is only possible to carry out the
operation twice with the engine off,
to avoid discharging the battery.
Preliminary conditions
 Switch on the ignition.
 Ensure that:
- the vehicle is not in energy econo-my mode (refer to the correspond-
ing section),
- the battery voltage is suffi cient indicator lamp on in the roof con-
trol),
- the roof fuse is in good condition (refer to the corresponding section),
- the electric windows are initialised (refer to the corresponding section),
- the ambient temperature is above -15 °C.
Precautions to be taken before
operating the roof
 Park the vehicle on level ground.
 Check that no object could hinder
the operation of the roof:
- nothing should be placed on the moving rear shelf 1 or on the
net 2 .
- if luggage is being carried in the boot, it must not raise the net,
 Ensure that the net 2 is secure.
 Close the boot correctly.
Maintenance
Carry out a complete opening
and closing operation of the roof
at least once a month to keep it in
good working order.
