15
FAMILIARISATION
207CC_EN_CHAP00B_PRISE EN MAIN_ED01-2014
MONITORING
Instrument panel Switch panel
A. With the ignition on, the fuel gauge nee-
dle should rise.
B. With the engine running, the associated
low level warning lamp should go off.
C. With the ignition on, the oil level in-
dicator should display "OIL OK" for
a few seconds.
If the levels are not correct, top up the level
which is low.
Ilumination of the indicator lamp gives
the status of the corresponding function.
A. Deactivation of the ESP/ASR system.
1. With the ignition on, the orange and
red warning lamps come on.
2. With the engine running, these warning lamps should go off.
If a warning lamp remains on, refer to
the page concerned.
Warning lamps
B. Central locking.
C. Deactivation of the interior volumetric protection alarm.
 20  21 101
 74
 69

!
16
FAMILIARISATION
207CC_EN_CHAP00B_PRISE EN MAIN_ED01-2014
Front passenger's airbag Ignition switch
1. Open the glove box.
2. Insert the key.
3. Select position:
"ON" (activation), with front passen-
ger or "forwards facing" child seat,
"OFF" (deactivation), with "rear fac-
ing" child seat.
4. Remove the key keeping the switch in the new position. 1. Stop position.
2. Ignition position.
3. Starting position.
A. Front left seat belt not fastened or
unfastened warning lamp on in red.
B. Front right seat belt not fastened or unfastened warning lamp on in red.
Front seat belts
A heavy object (key fob...), at-
tached to the key and weighing
down on its shaft in the ignition
switch, could cause a malfunction.
PASSENGER SAFETY STARTING
 106  103
 67

17
FAMILIARISATION
207CC_EN_CHAP00B_PRISE EN MAIN_ED01-2014
DRIVING SAFELY
Speed limiter "LIMIT" Instrument panel display
1. Selecting/Switching off speed limiter
mode.
2. Decrease the programmed value.
3. Increase the programmed value.
4. Speed limiter on/off.
The values must be set with the engine
running. The cruise control or speed limiter mode
appears ino the instrument panel when
it is selected.
1. Selecting/Switching off cruise con-
trol mode.
2. Decrease the programmed value.
3. Increase the programmed value.
4. Off/return to cruise control.
In order to be programmed or activated,
the vehicle speed must be higher than
25 mph (40 km/h), with at least fourth
gear engaged on a manual gearbox
(second gear on an automatic gearbox).
Cruise control "CRUISE"
Cruise control
Speed limiter
 11 4
 11 6

18
207CC_EN_CHAP00B_PRISE EN MAIN_ED01-2014
ECO-DRIVING
Eco-driving is a range of everyday practices that allow the motorist to \
optimise their fuel consumption and CO2 emissions.
Optimise the use of your gearbox
With a manual gearbox, move off gently and change up
without waiting. During acceleration change up early.
With an automatic or electronic gearbox, give preference to
automatic mode and avoid pressing the accelerator pedal
heavily or suddenly.
The gear shift indicator invites you engage the most suitable
gear: as soon as the indication is displayed in the instru-
ment panel, follow it straight away.
For vehicles fi tted with an electronic or automatic gearbox,
this indicator appears only in manual mode.
Drive smoothly
Maintain a safe distance between vehicles, use engine
braking rather than the brake pedal, and press the accel-
erator progressively. These practices contribute towards a
reduction in fuel consumption and CO
2 emissions and also
helps reduce the background traffi c noise. Switch off the headlamps and front foglamps when the level
of light does not require their use.
Avoid running the engine before moving off, particularly in
winter; your vehicle will warm up much faster while driving.
As a passenger, if you avoid connecting your multimedia
devices (fi lm, music, video game...), you will contribute to-
wards limiting the consumption of electrical energy, and so
of fuel.
Disconnect your portable devices before leaving the vehicle.
If your vehicle has cruise control, make use of the system at
speeds above 25 mph (40 km/h) when the traffi c is fl owing
well.
Control the use of your electrical equipment
Before moving off, if the passenger compartment is too
warm, ventilate it by opening the windows and air vents be-
fore using the air conditioning.
Above 30 mph (50 km/h), close the windows and leave the
air vents open.
Remember to make use of equipment that can help keep
the temperature in the passenger compartment down (sun-
roof and window blinds...).
Switch off the air conditioning, unless it has automatic regu-
lation, as soon as the desired temperature is attained.
Switch off the demisting and defrosting controls, if not au-
tomatic.
Switch off the heated seat as soon as possible.

19
207CC_EN_CHAP00B_PRISE EN MAIN_ED01-2014
Limit the causes of excess consumption
Spread loads throughout the vehicle; place the heaviest
items in the bottom of the boot, as close as possible to the
rear seats.
Limit the loads carried in the vehicle and reduce wind resis-
tance (roof bars, roof rack, bicycle carrier, trailer...). Use a
roof box in preference.
Remove roof bars and roof racks after use. Have your vehicle serviced regularly (engine oil, oil fi lter,
air fi lter, passenger compartment fi lter...) and observe the
schedule of operations recommended in the warranty and
maintenance record.
When refuelling, do not continue after the third cut-off of the
nozzle to avoid any overfl ow.
At the end of winter, remove snow tyres and refi t your summer
tyres.
Observe the recommendations on maintenance
Check the tyre pressures regularly, when cold, referring to
the label in the door aperture, driver's side.
Carry out this check in particular:
- before a long journey,
- at each change of season,
- after a long period out of use.
Don't forget the spare wheel and the tyres on any trailer or
caravan.
At the wheel of your new vehicle, it is only after the fi rst
1 800 miles (3 000 kilometres) that you will see the fuel con-
sumption settle down to a consistent average.

1
i
MONITORING
20
207CC_EN_CHAP01_CONTROLE DE MARCHE_ED01-2014
PETROL - DIESEL, MANUAL OR AUTOMATIC GEARBOX,
INSTRUMENT PANELS
Panel which groups together the vehicle operation dials and indicator la\
mps. 5. Screen.
6. Display zero reset button.
Resets the selected function to zero (trip distance recorder or service in-
dicator).
7. Instrument panel lighting button.
Adjusts the brightness of the lighting of the instruments and controls.
8. Automatic gearbox.
Indicates the programme selected and the gear engaged.
Dials
1. Rev counter.
Indicates the speed of rotation of the engine (x 1 000 rpm).
2. Fuel gauge.
Indicates the quantity of fuel remain- ing in the tank.
3. Coolant temperature.
Indicates the temperature of the en- gine coolant (°Celsius).
4. Speedometer.
Indicates the current speed of the moving vehicle (mph or km/h). A. Speed limiter
or

Cruise control.
(mph or km/h)
B. Trip distance recorder.
(miles or km/h)
C. Service indicator.
(miles or km/h) then,
Engine oil level indicator.
then
Distance recorder.
km or miles)
These three functions are displayed in succession when the ignition is
switched on.
Screen
For more information, refer to the
corresponding section for the func-
tion and to the display associated
with it.

1
!
MONITORING
21
207CC_EN_CHAP01_CONTROLE DE MARCHE_ED01-2014
INDICATOR AND WARNING LAMPS
Visual indicators informing the driver that a system is in operation (op\
eration or
deactivation indicator lamps) or of the occurrence of a fault (warning\
lamp).
When the ignition is switched on
Certain warning lamps come on for a few seconds when the vehicle's ignit\
ion is switched
on.
When the engine is started, these same warning lamps should go off.
If they remain on, before moving off, refer to the information on the warning lamp concerned.
The warning lamps may come on
continuously (fi xed) or fl ash.
Certain warning lamps may come
on in one of two different modes.
Only by relating the type of illumi-
nation to the operating status of
the vehicle can it be ascertained
whether the situation is normal or
whether a fault has occurred.
Associated warnings
The illumination of certain warning lamps may be accompanied by an audible s ignal
and a message in the multifunction screen.
Warning lamp is on Cause Action/Observations
Left-hand direction
indicato r fl ashing with
buzzer. The lighting stalk is pushed
down.
Right-hand direction
indicator fl ashing with
buzzer. The lighting stalk is pushed
up.
Dipped beam headlamps fi xed. The lighting stalk is in the
"Dipped beam headlamps"
position.
Main beam
headlamps fi xed. The lighting stalk is pulled
towards you. Pull the stalk to return to dipped beam
headlamps.
Operation indicator lamps
If one of the following indicator lamps comes on, this confi rms that the correspond-
ing system has come into operation.

1MONITORING

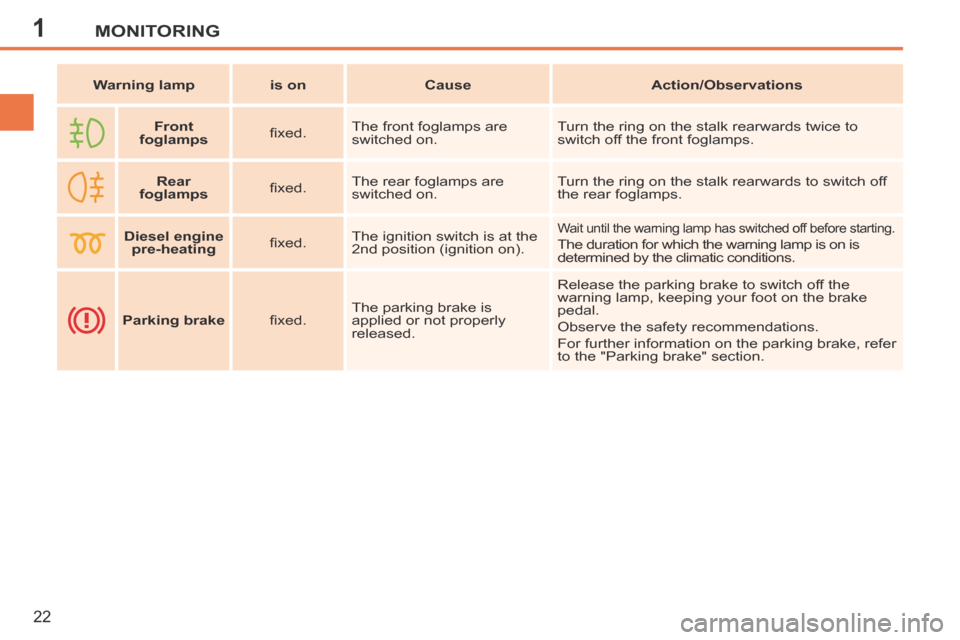

22
207CC_EN_CHAP01_CONTROLE DE MARCHE_ED01-2014
Warning lamp is on Cause Action/Observations
Front
foglamps fi xed. The front foglamps are
switched on. Turn the ring on the stalk rearwards twice to
switch off the front foglamps.
Rear
foglamps fi xed. The rear foglamps are
switched on. Turn the ring on the stalk rearwards to switch off
the rear foglamps.
Diesel engine pre-heating fi xed. The ignition switch is at the
2nd position (ignition on).
Wait until the warning lamp has switched off before starting.
The duration for which the warning lamp is on is
determined by the climatic conditions.
Parking brake fi xed. The parking brake is
applied or not properly
released. Release the parking brake to switch off the
warning lamp, keeping your foot on the brake
pedal.
Observe the safety recommendations.
For further information on the parking brake, refer
to the "Parking brake" section.
