2014 Peugeot 207 CC technical data

3
CONTENTS
207CC_EN_CHAP00A_SOMMAIRE_ED01-2014

■ Direction indicators 97

■ Emergency or assistance call 97

■ Warning triangle 97

■ Hazard warning lamps 98

■ Horn 98

■ Tyre under-infl ation detection 99

■ Braking assistance systems 100

■ Trajectory control systems 101

■ Seat belts 102

■ Airbags 105
SAFETY 97  108

■ Parking brake 109

■ Manual gearbox 109

■ Gear shift indicator 110

■ Automatic gearbox 111

■ Speed limiter 114

■ Cruise control 116

■ Parking sensors 118
DRIVING 109  11 9

■ Bonnet 121

■ Running out of fuel (Diesel) 121

■ Petrol engines 122

■ Diesel engine 123

■ Checking levels 124

■ Checks 126
CHECKS
120  127

■ Temporary puncture
repair kit 128

■ Changing a wheel 133

■ Snow chains 137

■ Changing a bulb 138

■ Changing a fuse 142

■ Battery 147

■ Energy economy mode 149

■ Changing a wiper blade 149

■ Towing the vehicle 150

■ Towing a trailer 151

■ Accessories 153
PRACTICAL
INFORMATION 128  153

■ Petrol engines 154

■ Weights (petrol) 155

■ Diesel engine 156

■ Weights (Diesel) 157

■ Dimensions 158

■ Identifi cation markings 159
TECHNICAL DATA 154  160
AUDIO EQUIPMENT and
TELEMATICS 161  214

■ Emergency or assistance 161
■ PEUGEOT Connect Navigation
(RNEG) 163
■ PEUGEOT Connect Sound (RD5) 195
ALPHABETICAL
INDEX 219 223
7
86
9
10
VISUAL
SEARCH 215  218

9
!
i
PRACTICAL INFORMATION
151
207CC_EN_CHAP09_INFO PRATIQUES_ED01-2014
General recommendations
Observe the legislation in force in
your country.
Ensure that the weight of the tow-
ing vehicle is higher than that of the
towed vehicle.
The driver must remain at the
wheel of the towed vehicle and
must have a valid driving licence.
When towing a vehicle with all four
wheels on the ground, always use
an approved towing bar; rope and
straps are prohibited.
The towing vehicle must move off
gently.
When towing a vehicle with the
engine off, there is no longer any
power assistance for braking or
steering.
In the following cases, you must al-
ways call on a professional recov-
ery service:
- vehicle broken down on a mo-torway or fast road,
- four-wheel drive vehicle,
- when it is not possible to put the gearbox into neutral, unlock the
steering, or release the parking
brake,
- towing with only two wheels on the ground,
- where there is no approved towing bar available...
TOWING A TRAILER
Your vehicle is primarily designed for
transporting people and luggage, but it
may also be used for towing a trailer. Driving with a trailer places greater de-
mands on the towing vehicle and the
driver must take particular care.
Distribution of loads
 Distribute the load in the trailer so
that the heaviest items are as close
as possible to the axle and the nose
weight approaches the maximum
permitted without exceeding it.
Air density decreases with altitude, thus
reducing engine performance. Above
1 000 metres, the maximum towed load
must be reduced by 10 % for every
1 000 metres of altitude.
Side wind
 Take into account the increased sensitivity to side wind.
Towbar suitable for the attachment of a
trailer or installation of a bicycle carrier,
with additional lighting and signalling.
We recommend the use of genuine
PEUGEOT towbars and their har-
nesses that have been tested and
approved from the design stage of
your vehicle, and that the fi tting of the
towbar is entrusted to a PEUGEOT
dealer or a qualifi ed workshop.
If the towbar is not fi tted by a PEUGEOT
dealer, it is imperative that it is fi tted in
accordance with the vehicle manufac-
turer's instructions.
Driving advice
Cooling
Towing a trailer on a slope increases
the temperature of the coolant.
As the fan is electrically controlled, its
cooling capacity is not dependent on
the engine speed.
 To lower the engine speed, reduce your speed.
Refer to the "Technical data" section for
details of the weights and towed loads
which apply to your vehicle.

10
154
TECHNICAL DATA
207CC_EN_CHAP10_CARACTERISTIQUES_ED01-2014
ENGINES AND GEARBOXES
PETROL ENGINE 1.6 litre VTi 120 hp
GEARBOX Manual
(5-speed) Automatic
(4-speed)
Cubic capacity (cc) 1 598
Bore x stroke (mm) 77 x 85.8
Max power * : EU standard (kW) 88
Max power engine speed (rpm) 5 750
Max torque: EU standard (Nm) 160
Max torque engine speed (rpm) 4 250
Fuel Unleaded
Catalytic converter Yes
OIL CAPACITY (in litres)
Engine (with fi lter replacement) 4.25 4.25
* The maximum power corresponds to the value type-approved on a test bed, under conditions defi ned in European legislation (Directive 1999/99/EC).

10TECHNICAL DATA
155
207CC_EN_CHAP10_CARACTERISTIQUES_ED01-2014
The GTW and towed load values indicated apply up to a maximum altitude o\
f 1 000 metres; the towed load mentioned must
be reduced by 10 % for every additional 1 000 metres.
The speed of a towing vehicle must not exceed 60 mph (100 km/h) (comp\
ly with the legislation in force in your country).
High ambient temperatures may result in a reduction in the performance o\
f the vehicle to protect the engine; when the ambi-
ent temperature is higher than 37 °C, limit the towed weight. WEIGHTS AND TOWED LOADS (in kg)
Petrol engines 1.6 litre VTi 120 hp
Gearboxes Manual Auto.
- Unladen weight (kerb weight * ) 1 417 1 455
- Payload 292 312
- Gross vehicle weight (GVW) 1 709 1 767
- Gross train weight (GVW)
on a 12% gradient 2 559 2 647
- Braked trailer (within GTW limit)
on a 10% or 12% gradient - -
- Braked trailer ** (with load transfer within GTW limit) 1 040
1 060
- Unbraked trailer 600 600
- Recommended nose weight 42 43
* The kerb weight is equal to the unladen weight + driver (75 kg).
** The weight of the braked trailer can be increased, within the GTW limit,\
on condition that the GVW of the towing vehicle is re- duced by the same amount; warning: towing with a lightly loaded towing v\
ehicle may have an adverse effect on its road holding.

10
156
TECHNICAL DATA
207CC_EN_CHAP10_CARACTERISTIQUES_ED01-2014

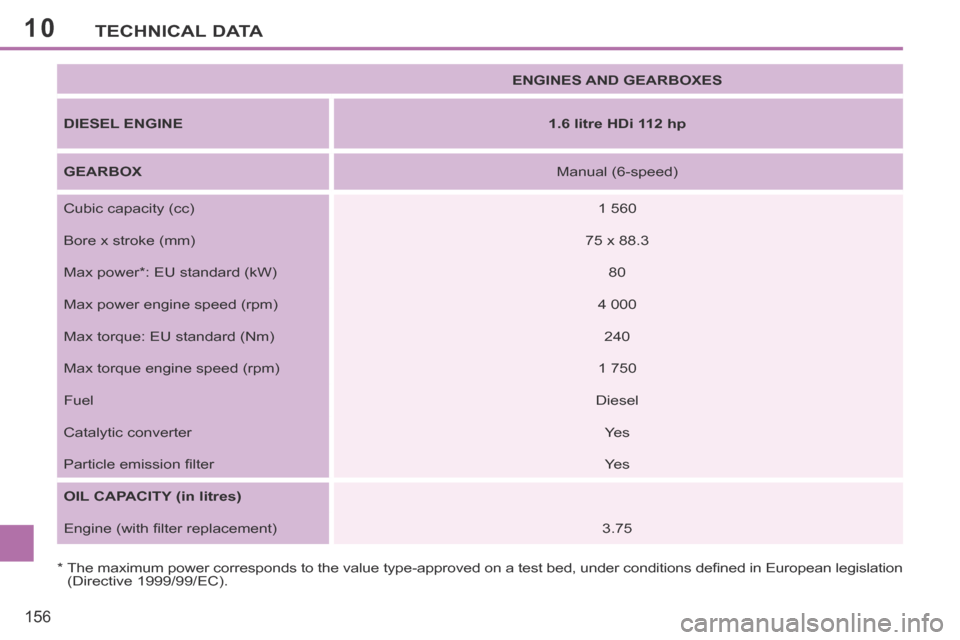

ENGINES AND GEARBOXES
DIESEL ENGINE 1.6 litre HDi 112 hp
GEARBOX Manual (6-speed)
Cubic capacity (cc) 1 560
Bore x stroke (mm) 75 x 88.3
Max power * : EU standard (kW) 80
Max power engine speed (rpm) 4 000
Max torque: EU standard (Nm) 240
Max torque engine speed (rpm) 1 750
Fuel Diesel
Catalytic converter Yes
Particle emission fi lter Yes
OIL CAPACITY (in litres)
Engine (with fi lter replacement) 3.75
* The maximum power corresponds to the value type-approved on a test bed, under conditions defi ned in European legislation (Directive 1999/99/EC).

10TECHNICAL DATA
157
207CC_EN_CHAP10_CARACTERISTIQUES_ED01-2014
The GTW and towed load values indicated apply up to a maximum altitude o\
f 1 000 metres; the towed load mentioned must
be reduced by 10 % for every additional 1 000 metres.
The speed of a towing vehicle must not exceed 60 mph (100 km/h) (comp\
ly with the legislation in force in your country).
High ambient temperatures may result in a reduction in the performance o\
f the vehicle to protect the engine; when the ambi-

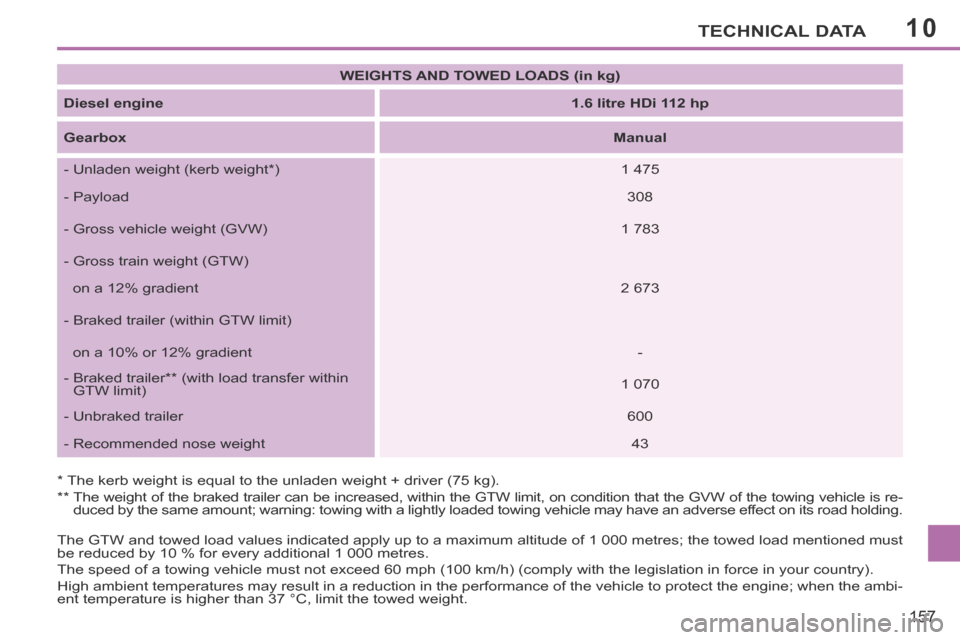

ent temperature is higher than 37 °C, limit the towed weight. WEIGHTS AND TOWED LOADS (in kg)
Diesel engine 1.6 litre HDi 112 hp
Gearbox Manual
- Unladen weight (kerb weight * ) 1 475
- Payload 308
- Gross vehicle weight (GVW) 1 783
- Gross train weight (GTW)
on a 12% gradient 2 673
- Braked trailer (within GTW limit)
on a 10% or 12% gradient -
- Braked trailer ** (with load transfer within GTW limit) 1 070
- Unbraked trailer 600
- Recommended nose weight 43
* The kerb weight is equal to the unladen weight + driver (75 kg).
** The weight of the braked trailer can be increased, within the GTW limit,\
on condition that the GVW of the towing vehicle is re- duced by the same amount; warning: towing with a lightly loaded towing v\
ehicle may have an adverse effect on its road holding.

10
158
TECHNICAL DATA
207CC_EN_CHAP10_CARACTERISTIQUES_ED01-2014
DIMENSIONS (IN MM)

10
i
TECHNICAL DATA
159
207CC_EN_CHAP10_CARACTERISTIQUES_ED01-2014
IDENTIFICATION MARKINGS
Low pressures increase fuel con-
sumption. The tyre pressures must be
checked when the tyres are cold,
at least once a month.
A. Vehicle identifi cation (VIN) number under the bonnet.
This number is etched on the bodywork
near the passenger compartment fi lter. B. Visible VIN on the dashboard.
This number is indicated on a self-
adhesive label which is visible through
the windscreen. C. Tyre/paint label.
This number is indicated on a self-de-
stroying label affi xed to the centre pillar,
near the driver's door striker.
It bears the following information:
- the tyre pressures, unladen and laden,
- the tyre sizes (including the load in-
dex and speed rating),
- the paint colour code.
Various visible markings for the identifi cation of your vehicle.
