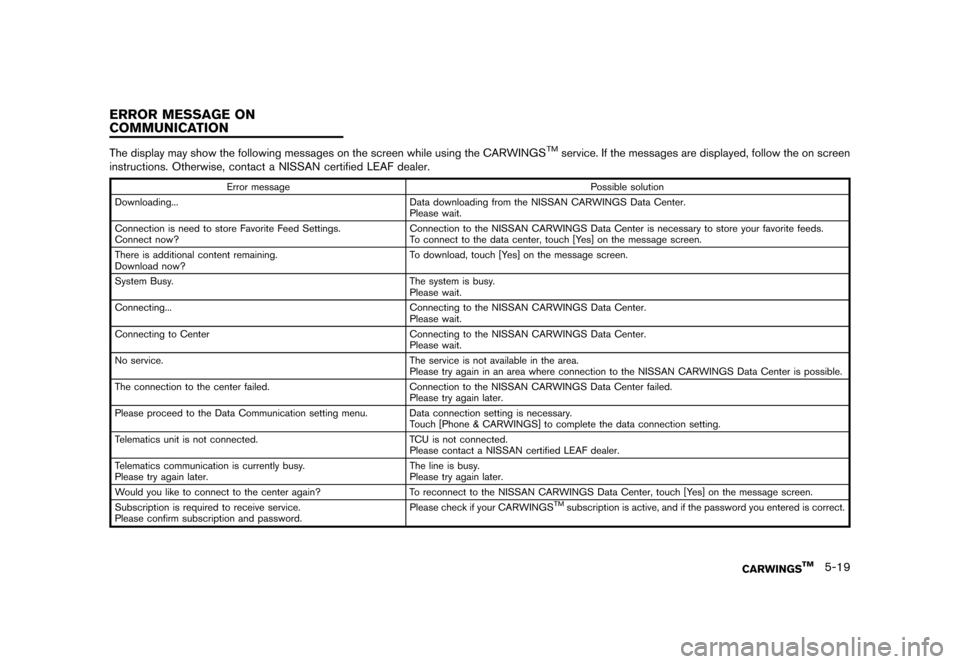

GUID-A612237F-2B0E-4347-871F-77F4C00A717AThe display may show the following messages on the screen while using the CARWINGSTMservice. If the messages are displayed, follow the on screen
instructions. Otherwise, contact a NISSAN certified LEAF dealer.
Error message Possible solution
Downloading... Data downloading from the NISSAN CARWINGS Data Center.
Please wait.
Connection is need to store Favorite Feed Settings.
Connect now? Connection to the NISSAN CARWINGS Data Center is necessary to store your favorite feeds.
To connect to the data center, touch [Yes] on the message screen.
There is additional content remaining.
Download now? To download, touch [Yes] on the message screen.
System Busy. The system is busy.
Please wait.
Connecting... Connecting to the NISSAN CARWINGS Data Center.
Please wait.
Connecting to Center Connecting to the NISSAN CARWINGS Data Center.
Please wait.
No service. The service is not available in the area.
Please try again in an area where connection to the NISSAN CARWINGS Data Center is possible.
The connection to the center failed. Connection to the NISSAN CARWINGS Data Center failed.
Please try again later.
Please proceed to the Data Communication setting menu. Data connection setting is necessary. Touch [Phone & CARWINGS] to complete the data connection setting.
Telematics unit is not connected. TCU is not connected.
Please contact a NISSAN certified LEAF dealer.
Telematics communication is currently busy.
Please try again later. The line is busy.
Please try again later.
Would you like to connect to the center again? To reconnect to the NISSAN CARWINGS Data Center, touch [Yes] on the message screen.
Subscription is required to receive service.
Please confirm subscription and password. Please check if your CARWINGS
TMsubscription is active, and if the password you entered is correct.
CARWINGSTM5-19
ERROR MESSAGE ON
COMMUNICATION
Condition: NAM/

Black plate (174,1)
[ Edit: 2013/ 10/ 7 Model: Navi-EV ]
5-20CARWINGSTM
GUID-3C8F9DA8-DBD3-4E5C-9F8B-8E948F862FD6
AUTOMATIC CARRIER SETTINGSGUID-A4C708A1-037E-468D-B859-B12809688AE01. Push theMENUbutton and touch [Set-
tings].
2. Touch [Phone & CARWINGS].
LNG0013X
3. Touch [Data Communication].
LNG0014X
4. Touch [Select Carrier].
LNG0015X
5. Touch [Automatic Setup]. The indicator
illuminates when the item is set.
MANUAL CARRIER SETTINGSGUID-F246C263-22FD-4128-A601-C1C2FC5637481. Push the MENUbutton and touch [Set-
tings].
2. Touch [Phone & CARWINGS].
LNG0016X
3. Touch [Data Communication].
LNG0017X
4. Touch [Select Carrier].
LNG0018X
5. Touch [Manual Setup]. The indicator illumi- nates, and then [Select Carrier] can be
touched.
6. Touch [Select Carrier]. A list screen is
displayed.
DATA COMMUNICATION SETTINGS
Condition: NAM/

Black plate (175,1)
[ Edit: 2013/ 10/ 7 Model: Navi-EV ]
LNG0019X
7. Touch the preferred carrier from the list. Theindicator illuminates when the item is set.
CARWINGSTM5-21
Condition: NAM/

Black plate (176,1)
[ Edit: 2013/ 10/ 7 Model: Navi-EV ]
5-22CARWINGSTM

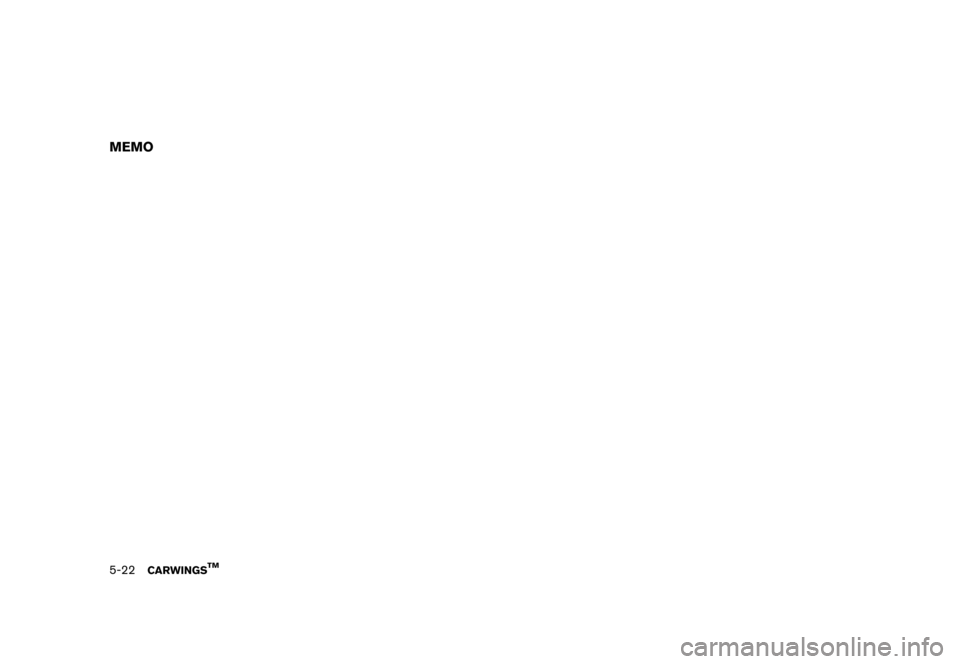

MEMO
Condition: NAM/

Black plate (177,1)
[ Edit: 2013/ 10/ 7 Model: Navi-EV ]

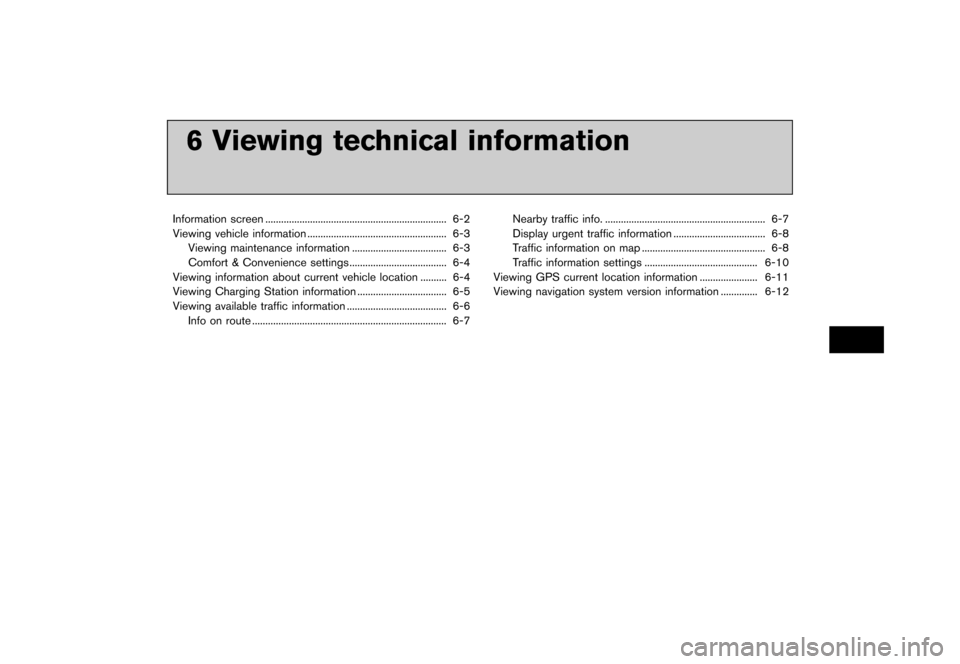

6 Viewing technical information
Information screen...
..................................................................... 6-2
Viewing vehicle information ...
..................................................... 6-3
Viewing maintenance information ...
.................................... 6-3
Comfort & Convenience settings ...
..................................... 6-4
Viewing information about current vehicle location ...
.......... 6-4
Viewing Charging Station information ...
.................................. 6-5
Viewing available traffic information ...
...................................... 6-6
Info on route ...
........................................................................\
.. 6-7 Nearby traffic info.
...
............................................................. 6-7
Display urgent traffic information ...
................................... 6-8
Traffic information on map ...
............................................... 6-8
Traffic information settings ...
........................................... 6-10
Viewing GPS current location information ...
...................... 6-11
Viewing navigation system version information ...
.............. 6-12
Condition: NAM/

Black plate (178,1)
[ Edit: 2013/ 10/ 7 Model: Navi-EV ]
6-2Viewing technical information

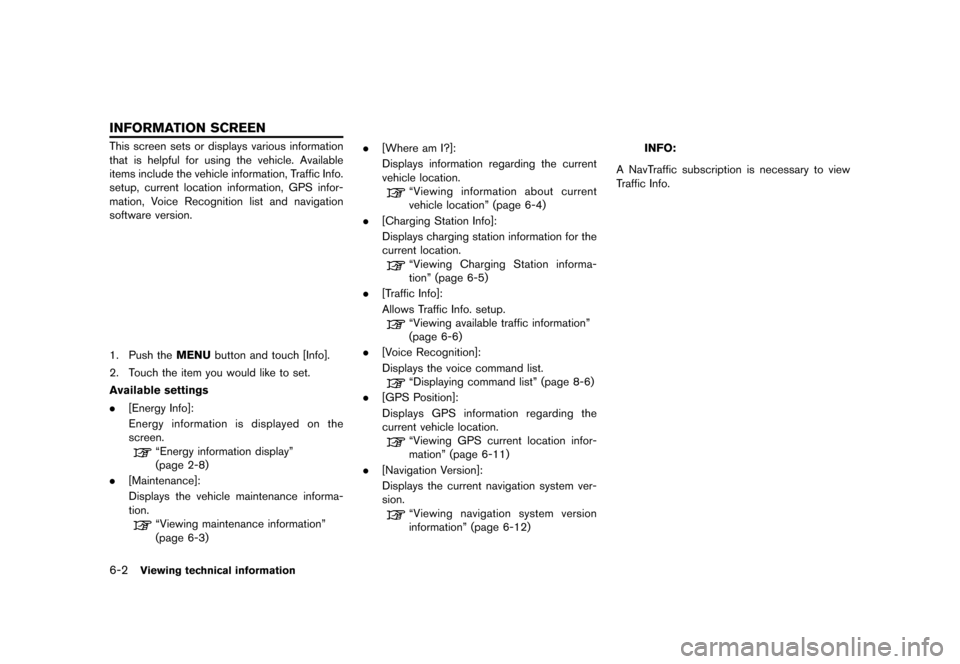

GUID-5E9B2C85-D229-414A-96FE-2A3389057A2BThis screen sets or displays various information
that is helpful for using the vehicle. Available
items include the vehicle information, Traffic Info.
setup, current location information, GPS infor-
mation, Voice Recognition list and navigation
software version.
LNH0121X
1. Push theMENUbutton and touch [Info].
2. Touch the item you would like to set.
Available settings
. [Energy Info]:
Energy information is displayed on the
screen.
“Energy information display”
(page 2-8)
. [Maintenance]:
Displays the vehicle maintenance informa-
tion.
“Viewing maintenance information”
(page 6-3) .
[Where am I?]:
Displays information regarding the current
vehicle location.
“Viewing information about current
vehicle location” (page 6-4)
. [Charging Station Info]:
Displays charging station information for the
current location.
“Viewing Charging Station informa-
tion” (page 6-5)
. [Traffic Info]:
Allows Traffic Info. setup.
“Viewing available traffic information”
(page 6-6)
. [Voice Recognition]:
Displays the voice command list.
“Displaying command list” (page 8-6)
. [GPS Position]:
Displays GPS information regarding the
current vehicle location.
“Viewing GPS current location infor-
mation” (page 6-11)
. [Navigation Version]:
Displays the current navigation system ver-
sion.
“Viewing navigation system version
information” (page 6-12)
INFO:
A NavTraffic subscription is necessary to view
Traffic Info.
INFORMATION SCREEN
Condition: NAM/

Black plate (179,1)
[ Edit: 2013/ 10/ 7 Model: Navi-EV ]
GUID-B396AE18-C833-4CC3-88AD-CCFAB28E4A80

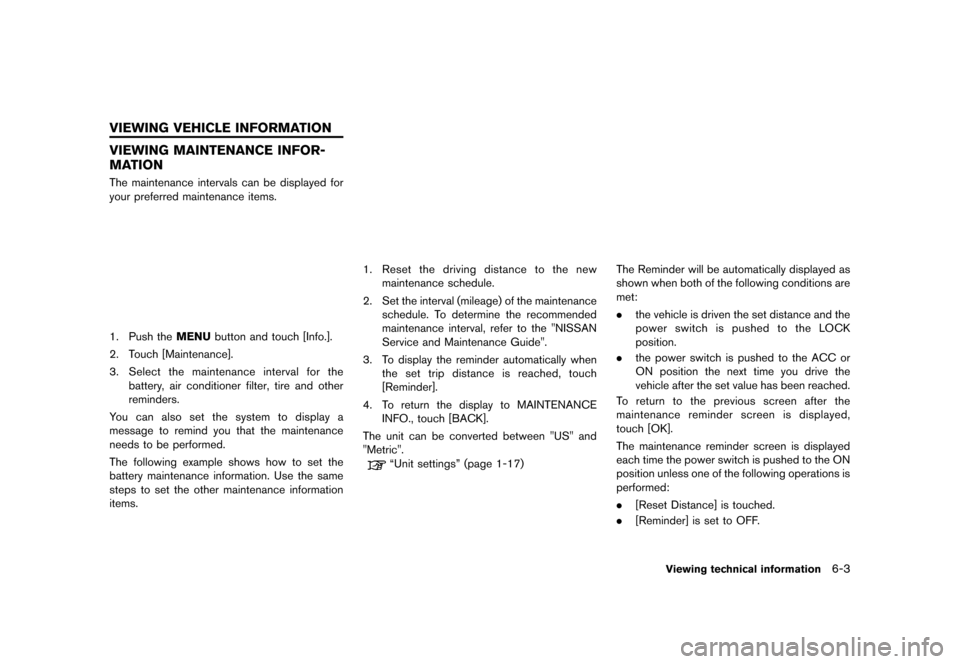

VIEWING MAINTENANCE INFOR-
MATION
GUID-921A0AF1-AF9A-440B-B1A6-CC6ACA5751CCThe maintenance intervals can be displayed for
your preferred maintenance items.
LNH0002X
1. Push theMENUbutton and touch [Info.].
2. Touch [Maintenance].
3. Select the maintenance interval for the
battery, air conditioner filter, tire and other
reminders.
You can also set the system to display a
message to remind you that the maintenance
needs to be performed.
The following example shows how to set the
battery maintenance information. Use the same
steps to set the other maintenance information
items.
LNH0003X
1. Reset the driving distance to the new
maintenance schedule.
2. Set the interval (mileage) of the maintenance schedule. To determine the recommended
maintenance interval, refer to the "NISSAN
Service and Maintenance Guide".
3. To display the reminder automatically when the set trip distance is reached, touch
[Reminder].
4. To return the display to MAINTENANCE INFO., touch [BACK].
The unit can be converted between "US" and
"Metric".
“Unit settings” (page 1-17)
LNH0004X
The Reminder will be automatically displayed as
shown when both of the following conditions are
met:
. the vehicle is driven the set distance and the
power switch is pushed to the LOCK
position.
. the power switch is pushed to the ACC or
ON position the next time you drive the
vehicle after the set value has been reached.
To return to the previous screen after the
maintenance reminder screen is displayed,
touch [OK].
The maintenance reminder screen is displayed
each time the power switch is pushed to the ON
position unless one of the following operations is
performed:
. [Reset Distance] is touched.
. [Reminder] is set to OFF.
Viewing technical information6-3
VIEWING VEHICLE INFORMATION
Condition: NAM/

Black plate (180,1)
[ Edit: 2013/ 10/ 7 Model: Navi-EV ]
6-4Viewing technical information

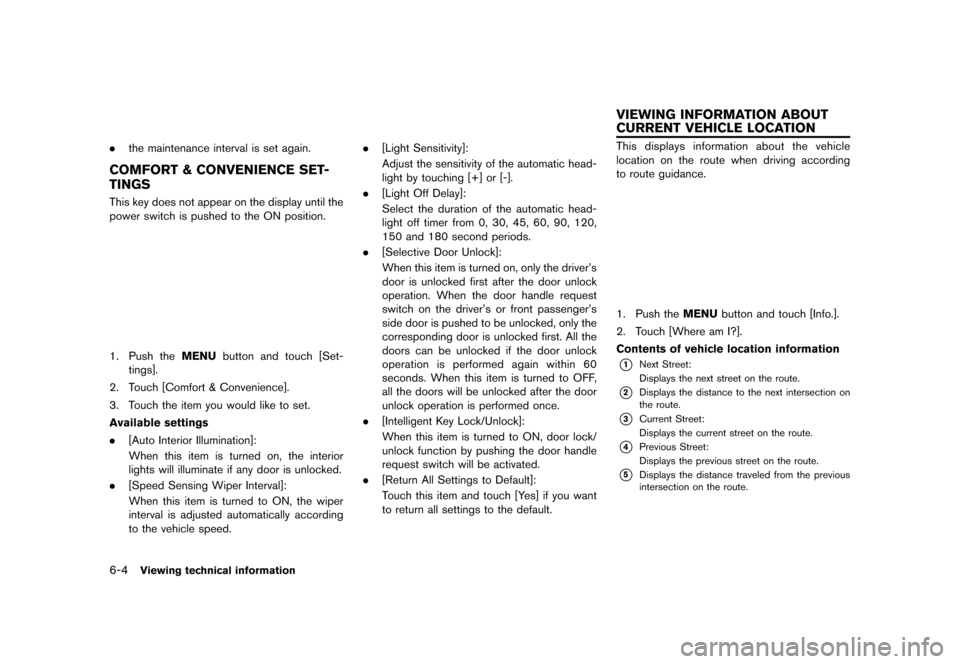

.the maintenance interval is set again.
COMFORT & CONVENIENCE SET-
TINGS
GUID-5299EC94-C57D-49DF-88DE-4252E79D3654This key does not appear on the display until the
power switch is pushed to the ON position.
LNH0005X
1. Push the MENUbutton and touch [Set-
tings].
2. Touch [Comfort & Convenience].
3. Touch the item you would like to set.
Available settings
. [Auto Interior Illumination]:
When this item is turned on, the interior
lights will illuminate if any door is unlocked.
. [Speed Sensing Wiper Interval]:
When this item is turned to ON, the wiper
interval is adjusted automatically according
to the vehicle speed. .
[Light Sensitivity]:
Adjust the sensitivity of the automatic head-
light by touching [+] or [-].
. [Light Off Delay]:
Select the duration of the automatic head-
light off timer from 0, 30, 45, 60, 90, 120,
150 and 180 second periods.
. [Selective Door Unlock]:
When this item is turned on, only the driver’s
door is unlocked first after the door unlock
operation. When the door handle request
switch on the driver’s or front passenger’s
side door is pushed to be unlocked, only the
corresponding door is unlocked first. All the
doors can be unlocked if the door unlock
operation is performed again within 60
seconds. When this item is turned to OFF,
all the doors will be unlocked after the door
unlock operation is performed once.
. [Intelligent Key Lock/Unlock]:
When this item is turned to ON, door lock/
unlock function by pushing the door handle
request switch will be activated.
. [Return All Settings to Default]:
Touch this item and touch [Yes] if you want
to return all settings to the default.
GUID-A17BC4BB-AADA-4171-BA2D-E28871BCA8F9This displays information about the vehicle
location on the route when driving according
to route guidance.
LNH0006X
1. Push the MENUbutton and touch [Info.].
2. Touch [Where am I?].
Contents of vehicle location information
*1Next Street:
Displays the next street on the route.
*2Displays the distance to the next intersection on
the route.
*3Current Street:
Displays the current street on the route.
*4Previous Street:
Displays the previous street on the route.
*5Displays the distance traveled from the previous
intersection on the route.
VIEWING INFORMATION ABOUT
CURRENT VEHICLE LOCATION
