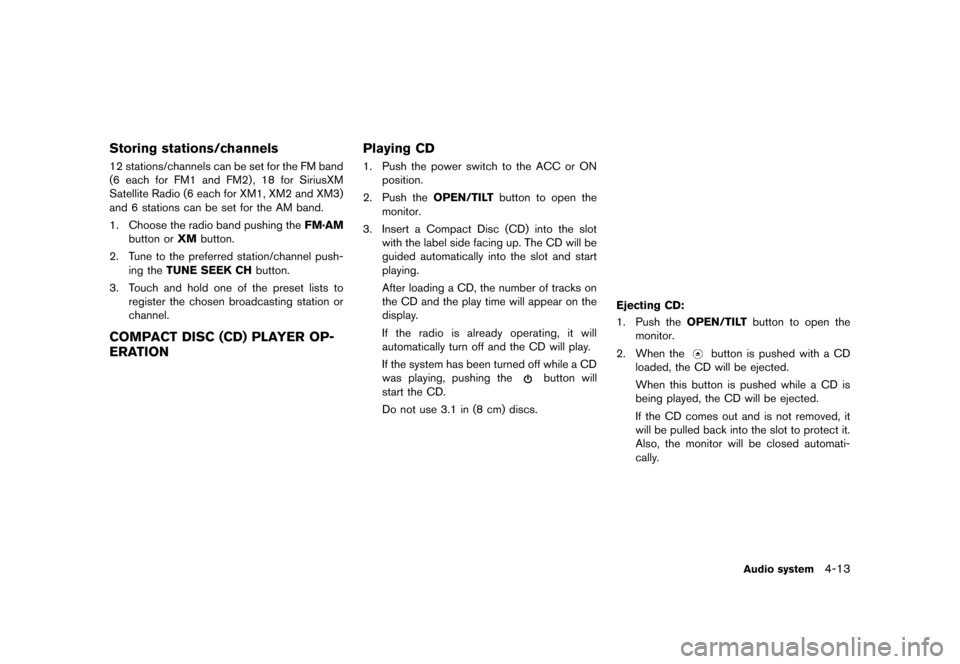

Storing stations/channelsGUID-E7F91FC1-C573-4847-8D40-29FB8FEED54B12 stations/channels can be set for the FM band
(6 each for FM1 and FM2) , 18 for SiriusXM
Satellite Radio (6 each for XM1, XM2 and XM3)
and 6 stations can be set for the AM band.
1. Choose the radio band pushing theFM·AM
button or XMbutton.
2. Tune to the preferred station/channel push- ing the TUNE SEEK CH button.
3. Touch and hold one of the preset lists to register the chosen broadcasting station or
channel.
COMPACT DISC (CD) PLAYER OP-
ERATION
GUID-A28D720F-2D75-4FE8-83A3-198D5B21527C
LNF0005X
Playing CDGUID-E9F7A408-A3A7-4940-9CF2-ACB80C4DF3881. Push the power switch to the ACC or ONposition.
2. Push the OPEN/TILTbutton to open the
monitor.
3. Insert a Compact Disc (CD) into the slot with the label side facing up. The CD will be
guided automatically into the slot and start
playing.
After loading a CD, the number of tracks on
the CD and the play time will appear on the
display.
If the radio is already operating, it will
automatically turn off and the CD will play.
If the system has been turned off while a CD
was playing, pushing the
button will
start the CD.
Do not use 3.1 in (8 cm) discs.
LNF0006X
Ejecting CD:
1. Push the OPEN/TILTbutton to open the
monitor.
2. When the
button is pushed with a CD
loaded, the CD will be ejected.
When this button is pushed while a CD is
being played, the CD will be ejected.
If the CD comes out and is not removed, it
will be pulled back into the slot to protect it.
Also, the monitor will be closed automati-
cally.
Audio system4-13
Condition: NAM/

Black plate (142,1)
[ Edit: 2013/ 10/ 7 Model: Navi-EV ]
4-14Audio system
How to view CD screenGUID-E902B692-E481-4875-91FE-430C4B4967C6
LNF0007X
*1Indicates the following information.
CD:
Disc title, Track title, Artist
CD with compressed audio files:
Folder title, File title, Track title, Album title, Artist
*2Indicates the play mode that is currently set.
However, the play mode is not indicated when
the normal mode is set.
*3[Mode]:
Touch the screen to set the play mode.
*4[Info]:
Touch the screen to indicate the track information
screen.
*5[SCAN]:
Touch the screen to play the next track after
playing the current track for 10 seconds. Touch
the screen again to choose the last track that was
played last time.
*6Folder list:
Touch the folder to indicate the track list.Track list:
Touch the screen to play the track that is chosen.
Selecting tracksGUID-AC124133-2B61-4ACC-809C-1D2E1DA399C3Pushof the
TUNE SEEK CH button to play
the previous track.
Push
of the TUNE SEEK CH button to play
the next track.
Touch the track on the track list to play the track
that is chosen.
Touch the folder to indicate the track list.
SCAN function:
Touch [SCAN] to play the next track after playing
the current track for 10 seconds. Touch [SCAN]
again to choose the last track that was played
last time.
Next/Previous Track and Fast For-
ward/Rewind
GUID-D99019FC-CB68-4A13-AD47-6FAE9BF26A75Push the TUNE SEEK CH button for more than
1.5 seconds while a CD is being played to fast
forward or rewind through the current track.
When the button is released, the CD will return
to normal play speed.
When the TUNE SEEK CH button is pushed for
less than 1.5 seconds while a CD is being
played, the next track or the beginning of the
current track on the CD will be played.
Select play modeGUID-462595EE-9EEB-47F0-9730-2DF0DCAC98A5The play mode settings display will appear when
[Mode] is touched.
Select the preferred play mode from the
following items.
CD:
. Normal
. 1 Track Repeat
. 1 Disc Random
CD with compressed audio files:
. Normal
. 1 Folder Repeat
. 1 Track Repeat
. 1 Disc Random
. 1 Folder Random
Condition: NAM/

Black plate (143,1)
[ Edit: 2013/ 10/ 7 Model: Navi-EV ]
iPod®PLAYER OPERATIONGUID-92F97DCC-8A7B-4962-B3EF-B537B5AA8CFE
Connecting iPod®GUID-86159E90-EC5B-440C-8A60-183226DEE0E7
LNF0008X
Connect the iPod®cable to the USB connector.
If the iPod®supports charging via USB, the
battery of the iPod®will be charged while
connected to the vehicle.
Depending on the model and firmware version of
the iPod
®, the display on the iPod®shows a
NISSAN or Accessory Attached screen when
the connection is completed. When the iPod
®is
connected to the vehicle, the iPod®music library
can only be operated by the vehicle audio
controls.
iPod
®and iPhone®are a trademark of Apple
Inc., registered in the U.S. and other countries.
WARNING
Do not connect, disconnect or operate
the USB device while driving. Doing so
can be a distraction. If distracted you
could lose control of your vehicle and
cause an accident or serious injury.
CAUTION
. Do not force the USB device into the
USB port. Inserting the USB device
tilted or up-side-down into the port
may damage the port. Make sure
that the USB device is connected
correctly into the USB port.
. Do not grab the USB port cover
when pulling the USB device out of
the port. This could damage the port
and the cover.
. Do not leave the USB cable in a
place where it can be pulled unin-
tentionally. Pulling the cable may
damage the port.
Refer to your device manufacturer’s owner
information regarding the proper use and care of the device.
Playing iPod®GUID-28BF6832-2085-494B-A4E6-1813413B09C2Push the power switch to the ACC or ON
position. Then, push the
CD·AUXbutton
repeatedly to switch to the iPod
®mode. If the
system has been turned off while the iPod®was
playing, pushing the
button will start the
iPod®.
How to view iPod®screenGUID-266AD5A0-1330-4370-8D3C-7E9AB4FC7E8E
LNF0149X
*1Indicates the following information.
Track title, Album title, Artist
*2Indicates the play mode that is currently set.
However, the play mode is not indicated when
the normal mode is set.
*3Displays album artwork when available.
*4[Menu]:
Touch the screen to set the iPod®play method.
*5[Mode]:
Touch the screen to set the play mode.
Audio system4-15
Condition: NAM/

Black plate (144,1)
[ Edit: 2013/ 10/ 7 Model: Navi-EV ]

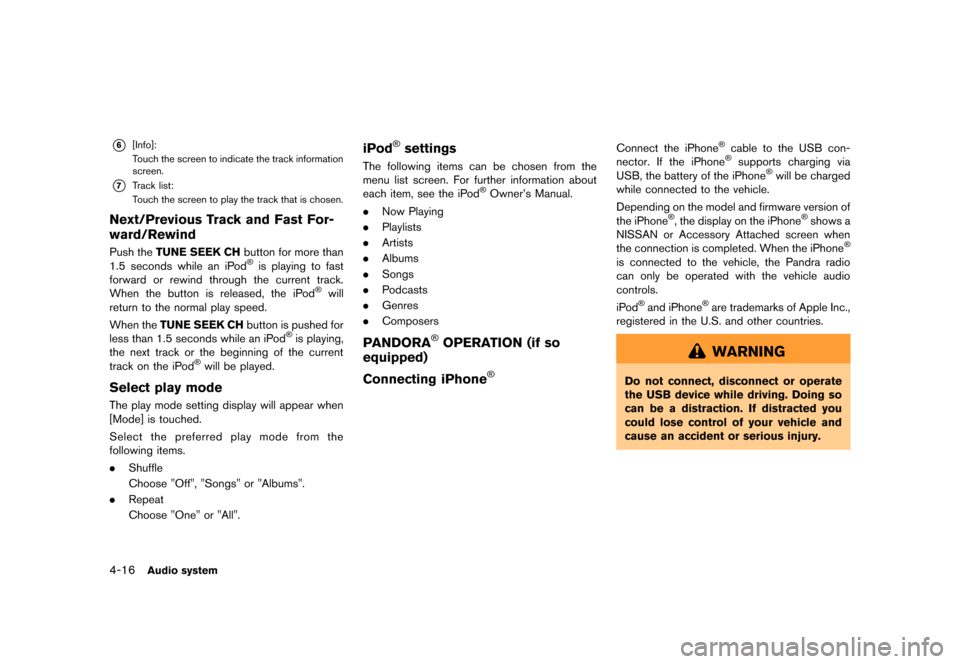

4-16Audio system
*6[Info]:
Touch the screen to indicate the track information
screen.
*7Track list:
Touch the screen to play the track that is chosen.
Next/Previous Track and Fast For-
ward/Rewind
GUID-AB2678DB-05B1-49B4-8510-57E99A714391Push theTUNE SEEK CH button for more than
1.5 seconds while an iPod®is playing to fast
forward or rewind through the current track.
When the button is released, the iPod
®will
return to the normal play speed.
When the TUNE SEEK CH button is pushed for
less than 1.5 seconds while an iPod
®is playing,
the next track or the beginning of the current
track on the iPod
®will be played.
Select play modeGUID-5BBFF52C-EB08-4B34-9053-F8C6F718BC76The play mode setting display will appear when
[Mode] is touched.
Select the preferred play mode from the
following items.
. Shuffle
Choose "Off", "Songs" or "Albums".
. Repeat
Choose "One" or "All".
iPod®settingsGUID-910C880A-F593-4694-A3FE-E916A45E3454The following items can be chosen from the
menu list screen. For further information about
each item, see the iPod
®Owner’s Manual.
. Now Playing
. Playlists
. Artists
. Albums
. Songs
. Podcasts
. Genres
. Composers
PANDORA®OPERATION (if so
equipped)
GUID-2C4BD488-6257-4263-A3B8-0C6D5852A271
Connecting iPhone®GUID-6256A460-8E21-4855-81CA-EAC32DD46457
LNF0147X
Connect the iPhone®cable to the USB con-
nector. If the iPhone®supports charging via
USB, the battery of the iPhone®will be charged
while connected to the vehicle.
Depending on the model and firmware version of
the iPhone
®, the display on the iPhone®shows a
NISSAN or Accessory Attached screen when
the connection is completed. When the iPhone
®
is connected to the vehicle, the Pandra radio
can only be operated with the vehicle audio
controls.
iPod
®and iPhone®are trademarks of Apple Inc.,
registered in the U.S. and other countries.
WARNING
Do not connect, disconnect or operate
the USB device while driving. Doing so
can be a distraction. If distracted you
could lose control of your vehicle and
cause an accident or serious injury.
Condition: NAM/

Black plate (145,1)
[ Edit: 2013/ 10/ 7 Model: Navi-EV ]
CAUTION
.Do not force the USB device into the
USB port. Inserting the USB device
tilted or up-side-down into the port
may damage the port. Make sure
that the USB device is connected
correctly into the USB port.
. Do not grab the USB port cover
when pulling the USB device out of
the port. This could damage the port
and the cover.
. Do not leave the USB cable in a
place where it can be pulled unin-
tentionally. Pulling the cable may
damage the port.
Refer to your device manufacturer’s owner
information regarding the proper use and care
of the device.
Compatibility:
The following models are available.
. iPhone
®3GS
. iPhone®4
. iPhone®4S
. iPod touch®4G
Playing Pandora®GUID-3E35697B-56CE-4BE9-AC32-0BFDB2240F30Push the vehicle’s power switch to the ACC or
ON position. Then, push the CD·AUXbutton
repeatedly to switch to the Pandora
®mode. If
the system was turned off while the Pandora®
was playing, pushing thebutton will start the
Pandora®.
How to view Pandora®screenGUID-DC483E95-9D57-456F-8AEF-4B8809A53561
LNF0148X
*1Indicates the station name, Track title, Artist,
Album title.
*2Indicates the play time.
*3Displays album artwork, when available.
*4[Menu]:
Sets the Pandora®play mode.
*5(Thumbs Down):
Touch the screen to give a song a thumbs down.
*6(Bookmark):
Touch the screen to bookmark a song.
*7(Thumbs up):
Touch the screen to give a song a thumbs up.
*8(play)/(pause):
Touch to start or pause the Pandora®.
INFO:
Thumbs Up, Thumbs Down, Skip Track, and
Bookmark are not available while an advertise-
ment is playing.
Pandora®settingsGUID-888E805E-E560-4C6F-A748-9603FC123C12
LNE0912X
To adjust the Pandora®settings, select the
“Menu” key in the Pandora®screen.
. [Now Playing]:
Touch to return to the now playing screen
during playback.
. [Station List]:
Touch to display a list of available Pandora
®
stations.
. [New Station]:
Touch to create a new Pandora
®station.
Audio system4-17
Condition: NAM/

Black plate (146,1)
[ Edit: 2013/ 10/ 7 Model: Navi-EV ]
4-18Audio system
— [From Track]Create a new station from a Track.
— [From Artist] Create a new station from an Artist.
. [Delete Station]:
Touch to delete a station from the list of
optional Pandora
®stations.
. [Display of Album Artwork]:
Set to display the album artwork on the
playback.
INFO:
[New Station] is not available while an adver-
tisement is playing.
USB MEMORY OPERATIONGUID-4ECBAE05-C74A-4D4B-B183-1F4933C3C92B
LNF0010X
Connecting USB memoryGUID-8B4A7CDA-0428-4D60-A67E-D4AD0C453CB2Connect a USB memory as shown in the
illustration. The USB screen is displayed.
WARNING
Do not connect, disconnect or operate
the USB device while driving. Doing so
can be a distraction. If distracted you
could lose control of your vehicle and
cause an accident or serious injury.
CAUTION
. Do not force the USB device into the
USB port. Inserting the USB device
tilted or up-side-down into the port
may damage the port. Make sure
that the USB device is connected
correctly into the USB port.
. Do not grab the USB port cover
when pulling the USB device out of
the port. This could damage the port
and the cover.
. Do not leave the USB cable in a
place where it can be pulled unin-
tentionally. Pulling the cable may damage the port.
Refer to your device manufacturer’s owner
information regarding the proper use and care
of the device.
Playing USB memoryGUID-D6F756B8-A874-4D4F-BD71-90C3D033F1C0Push the power switch to the ACC or ON
position. Then, push the CD·AUXbutton
repeatedly to switch to the USB memory mode.
If the system has been turned off while the USB
memory was playing, pushing the
button will
start the USB memory.
How to view USB memory screenGUID-E9144E87-0DC7-4702-9C76-7699BDDE627E
LNF0011X
*1Indicates Track title, Album title and Artist Name.
If there is no track title, the file name will be
displayed.
*2Indicates the play mode that is currently set.
However, the play mode is not indicated when
the normal mode is set.
Condition: NAM/

Black plate (147,1)
[ Edit: 2013/ 10/ 7 Model: Navi-EV ]

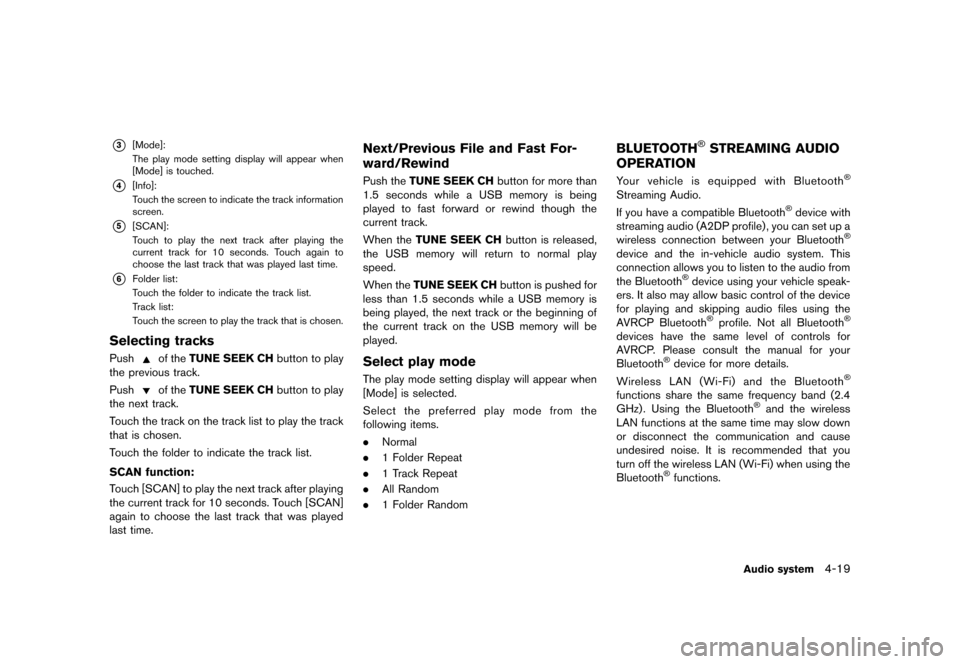

*3[Mode]:
The play mode setting display will appear when
[Mode] is touched.
*4[Info]:
Touch the screen to indicate the track information
screen.
*5[SCAN]:
Touch to play the next track after playing the
current track for 10 seconds. Touch again to
choose the last track that was played last time.
*6Folder list:
Touch the folder to indicate the track list.
Track list:
Touch the screen to play the track that is chosen.
Selecting tracksGUID-862588E4-8C79-4035-A221-A6B5BA877E9EPushof theTUNE SEEK CH button to play
the previous track.
Push
of the TUNE SEEK CH button to play
the next track.
Touch the track on the track list to play the track
that is chosen.
Touch the folder to indicate the track list.
SCAN function:
Touch [SCAN] to play the next track after playing
the current track for 10 seconds. Touch [SCAN]
again to choose the last track that was played
last time.
Next/Previous File and Fast For-
ward/Rewind
GUID-E977EB45-7BEA-4101-8271-D7B673F98EE9Push the TUNE SEEK CH button for more than
1.5 seconds while a USB memory is being
played to fast forward or rewind though the
current track.
When the TUNE SEEK CH button is released,
the USB memory will return to normal play
speed.
When the TUNE SEEK CH button is pushed for
less than 1.5 seconds while a USB memory is
being played, the next track or the beginning of
the current track on the USB memory will be
played.
Select play modeGUID-E3DB5454-DBEE-420A-A679-EDA24F02FD8FThe play mode setting display will appear when
[Mode] is selected.
Select the preferred play mode from the
following items.
. Normal
. 1 Folder Repeat
. 1 Track Repeat
. All Random
. 1 Folder Random
BLUETOOTH®STREAMING AUDIO
OPERATION
GUID-6D822548-78A4-4D36-B8BE-13EE7D8B3971Your vehicle is equipped with Bluetooth®
Streaming Audio.
If you have a compatible Bluetooth®device with
streaming audio (A2DP profile) , you can set up a
wireless connection between your Bluetooth
®
device and the in-vehicle audio system. This
connection allows you to listen to the audio from
the Bluetooth
®device using your vehicle speak-
ers. It also may allow basic control of the device
for playing and skipping audio files using the
AVRCP Bluetooth
®profile. Not all Bluetooth®
devices have the same level of controls for
AVRCP. Please consult the manual for your
Bluetooth
®device for more details.
Wireless LAN (Wi-Fi) and the Bluetooth®
functions share the same frequency band (2.4
GHz) . Using the Bluetooth®and the wireless
LAN functions at the same time may slow down
or disconnect the communication and cause
undesired noise. It is recommended that you
turn off the wireless LAN (Wi-Fi) when using the
Bluetooth
®functions.
Audio system4-19
Condition: NAM/

Black plate (148,1)
[ Edit: 2013/ 10/ 7 Model: Navi-EV ]
4-20Audio system
Regulatory informationGUID-8A5804E2-2DFA-4F0E-BDCA-F37F6A4AFE93
FCC Regulatory information:
.CAUTION: To maintain compliance with
FCC’s RF exposure guidelines, use only
the supplied antenna. Unauthorized antenna,
modification, or attachments could damage
the transmitter and may violate FCC regula-
tions.
. Operation is subject to the following two
conditions:
— This device may not cause interference
and
— This device must accept any interfer- ence, including interference that may
cause undesired operation of the device
IC Regulatory information:
. Operation is subject to the following two
conditions:
— This device may not cause interference,
and
— This device must accept any interfer- ence, including interference that may
cause undesired operation of the device.
. This Class B digital apparatus meets all
requirements of the Canadian Interference-
Causing Equipment Regulations. Bluetooth
®trademark:
Bluetooth®is a trademark owned
by Bluetooth®SIG, Inc., and
licensed to Clarion.
Connecting procedureGUID-35FDD5DF-AF21-4074-8409-897CA408B2B21. Push the MENUand touch [Settings].
LNF0012X
2. Touch [Bluetooth].
LNF0013X
3. Touch [Connect Bluetooth]. A confirmation
message is displayed.
LNF0014X
4. Confirm the contents of the message, thentouch [No].
INFO:
Selecting [Yes] will only connect the hands-
free phone portion of a Bluetooth
®device.
LNF0015X
5. Choose a PIN code to use with the
compatible Bluetooth®audio device using
the number input screen. The PIN code will
need to be entered into the Bluetooth
®
audio device after step 6.
Condition: NAM/
