2014 NISSAN LEAF Navigation Manual

Black plate (117,1)
[ Edit: 2013/ 10/ 7 Model: Navi-EV ]

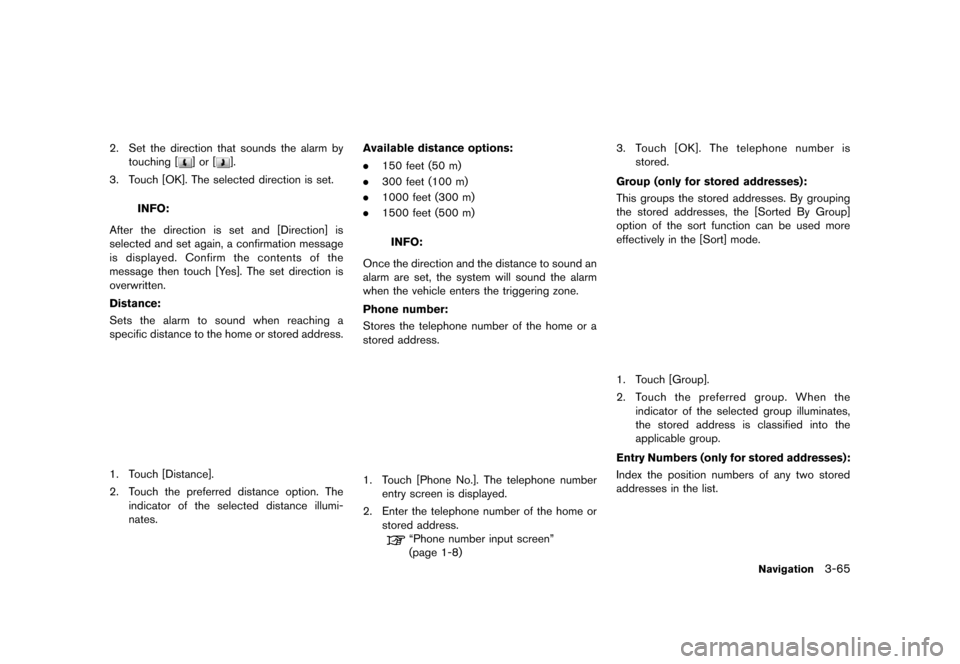

2. Set the direction that sounds the alarm bytouching [
] or [].
3. Touch [OK]. The selected direction is set.
INFO:
After the direction is set and [Direction] is
selected and set again, a confirmation message
is displayed. Confirm the contents of the
message then touch [Yes]. The set direction is
overwritten.
Distance:
Sets the alarm to sound when reaching a
specific distance to the home or stored address.
LNE0192X
1. Touch [Distance].
2. Touch the preferred distance option. The indicator of the selected distance illumi-
nates. Available distance options:
.
150 feet (50 m)
. 300 feet (100 m)
. 1000 feet (300 m)
. 1500 feet (500 m)
INFO:
Once the direction and the distance to sound an
alarm are set, the system will sound the alarm
when the vehicle enters the triggering zone.
Phone number:
Stores the telephone number of the home or a
stored address.
LNE0193X
1. Touch [Phone No.]. The telephone number entry screen is displayed.
2. Enter the telephone number of the home or stored address.
“Phone number input screen”
(page 1-8) 3.
Touch [OK]. The telephone number is
stored.
Group (only for stored addresses):
This groups the stored addresses. By grouping
the stored addresses, the [Sorted By Group]
option of the sort function can be used more
effectively in the [Sort] mode.
LNE0194X
1. Touch [Group].
2. Touch the preferred group. When the
indicator of the selected group illuminates,
the stored address is classified into the
applicable group.
Entry Numbers (only for stored addresses):
Index the position numbers of any two stored
addresses in the list.
Navigation3-65
Condition: NAM/

Black plate (118,1)
[ Edit: 2013/ 10/ 7 Model: Navi-EV ]

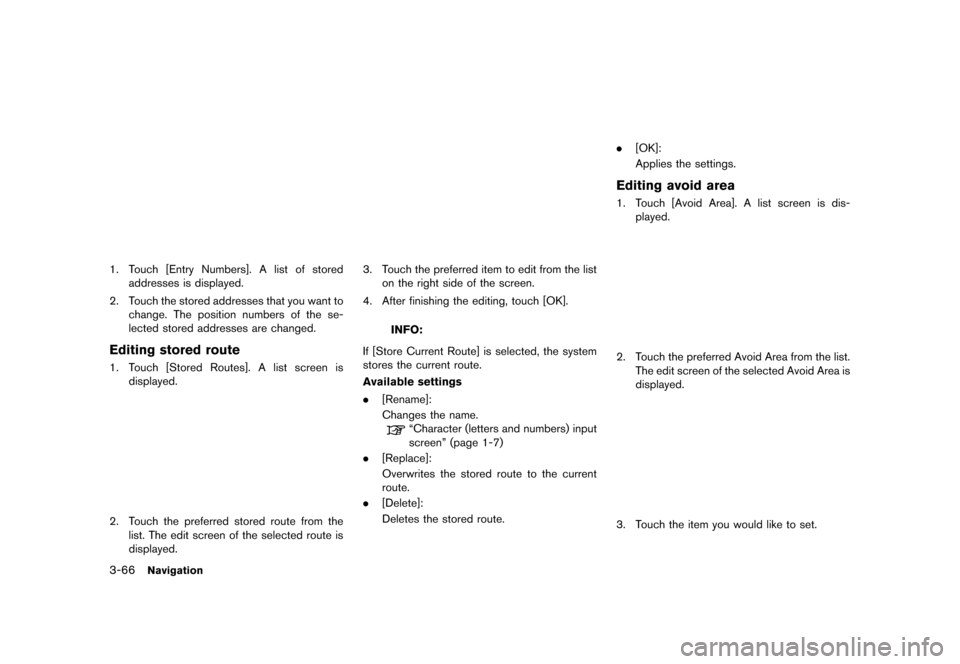

3-66Navigation
LNE0195X
1. Touch [Entry Numbers]. A list of storedaddresses is displayed.
2. Touch the stored addresses that you want to change. The position numbers of the se-
lected stored addresses are changed.
Editing stored routeGUID-FA819EB7-2462-4CCA-9FCA-6945BF4DA07F1.Touch [Stored Routes]. A list screen is
displayed.
LNE0196X
2. Touch the preferred stored route from the
list. The edit screen of the selected route is
displayed.
LNE0197X
3. Touch the preferred item to edit from the liston the right side of the screen.
4. After finishing the editing, touch [OK].
INFO:
If [Store Current Route] is selected, the system
stores the current route.
Available settings
. [Rename]:
Changes the name.
“Character (letters and numbers) input
screen” (page 1-7)
. [Replace]:
Overwrites the stored route to the current
route.
. [Delete]:
Deletes the stored route. .
[OK]:
Applies the settings.
Editing avoid areaGUID-7741D32C-748E-4BE2-9BE8-E72FF75E70C61. Touch [Avoid Area]. A list screen is dis-
played.
LNE0198X
2. Touch the preferred Avoid Area from the list.
The edit screen of the selected Avoid Area is
displayed.
LNE0199X
3. Touch the item you would like to set.
Condition: NAM/

Black plate (119,1)
[ Edit: 2013/ 10/ 7 Model: Navi-EV ]

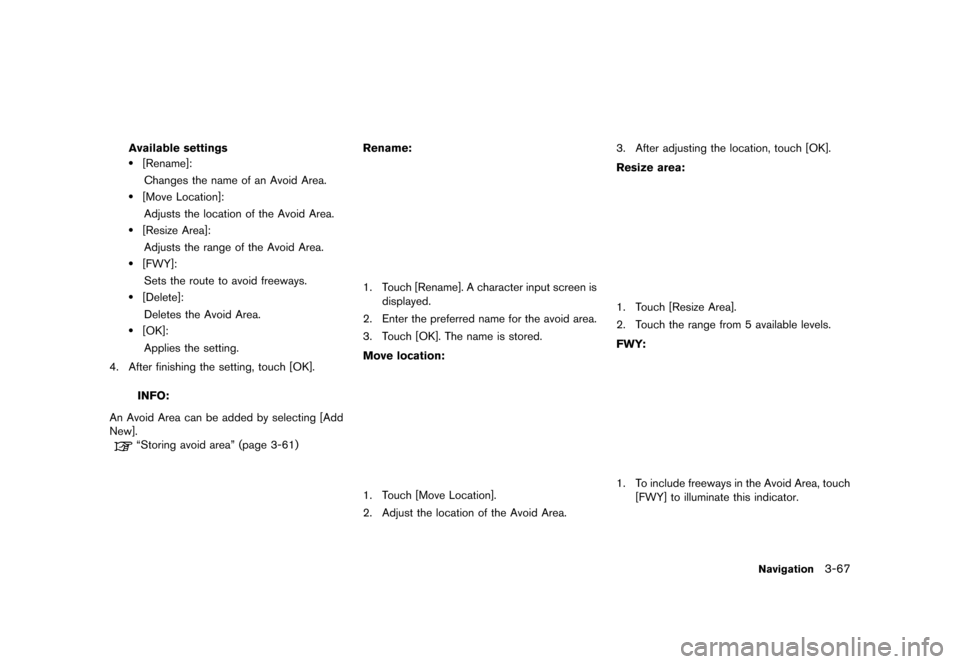

Available settings.[Rename]:Changes the name of an Avoid Area.
.[Move Location]:
Adjusts the location of the Avoid Area.
.[Resize Area]:Adjusts the range of the Avoid Area.
.[FWY]:Sets the route to avoid freeways.
.[Delete]:Deletes the Avoid Area.
.[OK]:Applies the setting.
4. After finishing the setting, touch [OK].
INFO:
An Avoid Area can be added by selecting [Add
New].
“Storing avoid area” (page 3-61) Rename:
LNE0200X
1. Touch [Rename]. A character input screen is
displayed.
2. Enter the preferred name for the avoid area.
3. Touch [OK]. The name is stored.
Move location:
LNE0201X
1. Touch [Move Location].
2. Adjust the location of the Avoid Area. 3. After adjusting the location, touch [OK].
Resize area:
LNE0202X
1. Touch [Resize Area].
2. Touch the range from 5 available levels.
FWY:
LNE0203X
1. To include freeways in the Avoid Area, touch
[FWY] to illuminate this indicator.
Navigation3-67
Condition: NAM/

Black plate (120,1)
[ Edit: 2013/ 10/ 7 Model: Navi-EV ]

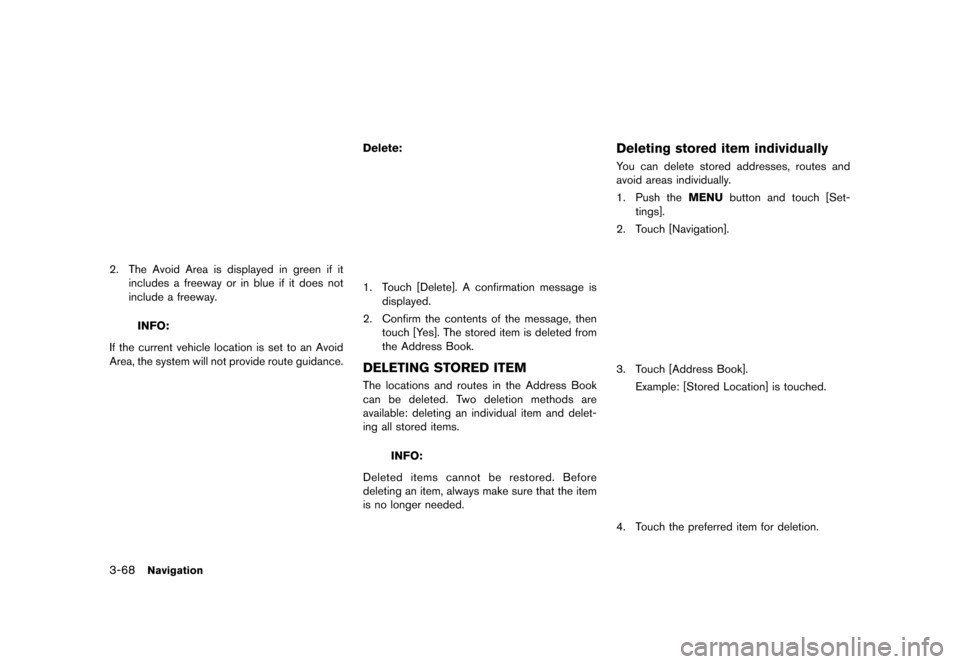

3-68Navigation
LNE0204X
2. The Avoid Area is displayed in green if itincludes a freeway or in blue if it does not
include a freeway.
INFO:
If the current vehicle location is set to an Avoid
Area, the system will not provide route guidance. Delete:
LNE0205X
1. Touch [Delete]. A confirmation message is
displayed.
2. Confirm the contents of the message, then touch [Yes]. The stored item is deleted from
the Address Book.
DELETING STORED ITEMGUID-A49F7444-AEBA-437D-B1BF-DA7457A3F577The locations and routes in the Address Book
can be deleted. Two deletion methods are
available: deleting an individual item and delet-
ing all stored items.
INFO:
Deleted items cannot be restored. Before
deleting an item, always make sure that the item
is no longer needed.
Deleting stored item individuallyGUID-B68C2A81-E5C0-4DB2-A740-FC904C09AB2AYou can delete stored addresses, routes and
avoid areas individually.
1. Push the MENUbutton and touch [Set-
tings].
2. Touch [Navigation].
LNE0206X
3. Touch [Address Book]. Example: [Stored Location] is touched.
LNE0207X
4. Touch the preferred item for deletion.
Condition: NAM/

Black plate (121,1)
[ Edit: 2013/ 10/ 7 Model: Navi-EV ]
LNE0208X

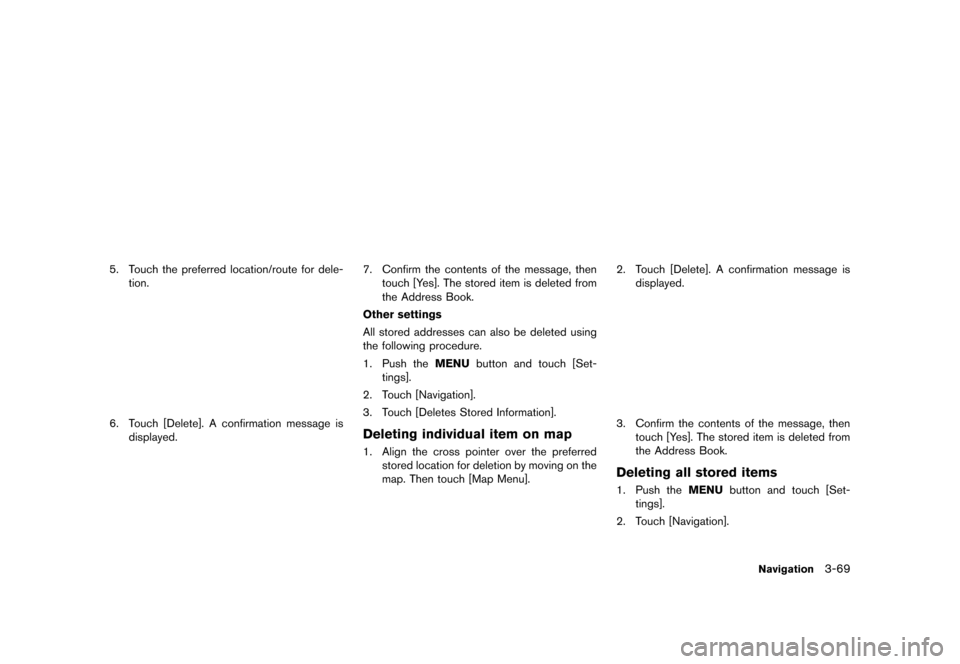

5. Touch the preferred location/route for dele-tion.
LNE0209X
6. Touch [Delete]. A confirmation message isdisplayed.
LNE0210X
7. Confirm the contents of the message, thentouch [Yes]. The stored item is deleted from
the Address Book.
Other settings
All stored addresses can also be deleted using
the following procedure.
1. Push the MENUbutton and touch [Set-
tings].
2. Touch [Navigation].
3. Touch [Deletes Stored Information].
Deleting individual item on mapGUID-62D39B7F-7242-4DA7-8F88-21A769ADE3F71. Align the cross pointer over the preferred stored location for deletion by moving on the
map. Then touch [Map Menu].
LNE0211X
2. Touch [Delete]. A confirmation message isdisplayed.
LNE0212X
3. Confirm the contents of the message, thentouch [Yes]. The stored item is deleted from
the Address Book.
Deleting all stored itemsGUID-8F02D2CE-673F-40F0-AAD0-245BC7327EBF1. Push the MENUbutton and touch [Set-
tings].
2. Touch [Navigation].
Navigation3-69
Condition: NAM/

Black plate (122,1)
[ Edit: 2013/ 10/ 7 Model: Navi-EV ]

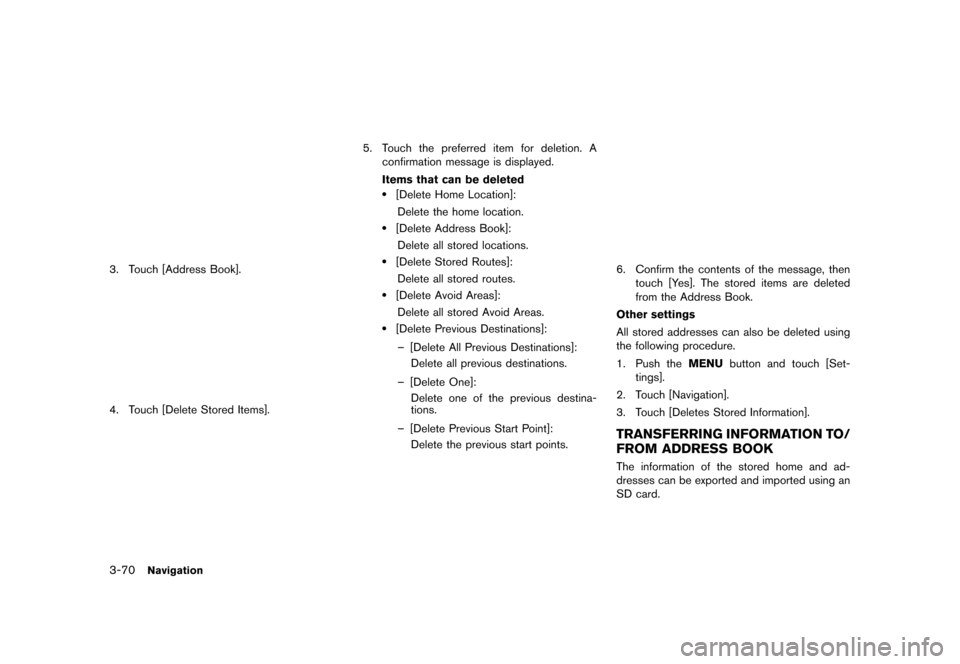

3-70Navigation
LNE0213X
3. Touch [Address Book].
LNE0214X
4. Touch [Delete Stored Items].
LNE0215X
5. Touch the preferred item for deletion. Aconfirmation message is displayed.
Items that can be deleted
.[Delete Home Location]:
Delete the home location.
.[Delete Address Book]:Delete all stored locations.
.[Delete Stored Routes]:
Delete all stored routes.
.[Delete Avoid Areas]:Delete all stored Avoid Areas.
.[Delete Previous Destinations]:
– [Delete All Previous Destinations]: Delete all previous destinations.
– [Delete One]: Delete one of the previous destina-
tions.
– [Delete Previous Start Point]: Delete the previous start points.
LNE0216X
6. Confirm the contents of the message, then touch [Yes]. The stored items are deleted
from the Address Book.
Other settings
All stored addresses can also be deleted using
the following procedure.
1. Push the MENUbutton and touch [Set-
tings].
2. Touch [Navigation].
3. Touch [Deletes Stored Information].
TRANSFERRING INFORMATION TO/
FROM ADDRESS BOOK
GUID-B7873C71-598C-4932-8803-CBC69508D849The information of the stored home and ad-
dresses can be exported and imported using an
SD card.
Condition: NAM/

Black plate (123,1)
[ Edit: 2013/ 10/ 7 Model: Navi-EV ]
LNH0025X

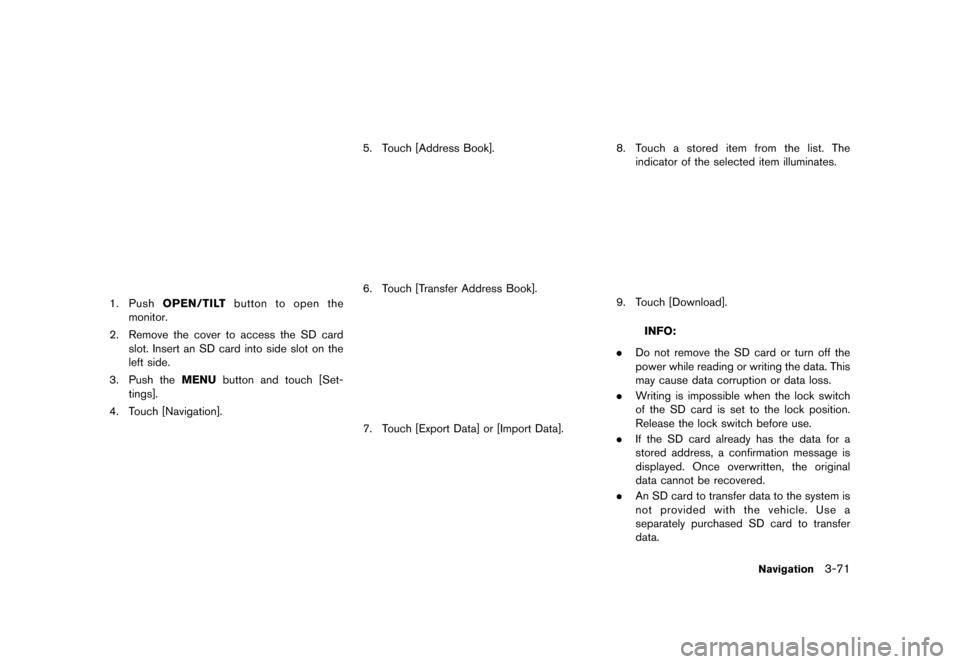

1.Push OPEN/TILT button to open the
monitor.
2. Remove the cover to access the SD card slot. Insert an SD card into side slot on the
left side.
3. Push the MENUbutton and touch [Set-
tings].
4. Touch [Navigation].
LNE0217X
5. Touch [Address Book].
LNE0218X
6. Touch [Transfer Address Book].
LNE0219X
7. Touch [Export Data] or [Import Data].
LNE0220X
8. Touch a stored item from the list. The
indicator of the selected item illuminates.
LNE0221X
9. Touch [Download].
INFO:
. Do not remove the SD card or turn off the
power while reading or writing the data. This
may cause data corruption or data loss.
. Writing is impossible when the lock switch
of the SD card is set to the lock position.
Release the lock switch before use.
. If the SD card already has the data for a
stored address, a confirmation message is
displayed. Once overwritten, the original
data cannot be recovered.
. An SD card to transfer data to the system is
not provided with the vehicle. Use a
separately purchased SD card to transfer
data.
Navigation3-71
Condition: NAM/

Black plate (124,1)
[ Edit: 2013/ 10/ 7 Model: Navi-EV ]

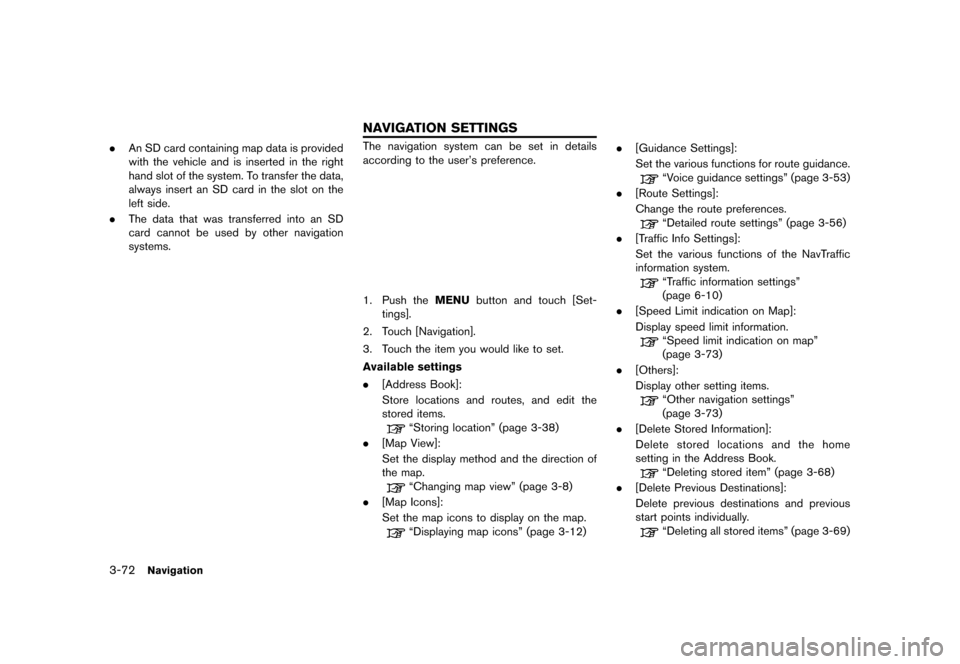

3-72Navigation
.An SD card containing map data is provided
with the vehicle and is inserted in the right
hand slot of the system. To transfer the data,
always insert an SD card in the slot on the
left side.
. The data that was transferred into an SD
card cannot be used by other navigation
systems.
GUID-9D8690FE-57C7-4383-A650-C4EAEDB9B2D7The navigation system can be set in details
according to the user’s preference.
LNE0223X
1. Push the MENUbutton and touch [Set-
tings].
2. Touch [Navigation].
3. Touch the item you would like to set.
Available settings
. [Address Book]:
Store locations and routes, and edit the
stored items.
“Storing location” (page 3-38)
. [Map View]:
Set the display method and the direction of
the map.
“Changing map view” (page 3-8)
. [Map Icons]:
Set the map icons to display on the map.
“Displaying map icons” (page 3-12) .
[Guidance Settings]:
Set the various functions for route guidance.
“Voice guidance settings” (page 3-53)
. [Route Settings]:
Change the route preferences.
“Detailed route settings” (page 3-56)
. [Traffic Info Settings]:
Set the various functions of the NavTraffic
information system.
“Traffic information settings”
(page 6-10)
. [Speed Limit indication on Map]:
Display speed limit information.
“Speed limit indication on map”
(page 3-73)
. [Others]:
Display other setting items.
“Other navigation settings”
(page 3-73)
. [Delete Stored Information]:
Delete stored locations and the home
setting in the Address Book.
“Deleting stored item” (page 3-68)
. [Delete Previous Destinations]:
Delete previous destinations and previous
start points individually.
“Deleting all stored items” (page 3-69)
NAVIGATION SETTINGS
