2014 NISSAN LEAF Navigation Manual

Black plate (197,1)
[ Edit: 2013/ 10/ 7 Model: Navi-EV ]
compatibility) . Select one of these entries
to save in the vehicle phonebook.
.[Enter Number by Keypad]:Input the phone number to save in the
vehicle phonebook.
LNI0006X
5. Touch [OK] at the top of the screen.
LNI0007X
6. After the phonebook entry is saved, it will show a screen to indicate that is ready to
call the number. Touch [BACK] to return to
the Vehicle Phonebook.
Editing Vehicle PhonebookGUID-05BCA360-155D-4C8B-A3FD-E1BC7A9E04D51. Push the MENUbutton and touch [Set-
tings].
2. Touch [Phone & CARWINGS].
3. Touch [Phone].
LNI0017X
4. Touch [Edit Vehicle Phonebook].
LNI0018X
5. Select the desired entry from the displayed list.
LNI0019X
6. Touch [Edit].
LNI0008X
7. Select the desired item to change.
Available settings
.[Entry #]:Changes the displayed number of the
selected entry.
.[Name]:Edit the name of the entry using the
keypad displayed on the screen.
Bluetooth®Hands-Free Phone System7-7
Condition: NAM/

Black plate (198,1)
[ Edit: 2013/ 10/ 7 Model: Navi-EV ]
7-8Bluetooth®Hands-Free Phone System
.[Number]:Edit the phone number using the keypad
displayed on the screen.
.[Type]:Select an icon from the icon list.
8. After finishing the setting, touch [OK].
PHONE SETTINGSGUID-113ACEB2-74B1-46EA-92C5-7C0462E956E7The Bluetooth®Hands-Free Phone System can
be set in detail according to the user’s
preference.
LNI0013X
1. Push the MENUbutton and touch [Set-
tings].
2. Touch [Phone & CARWINGS].
3. Touch [Phone].
4. Touch the item you would like to set. Available settings
.
[Edit Vehicle Phonebook]:
Phonebook registration and editing/deleting
the registered phonebook can be per-
formed.
. [Call History]:
The call history lists of the incoming calls
and outgoing calls are displayed. The phone
numbers that are stored in the incoming or
outgoing history lists can be registered.
. [Download Handset Phonebook]:
Phonebook data should be registered in the
system after downloading the phonebook
from a cellular phone that is connected to
the vehicle. A maximum of 3 phonebook can
be registered from cellular phones.
. [Delete Phone Info]:
The phone information (phonebook or his-
tory) can be deleted all at the same time or
one by one.
. [Volume & Ringtone]:
Adjust various phone volume settings.
Downloading phonebook memoryGUID-6E4A5D24-7485-48F0-A552-76E9EBA18E181. Push the MENUbutton and touch [Set-
tings]. 2. Touch [Phone & CARWINGS].
3. Touch [Phone].
LNI0020X
4. Touch [Download Handset Phonebook].
LNI0021X
5.
Touch the method for downloading the
phonebook memory. A message screen is
displayed.
Available methods
.[Download Entire Phonebook]:
All of the phone numbers that are stored
in a phonebook of a cellular phone that is
Condition: NAM/

Black plate (199,1)
[ Edit: 2013/ 10/ 7 Model: Navi-EV ]
connected to the vehicle are downloaded
at once.
.[Download 1 Entry]:Each of the phone numbers that are
stored in the phonebook of a cellular
phone that is connected to the vehicle is
downloaded one by one.
.[Downloaded List]:
The downloaded phonebook data is
displayed.
LNI0022X
6. Touch [Yes].
LNI0023X
7. When a PIN code appears on the screen, operate the connected cellular phone to
enter the PIN code. The downloading
procedure of the cellular phone varies
according to each cellular phone. See the
cellular phone Owner’s Manual for the
details.
Deleting phone informationGUID-57D24F70-D43C-45C8-97D0-A5CAA19DCE2D1. Push the MENUbutton and touch [Set-
tings].
2. Touch [Phone & CARWINGS].
3. Touch [Phone].
LNI0024X
4. Touch [Delete Phone Info].
LNI0025X
5. Touch the preferred item for deletion. A confirmation message is displayed.
Items that can be deleted
.[Vehicle Phonebook]:
Deletes all or one of the phone number in
the vehicle phonebook.
.[Call History]:All or each of the calls listed in the
outgoing and incoming call history will be
deleted. Additionally, the calls can be
deleted after sorting by outgoing or
incoming call history.
.[Downloaded Phonebook from Handset]:Deletes all or one of the phone numbers
in the downloaded phonebook.
.[Memory]:Deletes all stored memories (vehicle
phonebooks, call logs and downloaded
phonebooks).
Bluetooth®Hands-Free Phone System7-9
Condition: NAM/

Black plate (200,1)
[ Edit: 2013/ 10/ 7 Model: Navi-EV ]
7-10Bluetooth®Hands-Free Phone System
LNI0026X
6. Confirm the contents of the message, thentouch [Yes].
Phone volume settingsGUID-BBEE336F-74FE-4623-A1AD-1F2696FD58B2
LNI0027X
1. Push the MENUbutton and touch [Set-
tings].
2. Touch [Phone & CARWINGS].
3. Touch [Phone].
4. Touch [Volume & Ringtone]. 5. Touch the item you would like to set.
Available settings
.
[Ringtone]:
Adjust the volume level of the ringtone by
touching [+] or [-].
. [Incoming Call]:
Adjust the incoming call volume by touching
[+] or [-].
. [Outgoing Call]:
Adjust the outgoing call volume by touching
[+] or [-].
. [Automatic Hold]:
When this function is activated, an incoming
phone call is automatically held.
. [Vehicle Ringtone]:
When this function is activated, a specific
ringtone that is different from that of the
cellular phone will sound when receiving a
call.
GUID-8818FE89-929B-445D-A49C-7EC1615585A6When installing a car phone or a CB radio in
your vehicle, be sure to observe the following
cautions, otherwise the new equipment may
adversely affect the electronic control modules
and electronic control system harness.
WARNING
.A cellular phone should not be used
for any purpose while driving so full
attention may be given to vehicle
operation. Some jurisdictions prohi-
bit the use of cellular phones while
driving.
. If you must make a call while your
vehicle is in motion, the hands-free
cellular phone operational mode is
highly recommended. Exercise ex-
treme caution at all times so full
attention may be given to vehicle
operation.
. If a conversation in a moving vehicle
requires you to take notes, pull off
the road to a safe location and stop
your vehicle before doing so.
CAR PHONE or CB RADIO
Condition: NAM/

Black plate (201,1)
[ Edit: 2013/ 10/ 7 Model: Navi-EV ]

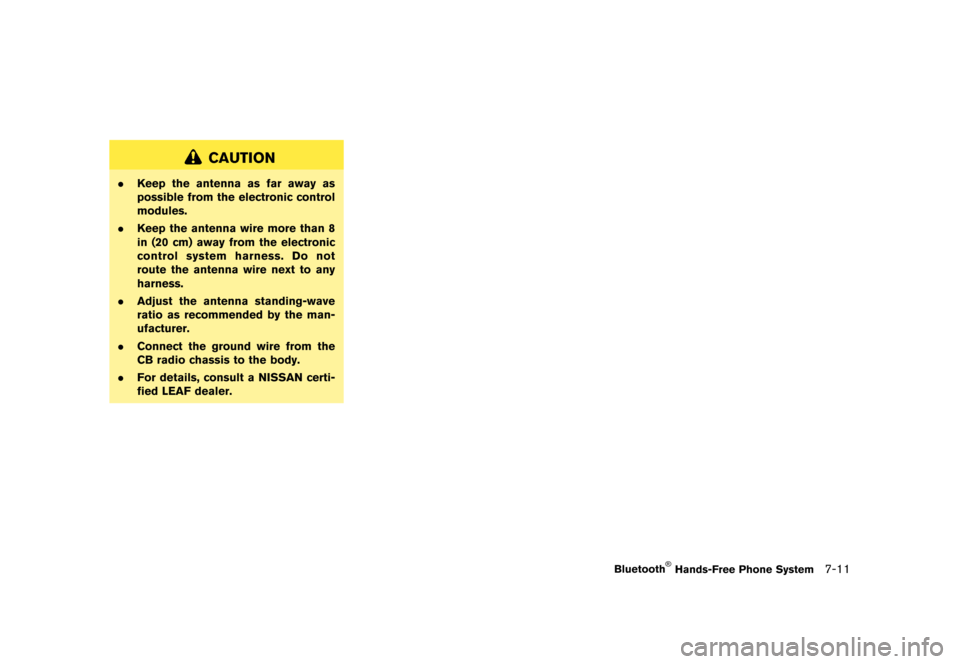

CAUTION
.Keep the antenna as far away as
possible from the electronic control
modules.
. Keep the antenna wire more than 8
in (20 cm) away from the electronic
control system harness. Do not
route the antenna wire next to any
harness.
. Adjust the antenna standing-wave
ratio as recommended by the man-
ufacturer.
. Connect the ground wire from the
CB radio chassis to the body.
. For details, consult a NISSAN certi-
fied LEAF dealer.
Bluetooth®Hands-Free Phone System7-11
Condition: NAM/

Black plate (202,1)
[ Edit: 2013/ 10/ 7 Model: Navi-EV ]
7-12Bluetooth®Hands-Free Phone System
MEMO
Condition: NAM/

Black plate (203,1)
[ Edit: 2013/ 10/ 7 Model: Navi-EV ]

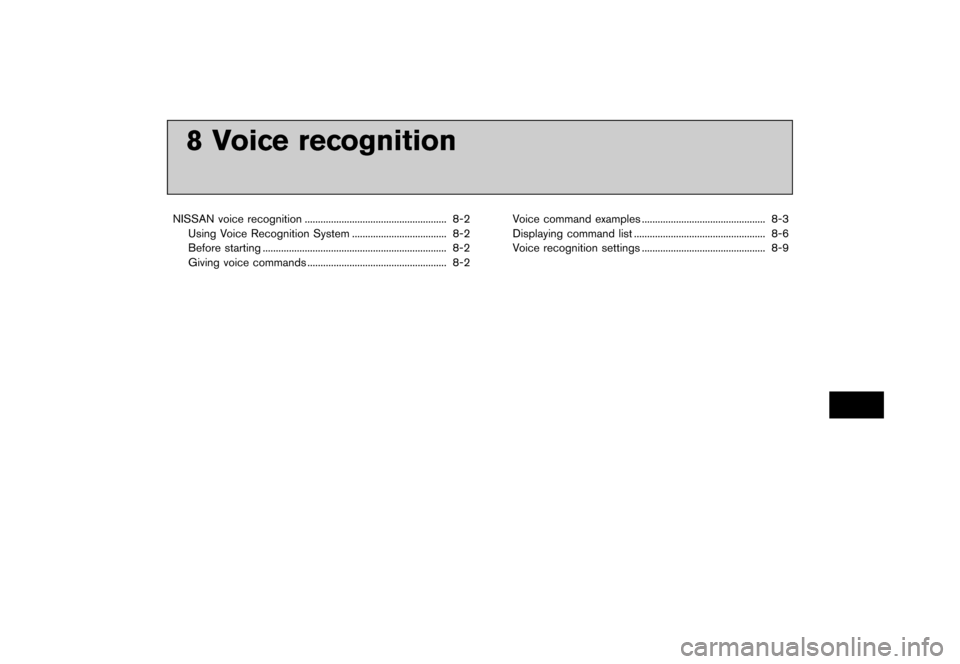

8 Voice recognition
NISSAN voice recognition...
...................................................... 8-2
Using Voice Recognition System ...
.................................... 8-2
Before starting ...
...................................................................... 8-2
Giving voice commands ...
..................................................... 8-2 Voice command examples
...
............................................... 8-3
Displaying command list ...
.................................................. 8-6
Voice recognition settings ...
............................................... 8-9
Condition: NAM/

Black plate (204,1)
[ Edit: 2013/ 10/ 7 Model: Navi-EV ]
8-2Voice recognition
GUID-FAF38580-C669-4F26-B8D0-7EC58692FC6D
USING VOICE RECOGNITION SYS-
TEM
GUID-1C8F749E-4AF3-47FE-9FE0-7B0B8B8AF458
InitializationGUID-60C8EC21-9C96-4FBC-A946-5937BAB414ECWhen the power switch is pushed to the ON
position, Voice Recognition is initialized, which
takes a few seconds. When completed, the
system is ready to accept voice commands. If
the
button on the steering wheel is pushed
before the initialization completes, the display
will show the message: "Loading Voice Recog-
nition system. Please wait...".
BEFORE STARTINGGUID-17B90F0D-2C92-4147-8CBB-60019E6215D6To get the best recognition performance from
Voice Recognition, observe the following items.
. The interior of the vehicle should be as quiet
as possible. Close the windows to eliminate
the surrounding noises (traffic noise and
vibration sounds, etc.), which may prevent
the system from correctly recognizing the
voice commands.
. Wait until the tone sounds before speaking a
command.
. Speak in a natural conversational voice
without pausing between words.
GIVING VOICE COMMANDSGUID-B79272C7-32FE-481D-B7B3-A50FF427C81A1. Push thebutton located on the steering
wheel.
LNK0042X
2. A list of commands appears on the screen,
and the system provides the voice menu
prompt.
3. After the tone sounds and the icon on the screen changes from
to, speak a
command.
4. Continue to follow the voice menu prompts and speak after the tone sounds until the
preferred operation is completed.
Operating tipsGUID-5EBE1C81-7EAE-4A5C-8323-F92B58DC3259.Speak a command after the tone.
. Commands that are available are always
shown on the display and spoken through
voice menu prompts. Commands other than
those that are displayed are not accepted.
Follow the prompts given by the system. .
If the command is not accepted, the system
announces, “Please say again”. Repeat the
command in a clear voice.
. Push the
button once to return to the
previous screen.
. To cancel the command, push and hold the
button or thebutton on the steering
wheel. The message, “Voice recognition is
canceled” will be announced.
. Push the
button on the steering wheel
to stop the voice prompt and give the
command at once. Remember to wait for
the tone before speaking.
. To adjust the volume of the system feed-
back, push the -
+button on the
steering wheel or use the audio system
volume control knob while the system is
making an announcement.
How to speak numbersGUID-71FDCB5E-F8C6-44F6-B150-DA7EA47CDF74NISSAN Voice Recognition requires the user to
a certain speak numbers in a certain way when
giving voice commands. Refer to the following
examples.
General rule:
Only single digits 0 (zero) to 9 can be used. (For
example, if speaking 500, "five zero zero" can be
used, but "five hundred" cannot.)
NISSAN VOICE RECOGNITION
