2014 NISSAN LEAF Navigation Manual

Black plate (77,1)
[ Edit: 2013/ 10/ 7 Model: Navi-EV ]

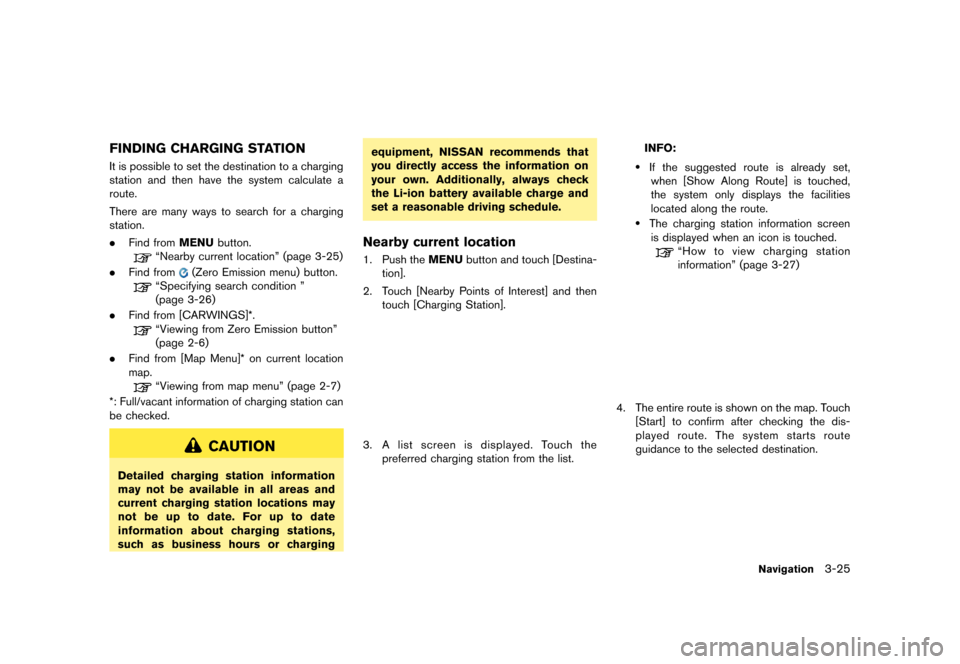

FINDING CHARGING STATIONGUID-143B9E58-D695-45C6-A6E7-B950D899BE75It is possible to set the destination to a charging
station and then have the system calculate a
route.
There are many ways to search for a charging
station.
.Find from MENUbutton.
“Nearby current location” (page 3-25)
. Find from
(Zero Emission menu) button.
“Specifying search condition ”
(page 3-26)
. Find from [CARWINGS]*.
“Viewing from Zero Emission button”
(page 2-6)
. Find from [Map Menu]* on current location
map.
“Viewing from map menu” (page 2-7)
*: Full/vacant information of charging station can
be checked.
CAUTION
Detailed charging station information
may not be available in all areas and
current charging station locations may
not be up to date. For up to date
information about charging stations,
such as business hours or charging equipment, NISSAN recommends that
you directly access the information on
your own. Additionally, always check
the Li-ion battery available charge and
set a reasonable driving schedule.
Nearby current locationGUID-A064482C-64AD-487F-8179-47CEB55DF6861. Push the
MENUbutton and touch [Destina-
tion].
2. Touch [Nearby Points of Interest] and then touch [Charging Station].
LNE0240X
3.A list screen is displayed. Touch the
preferred charging station from the list.
INFO:
.If the suggested route is already set,
when [Show Along Route] is touched,
the system only displays the facilities
located along the route.
.The charging station information screenis displayed when an icon is touched.
“How to view charging station
information” (page 3-27)
LNE0241X
4. The entire route is shown on the map. Touch [Start] to confirm after checking the dis-
played route. The system starts route
guidance to the selected destination.
Navigation3-25
Condition: NAM/

Black plate (78,1)
[ Edit: 2013/ 10/ 7 Model: Navi-EV ]
3-26Navigation

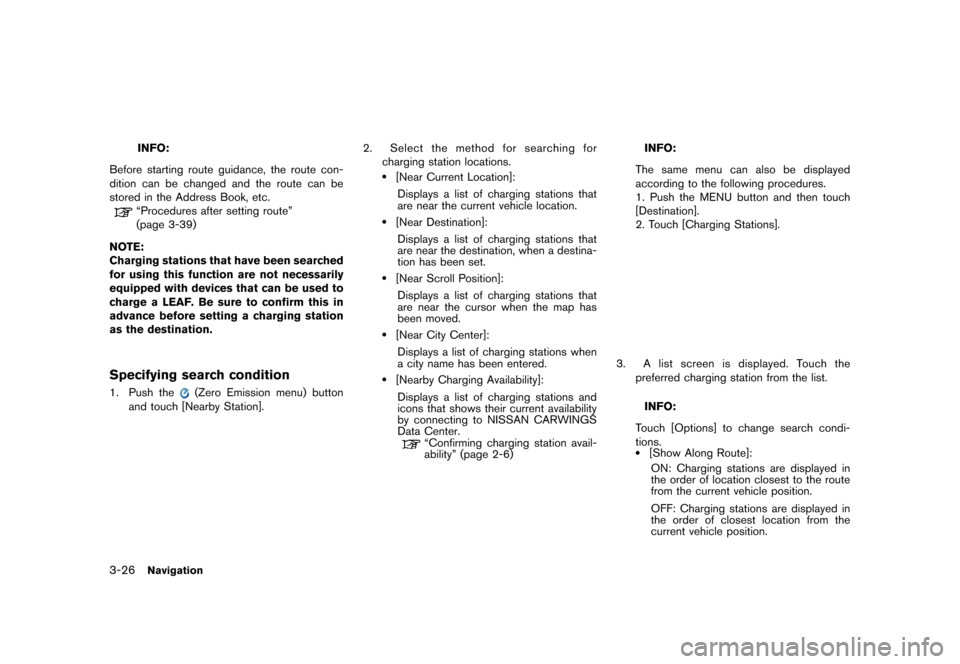

INFO:
Before starting route guidance, the route con-
dition can be changed and the route can be
stored in the Address Book, etc.
“Procedures after setting route”
(page 3-39)
NOTE:
Charging stations that have been searched
for using this function are not necessarily
equipped with devices that can be used to
charge a LEAF. Be sure to confirm this in
advance before setting a charging station
as the destination.
Specifying search conditionGUID-5875708B-7D65-42C9-95A9-F31DF7A38DAD1. Push the(Zero Emission menu) button
and touch [Nearby Station].
LNE0905X
2. Select the method for searching for
charging station locations.
.[Near Current Location]:
Displays a list of charging stations that
are near the current vehicle location.
.[Near Destination]:Displays a list of charging stations that
are near the destination, when a destina-
tion has been set.
.[Near Scroll Position]:Displays a list of charging stations that
are near the cursor when the map has
been moved.
.[Near City Center]:
Displays a list of charging stations when
a city name has been entered.
.[Nearby Charging Availability]:Displays a list of charging stations and
icons that shows their current availability
by connecting to NISSAN CARWINGS
Data Center.
“Confirming charging station avail-
ability” (page 2-6)
INFO:
The same menu can also be displayed
according to the following procedures.
1. Push the MENU button and then touch
[Destination].
2. Touch [Charging Stations].
LNE0937M
3. A list screen is displayed. Touch the
preferred charging station from the list.
INFO:
Touch [Options] to change search condi-
tions.
.[Show Along Route]: ON: Charging stations are displayed in
the order of location closest to the route
from the current vehicle position.
OFF: Charging stations are displayed in
the order of closest location from the
current vehicle position.
Condition: NAM/

Black plate (79,1)
[ Edit: 2013/ 10/ 7 Model: Navi-EV ]

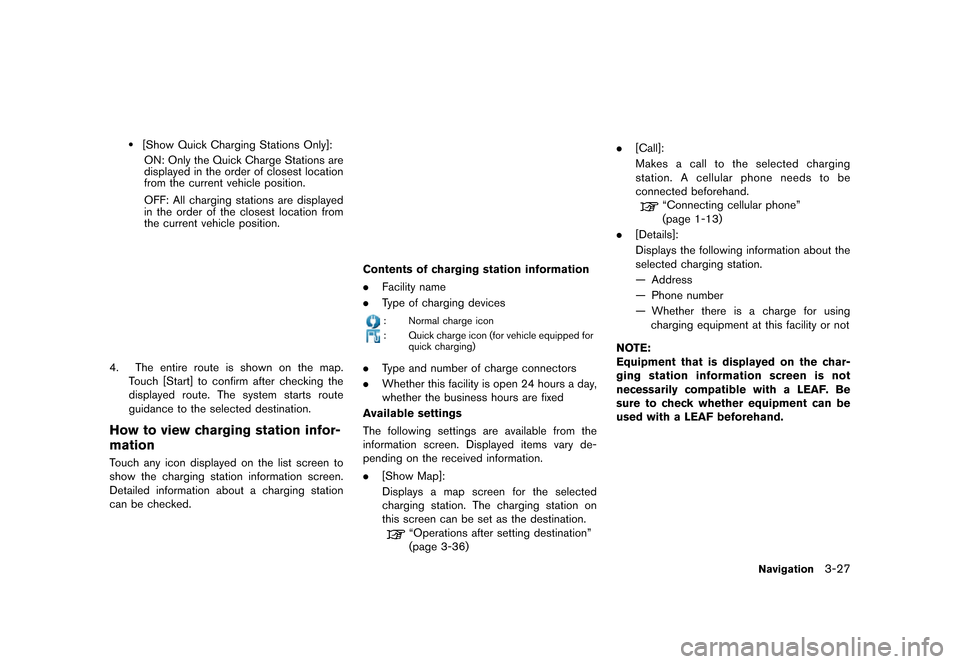

.[Show Quick Charging Stations Only]:ON: Only the Quick Charge Stations are
displayed in the order of closest location
from the current vehicle position.
OFF: All charging stations are displayed
in the order of the closest location from
the current vehicle position.
LNE0241X
4. The entire route is shown on the map. Touch [Start] to confirm after checking the
displayed route. The system starts route
guidance to the selected destination.
How to view charging station infor-
mation
GUID-19D164CD-2CB4-4613-A2C2-954DD9CA89CFTouch any icon displayed on the list screen to
show the charging station information screen.
Detailed information about a charging station
can be checked.
LNE0242X
Contents of charging station information
.Facility name
. Type of charging devices
: Normal charge icon
: Quick charge icon (for vehicle equipped for
quick charging)
.Type and number of charge connectors
. Whether this facility is open 24 hours a day,
whether the business hours are fixed
Available settings
The following settings are available from the
information screen. Displayed items vary de-
pending on the received information.
. [Show Map]:
Displays a map screen for the selected
charging station. The charging station on
this screen can be set as the destination.
“Operations after setting destination”
(page 3-36) .
[Call]:
Makes a call to the selected charging
station. A cellular phone needs to be
connected beforehand.
“Connecting cellular phone”
(page 1-13)
. [Details]:
Displays the following information about the
selected charging station.
— Address
— Phone number
— Whether there is a charge for using
charging equipment at this facility or not
NOTE:
Equipment that is displayed on the char-
ging station information screen is not
necessarily compatible with a LEAF. Be
sure to check whether equipment can be
used with a LEAF beforehand.
Navigation3-27
Condition: NAM/

Black plate (80,1)
[ Edit: 2013/ 10/ 7 Model: Navi-EV ]
3-28Navigation
INFO:
As maintenance of data for charging station
information is carried out periodically, detailed
information for a charging station selected may
not always be displayed.
SEARCHING FROM ADDRESS
BOOK
GUID-4C7DF925-9404-4CBE-A2DD-E3DD6D9BAF0BStoring frequently used destinations in the
Address Book makes it easy for the system to
set and calculate a route. To utilize this function
more effectively, destinations that are often
traveled to should be stored in advance.
1. Push the MENUbutton and touch [Destina-
tion].
2. Touch [Address Book].
LNE0068X
3. Touch the preferred location from the list.
INFO:
Selecting [Sort] displays a list of various sort
functions. To use the sort functions, stored
locations must be set in advance.
“Storing location” (page 3-38).[Sorted By Number]: The Address Book entries are displayed
in ascending numerical order.
.[Sorted By Name]:The Address Book entries are displayed
in alphabetic order.
.[Sorted By Icon]:
By selecting a particular icon, a list that
contains only the Address Book entries
associated with that icon is displayed.
.[Sorted By Group]:By selecting a particular group (family,
friends, leisure, etc.), the selected group
is displayed at the top of the list.
LNE0070X
4. The selected destination is displayed at the center of the map. Touch [Start] after
confirming the location of the displayed
destination. The system sets the destination
to the selected location and starts calculat-
ing a route.
INFO:
After setting a destination, the location of the
destination can be adjusted and the location can
be stored in the Address Book, etc.
“Operations after setting destination”
(page 3-36)
Setting by voice command
1. Push the
button located on the steering
wheel.
2. After the tone sounds, speak a command.
To set the destination from the Address Book:
"Navigation" "Address Book"
SEARCHING FROM HISTORYGUID-CCA4B30F-6D42-498B-97B8-C74AE29C5414It is possible to set destinations using the former
route guide starting location, as well as destina-
tion lists that were set in the past. Up to 100
previous destinations will be automatically
stored. If the number of previous destinations
exceeds 100, the oldest one will be replaced by
Condition: NAM/

Black plate (81,1)
[ Edit: 2013/ 10/ 7 Model: Navi-EV ]
the newest one.
1. Push theMENUbutton and touch [Destina-
tion].
2. Touch [Previous Destinations]. A list screen is displayed.
LNE0071X
3.Touch the previous start point or the
previous destination from the list.
LNE0072X
4. The selected destination is displayed at the
center of the map. Touch [Start] after
confirming the location of the displayed
destination. The system sets the destination to the selected location and starts calculat-
ing a route.
INFO:
After setting a destination, the location of the
destination can be adjusted and the location can
be stored in the Address Book, etc.
“Operations after setting destination”
(page 3-36)
Setting by voice command
1. Push the
button located on the steering
wheel.
2. After the tone sounds, speak a command.
To display the previous destinations list:
"Navigation" "Previous Destinations"
FINDING NEARBY POINTS OF IN-
TEREST
GUID-00202A07-1B7D-457D-81B3-67E33550770CThis allows you to set the destination to a facility
located near the current vehicle location or
another location that you move to by scrolling
the map, and then have the system calculate a
route.
If there is any particular Points of Interest type
that you intend to use frequently, you can store it
in the list of nearby Points of Interest.
“Customizing Nearby Places” (page 3-74) 1. Push the
MENUbutton and touch [Destina-
tion].
2. Touch [Nearby Points of Interest]. The
category list is displayed.
LNE0073X
3. Touch the preferred category. A facility list
screen is displayed.
LNE0074X
4. Touch the preferred destination from the list.The position of the selected location is
displayed in the preview on the right side
of the screen.
Navigation3-29
Condition: NAM/

Black plate (82,1)
[ Edit: 2013/ 10/ 7 Model: Navi-EV ]
3-30Navigation
INFO:
.If the suggested route is already set, bytouching [Show Along Route], the sys-
tem displays only the facilities located
along the route.
.A maximum of 100 facilities can bedisplayed on the list screen.
LNE0075X
5. The entire route is shown on the map. Touch [Start] after confirming the displayed route.
The system starts route guidance to the
selected destination.
INFO:
. Before starting route guidance, the route
condition can be changed and the route can
be stored in the Address Book, etc.
“Procedures after setting route”
(page 3-39) .
If the route is already set, the selected
location becomes a waypoint.
. You can also set the destination by touching
[Map Menu] in the current location map
screen and selecting [Nearby Places].
USING GOOGLE MAPGUID-D91DD8BB-2674-4765-962E-A142C6866D85It is possible to search for a location using
Google maps, and to download the information
to set the destination via the NISSAN CARW-
INGS Data Center.
1. Push the MENUbutton and touch [Destina-
tion].
2. Touch [Next Page].
LNE0919M
3. Touch [Google(TM) Send-To-Car]. The system connect to the NISSAN CARW-
INGS Data Center and the destination list
will be downloaded.
LNE0927M
4. Select the preferred destinations from thelist. The position of the selected location is
displayed in the preview on the right side of
the screen.
INFO:
Select [Download] to update the list in-
formation.
5. The select destination is displayed. Touch [Start] after confirming the location of the
displayed destination. The system sets the
selected location as the destination and
starts calculating a route.
Condition: NAM/

Black plate (83,1)
[ Edit: 2013/ 10/ 7 Model: Navi-EV ]
INFO:
Refer to the NISSAN Owner’s Portal Website
for details on destination setting using Google
maps.
USING ROUTE PLANNERGUID-09B35477-5712-4156-81CA-B572957D2AA1It is possible to set the route according to the
route plan created in advance by the NISSAN
Owner’s Portal Website.
1. Push the MENUbutton and touch [Destina-
tion].
2. Touch [Next Page].
3. Touch [Route Planner].
LNE0926M
4. Select the preferred route plan from the list.
INFO:
Select [Download] to update the list in-
formation.
5. Touch [Start] after confirming the location of the displayed.
INFO:
Refer to the NISSAN Owner’s Portal Website
for details on the route planner.
SETTING FROM STORED ROUTESGUID-174315DE-CFE8-4311-94E7-67FE9F3D0C92It is possible to select a preferred route from the
stored routes.
1. Push the MENUbutton and touch [Destina-
tion].
2. Touch [Next Page].
3. Touch [Stored Routes]. A list screen is
displayed.
LNE0076X
4. Touch the preferred route from the list. The
route to the destination is set.
LNE0077X
5. The entire route is shown on the map. Touch[Start] after confirming the displayed route.
The system starts route guidance to the
selected destination.
INFO:
. Before starting route guidance, the route
condition can be changed and the route can
be stored in the Address Book, etc.
“Procedures after setting route”
(page 3-39)
. The stored route only includes locations
(destination and waypoints) and route cal-
culation conditions, not the route itself.
Therefore, when the destination is set using
a stored route, a different route may be
suggested if the current vehicle location is
different from the one when the route was
Navigation3-31
Condition: NAM/

Black plate (84,1)
[ Edit: 2013/ 10/ 7 Model: Navi-EV ]
3-32Navigation
stored.
SETTING BY PHONE NUMBERGUID-87C28043-E7CD-4FB6-9E27-0811FF88248EIf the phone number of a facility is known, it is
possible to search for a facility by entering the
phone number, and have the system calculate a
route.
INFO:
. If the area code of the specified telephone
number does not exist in the map data, the
system cannot search for the location.
. Only the locations included in the database
in the map data can be searched by the
phone number. Residential phone numbers
cannot be used to search for a location.
1. Push the MENUbutton and touch [Destina-
tion].
2. Touch [Next Page].
3. Touch [Phone Number]. The telephone
number input screen is displayed.
LNE0078X
4. Enter the telephone number including the
area code. After finishing the entry, touch
[List].
“Phone number input screen”
(page 1-8)
INFO:
A list screen is displayed if there are two or
more search results. Touch the preferred
destination from the list.
A confirmation screen for the place name
and the location is displayed, and the system
starts calculating.
LNE0079X
5. The selected destination is displayed at the center of the map. Touch [Start] after
confirming the location of the displayed
destination. The system sets the destination
to the selected location and starts calculat-
ing a route.
INFO:
After setting a destination, the location of the
destination can be adjusted and the location can
be stored in the Address Book, etc.
“Operations after setting destination”
(page 3-36)
SETTING INTERSECTIONGUID-4599645B-7FEB-4FFC-9904-951F14B57AFCIt is possible to set an intersection of any two
streets as the destination and have the system
calculate a route.
1. Push the MENUbutton and touch [Destina-
tion].
Condition: NAM/
