2014 NISSAN LEAF Navigation Manual

Black plate (69,1)
[ Edit: 2013/ 10/ 7 Model: Navi-EV ]

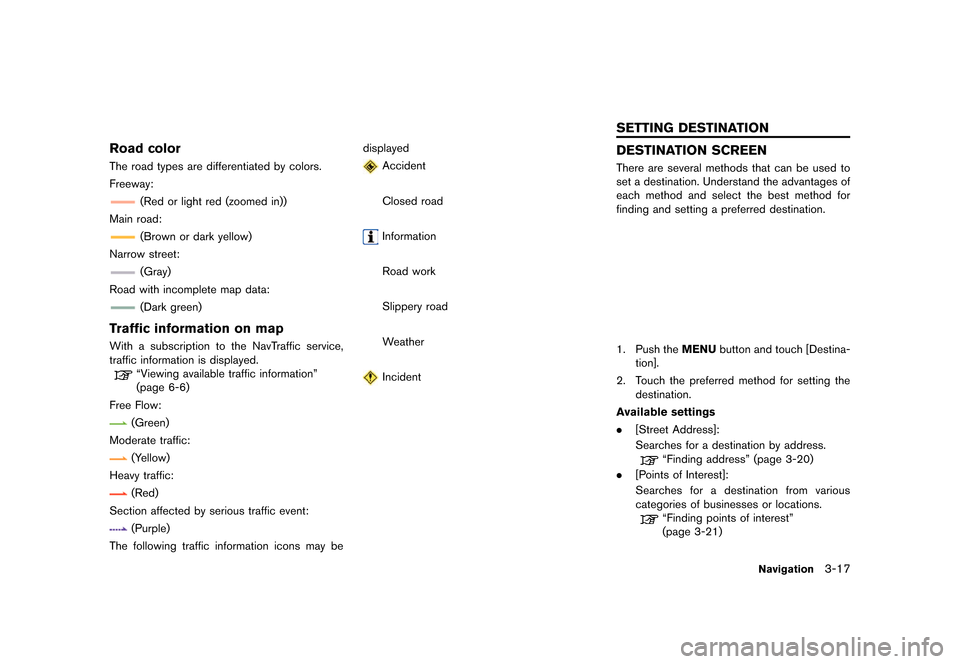

Road colorGUID-16035A1E-B7A3-449E-857D-82CE718C0B3BThe road types are differentiated by colors.
Freeway:
(Red or light red (zoomed in))
Main road:
(Brown or dark yellow)
Narrow street:
(Gray)
Road with incomplete map data:
(Dark green)
Traffic information on mapGUID-76DF2039-9D48-4277-86E8-FF7C624B9B6DWith a subscription to the NavTraffic service,
traffic information is displayed.
“Viewing available traffic information”
(page 6-6)
Free Flow:
(Green)
Moderate traffic:
(Yellow)
Heavy traffic:
(Red)
Section affected by serious traffic event:
(Purple)
The following traffic information icons may be displayed
Accident
Closed road
Information
Road work
Slippery road
Weather
Incident
GUID-501A39C4-2FAD-451F-B110-26D6B2F785A4
DESTINATION SCREENGUID-B2EBC8BC-3B61-48B8-A7CB-A84B9994A079There are several methods that can be used to
set a destination. Understand the advantages of
each method and select the best method for
finding and setting a preferred destination.
LNC0199X
1. Push the
MENUbutton and touch [Destina-
tion].
2. Touch the preferred method for setting the destination.
Available settings
. [Street Address]:
Searches for a destination by address.
“Finding address” (page 3-20)
. [Points of Interest]:
Searches for a destination from various
categories of businesses or locations.
“Finding points of interest”
(page 3-21)
Navigation3-17
SETTING DESTINATION
Condition: NAM/

Black plate (70,1)
[ Edit: 2013/ 10/ 7 Model: Navi-EV ]
3-18Navigation

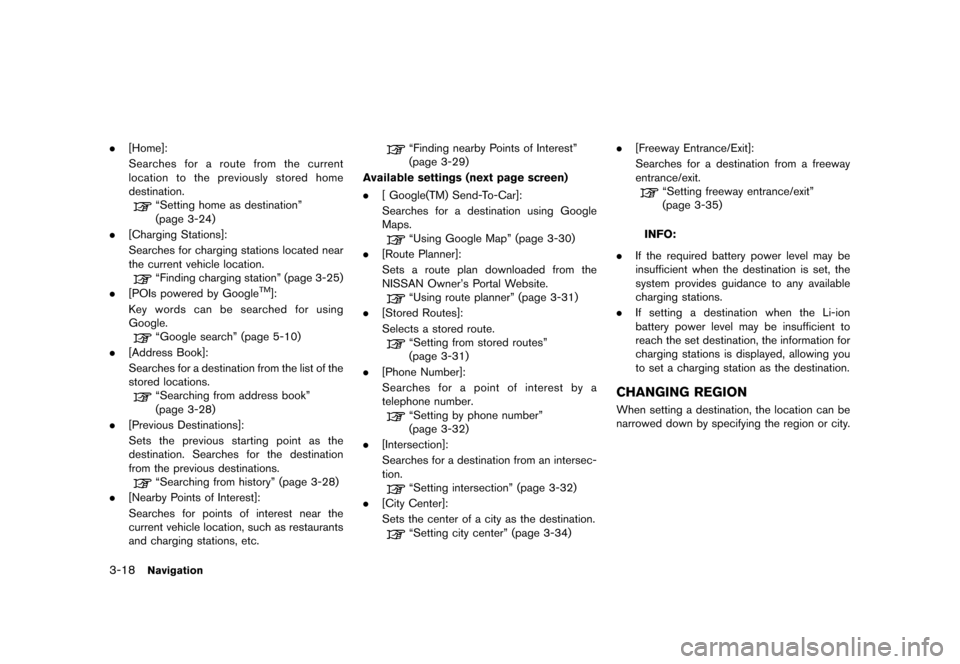

.[Home]:
Searches for a route from the current
location to the previously stored home
destination.
“Setting home as destination”
(page 3-24)
. [Charging Stations]:
Searches for charging stations located near
the current vehicle location.
“Finding charging station” (page 3-25)
. [POIs powered by GoogleTM]:
Key words can be searched for using
Google.
“Google search” (page 5-10)
. [Address Book]:
Searches for a destination from the list of the
stored locations.
“Searching from address book”
(page 3-28)
. [Previous Destinations]:
Sets the previous starting point as the
destination. Searches for the destination
from the previous destinations.
“Searching from history” (page 3-28)
. [Nearby Points of Interest]:
Searches for points of interest near the
current vehicle location, such as restaurants
and charging stations, etc.
“Finding nearby Points of Interest”
(page 3-29)
Available settings (next page screen)
. [ Google(TM) Send-To-Car]:
Searches for a destination using Google
Maps.
“Using Google Map” (page 3-30)
. [Route Planner]:
Sets a route plan downloaded from the
NISSAN Owner’s Portal Website.
“Using route planner” (page 3-31)
. [Stored Routes]:
Selects a stored route.
“Setting from stored routes”
(page 3-31)
. [Phone Number]:
Searches for a point of interest by a
telephone number.
“Setting by phone number”
(page 3-32)
. [Intersection]:
Searches for a destination from an intersec-
tion.
“Setting intersection” (page 3-32)
. [City Center]:
Sets the center of a city as the destination.
“Setting city center” (page 3-34) .
[Freeway Entrance/Exit]:
Searches for a destination from a freeway
entrance/exit.
“Setting freeway entrance/exit”
(page 3-35)
INFO:
. If the required battery power level may be
insufficient when the destination is set, the
system provides guidance to any available
charging stations.
. If setting a destination when the Li-ion
battery power level may be insufficient to
reach the set destination, the information for
charging stations is displayed, allowing you
to set a charging station as the destination.
CHANGING REGIONGUID-3E25FCC3-C8B2-44CB-BCC5-732F43DB2522When setting a destination, the location can be
narrowed down by specifying the region or city.
Condition: NAM/

Black plate (71,1)
[ Edit: 2013/ 10/ 7 Model: Navi-EV ]
Specifying regionGUID-47A13C7F-143A-4A58-9FA9-3EF03611FAA4
LNE0904X
1. Push theMENUbutton and touch [Destina-
tion].
2. Touch [Change Region].
3. Touch the preferred region from the list. After setting, the display automatically re-
turns to the Destination screen.
Available settings
. US1: CA, NV
. US2: AZ, CO, ID, MT, NM, OR, UT, WA, WY
. US3: IA, KS, MN, MO, ND, NE, SD
. US4: AR, LA, MS, OK, TX
. US5: IL, IN, MI, WI
. US6: DC, DE, KY, MD, OH, PA, VA, WV
. US7: CT, MA, ME, NH, NJ, NY, RI, VT
. US8: AL, FL, GA, NC, SC, TN
. US9: AK .
US10: HI
. Canada
. Puerto Rico
INFO:
. It is also possible to select a region by
touching the map on the right side of the
screen.
. It is not possible to search for a route from
the continental United States to Hawaii.
Specifying cityGUID-40AD6857-AA78-4C83-9D64-B7572E33A7AAWhen searching for a destination, the search
can be narrowed down by specifying the city.
LNE0047X
1. Touch [City]. A character input screen is
displayed.
LNE0048X
2. Enter the name of the city, touch [List]. A listscreen is displayed.
INFO:
.The same screen will be displayed when
a location is searched from a street.
.Touch [Last 5 Cities] to display the last 5cities recently set as destinations.
LNE0049X
3. Touch the city of the destination from the list.
Navigation3-19
Condition: NAM/

Black plate (72,1)
[ Edit: 2013/ 10/ 7 Model: Navi-EV ]
3-20Navigation
INFO:
In some cases, when a city name has been
entered, the number of matching destinations in
the “Matches” column may be different from the
number displayed on the list screen. If this
occurs, enter more characters to further reduce
the number of matches.
FINDING ADDRESSGUID-E974693C-B055-4844-9B8F-849E0623EC34When the address of the destination is known,
use the following method to enter the address
and then have the system calculate a route. A
location near the preferred destination can also
be searched by entering the house number if the
map data contains the relevant data.
1. Push the MENUbutton and touch [Destina-
tion].
2. Touch [Street Address].
LNE0050X
3. Touch [House No.]. A character input screen is displayed.
INFO:
Touch [Region] or [City] to narrow down the
specified region and city.
“Changing region” (page 3-18)
LNE0051X
4. Enter the house number, then touch [OK]. If the house number is not available, touch [No
House #].
5. Touch [Street]. A street name input screen is displayed.
LNE0052X
6. Enter the name of the street. After finishingthe entry, touch [List]. A list of streets is
displayed.
LNE0053X
7. Touch the correct street of the destination
from the list.
Condition: NAM/

Black plate (73,1)
[ Edit: 2013/ 10/ 7 Model: Navi-EV ]
INFO:
In some cases, when a street name has
been entered, the number of matching
destinations in the "Matches" column may
be different from the number displayed on
the list screen. If this occurs, enter more
characters to further reduce the number of
matches.
LNE0054X
8. Touch [OK].
LNE0055X
9. The selected destination is displayed at the center of the map. Touch [Start] after
confirming the location of the displayed
destination. The system sets the destination
to the selected location and starts calculat-
ing a route.
INFO:
After setting a destination, the location of the
destination can be adjusted and the location
can be stored in the Address Book, etc.
“Operations after setting destination”
(page 3-36)
FINDING POINTS OF INTERESTGUID-E537C75F-F389-4D0C-BDC4-80E087FFBD4FThis allows you to find a facility by type, and then
have the system calculate a route to that
destination. Specify the region and city of the
destination to find it more quickly. NOTE:
Locations and business hours of facilities
are subject to change, which may not be
reflected in the map data. Double-check
this information before you go to an
emergency facility to ensure that you can
receive the proper support. Otherwise, you
may not receive emergency help even
when you arrive at the destination.
A confirmation message also appears on
the navigation screen. Follow the dis-
played instructions and check the items
required.Searching by a landmark nameGUID-42622348-4B68-4A78-9240-986407C6723B1. Push the
MENUbutton and touch [Destina-
tion].
2. Touch [Points of Interest].
LNE0056X
Navigation3-21
Condition: NAM/

Black plate (74,1)
[ Edit: 2013/ 10/ 7 Model: Navi-EV ]
3-22Navigation
3. Touch [By Name]. A character input screenis displayed.
LNE0057X
4. Enter the name of the destination facility.After finishing the entry, touch [List]. A list
screen is displayed.
INFO:
When [City] is touched, a city can be
specified by typing the city name.
“Specifying city” (page 3-19)
LNE0058X
5. Touch the preferred destination facility from the list.
INFO:
.In some cases, when a POI name has
been entered, the number of matching
destinations in the "Matches" column
may be different from the number dis-
played on the list screen. If this occurs,
enter more characters to further reduce
the number of matches.
.By selecting [By Distance], you can sortthe list by the nearest distance. The
position of the selected location is
displayed in the preview on the right side
of the screen.
.By selecting [By Category], you candisplay the list that summarizes the
entered names into categories. Select
the category to narrow down the search.
LNE0059X
6. The selected destination is displayed at the center of the map. Touch [Start] after
confirming the location of the displayed
destination. The system sets the destination
to the selected location and starts calculat-
ing a route.
INFO:
After setting a destination, the location of the
destination can be adjusted and the location can
be stored in the Address Book, etc.
“Operations after setting destination”
(page 3-36)
Searching from the landmark cate-
gory
GUID-351BE659-0AB9-473A-AC1A-38ABCADA93D61. Push the MENUbutton and touch [Destina-
tion].
2. Touch [Points of Interest]. The main category list is displayed.
LNE0060X
Condition: NAM/

Black plate (75,1)
[ Edit: 2013/ 10/ 7 Model: Navi-EV ]
3. Touch the main category. The subcategorylist is displayed.
LNE0061X
4. Touch the subcategory from the list.
LNE0062X
5. Set the narrow down conditions for thelandmarks.
An example of choosing [By Name] is
explained below.
Narrow down conditions:
.[By Name]:
Input the facility name to narrow down
the target facility.
.[Select a City]:Input the city to narrow down the target
city.
.[Near Current Location]:Shows a list of facilities that are near
current vehicle location.
.[Near Destination]:When the destination is set, indicates the
facility list around the destination.
6. Touch [By Name]. A character input screen is displayed.
LNE0063X
7. Enter the name of the destination facility.After finishing the entry, touch [List]. A list
screen is displayed.
LNE0064X
8. Touch the preferred destination facility fromthe list.
INFO:
.In some cases, when a POI name has
been entered, the number of matching
destinations in the "Matches" column
may be different from the number dis-
played on the list screen. If this occurs,
enter more characters to further reduce
the number of matches.
.By selecting [By Distance], you can sortthe list by the nearest distance. The
position of the selected location is
displayed in the preview on the right side
of the screen.
.By selecting [New Category], you canperform a search from another category.
Navigation3-23
Condition: NAM/

Black plate (76,1)
[ Edit: 2013/ 10/ 7 Model: Navi-EV ]
3-24Navigation
LNE0065X
9. The selected destination is displayed at thecenter of the map. Touch [Start] after
confirming the location of the displayed
destination. The system sets the destination
to the selected location and starts calculat-
ing a route.
INFO:
After setting a destination, the location of the
destination can be adjusted and the location can
be stored in the Address Book, etc.
“Operations after setting destination”
(page 3-36)
SETTING HOME AS DESTINATIONGUID-EFD628DF-FD10-4DDD-BDF4-340E595F2B4EThe home location can be set as the destination
to which the system calculates a route. This
function is especially useful when searching for
a route to return to the home location. 1. Puch the
MENUbutton and touch [Destina-
tion].
LNE0935X
2. Touch [Home].
3. The home location is displayed, and the system sets the home location as the
destination.
INFO:
If the home location is not stored yet, the
system will automatically display a screen for
storing it.
“Storing home location” (page 1-12)
LNE0936X
4. The entire route to the home location is shown on the map. Touch [Start] after
confirming the displayed route. The system
starts route guidance to the home location.
INFO:
Before starting route guidance, the route con-
dition can be changed and the route can be
stored in the Address Book, etc.
“Procedures after setting route”
(page 3-39)
Setting by voice command
1. Push the
button located on the steering
wheel.
2. After the tone sounds, speak a command.
To set the home location as the destination:
"Navigation" "Home"
Condition: NAM/
