2014 NISSAN LEAF Navigation Manual

Black plate (221,1)
[ Edit: 2013/ 10/ 7 Model: Navi-EV ]
: Shift the shift lever
: Push the CAMERA button
*A: Original screen before the Around View
Monitor is operated
*B: Rear view/bird-eye view screen
*C: Rear view/front-side view screen
*D: Front view/bird-eye view screen
*E: Front view/front-side view screen
HOW TO SWITCH THE DISPLAYGUID-6D2CF301-F18C-405A-A7BD-ABE01EEF513FThe Around View Monitor display consists of the
left and the right screens. You can see a
combination of different views on the screens
as illustrated.
Activating Around View MonitorGUID-1ED2AA6C-4F54-4207-9DA7-DC47C82F6D0BShift lever operation:
. When the shift lever is shifted into the “R”
(Reverse) position (
*1) while a screen
other than the Around View Monitor
*Ais
displayed, Around View Monitor is activated
and the rear view/bird’s-eye view screen
*B
is displayed.
The screen
*Bswitches back to screen*A
when the shift lever is shifted out of the “R”
(Reverse) position (
*2) . CAMERA button operation:
.
When the CAMERA button is pushed (
*8)
while a screen other than the Around View
Monitor
*Ais displayed, Around View
Monitor is activated and the front view/
bird’s-eye view screen
*Dis displayed.
Operations after activationGUID-D3A16834-AC36-428E-B807-3ECBFDF66957. When the rear view is displayed on the
driver’s side on the screen (
*Bor*C) , the
view on the passenger’s side switches
between the bird’s-eye view
*Band the
front-side view
*Ceach time the CAMERA
button is pushed (
*3) .
. When the front view/bird’s-eye view
*Dis
displayed on the screen, pushing the
CAMERA button (
*9) will switch the view
on the passenger’s side to the front-side
view
*E. When the CAMERAbutton is
pushed again (
*10) , the screen which was
displayed before the Around View Monitor
was activated
*Ais displayed.
. The view on the driver’s side switches to the
rear view (
*Bor*C) when the shift lever is
shifted into the “R” (Reverse) position (
*5
or*7) .
The view will switch back to the front view
(
*Dor*E) when the shift lever is shifted
out of the “R” (Reverse) position (
*4or
*6) .
HOW TO SEE EACH VIEWGUID-06C85FA3-178C-47F3-9DF0-4BDAAC52D6B7
WARNING
. The distance guide line and the
vehicle width line should be used
as a reference only when the vehicle
is on a paved, level surface. The
distance viewed on the monitor is
for reference only and may be
different than the actual distance
between the vehicle and displayed
objects.
. Use the displayed lines and the bird-
eye view as a reference. The lines
and the bird-eye view are greatly
affected by the number of occu-
pants, vehicle position, road condi-
tion and road grade.
. If the tires are replaced with differ-
ent sized tires, the predictive course
line and the bird-eye view may be
displayed incorrectly.
. When driving the vehicle up a hill,
objects viewed in the monitor are
further than they appear. When
driving the vehicle down a hill,
Monitor system9-9
Condition: NAM/

Black plate (222,1)
[ Edit: 2013/ 10/ 7 Model: Navi-EV ]
9-10Monitor system
objects viewed in the monitor are
closer than they appear. Use the
mirrors or actually look to properly
judge distances to other objects.
The vehicle width and predictive course lines are
wider than the actual width and course.
Front and rear viewGUID-CB5D3ED8-055A-4717-AEB8-2D30BC53DA9B
LNL0038X
Front view
LNL0001X
Rear viewGuiding lines, which indicate the vehicle width
and distances to objects with reference to the
vehicle body line
*A, are displayed on the
monitor.
Distance guide lines:
Indicate distances from the vehicle body.
. Red line
*1: approx. 1.5 ft (0.5 m)
. Yellow line
*2: approx. 3 ft (1 m)
. Green line
*3: approx. 7 ft (2 m)
. Green line
*4: approx. 10 ft (3 m)
Vehicle width guide lines
*5:
Indicate the vehicle width when backing up.
Predictive course lines
*6:
Indicate the predictive course when operating
the vehicle. The predictive course lines will be
displayed on the monitor when the steering wheel is turned. The predictive course lines will
move depending on how much the steering
wheel is turned and will not be displayed while
the steering wheel is in the neutral position.
The front view will not be displayed when the
vehicle speed is above 6 MPH (10 km/h).
WARNING
.
The distance between objects
viewed in the rear view may differ
from the actual distance. Objects in
the rear view will appear visually
opposite from those viewed in the
inside and outside mirrors.
. On a snow-covered or slippery road,
there may be a difference between
the predictive course line and the
actual course line.
. The vehicle width and predictive
course lines are wider than the
actual width and course.
Condition: NAM/

Black plate (223,1)
[ Edit: 2013/ 10/ 7 Model: Navi-EV ]
NOTE:
When the monitor displays the front view
and the steering wheel turns about 90
degrees or less from the neutral position,
both the right and left predictive course
lines
*6are displayed. When the steering
wheel turns about 90 degrees or more, a
predictive course line is displayed only on
the opposite side of the turn.
Bird’s-eye viewGUID-832E41F8-D30E-4A0F-954B-E35B381377F3
LNL0039X
The bird’s-eye view shows the overhead view of
the vehicle which helps confirm the vehicle
position and the predictive course to a parking
space.
The vehicle icon
*1shows the position of the
vehicle. Note that the distance between objects viewed in the bird’s-eye view differs from the
actual distance.
The areas that the cameras cannot cover
*2are
indicated in black.
After the power switch is placed to ON, the non-
viewable area
*2is highlighted in yellow for 3
seconds after the bird’s-eye view is displayed.
In addition, the non-viewable corners are dis-
played in red (blink for the first 3 seconds)
*3
to remind the drivers to be cautious.
WARNING
. Objects in the bird’s-eye view will
appear further than the actual dis-
tance because the bird’s-eye view is
a pseudo view that is processed by
combining the views from the cam-
eras on the outside mirrors, the
front and the rear of the vehicle.
. Tall objects, such as a curb or
vehicle, may be misaligned or not
displayed at the seam of the views.
. Objects that are above the camera
cannot be displayed.
. The view for the bird’s-eye view may
be misaligned when the camera
position alters. .
A line on the ground may be mis-
aligned and is not seen as being
straight at the seam of the views.
The misalignment will increase as
the line proceeds away from the
vehicle.
Front-side viewGUID-95358EE8-3115-4612-B0C7-BF3EBF8310A6
LNL0040X
Guiding lines:
Guiding lines that indicate the width and the
front end of the vehicle are displayed on the
monitor.
The front-of-vehicle line
*1shows the front part
of the vehicle.
The side-of-vehicle line
*2shows the vehicle
width including the outside mirror.
Monitor system9-11
Condition: NAM/

Black plate (224,1)
[ Edit: 2013/ 10/ 7 Model: Navi-EV ]
9-12Monitor system
The extensions*3of both the front*1and
side
*2lines are shown with a green dotted
line.
CAUTION
The turn signal light may overlap with
the side-of-vehicle line. This is not a
malfunction.
DIFFERENCE BETWEEN PREDIC-
TIVE AND ACTUAL DISTANCES
GUID-C3885770-F5BE-4A36-ABB8-3B99DBEE9F77The distance guide line and the vehicle width
guide line on the front and the rear view should
be used as a reference only when the vehicle is
on a level, paved surface. The distance viewed
on the monitor is for reference only and may be
different than the actual distance between the
vehicle and displayed objects.
Moving to a steep uphillGUID-617D799D-0D9A-4127-8078-0E93B81669D7
LNL0002X
When moving the vehicle up a hill, the distance
guide lines and the vehicle width guide lines are
shown closer than the actual distance. For
example, the display shows 3 ft (1 m) to the
place
*A, but the actual 3 ft (1 m) distance on
the hill is the place
*B. Note that any object on
the hill is viewed in the monitor further than it appears.
Moving to a steep downhillGUID-634ABFD2-0A8B-4A37-A9B8-FFFC9EDFEC30
LNL0003X
When moving the vehicle down a hill, the
distance guide lines and the vehicle width guide
lines are shown further than the actual distance.
For example, the display shows 3 ft (1 m) to the
place
*A, but the actual 3 ft (1 m) distance on
Condition: NAM/

Black plate (225,1)
[ Edit: 2013/ 10/ 7 Model: Navi-EV ]
the hill is the place*B. Note that any object on
the hill is viewed in the monitor closer than it
appears.
Moving near a projecting objectGUID-C478DD06-6E00-45AA-A416-07987D17DE95
LNL0004X
The predictive course lines*Ado not touch the
object in the display. However, the vehicle may
hit the object if it projects over the actual moving course.
LNL0042X
There may be a small distance visible between
the vehicle and the object in the birdseye view
on the display
*B.
Moving closer to a projecting objectGUID-72B04CA0-2F21-4A08-8A5D-49CE41D9291A
LNL0005X
The position*Cis shown further than the
position
*Bin the display. However, the
position
*Cis actually at the same distance
as the position
*A. The vehicle may hit the
object when moving toward the position
*Aif
the object projects over the actual moving
course.
Monitor system9-13
Condition: NAM/

Black plate (226,1)
[ Edit: 2013/ 10/ 7 Model: Navi-EV ]
9-14Monitor system

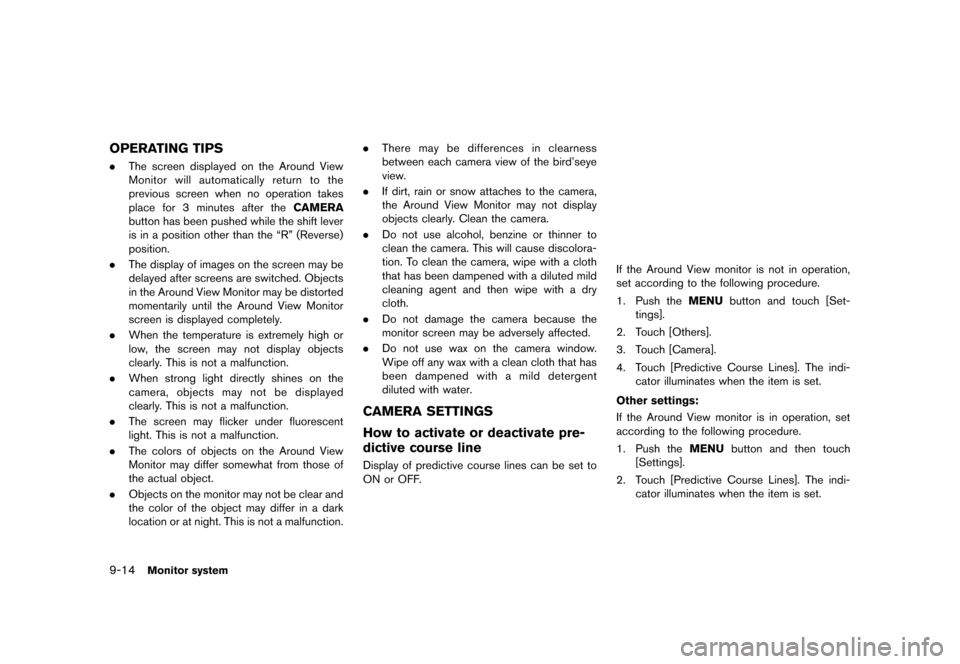

OPERATING TIPSGUID-AEFDC377-D7D4-4F67-972E-F5117C79D0CD.The screen displayed on the Around View
Monitor will automatically return to the
previous screen when no operation takes
place for 3 minutes after the CAMERA
button has been pushed while the shift lever
is in a position other than the “R” (Reverse)
position.
. The display of images on the screen may be
delayed after screens are switched. Objects
in the Around View Monitor may be distorted
momentarily until the Around View Monitor
screen is displayed completely.
. When the temperature is extremely high or
low, the screen may not display objects
clearly. This is not a malfunction.
. When strong light directly shines on the
camera, objects may not be displayed
clearly. This is not a malfunction.
. The screen may flicker under fluorescent
light. This is not a malfunction.
. The colors of objects on the Around View
Monitor may differ somewhat from those of
the actual object.
. Objects on the monitor may not be clear and
the color of the object may differ in a dark
location or at night. This is not a malfunction. .
There may be differences in clearness
between each camera view of the bird’seye
view.
. If dirt, rain or snow attaches to the camera,
the Around View Monitor may not display
objects clearly. Clean the camera.
. Do not use alcohol, benzine or thinner to
clean the camera. This will cause discolora-
tion. To clean the camera, wipe with a cloth
that has been dampened with a diluted mild
cleaning agent and then wipe with a dry
cloth.
. Do not damage the camera because the
monitor screen may be adversely affected.
. Do not use wax on the camera window.
Wipe off any wax with a clean cloth that has
been dampened with a mild detergent
diluted with water.
CAMERA SETTINGSGUID-6522058D-5369-4CDD-A5A3-EE4BAB42D30A
How to activate or deactivate pre-
dictive course line
GUID-AC01A724-4085-461F-9A37-6D451A2C6637Display of predictive course lines can be set to
ON or OFF.
LNL0008X
If the Around View monitor is not in operation,
set according to the following procedure.
1. Push the MENUbutton and touch [Set-
tings].
2. Touch [Others].
3. Touch [Camera].
4. Touch [Predictive Course Lines]. The indi- cator illuminates when the item is set.
Other settings:
If the Around View monitor is in operation, set
according to the following procedure.
1. Push the MENUbutton and then touch
[Settings].
2. Touch [Predictive Course Lines]. The indi- cator illuminates when the item is set.
Condition: NAM/

Black plate (227,1)
[ Edit: 2013/ 10/ 7 Model: Navi-EV ]

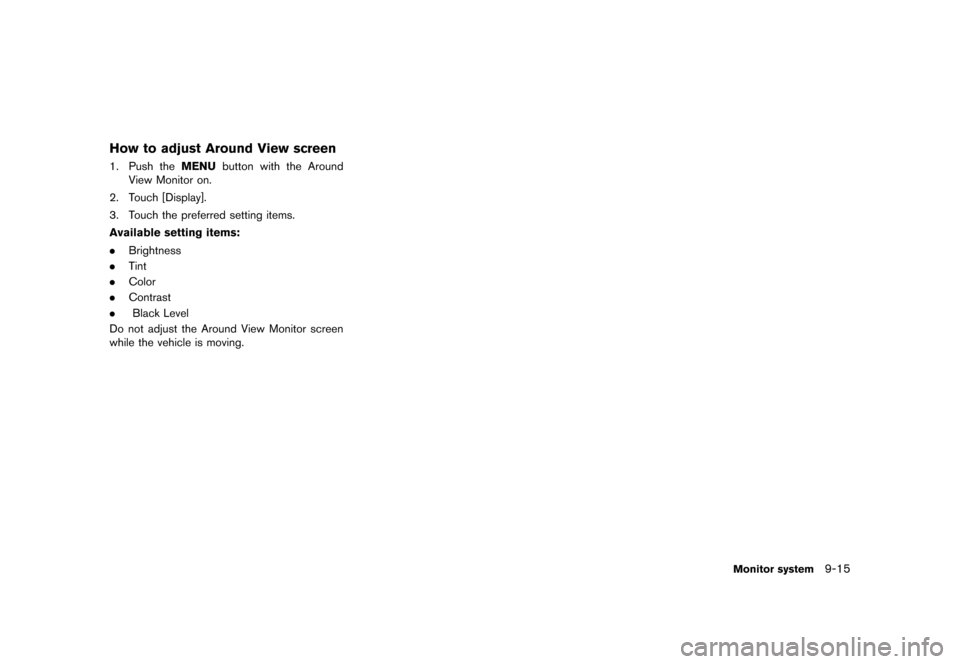

How to adjust Around View screenGUID-EC9A2A70-2282-457D-B4B3-E852D86676071. Push theMENUbutton with the Around
View Monitor on.
2. Touch [Display].
3. Touch the preferred setting items.
Available setting items:
. Brightness
. Tint
. Color
. Contrast
. Black Level
Do not adjust the Around View Monitor screen
while the vehicle is moving.
Monitor system9-15
Condition: NAM/

Black plate (228,1)
[ Edit: 2013/ 10/ 7 Model: Navi-EV ]

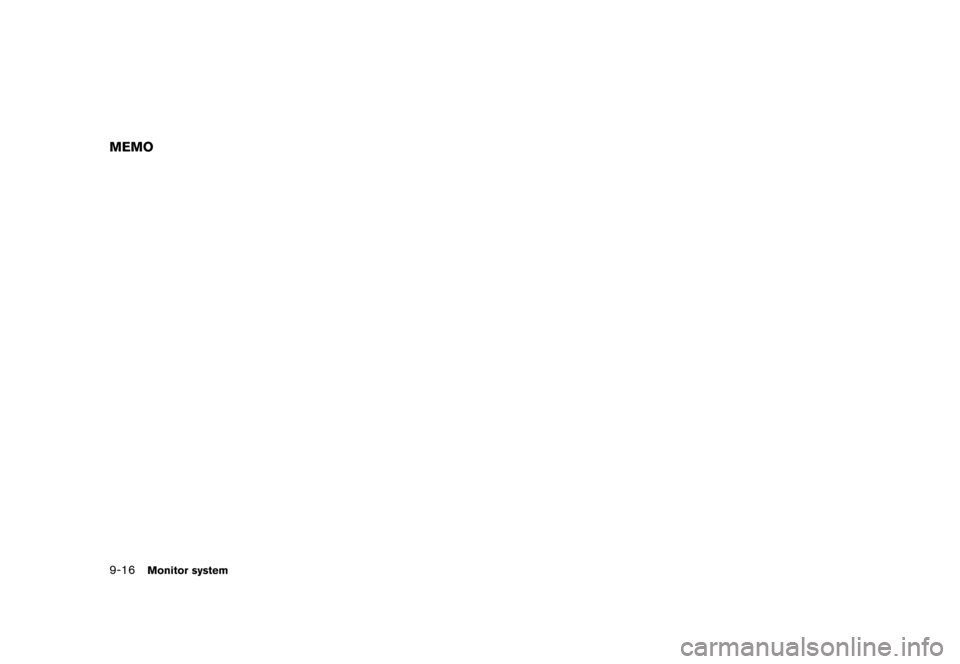

9-16Monitor system
MEMO
Condition: NAM/
