2014 NISSAN LEAF Navigation Manual

Black plate (181,1)
[ Edit: 2013/ 10/ 7 Model: Navi-EV ]

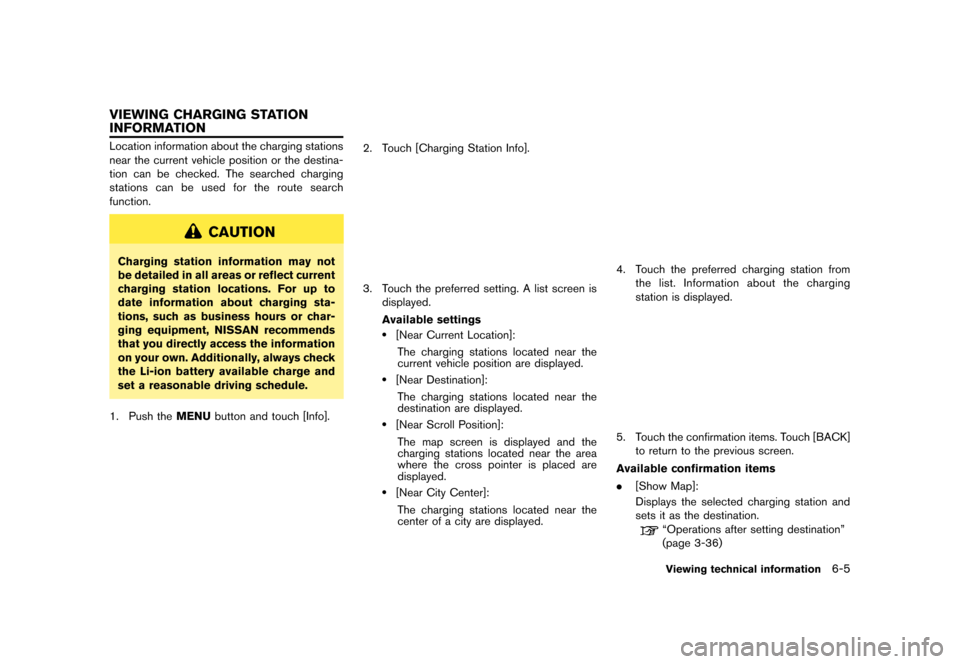

GUID-D9F58D02-2C3C-44E4-8AAB-BBB6924AB8DFLocation information about the charging stations
near the current vehicle position or the destina-
tion can be checked. The searched charging
stations can be used for the route search
function.
CAUTION
Charging station information may not
be detailed in all areas or reflect current
charging station locations. For up to
date information about charging sta-
tions, such as business hours or char-
ging equipment, NISSAN recommends
that you directly access the information
on your own. Additionally, always check
the Li-ion battery available charge and
set a reasonable driving schedule.
1. Push the MENUbutton and touch [Info].
LNH0121X
2. Touch [Charging Station Info].
LNH0122X
3. Touch the preferred setting. A list screen is
displayed.
Available settings
.[Near Current Location]:
The charging stations located near the
current vehicle position are displayed.
.[Near Destination]:
The charging stations located near the
destination are displayed.
.[Near Scroll Position]:The map screen is displayed and the
charging stations located near the area
where the cross pointer is placed are
displayed.
.[Near City Center]:The charging stations located near the
center of a city are displayed.
LNH0009X
4. Touch the preferred charging station from the list. Information about the charging
station is displayed.
LNH0010X
5. Touch the confirmation items. Touch [BACK]to return to the previous screen.
Available confirmation items
. [Show Map]:
Displays the selected charging station and
sets it as the destination.
“Operations after setting destination”
(page 3-36)
Viewing technical information6-5
VIEWING CHARGING STATION
INFORMATION
Condition: NAM/

Black plate (182,1)
[ Edit: 2013/ 10/ 7 Model: Navi-EV ]
6-6Viewing technical information
.[Call]:
Makes a call for the selected charging
station. A cellular phone should be con-
nected beforehand.
“Connecting cellular phone”
(page 1-13)
. [Details]:
Displays detailed information including the
type and number of charging devices exist-
ing at the selected charging station.
GUID-C3CED98E-C094-4510-B148-64D1ABD9EAF1NavTraffic information is a subscription service
offered by SiriusXM Satellite Radio.
This service provides real-time information
regarding traffic flow, accidents, road construc-
tion and other incidents, where available.
NavTraffic combines information from commer-
cial and public traffic data providers including
government departments of transportation, po-
lice, emergency services, road sensors, cameras
and aircraft reports. The traffic information is
broadcast to the vehicle by the SiriusXM
Satellite Radio. Available traffic information on
the route the driver selected is shown on the
navigation screen so traffic conditions between
you and the destination are known. Three types
of real-time traffic information for major road-
ways are shown on the navigation system:
* Unscheduled traffic data for example, acci-
dents and disabled vehicles.
* Scheduled traffic data, for example road
construction and road closures.
* Traffic flow information (rate of speed data) .WARNING
NavTraffic information is not a substi-
tute for attentive driving. Traffic condi-
tions change constantly and emergency
situations can arise without warning.
Relying only on NavTraffic information
may lead to a collision and could result
in serious personal injury.
INFO:
. Flow information is provided only for roads
equipped with traffic sensors and is not
available in all markets covered by the
service. Flow data may not be available on
portions of a road that is under construction.
. If a contract is not completed for NavTraffic
traffic information service, a message ap-
pears, and it will not be possible to check
the information on the traffic information
menu.
NavTraffic information is available in limited
markets. To subscribe or to check if this service
is available in the area:
call 1-866-635-2349 or see www.siriusxm.
com/navtraffic
VIEWING AVAILABLE TRAFFIC
INFORMATION
Condition: NAM/

Black plate (183,1)
[ Edit: 2013/ 10/ 7 Model: Navi-EV ]
LNH0011X

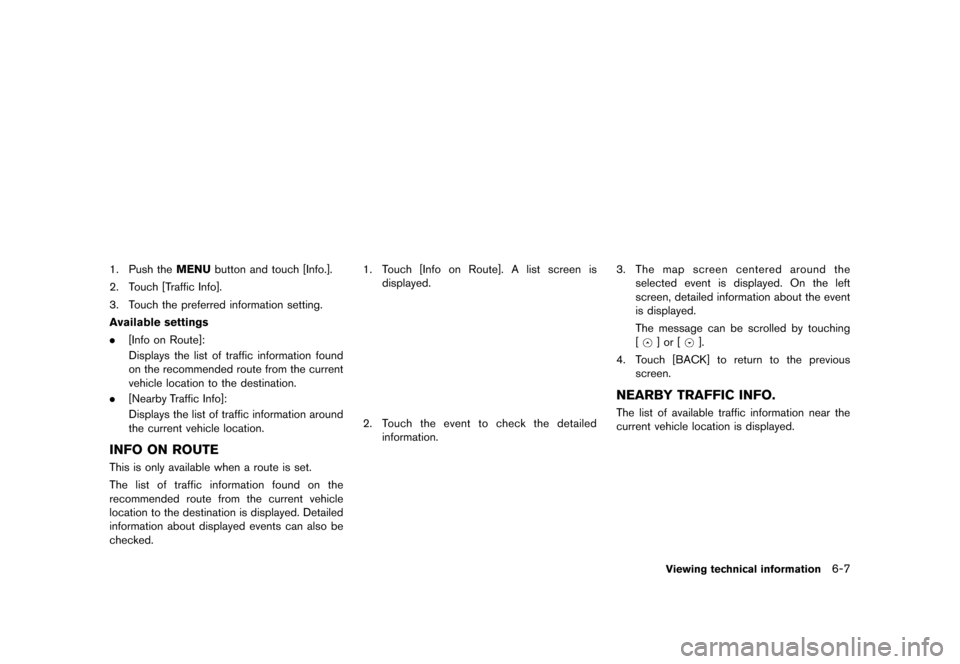

1. Push theMENUbutton and touch [Info.].
2. Touch [Traffic Info].
3. Touch the preferred information setting.
Available settings
. [Info on Route]:
Displays the list of traffic information found
on the recommended route from the current
vehicle location to the destination.
. [Nearby Traffic Info]:
Displays the list of traffic information around
the current vehicle location.
INFO ON ROUTEGUID-26F6B1D8-668A-40FF-88E4-FCB3FDB65FDEThis is only available when a route is set.
The list of traffic information found on the
recommended route from the current vehicle
location to the destination is displayed. Detailed
information about displayed events can also be
checked.
LNH0012X
1.Touch [Info on Route]. A list screen is
displayed.
LNH0013X
2.Touch the event to check the detailed
information.
LNH0014X
3.The map screen centered around the
selected event is displayed. On the left
screen, detailed information about the event
is displayed.
The message can be scrolled by touching
[
] or [].
4. Touch [BACK] to return to the previous screen.
NEARBY TRAFFIC INFO.GUID-A542A19F-7B72-4F87-A8E7-7A00E73E1A98The list of available traffic information near the
current vehicle location is displayed.
LNH0015X
Viewing technical information6-7
Condition: NAM/

Black plate (184,1)
[ Edit: 2013/ 10/ 7 Model: Navi-EV ]
6-8Viewing technical information

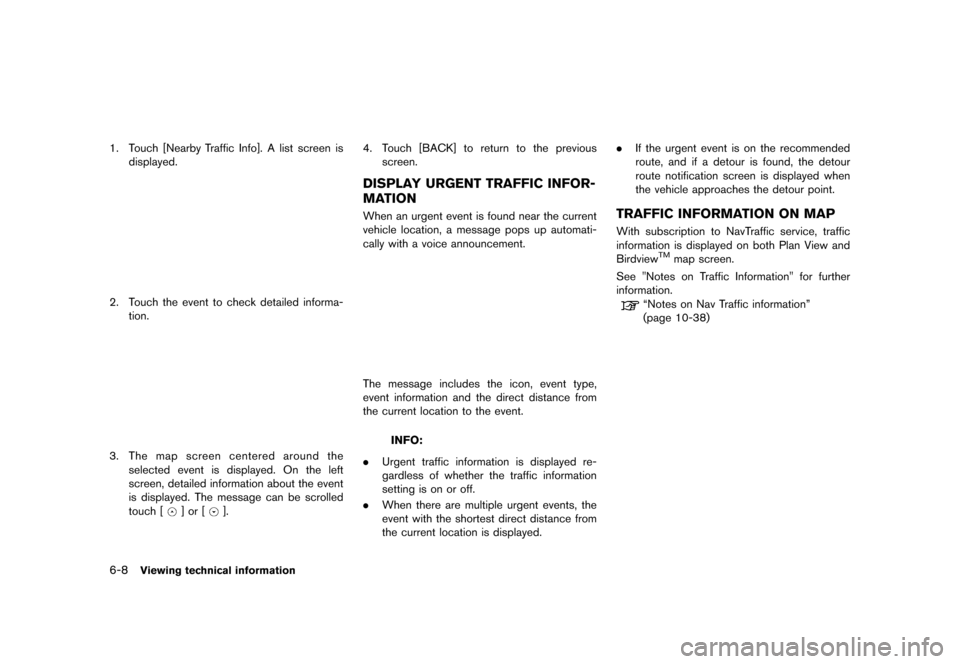

1. Touch [Nearby Traffic Info]. A list screen isdisplayed.
LNH0016X
2. Touch the event to check detailed informa-tion.
LNH0017X
3.The map screen centered around the
selected event is displayed. On the left
screen, detailed information about the event
is displayed. The message can be scrolled
touch [
] or []. 4. Touch [BACK] to return to the previous
screen.
DISPLAY URGENT TRAFFIC INFOR-
MATION
GUID-922958E3-92B3-40A9-B2C0-B7954B24AC3DWhen an urgent event is found near the current
vehicle location, a message pops up automati-
cally with a voice announcement.
LNH0018X
The message includes the icon, event type,
event information and the direct distance from
the current location to the event.
INFO:
. Urgent traffic information is displayed re-
gardless of whether the traffic information
setting is on or off.
. When there are multiple urgent events, the
event with the shortest direct distance from
the current location is displayed. .
If the urgent event is on the recommended
route, and if a detour is found, the detour
route notification screen is displayed when
the vehicle approaches the detour point.
TRAFFIC INFORMATION ON MAPGUID-AB3BF49A-86CB-4B03-A2B4-AA2AD7E31596With subscription to NavTraffic service, traffic
information is displayed on both Plan View and
Birdview
TMmap screen.
See "Notes on Traffic Information" for further
information.
“Notes on Nav Traffic information”
(page 10-38)
Condition: NAM/

Black plate (185,1)
[ Edit: 2013/ 10/ 7 Model: Navi-EV ]
Screen informationGUID-114661F6-283A-48E6-A282-06966EFC0F99
LNH0019X
*1Traffic indicator:
Displays the reception condition of traffic infor-
mation transmitted from the provider.
Green: Reception condition is good.
Gray: Reception condition is poor.
No mark: Subscription to NavTraffic service is not
detected.
*2Road conditions
Free Flow:
(Green)
Moderate traffic:
(Yellow)
Heavy traffic:
(Red)
Section affected by serious traffic event:
(Purple)
*3Estimated travel time to destination calculated
taking traffic information on route info considera-
tion.
*4Traffic information icon:
If the route is not already set, all of the traffic
information icons on the map screen are dis-
played in color. When the route is already set, the
icons on the route are displayed in color, and the
icons outside the route are displayed in gray.
: Accident
: Closed road
: Information
: Road work
: Slippery road
: Weather
: Incident
Traffic information display and scale
levels
GUID-F241FEAF-60AD-42D5-BE0E-89F222F845D8
2D map and Birdview Map
5 miles 10 km
2 miles 4 km
1 mile 2 km
1/2 mile 1 km
1/4 mile 500 m
1/8 mile 200 m
1/16 mile 100 m
1/32 mile 50 m
1/64 mile 25 m
Viewing technical information6-9
Condition: NAM/

Black plate (186,1)
[ Edit: 2013/ 10/ 7 Model: Navi-EV ]
6-10Viewing technical information

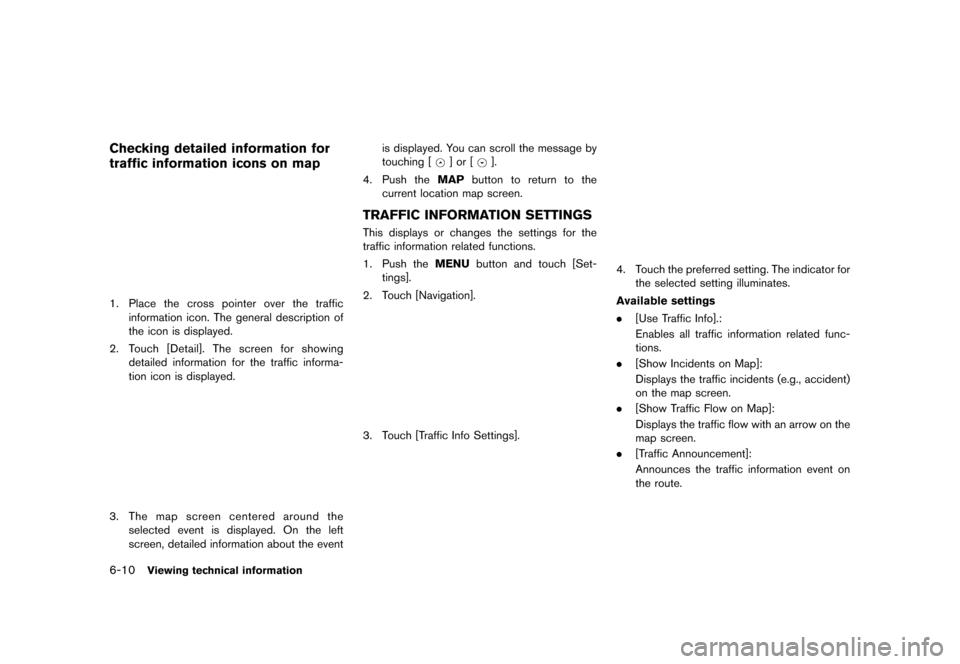

Checking detailed information for
traffic information icons on map
GUID-28EFD838-29AC-45EF-BC9E-086ABE9A3F5B
LNH0020X
1.Place the cross pointer over the traffic
information icon. The general description of
the icon is displayed.
2. Touch [Detail]. The screen for showing
detailed information for the traffic informa-
tion icon is displayed.
LNH0021X
3.The map screen centered around the
selected event is displayed. On the left
screen, detailed information about the event is displayed. You can scroll the message by
touching [
] or [].
4. Push the MAPbutton to return to the
current location map screen.
TRAFFIC INFORMATION SETTINGSGUID-6EFBBA9B-B2DE-4BB5-BA6A-8F97BE784DF6This displays or changes the settings for the
traffic information related functions.
1. Push the MENUbutton and touch [Set-
tings].
2. Touch [Navigation].
LNH0022X
3. Touch [Traffic Info Settings].
LNH0023X
4. Touch the preferred setting. The indicator for the selected setting illuminates.
Available settings
. [Use Traffic Info].:
Enables all traffic information related func-
tions.
. [Show Incidents on Map]:
Displays the traffic incidents (e.g., accident)
on the map screen.
. [Show Traffic Flow on Map]:
Displays the traffic flow with an arrow on the
map screen.
. [Traffic Announcement]:
Announces the traffic information event on
the route.
Condition: NAM/

Black plate (187,1)
[ Edit: 2013/ 10/ 7 Model: Navi-EV ]

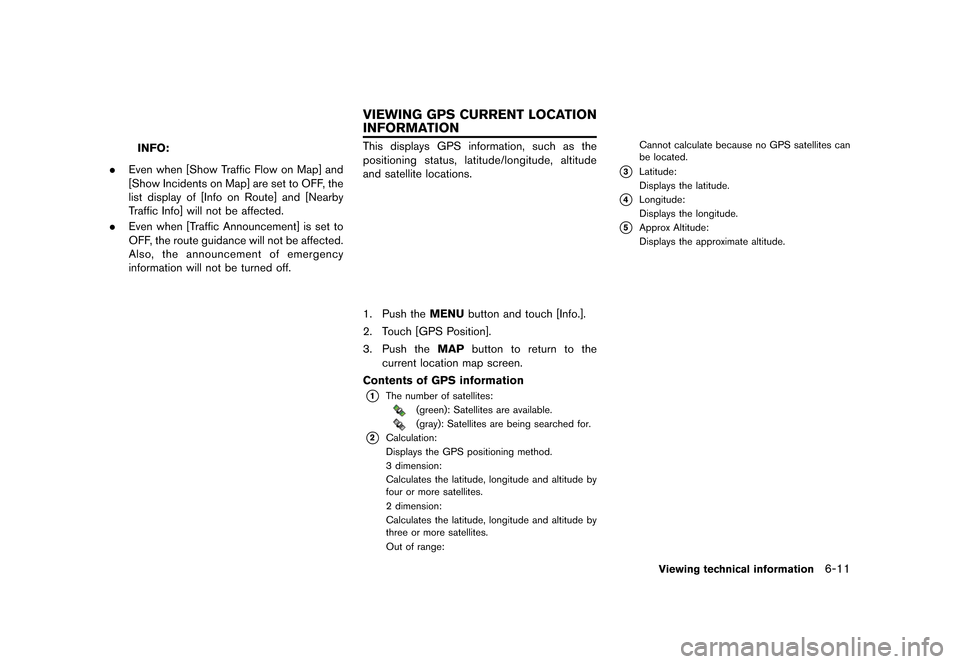

INFO:
. Even when [Show Traffic Flow on Map] and
[Show Incidents on Map] are set to OFF, the
list display of [Info on Route] and [Nearby
Traffic Info] will not be affected.
. Even when [Traffic Announcement] is set to
OFF, the route guidance will not be affected.
Also, the announcement of emergency
information will not be turned off.
GUID-E776263C-893E-44F9-BD26-9CE6B875D04DThis displays GPS information, such as the
positioning status, latitude/longitude, altitude
and satellite locations.
LNH0029X
1. Push the MENUbutton and touch [Info.].
2. Touch [GPS Position].
3. Push the MAPbutton to return to the
current location map screen.
Contents of GPS information
*1The number of satellites:
(green): Satellites are available.
(gray): Satellites are being searched for.
*2Calculation:
Displays the GPS positioning method.
3 dimension:
Calculates the latitude, longitude and altitude by
four or more satellites.
2 dimension:
Calculates the latitude, longitude and altitude by
three or more satellites.
Out of range: Cannot calculate because no GPS satellites can
be located.
*3Latitude:
Displays the latitude.
*4Longitude:
Displays the longitude.
*5Approx Altitude:
Displays the approximate altitude.
Viewing technical information6-11
VIEWING GPS CURRENT LOCATION
INFORMATION
Condition: NAM/

Black plate (188,1)
[ Edit: 2013/ 10/ 7 Model: Navi-EV ]
6-12Viewing technical information
GUID-2286BD91-8259-4719-BA17-5CC144BF2D35This displays the map version information.
LNH0024X
1. Push theMENUbutton and touch [Info.].
2. Touch [Navigation Version].
3. Push the MAPbutton to return to the
current location map screen.
VIEWING NAVIGATION SYSTEM
VERSION INFORMATION
Condition: NAM/
