2014 MITSUBISHI MIRAGE navigation

49
q
Selecting a recent
destination from the History
The destinations that you have set earlier
appear in the History. Two of those recent
destinations are shown in the Destination
menu for easy access. Smart History offers
these locations based on your navigation
habits, using parameters like the current
time of day, the day of week, and the current
location. The more you use the navigation
software, the better it can guess your desired
destination.
1. Access the History:
If you are on the Map screen, tap

and then tap
.
If you are in the Navigation menu,
tap
and then tap
.2. Smart History shows three destinations
most likely to be selected from the
previous destinations, regardless of
the search methods. The rest of the
destinations are listed in order of time
selected. If necessary, scroll the list to see
earlier destinations.
3. Select a destination from the list.
4. A full screen map appears with the
selected point in the middle. If necessary,
tap the map somewhere else to modify the
destination. The Cursor (
) appears at
the new location. Tap

to confirm the destination, or tap
to select a different
destination.
5. After a short summary of the route
parameters, the map appears showing
the entire route. The route is automatically
calculated. Tap

to modify route parameters, or tap
and start your journey.
q
Entering the coordinate of
the destination
You can also select a destination by entering
its coordinate. Do as follows:
1. If you are on the Map screen, tap
to return to the
Navigation menu.
2. In the Navigation menu, tap
.
3. Open the
menu and
tap
.
205-0010-00_QY-7375M-A_EN.indb 49205-0010-00_QY-7375M-A_EN.indb 493/12/2013 9:57:21 AM3/12/2013 9:57:21 AM

50
4. You can enter the latitude and longitude
values in any of the following formats:
decimal degrees; degrees and decimal
minutes; or degrees, minutes and decimal
seconds.

5. (optional) If necessary, tap
then
and enter the coordinate in UTM format.
6. When finished, tap .7. A full screen map appears with the
selected point in the middle. If necessary,
tap the map somewhere else to modify the
destination. The Cursor (
) appears at
the new location. Tap

to confirm the destination, or tap
to select a different
destination.
8. After a short summary of the route
parameters, the map appears showing
the entire route. The route is automatically
calculated. Tap

to modify route parameters, or tap
and start your journey.
qBuilding a route from the
list of destinations (Create
Route)
You can also build your route destination by
destination from the My Route menu.
1. If you are on the Map screen, tap
to return to the
Navigation menu.
2. In the Navigation menu, tap
.
3. Tap
.
4. There is only one line in the list of route
points, the start point of the route,
normally the current position.
5. Tap
to select the destination.
205-0010-00_QY-7375M-A_EN.indb 50205-0010-00_QY-7375M-A_EN.indb 503/12/2013 9:57:22 AM3/12/2013 9:57:22 AM

51
6. The Destination menu appears and you
can select the destination of the route the
same way as described in the previous
sections.
7. When the new destination is selected, the
list returns.
8. To add more destinations, tap where
you want to insert the new route point in
the list, and repeat the above procedure.
Viewing the entire route
on the map
It is easy to get a map overview of the active
route. Do as follows:
1. If you are on the Map screen, tap
to return to the
Navigation menu.
2. In the Navigation menu, tap
.
3. Tap
. The active route
is displayed in its full length on the map
together with additional information and
controls.
Checking route
parameters and accessing
route related functions
You can check different parameters of the
route recommended by MMES.
1. If you are on the Map screen, tap
to return to the
Navigation menu.
2. In the Navigation menu, tap
.
3. The following pieces of information are
displayed:
The name and/or address of the
destination.
Warning icons (if any). They provide
extra information about your route
(e.g. unpaved roads or toll roads to be
taken).
The total time of the route.
The total length of the route.
The route planning method (e.g. Fast).
205-0010-00_QY-7375M-A_EN.indb 51205-0010-00_QY-7375M-A_EN.indb 513/12/2013 9:57:22 AM3/12/2013 9:57:22 AM

52
4. You have the following options on this
screen (for detailed instructions on how to
use them, see the next chapter):

to edit the
route: to add or remove destinations or
change their sequence. You can also
set a route start point other than your
current location. This can be useful to
plan and save a future trip.

to display the
entire route on the map.

to bypass a
part of the route.

to delete the
active route.

to open a list
with more options like selecting from
route alternatives, changing route
parameters, simulating the route,
saving the active route or loading a
previously saved route.

to return to the
Navigation menu.
Modifying the route
When navigation is already started, there
are several ways to modify the active route.
The following sections show some of those
options.
qSelecting a new destination
when already having a route:
New Route, Waypoint or
Final Destination
If you already have a recommended route
and you select a new destination as described
in the above sections, the application will
ask you whether to start a new route, add
a new waypoint (intermediate destination)
to the route or append the newly selected
destination at the end of the current route.
to plan a new route to the
newly selected location. The previous
destination and waypoint(s) are deleted.
to add the newly selected
location as an intermediate destination to
your route. The other destinations of the
route remain intact.
Note:
The new waypoint is placed among destinations
to keep the route optimal. To decide where a
waypoint to appear, use the Edit Route feature.
to append the newly selected
destination at the end of the route. The
other destinations of the route remain
intact. The previous final destination is now
the last waypoint.
qSetting a new starting
position for the route
For normal navigation, all routes are planned
from the current position. In order to check
future routes, simulate them or see their
length in time and distance, you can turn
off the GPS receiver. Then you can set
the starting point of the route to a different
location than the current position.
1. If you are on the Map screen, tap
to return to the
Navigation menu.
2. In the Navigation menu, tap
.
205-0010-00_QY-7375M-A_EN.indb 52205-0010-00_QY-7375M-A_EN.indb 523/12/2013 9:57:22 AM3/12/2013 9:57:22 AM

53
3. If you already have a route, tap
. If you are starting a
new route, tap
.
4. The first line is the start of the route,
normally the current position. Tap

(blue) and confirm your action at the
warning message.
5. The Destination menu appears and you
can select the start point of the route the
same way you select a destination.
6. When the new start point is set, tap
.
7. The map returns with a transparent
Vehimarker (showing that there is no
GPS reception). If an active route already
existed, it is now recalculated starting
from the selected location.
8. To return to normal navigation, tap
.
qEditing the list of
destinations (Edit Route)
You can edit the route by modifying the list
of destinations. You can add or remove
destinations, modify the start position or
reorder the list.
1. If you are on the Map screen, tap
to return to the
Navigation menu.
2. In the Navigation menu, tap
.
3. Tap
.
4. You have the following options:

to add a new destination.

to delete a destination.

(blue) to modify the start
point of the route.
205-0010-00_QY-7375M-A_EN.indb 53205-0010-00_QY-7375M-A_EN.indb 533/12/2013 9:57:22 AM3/12/2013 9:57:22 AM

54
to reorder the
list. You can do it manually or you can
let the application optimize the route
for you.
q
Pausing the active route
You do not need to pause the active route:
when you start driving again, MMES restarts
the voice instructions from your position.
qCanceling the active route
To cancel the navigated route, do one of the
following:
If you are on the Map screen, tap
and
then tap
. (If you have a route with
waypoints, you need to tap
until all
waypoints are deleted.)
In the Navigation menu, tap
and then tap
. The active route is
deleted with all its waypoints.
qChecking route alternatives
when planning the route
You can select from different route
alternatives or change the route planning
method after you have selected a new
destination. Do as follows:
1. Select a destination as explained earlier,
and get to the route confirmation screen.
2. Tap .
3. Tap .4. You see the basic details of three route
alternatives with the selected route
planning method. Tap any of them to see it
on the map.
5. Or if you cannot find a good alternative,
tap
and scroll down for
routes with different routing methods.
6. Select one of the route alternatives and
tap
to return to the
previous screen. MMES recalculates the
route. The orange line now shows the new
recommended route.
205-0010-00_QY-7375M-A_EN.indb 54205-0010-00_QY-7375M-A_EN.indb 543/12/2013 9:57:22 AM3/12/2013 9:57:22 AM

55

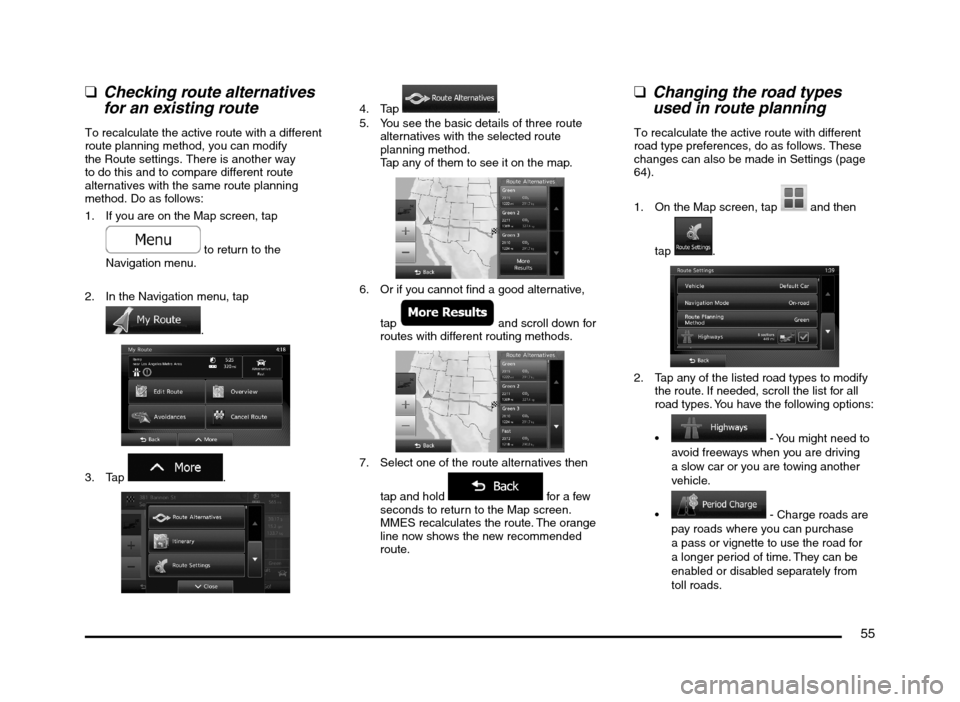

qChecking route alternatives
for an existing route
To recalculate the active route with a different
route planning method, you can modify
the Route settings. There is another way
to do this and to compare different route
alternatives with the same route planning
method. Do as follows:
1. If you are on the Map screen, tap
to return to the
Navigation menu.
2. In the Navigation menu, tap
.
3. Tap .
4. Tap .
5. You see the basic details of three route
alternatives with the selected route
planning method.
Tap any of them to see it on the map.
6. Or if you cannot find a good alternative,
tap
and scroll down for
routes with different routing methods.
7. Select one of the route alternatives then
tap and hold
for a few
seconds to return to the Map screen.
MMES recalculates the route. The orange
line now shows the new recommended
route.
qChanging the road types
used in route planning
To recalculate the active route with different
road type preferences, do as follows. These
changes can also be made in Settings (page
64).
1. On the Map screen, tap
and then
tap
.
2. Tap any of the listed road types to modify
the route. If needed, scroll the list for all
road types. You have the following options:

- You might need to
avoid freeways when you are driving
a slow car or you are towing another
vehicle.

- Charge roads are
pay roads where you can purchase
a pass or vignette to use the road for
a longer period of time. They can be
enabled or disabled separately from
toll roads.
205-0010-00_QY-7375M-A_EN.indb 55205-0010-00_QY-7375M-A_EN.indb 553/12/2013 9:57:23 AM3/12/2013 9:57:23 AM

56
- MMES includes
toll roads (pay roads where there is
a per-use charge) in the routes by
default. If you disable toll roads, MMES
plans the best toll-free route.

- MMES includes
ferries in a planned route by default.
However, a map does not necessarily
contain information about the
accessibility of temporary ferries.
You might also need to pay a fare on
ferries.

- MMES excludes
unpaved roads by default: unpaved
roads can be in a bad condition and
usually you cannot reach the speed
limit on them.
3. The route has already been recalculated.
Tap
to return to the
Map screen.
The orange line now shows the new
recommended route.
Saving a location as a
Favorite destination
You can add any location to Favorites, the
list of frequently used destinations. Planning
a route to one of the Favorite destinations is
described on page 47.
1. Select a destination as described before.
It can be an address, a Place, any location
on the map, a previously used destination
from History, etc.
2. When the full screen map appears with
the selected location in the middle, tap
.
3. Tap .4. (optional) Using the keyboard, you can
change the name offered for the Favorite.
Tap
to enter numbers or symbols.
5. Tap to save the
location as a new Favorite destination.
qEditing the details of a
Favorite destination
You can select a location that you have
already saved as a Favorite and edit its
details. Adding a location to the list of Favorite
destinations is described on page 56.
1. Access the list of Favorites:
If you are on the Map screen, tap

and then tap
.
If you are in the Navigation menu,
tap
and then tap
.
205-0010-00_QY-7375M-A_EN.indb 56205-0010-00_QY-7375M-A_EN.indb 563/12/2013 9:57:23 AM3/12/2013 9:57:23 AM
