2014 MITSUBISHI MIRAGE navigation

27
Button Description Shortcut for
This button opens the route editing function. The button is replaced with the previous one if the route
isn’t given.My Route / Edit Route
This button opens the vehicle profile settings. More / Settings / Route Settings /
Vehicle
This button opens the list of maneuvers (the itinerary). Tap the top left of the Map screen
during navigation.
With this function you can save the active route for later use. My Route / More / Save Route
With this function you can replace the active route with a previously saved route. My Route / More / Load Route
This button opens the History list. You can select one of your previous destinations. Destination / History (page 49)
This button opens the route related settings. More / Settings / Route Settings
With this function you can search for Places of Interest in various different ways. Destination / Find Places (page 39)
This button opens the Map screen and starts simulating the active route. My Route / More / Simulate
Navigation (page 58)
This button opens the GPS Information screen with satellite position and signal strength information. Tap the top left of the Map screen
when there is no GPS reception.
This button opens the user profile settings. More / Settings / User Profiles
205-0010-00_QY-7375M-A_EN.indb 27205-0010-00_QY-7375M-A_EN.indb 273/12/2013 9:57:16 AM3/12/2013 9:57:16 AM

29
Driving
3. ON-ROAD
NAVIGATION
When first started, MMES calculates routes
using the road network of the high quality
vector maps provided with the product.
You can set up your route in different ways:
If you need a route for immediate
navigation, you can select the destination
and start navigating to it right away (normal
navigation).
You can also plan a route independently of
your current position.
You can plan routes with multiple destinations.
Select the first destination. Then select a
second destination and add it to your route
to create a multi-point route. You can add as
many destinations to your route as you like.
You can also use MMES for off-road
navigation. For details, see page 59.
Selecting the destination
of a route
MMES offers you several ways of choosing
your destination:
Enter a full address or a part of an
address, for example a street name
without a house number or the names of
two intersecting streets (page 29). Enter an address with ZIP code (page 37).
This way you do not need to select the
name of the city/town and the search for
street names might be faster as well.
Use a built-in Place of Interest as your
destination (page 39).
Select a location on the map with the Find
on Map feature (page 47).
Use a previously saved Favorite
destination (page 47).
Select a location from the History of
previously used destinations (page 49).
Enter the coordinate of the destination
(page 49).
qEntering an address or a
part of the address
If you know at least a part of the address, it is
the quickest way to select the destination of
the route.
Using the same screen, you can find an
address by entering:
the exact address, including house number
the center of a city/town

the midpoint of a street
any of the above, starting the search with
the ZIP code (page 37)
205-0010-00_QY-7375M-A_EN.indb 29205-0010-00_QY-7375M-A_EN.indb 293/12/2013 9:57:16 AM3/12/2013 9:57:16 AM

30
Entering an address (United States)
To enter an address as the destination, do as
follows:
1. If you are on the Map screen, tap
to return to the
Navigation menu.
2. In the Navigation menu, tap the following
buttons:
, .
3. By default, MMES proposes the country
and state where you are. If needed, tap
, enter the first few
letters of the destination country or state
on the keyboard, and select one from the
list. If you select a country without a state,
you can search for a city/town in all its
states.
4. Select a new city/town:
a.
Tap . The city/town
of your current location is offered by
default. For a local search, tap

to accept it, otherwise continue with
entering the destination city/town name.
b. Start entering the name of the city/
town on the keyboard.
c. Find the city/town you need:
The most likely city/town name is
always shown in the input field. To
accept it, tap
.
If the desired name does not
show up, the names that match
the string appear in a list after
entering a couple of characters
(to open the list of results before
it appears automatically, tap
). Select the city/
town from the list.
5. Enter the street name:
a. Tap
.
b. Start entering the street name on the
keyboard.
c. Find the street you need: The most likely street name is
always shown in the input field. To
accept it, tap
.
If the desired name does not
show up, the names that match
the string appear in a list after
entering a couple of characters
(to open the list of results before
it appears automatically, tap
). Select the
street from the list.
6. Enter the house number:
a. Tap
.
b. Enter the house number on the
keyboard. (To enter letters, tap
).
205-0010-00_QY-7375M-A_EN.indb 30205-0010-00_QY-7375M-A_EN.indb 303/12/2013 9:57:16 AM3/12/2013 9:57:16 AM

31
c. Tap to finish
entering the address. (If the entered
house number cannot be found, the
midpoint of the street is selected as the
destination.)
7. A full screen map appears with the
selected point in the middle. If necessary,
tap the map somewhere else to modify the
destination. The Cursor (
) appears at
the new location. Tap

to confirm the destination, or tap
to select a different
destination.
8. After a short summary of the route
parameters, the map appears showing
the entire route. The route is automatically
calculated. Tap

to modify route parameters, or tap
and start your journey.
Note:
If you know that you will use this destination
frequently, before tapping

to confirm the destination, put it on the list of
your Favorites first: tap

then
, give a name for the
new Favorite, and tap
to
save the location. The map with the destination
returns automatically. Now you can start your
journey.
Entering an address (Canada)
To enter an address as the destination, do as
follows:
1. If you are on the Map screen, tap
to return to the
Navigation menu.
2. In the Navigation menu, tap the following
buttons:
, .
3. By default, MMES proposes the country,
state and city/town where you are. If
needed, tap
, enter the
first few letters of the destination country
or state on the keyboard, and select
one from the list. If you select a country
without a state, you can search for a city/
town in all its states.
4. If needed, select a new city/town:
a. Tap
.
b. Start entering the name of the city/
town on the keyboard.
205-0010-00_QY-7375M-A_EN.indb 31205-0010-00_QY-7375M-A_EN.indb 313/12/2013 9:57:17 AM3/12/2013 9:57:17 AM

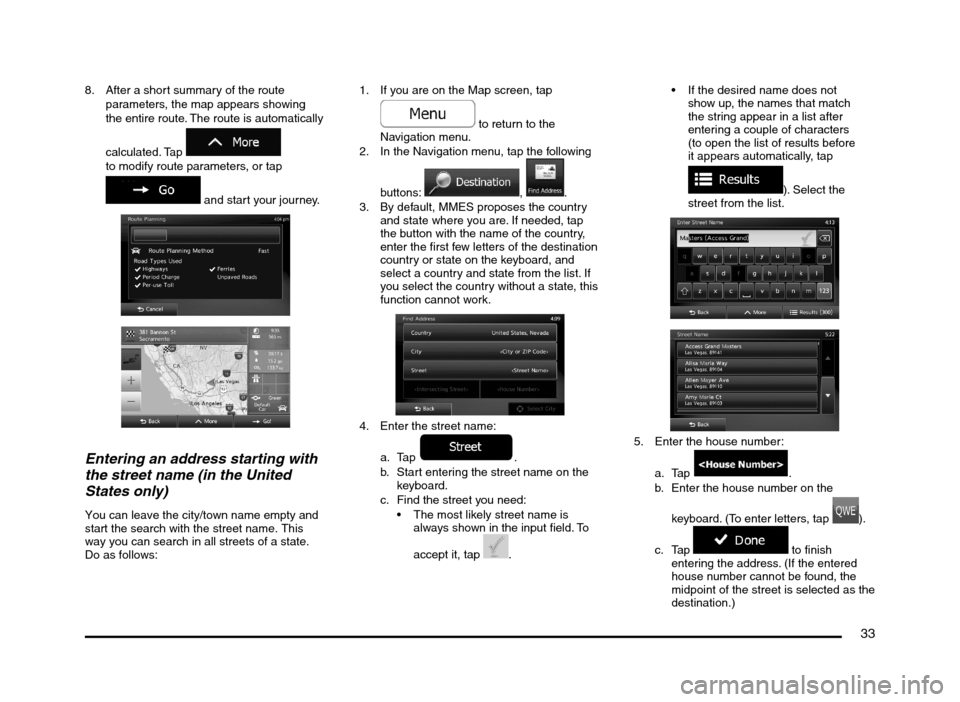

33
8. After a short summary of the route
parameters, the map appears showing
the entire route. The route is automatically
calculated. Tap

to modify route parameters, or tap
and start your journey.
Entering an address starting with
the street name (in the United
States only)
You can leave the city/town name empty and
start the search with the street name. This
way you can search in all streets of a state.
Do as follows:1. If you are on the Map screen, tap
to return to the
Navigation menu.
2. In the Navigation menu, tap the following
buttons:
, .
3. By default, MMES proposes the country
and state where you are. If needed, tap
the button with the name of the country,
enter the first few letters of the destination
country or state on the keyboard, and
select a country and state from the list. If
you select the country without a state, this
function cannot work.
4. Enter the street name:
a. Tap
.
b. Start entering the street name on the
keyboard.
c. Find the street you need:
The most likely street name is
always shown in the input field. To
accept it, tap
. If the desired name does not
show up, the names that match
the string appear in a list after
entering a couple of characters
(to open the list of results before
it appears automatically, tap
). Select the
street from the list.
5. Enter the house number:
a. Tap
.
b. Enter the house number on the
keyboard. (To enter letters, tap
).
c. Tap
to finish
entering the address. (If the entered
house number cannot be found, the
midpoint of the street is selected as the
destination.)
205-0010-00_QY-7375M-A_EN.indb 33205-0010-00_QY-7375M-A_EN.indb 333/12/2013 9:57:18 AM3/12/2013 9:57:18 AM

34
6. A full screen map appears with the
selected point in the middle. If necessary,
tap the map somewhere else to modify the
destination. The Cursor (
) appears at
the new location. Tap

to confirm the destination, or tap
to select a different
destination.
7. After a short summary of the route
parameters, the map appears showing
the entire route. The route is automatically
calculated. Tap

to modify route parameters, or tap
and start your journey.
Entering the midpoint of a street
as the destination
You can navigate to the midpoint of a street if
the house number is not available:
1. If you are on the Map screen, tap
to return to the
Navigation menu.
2. In the Navigation menu, tap the following
buttons:
, .
3. Select the country, state and city/town as
described earlier (page 30).
4. Enter the street name:
a. Tap
.
b. Start entering the street name on the
keyboard.
c. Find the street you need:
The most likely street name is
always shown in the input field. To
accept it, tap
. If the desired name does not
show up, the names that match
the string appear in a list after
entering a couple of characters
(to open the list of results before
it appears automatically, tap
). Select the
street from the list.
5. Instead of entering the house number, tap
. The midpoint of the
street is selected as the destination.
205-0010-00_QY-7375M-A_EN.indb 34205-0010-00_QY-7375M-A_EN.indb 343/12/2013 9:57:18 AM3/12/2013 9:57:18 AM

35
6. A full screen map appears with the
selected point in the middle. If necessary,
tap the map somewhere else to modify the
destination. The Cursor (
) appears at
the new location. Tap

to confirm the destination, or tap
to select a different
destination.
7. After a short summary of the route
parameters, the map appears showing
the entire route. The route is automatically
calculated. Tap

to modify route parameters, or tap
and start your journey.
Selecting an intersection as the
destination
To enter an address as the destination, do as
follows:
1. If you are on the Map screen, tap
to return to the
Navigation menu.
2. In the Navigation menu, tap the following
buttons:
, .
3. Select the country, state and city/town as
described earlier (page 30).
4. Enter the street name:
a. Tap
.
b. Start entering the street name on the
keyboard.
c. Find the street you need:
The most likely street name is
always shown in the input field. To
accept it, tap
.
If the desired name does not
show up, the names that match
the string appear in a list after
entering a couple of characters
(to open the list of results before
it appears automatically, tap
). Select the
street from the list.
5. Enter the intersecting street name:
1. Tap
.
If only a few intersecting streets
exist, their list appears immediately.
In case of a longer street, the
keyboard screen appears.
Start entering the name of the
intersecting street on the keyboard.
As soon as the street names that
match the entered string can be
shown on one screen, their list
appears automatically. Select from
the list.
205-0010-00_QY-7375M-A_EN.indb 35205-0010-00_QY-7375M-A_EN.indb 353/12/2013 9:57:18 AM3/12/2013 9:57:18 AM

36
6. A full screen map appears with the
selected point in the middle. If necessary,
tap the map somewhere else to modify
the destination. The Cursor (
)
appears at the new location.
Tap
to confirm the
destination, or tap
to
select a different destination.
7. After a short summary of the route
parameters, the map appears showing
the entire route. The route is automatically
calculated. Tap

to modify route parameters, or tap
and start your journey.
Selecting a city/town center as the
destination
The city/town center is not the geometric
center of the city/town but an arbitrary point
the map creators have chosen. In towns
and villages, it is usually the most important
intersection; in larger cities, it is one of the
important intersections.
1. If you are on the Map screen, tap
to return to the
Navigation menu.
2. In the Navigation menu, tap the following
buttons:
, .
3. Select the country and state as described
earlier (page 30).4. Select the destination city/town:
a. Tap
.
b. Start entering the name of the city/
town on the keyboard.
c. Find the city/town you need:
The most likely city/town name is
always shown in the input field. To
accept it, tap
.
If the desired name does not
show up, the names that match
the string appear in a list after
entering a couple of characters
(to open the list of results before
it appears automatically, tap
). Select the city/
town from the list.
205-0010-00_QY-7375M-A_EN.indb 36205-0010-00_QY-7375M-A_EN.indb 363/12/2013 9:57:19 AM3/12/2013 9:57:19 AM
