2014 MERCEDES-BENZ C-CLASS ESTATE Owners Manual

X

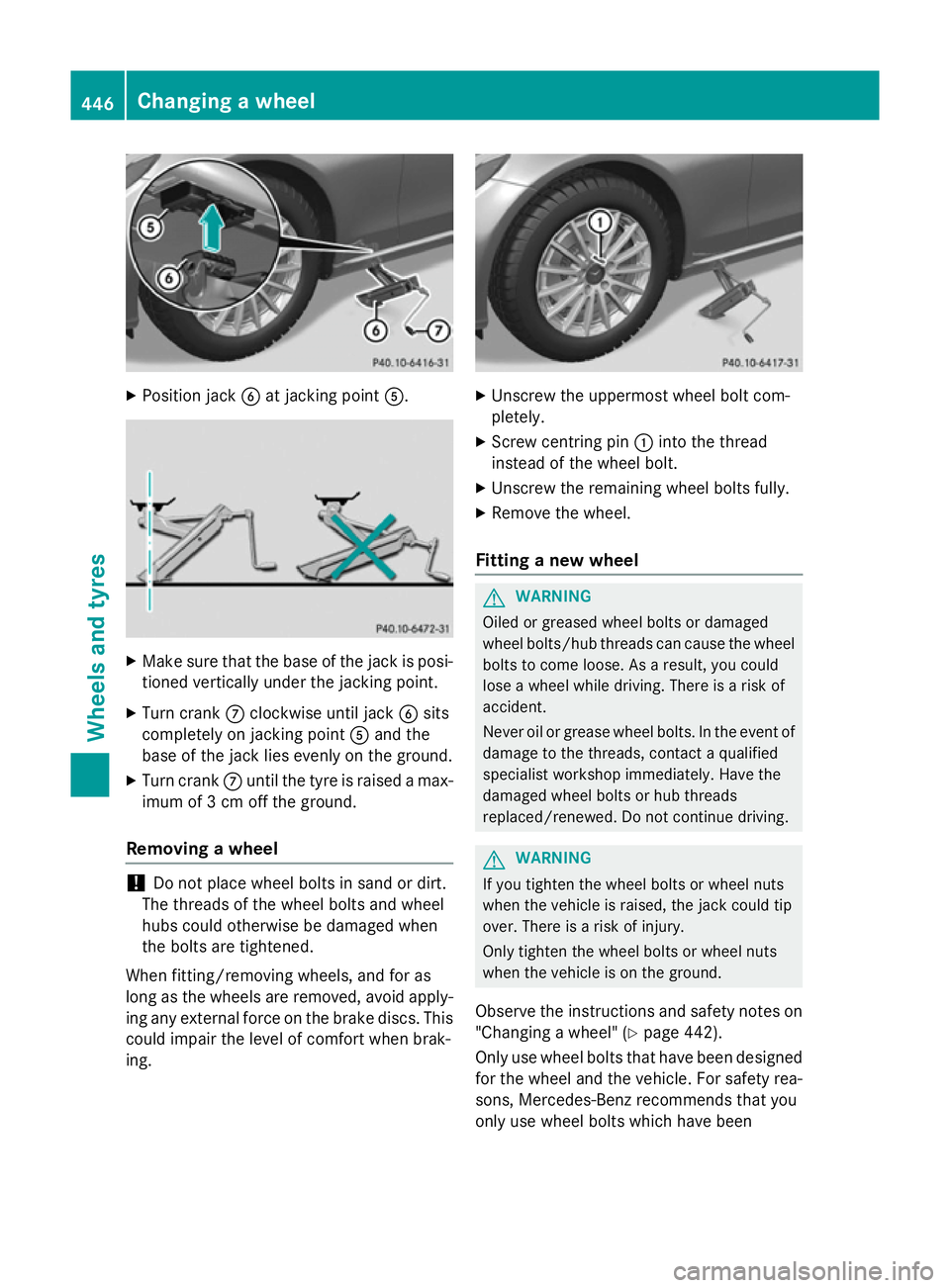

Position jack Bat jacking point A. X
Make sure that the base of the jack is posi-
tioned vertically under the jacking point.
X Turn crank Cclockwise until jack Bsits
completely on jacking point Aand the
base of the jack lies evenly on the ground.
X Turn crank Cuntil the tyre is raised a max-
imum of 3 cm off the ground.
Removing a wheel !
Do not place wheel bolts in sand or dirt.
The threads of the wheel bolts and wheel
hubs could otherwise be damaged when
the bolts are tightened.
When fitting/removing wheels, and for as
long as the wheels are removed, avoid apply- ing any external force on the brake discs. This
could impair the level of comfort when brak-
ing. X
Unscrew the uppermost wheel bolt com-
pletely.
X Screw centring pin :into the thread
instead of the wheel bolt.
X Unscrew the remaining wheel bolts fully.
X Remove the wheel.
Fitting a new wheel G
WARNING
Oiled or greased wheel bolts or damaged
wheel bolts/hub threads can cause the wheel bolts to come loose. As a result, you could
lose a wheel while driving. There is a risk of
accident.
Never oil or grease wheel bolts. In the event ofdamage to the threads, contact a qualified
specialist workshop immediately. Have the
damaged wheel bolts or hub threads
replaced/renewed. Do not continue driving. G
WARNING
If you tighten the wheel bolts or wheel nuts
when the vehicle is raised, the jack could tip
over. There is a risk of injury.
Only tighten the wheel bolts or wheel nuts
when the vehicle is on the ground.
Observe the instructions and safety notes on "Changing a wheel" (Y page 442).
Only use wheel bolts that have been designed
for the wheel and the vehicle. For safety rea-
sons, Mercedes-Benz recommends that you
only use wheel bolts which have been 446
Changing a wheelWheels and tyres

approved for Mercedes-Benz vehicles and the
respective wheel. X
Clean the wheel and wheel hub contact
surfaces.
X Slide the wheel to be mounted onto the
centring pin and push it on.
X Tighten the wheel bolts until they are fin-
ger-tight.
X Unscrew the centring pin.
X Tighten the last wheel bolt until it is finger-
tight.
X Vehicles with a collapsible emergency
spare wheel: inflate the collapsible emer-
gency spare wheel (Y page 464).
Only then lower the vehicle.
Lowering the vehicle G
WARNING
The wheels could work loose if the wheel nuts and bolts are not tightened to the specified
tightening torque. There is a risk of accident.
Have the tightening torque immediately
checked at a qualified specialist workshop
after a wheel is changed.
! Vehicles with a collapsible emergency
spare wheel: Inflate the collapsible emer-
gency spare wheel using the tyre inflation
compressor before lowering the vehicle.
The rim could otherwise be damaged. X
Turn the crank of the jack anti-clockwise
until the vehicle is once again standing
firmly on the ground.
X Place the jack to one side.
X Tighten the wheel bolts evenly in a cross-
wise pattern in the sequence indicated ( :
to A). The specified tightening torque is
130 Nm.
X Turn the jack back to its initial position.
X Stow the jack and the rest of the tyre-
change tool kit in the load compartment
again.
X Vehicles with AMG equipment: insert the
cover into the outer sill.
X Check the air pressure of the newly fitted
wheel and adjust accordingly.
Observe the recommended tyre pressure
(Y page 436).
If you are driving with the collapsible emer-
gency spare wheel fitted, the tyre pressure
loss warning system or the tyre pressure
monitor cannot function reliably. Only restart
the tyre pressure loss warning system/tyre
pressure monitor when the defective wheel
has been replaced with a new wheel.
Vehicles with a tyre pressure control sys-
tem: all fitted wheels must be equipped with
functioning sensors.
If you are driving with the emergency spare
wheel fitted, the tyre pressure loss warning
system cannot function reliably. Only restart
the tyre pressure loss warning system when
the defective wheel has been replaced with a
new wheel. Changing a wheel
447Wheels and tyres Z

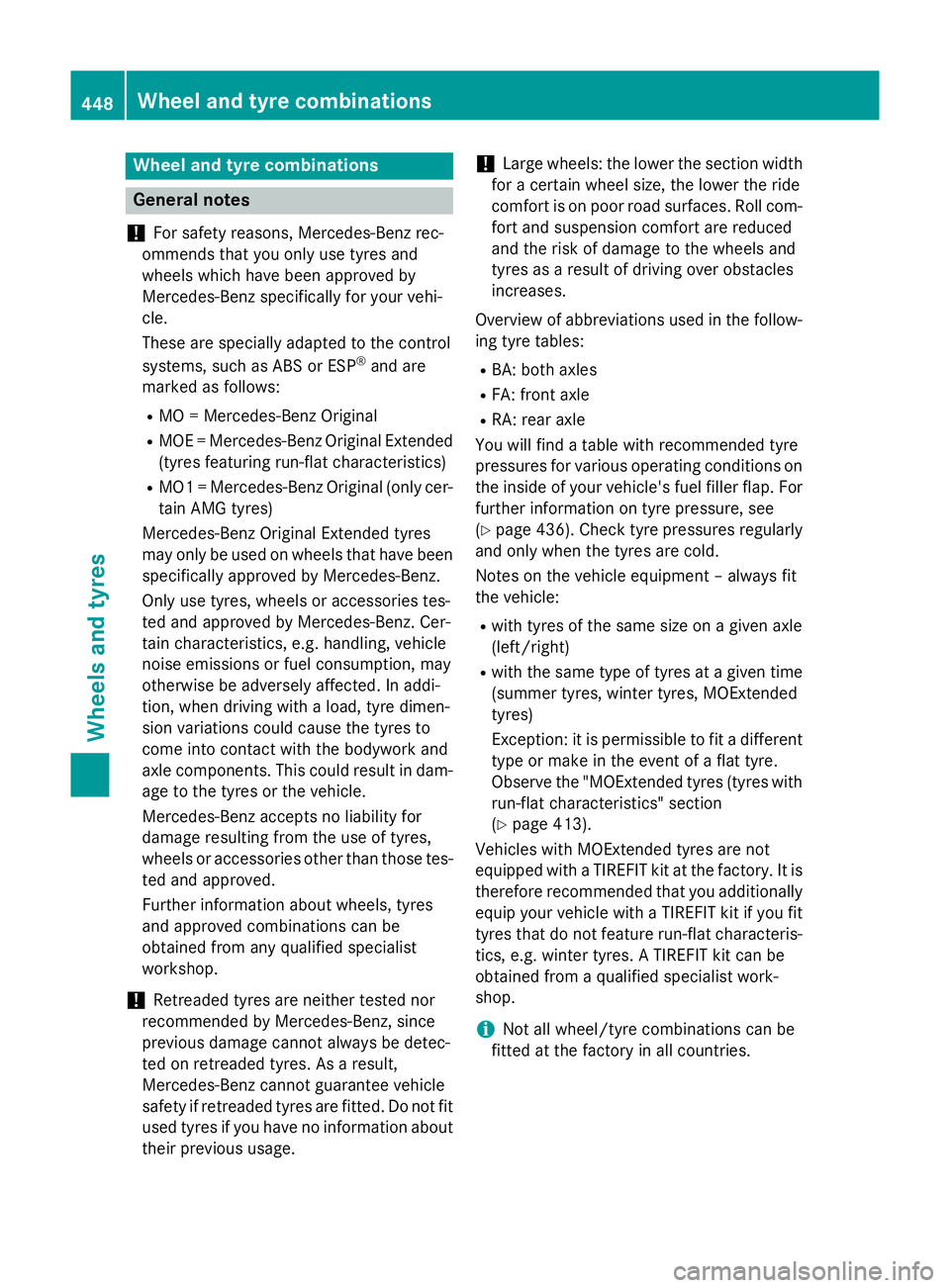

Wheel and tyre combinations
General notes
! For safety reasons, Mercedes-Benz rec-
ommends that you only use tyres and
wheels which have been approved by
Mercedes-Benz specifically for your vehi-
cle.
These are specially adapted to the control
systems, such as ABS or ESP ®
and are
marked as follows:
R MO = Mercedes-Benz Original
R MOE = Mercedes-Benz Original Extended
(tyres featuring run-flat characteristics)
R MO1 = Mercedes-Benz Original (only cer-
tain AMG tyres)
Mercedes-Benz Original Extended tyres
may only be used on wheels that have been
specifically approved by Mercedes-Benz.
Only use tyres, wheels or accessories tes-
ted and approved by Mercedes-Benz. Cer-
tain characteristics, e.g. handling, vehicle
noise emissions or fuel consumption, may
otherwise be adversely affected. In addi-
tion, when driving with a load, tyre dimen-
sion variations could cause the tyres to
come into contact with the bodywork and
axle components. This could result in dam- age to the tyres or the vehicle.
Mercedes-Benz accepts no liability for
damage resulting from the use of tyres,
wheels or accessories other than those tes- ted and approved.
Further information about wheels, tyres
and approved combinations can be
obtained from any qualified specialist
workshop.
! Retreaded tyres are neither tested nor
recommended by Mercedes-Benz, since
previous damage cannot always be detec-
ted on retreaded tyres. As a result,
Mercedes-Benz cannot guarantee vehicle
safety if retreaded tyres are fitted. Do not fit
used tyres if you have no information about their previous usage. !
Large wheels: the lower the section width
for a certain wheel size, the lower the ride
comfort is on poor road surfaces. Roll com-
fort and suspension comfort are reduced
and the risk of damage to the wheels and
tyres as a result of driving over obstacles
increases.
Overview of abbreviations used in the follow-
ing tyre tables:
R BA: both axles
R FA: front axle
R RA: rear axle
You will find a table with recommended tyre
pressures for various operating conditions on
the inside of your vehicle's fuel filler flap. For
further information on tyre pressure, see
(Y page 436). Check tyre pressures regularly
and only when the tyres are cold.
Notes on the vehicle equipment – always fit
the vehicle:
R with tyres of the same size on a given axle
(left/right)
R with the same type of tyres at a given time
(summer tyres, winter tyres, MOExtended
tyres)
Exception: it is permissible to fit a different
type or make in the event of a flat tyre.
Observe the "MOExtended tyres (tyres with
run-flat characteristics" section
(Y page 413).
Vehicles with MOExtended tyres are not
equipped with a TIREFIT kit at the factory. It is
therefore recommended that you additionally equip your vehicle with a TIREFIT kit if you fit tyres that do not feature run-flat characteris-
tics, e.g. winter tyres. A TIREFIT kit can be
obtained from a qualified specialist work-
shop.
i Not all wheel/tyre combinations can be
fitted at the factory in all countries. 448
Wheel and tyre combinationsWheels and tyres

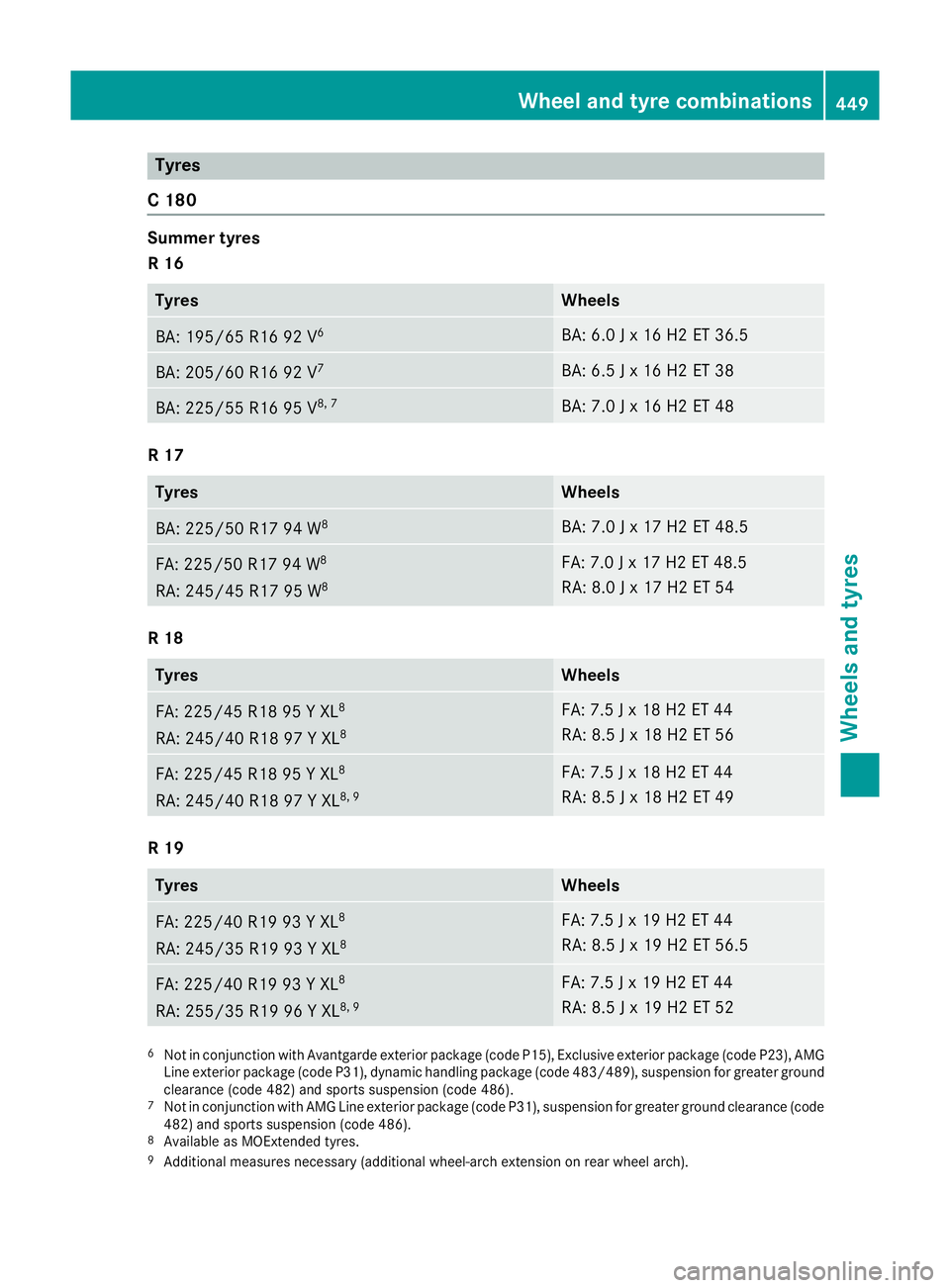

Tyres
C 180 Summer tyres
R 16
Tyres Wheels
BA: 195/6
5 R16 92 V 6 BA: 6.0 J x 16 H2 ET 36.5
BA: 205/60 R16 92 V
7 BA: 6.5 J x 16 H2 ET 38
BA: 225/55 R16 95 V
8, 7 BA: 7.0 J x 16 H2 ET 48
R 17
Tyres Wheels
BA: 225/50 R17 94 W
8 BA: 7.0 J x 17 H2 ET 48.5
FA: 225/50 R17 94 W
8
RA: 245/45 R17 95 W 8 FA: 7.0 J x 17 H2 ET 48.5
RA: 8.0 J x 17 H2 ET 54
R 18
Tyres Wheels
FA: 225/45 R18 95 Y XL
8
RA: 245/40 R18 97 Y XL 8 FA: 7.5 J x 18 H2 ET 44
RA: 8.5 J x 18 H2 ET 56
FA: 225/45 R18 95 Y XL
8
RA: 245/40 R18 97 Y XL 8, 9 FA: 7.5 J x 18 H2 ET 44
RA: 8.5 J x 18 H2 ET 49
R 19
Tyres Wheels
FA: 225/40 R19 93 Y XL
8
RA: 245/35 R19 93 Y XL 8 FA: 7.5 J x 19 H2 ET 44
RA: 8.5 J x 19 H2 ET 56.5
FA: 225/40 R19 93 Y XL
8
RA: 255/35 R19 96 Y XL 8, 9 FA: 7.5 J x 19 H2 ET 44
RA: 8.5 J x 19 H2 ET 52
6
Not in conjunction with Avantgarde exterior package (code P15), Exclusive exterior package (code P23), AMG
Line exterior package (code P31), dynamic handling package (code 483/489), suspension for greater ground
clearance (code 482) and sports suspension (code 486).
7 Not in conjunction with AMG Line exterior package (code P31), suspension for greater ground clearance (code
482) and sports suspension (code 486).
8 Available as MOExtended tyres.
9 Additional measures necessary (additional wheel-arch extension on rear wheel arch). Wheel and tyre combinations
449Wheels and tyres Z

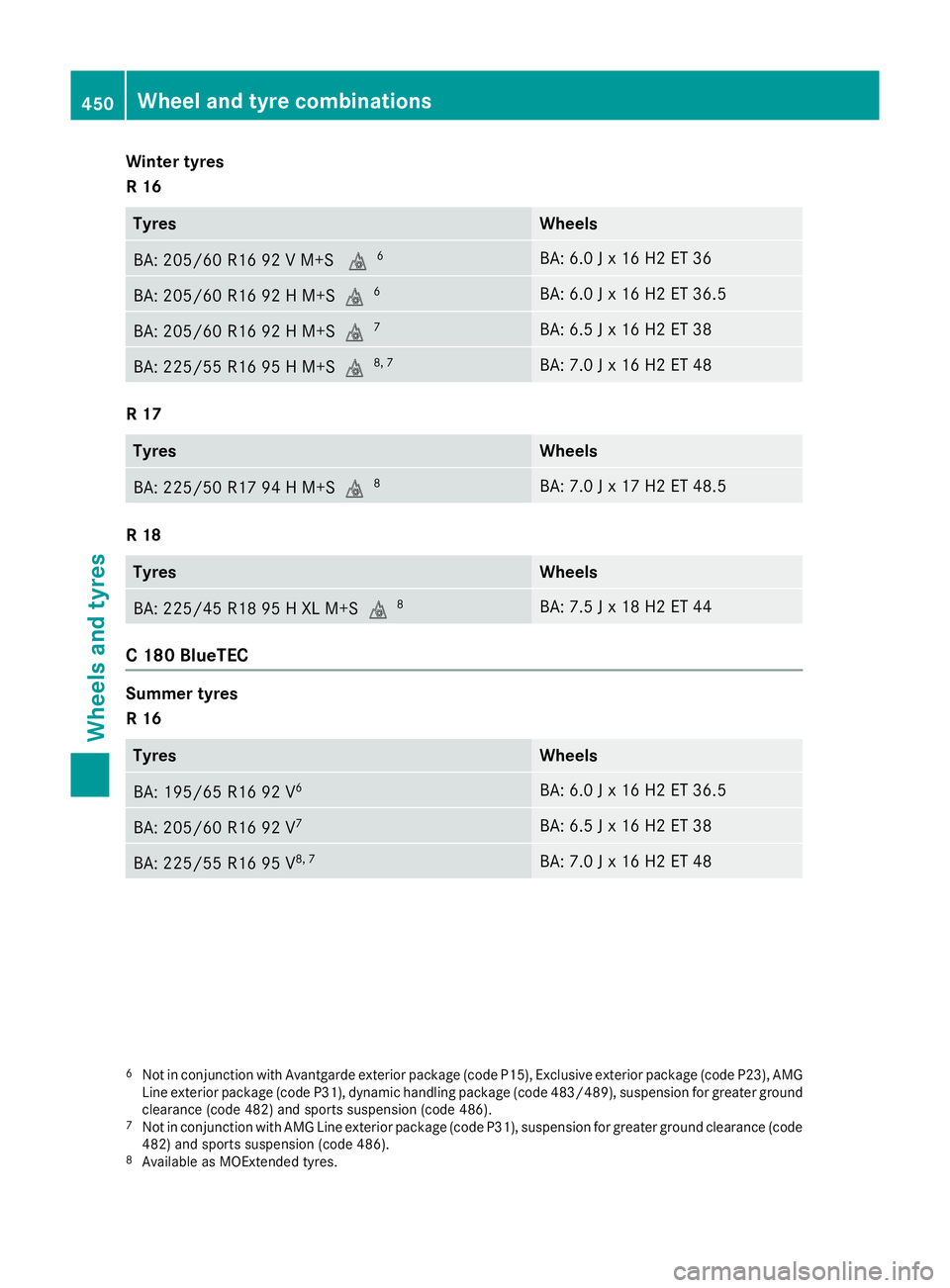

Winter tyres
R 16
Tyres Wheels
BA: 205/60 R16 92 V M+S
i6 BA: 6.0 J x 16 H2 ET 36
BA: 205/60 R16 92 H M+Si
6 BA: 6.0 J x 16 H2 ET 36.5
BA: 205/60 R16 92 H M+Si
7 BA: 6.5 J x 16 H2 ET 38
BA: 225/55 R16 95 H M+Si
8, 7 BA: 7.0 J x 16 H2 ET 48
R 17
Tyres Wheels
BA: 225/50 R17 94 H M+Si
8 BA: 7.0 J x 17 H2 ET 48.5
R 18
Tyres Wheels
BA: 225/45 R18 95 H XL M+Si
8 BA: 7.5 J x 18 H2 ET 44
C 180 BlueTEC
Summer tyres
R 16
Tyres Wheels
BA: 195/65 R16 92 V
6 BA: 6.0 J x 16 H2 ET 36.5
BA: 205/60 R16 92 V
7 BA: 6.5 J x 16 H2 ET 38
BA: 225/55 R16 95 V
8, 7 BA: 7.0 J x 16 H2 ET 48
6
Not in conjunction with Avantgarde exterior package (code P15), Exclusive exterior package (code P23), AMG
Line exterior package (code P31), dynamic handling package (code 483/489), suspension for greater ground
clearance (code 482) and sports suspension (code 486).
7 Not in conjunction with AMG Line exterior package (code P31), suspension for greater ground clearance (code
482) and sports suspension (code 486).
8 Available as MOExtended tyres. 450
Wheel and tyre combinationsWheels and tyres

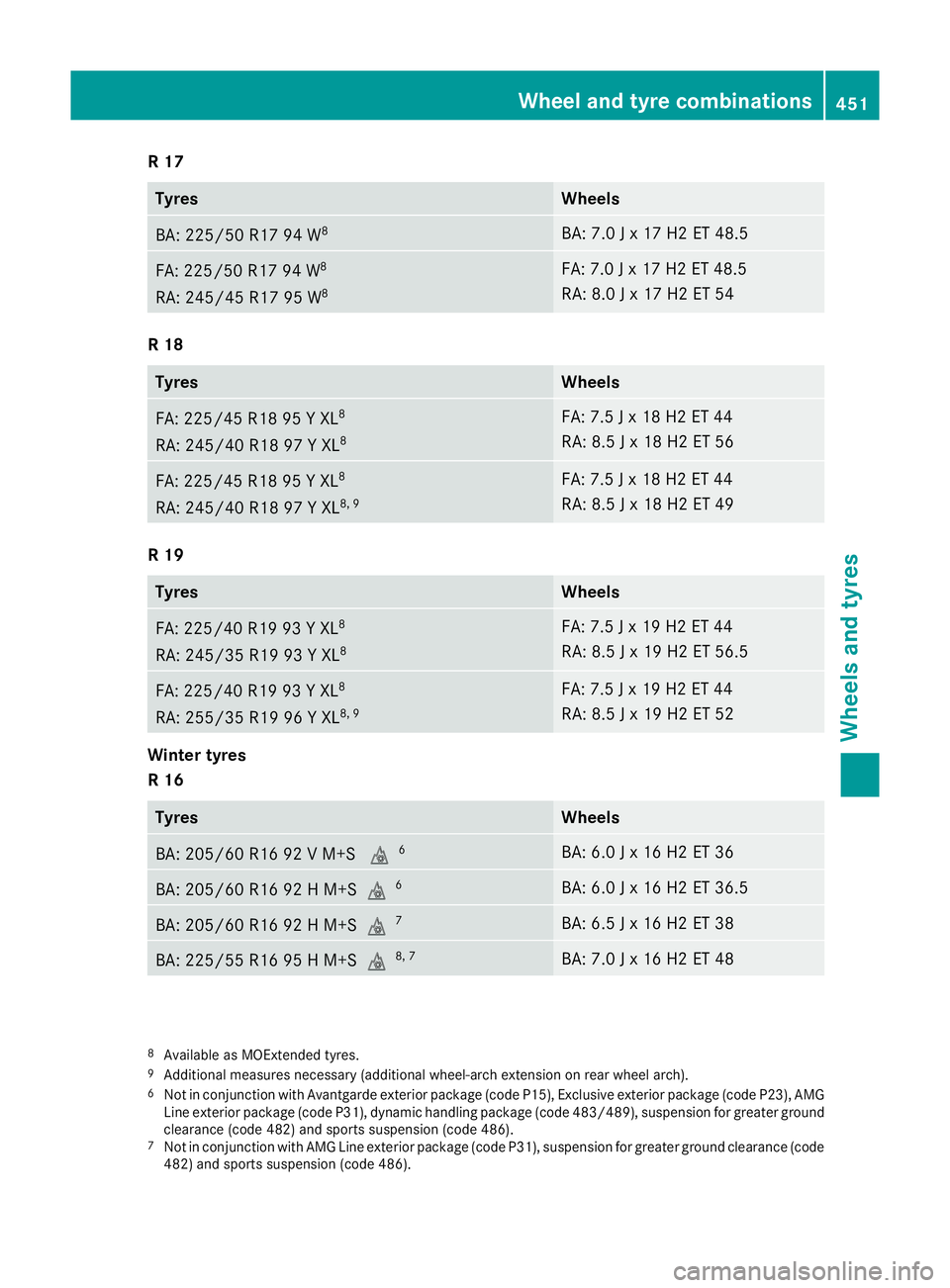

R 17
Tyres Wheels
BA: 225/50 R17 94 W
8 BA: 7.0 J x 17 H2 ET 48.5
FA: 225/50 R17 94 W
8
RA: 245/45 R17 95 W 8 FA: 7.0 J x 17 H2 ET 48.5
RA: 8.0 J x 17 H2 ET 54
R 18
Tyres Wheels
FA: 225/45 R18 95 Y XL
8
RA: 245/40 R18 97 Y XL 8 FA: 7.5 J x 18 H2 ET 44
RA: 8.5 J x 18 H2 ET 56
FA: 225/45 R18 95 Y XL
8
RA: 245/40 R18 97 Y XL 8, 9 FA: 7.5 J x 18 H2 ET 44
RA: 8.5 J x 18 H2 ET 49

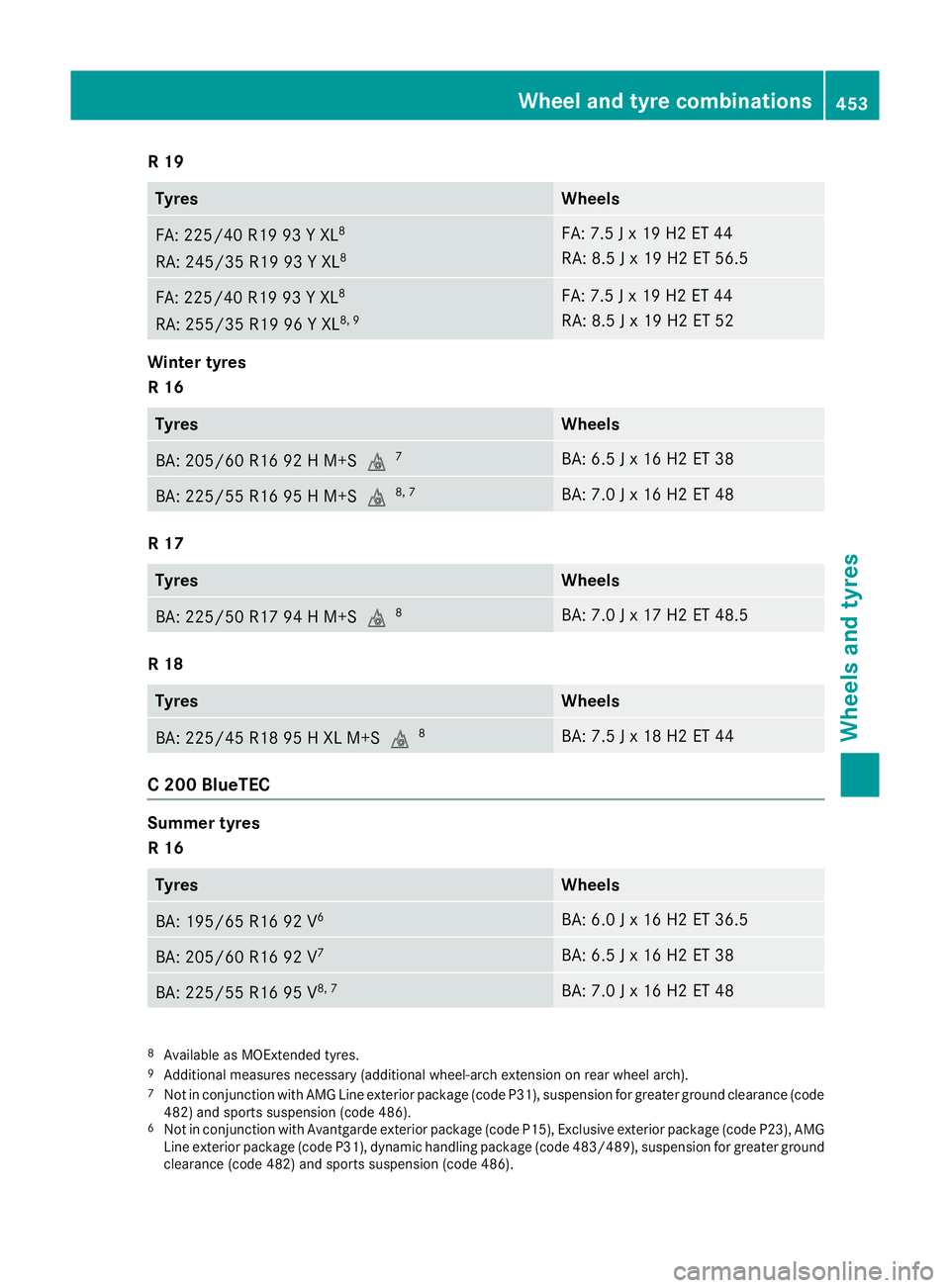

R 19
Tyres Wheels
FA: 225/40 R19 93 Y XL
8
RA: 245/35 R19 93 Y XL 8 FA: 7.5 J x 19 H2 ET 44
RA: 8.5 J x 19 H2 ET 56.5
FA: 225/40 R19 93 Y XL
8
RA: 255/35 R19 96 Y XL 8, 9 FA: 7.5 J x 19 H2 ET 44
RA: 8.5 J x 19 H2 ET 52
Winter tyres
R 16
Tyres Wheels
BA: 205/60 R16 92 V M+S
i6 BA: 6.0 J x 16 H2 ET 36
BA: 205/60 R16 92 H M+S
i6 BA: 6.0 J x 16 H2 ET 36.5
BA: 205/60 R16 92 H M+S
i7 BA: 6.5 J x 16 H2 ET 38
BA: 225/55 R16 95 H M+S
i8, 7 BA: 7.0 J x 16 H2 ET 48
8
Available as MOExtended tyres.
9 Additional measures necessary (additional wheel-arch extension on rear wheel arch).
6 Not in conjunction with Avantgarde exterior package (code P15), Exclusive exterior package (code P23), AMG
Line exterior package (code P31), dynamic handling package (code 483/489), suspension for greater ground
clearance (code 482) and sports suspension (code 486).
7 Not in conjunction with AMG Line exterior package (code P31), suspension for greater ground clearance (code
482) and sports suspension (code 486). Wheel and tyre combinations
451Wheels and tyres Z

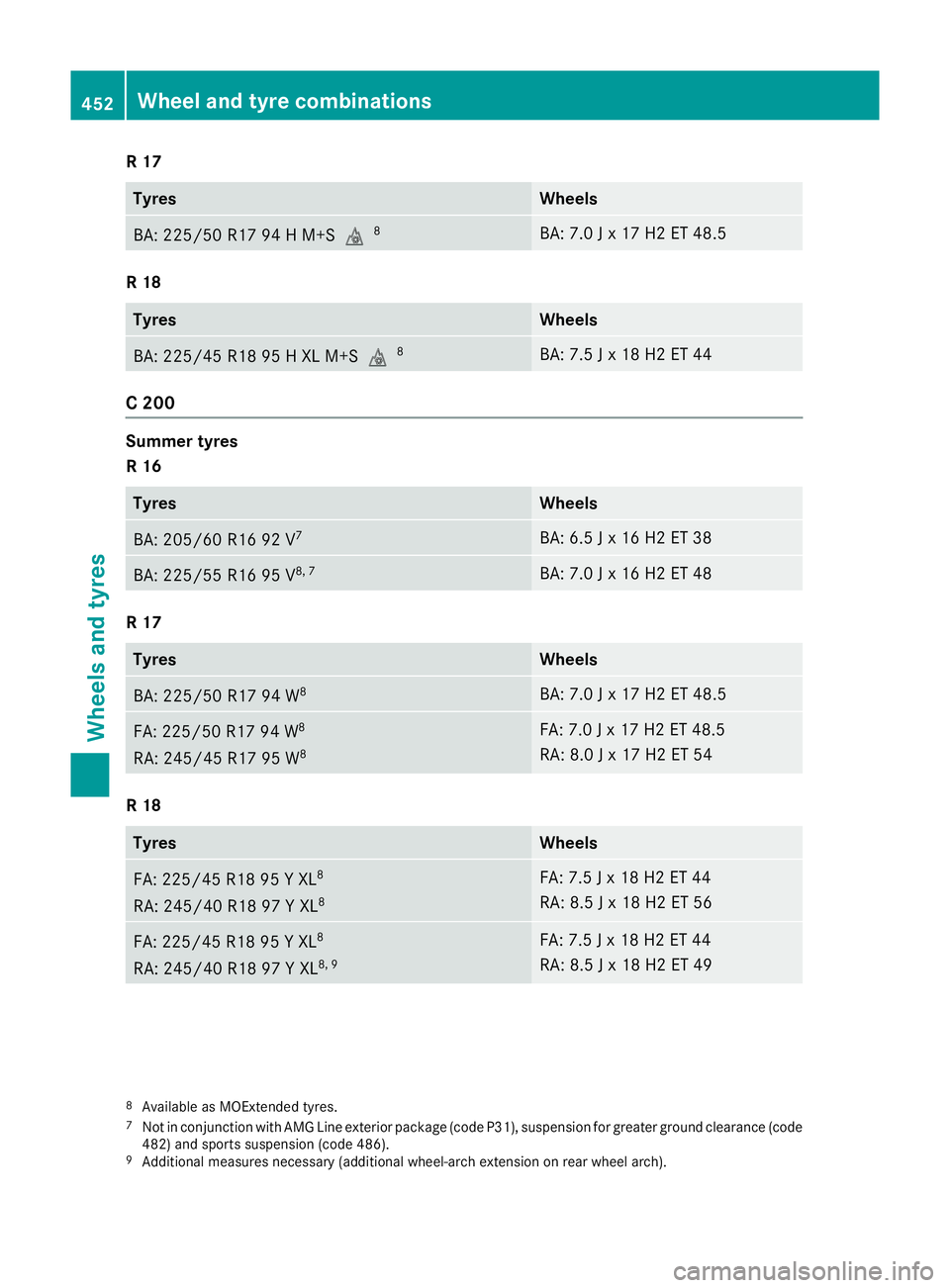

R 17
Tyres Wheels
BA: 225/50 R17 94 H M+S
i8 BA: 7.0 J x 17 H2 ET 48.5
R 18
Tyres Wheels
BA: 225/45 R18 95 H XL M+S
i8 BA: 7.5 J x 18 H2 ET 44
C 200
Summer tyres
R 16
Tyres Wheels
BA: 205/60 R16 92 V
7 BA: 6.5 J x 16 H2 ET 38
BA: 225/55 R16 95 V
8, 7 BA: 7.0 J x 16 H2 ET 48
R 17
Tyres Wheels
BA: 225/50 R17 94 W
8 BA: 7.0 J x 17 H2 ET 48.5
FA: 225/50 R17 94 W
8
RA: 245/45 R17 95 W 8 FA: 7.0 J x 17 H2 ET 48.5
RA: 8.0 J x 17 H2 ET 54
R 18
Tyres Wheels
FA: 225/45 R18 95 Y XL
8
RA: 245/40 R18 97 Y XL 8 FA: 7.5 J x 18 H2 ET 44
RA: 8.5 J x 18 H2 ET 56
FA: 225/45 R18 95 Y XL
8
RA: 245/40 R18 97 Y XL 8, 9 FA: 7.5 J x 18 H2 ET 44
RA: 8.5 J x 18 H2 ET 49
8
Available as MOExtended tyres.
7 Not in conjunction with AMG Line exterior package (code P31), suspension for greater ground clearance (code
482) and sports suspension (code 486).
9 Additional measures necessary (additional wheel-arch extension on rear wheel arch). 452
Wheel and tyre combinationsWheels and tyres

R 19
Tyres Wheels
FA: 225/40 R19 93 Y XL
8
RA: 245/35 R19 93 Y XL 8 FA: 7.5 J x 19 H2 ET 44
RA: 8.5 J x 19 H2 ET 56.5
FA: 225/40 R19 93 Y XL
8
RA: 255/35 R19 96 Y XL 8, 9 FA: 7.5 J x 19 H2 ET 44
RA: 8.5 J x 19 H2 ET 52
Winter tyres
R 16
Tyres Wheels
BA: 205/60 R16 92 H M+S
i7 BA: 6.5 J x 16 H2 ET 38
BA: 225/55 R16 95 H M+S
i8, 7 BA: 7.0 J x 16 H2 ET 48
R 17
Tyres Wheels
BA: 225/50 R17 94 H M+S
i8 BA: 7.0 J x 17 H2 ET 48.5
R 18
Tyres Wheels
BA: 225/45 R18 95 H XL M+S
i8 BA: 7.5 J x 18 H2 ET 44
C 200 BlueTEC
Summer tyres
R 16
Tyres Wheels
BA: 195/65 R16 92 V
6 BA: 6.0 J x 16 H2 ET 36.5
BA: 205/60 R16 92 V
7 BA: 6.5 J x 16 H2 ET 38
BA: 225/55 R16 95 V
8, 7 BA: 7.0 J x 16 H2 ET 48
8
Available as MOExtended tyres.
9 Additional measures necessary (additional wheel-arch extension on rear wheel arch).
7 Not in conjunction with AMG Line exterior package (code P31), suspension for greater ground clearance (code
482) and sports suspension (code 486).
6 Not in conjunction with Avantgarde exterior package (code P15), Exclusive exterior package (code P23), AMG
Line exterior package (code P31), dynamic handling package (code 483/489), suspension for greater ground
clearance (code 482) and sports suspension (code 486). Wheel and tyre combinations
453Wheels and tyres Z
