i

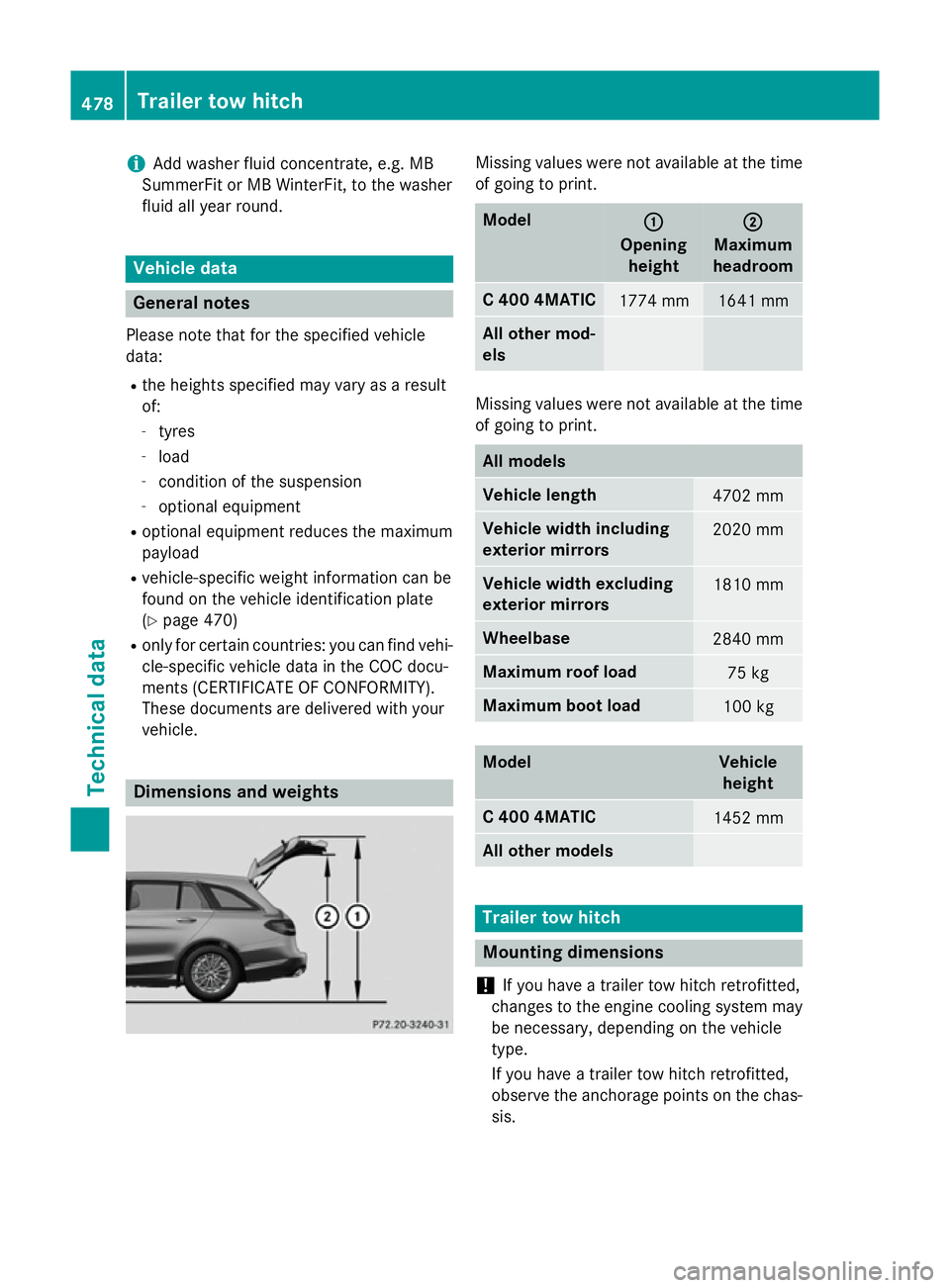

Add washer fluid concentrate, e.g. MB
SummerFit or MB WinterFit, to the washer
fluid all year round. Vehicle data
General notes
Please note that for the specified vehicle
data: R the heights specified may vary as a result
of:
- tyres
- load
- condition of the suspension
- optional equipment
R optional equipment reduces the maximum
payload
R vehicle-specific weight information can be
found on the vehicle identification plate
(Y page 470)
R only for certain countries: you can find vehi-
cle-specific vehicle data in the COC docu-
ments (CERTIFICATE OF CONFORMITY).
These documents are delivered with your
vehicle. Dimensions and weights Missing values were not available at the time
of going to print. Model
: :
Opening height ;
;
Maximum
headroom C 400 4MATIC
1774 mm 1641 mm
All other mod-
els
Missing values were not available at the time
of going to print. All models
Vehicle length
4702 mm
Vehicle width including
exterior mirrors
2020 mm
Vehicle width excluding
exterior mirrors
1810 mm
Wheelbase
2840 mm
Maximum roof load
75 kg
Maximum boot load
100 kg
Model Vehicle
height C 400 4MATIC
1452 mm
All other models
Trailer tow hitch
Mounting dimensions
! If you have a trailer tow hitch retrofitted,
changes to the engine cooling system may
be necessary, depending on the vehicle
type.
If you have a trailer tow hitch retrofitted,
observe the anchorage points on the chas- sis. 478
Trailer tow hitchTechnical data

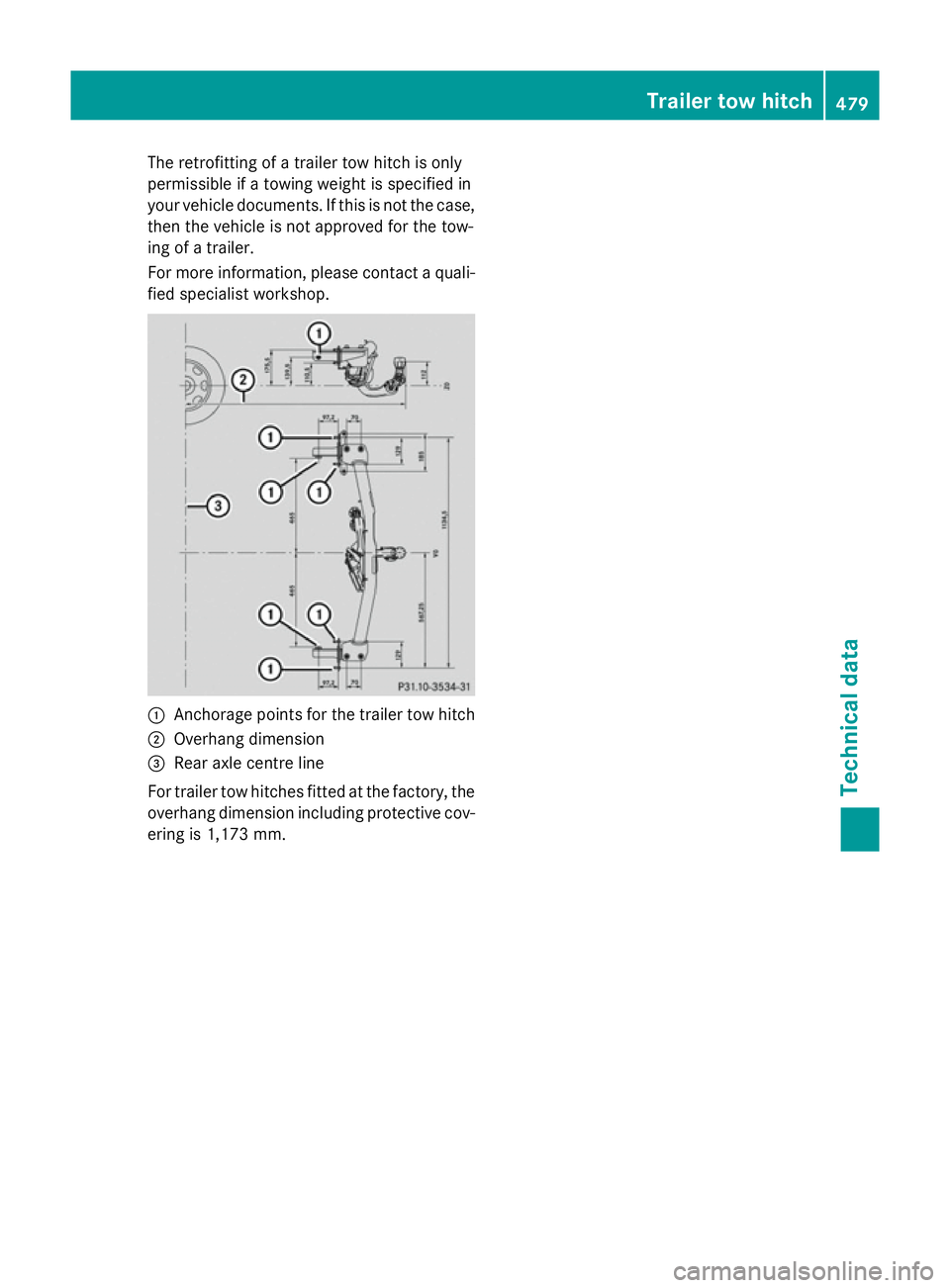

The retrofitting of a trailer tow hitch is only
permissible if a towing weight is specified in
your vehicle documents. If this is not the case,
then the vehicle is not approved for the tow-
ing of a trailer.
For more information, please contact a quali-
fied specialist workshop. :
Anchorage points for the trailer tow hitch
; Overhang dimension
= Rear axle centre line
For trailer tow hitches fitted at the factory, the
overhang dimension including protective cov- ering is 1,173 mm. Trailer tow hitch
479Technical data Z

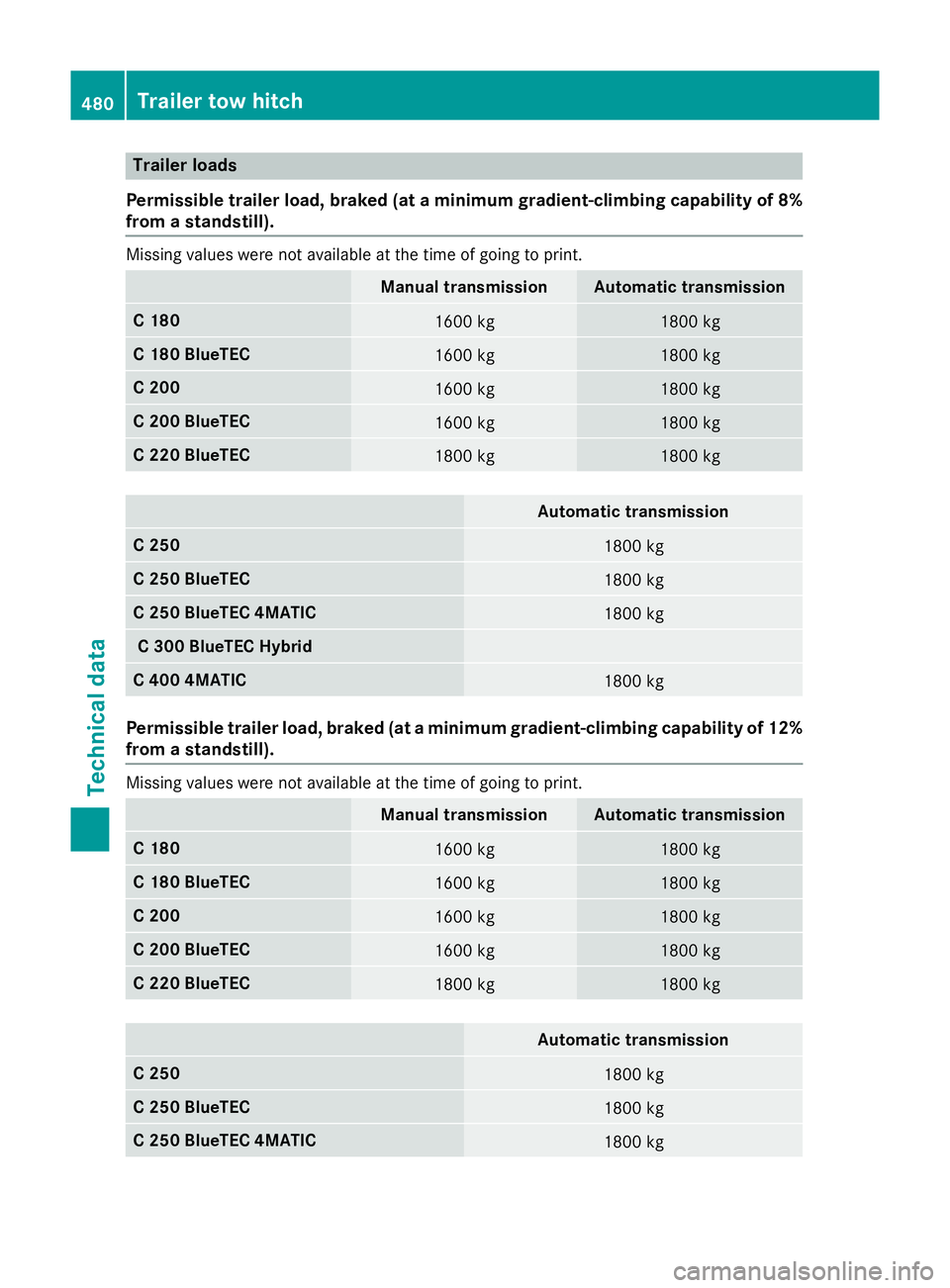

Trailer loads
Permissible trailer load, braked (at a minimum gradient-climbing capability of 8%
from a standstill). Missing values were not available at the time of going to print.
Manual transmission Automatic transmission
C 180
1600 kg 1800 kg
C 180 BlueTEC
1600 kg 1800 kg
C 200
1600 kg 1800 kg
C 200 BlueTEC
1600 kg 1800 kg
C 220 BlueTEC
1800 kg 1800 kg
Automatic transmission
C 250
1800 kg
C 250 BlueTEC
1800 kg
C 250 BlueTEC 4MATIC
1800 kg
C 300 BlueTEC Hybrid
C 400 4MATIC
1800 kg
Permissible trailer load, braked (at a minimum gradient-climbing capability of 12%
from a standstill). Missing values were not available at the time of going to print.
Manual transmission Automatic transmission
C 180
1600 kg 1800 kg
C 180 BlueTEC
1600 kg 1800 kg
C 200
1600 kg 1800 kg
C 200 BlueTEC
1600 kg 1800 kg
C 220 BlueTEC
1800 kg 1800 kg
Automatic transmission
C 250
1800 kg
C 250 BlueTEC
1800 kg
C 250 BlueTEC 4MATIC
1800 kg480
Trailer tow hitchTechnical data

Automatic transmission
C 300 BlueTEC Hybrid
C 400 4MATIC
1800 kg

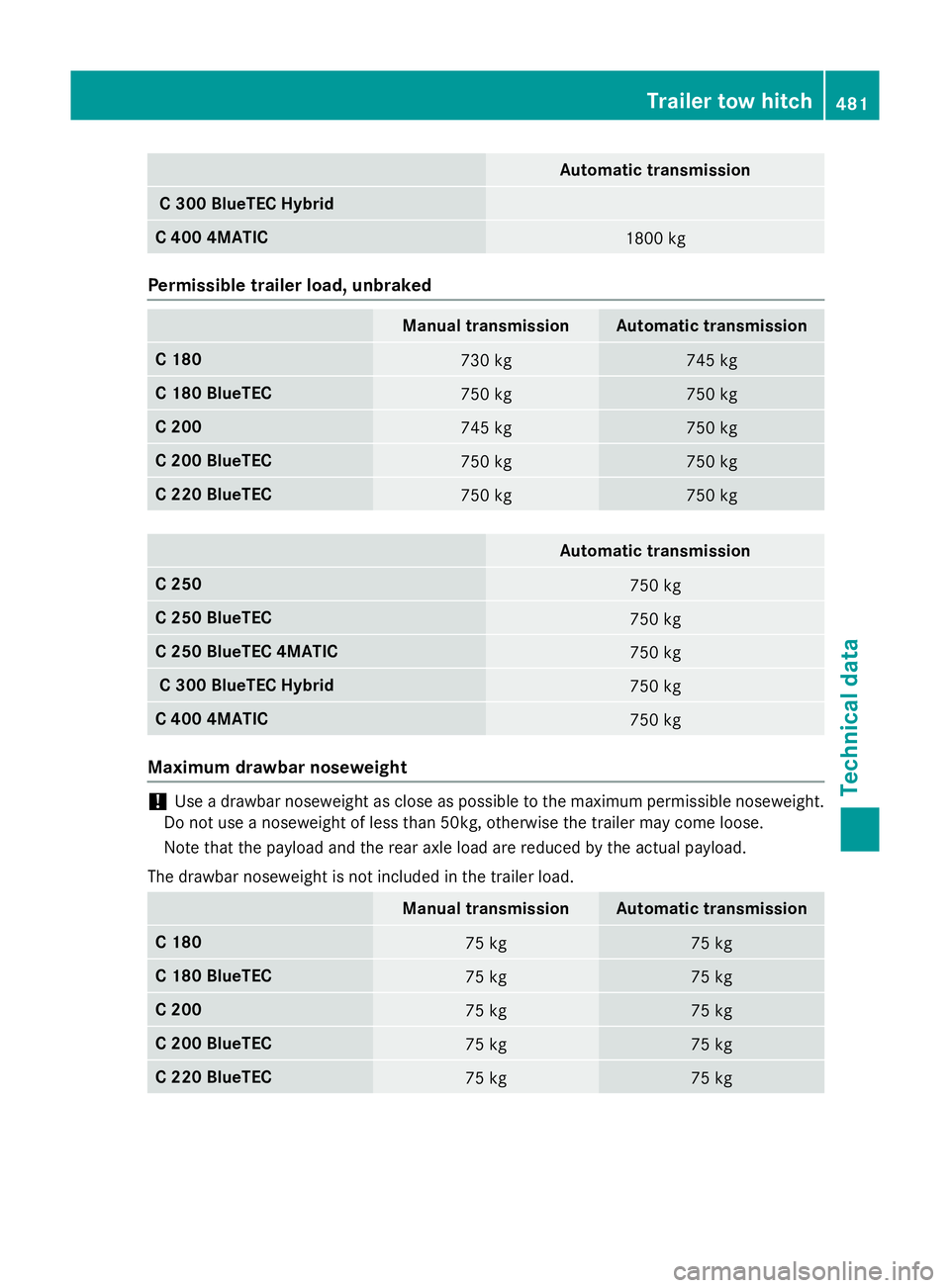

Permissible trailer load, unbraked
Manual transmission Automatic transmission
C 180
730 kg 745 kg
C 180 BlueTEC
750 kg 750 kg
C 200
745 kg 750 kg
C 200 BlueTEC
750 kg 750 kg
C 220 BlueTEC
750 kg 750 kg
Automatic transmission
C 250
750 kg
C 250 BlueTEC
750 kg
C 250 BlueTEC 4MATIC
750 kg
C 300 BlueTEC Hybrid
750 kg
C 400 4MATIC
750 kg
Maximum drawbar noseweight
!
Use a drawbar noseweight as close as possible to the maximum permissible noseweight.
Do not use a noseweight of less than 50kg, otherwise the trailer may come loose.
Note that the payload and the rear axle load are reduced by the actual payload.
The drawbar noseweight is not included in the trailer load. Manual transmission Automatic transmission
C 180
75 kg 75 kg
C 180 BlueTEC
75 kg 75 kg
C 200
75 kg 75 kg
C 200 BlueTEC
75 kg 75 kg
C 220 BlueTEC
75 kg 75 kgTrailer tow hitch
481Technical data Z

Automatic transmission
C 250
75 kg
C 250 BlueTEC
75 kg
C 250 BlueTEC 4MATIC
75 kg
C 300 BlueTEC Hybrid
75 kg
C 400 4MATIC
75 kg

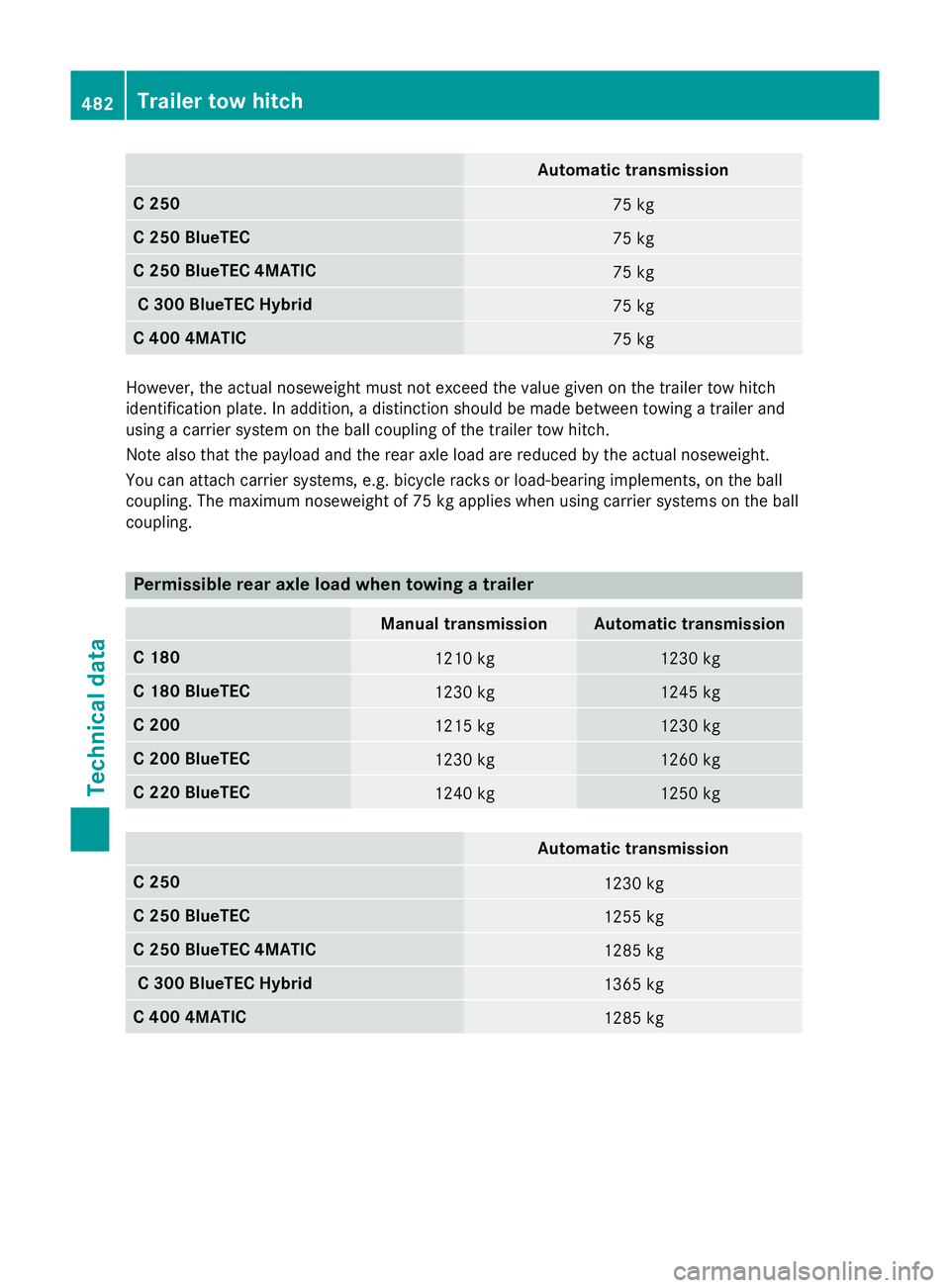

However, the actual noseweight must not exceed the value given on the trailer tow hitch
identification plate. In addition, a distinction should be made between towing a trailer and
using a carrier system on the ball coupling of the trailer tow hitch.
Note also that the payload and the rear axle load are reduced by the actual noseweight.
You can attach carrier systems, e.g. bicycle racks or load-bearing implements, on the ball
coupling. The maximum noseweight of 75 kg applies when using carrier systems on the ball
coupling. Permissible rear axle load when towing a trailer
Manual transmission Automatic transmission
C 180
1210 kg 1230 kg
C 180 BlueTEC
1230 kg 1245 kg
C 200
1215 kg 1230 kg
C 200 BlueTEC
1230 kg 1260 kg
C 220 BlueTEC
1240 kg 1250 kg
Automatic transmission
C 250
1230 kg
C 250 BlueTEC
1255 kg
C 250 BlueTEC 4MATIC
1285 kg
C 300 BlueTEC Hybrid
1365 kg
C 400 4MATIC
1285 kg482
Trailer tow hitchTechnical data
