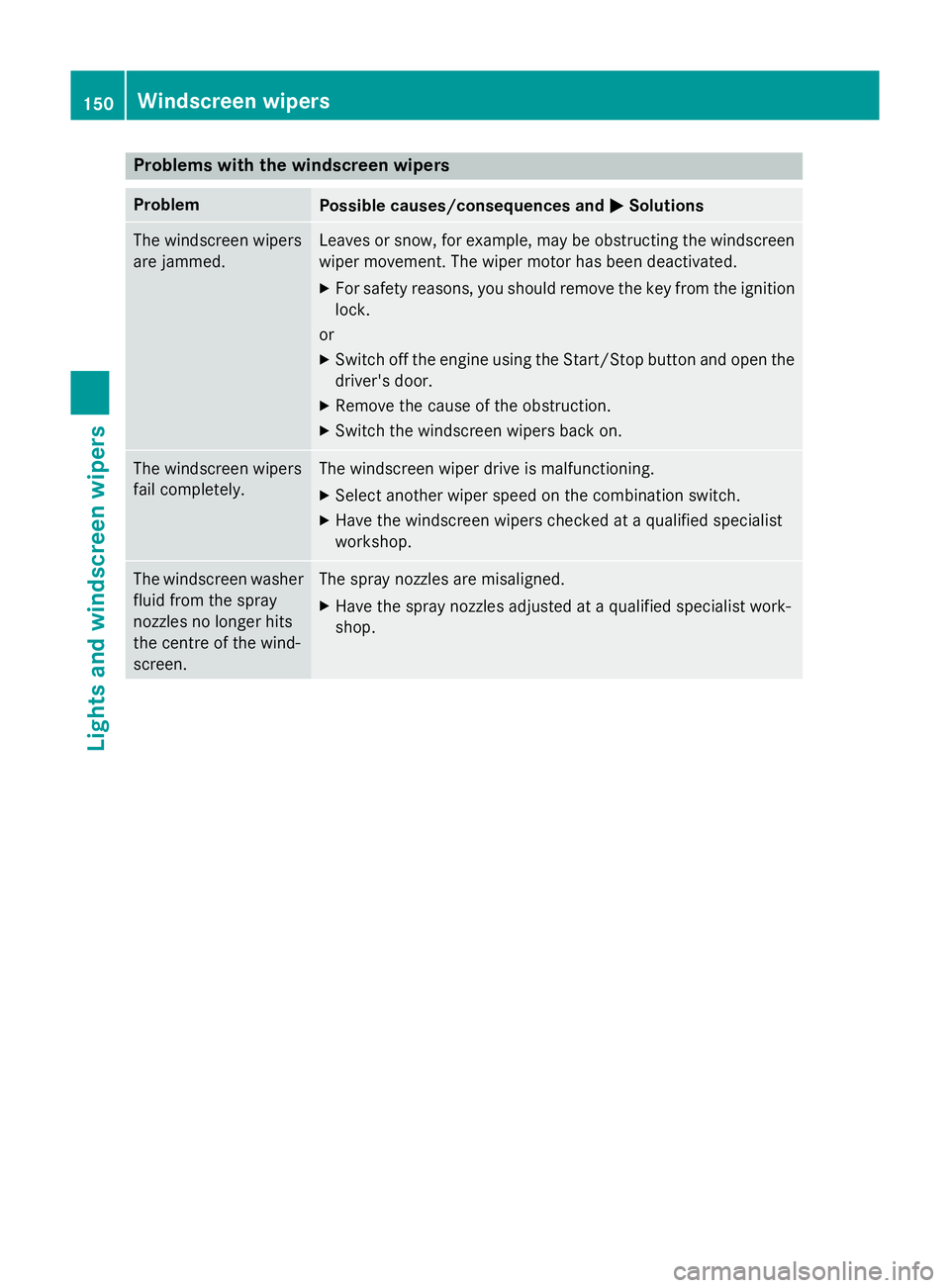

Problems with the windscreen wipers
Problem
Possible causes/consequences and
M
MSolutions The windscreen wipers
are jammed. Leaves or snow, for example, may be obstructing the windscreen
wiper movement. The wiper motor has been deactivated.
X For safety reasons, you should remove the key from the ignition
lock.
or
X Switch off the engine using the Start/Stop button and open the
driver's door.
X Remove the cause of the obstruction.
X Switch the windscreen wipers back on. The windscreen wipers
fail completely. The windscreen wiper drive is malfunctioning.
X Select another wiper speed on the combination switch.
X Have the windscreen wipers checked at a qualified specialist
workshop. The windscreen washer
fluid from the spray
nozzles no longer hits
the centre of the wind-
screen. The spray nozzles are misaligned.
X Have the spray nozzles adjusted at a qualified specialist work-
shop. 150
Windscreen wipersLights and windscreen wipers

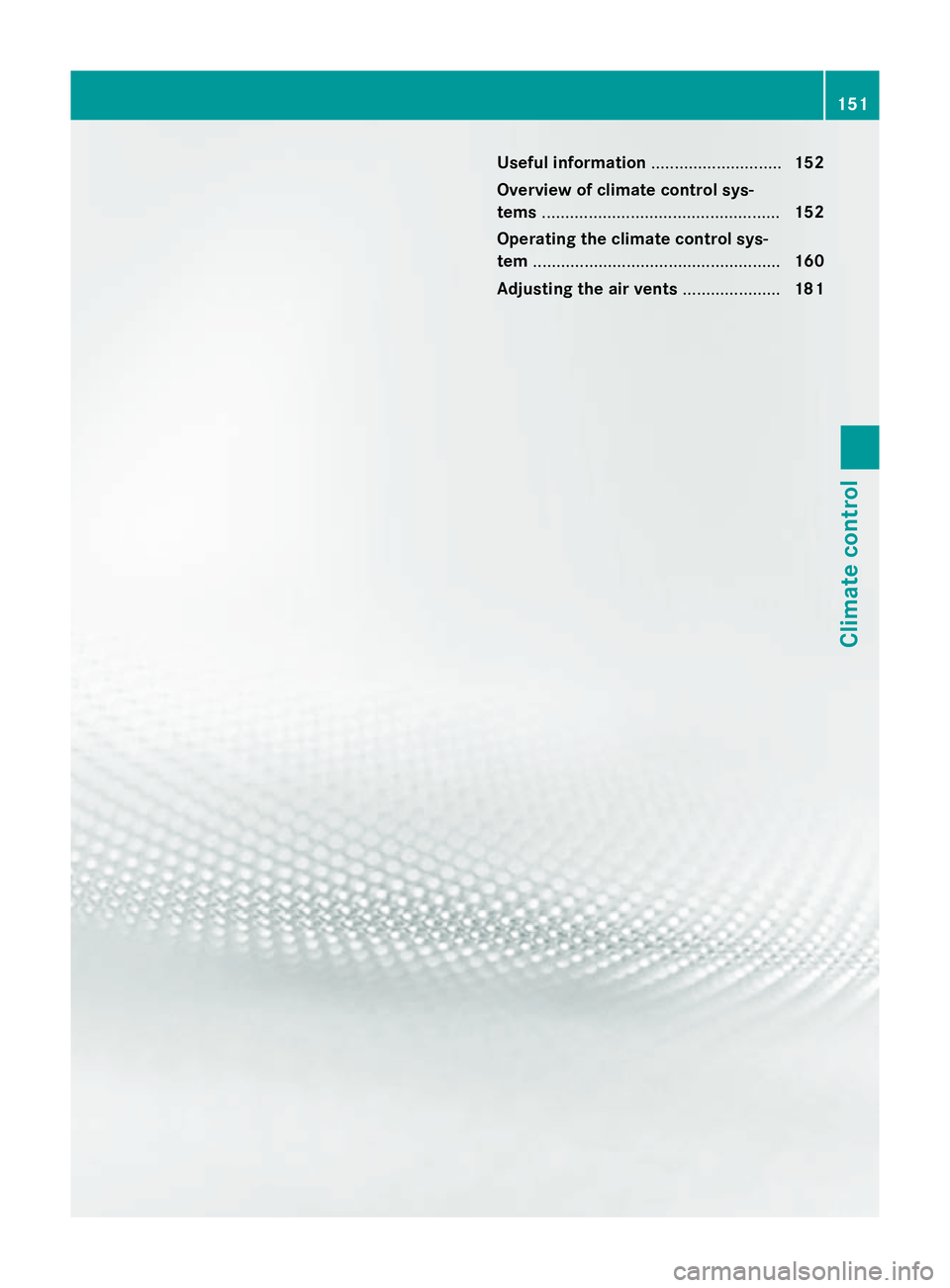

Useful information
............................152
Overview of climate control sys-
tems ................................................... 152
Operating the climate control sys-
tem ..................................................... 160
Adjusting the air vents .....................181 151Climate control

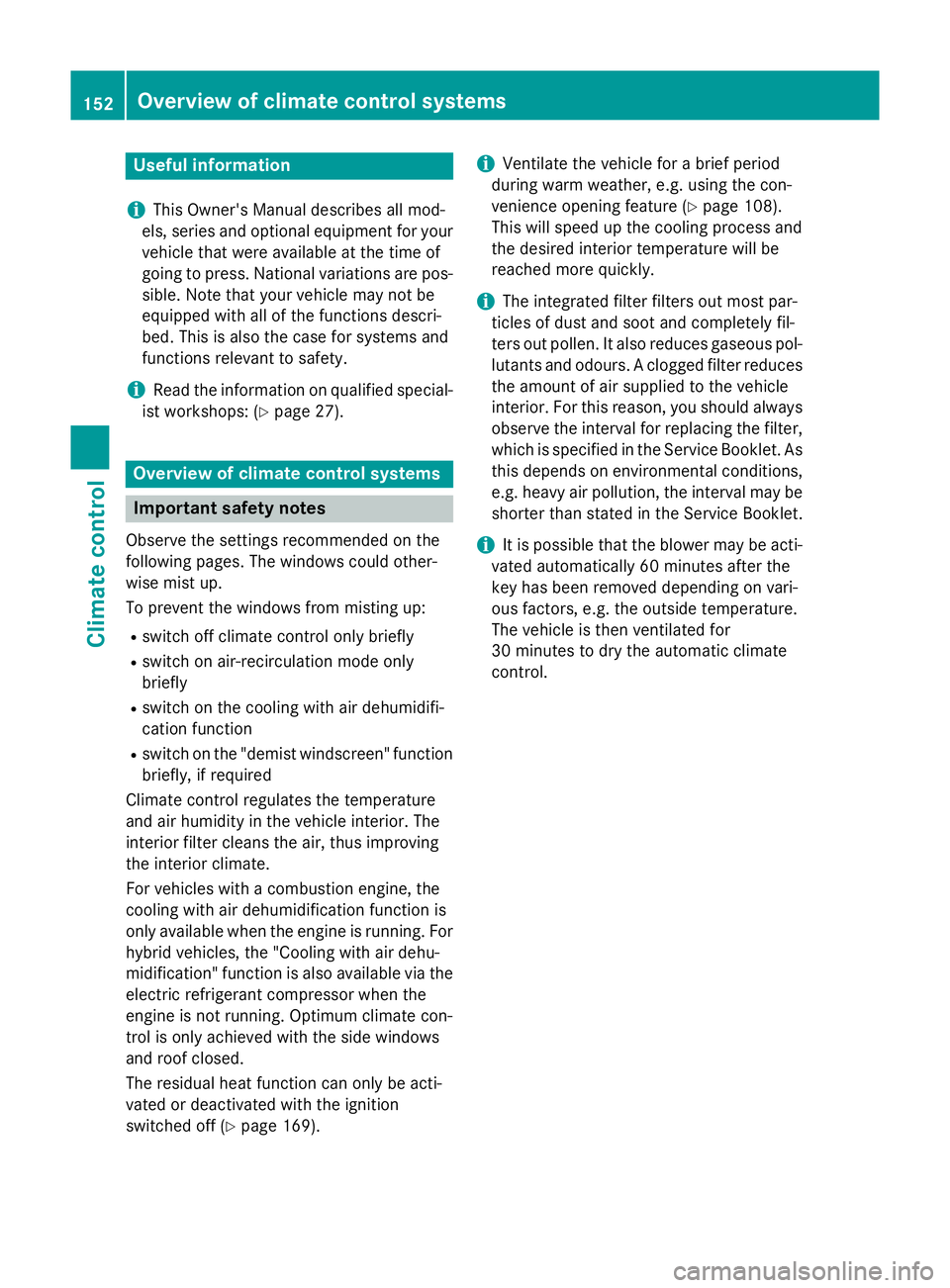

Useful information
i This Owner's Manual describes all mod-
els, series and optional equipment for your
vehicle that were available at the time of
going to press. National variations are pos- sible. Note that your vehicle may not be
equipped with all of the functions descri-
bed. This is also the case for systems and
functions relevant to safety.
i Read the information on qualified special-
ist workshops: (Y page 27). Overview of climate control systems
Important safety notes
Observe the settings recommended on the
following pages. The windows could other-
wise mist up.
To prevent the windows from misting up:
R switch off climate control only briefly
R switch on air-recirculation mode only
briefly
R switch on the cooling with air dehumidifi-
cation function
R switch on the "demist windscreen" function
briefly, if required
Climate control regulates the temperature
and air humidity in the vehicle interior. The
interior filter cleans the air, thus improving
the interior climate.
For vehicles with a combustion engine, the
cooling with air dehumidification function is
only available when the engine is running. For hybrid vehicles, the "Cooling with air dehu-
midification" function is also available via the
electric refrigerant compressor when the
engine is not running. Optimum climate con-
trol is only achieved with the side windows
and roof closed.
The residual heat function can only be acti-
vated or deactivated with the ignition
switched off (Y page 169). i
Ventilate the vehicle for a brief period
during warm weather, e.g. using the con-
venience opening feature (Y page 108).
This will speed up the cooling process and
the desired interior temperature will be
reached more quickly.
i The integrated filter filters out most par-
ticles of dust and soot and completely fil-
ters out pollen. It also reduces gaseous pol-
lutants and odours. A clogged filter reduces
the amount of air supplied to the vehicle
interior. For this reason, you should always observe the interval for replacing the filter,which is specified in the Service Booklet. As this depends on environmental conditions,
e.g. heavy air pollution, the interval may be
shorter than stated in the Service Booklet.
i It is possible that the blower may be acti-
vated automatically 60 minutes after the
key has been removed depending on vari-
ous factors, e.g. the outside temperature.
The vehicle is then ventilated for
30 minutes to dry the automatic climate
control. 152
Overview of climate control systemsClimate control

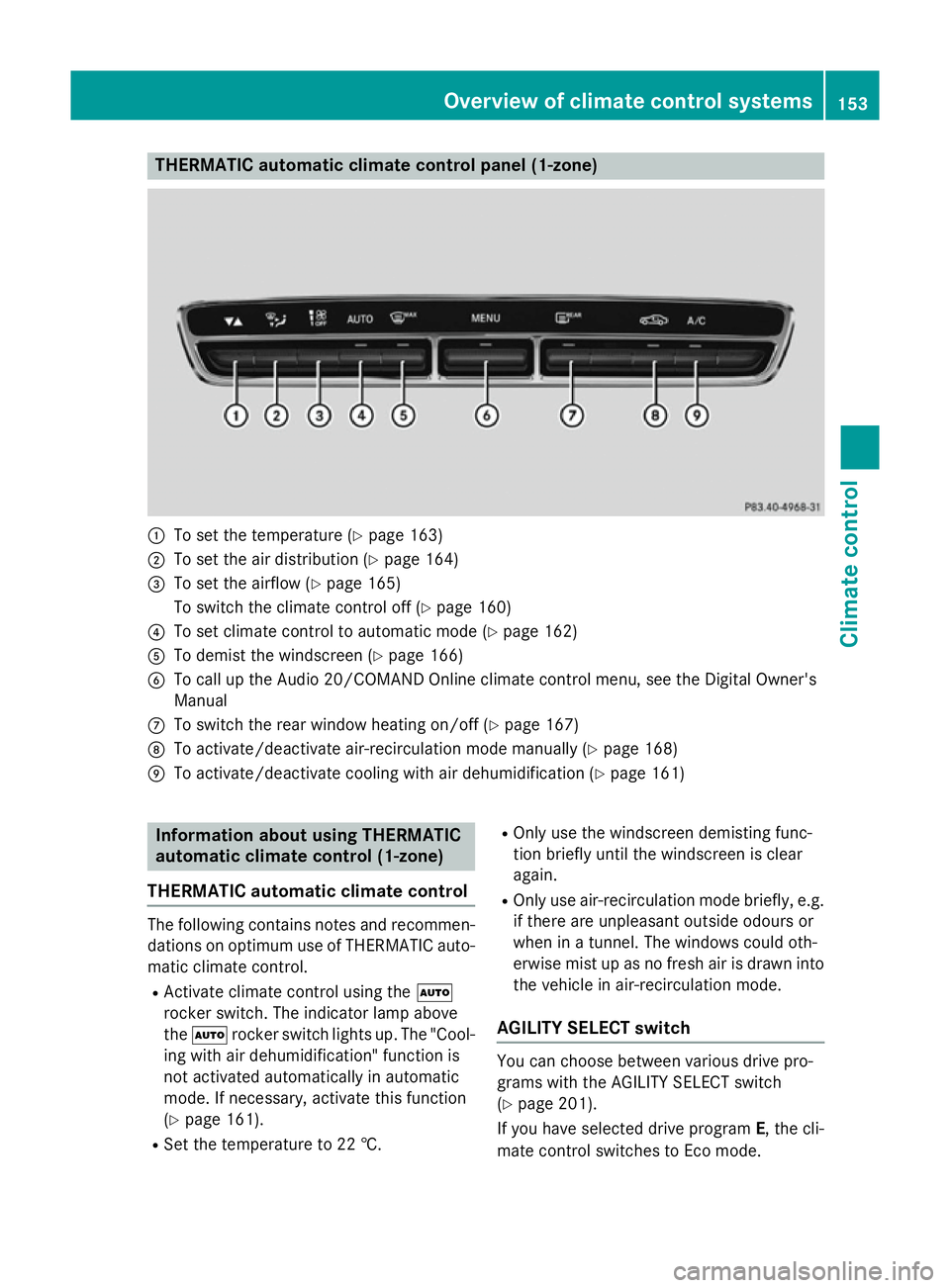

THERMATIC automatic climate control panel (1-zone)
:
To set the temperature (Y page 163)
; To set the air distribution (Y page 164)
= To set the airflow (Y page 165)
To switch the climate control off (Y page 160)
? To set climate control to automatic mode (Y page 162)
A To demist the windscreen (Y page 166)
B To call up the Audio 20/COMAND Online climate control menu, see the Digital Owner's
Manual
C To switch the rear window heating on/off (Y page 167)
D To activate/deactivate air-recirculation mode manually (Y page 168)
E To activate/deactivate cooling with air dehumidification (Y page 161)Information about using THERMATIC
automatic climate control (1 ‑zone)
THERMATIC automatic climate control The following contains notes and recommen-
dations on optimum use of THERMATIC auto-
matic climate control.
R Activate climate control using the Ã
rocker switch. The indicator lamp above
the à rocker switch lights up. The "Cool-
ing with air dehumidification" function is
not activated automatically in automatic
mode. If necessary, activate this function
(Y page 161).
R Set the temperature to 22 †. R
Only use the windscreen demisting func-
tion briefly until the windscreen is clear
again.
R Only use air-recirculation mode briefly, e.g.
if there are unpleasant outside odours or
when in a tunnel. The windows could oth-
erwise mist up as no fresh air is drawn into
the vehicle in air-recirculation mode.
AGILITY SELECT switch You can choose between various drive pro-
grams with the AGILITY SELECT switch
(Y
page 201).
If you have selected drive program E, the cli-
mate control switches to Eco mode. Overvie
w of climate cont rol systems
153Climate control

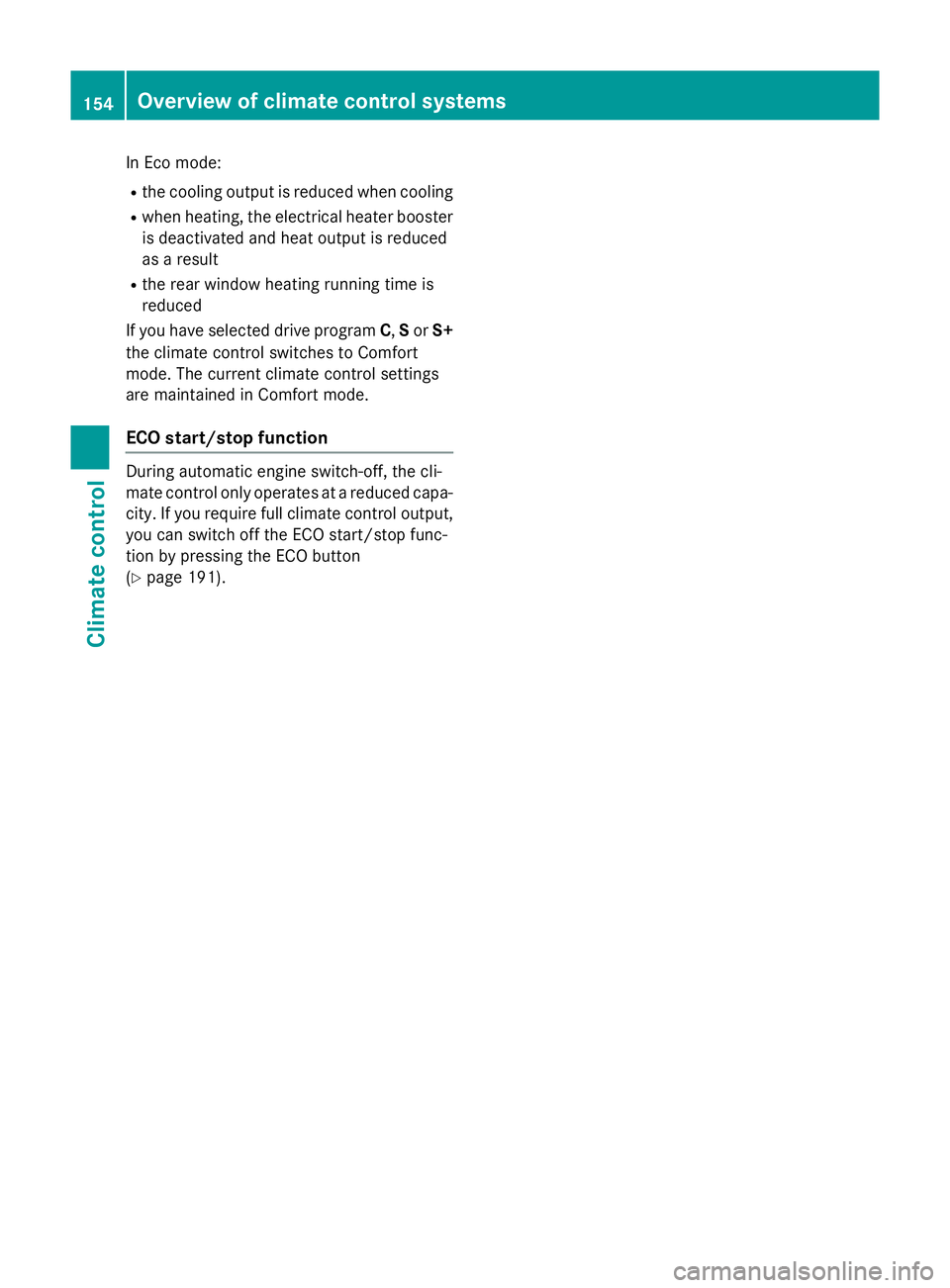

In Eco mode:
R the cooling output is reduced when cooling
R when heating, the electrical heater booster
is deactivated and heat output is reduced
as a result
R the rear window heating running time is
reduced
If you have selected drive program C,Sor S+
the climate control switches to Comfort
mode. The current climate control settings
are maintained in Comfort mode.
ECO start/stop function During automatic engine switch-off, the cli-
mate control only operates at a reduced capa- city. If you require full climate control output,
you can switch off the ECO start/stop func-
tion by pressing the ECO button
(Y page 191). 154
Overview of climate control systemsClimate control

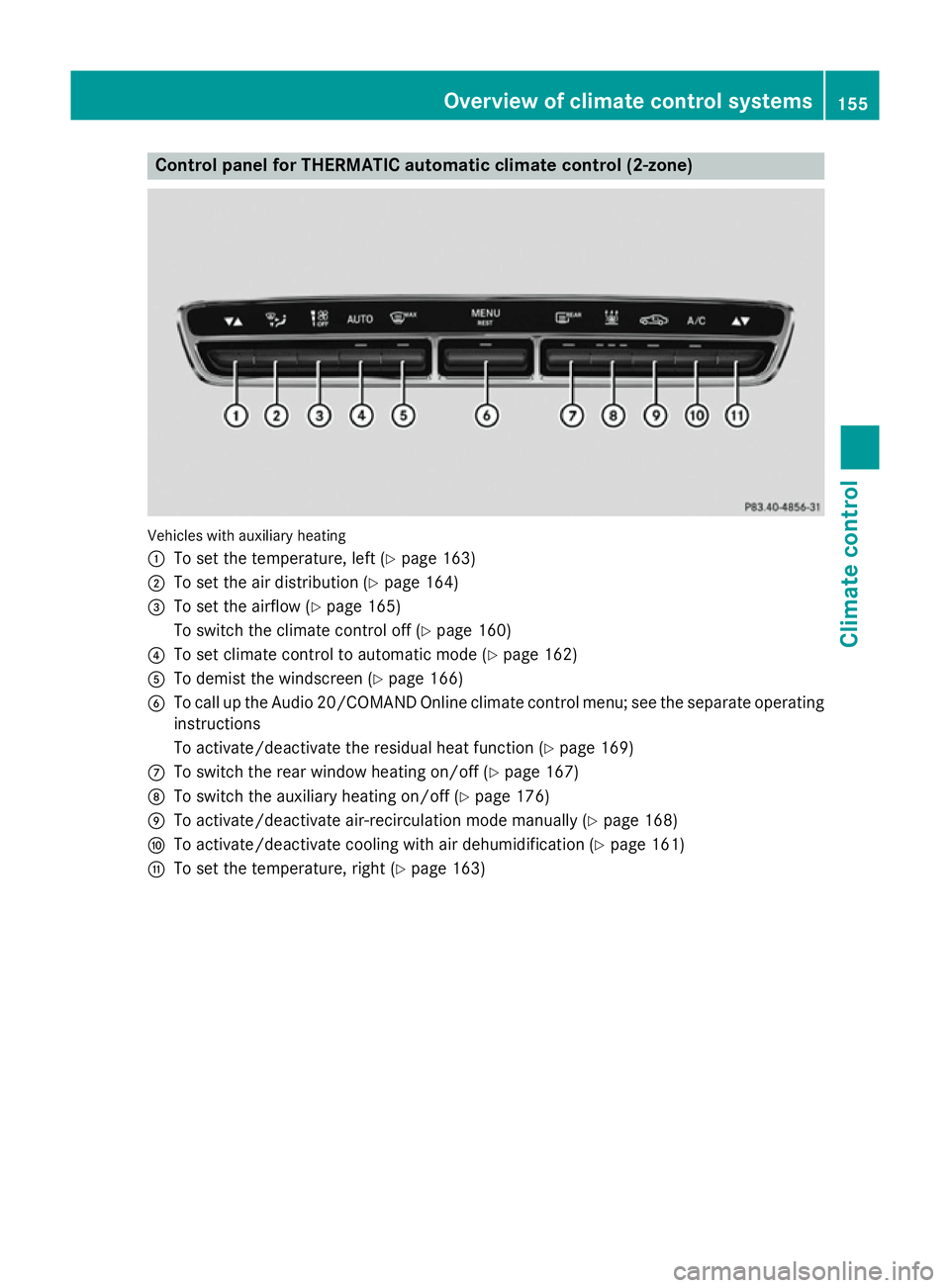

Control panel for THERMATIC automatic climate control (2-zone)
Vehicles with auxiliary heating
:
To set the temperature, left (Y page 163)
; To set the air distribution (Y page 164)
= To set the airflow (Y page 165)
To switch the climate control off (Y page 160)
? To set climate control to automatic mode (Y page 162)
A To demist the windscreen (Y page 166)
B To call up the Audio 20/COMAND Online climate control menu; see the separate operating
instructions
To activate/deactivate the residual heat function (Y page 169)
C To switch the rear window heating on/off (Y page 167)
D To switch the auxiliary heating on/off (Y page 176)
E To activate/deactivate air-recirculation mode manually (Y page 168)
F To activate/deactivate cooling with air dehumidification (Y page 161)
G To set the temperature, right (Y page 163) Overview of climate control systems
155Climate control

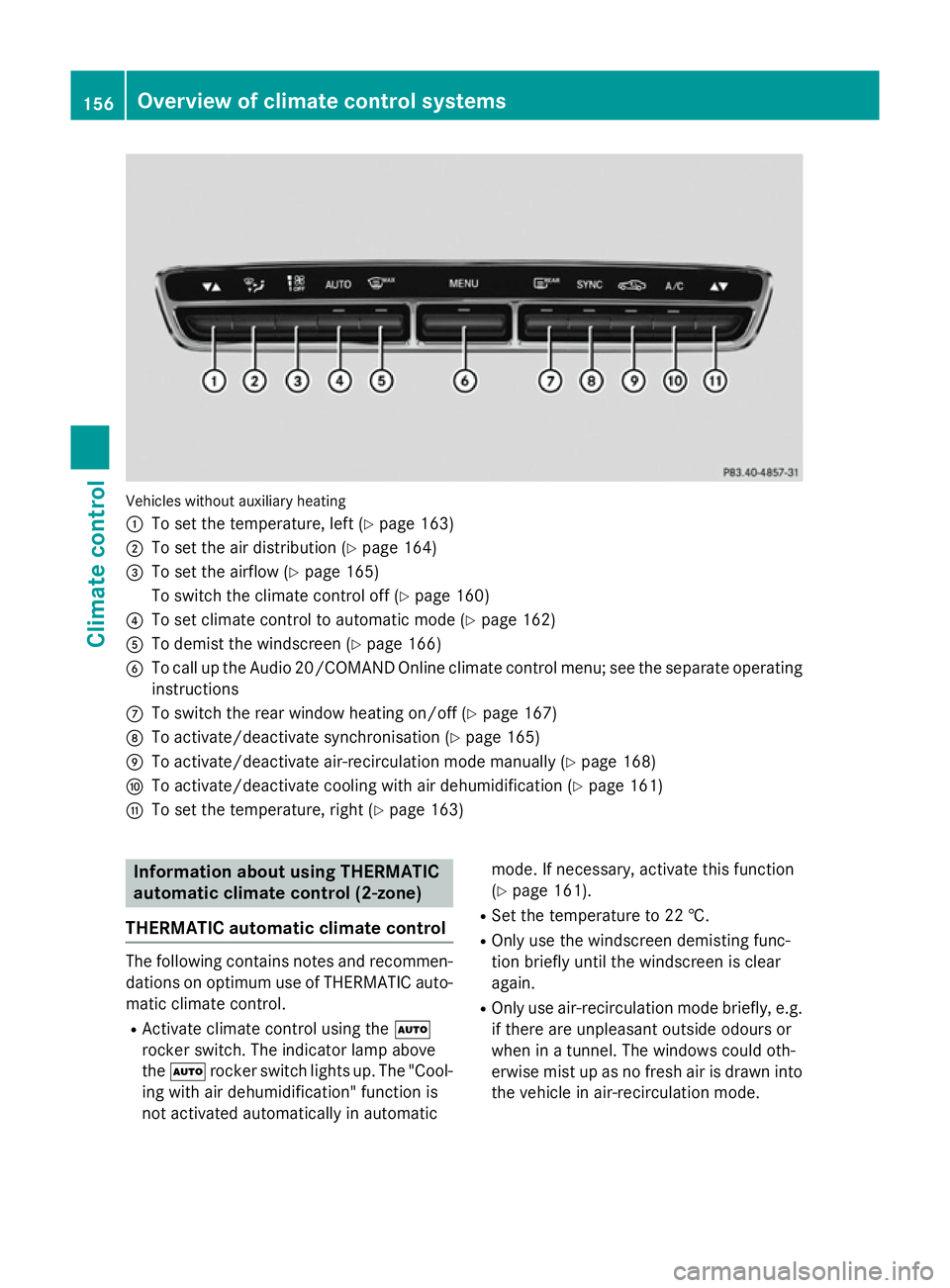

Vehicles without auxiliary heating
:
To set the temperature, left (Y page 163)
; To set the air distribution (Y page 164)
= To set the airflow (Y page 165)
To switch the climate control off (Y page 160)
? To set climate control to automatic mode (Y page 162)
A To demist the windscreen (Y page 166)
B To call up the Audio 20/COMAND Online climate control menu; see the separate operating
instructions
C To switch the rear window heating on/off (Y page 167)
D To activate/deactivate synchronisation (Y page 165)
E To activate/deactivate air-recirculation mode manually (Y page 168)
F To activate/deactivate cooling with air dehumidification (Y page 161)
G To set the temperature, right (Y page 163)Information about using THERMATIC
automatic climate control (2‑zone)
THERMATIC automatic climate control The following contains notes and recommen-
dations on optimum use of THERMATIC auto-
matic climate control.
R Activate climate control using the Ã
rocker switch. The indicator lamp above
the à rocker switch lights up. The "Cool-
ing with air dehumidification" function is
not activated automatically in automatic mode. If necessary, activate this function
(Y page 161).
R Set the temperature to 22 †.
R Only use the windscreen demisting func-
tion briefly until the windscreen is clear
again.
R Only use air-recirculation mode briefly, e.g.
if there are unpleasant outside odours or
when in a tunnel. The windows could oth-
erwise mist up as no fresh air is drawn into
the vehicle in air-recirculation mode. 156
Overview of climate control systemsClimate control

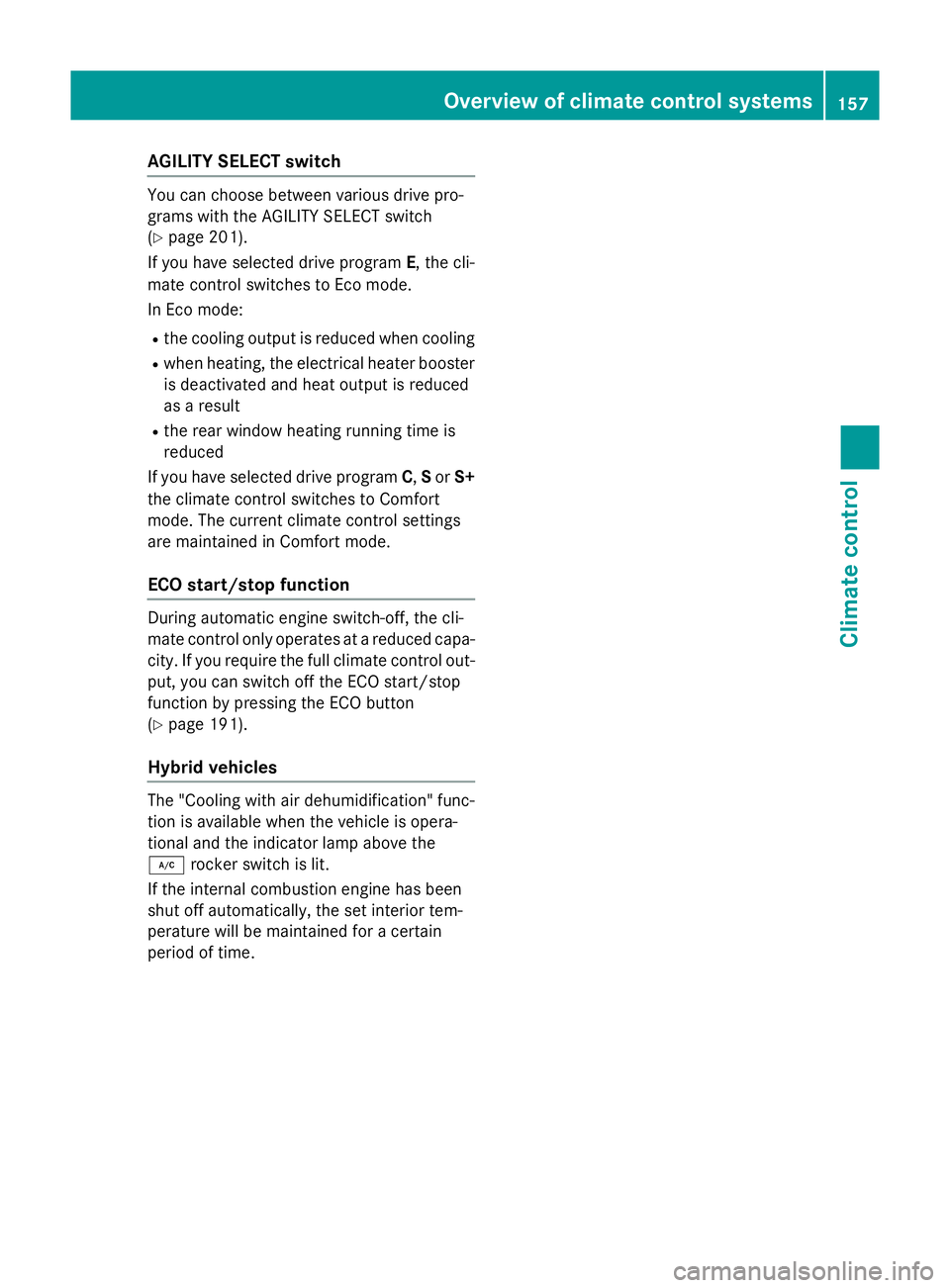

AGILITY SELECT switch
You can choose between various drive pro-
grams with the AGILITY SELECT switch
(Y
page 201).
If you have selected drive program E, the cli-
mate control switches to Eco mode.
In Eco mode:
R the cooling output is reduced when cooling
R when heating, the electrical heater booster
is deactivated and heat output is reduced
as a result
R the rear window heating running time is
reduced
If you have selected drive program C,Sor S+
the climate control switches to Comfort
mode. The current climate control settings
are maintained in Comfort mode.
ECO start/stop function During automatic engine switch-off, the cli-
mate control only operates at a reduced capa-
city. If you require the full climate control out-
put, you can switch off the ECO start/stop
function by pressing the ECO button
(Y page 191).
Hybrid vehicles The "Cooling with air dehumidification" func-
tion is available when the vehicle is opera-
tional and the indicator lamp above the
¿
rocker switch is lit.
If the internal combustion engine has been
shut off automatically, the set interior tem-
perature will be maintained for a certain
period of time. Overview of climate control systems
