2014 FIAT 500X Owners Manual

minutes. To manually shut the defroster off, push the
button a second time.
CAUTION!
Failure to follow these cautions can cause damage
to the heating elements:
•Use care when washing the inside of the rear
window. Do not use abrasive window cleaners on
the interior surface of the window. Use a soft
cloth and a mild washing solution, wiping paral-
lel to the heating elements. Labels can be peeled
off after soaking with warm water.
• Do not use scrapers, sharp instruments, or abra-
sive window cleaners on the interior surface of
the window.
• Keep all objects a safe distance from the window.
Windshield Wiper De-Icer — If Equipped
Your vehicle may be equipped with a Windshield Wiper
De-Icer feature that may be activated under the follow-
ing conditions:
• Activation By Front Defrost — The Windshield
Wiper De-Icer will be activated automatically in the
case of a cold weather manual start with full front
defrost, and the ambient temperature is below 40° F
(4.4° C).
• Activation By Rear Defrost — The Windshield
Wiper De-Icer will be activated automatically when
the rear defrost is turned on and the ambient tem-
perature is below 40° F (4.4° C).
• Activation By Remote Start Operation — When
Remote Start is active and the outside ambient tem-
perature is less than 40° F (4.4° C), the Windshield
Wiper De-Icer will be enabled. Upon exiting remote
start mode the Windshield Wiper De-Icer will remain
on.
4
GETTING TO KNOW YOUR VEHICLE 79

CLIMATE CONTROLS
Air Outlet And Diffuser Locations — Passenger
Compartment
Left Side Air Outlets
1 — Fixed Air Outlet
2 — Adjustable Air Outlet
3 — Air Vane Adjustment
4 — Air Flow Outlet Adjustment
Center Air Outlets
1 — Air Flow Outlet Adjustment
2 — Adjustable Air Outlet
3 — Air Vane Adjustment
80 GETTING TO KNOW YOUR VEHICLE

Manual Climate Controls Overview
Right Side Air Outlets
1 — Fixed Air Outlet
2 — Adjustable Air Outlet
3 — Air Vane Adjustment
4 — Air Flow Outlet AdjustmentManual Climate Controls
4
GETTING TO KNOW YOUR VEHICLE 81

Manual Climate Control Descriptions
IconDescription
MAX A/C Setting
MAX A/C sets the system for maximum cooling performance. Rotate the temperature con-
trol adjust knob counterclockwise to the MAX A/C setting. In MAX A/C, the blower speed
and mode position can be adjusted to desired user settings.
A/C Button
Push this button to engage the Air Conditioning. A light will illuminate when the Air Con-
ditioning system is engaged.
Recirculation Button
Push this control button to change the system between recirculation mode and outside air
mode. Recirculation can be used when outside conditions such as smoke, odors, dust, or
high humidity are present.
NOTE:
•Continuous use of the Recirculation mode may make the inside air stuffy and window
fogging may occur. Extended use of this mode is not recommended.
•The use of the Recirculation mode in cold or damp weather could cause windows to fog
on the inside, because of moisture buildup inside the vehicle. Select the outside air posi-
tion for maximum defogging.
•Recirculation can be used in all modes except for Defrost.
•The A/C can be deselected manually without disturbing the mode control selection.
82 GETTING TO KNOW YOUR VEHICLE

IconDescription
Front Defrost Mode
Air is directed through the windshield and side window demister outlets. Use this mode
with maximum blower and temperature settings for best windshield and side window de-
frosting.
NOTE:The air conditioning compressor operates in Mix or Defrost, even if the Air Condi-
tioning (A/C) button is not pushed. This dehumidifies the air to help dry the windshield.
To improve fuel economy, use these modes only when required.
Rear Defrost Button
Push and release the Rear Defrost Control button to turn on the rear window defroster and
the heated outside mirrors (if equipped). An indicator will illuminate when the rear win-
dow defroster is on. The rear window defroster automatically turns off after 20 minutes.
Temperature Control
Rotate this control to regulate the temperature of the air inside the passenger compartment.
Rotating the dial counterclockwise into the blue area of the scale indicates cooler tempera-
tures, while rotating clockwise into the red area indicates warmer temperatures. Rotating
the Temperature Control all the way counterclockwise results in turning on the MAX A/C
feature.
Blower Control
Rotate this control to regulate the amount of air forced through the ventilation system in
any mode. The blower speed increases as you move the control clockwise from the “0”
(OFF) position.
4
GETTING TO KNOW YOUR VEHICLE 83

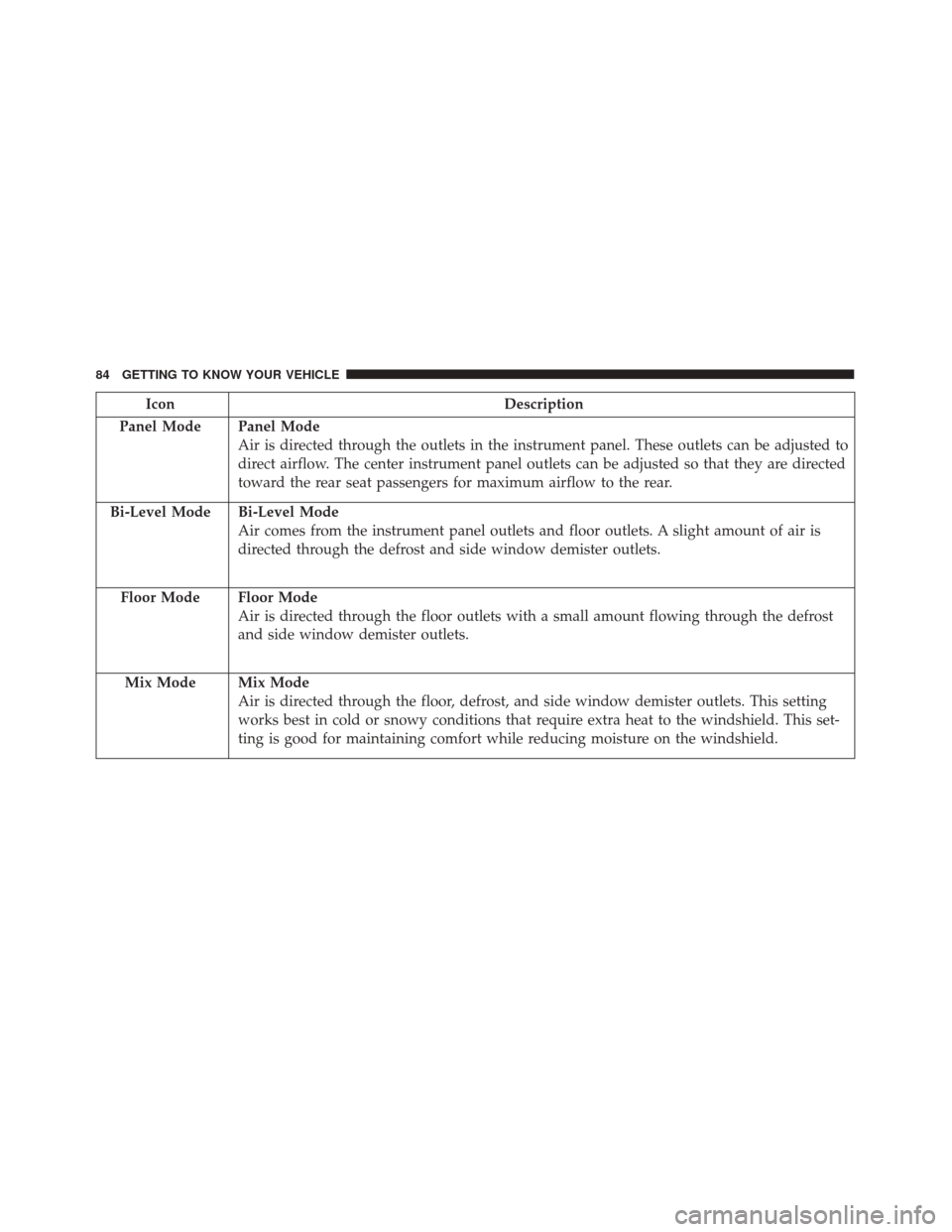

IconDescription
Panel Mode
Panel Mode
Air is directed through the outlets in the instrument panel. These outlets can be adjusted to
direct airflow. The center instrument panel outlets can be adjusted so that they are directed
toward the rear seat passengers for maximum airflow to the rear.
Bi-Level Mode
Bi-Level Mode
Air comes from the instrument panel outlets and floor outlets. A slight amount of air is
directed through the defrost and side window demister outlets.
Floor Mode
Floor Mode
Air is directed through the floor outlets with a small amount flowing through the defrost
and side window demister outlets.
Mix Mode
Mix Mode
Air is directed through the floor, defrost, and side window demister outlets. This setting
works best in cold or snowy conditions that require extra heat to the windshield. This set-
ting is good for maintaining comfort while reducing moisture on the windshield.
84 GETTING TO KNOW YOUR VEHICLE

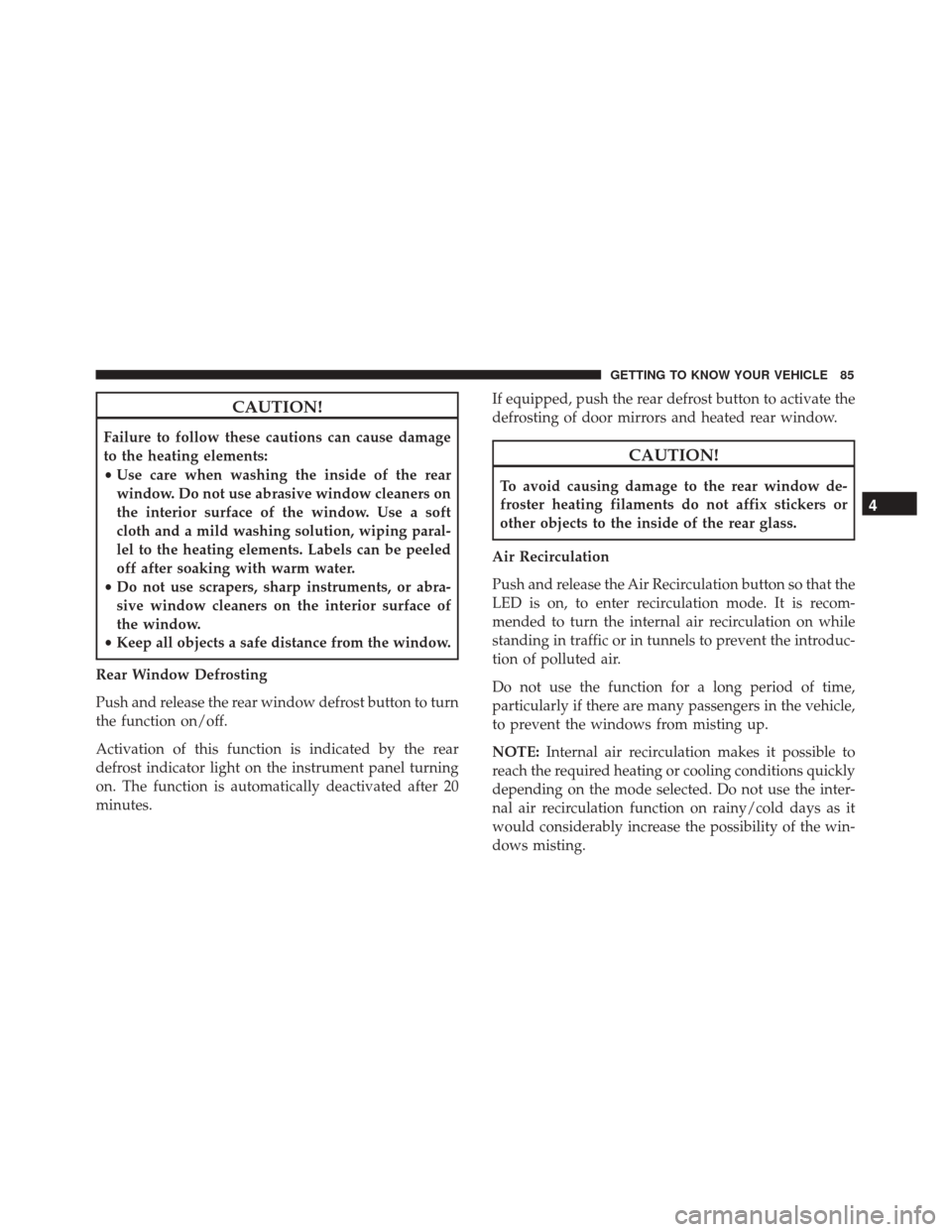

CAUTION!
Failure to follow these cautions can cause damage
to the heating elements:
•Use care when washing the inside of the rear
window. Do not use abrasive window cleaners on
the interior surface of the window. Use a soft
cloth and a mild washing solution, wiping paral-
lel to the heating elements. Labels can be peeled
off after soaking with warm water.
• Do not use scrapers, sharp instruments, or abra-
sive window cleaners on the interior surface of
the window.
• Keep all objects a safe distance from the window.
Rear Window Defrosting
Push and release the rear window defrost button to turn
the function on/off.
Activation of this function is indicated by the rear
defrost indicator light on the instrument panel turning
on. The function is automatically deactivated after 20
minutes. If equipped, push the rear defrost button to activate the
defrosting of door mirrors and heated rear window.
CAUTION!
To avoid causing damage to the rear window de-
froster heating filaments do not affix stickers or
other objects to the inside of the rear glass.
Air Recirculation
Push and release the Air Recirculation button so that the
LED is on, to enter recirculation mode. It is recom-
mended to turn the internal air recirculation on while
standing in traffic or in tunnels to prevent the introduc-
tion of polluted air.
Do not use the function for a long period of time,
particularly if there are many passengers in the vehicle,
to prevent the windows from misting up.
NOTE: Internal air recirculation makes it possible to
reach the required heating or cooling conditions quickly
depending on the mode selected. Do not use the inter-
nal air recirculation function on rainy/cold days as it
would considerably increase the possibility of the win-
dows misting.
4
GETTING TO KNOW YOUR VEHICLE 85

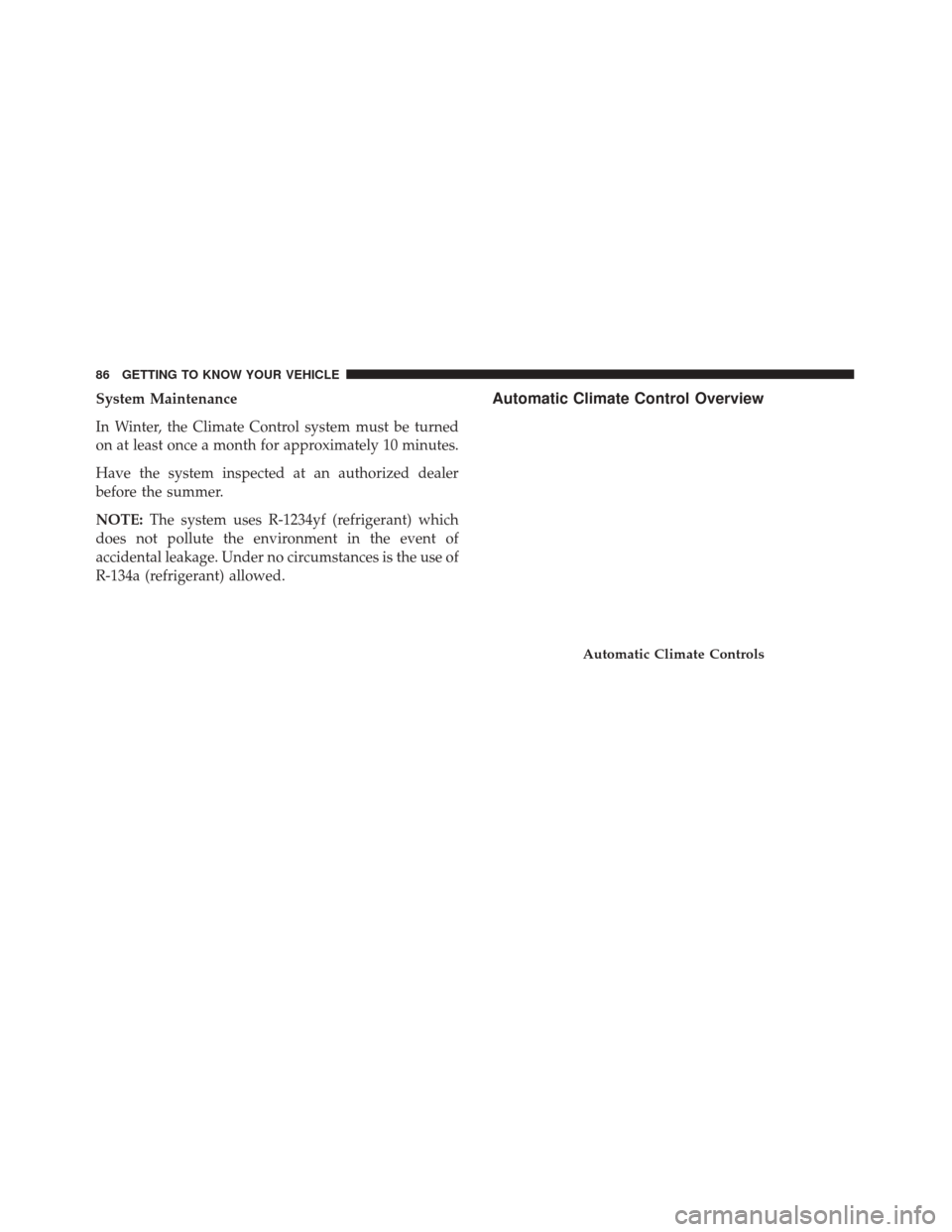

System Maintenance
In Winter, the Climate Control system must be turned
on at least once a month for approximately 10 minutes.
Have the system inspected at an authorized dealer
before the summer.
NOTE:The system uses R-1234yf (refrigerant) which
does not pollute the environment in the event of
accidental leakage. Under no circumstances is the use of
R-134a (refrigerant) allowed.Automatic Climate Control Overview
Automatic Climate Controls
86 GETTING TO KNOW YOUR VEHICLE
