2014 FIAT 500X Owners Manual

ParkSense Sensors
The four ParkSense sensors, located in the rear fascia/
bumper, monitor the area behind the vehicle that is
within the sensors’ field of view. The sensors can detect
obstacles from approximately 12 inches (30 cm) up to 59
inches (150 cm) from the rear fascia/bumper in the
horizontal direction, depending on the location, type
and orientation of the obstacle.Chime
By shifting the vehicle in REVERSE and in the case of
the presence of a rear obstacle, an acoustic signal that
varies with the distance of the obstacle from the bumper
is activated.
The frequency of the acoustic signal:
•
Increases with the distance between car and object
decreases.
• Becomes continuous when the distance that sepa-
rates the car from the obstacle is less than approxi-
mately 12 inches (30 cm), while terminates immedi-
ately if the distance to the obstacle increases.
• Remains constant if the distance between car and
obstacle remains unchanged. If this situation occurs
for the side sensors, the signal is stopped after
approximately three seconds to avoid, for example, it
activates in case of maneuver along a wall.
When the system emits a beeping sound, the volume of
the Uconnect system, if turned on, is automatically
lowered by ParkSense.
Parking Sensors
7
STARTING AND OPERATING 247

Detection Distances
If the sensors detect more obstacles, it is taken into
account only what is the shorter distance.
Instrument Cluster Display
ParkSense is displayed on the instrument cluster only if
you have selected the itemSound And Displayinside
the Settings menu of the Uconnect system.
If an obstacle is detected in the center rear region, the
display will show a single solid arc in the center rear
region and will produce a one-half second tone. As the
vehicle moves closer to the obstacle, the display will
show the single arc moving closer to the vehicle and the
sound tone will change from slow, to fast, to continu-
ous.
If an obstacle is detected in the left and/or right rear
region, the display will show a single flashing arc in the
left and/or right rear region and will produce a fast
sound tone. As the vehicle moves closer to the obstacle,
the display will show the single arc moving closer to the
vehicle and the tone will change from fast to continu-
ous. In general, the car is closest to the obstacle when the
display shows only a flashing arc and the chime be-
comes continuous.
The color on the display depends on the distance and
location of the obstacle.
Enabling And Disabling ParkSense
ParkSense can be enabled and disabled with the
ParkSense switch.
When the ParkSense switch is pushed to
disable the system, the instrument cluster will
display the “PARKSENSE OFF” message for
approximately five seconds. Refer to “Instru-
ment Cluster Display” in “Getting To Know Your
Instrument Panel” for further information. When the
gear selector is moved to REVERSE and the system is
disabled, the instrument cluster display will show the
“PARKSENSE OFF” message for as long as the vehicle
is in REVERSE.
The ParkSense switch LED will be on when ParkSense
is disabled or requires service. The ParkSense switch
LED will be off when the system is enabled. If the
248 STARTING AND OPERATING

ParkSense switch is pushed, and requires service, the
ParkSense switch LED will blink momentarily, and then
the LED will be on.
ParkSense will remember the previous state when the
vehicle is switch off.
CAUTION!
After turning the ignition to STOP, the ParkSense
remains in this setting until the next key cycle. This
is true even in the case of changing the ignition
from RUN to STOP, and then again to RUN.
Service The Rear Park Assist System
During vehicle start up, when the ParkSense Rear Park
Assist System has detected a faulted condition, the
instrument cluster will actuate a single chime, once per
ignition cycle, and it will display a dedicated message
such as “PARK ASSIST UNAVAILABLE WIPE REAR
SENSORS” or the “PARK ASSIST UNAVAILABLE SER-
VICE REQUIRED” message. Refer to “Instrument Clus-
ter Display” in “Getting To Know Your Instrument
Panel” for further information. When the gear selector
is moved to REVERSE and the system has detected a
faulted condition, the instrument cluster display willdisplay a dedicated message such as
PARK ASSIST
UNAVAILABLE WIPE REAR SENSORS or
PARKSENSE UNAVAILABLE SERVICE REQUIRED
message for as long as the vehicle is in REVERSE.
Under this condition, Rear Park Assist will not operate.
If a message such as “PARK ASSIST UNAVAILABLE
WIPE REAR SENSORS” appears in the instrument
cluster display, make sure the outer surface and the
underside of the rear fascia/bumper is clean and clear
of snow, ice, mud, dirt or other obstructions, and then
cycle the ignition. If the message continues to appear,
see an authorized dealer.
If a message such as “PARK ASSIST UNAVAILABLE
SERVICE REQUIRED” appears in the instrument clus-
ter display, see an authorized dealer.
ParkSense System Usage Precautions
NOTE:
• Ensure that the outer surface and the underside of
the rear bumper is clean and clear of snow, ice, mud,
dirt or other obstruction to keep the Rear ParkSense
system operating properly.
• Jackhammers, large trucks, and other vibrations
could affect the performance of Rear ParkSense.
7
STARTING AND OPERATING 249

•Clean the Rear ParkSense sensors regularly, taking
care not to scratch or damage them. The sensors must
not be covered with ice, snow, slush, mud, dirt or
debris. Failure to do so can result in the system not
working properly. The Rear ParkSense system might
not detect an obstacle behind the fascia/bumper, or it
could provide a false indication that an obstacle is
behind the fascia/bumper.
• Objects such as bicycle carriers, etc., must not be
placed within 12 inches (30 cm) from the rear fascia/
bumper while driving the vehicle. Failure to do so
can result in the system misinterpreting a close object
as a sensor problem, causing a failure indication to be
displayed in the instrument cluster.
WARNING!
• Drivers must be careful when backing up even
when using ParkSense. Always check carefully
behind your vehicle, look behind you, and be
sure to check for pedestrians, animals, other ve-
hicles, obstructions, and blind spots before back-
ing up. You are responsible for safety and must
continue to pay attention to your surroundings.
(Continued)
WARNING! (Continued)
Failure to do so can result in serious injury or
death.
• Before using ParkSense, it is strongly recom-
mended that the ball mount and hitch ball assem-
bly is disconnected from the vehicle when the
vehicle is not used for towing. Failure to do so can
result in injury or damage to vehicles or obstacles
because the hitch ball will be much closer to the
obstacle than the rear fascia when the loud-
speaker sounds the continuous tone. Also, the
sensors could detect the ball mount and hitch ball
assembly, depending on its size and shape, giving
a false indication that an obstacle is behind the
vehicle.
CAUTION!
• ParkSense is only a parking aid and it is unable to
recognize every obstacle, including small ob-
stacles. Parking curbs might be temporarily de-
tected or not detected at all. Obstacles located
(Continued)
250 STARTING AND OPERATING

CAUTION!(Continued)
above or below the sensors will not be detected
when they are in close proximity.
• The vehicle must be driven slowly when using
ParkSense in order to be able to stop in time
when an obstacle is detected. It is recommended
that the driver looks over his/her shoulder when
using ParkSense.
If it’s necessary to keep the trailer hitch and hitch ball
assembly mounted for a long period, it is possible to
filter out the trailer hitch and hitch ball assembly
presence in sensor field of view. The filtering operation
must be performed only by an authorized dealer.
LANESENSE — IF EQUIPPED
LaneSense Operation
The LaneSense system is operational at speeds above
37 mph (60 km/h) and below 112 mph (180 km/h). The
LaneSense system uses a forward looking camera to
detect lane markings and measure vehicle position
within the lane boundaries. When both lane markings are detected and the driver
unintentionally drifts out of the lane (no turn signal
applied), the LaneSense system provides a haptic warn-
ing in the form of torque applied to the steering wheel
to prompt the driver to remain within the lane bound-
aries. If the driver continues to unintentionally drift out
of the lane, the LaneSense system provides a visual
warning through the instrument cluster display to
prompt the driver to remain within the lane boundaries.
The driver may manually override the haptic warning
by applying torque into the steering wheel at any time.
When only a single lane marking is detected and the
driver unintentionally drifts across the lane marking
(no turn signal applied), the LaneSense system provides
a visual warning through the instrument cluster display
to prompt the driver to remain within the lane. When
only a single lane marking is detected, a haptic (torque)
warning will not be provided.
NOTE:
When operating conditions have been met, the
LaneSense system will monitor if the driver ’s hands are
on the steering wheel and provides an audible warning
to the driver when the driver ’s hands are not detected
on the steering wheel. The system will cancel if the
driver does not return their hands to the wheel.
7
STARTING AND OPERATING 251

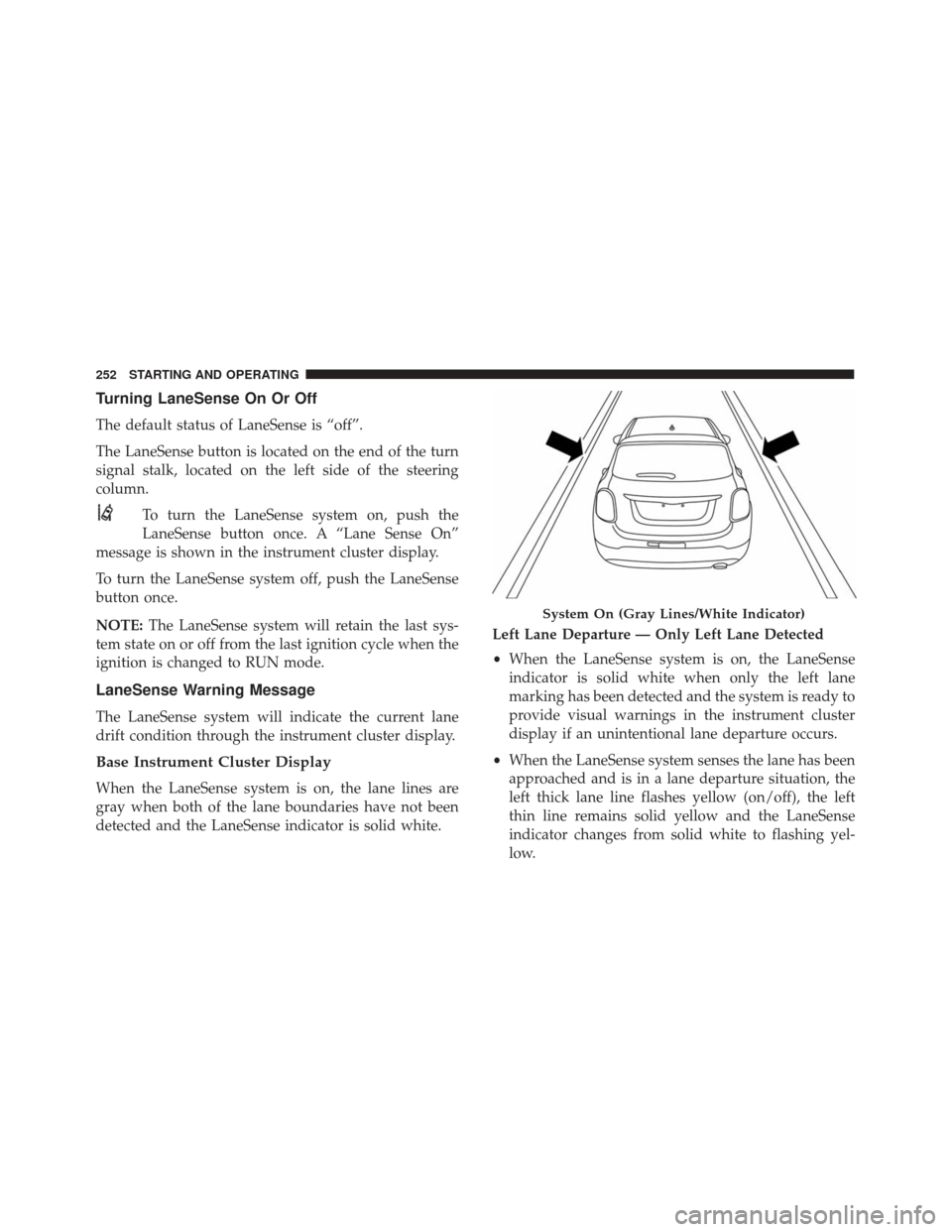

Turning LaneSense On Or Off
The default status of LaneSense is “off”.
The LaneSense button is located on the end of the turn
signal stalk, located on the left side of the steering
column.To turn the LaneSense system on, push the
LaneSense button once. A “Lane Sense On”
message is shown in the instrument cluster display.
To turn the LaneSense system off, push the LaneSense
button once.
NOTE: The LaneSense system will retain the last sys-
tem state on or off from the last ignition cycle when the
ignition is changed to RUN mode.
LaneSense Warning Message
The LaneSense system will indicate the current lane
drift condition through the instrument cluster display.
Base Instrument Cluster Display
When the LaneSense system is on, the lane lines are
gray when both of the lane boundaries have not been
detected and the LaneSense indicator is solid white. Left Lane Departure — Only Left Lane Detected
•
When the LaneSense system is on, the LaneSense
indicator is solid white when only the left lane
marking has been detected and the system is ready to
provide visual warnings in the instrument cluster
display if an unintentional lane departure occurs.
• When the LaneSense system senses the lane has been
approached and is in a lane departure situation, the
left thick lane line flashes yellow (on/off), the left
thin line remains solid yellow and the LaneSense
indicator changes from solid white to flashing yel-
low.
System On (Gray Lines/White Indicator)
252 STARTING AND OPERATING

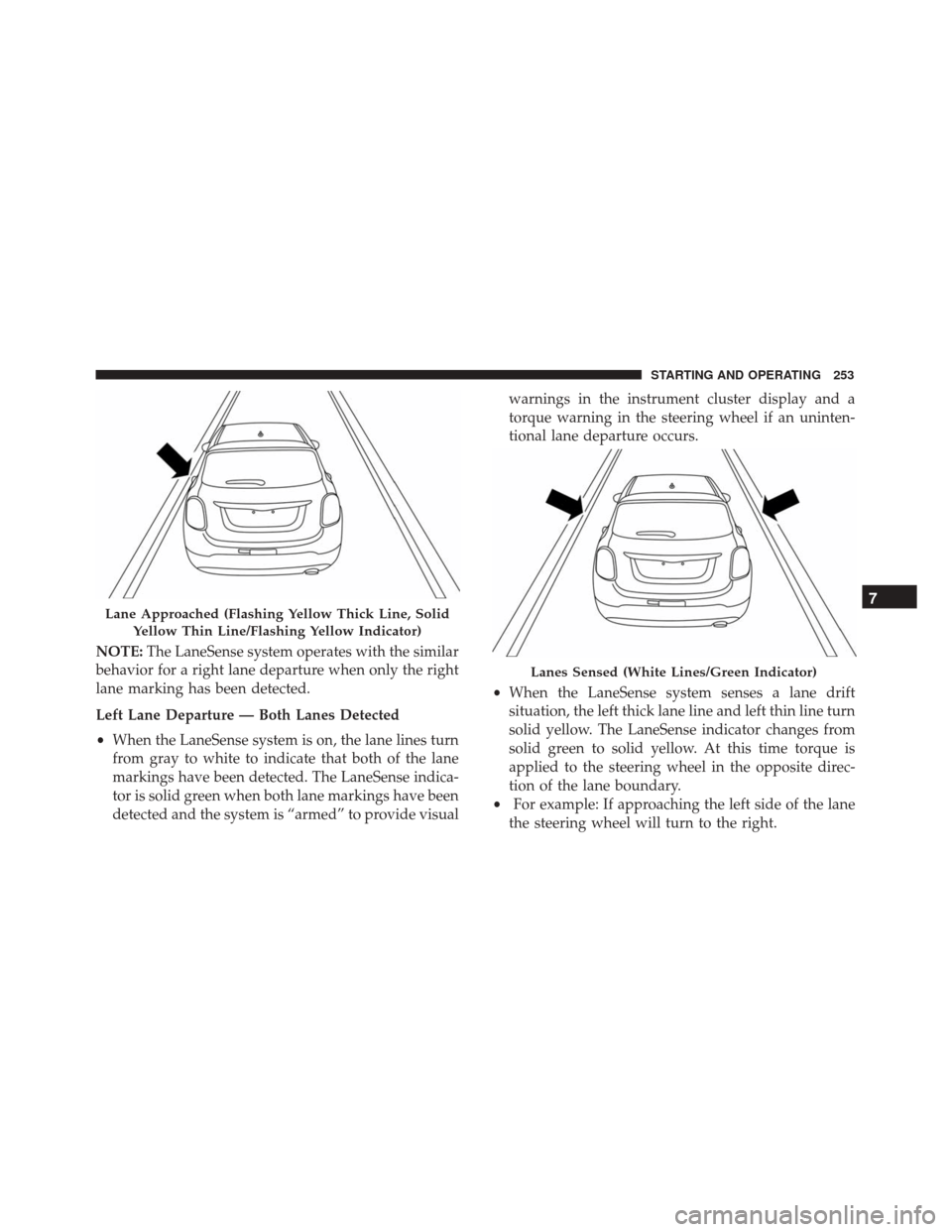

NOTE:The LaneSense system operates with the similar
behavior for a right lane departure when only the right
lane marking has been detected.
Left Lane Departure — Both Lanes Detected
• When the LaneSense system is on, the lane lines turn
from gray to white to indicate that both of the lane
markings have been detected. The LaneSense indica-
tor is solid green when both lane markings have been
detected and the system is “armed” to provide visual warnings in the instrument cluster display and a
torque warning in the steering wheel if an uninten-
tional lane departure occurs.
• When the LaneSense system senses a lane drift
situation, the left thick lane line and left thin line turn
solid yellow. The LaneSense indicator changes from
solid green to solid yellow. At this time torque is
applied to the steering wheel in the opposite direc-
tion of the lane boundary.
• For example: If approaching the left side of the lane
the steering wheel will turn to the right.
Lane Approached (Flashing Yellow Thick Line, Solid
Yellow Thin Line/Flashing Yellow Indicator)
Lanes Sensed (White Lines/Green Indicator)
7
STARTING AND OPERATING 253

•When the LaneSense system senses the lane has been
approached and is in a lane departure situation, the
left thick lane line flashes yellow (on/off) and the left
thin line remains solid yellow. The LaneSense indi-
cator changes from solid yellow to flashing yellow.
At this time torque is applied to the steering wheel in
the opposite direction of the lane boundary.
• For example: If approaching the left side of the lane
the steering wheel will turn to the right. NOTE:
The LaneSense system operates with the similar
behavior for a right lane departure.
Changing LaneSense Status
The LaneSense system has settings to adjust the inten-
sity of the torque warning and the warning zone
sensitivity (early/late) that you can configure through
the Uconnect system screen. Refer to “Uconnect Set-
tings” in “Multimedia” for further information.

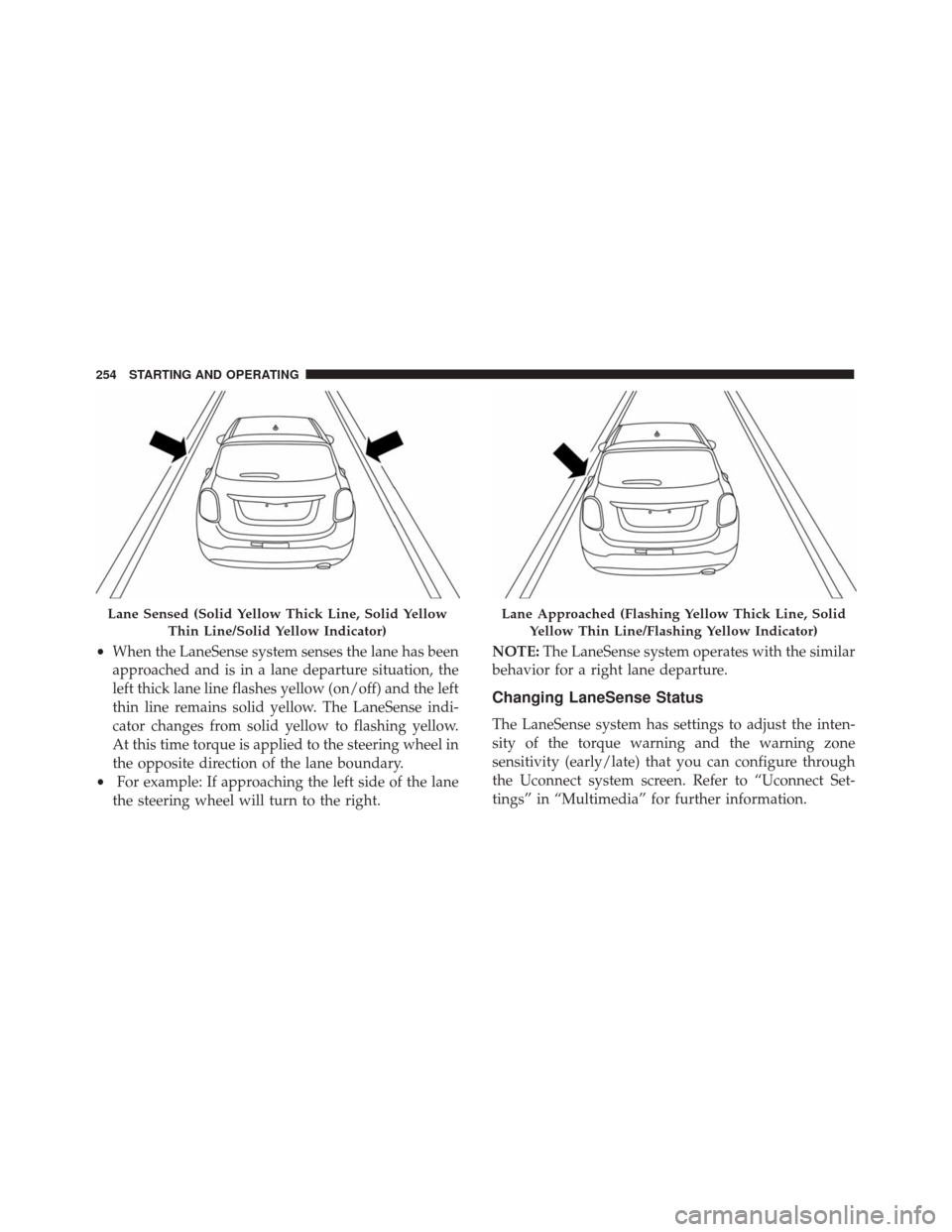

Lane Sensed (Solid Yellow Thick Line, Solid Yellow
Thin Line/Solid Yellow Indicator)Lane Approached (Flashing Yellow Thick Line, SolidYellow Thin Line/Flashing Yellow Indicator)
254 STARTING AND OPERATING
