2014 FIAT 500X Owners Manual

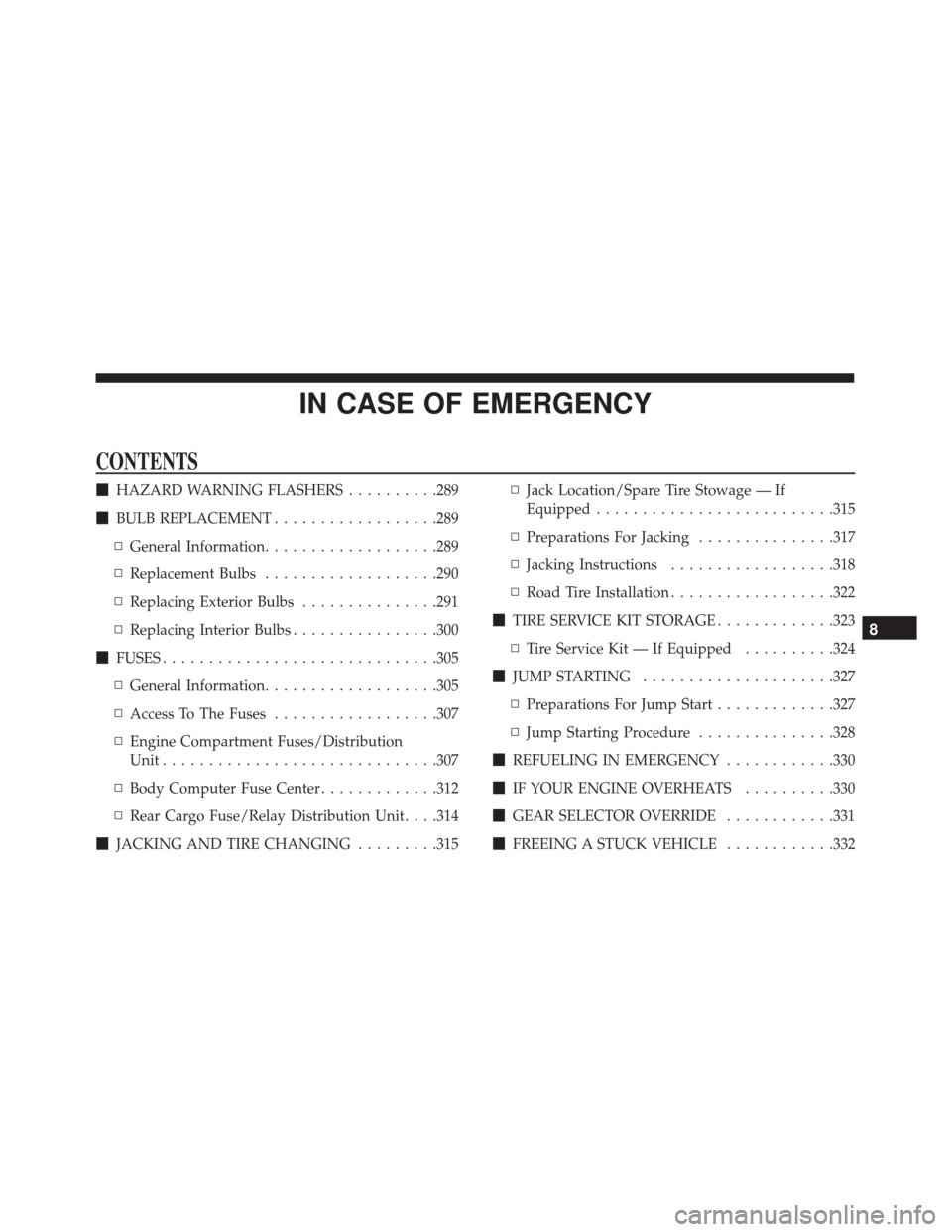

IN CASE OF EMERGENCY
CONTENTS
HAZARD WARNING FLASHERS ..........289
 BULB REPLACEMENT ..................289
▫ General Information ...................289
▫ Replacement Bulbs ...................290
▫ Replacing Exterior Bulbs ...............291
▫ Replacing Interior Bulbs ................300
 FUSES ............................. .305
▫ General Information ...................305
▫ Access To The Fuses ..................307
▫ Engine Compartment Fuses/Distribution
Unit ............................. .307
▫ Body Computer Fuse Center .............312
▫ Rear Cargo Fuse/Relay Distribution Unit. . . .314
 JACKING AND TIRE CHANGING .........315▫
Jack Location/Spare Tire Stowage — If
Equipped ......................... .315
▫ Preparations For Jacking ...............317
▫ Jacking Instructions ..................318
▫ Road Tire Installation ..................322
 TIRE SERVICE KIT STORAGE .............323
▫ Tire Service Kit — If Equipped ..........324
 JUMP STARTING .....................327
▫ Preparations For Jump Start .............327
▫ Jump Starting Procedure ...............328
 REFUELING IN EMERGENCY ............330
 IF YOUR ENGINE OVERHEATS ..........330
 GEAR SELECTOR OVERRIDE ............331
 FREEING
A STUCK VEHICLE ............332
8

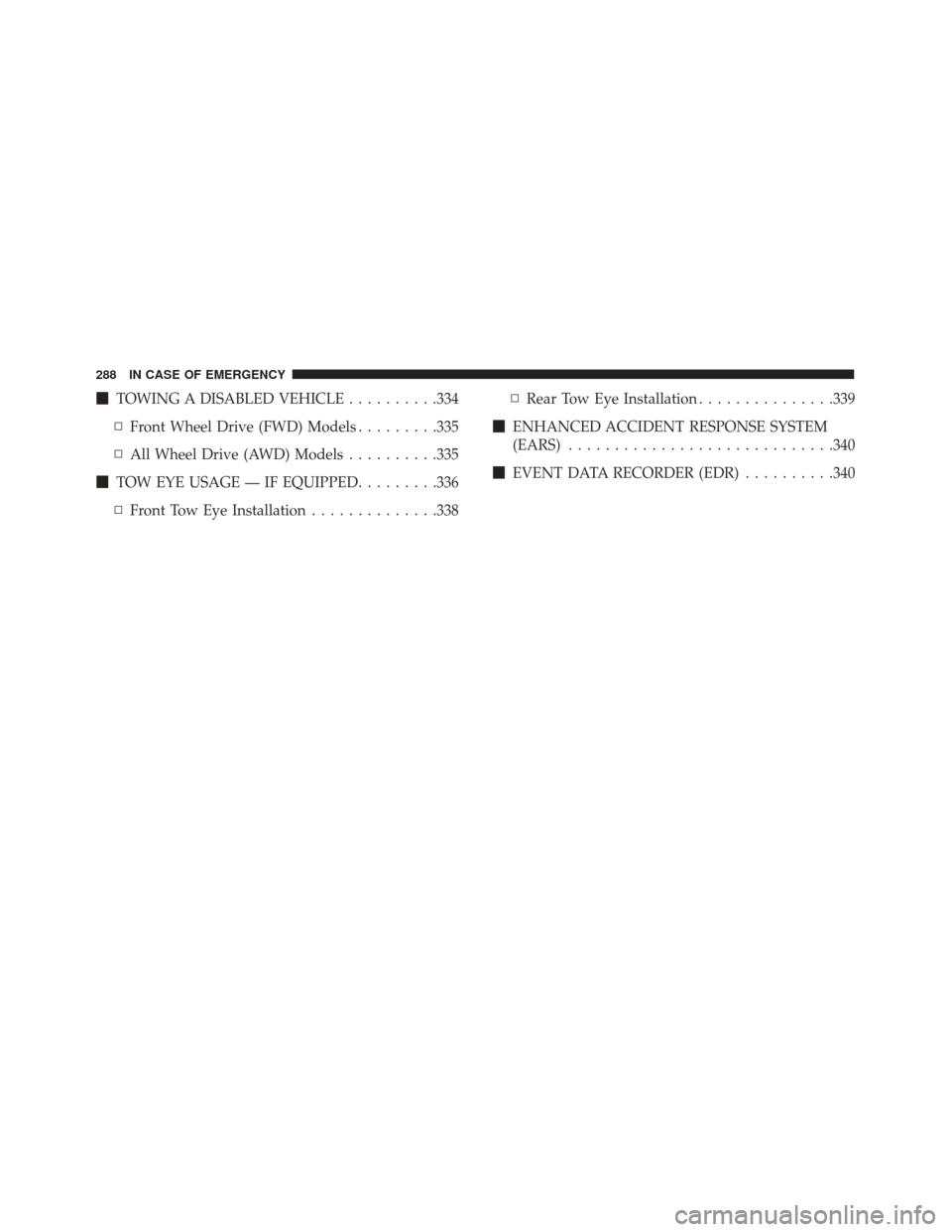

TOWING A DISABLED VEHICLE ..........334
▫ Front Wheel Drive (FWD) Models .........335
▫ All Wheel Drive (AWD) Models ..........335
 TOW EYE USAGE — IF EQUIPPED .........336
▫ Front Tow Eye Installation ..............338 ▫
Rear Tow Eye Installation ...............339
 ENHANCED ACCIDENT RESPONSE SYSTEM
(EARS) ............................ .340
 EVENT DATA RECORDER (EDR) ..........340
288 IN CASE OF EMERGENCY

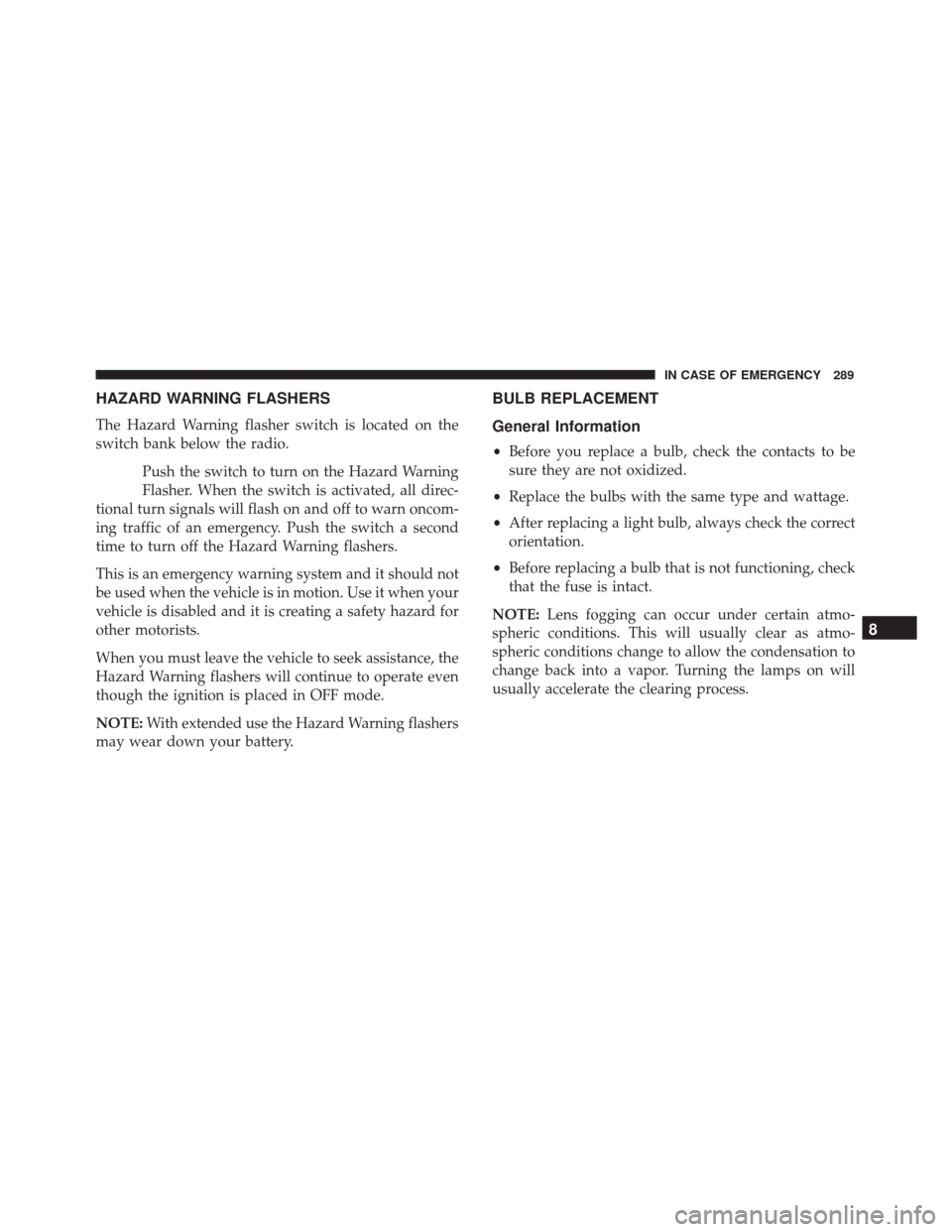

HAZARD WARNING FLASHERS
The Hazard Warning flasher switch is located on the
switch bank below the radio.Push the switch to turn on the Hazard Warning
Flasher. When the switch is activated, all direc-
tional turn signals will flash on and off to warn oncom-
ing traffic of an emergency. Push the switch a second
time to turn off the Hazard Warning flashers.
This is an emergency warning system and it should not
be used when the vehicle is in motion. Use it when your
vehicle is disabled and it is creating a safety hazard for
other motorists.
When you must leave the vehicle to seek assistance, the
Hazard Warning flashers will continue to operate even
though the ignition is placed in OFF mode.
NOTE: With extended use the Hazard Warning flashers
may wear down your battery.
BULB REPLACEMENT
General Information
• Before you replace a bulb, check the contacts to be
sure they are not oxidized.
• Replace the bulbs with the same type and wattage.
• After replacing a light bulb, always check the correct
orientation.
• Before replacing a bulb that is not functioning, check
that the fuse is intact.
NOTE: Lens fogging can occur under certain atmo-
spheric conditions. This will usually clear as atmo-
spheric conditions change to allow the condensation to
change back into a vapor. Turning the lamps on will
usually accelerate the clearing process.
8
IN CASE OF EMERGENCY 289

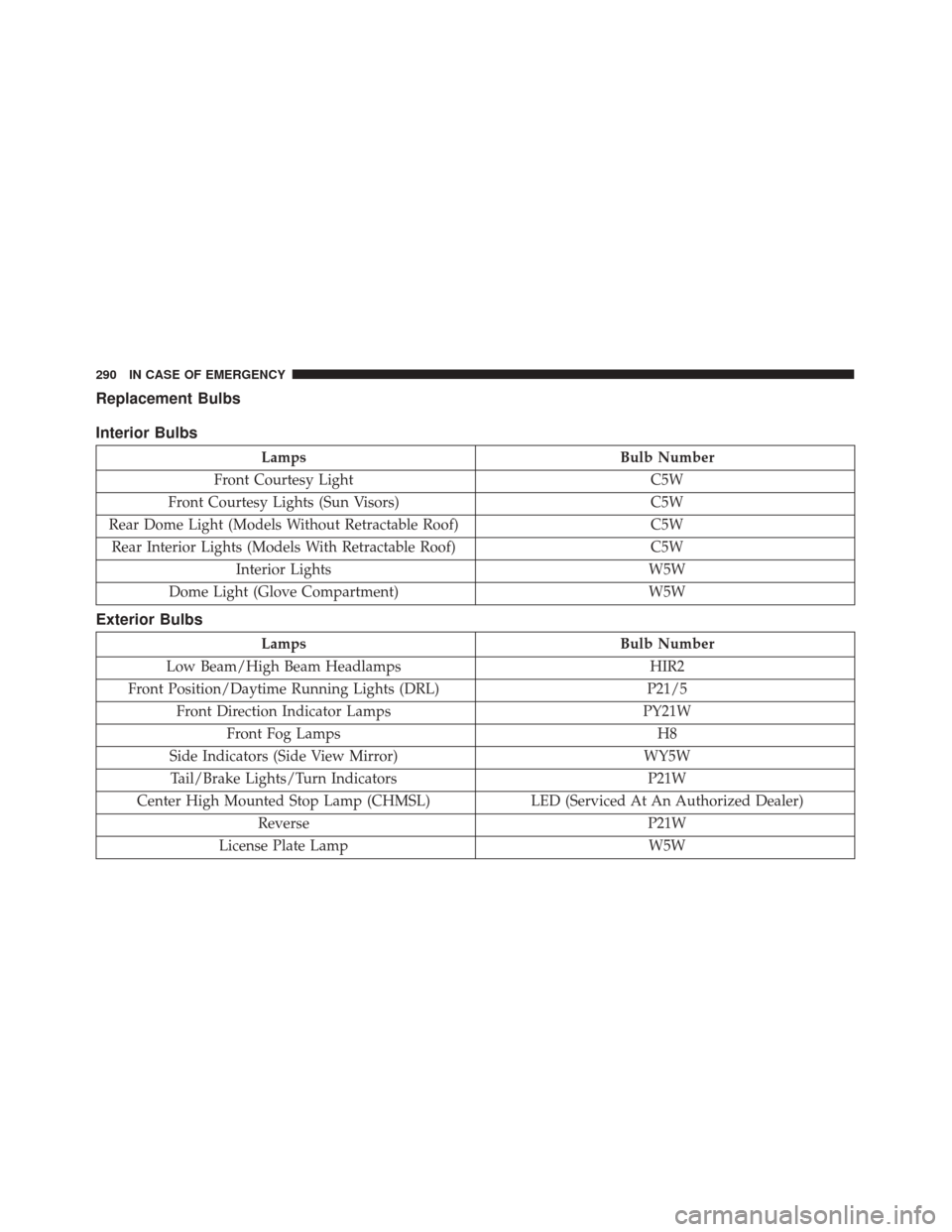

Replacement Bulbs
Interior Bulbs
LampsBulb Number
Front Courtesy Light C5W
Front Courtesy Lights (Sun Visors) C5W
Rear Dome Light (Models Without Retractable Roof) C5W
Rear Interior Lights (Models With Retractable Roof) C5W
Interior Lights W5W
Dome Light (Glove Compartment) W5W
Exterior Bulbs
LampsBulb Number
Low Beam/High Beam Headlamps HIR2
Front Position/Daytime Running Lights (DRL) P21/5
Front Direction Indicator Lamps PY21W
Front Fog Lamps H8
Side Indicators (Side View Mirror) WY5W
Tail/Brake Lights/Turn Indicators P21W
Center High Mounted Stop Lamp (CHMSL) LED (Serviced At An Authorized Dealer)
Reverse P21W
License Plate Lamp W5W
290 IN CASE OF EMERGENCY

Replacing Exterior Bulbs
HeadlampsHi/Lo Beam Light Halogen
To replace the bulbs proceed as follows:
1. Open the engine compartment and remove the head-
lamp bulb cap.
Front Lamps
1 — Headlamps
2 — Daytime Running Lamps
3 — Directional Indicators
4 — Fog Lamps — If Equipped
Headlamp Bulb Cap
8
IN CASE OF EMERGENCY 291

2. Rotate the headlamp bulb socket counterclockwisethen pull outwards.
3. Release the locking tab on the headlamp bulb con- nector and remove the bulb and socket. 4. Install the new headlamp bulb making sure it is
properly locked.
Headlamp Bulb Socket
Headlamp Bulb Connector
292 IN CASE OF EMERGENCY

5. Install the headlamp bulb and socket; align the tabsand turn it clockwise making sure it is properly
locked.
WARNING!
Carry out the operation of replacing lamps only
with the engine off. Also make sure that the engine
is cold, to avoid the danger of burns. Position Lights/Daytime Running Lights/Fog Lights
To replace the bulbs proceed as follows:
1. Turn the front wheels completely.
2. Use a suitable tool to remove the access door.
3. Remove the electrical connectors.
Headlamp Bulb Connector
Position Light/Daytime Running Light/Fog light Access
1 — Screws
2 — Access Door
8
IN CASE OF EMERGENCY 293

4. Rotate in a counterclockwise direction and removethe bulb and bulb socket.
5. To replace the bulb gently push bulb and rotate counterclockwise. 6. Insert the new bulb by pushing on it and turning it
clockwise. Make sure the bulb is correctly locked in
place.
7. Install the bulb and sockets and rotate them clock- wise, making sure that it is properly locked.
8. Reconnect the electrical connectors.
9. Reinstall the access door.
Position Light/Daytime Running Light Assembly
1 — DRL Bulb Socket
2 — Turn Signal Bulb Socket
Bulb and Socket Assembly
1 — Bulb
2 — Rotate Bulb
294 IN CASE OF EMERGENCY
