2014 FIAT 500X Owners Manual

Display
After pressing the “Display” button on the touchscreen,
the following settings will be available:
Setting NameSelectable Options
Display Mode AutoManual
NOTE: When Day or Night is selected for the Display Mode, the usage of the Parade Mode feature will cause
the radio to activate the Display Brightness Day control even though the headlights are on.
Display Brightness With Head- lights ON +–
Display Brightness With Head- lights OFF +–
Set Language English/Español/Français
Touchscreen Beep OnOff
11
MULTIMEDIA 431

Units
After pressing the “Units” button on the touchscreen,
you may select each unit of measure independently
displayed in the instrument cluster display. The follow-
ing selectable units of measure are listed below:
Setting NameSelectable Options
US
Metric
NOTE: When US is selected, Distance is set on miles, Fuel Consumption is set on MPG (US), Pressure is set on
psi, and Temperature is set on °F. When Metric is selected, Distance is set on km, Fuel Consumption is set on
L/100 km, Pressure is set on bar, and Temperature is set on °C.
After pressing the “Custom” button with “Units” on the
touchscreen, you may select from the following menu
items:
Setting Name Selectable Options
Distance mi km
Fuel Consumption MPG (US)MPG (UK)L/100 kmkm/L
Pressure psikPa bar
Temperature °C °F
432 MULTIMEDIA

Voice
After pressing the “Voice” button on the touchscreen,
the following settings will be available:
Setting NameSelectable Options
Voice Response Length Brief Detailed
Show Command List AlwaysWith Help Never
Clock
After pressing the “Clock” button on the touchscreen,
the following settings will be available:
Setting Name Selectable Options
Show Time In Status Bar OnOff
Sync Time With GPS OnOff
Set Day +–
Set Month +–
Set Year +–
Set Hours +–
Set Minutes +–
Time Format 12 hrs24 hrs
11
MULTIMEDIA 433

Safety & Driving Assistance
After pressing the “Safety & Driving Assistance” button
on the touchscreen, the following settings will be avail-
able:
Setting NameSelectable Options
Forward Collision
Warning-Plus (FCW+) — If Equipped Near
Medium Far
NOTE: The Front Collision Warning (FCW+) feature can be set to Far, Medium, or Near. The default status of
FCW+ is the Far setting. This means the system will warn you of a possible collision with the vehicle in front
of you when you are farther away. This gives you the most reaction time. To change the setting for a more dy-
namic driving experience, select the Near setting. This warns you of a possible collision when you are much
closer to the vehicle in front of you.
Forward Collision
Warning-Plus (FCW+) Active Braking — If Equipped Off
AudioAudio & Brake
NOTE: The FCW+ system includes Advanced Brake Assist (ABA). When this feature is selected, it will apply
the brakes to slow your vehicle in case of potential forward collision. The ABA applies additional brake pres-
sure when the driver requests insufficient brake pressure to avoid a potential frontal collision. The ABA system
becomes active at 5 mph (8 km/h).
434 MULTIMEDIA

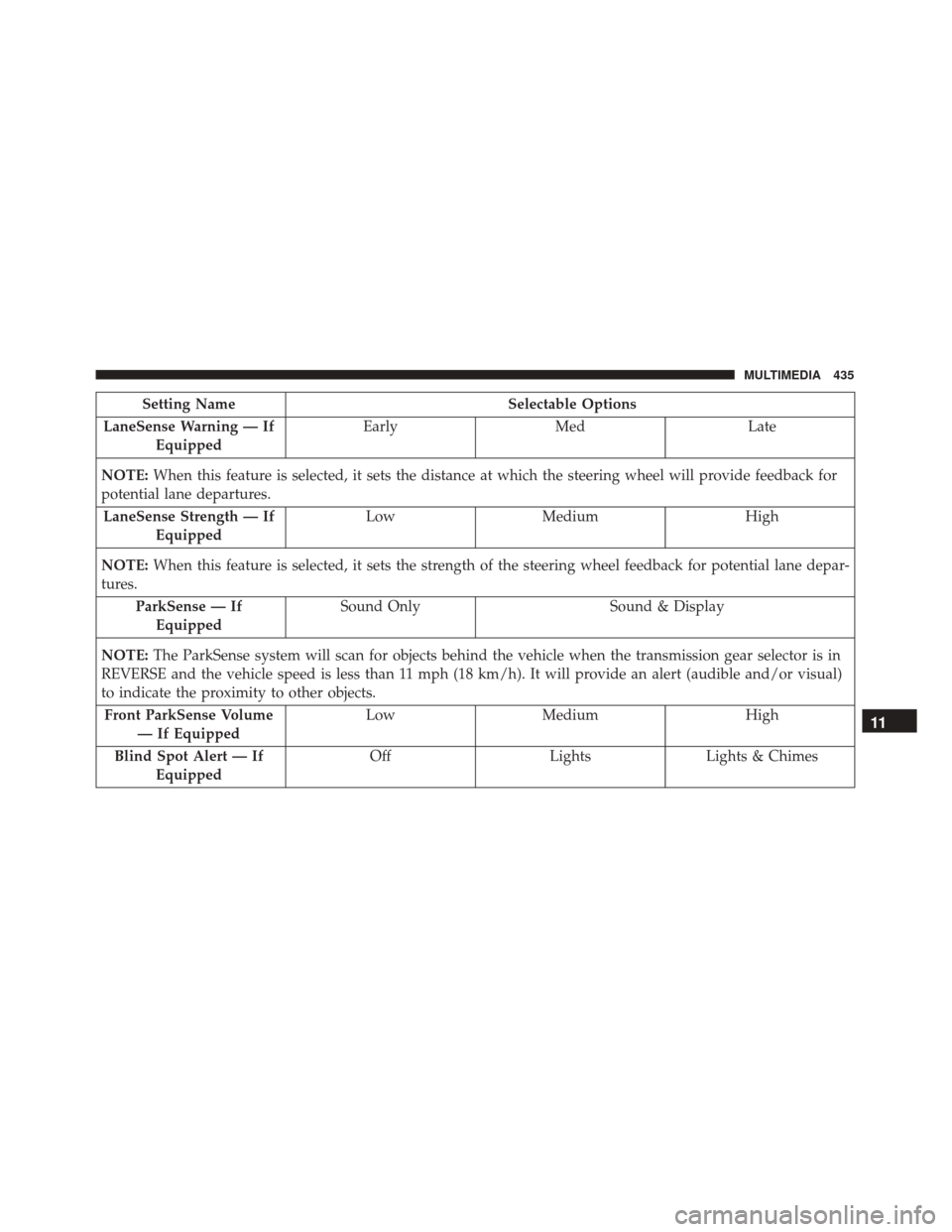

Setting NameSelectable Options
LaneSense Warning — If Equipped Early
Med Late
NOTE: When this feature is selected, it sets the distance at which the steering wheel will provide feedback for
potential lane departures.
LaneSense Strength — If Equipped Low
Medium High
NOTE: When this feature is selected, it sets the strength of the steering wheel feedback for potential lane depar-
tures.
ParkSense — IfEquipped Sound Only
Sound & Display
NOTE: The ParkSense system will scan for objects behind the vehicle when the transmission gear selector is in
REVERSE and the vehicle speed is less than 11 mph (18 km/h). It will provide an alert (audible and/or visual)
to indicate the proximity to other objects.
Front ParkSense Volume — If Equipped Low
Medium High
Blind Spot Alert — If Equipped Off
LightsLights & Chimes
11
MULTIMEDIA 435

Setting NameSelectable Options
NOTE:
•When this feature is selected, the Blind Spot Alert feature can be set to Off, Lights or Lights and Chime. The
Blind Spot Alert feature can be activated in Lights mode. When this mode is selected, the Blind Spot Monitor
(BSM) system is activated and will only show a visual alert in the outside mirrors. When Lights & Chime
mode is activated, the Blind Spot Monitor (BSM) will show a visual alert in the outside mirrors as well as an
audible alert when the turn signal is on. When Off is selected, the Blind Spot Monitor (BSM) system is deac-
tivated.
•If your vehicle has experienced any damage in the area where the sensor is located, even if the fascia is not
damaged, the sensor may have become misaligned. Take your vehicle to an authorized dealer to verify sen-
sor alignment. A sensor that is misaligned will result in the BSM not operating to specification.
ParkView Backup Cam-
era Active Guidelines — If Equipped On Off
NOTE: Your vehicle may be equipped with the ParkView Rear Back Up Camera Active Guidelines that allows
you to see active guidelines over the ParkView Back up camera display whenever the gear selector is put into
REVERSE. The image will be displayed on the radio touchscreen display along with a caution note to “check
entire surroundings” across the top of the screen. After five seconds, this note will disappear.
436 MULTIMEDIA

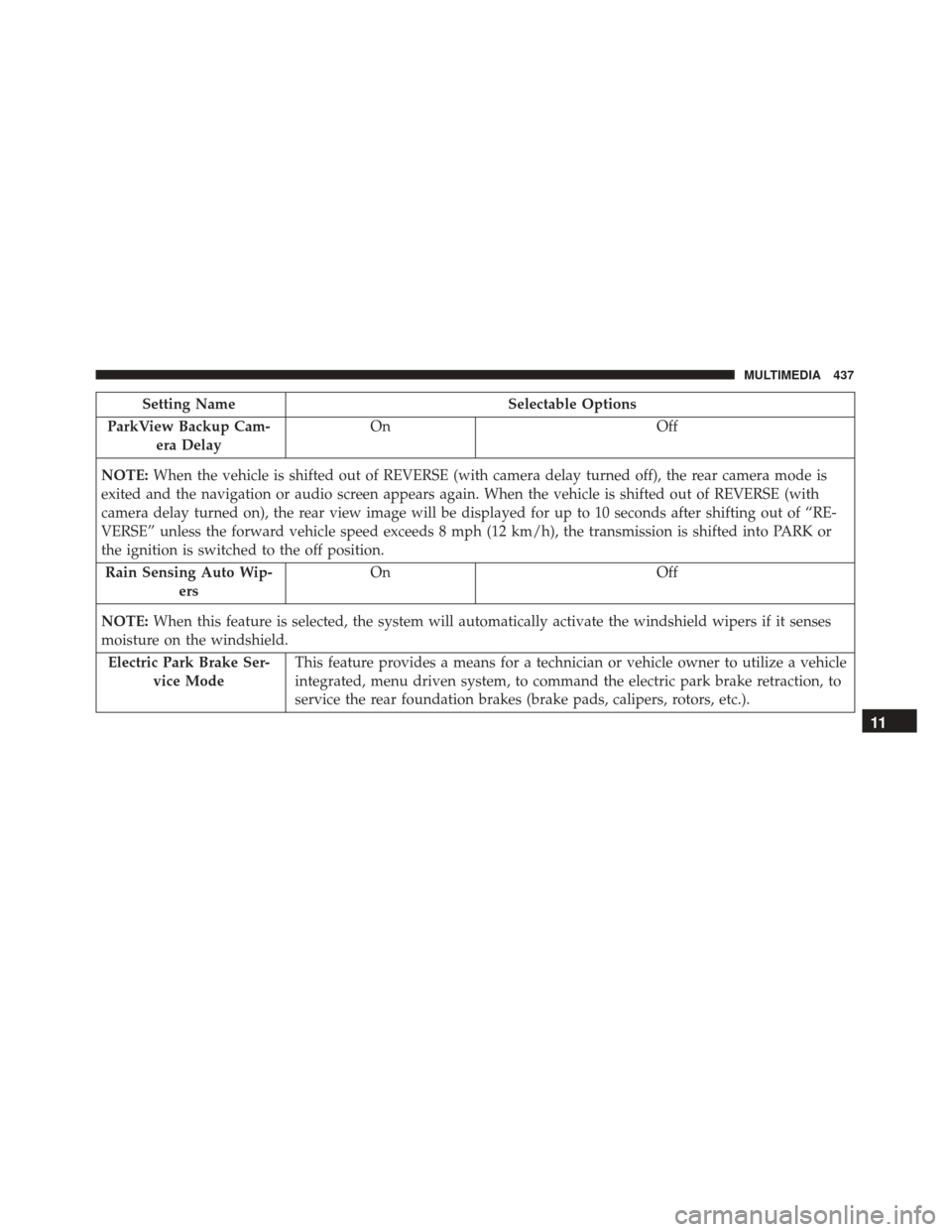

Setting NameSelectable Options
ParkView Backup Cam- era Delay On
Off
NOTE: When the vehicle is shifted out of REVERSE (with camera delay turned off), the rear camera mode is
exited and the navigation or audio screen appears again. When the vehicle is shifted out of REVERSE (with
camera delay turned on), the rear view image will be displayed for up to 10 seconds after shifting out of “RE-
VERSE” unless the forward vehicle speed exceeds 8 mph (12 km/h), the transmission is shifted into PARK or
the ignition is switched to the off position.
Rain Sensing Auto Wip- ers On
Off
NOTE: When this feature is selected, the system will automatically activate the windshield wipers if it senses
moisture on the windshield.
Electric Park Brake Ser- vice Mode This feature provides a means for a technician or vehicle owner to utilize a vehicle
integrated, menu driven system, to command the electric park brake retraction, to
service the rear foundation brakes (brake pads, calipers, rotors, etc.).
11
MULTIMEDIA 437

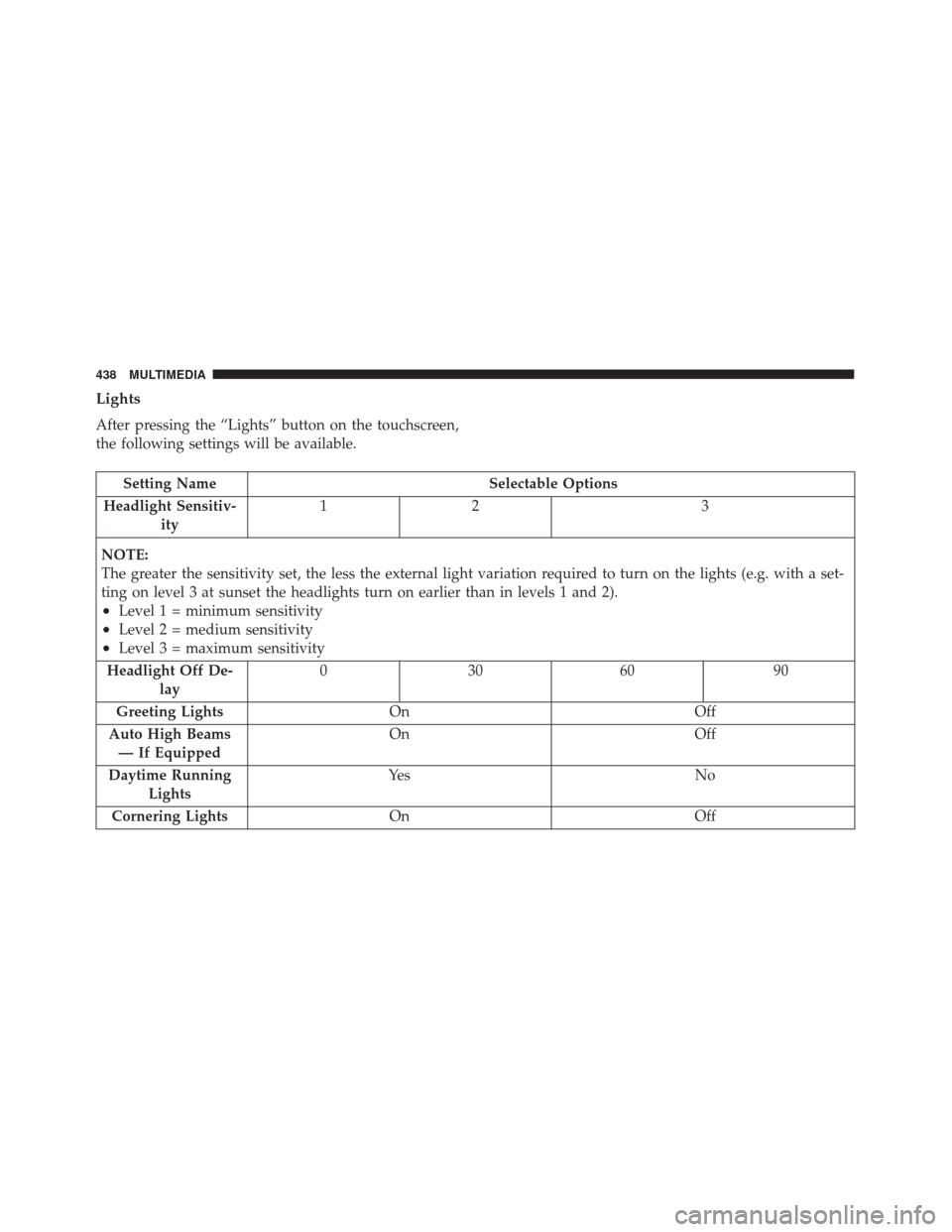

Lights
After pressing the “Lights” button on the touchscreen,
the following settings will be available.
Setting NameSelectable Options
Headlight Sensitiv- ity 12
3
NOTE:
The greater the sensitivity set, the less the external light variation required to turn on the lights (e.g. with a set-
ting on level 3 at sunset the headlights turn on earlier than in levels 1 and 2).
•Level 1 = minimum sensitivity
•Level 2 = medium sensitivity
•Level 3 = maximum sensitivity
Headlight Off De- lay 03
0609 0
Greeting Lights On Off
Auto High Beams — If Equipped On
Off
Daytime Running Lights Ye s
N o
Cornering Lights On Off
438 MULTIMEDIA
