2014 FIAT 500X Owners Manual

•If the vehicle is unlocked by the Passive Entry Door
Handle, and no door goes ajar within 60 seconds, the
vehicle will re-lock and if equipped, the security
alarm will arm.
• The key fob may not be able to be detected by the
vehicle keyless-go system if it is located next to a
mobile phone, laptop or other electronic device; these
devices may block the key fob’s wireless signal and
prevent the keyless-go system from starting the ve-
hicle.
To Unlock From The Driver’s Side
With a valid Passive Entry key fob within 5 ft (1.5 m) of
the driver’s door handle, grab the front driver door
handle to unlock the driver’s door automatically. NOTE:
If “Unlock All Doors 1st Press” is programmed,
all doors will unlock when you grab hold of the front
driver ’s door handle. To select between “Unlock Driver
Door 1st Press” and “Unlock All Doors 1st Press,” refer
to “Uconnect Settings” in “Multimedia” for further
information.
To Unlock From The Passenger Side
With a valid Passive Entry key fob within 5 ft (1.5 m) of
the passenger door handle, grab the front passenger
door handle to unlock all four doors and the liftgate
automatically.
Grab The Door Handle To Unlock
4
GETTING TO KNOW YOUR VEHICLE 39

NOTE:All doors will unlock when the front passenger
door handle is grabbed regardless of the driver ’s door
unlock preference setting (“Unlock Driver Door 1st
Press” or “Unlock All Doors 1st Press”).
To Lock The Vehicle’s Doors And Liftgate
With one of the vehicle’s Passive Entry key fob within 5
ft (1.5 m) of the driver or passenger front door handles,
push the door handle lock button to lock all four doors.
Do NOT grab the door handle when pushing the door
handle lock button. This could unlock the door(s).
NOTE:The Passive Entry system will not operate if the
key fob battery is dead.
The vehicle doors can also be locked by using the lock
button located on the vehicle’s interior door panel.
Preventing Inadvertent Locking Of Passive Entry Key
Fob In Vehicle (FOBIK-Safe)
To minimize the possibility of unintentionally locking a
Passive Entry key fob inside your vehicle, the Passive
Entry system is equipped with an automatic door
unlock feature which will function if the ignition switch
is in the OFF position.

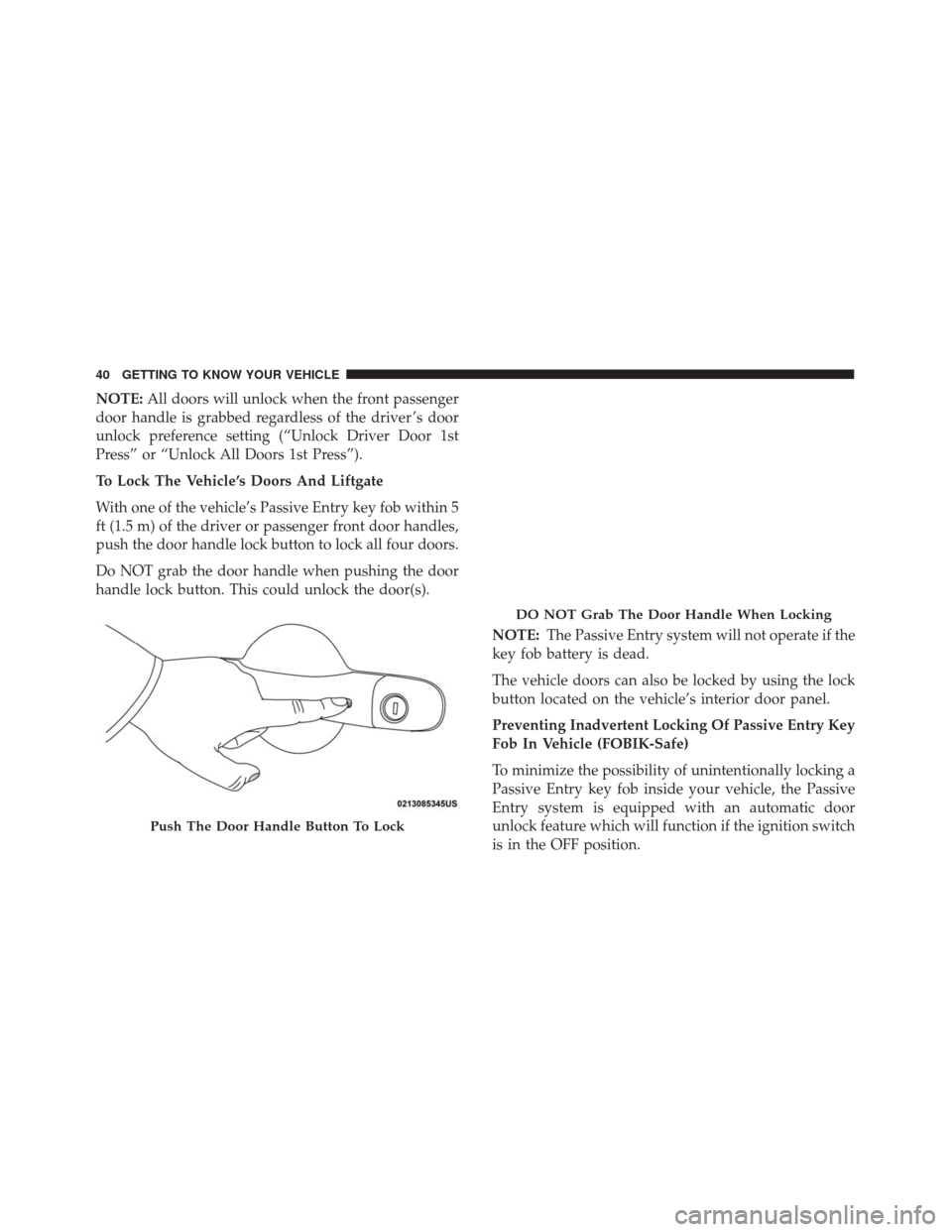

Push The Door Handle Button To Lock
DO NOT Grab The Door Handle When Locking
40 GETTING TO KNOW YOUR VEHICLE

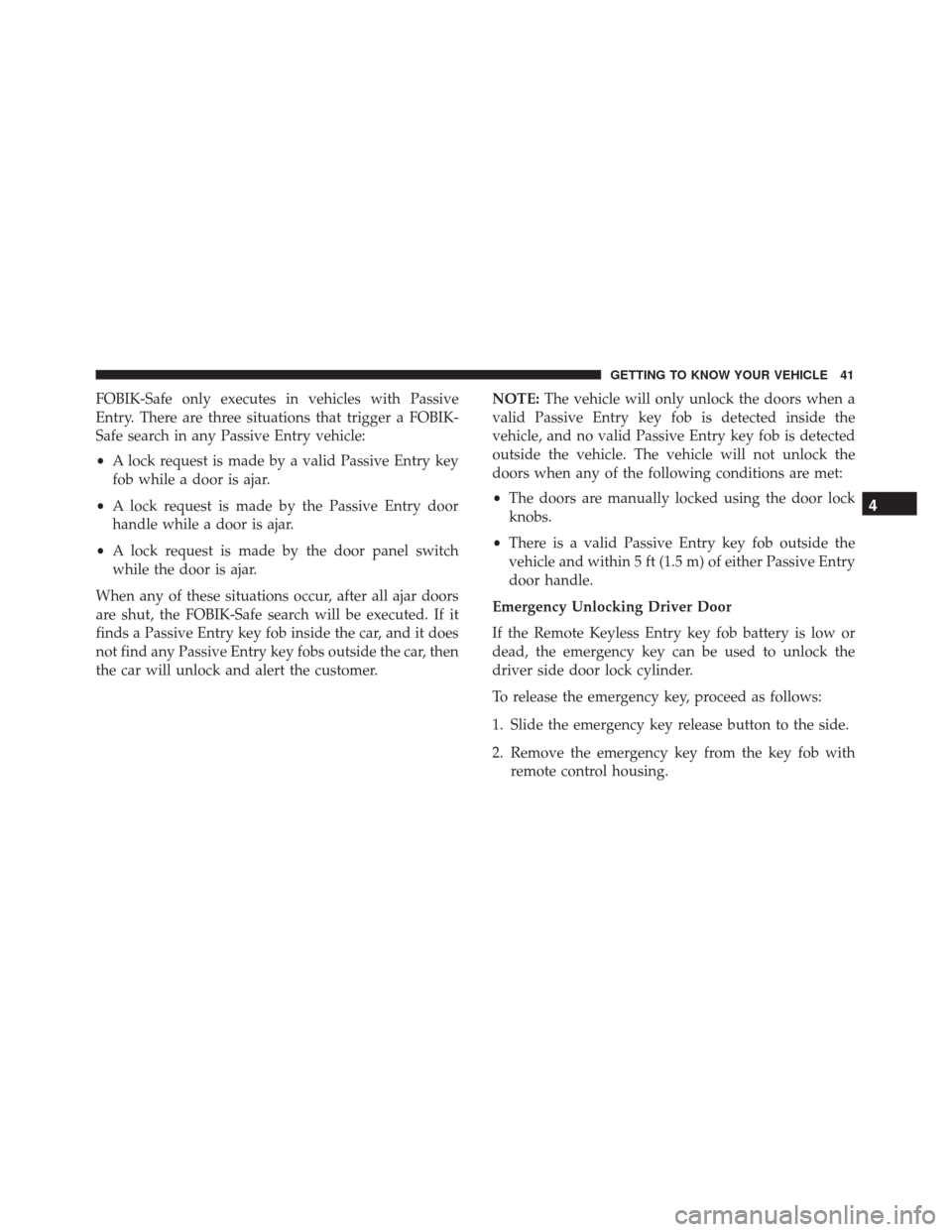

FOBIK-Safe only executes in vehicles with Passive
Entry. There are three situations that trigger a FOBIK-
Safe search in any Passive Entry vehicle:
•A lock request is made by a valid Passive Entry key
fob while a door is ajar.
• A lock request is made by the Passive Entry door
handle while a door is ajar.
• A lock request is made by the door panel switch
while the door is ajar.
When any of these situations occur, after all ajar doors
are shut, the FOBIK-Safe search will be executed. If it
finds a Passive Entry key fob inside the car, and it does
not find any Passive Entry key fobs outside the car, then
the car will unlock and alert the customer. NOTE:
The vehicle will only unlock the doors when a
valid Passive Entry key fob is detected inside the
vehicle, and no valid Passive Entry key fob is detected
outside the vehicle. The vehicle will not unlock the
doors when any of the following conditions are met:
• The doors are manually locked using the door lock
knobs.
• There is a valid Passive Entry key fob outside the
vehicle and within 5 ft (1.5 m) of either Passive Entry
door handle.
Emergency Unlocking Driver Door
If the Remote Keyless Entry key fob battery is low or
dead, the emergency key can be used to unlock the
driver side door lock cylinder.
To release the emergency key, proceed as follows:
1. Slide the emergency key release button to the side.
2. Remove the emergency key from the key fob with remote control housing.
4
GETTING TO KNOW YOUR VEHICLE 41

NOTE:The Emergency Key can be inserted into the
door lock cylinder in either direction.
WARNING!
• Never leave children alone in a vehicle, or with
access to an unlocked vehicle. Allowing children
to be in a vehicle unattended is dangerous for a
number of reasons. A child or others could be
severely injured or killed. Children should be
warned not to touch the parking brake, brake
pedal, or the gear selector. Do not leave the key
fob in or near the vehicle, or in a location acces-
sible to children, and do not leave the ignition of
a vehicle equipped with Keyless Enter- N-Go in
the ON/RUN mode. A child could start the ve-
hicle, operate power windows, other controls, or
move the vehicle.
• Do not leave children or animals inside parked
vehicles in hot weather. Interior heat build-up
may cause them to be severely injured or killed.
Emergency Key Release
1 — Emergency Key Release Button
2 — Emergency Key 42 GETTING TO KNOW YOUR VEHICLE

To Unlock/Enter The Liftgate
The liftgate Passive Entry unlock feature is built into the
electronic liftgate release. With a valid Passive Entry
key fob within 3 ft (1.0 m) of the liftgate, push the
Electronic Liftgate release to open with one fluid mo-
tion.NOTE:
If “Unlock All Doors 1st Press” is programmed
in the instrument cluster display, if equipped, all doors
will unlock when you push the Electronic Release. If
Unlock Driver Door 1st Press is programmed in
Uconnect, the liftgate will unlock when you push the
electronic lock/unlock button on the liftgate. For fur-
ther information, refer to “Uconnect Settings” in “Mul-
timedia.”
To Lock The Liftgate
With a valid Passive Entry key fob within 3 ft (1.0 m) of
the liftgate, push the Passive Entry lock button located
to the right of electronic liftgate release.
Electronic Liftgate Release Button
4
GETTING TO KNOW YOUR VEHICLE 43

NOTE:The liftgate Passive Entry lock button will only
lock the liftgate. The liftgate unlock feature is built into
the electronic liftgate release.
Activation/Deactivation Of Keyless Enter-N-Go
Keyless Enter-N-Go can be activated or deactivated
through the instrument cluster display or through the
Uconnect system.
General Information
The following regulatory statement applies to all radio
frequency (RF) devices equipped in this vehicle: This device complies with Part 15 of the FCC Rules and
with Industry Canada license-exempt RSS standard(s).
Operation is subject to the following two conditions:
1. This device may not cause harmful interference, and
2. This device must accept any interference received,
including interference that may cause undesired
operation.
NOTE: Changes or modifications not expressly ap-
proved by the party responsible for compliance could
void the user ’s authority to operate the equipment.
Child Locks
To provide a safer environment for small children
riding in the rear seats, the rear doors are equipped with
a Child-Protection Door Lock system.
To use the system, open each rear door, use a flat blade
screwdriver (or ignition key) and rotate the dial to the
lock or unlock position. When the system on a door is
engaged, that door can only be opened by using the
outside door handle even if the inside door lock is in the
unlocked position.

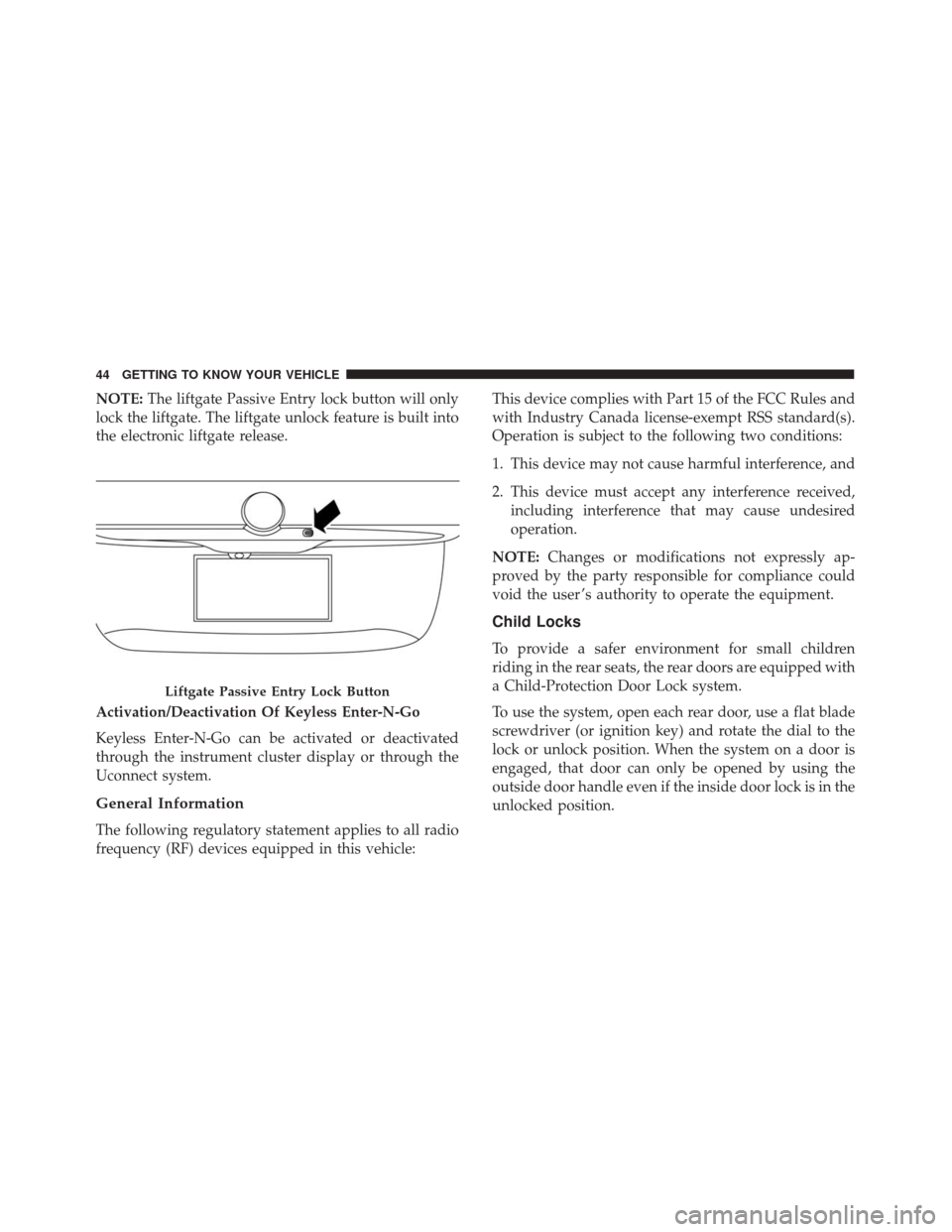

Liftgate Passive Entry Lock Button
44 GETTING TO KNOW YOUR VEHICLE

NOTE:
•When the child lock system is engaged, the door can
only be opened by using the outside door handle
even though the inside door lock is in the unlocked
position.
• After disengaging the Child-Protection Door Lock
system, always test the door from the inside to make
certain it is in the desired position. •
After engaging the Child-Protection Door Lock sys-
tem, always test the door from the inside to make
certain it is in the desired position.
• For emergency exit with the system engaged, rotate
the lock button to the unlocked position, roll down
the window, and open the door with the outside door
handle.
WARNING!
Avoid trapping anyone in a vehicle in a collision.
Remember that the rear doors can only be opened
from the outside when the Child-Protection locks
are engaged.
Child-Protection Door Lock Location
4
GETTING TO KNOW YOUR VEHICLE 45

SEATS
Seats are a part of the Occupant Restraint System of the
vehicle.
WARNING!
•It is dangerous to ride in a cargo area, inside or
outside of a vehicle. In a collision, people riding
in these areas are more likely to be seriously
injured or killed.
• Do not allow people to ride in any area of your
vehicle that is not equipped with seats and seat
belts. In a collision, people riding in these areas
are more likely to be seriously injured or killed.
• Be sure everyone in your vehicle is in a seat and
using a seat belt properly.
Manual Adjustment Front Seats
Manual Front Seat Forward/Rearward Adjustment
On models equipped with manual seats, the forward/
rearward adjusting bar is located at the front of the
seats, near the floor.
While sitting in the seat, lift up on the bar and move the
seat forward or rearward. Release the bar once you have
Manual Seat Adjustment Levers
1 — Forward/Rearward Adjustment Bar
2 — Seat Height Adjustment Lever
3 — Recline Lever
46 GETTING TO KNOW YOUR VEHICLE
