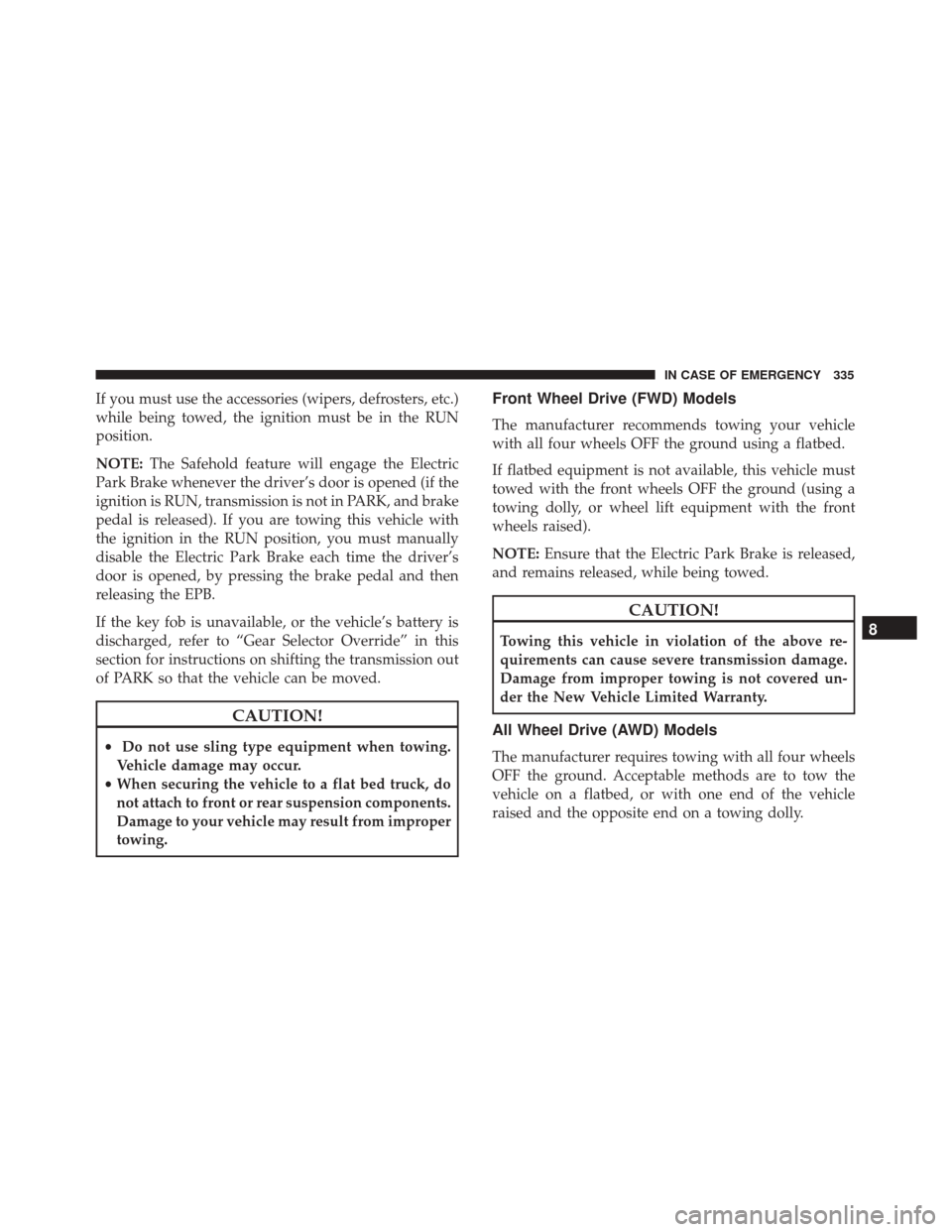

If you must use the accessories (wipers, defrosters, etc.)
while being towed, the ignition must be in the RUN
position.
NOTE:The Safehold feature will engage the Electric
Park Brake whenever the driver’s door is opened (if the
ignition is RUN, transmission is not in PARK, and brake
pedal is released). If you are towing this vehicle with
the ignition in the RUN position, you must manually
disable the Electric Park Brake each time the driver’s
door is opened, by pressing the brake pedal and then
releasing the EPB.
If the key fob is unavailable, or the vehicle’s battery is
discharged, refer to “Gear Selector Override” in this
section for instructions on shifting the transmission out
of PARK so that the vehicle can be moved.
CAUTION!
• Do not use sling type equipment when towing.
Vehicle damage may occur.
• When securing the vehicle to a flat bed truck, do
not attach to front or rear suspension components.
Damage to your vehicle may result from improper
towing.
Front Wheel Drive (FWD) Models
The manufacturer recommends towing your vehicle
with all four wheels OFF the ground using a flatbed.
If flatbed equipment is not available, this vehicle must
towed with the front wheels OFF the ground (using a
towing dolly, or wheel lift equipment with the front
wheels raised).
NOTE: Ensure that the Electric Park Brake is released,
and remains released, while being towed.
CAUTION!
Towing this vehicle in violation of the above re-
quirements can cause severe transmission damage.
Damage from improper towing is not covered un-
der the New Vehicle Limited Warranty.
All Wheel Drive (AWD) Models
The manufacturer requires towing with all four wheels
OFF the ground. Acceptable methods are to tow the
vehicle on a flatbed, or with one end of the vehicle
raised and the opposite end on a towing dolly.
8
IN CASE OF EMERGENCY 335

CAUTION!
•DO NOT tow this vehicle with ANY of its wheels
on the ground. Damage to the drivetrain will
result.
• Front or rear wheel lifts must not be used. Inter-
nal damage to the transmission or power transfer
unit will occur if a front or rear wheel lift is used
when towing.
• Towing this vehicle in violation of the above
requirements can cause severe transmission
and/or power transfer unit damage. Damage from
improper towing is not covered under the New
Vehicle Limited Warranty.
TOW EYE USAGE — IF EQUIPPED
Your vehicle is equipped with a tow eye that can be
used to tow a disabled vehicle.
When using a tow eye be sure to follow the “Tow Eye
Usage Precautions” and the “Towing A Disabled Ve-
hicle” instructions in this section. Tow Eye Usage Precautions
NOTE:
•
Ensure that the tow eye is properly seated and secure
in the mounting receptacle.
• The tow eye is recommended for use with an ap-
proved tow bar and or rope.
• Do not use the tow eye to pull the vehicle onto a
flatbed truck.
Tow Eye
336 IN CASE OF EMERGENCY

•Do not use the tow eye to free a stuck vehicle. Refer
to “Freeing A Stuck Vehicle” in this section for further
information.
WARNING!
Stand clear of vehicles when pulling with tow eyes.
• Do not use a chain with a tow eye. Chains may
break, causing serious injury or death.
• Do not use a tow strap with a tow eye. Tow straps
may break or become disengaged, causing serious
injury or death.
• Failure to follow proper tow eye usage may cause
components to break resulting in serious injury
or death.
CAUTION!
• The tow eye must be used exclusively for road-
side assistance operations. Only use the tow eye
with an appropriate device in accordance with the
highway code (a rigid bar or rope) to flat tow the
vehicle for a short distance to the nearest service
location.
• Tow eyes MUST NOT be used to tow vehicles off
the road or where there are obstacles.
(Continued)
Tow Eye Warning Label
8
IN CASE OF EMERGENCY 337

CAUTION!(Continued)
•In compliance with the above conditions, towing
with a tow eye must take place with two vehicles
(one towing, the other towed) aligned as much as
possible along the same center line. Damage to
your vehicle may occur if these guidelines are not
followed.
Front Tow Eye Installation
The front tow eye receptacle is located behind a access
door, located on the right front bumper fascia. To install
the tow eye, open the access door using the vehicle key
or a small screwdriver, and thread the tow eye into the
receptacle.
Insert the wheel bolt wrench handle through the eye
and tighten, refer to “Jacking and Tire Changing” for
further information. The tow eye must be fully seated to
the attaching bracket through the lower front fascia as
shown. If the tow eye is not fully seated to the attaching
bracket, the vehicle should not be towed.
Front Tow Eye Installation
1 — Access Door
2—TowEye
338 IN CASE OF EMERGENCY

Rear Tow Eye Installation
The rear tow eye receptacle is located behind a access
door on the rear bumper fascia.
To install the tow eye, open the access door using the
vehicle key or a small screwdriver, and thread the tow
eye into the receptacle.
Insert the wheel bolt wrench handle through the eye
and tighten, refer to “Jacking and Tire Changing” for
further information. The tow eye must be fully seated to
the attaching bracket through the lower rear fascia. If
the tow eye is not fully seated to the attaching bracket,
the vehicle should not be towed.
Rear Tow Eye Installation
1 — Access Door
2—TowEye8
IN CASE OF EMERGENCY 339

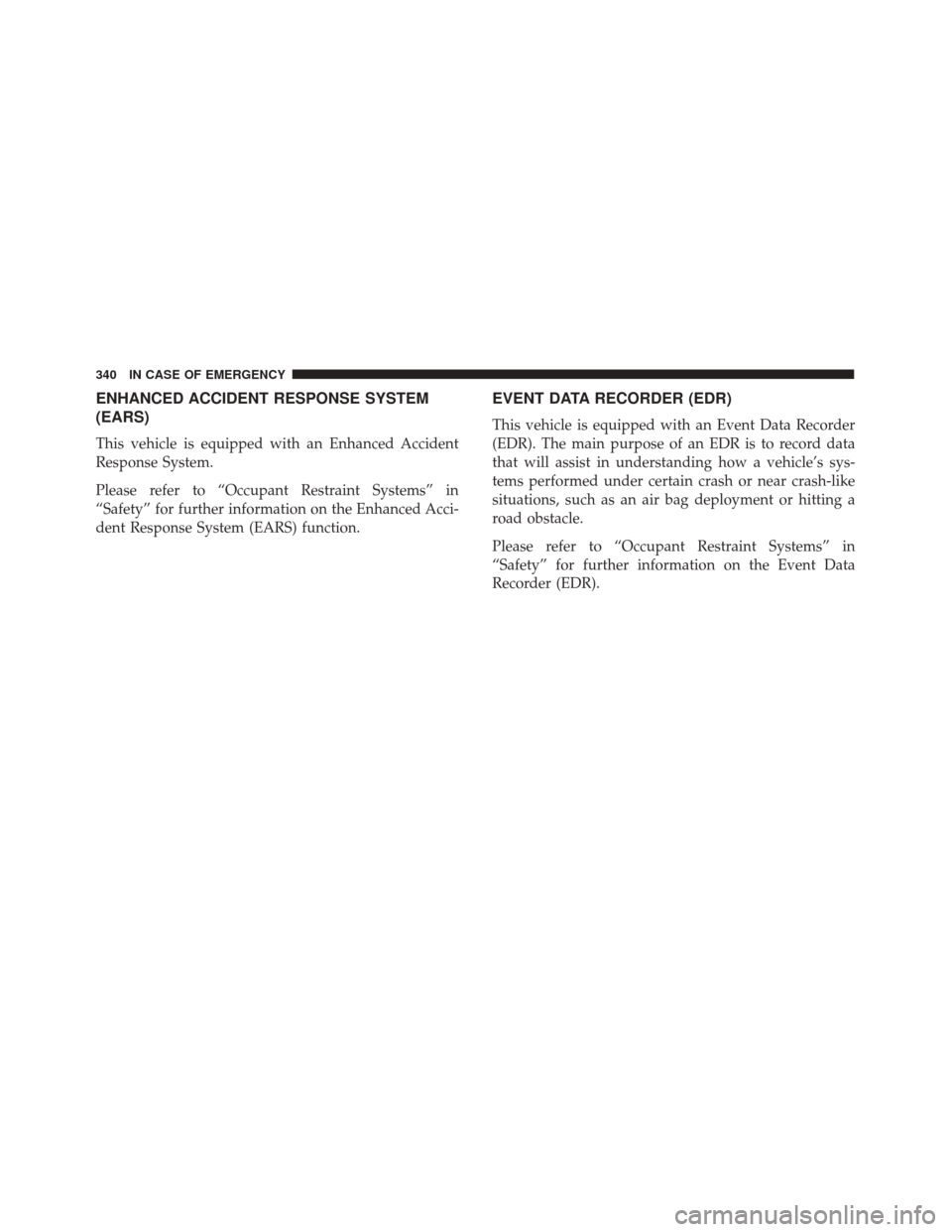

ENHANCED ACCIDENT RESPONSE SYSTEM
(EARS)
This vehicle is equipped with an Enhanced Accident
Response System.
Please refer to “Occupant Restraint Systems” in
“Safety” for further information on the Enhanced Acci-
dent Response System (EARS) function.
EVENT DATA RECORDER (EDR)
This vehicle is equipped with an Event Data Recorder
(EDR). The main purpose of an EDR is to record data
that will assist in understanding how a vehicle’s sys-
tems performed under certain crash or near crash-like
situations, such as an air bag deployment or hitting a
road obstacle.
Please refer to “Occupant Restraint Systems” in
“Safety” for further information on the Event Data
Recorder (EDR).
340 IN CASE OF EMERGENCY

MAINTAINING AND CARING FOR YOUR VEHICLE
CONTENTS
EMISSIONS INSPECTION AND MAINTENANCE
PROGRAMS ........................ .343
 REPLACEMENT PARTS .................344
 DEALER SERVICE ....................344
 MAINTENANCE SCHEDULE .............344
▫ Maintenance Chart ...................346
 ENGINE COMPARTMENT — 1.4L TURBO
ENGINE ........................... .353
 ENGINE COMPARTMENT — 2.4L ENGINE . . .354
 MAINTENANCE PROCEDURES ..........354
▫ Engine Oil ........................ .355
▫ Engine Oil Filter .....................357
▫ Engine Air Cleaner Filter ...............357
▫ Maintenance-Free Battery ..............358
▫ Air Conditioner Maintenance ............358▫
Body Lubrication ....................360
▫ Wiper Blades ...................... .360
▫ Adding Washer Fluid .................362
▫ Exhaust System .....................362
▫ Cooling System .....................364
▫ Brake System ...................... .368
▫ Manual Transmission — If Equipped ......370
▫ Automatic Transmission — If Equipped . . . .371
▫ Appearance Care And Protection From
Corrosion ......................... .372
 RAISING THE VEHICLE ................379
 TIRE SAFETY INFORMATION ............380
▫ Tire Markings ...................... .380
▫ Tire Identification Number (TIN) ..........383
9

▫Tire Terminology And Definitions .........384
▫ Tire Loading And Tire Pressure ..........384
 TIRES — GENERAL INFORMATION .......389
▫ Tire Pressure ...................... .389
▫ Tire Inflation Pressures ................390
▫ Tire Pressures For High Speed Operation . . .391
▫ Radial Ply Tires .....................391
▫ Tire Types ......................... .392
▫ Run Flat Tires — If Equipped ............393
▫ Spare Tires — If Equipped ..............393
▫ Tire Spinning ...................... .394
▫ Tread Wear Indicators .................394 ▫
Life Of Tire ....................... .395
▫ Replacement Tires ....................395
 TIRE CHAINS (TRACTION DEVICES) ......397
 DEPARTMENT OF TRANSPORTATION
UNIFORM TIRE QUALITY GRADES .......398
▫ Treadwear ......................... .398
▫ Traction Grades ..................... .398
▫ Temperature Grades ...................398
 TIRE ROTATION RECOMMENDATIONS . . . .399
 STORING THE VEHICLE ................400
