2014.5 Peugeot Bipper Owner's Manual - RHD (UK, Australia)

23
Bipper_en_Chap02_eco-conduite_ed02-2014
ECO-DRIVING
eco-driving is a range of everyday practices that allow the motorist to o\
ptimise their fuel consumption and CO2 emissions.
Optimise the use of your gearbox
With a manual gearbox, move off gently and change up without
waiting. During acceleration change up early.
With an automatic or electronic gearbox, give preference to automatic
mode and avoid pressing the accelerator pedal heavily or suddenly.
t
he gear shift indicator invites you engage the most suitable gear: as
soon as the indication is displayed in the instrument panel, follow it
straight away.
For vehicles fitted with an electronic or automatic gearbox, this
indicator appears only in manual mode.
Drive smoothly
Maintain a safe distance between vehicles, use engine braking rather
than the brake pedal, and press the accelerator progressively.
t
hese
practices contribute towards a reduction in fuel consumption and CO
2
emissions and also helps reduce the background traffic noise.
If your vehicle has cruise control, make use of the system at speeds
above 25 mph (40 km/h) when the traffic is flowing well.
Control the use of your electrical equipment
Before moving off, if the passenger compartment is too warm, ventilate it
by opening the windows and air vents before using the air conditioning.
Above 30 mph (50 km/h), close the windows and leave the air vents
open.
Remember to make use of equipment that can help keep the
temperature in the passenger compartment down (sunroof and window
blinds...).
Switch off the air conditioning, unless it has automatic regulation, as
soon as the desired temperature is attained.
Switch off the demisting and defrosting controls, if not automatic.
Switch off the heated seat as soon as possible.
Switch off the headlamps and front foglamps when the level of light
does not require their use.
Avoid running the engine before moving off, particularly in winter; your
vehicle will warm up much faster while driving.
As a passenger, if you avoid connecting your multimedia devices
(film, music, video game...), you will contribute towards limiting the
consumption of electrical energy, and so of fuel.
Disconnect your portable devices before leaving the vehicle.
2
ECO-DRIVING
Motoring & Environment

24
Bipper_en_Chap02_eco-conduite_ed02-2014

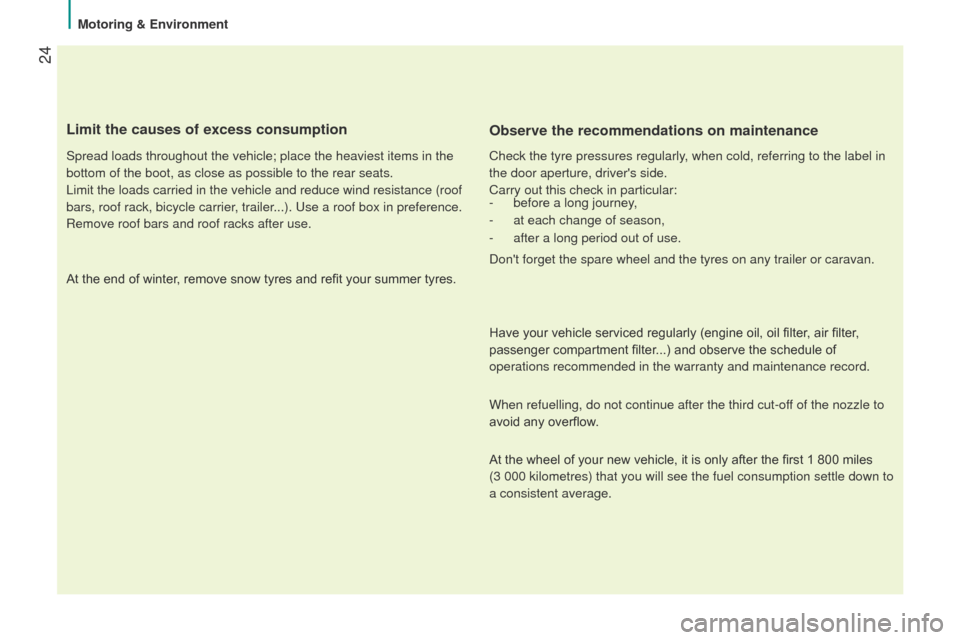

Limit the causes of excess consumption
Spread loads throughout the vehicle; place the heaviest items in the
bottom of the boot, as close as possible to the rear seats.
l
imit the loads carried in the vehicle and reduce wind resistance (roof \
bars, roof rack, bicycle carrier, trailer...).
u se a roof box in preference.
Remove roof bars and roof racks after use.
At the end of winter, remove snow tyres and refit your summer tyres.
Observe the recommendations on maintenance
Check the tyre pressures regularly, when cold, referring to the label in
the door aperture, driver's side.
Carry out this check in particular:
-

before a long journey
,
-

at each change of season,
-


after a long period out of use.
Don't forget the spare wheel and the tyres on any trailer or caravan.
Have your vehicle serviced regularly (engine oil, oil filter

, air filter,
passenger compartment filter...) and observe the schedule of
operations recommended in the warranty and maintenance record.
When refuelling, do not continue after the third cut-off of the nozzle to
avoid any overflow.
At the wheel of your new vehicle, it is only after the first 1 800 miles
(3
000 kilometres) that you will see the fuel consumption settle down to
a consistent average.
Motoring & Environment

25
Bipper_en_Chap03_pret-a-partir_ed02-2014
INSTRUMENT PANELS
1. Distance recorder in miles / kilometres.
2. Screen.
3.

Fuel gauge.
4.


Coolant temperature.
5.


Rev counter
.
Instrument panel with level 1 screen Instrument panel with level 2 screen
Instrument panel level 1 screen
- time.
-
Miles / Kilometres travelled.
-

t
rip computer (range, fuel consumption,

average speed).
-

Headlamp beam height.
-


Programmable overspeed warning.
-

g ear shift indicator.
-

Stop & Start.
-


Activation/ Deactivation of the

passenger's front airbag.
Instrument panel level 2 screen
- time.
-
Date.
-


Radio. -


Miles / Kilometres travelled.
-

Modes and gear engaged on the

electronic gearbox,
- t
rip computer (ambient temperature,

range, fuel consumption, average speed
-
Headlamp beam height,
-

Programmable overspeed warning,
-

Selection of the display language,
-
g ear shift indicator.
-
Stop & Start.
-

Activation/ Deactivation of the

passenger's front airbag.
- State and alert messages for vehicle
functions.
3
READY TO SET OFF
Instruments and controls

26
Bipper_en_Chap03_pret-a-partir_ed02-2014

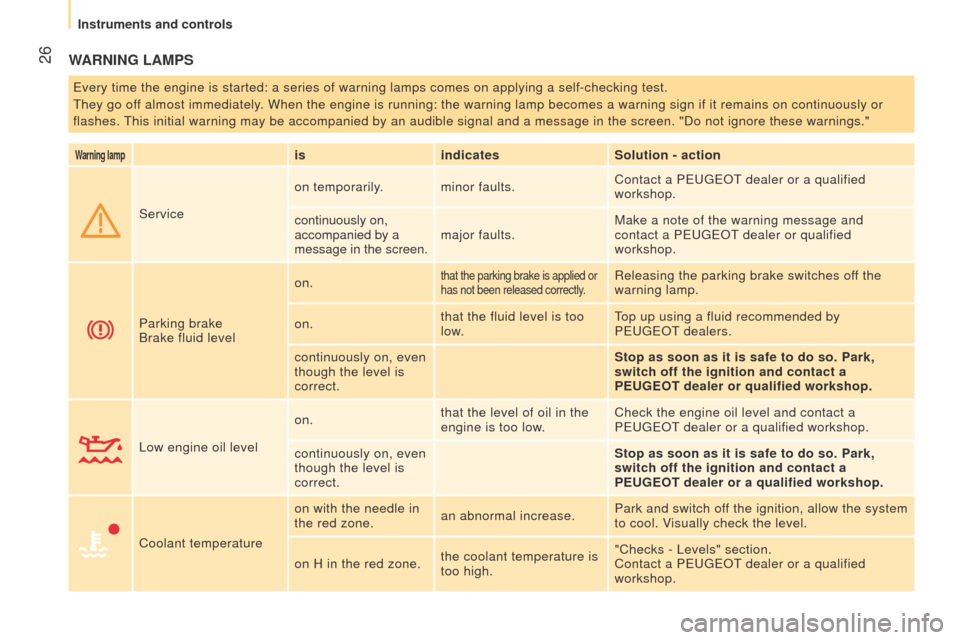

WARNING LAMPS
every time the engine is started: a series of warning lamps comes on appl\
ying a self-checking test.
t
hey go off almost immediately. When the engine is running: the warning lamp becomes a warning sign if\
it remains on continuously or
flashes.
t

his initial warning may be accompanied by an audible signal and a messag\
e in the screen. "Do not ignore these warnings."
Warning lampis indicates Solution - action
Service on temporarily. minor faults.
Contact a P
euge O t
dealer or a qualified

workshop.
continuously on,
accompanied by a
message in the screen. major faults. Make a note of the warning message and
contact a P
euge O t
dealer or qualified

workshop.
Parking brake
Brake fluid level on.
that the parking brake is applied or
has not been released correctly.Releasing the parking brake switches off the
warning lamp.
on. that the fluid level is too
low.
top up using a fluid recommended by


P
euge O t
dealers.
continuously on, even


though the level is
correct. Stop as soon as it is safe to do so. Park,
switch off the ignition and contact a
PEUGEOT dealer or qualified workshop.
l

ow engine oil level on.
that the level of oil in the
engine is too low. Check the engine oil level and contact a
P
euge O t
dealer or a qualified workshop.
continuously on, even


though the level is
correct. Stop as soon as it is safe to do so. Park,
switch off the ignition and contact a
PEUGEOT dealer or a qualified workshop.
Coolant temperature on with the needle in
the red zone.
an abnormal increase. Park and switch off the ignition, allow the system
to cool. Visually check the level.
on H in the red zone. the coolant temperature is
too high. "Checks -
l evels" section.
Contact a P
euge O t
dealer or a qualified

workshop.
Instruments and controls

27
Bipper_en_Chap03_pret-a-partir_ed02-2014

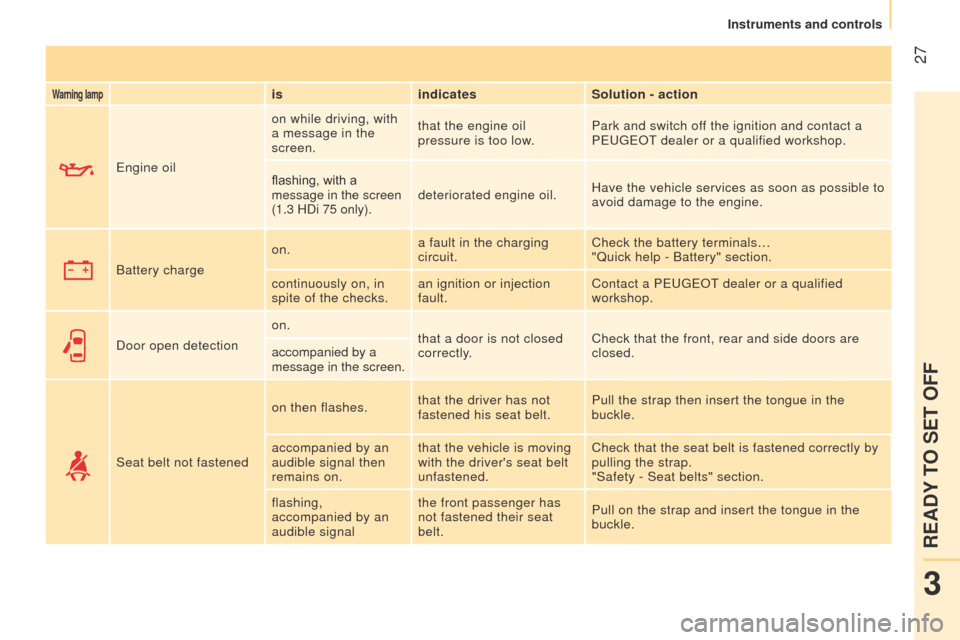

Warning lampisindicates Solution - action
e

ngine oil on while driving, with
a message in the
screen.
that the engine oil
pressure is too low.
Park and switch off the ignition and contact a
P
euge O t
dealer or a qualified workshop.
flashing, with a
message in the screen
(1.3 HDi 75 only). deteriorated engine oil.
Have the vehicle services as soon as possible to


avoid damage to the engine.
Battery charge on.
a fault in the charging
circuit. Check the battery terminals…
"Quick help - Battery" section.
continuously on, in
spite of the checks. an ignition or injection
fault. Contact a P
euge O t
dealer or a qualified

workshop.
Door open detection on.
that a door is not closed
correctly. Check that the front, rear and side doors are
closed.
accompanied by a
message in the screen.
Seat belt not fastened on then flashes.
that the driver has not
fastened his seat belt. Pull the strap then insert the tongue in the
buckle.
accompanied by an
audible signal then
remains on. that the vehicle is moving
with the driver's seat belt
unfastened. Check that the seat belt is fastened correctly by
pulling the strap.
"Safety - Seat belts" section.
flashing,
accompanied by an
audible signal the front passenger has
not fastened their seat
belt.
Pull on the strap and insert the tongue in the
buckle.
3
READY TO SET OFF
Instruments and controls

28
Bipper_en_Chap03_pret-a-partir_ed02-2014

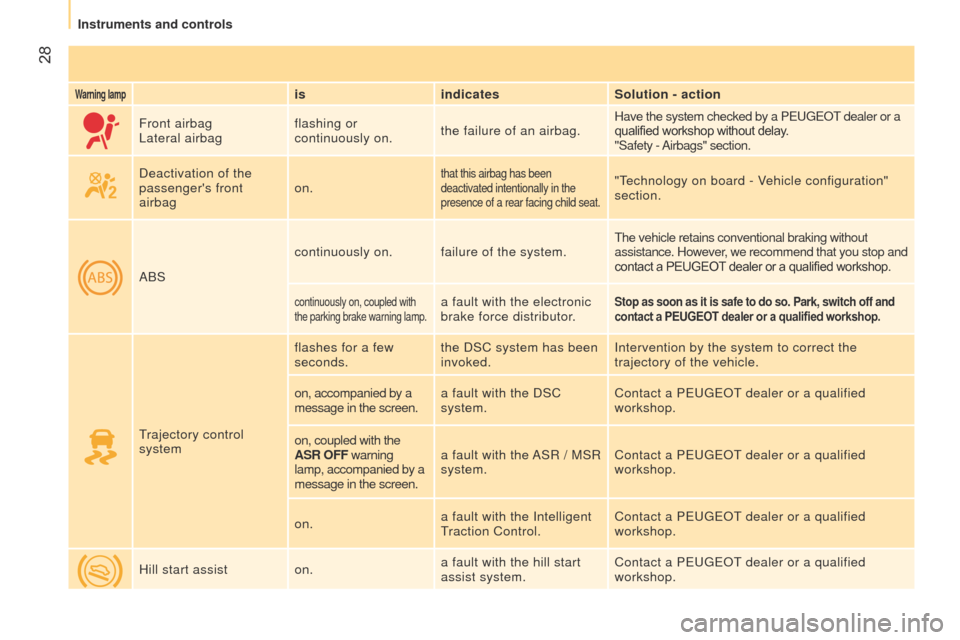

Warning lampisindicates Solution - action
Front airbag
l

ateral airbag flashing or
continuously on.
the failure of an airbag. Have the system checked by a P
euge O t
dealer or a

qualified workshop without delay.
"Safety - Airbags" section.
Deactivation of the
passenger's front
airbag on.
that this airbag has been
deactivated intentionally in the
presence of a rear facing child seat."technology on board - V
ehicle configuration"
section.
ABS continuously on. failure of the system.
t

he vehicle retains conventional braking without
assistance. However, we recommend that you stop and
contact a PEUGEOT dealer or a qualified workshop.
continuously on, coupled with
the parking brake warning lamp.a fault with the electronic
brake force distributor.Stop as soon as it is safe to do so. Park, switch off and
contact a PEUGEOT dealer or a qualified workshop.
trajectory control
system flashes for a few
seconds.
the DSC system has been
invoked. Intervention by the system to correct the
trajectory of the vehicle.
on, accompanied by a
message in the screen. a fault with the DSC
system. Contact a P euge O t
dealer or a qualified

workshop.
on, coupled with the
ASR OFF warning
lamp, accompanied by a
message in the screen. a fault with the ASR / MSR
system.
Contact a P
euge O t
dealer or a qualified

workshop.
on. a fault with the Intelligent
traction Control. Contact a P

euge O t
dealer or a qualified

workshop.
Hill start assist on.a fault with the hill start
assist system. Contact a P
euge O t
dealer or a qualified

workshop.
Instruments and controls

29
Bipper_en_Chap03_pret-a-partir_ed02-2014

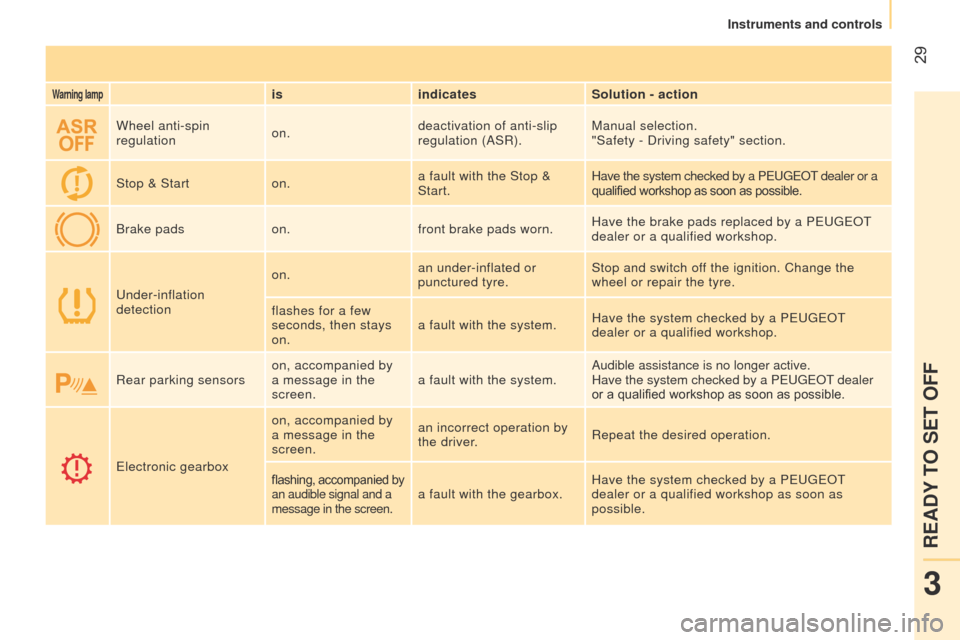

Warning lampisindicates Solution - action
Wheel anti-spin
regulation on.deactivation of anti-slip
regulation (ASR). Manual selection.
"Safety - Driving safety" section.
Stop & Start on.a fault with the Stop &
Start. Have the system checked by a P
euge O t
dealer or a

qualified workshop as soon as possible.
Brake pads on.front brake pads worn. Have the brake pads replaced by a P
euge O t

dealer or a qualified workshop.
u

nder-inflation
detection on.
an under-inflated or
punctured tyre. Stop and switch off the ignition. Change the
wheel or repair the tyre.
flashes for a few
seconds, then stays
on. a fault with the system.
Have the system checked by a P
euge O t

dealer or a qualified workshop.
Rear parking sensors on, accompanied by


a message in the
screen. a fault with the system. Audible assistance is no longer active.
Have the system checked by a P
euge O t
dealer
or a qualified workshop as soon as possible.
e

lectronic gearbox on, accompanied by
a message in the
screen.
an incorrect operation by
the driver.
Repeat the desired operation.
flashing, accompanied by
an audible signal and a
message in the screen.a fault with the gearbox.Have the system checked by a P euge O t
dealer or a qualified workshop as soon as
possible.
3
READY TO SET OFF
Instruments and controls

30
Bipper_en_Chap03_pret-a-partir_ed02-2014
Warning lampisindicates Solution - action
e

lectronic anti-theft on.the ignition key introduced
is not recognised.
Starting impossible.
u

se another key and have the faulty key
checked by a P
euge O t
dealer
.
"Ready to set off - Access" section.
e

missions control
system flashing or on
continuously.
a fault with the system. Have it checked as soon as possible by a
P
euge O t
dealer or a qualified workshop.
l

ow fuel level on with the gauge
needle in zone
e .that the fuel reserve is
being used. Refuel without delay.
t

he assessment of the
fuel reserve is sensitive to the style of driving,
the profile of the road, the time elapsed and the
distance travelled since the warning lamp first
came on.
Particle filter on, accompanied by
an audible signal and a
message in the screen.the start of saturation of
the particle filter.
Regenerate the filter as soon as possible.
"Checks" section.
Presence of water in
the Diesel filter on, accompanied by
a message in the
screen.water in the Diesel fuel
filter. Have the filter bled by a P
euge O t
dealer or a

qualified workshop.
"Checks" section.
Diesel pre-heating on.that the weather
conditions impose pre-
heating (up to around
30 seconds in extreme
climatic conditions). Wait for the warning lamp to switch off before
operating the starter.
If the engine does not start, switch the ignition
off and on again, wait for the warning lamp to go
off, and start the engine.
Instruments and controls
