2014.5 Peugeot Bipper Owner's Manual - RHD (UK, Australia)

71
Bipper_en_Chap04_ergonomie_ed02-2014

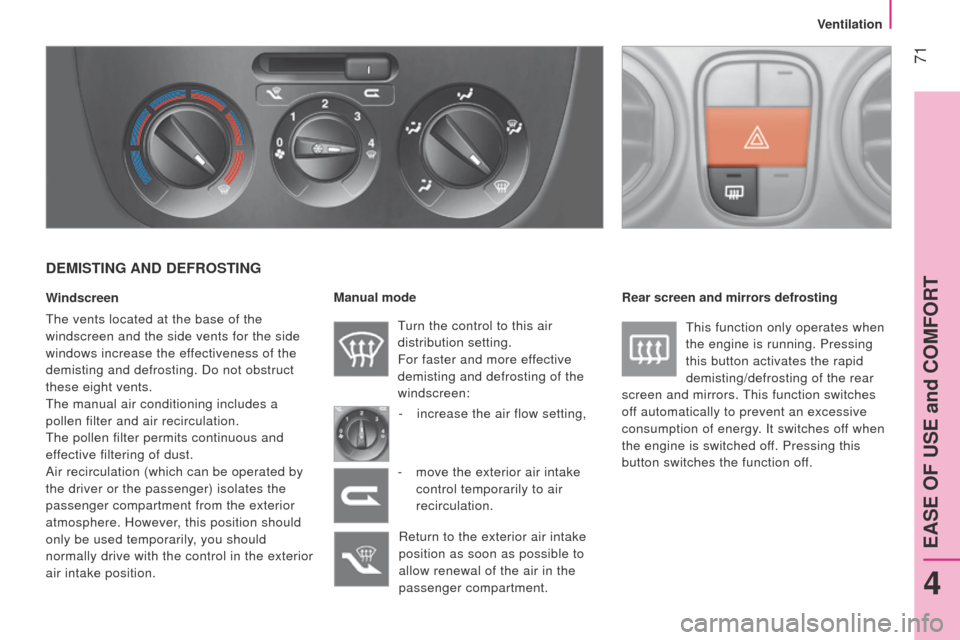

DEMISTING AND DEFROSTING
Windscreen
t
he vents located at the base of the
windscreen and the side vents for the side
windows increase the effectiveness of the
demisting and defrosting. Do not obstruct
these eight vents.
t

he manual air conditioning includes a
pollen filter and air recirculation.
t

he pollen filter permits continuous and
effective filtering of dust.
Air recirculation (which can be operated by
the driver or the passenger) isolates the
passenger compartment from the exterior
atmosphere. However, this position should
only be used temporarily, you should
normally drive with the control in the exterior
air intake position. Manual mode
turn the control to this air


distribution setting.
For faster and more effective
demisting and defrosting of the
windscreen:
-

increase the air flow setting,
Return to the exterior air intake


position as soon as possible to
allow renewal of the air in the
passenger compartment. Rear screen and mirrors defrosting
t

his function only operates when
the engine is running. Pressing
this button activates the rapid
demisting/defrosting of the rear
screen and mirrors.
t

his function switches
off automatically to prevent an excessive
consumption of energy. It switches off when
the engine is switched off. Pressing this
button switches the function off.
-

move the exterior air intake

control temporarily to air
recirculation.
4
EASE OF USE and COMFORT
Ventilation

72
Bipper_en_Chap04_ergonomie_ed02-2014

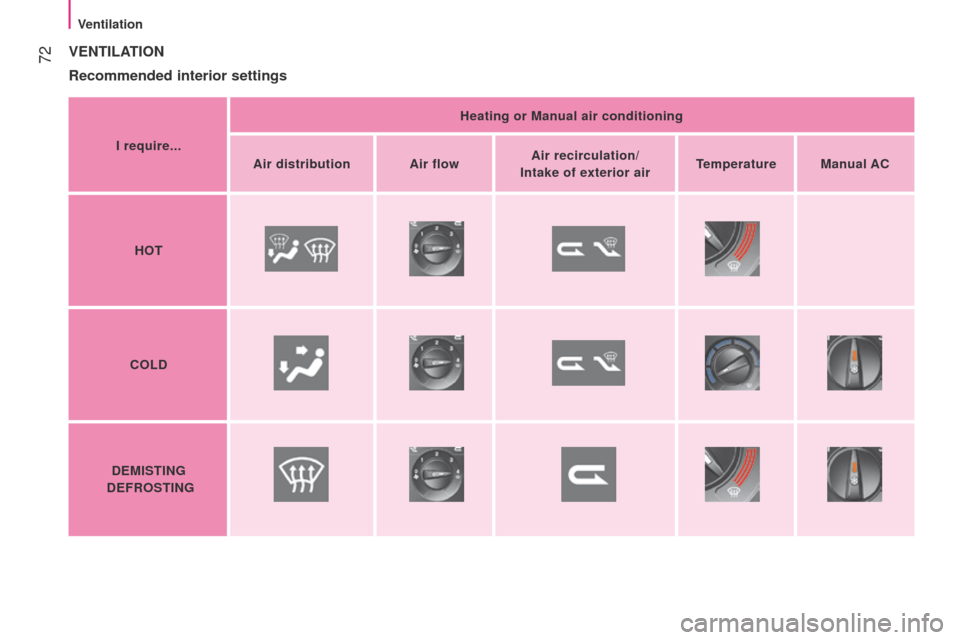

VENTILATION
Recommended interior
settings
I require... Heating or Manual air conditioning
Air distribution Air flow Air recirculation/

Intake of exterior air Temperature
Manual AC
HOT
COLD
DEMISTING
DEFROSTING
Ventilation

73
Bipper_en_Chap04_ergonomie_ed02-2014

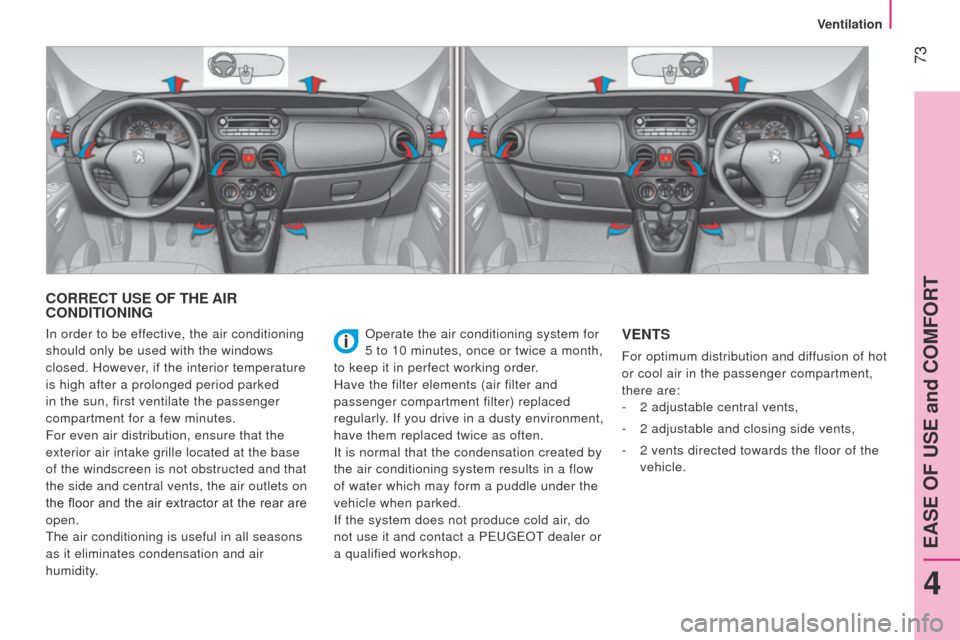

CORRECT USE OF THE AIR
CONDITIONING
Operate the air conditioning system for
5 to 10 minutes, once or twice a month,
to keep it in perfect working order.
Have the filter elements (air filter and
passenger compartment filter) replaced
regularly. If you drive in a dusty environment,
have them replaced twice as often.
It is normal that the condensation created by
the air conditioning system results in a flow
of water which may form a puddle under the
vehicle when parked.
If the system does not produce cold air, do
not use it and contact a P
euge O t
dealer or

a qualified workshop.VENTS
For optimum distribution and diffusion of hot
or cool air in the passenger compartment,
there are:
-

2 adjustable central vents,
-


2 adjustable and closing side vents,
-


2 vents directed towards the floor of the

vehicle.
In order to be effective, the air conditioning
should only be used with the windows
closed. However, if the interior temperature
is high after a prolonged period parked
in the sun, first ventilate the passenger
compartment for a few minutes.
For even air distribution, ensure that the
exterior air intake grille located at the base
of the windscreen is not obstructed and that
the side and central vents, the air outlets on
the floor and the air extractor at the rear are
open.
t

he air conditioning is useful in all seasons
as it eliminates condensation and air
humidity.
4
EASE OF USE and COMFORT
Ventilation

74
Bipper_en_Chap04_ergonomie_ed02-2014

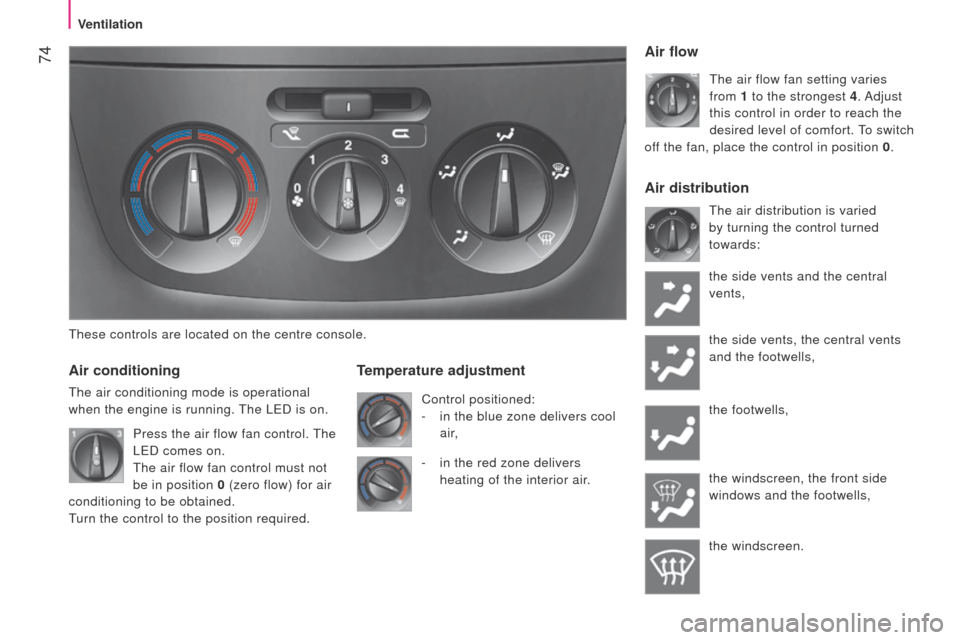

these controls are located on the centre console.
Air conditioning
the air conditioning mode is operational
when the engine is running.
t
he le D is on.
Temperature adjustment
Control positioned:
-
in the blue zone delivers cool

air,
Air flow
the air flow fan setting varies
from 1 to the strongest
4. Adjust
this control in order to reach the
desired level of comfort.
to switch


off the fan, place the control in position 0 .
t

he air distribution is varied
by turning the control turned
towards:
the side vents and the central
vents,
the side vents, the central vents
and the footwells,
the footwells,
the windscreen, the front side
windows and the footwells,
the windscreen.
Press the air flow fan control.
t

he
le

D comes on.
t

he air flow fan control must not
be in position 0 (zero flow) for air
conditioning to be obtained.
turn the control to the position required. -


in the red zone delivers


heating of the interior air.
Air distribution
Ventilation

75
Bipper_en_Chap04_ergonomie_ed02-2014

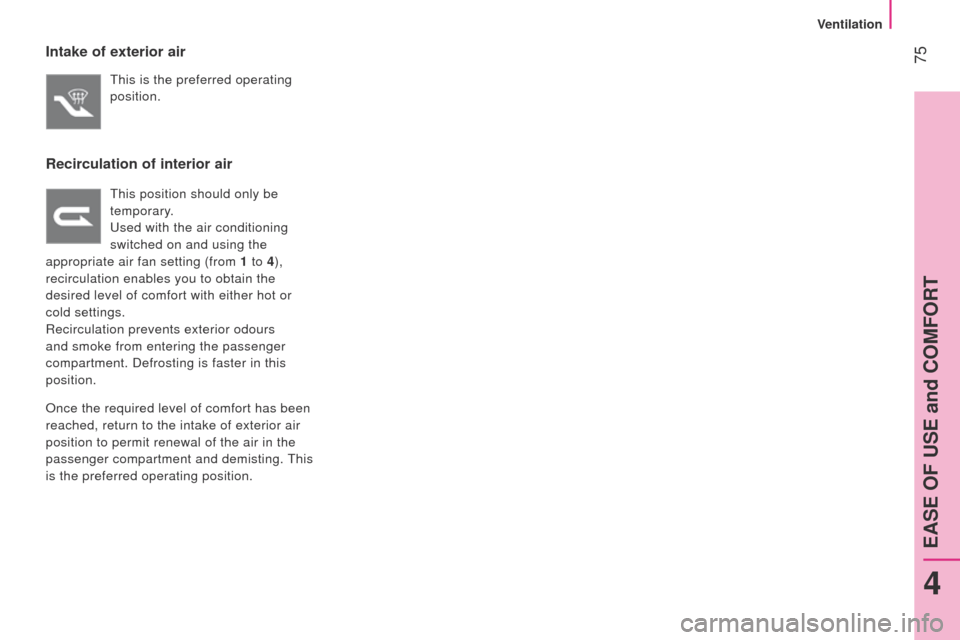

Intake of exterior air
this is the preferred operating
position.
Recirculation of interior air
this position should only be
temporary .
u

sed with the air conditioning
switched on and using the
appropriate air fan setting (from 1 to 4),
recirculation enables you to obtain the
desired level of comfort with either hot or
cold settings.
Recirculation prevents exterior odours
and smoke from entering the passenger
compartment. Defrosting is faster in this
position.
Once the required level of comfort has been
reached, return to the intake of exterior air
position to permit renewal of the air in the
passenger compartment and demisting.
t

his
is the preferred operating position.
4
EASE OF USE and COMFORT
Ventilation

76
Bipper_en_Chap04_ergonomie_ed02-2014

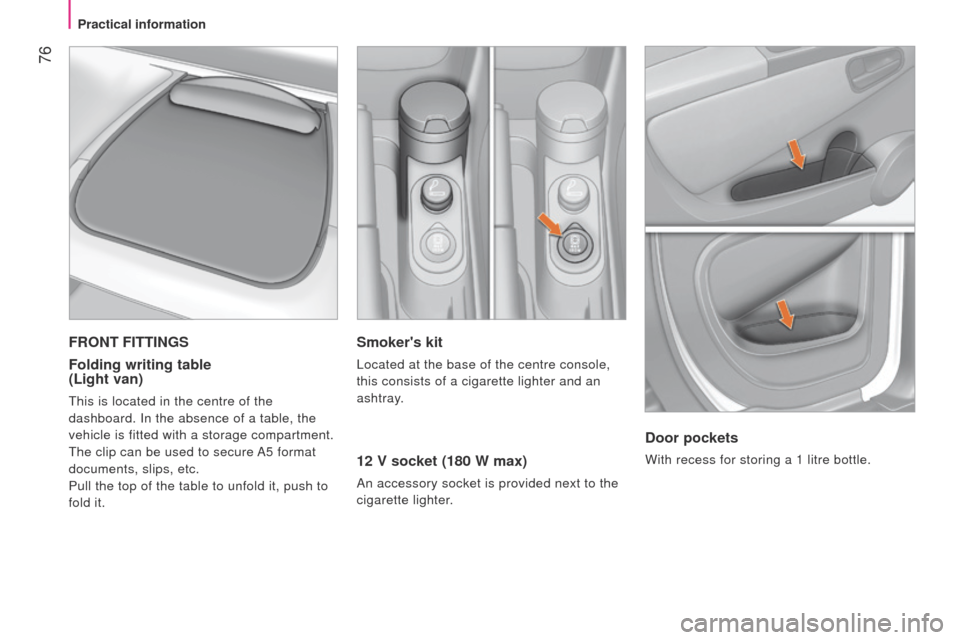

Smoker's kit
located at the base of the centre console,
this consists of a cigarette lighter and an
ashtray.
12 V socket (180 W max)
An accessory socket is provided next to the
cigarette lighter.
FRONT FITTINGS
Folding writing table
(Light van)
this is located in the centre of the
dashboard. In the absence of a table, the
vehicle is fitted with a storage compartment.
t

he clip can be used to secure A5 format
documents, slips, etc.
Pull the top of the table to unfold it, push to
fold it.
Door pockets
With recess for storing a 1 litre bottle.
Practical information

77
Bipper_en_Chap04_ergonomie_ed02-2014

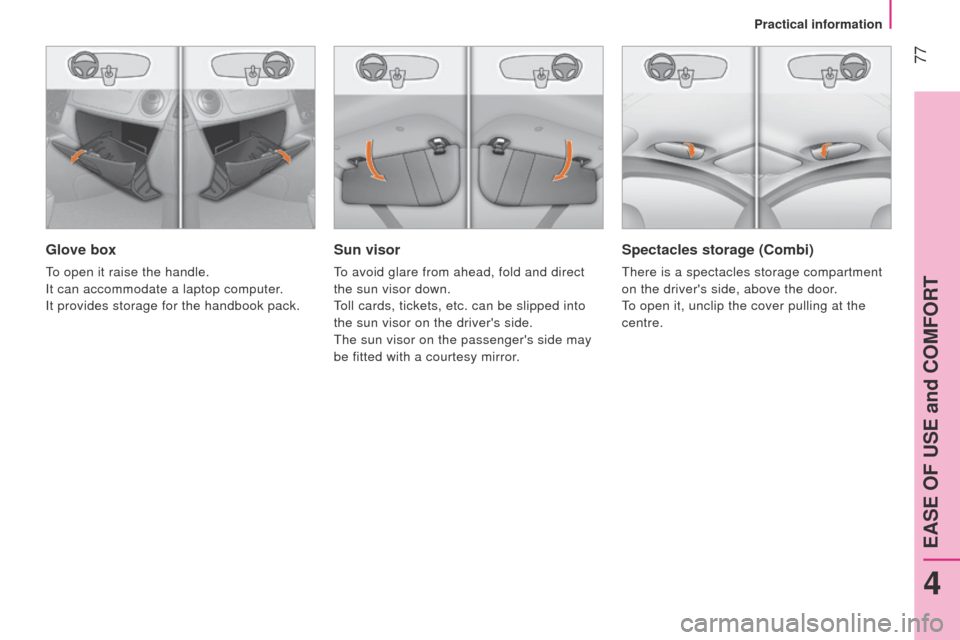

Sun visor
to avoid glare from ahead, fold and direct
the sun visor down.
toll cards, tickets, etc. can be slipped into


the sun visor on the driver's side.
t

he sun visor on the passenger's side may
be fitted with a courtesy mirror.
Glove box
to open it raise the handle.
It can accommodate a laptop computer .
It provides storage for the handbook pack.
Spectacles storage (Combi)
there is a spectacles storage compartment
on the driver's side, above the door .
to open it, unclip the cover pulling at the


centre.
4
EASE OF USE and COMFORT
Practical information

78
Bipper_en_Chap04_ergonomie_ed02-2014

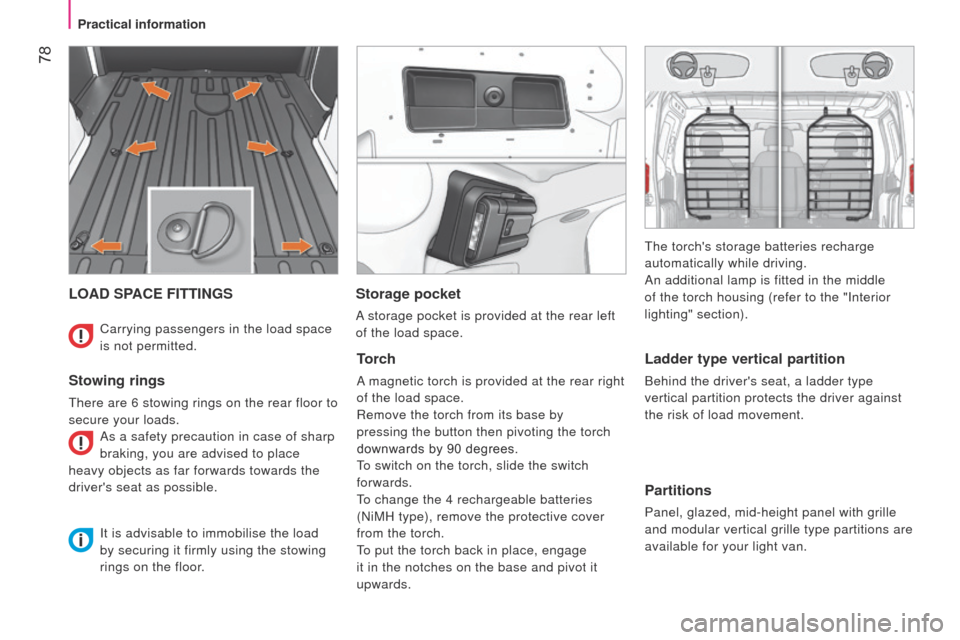

LOAD SPACE FITTINGS
Stowing rings
there are 6 stowing rings on the rear floor to
secure your loads. As a safety precaution in case of sharp

braking, you are advised to place
heavy objects as far forwards towards the
driver's seat as possible.
Storage pocket
A storage pocket is provided at the rear left
of the load space.
Torch
A magnetic torch is provided at the rear right
of the load space.
Remove the torch from its base by
pressing the button then pivoting the torch
downwards by 90 degrees.
to switch on the torch, slide the switch


forwards.
to change the 4 rechargeable batteries


(NiMH type), remove the protective cover
from the torch.
to put the torch back in place, engage


it in the notches on the base and pivot it
upwards.
Ladder type vertical partition
Behind the driver's seat, a ladder type
vertical partition protects the driver against
the risk of load movement.
Partitions
Panel, glazed, mid-height panel with grille
and modular vertical grille type partitions are
available for your light van.
Carrying passengers in the load space
is not permitted.
It is advisable to immobilise the load


by securing it firmly using the stowing
rings on the floor.
t
he torch's storage batteries recharge
automatically while driving.
An additional lamp is fitted in the middle
of the torch housing (refer to the "Interior
lighting" section).
