2014.5 Peugeot Bipper Owner's Manual - RHD (UK, Australia)

135
Bipper_en_Chap06_securite_ed02-2014

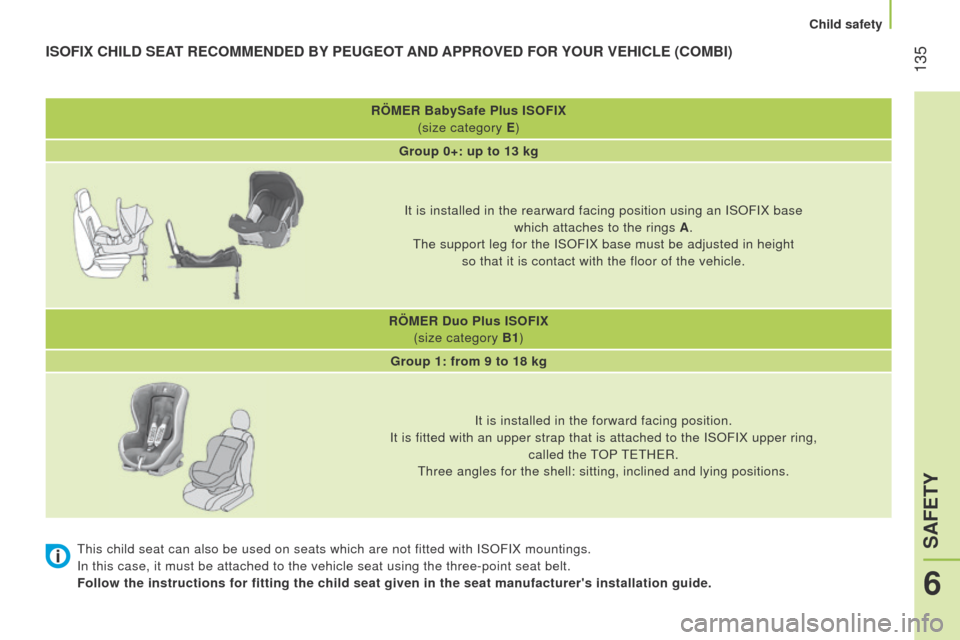

RÖMER BabySafe Plus ISOFIX
(size category E )
Group 0+: up to 13 kg
It is installed in the rearward facing position using an ISOFIX base
which attaches to the rings A .
t

he support leg for the ISOFIX base must be adjusted in height
so that it is contact with the floor of the vehicle.
RÖMER Duo Plus ISOFIX
(size category B1)
Group 1: from 9 to 18 kg
It is installed in the forward facing position.
It is fitted with an upper strap that is attached to the ISOFIX upper ri\
ng,
called the
t
OP
tet H e R.
t

hree angles for the shell: sitting, inclined and lying positions.
t

his child seat can also be used on seats which are not fitted with ISOFI\
X mountings.
In this case, it must be attached to the vehicle seat using the three-po\
int seat belt.
Follow the instructions for fitting the child seat given in the seat man\
ufacturer's installation guide.
ISOFIX CHILD SEAT RECOMMENDED BY PEUGEOT AND APPROVED FOR YOUR VEHICLE (C OMBI )
6
SAFETY
Child safety

136
Bipper_en_Chap06_securite_ed02-2014

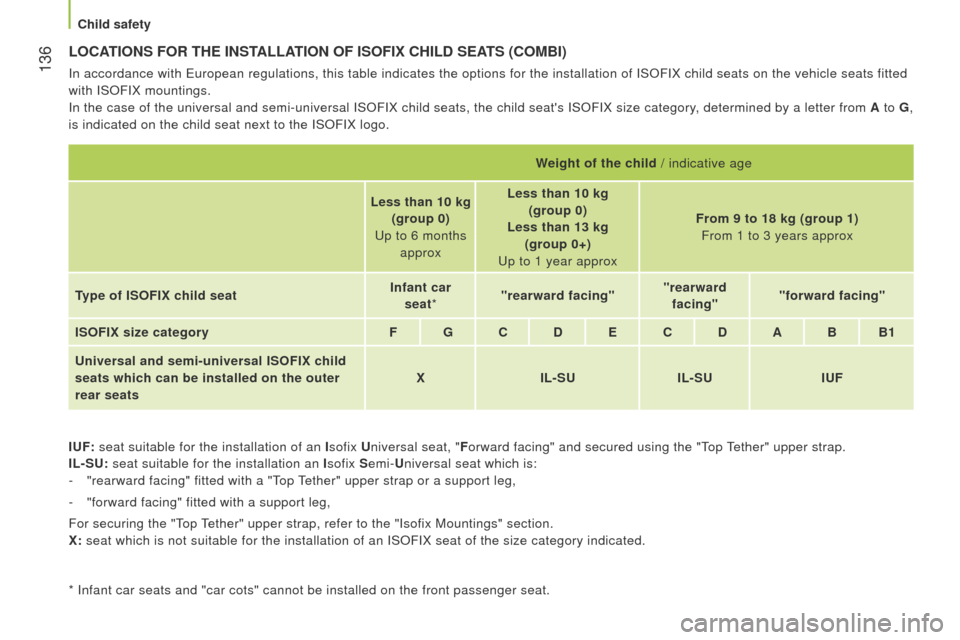

LOCATIONS FOR THE INSTALLATION OF ISOFIX CHILD SEATS (COMBI)
In accordance with european regulations, this table indicates the options for the installati\
on of ISOFIX child seats on the vehicle seats fitted
with ISOFIX mountings.
In the case of the universal and semi-universal ISOFIX child seats, the \
child seat's ISOFIX size category
, determined by a letter from A to G,
is indicated on the child seat next to the ISOFIX logo.
IUF: seat suitable for the installation of an I sofix Universal seat, "F orward facing" and secured using the "
t
op tether" upper strap.
IL-SU:

seat suitable for the installation an I sofix Semi-U niversal seat which is:
-

"rearward facing" fitted with a "
t
op tether" upper strap or a support leg,
-


"forward facing" fitted with a support leg,
For securing the "

t
op tether" upper strap, refer to the "Isofix Mountings" section.
X:

seat which is not suitable for the installation of an ISOFIX seat of th\
e size category indicated. Weight of the child / indicative age
Less than 10 kg (group 0)
u

p to 6 months approx Less than 10 kg

(group 0)
Less than 13 kg
(group 0+)
u

p to 1 year approxFrom 9 to 18 kg (group 1)
From 1 to 3 years approx
Type of ISOFIX child seat Infant car
seat* "
rearward facing" "
rearward
facing" "forward facing"
ISOFIX size category F G C D E C D A B B1
Universal and semi-universal ISOFIX child
seats which can be installed on the outer
rear seats X
IL-SU IL-SU IUF
* Infant car seats and "car cots" cannot be installed on the front passe\
nger seat.
Child safety

137
Bipper_en_Chap07_accessoire_ed02-2014

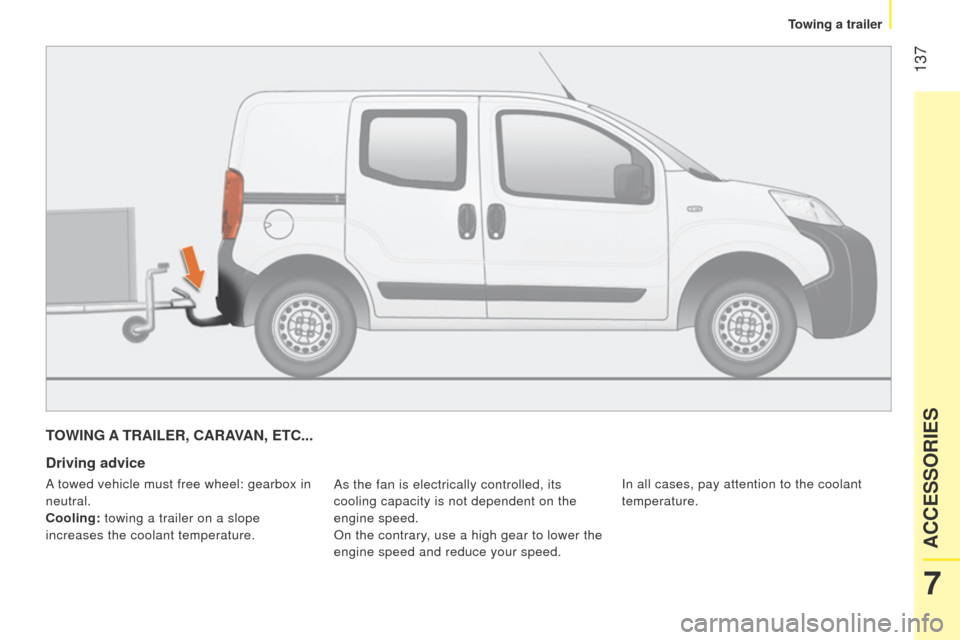

TOWING A TRAILER, CARAVAN, ETC...
Driving advice
As the fan is electrically controlled, its
cooling capacity is not dependent on the
engine speed.
On the contrary, use a high gear to lower the
engine speed and reduce your speed.In all cases, pay attention to the coolant
temperature.
A towed vehicle must free wheel: gearbox in
neutral.
Cooling: towing a trailer on a slope
increases the coolant temperature.
7
ACCESSORIES
Towing a trailer

138
Bipper_en_Chap07_accessoire_ed02-2014

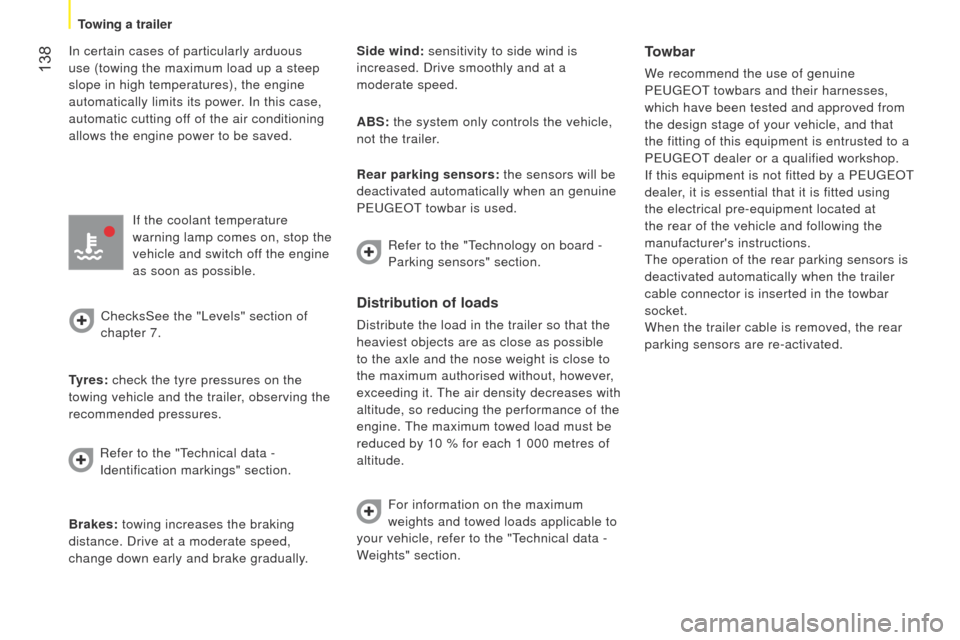

In certain cases of particularly arduous
use (towing the maximum load up a steep
slope in high temperatures), the engine
automatically limits its power. In this case,
automatic cutting off of the air conditioning
allows the engine power to be saved.If the coolant temperature
warning lamp comes on, stop the
vehicle and switch off the engine
as soon as possible.
ChecksSee the "
l evels" section of
chapter 7.
Tyres: check the tyre pressures on the
towing vehicle and the trailer, observing the
recommended pressures.
Brakes: towing increases the braking
distance. Drive at a moderate speed,
change down early and brake gradually. Side wind: sensitivity to side wind is
increased. Drive smoothly and at a
moderate speed.
ABS: the system only controls the vehicle,
not the trailer.
Distribution of loads
Distribute the load in the trailer so that the
heaviest objects are as close as possible
to the axle and the nose weight is close to
the maximum authorised without, however,
exceeding it.
t

he air density decreases with
altitude, so reducing the performance of the
engine.
t

he maximum towed load must be
reduced by 10 % for each 1 000 metres of
altitude.
Refer to the "
t
echnical data -


Identification markings" section. Rear parking sensors: the sensors will be
deactivated automatically when an genuine
P
euge O t towbar is used.
Towbar
We recommend the use of genuine
P
euge O t towbars and their harnesses,
which have been tested and approved from
the design stage of your vehicle, and that
the fitting of this equipment is entrusted to a
P
euge O t
dealer or a qualified workshop.
If this equipment is not fitted by a P

euge O t

dealer

, it is essential that it is fitted using
the electrical pre-equipment located at
the rear of the vehicle and following the
manufacturer's instructions.
t

he operation of the rear parking sensors is
deactivated automatically when the trailer
cable connector is inserted in the towbar
socket.
When the trailer cable is removed, the rear
parking sensors are re-activated.
Refer to the "
t
echnology on board -


Parking sensors" section.
For information on the maximum
weights and towed loads applicable to
your vehicle, refer to the "
t
echnical data -


Weights" section.
Towing a trailer

139
Bipper_en_Chap07_accessoire_ed02-2014

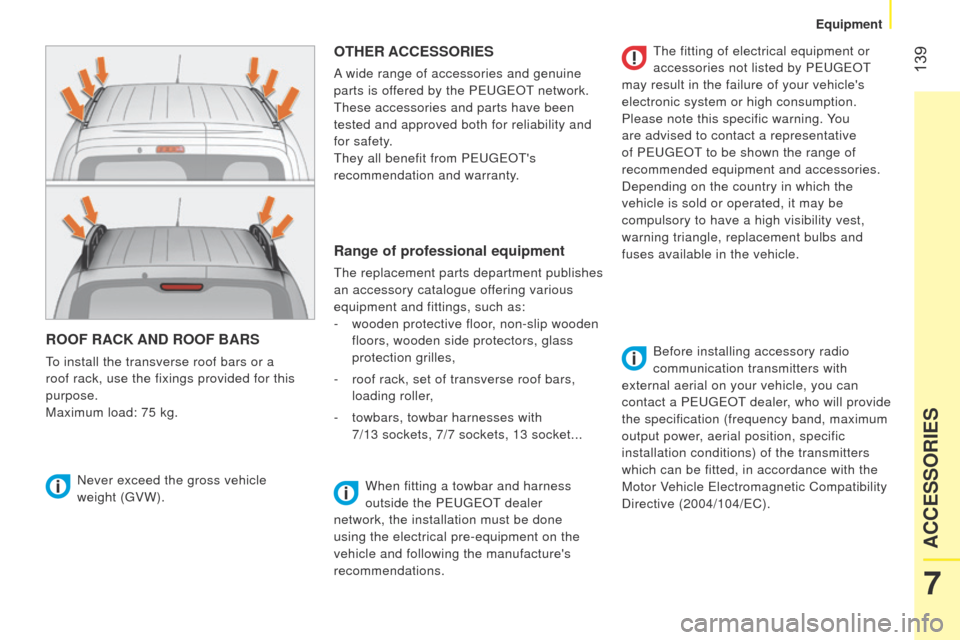

ROOF RACK AND ROOF BARS
to install the transverse roof bars or a
roof rack, use the fixings provided for this
purpose.
Maximum load: 75 kg.
OTHER ACCESSORIES
A wide range of accessories and genuine
parts is offered by the P euge O t
network.
t

hese accessories and parts have been
tested and approved both for reliability and
for safety.
t

hey all benefit from P euge O t 's
recommendation and warranty.
Never exceed the gross vehicle
weight (
g
VW).
Range of professional equipment
the replacement parts department publishes
an accessory catalogue of fering various
equipment and fittings, such as:
-

wooden protective floor
, non-slip wooden
floors, wooden side protectors, glass
protection grilles,
-

roof rack, set of transverse roof bars,

loading roller,
-

towbars, towbar harnesses with

7/13
sockets, 7/7 sockets, 13 socket...
t
he fitting of electrical equipment or
accessories not listed by P euge O t

may result in the failure of your vehicle's

electronic system or high consumption.
Please note this specific warning. You
are advised to contact a representative
of P euge O t
to be shown the range of

recommended equipment and accessories.
Depending on the country in which the
vehicle is sold or operated, it may be
compulsory to have a high visibility vest,
warning triangle, replacement bulbs and
fuses available in the vehicle.
Before installing accessory radio
communication transmitters with
external aerial on your vehicle, you can
contact a P
euge O t
dealer
, who will provide
the specification (frequency band, maximum
output power, aerial position, specific
installation conditions) of the transmitters
which can be fitted, in accordance with the
Motor Vehicle
e lectromagnetic Compatibility
Directive (2004/104/
e C).
When fitting a towbar and harness
outside the P
euge O t
dealer

network, the installation must be done
using the electrical pre-equipment on the
vehicle and following the manufacture's
recommendations.
7
ACCESSORIES
Equipment

140
Bipper_en_Chap07_accessoire_ed02-2014

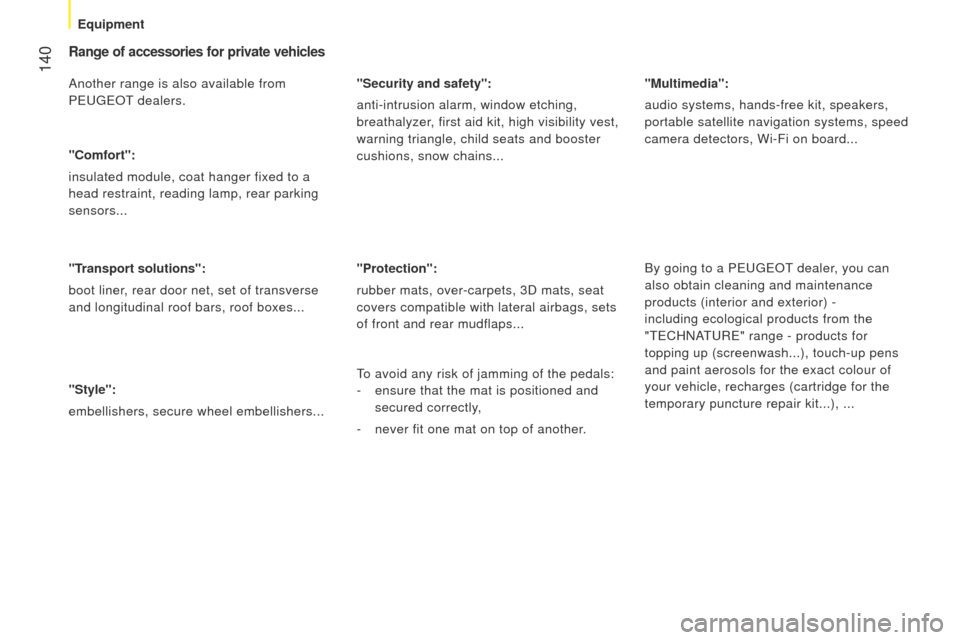

Range of accessories for private vehicles
Another range is also available from
Peuge O t
dealers.
"Comfort":
insulated module, coat hanger fixed to a


head restraint, reading lamp, rear parking
sensors...
"Transport solutions":
boot liner, rear door net, set of transverse
and longitudinal roof bars, roof boxes...
"Style":
embellishers, secure wheel embellishers... "Security and safety":
anti-intrusion alarm, window etching,
breathalyzer, first aid kit, high visibility vest,
warning triangle, child seats and booster
cushions, snow chains...
"Protection":
rubber mats, over-carpets, 3D mats, seat
covers compatible with lateral airbags, sets
of front and rear mudflaps...
"Multimedia":
audio systems, hands-free kit, speakers,
portable satellite navigation systems, speed
camera detectors, Wi-Fi on board...
By going to a P
euge O t dealer, you can
also obtain cleaning and maintenance
products (interior and exterior) -
including ecological products from the
"
te CHNA
tu
R e " range - products for
topping up (screenwash...), touch-up pens
and paint aerosols for the exact colour of
your vehicle, recharges (cartridge for the
temporary puncture repair kit...), ...
to avoid any risk of jamming of the pedals:
-


ensure that the mat is positioned and

secured correctly,
-

never fit one mat on top of another
.
Equipment

141
Bipper_en_Chap08_verifications_ed02-2014

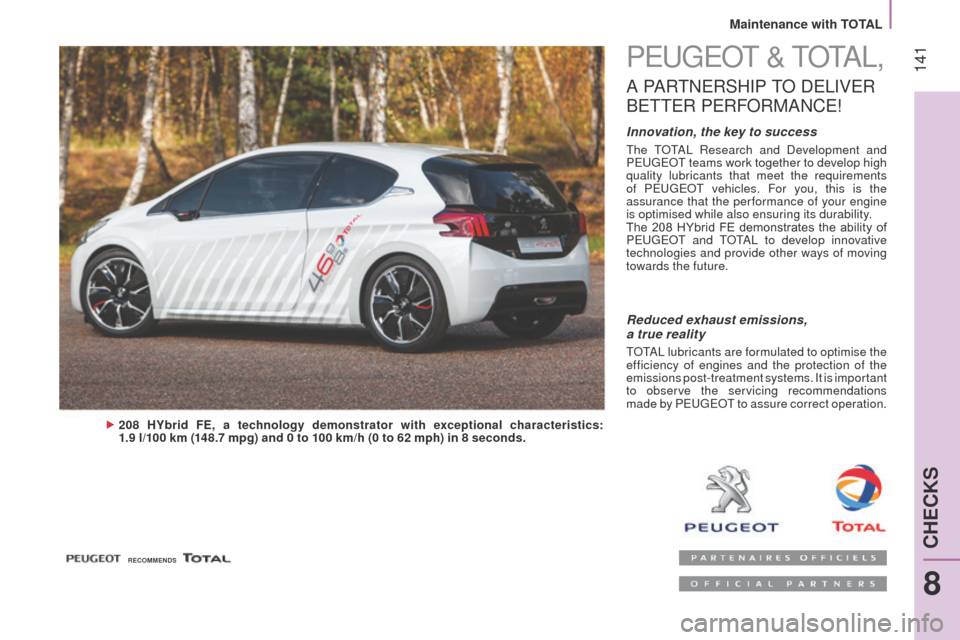

PeugeOt & t O tAl,
A PARtNeRSHIP tO De lI Ve R
Be

tte R

P
e
RFORMANC
e
!
Innovation, the key to success
the tOtAl Research and Development and
Pe ugeOt teams work together to develop high
quality lubricants that meet the requirements
of P
e

uge
Ot
vehicles. For you, this is the
assurance that the performance of your engine
is optimised while also ensuring its durability.
The 208 HYbrid FE demonstrates the ability of
P
e

uge
Ot
and
tOtAl
to develop innovative
technologies and provide other ways of moving
towards the future.
208 HYbrid FE, a technology demonstrator with exceptional characteristics:
1.9 l/100 km (148.7 mpg) and 0 to 100 km/h (0 to 62 mph) in 8 seconds.
Reduced exhaust emissions,
a true reality
tOtAl lubricants are formulated to optimise the
efficiency of engines and the protection of the
emissions post-treatment systems. It is important
to observe the servicing recommendations
made by P
e

uge
Ot
to assure correct operation.
RECOMMENDS
8
CHECKS
Maintenance with TOTAL

142
Bipper_en_Chap08_verifications_ed02-2014

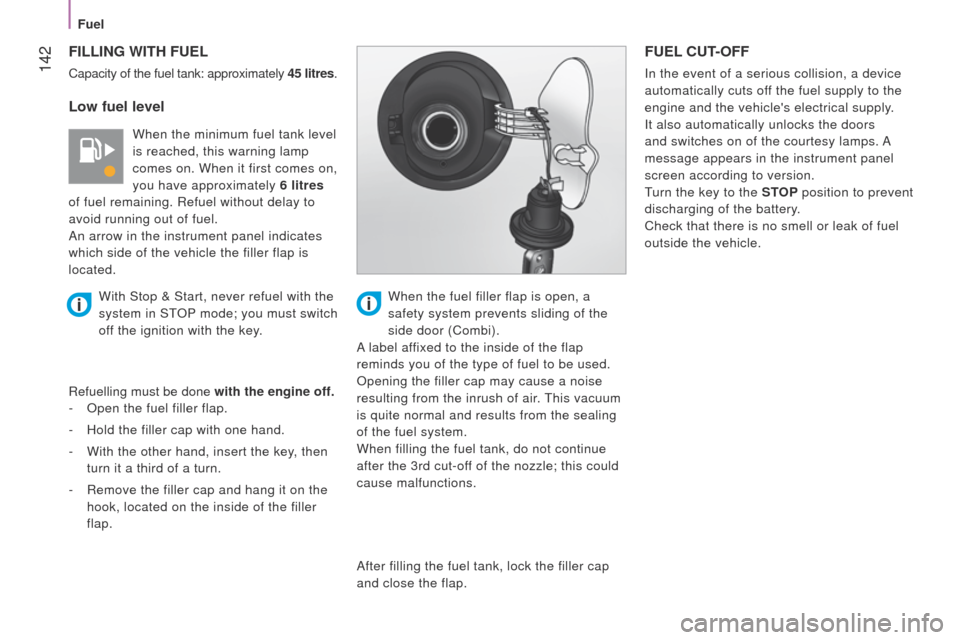

FILLING WITH FUEL
Capacity of the fuel tank: approximately 45 litres.
Low fuel level
When the minimum fuel tank level
is reached, this warning lamp
comes on. When it first comes on,
you have approximately 6 litres
of fuel remaining. Refuel without delay to
avoid running out of fuel.
An arrow in the instrument panel indicates
which side of the vehicle the filler flap is
located.
Refuelling must be done with the engine off.
-

Open the fuel filler flap.
-


Hold the filler cap with one hand.
-


With the other hand, insert the key
, then
turn it a third of a turn.
-

Remove the filler cap and hang it on the

hook, located on the inside of the filler
flap.
FUEL CUT-OFF
In the event of a serious collision, a device
automatically cuts off the fuel supply to the
engine and the vehicle's electrical supply.
It also automatically unlocks the doors
and switches on of the courtesy lamps. A
message appears in the instrument panel
screen according to version.
turn the key to the

STOP position to prevent
discharging of the battery.
Check that there is no smell or leak of fuel
outside the vehicle.
With Stop & Start, never refuel with the
system in S
t
OP

mode; you must switch
off the ignition with the key. When the fuel filler flap is open, a
safety system prevents sliding of the
side door (Combi).
A label affixed to the inside of the flap
reminds you of the type of fuel to be used.
Opening the filler cap may cause a noise
resulting from the inrush of air.
t

his vacuum
is quite normal and results from the sealing
of the fuel system.
When filling the fuel tank, do not continue
after the 3rd cut-off of the nozzle; this could
cause malfunctions.
After filling the fuel tank, lock the filler cap
and close the flap.
Fuel
