2014.5 Peugeot Bipper Owner's Manual - RHD (UK, Australia)

47
Bipper_en_Chap03_pret-a-partir_ed02-2014

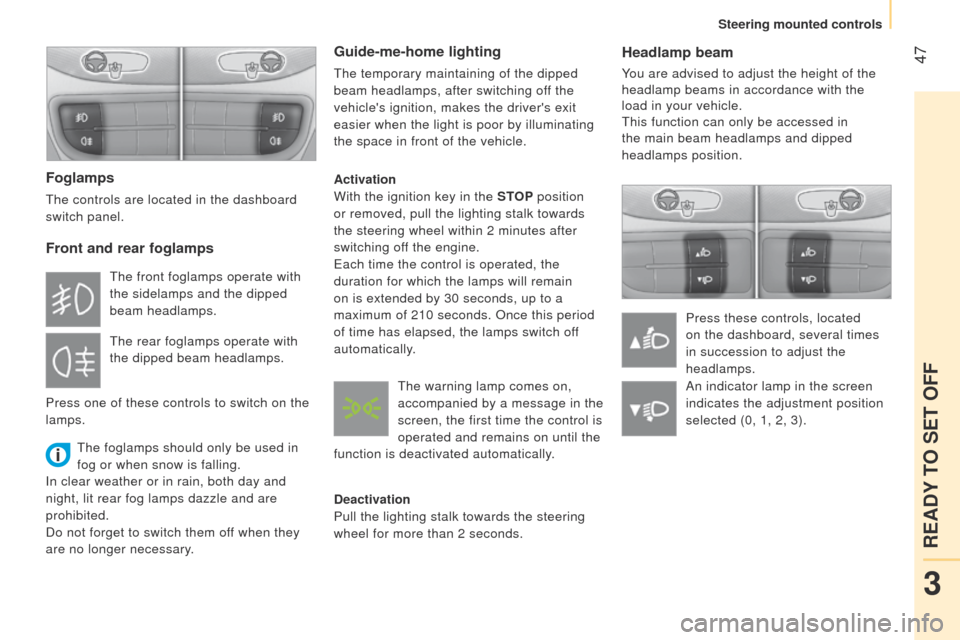

Headlamp beam
You are advised to adjust the height of the
headlamp beams in accordance with the
load in your vehicle.
t
his function can only be accessed in
the main beam headlamps and dipped
headlamps position.
Press these controls, located
on the dashboard, several times
in succession to adjust the
headlamps.
Foglamps
the controls are located in the dashboard
switch panel.
Front and rear foglamps
the foglamps should only be used in
fog or when snow is falling.
In clear weather or in rain, both day and

night, lit rear fog lamps dazzle and are
prohibited.
Do not forget to switch them off when they
are no longer necessary.
Guide-me-home lighting
the temporary maintaining of the dipped
beam headlamps, after switching of f the
vehicle's ignition, makes the driver's exit
easier when the light is poor by illuminating
the space in front of the vehicle.
Activation
With the ignition key in the STOP position
or removed, pull the lighting stalk towards
the steering wheel within 2 minutes after
switching off the engine.
e

ach time the control is operated, the
duration for which the lamps will remain
on is extended by 30 seconds, up to a
maximum of 210 seconds. Once this period
of time has elapsed, the lamps switch off
automatically.
Deactivation
Pull the lighting stalk towards the steering
wheel for more than 2 seconds.
t

he front foglamps operate with
the sidelamps and the dipped
beam headlamps.
t

he rear foglamps operate with
the dipped beam headlamps.
Press one of these controls to switch on the
lamps.
t

he warning lamp comes on,
accompanied by a message in the
screen, the first time the control is
operated and remains on until the
function is deactivated automatically. An indicator lamp in the screen
indicates the adjustment position
selected (0, 1, 2, 3).
3
READY TO SET OFF
Steering mounted controls

48
Bipper_en_Chap03_pret-a-partir_ed02-2014
WIPER STALK
Windscreen wipers
Wiping is only active when the ignition key is
in the RUNNING position.
t
he stalk may have four different positions.
t

hree speeds can be selected by turning the
ring.
to change the blades, refer to the


"Quick help - Changing a wiper blade"
section.
Good practice
Check that the windscreen wiper blades can
operate freely when using the wipers in icy
weather.
Intermittent.
Slow continuous.
Fast continuous.
Single wipe: by pushing up.
Windscreen wash
Push the stalk down, the windscreen wash
alone is activated.
Hold the stalk down, the windscreen wash
is accompanied by a timed sweep of the
wipers.
to top up the levels, refer to the


"Checks -
l evels" section.
Rear wiper
this is positioned on the window
of the large rear door .
turn the ring.
Rear screen wash
the rear screen wash is incorporated next to
the third brake lamp.
Push the stalk up, the rear screen wash

alone is activated.
Hold the stalk up, the rear screen wash is
accompanied by a timed sweep of the wiper.
Steering mounted controls

49
Bipper_en_Chap03_pret-a-partir_ed02-2014
Reactivation
- Press the button on the
end of the control again.
or
-

Press the accelerator pedal until a speed

close to the programmed speed.
-
e
ngage the gear selected when
programming the speed.
Your vehicle will return to the last
programmed speed.
When the system is activated,
t

he "Cruise
control" warning lamp comes on in the
instrument panel.

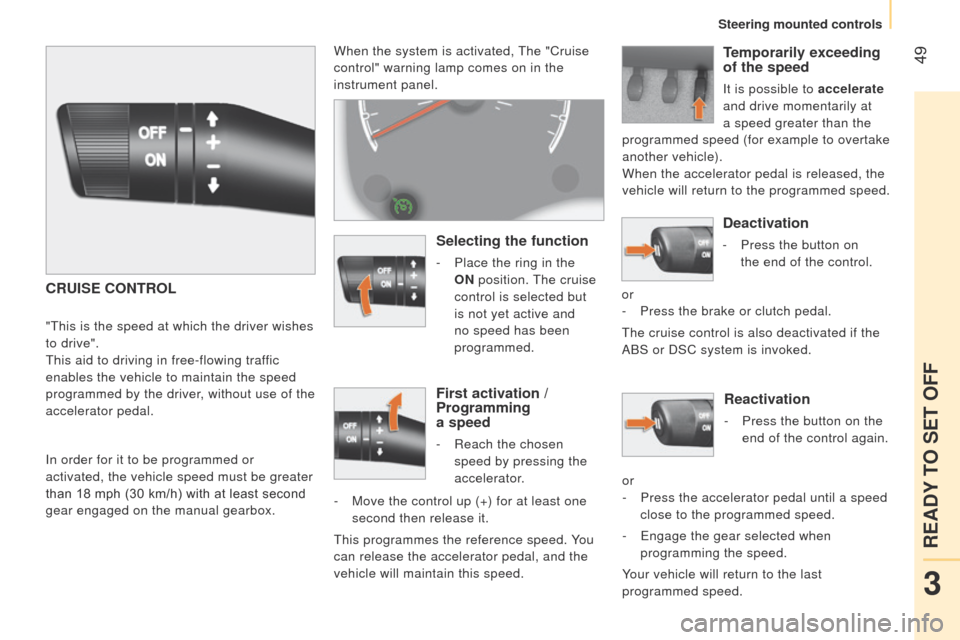

CRUISE CONTROL
"this is the speed at which the driver wishes
to drive".
t

his aid to driving in free-flowing traffic
enables the vehicle to maintain the speed
programmed by the driver, without use of the
accelerator pedal.
In order for it to be programmed or
activated, the vehicle speed must be greater
than 18 mph (30 km/h) with at least second
gear engaged on the manual gearbox.
Selecting the function
- Place the ring in the
ON position.
t
he cruise
control is selected but
is not yet active and
no speed has been
programmed.
First activation /
Programming
a speed
- Reach the chosen
speed by pressing the
accelerator.
-

Move the control up (+) for at least one

second then release it.
t

his programmes the reference speed. You
can release the accelerator pedal, and the
vehicle will maintain this speed.
Temporarily exceeding
of the speed
It is possible to accelerate
and drive momentarily at
a speed greater than the
programmed speed (for example to overtake
another vehicle).
When the accelerator pedal is released, the
vehicle will return to the programmed speed.
Deactivation
- Press the button on
the end of the control.
or
-

Press the brake or clutch pedal.
t

he cruise control is also deactivated if the
ABS or DSC system is invoked.
3
READY TO SET OFF
Steering mounted controls

50
Bipper_en_Chap03_pret-a-partir_ed02-2014
Changing the programmed speed
there are two methods of memorising a
speed higher than the previous one:
Switching the function off
- Place the ring in the
OFF position or switch
off the ignition to switch
everything off.
Cancelling the programmed speed
When the vehicle becomes stationary, after
switching off the ignition, the system no
longer memorises a speed.
Operating fault
In the event of an operating fault, turn the
ring to the OFF position and contact a
P
euge O t
dealer or a qualified workshop.
Good practice
When changing the programmed speed by
means of a maintained press, pay attention
as the speed can increase or decrease
rapidly.
Do not use the cruise control on slippery
roads or in heavy traffic.
Never engage neutral while the system is
operating.
In the event of a steep slope, the cruise
control cannot prevent the vehicle from
exceeding the programmed speed.
In any event, the cruise control cannot
replace the need to observe the speed limits,
nor can it replace the need for vigilance and
responsibility on the part of the driver.
It is advisable to leave your feet near the
pedals.
to avoid any jamming under the pedals:
-


ensure that the mat and its fixings on the

floor are positioned correctly,
-

never place one mat on top of another
.
Without using the
accelerator:
-

move the control up

(+).
e

ach brief press increases
the speed by 1 mph (km/h).u
sing the accelerator:
-
exceed the memorised speed until the

speed required is reached,
-

move the control up

(+) for at least one
second, then release it.
to memorise a speed lower


than the previous one:
-

move the control


down

(-)

; the new speed
will be memorised
automatically.
A brief press decreases the speed by 1 mph (km/h).
A maintained press decreases the speed gradually.
A maintained press increases the speed
gradually.
FIXED SPEED LIMITER
This function allows a fixed maximum speed
limit to be set for the vehicle (according
to version and only on the 1.3
HDi 75 hp
engine).
t

he maximum speed can be set to one of
4
pre-defined values: 56, 62, 68 or 80 mph
(90, 100, 110 or 130
km/h).
A

label in the passenger compartment
indicates the presence of this function
and its setting.
t

his function cannot be deactivated or set
by the driver.
Steering mounted controls

51
Bipper_en_Chap03_pret-a-partir_ed02-2014
REAR VIEW MIRRORDOOR MIRRORS
Electric controls
t

he electric control is located on the interior
door trim, level with the mirror.
to defrost the mirrors, press the

heated rear screen button.
Select the mirror to be adjusted by turning
the control to the right or to the left, then
move the control in the direction of the
adjustment required.
Manual controls
t

he right-hand and left-hand manual
controls are located inside the vehicle at the
base of each mirror.
Move the lever in the direction of the
adjustment required.
t

he lever located on the lower edge moves
the mirror into two positions.
For the day position, the lever is pushed
forwards.
For the night position to prevent dazzle,
pull the lever towards you.
t
he mirror glass is convex in order to widen
the lateral field of vision. Objects seen in the
mirror are in reality closer than they appear.
t
herefore, this must be taken into account in
order to assess the distance correctly.
3
READY TO SET OFF
Mirrors and windows

52
Bipper_en_Chap03_pret-a-partir_ed02-2014
ELECTRIC WINDOWS
Electric controls
On the driver's side, the electric window
has a safety anti-pinch function and is
associated with one-touch controls for
lowering and raising.
From the driver's seat, the controls placed
on the door operate the vehicle's front
windows.
On the passenger's side, the control
operates the passenger's front window.
One-touch control
An extended press on the control for the
driver's window raises or lowers the window
completely.
Press the control again to stop the window.
Press the control briefly to start the
movement of the window.
Manual controls
turn the window winder located on the door
trim panel.
Good practice
Always remove the key from the ignition
when leaving the vehicle, even for a short
time.
If the electric window meets an obstacle
during operation, you must reverse the
movement of the window.
to do this, press


the control concerned.
When the driver operates the passenger
electric window controls, they must ensure
that no one is preventing correct closing of
the windows.
t

he driver must ensure that the passenger
uses the electric window correctly.
Be aware of children when operating the
windows.
REAR WINDOWS (COMBI)
to partially open the rear windows, tilt the
lever and push it fully to lock the windows in
the open position.
Mirrors and windows

53
Bipper_en_Chap03_pret-a-partir_ed02-2014
Good practice
to change gear smoothly
, always press the
clutch pedal fully down.
to prevent the mat from becoming caught under the pedal:
- ensure that the mat is positioned correctly ,
-
never fit one mat on top of another
.
Avoid leaving your hand on the gear knob as
the force exerted, even if slight, may cause
wear of the internal components of the
gearbox over time.
MANUAL GEARBOX
Reverse

gear
Never engage reverse gear until the vehicle
is completely stationary.
t

he lever should be moved slowly to reduce
the noise on engaging reverse gear.
If your vehicle is fitted with parking
sensors, the system comes into
operation when reverse gear is engaged,
confirmed by an audible signal.
Refer to the "
t
echnology on board -

Parking sensors" section.
STEERING WHEEL ADJUSTMENT
When the vehicle is stationary, release the
steering wheel adjustment by pushing the
lever down.
Adjust the steering wheel for height and
reach, then lock by pulling the lever up fully. When traversing a flooded road or a
ford, drive at walking pace.
3
READY TO SET OFF
Gearbox and steering wheel

54
Bipper_en_Chap03_pret-a-partir_ed02-2014
ELECTRONIC GEARBOX
the five-speed electronic gearbox offers a
choice between the comfort of automated
operation or the pleasure of manual gear
changing.
t

his gearbox provides two driving modes:
-

an automated mode for automatic control

of the gears by the gearbox and therefore
without any action on the part of the
driver,
-

a sequential mode for manual changing

of the gears by the driver using the gear
lever.
It consists of:
1.

a gear lever
1 on the centre console
for selecting the driving mode, reverse
gear and neutral or for changing gear in
sequential mode,
2.

a button
2 to activate or deactivate the
economy programme.
Gear lever gate
All movements of the gear lever are given
from the middle position.
N : neutral.
With your foot on the brake, select this
position to start, by moving the gear lever to
the right and then forwards.
R : reverse gear.
With the vehicle stationary, keep your foot
on the brake pedal and move the gear lever
to the right and then backwards.
M +/-:

sequential mode with manual gear

changing.
Make a long push to the left on the lever to
select this mode, then:
-

push towards
+ to change up,
-

push towards
- to change down.
Displays in the instrument panel
N. Neutral.
R. Reverse.
1 2 3 4 5.
g ears engaged.
AUTO.

Comes on when automated mode is

selected; it goes off when changing
to sequential mode.
E.

It comes on when the economy

programme is activated; it goes off on
deactivation.
A
: automated mode.
Move the lever downwards to select this
mode.
E : economy programme.
Press this button to activate or deactivate it.
Gearbox and steering wheel
