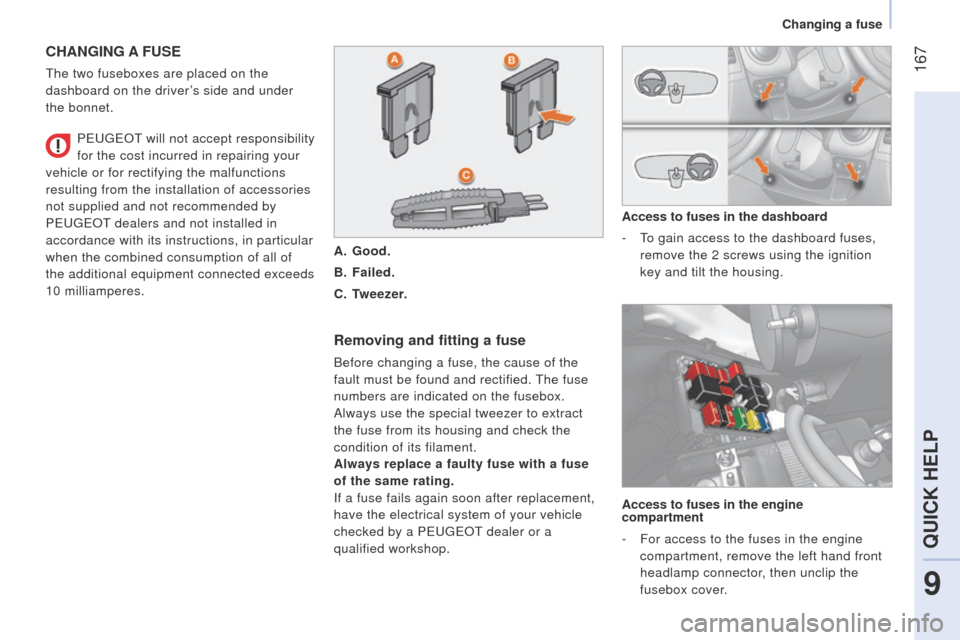

CHANGING A FUSE
the two fuseboxes are placed on the
dashboard on the driver ’s side and under
the bonnet.
Removing and fitting a fuse
Before changing a fuse, the cause of the
fault must be found and rectified.
t
he fuse
numbers are indicated on the fusebox.
Always use the special tweezer to extract
the fuse from its housing and check the
condition of its filament.
Always replace a faulty fuse with a fuse
of the same rating.
If a fuse fails again soon after replacement,
have the electrical system of your vehicle
checked by a P
euge O t
dealer or a

qualified workshop. Access to fuses in the dashboard
-
t
o gain access to the dashboard fuses,

remove the 2 screws using the ignition
key and tilt the housing.
P
euge
O
t
will not accept responsibility


for the cost incurred in repairing your
vehicle or for rectifying the malfunctions
resulting from the installation of accessories
not supplied and not recommended by
P
euge
O
t
dealers and not installed in


accordance with its instructions, in particular
when the combined consumption of all of
the additional equipment connected exceeds
10

milliamperes.
A.
Good.
B.

Failed.
C.

T
weezer.
Access to fuses in the engine
compartment
-
For access to the fuses in the engine

compartment, remove the left hand front
headlamp connector, then unclip the
fusebox cover.
9
QUICK HELP
Changing a fuse

168
Bipper_en_Chap09_aide-rapide_ed02-2014
Table of dashboard fuses, driver’s
sideMarking RatingFunctions
F12 7.5 ARight-hand dipped beam headlamp supply
F13 7.5 A
l

eft-hand dipped beam headlamp supply - headlamp height
adjuster
F31 5 A
e

ngine control unit supply switch
F32 7.5 AFront lamp - front courtesy lamp - rear courtesy light lamp
F36 10 AAudio system - mobile telephone pre-equipment -

air conditioning control panel -
e ODB diagnostic socket
F37 5 ABrake lamp - instrument panel
F38 20 ADoor locking
F43 15 AScreenwash pump
F47 20 ADriver’s electric window motor supply
F48 20 APassenger’s electric window motor supply
F49 5 AParking sensors control unit - rear lighting switch -

electric door mirrors - volumetric alarm
control unit
F50 7.5 AAirbags control unit
F51 7.5 ASwitch on brake pedal - switch on clutch pedal -

door mirror controls - central Bluetooth
system
F53 5 AInstrument panel - rear foglamps
Changing a fuse

169
Bipper_en_Chap09_aide-rapide_ed02-2014

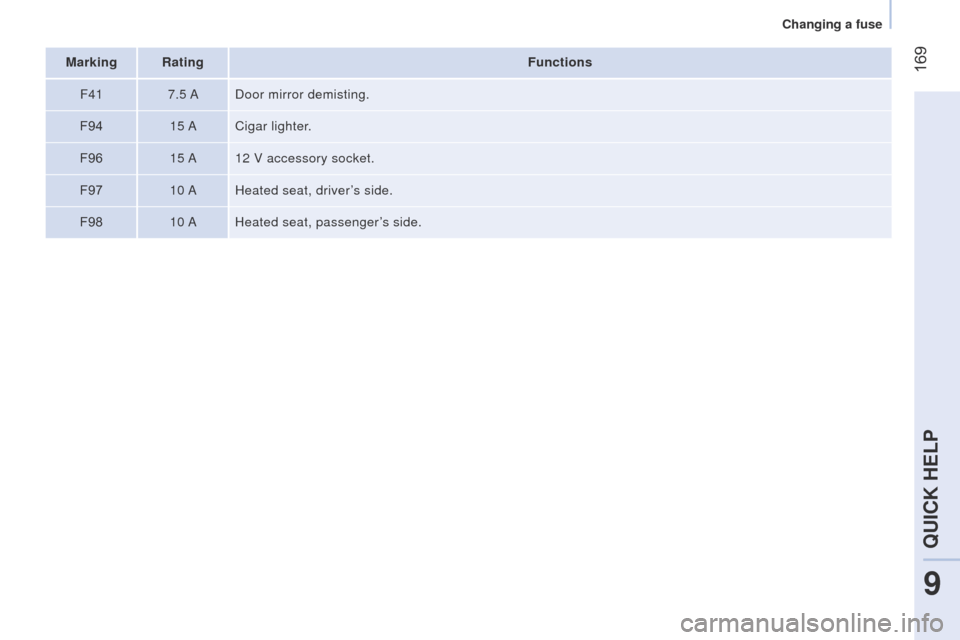

Marking RatingFunctions
F41 7.5 ADoor mirror demisting.
F94 15 ACigar lighter.
F96 15 A12 V accessory socket.
F97 10 AHeated seat, driver’s side.
F98 10 AHeated seat, passenger’s side.
9
QUICK HELP
Changing a fuse

170
Bipper_en_Chap09_aide-rapide_ed02-2014
Marking RatingFunctions
F01 60 AControl unit.
F02 40 APassenger compartment fan.
F03 20 AStarter motor supply.
F04 40 AABS hydraulic block pump supply.
F06 30 ASingle speed cooling fan control.
F07 40 AHigh speed cooling fan control.
F08 30 AAir conditioning compressor.
F09 15 A
towbar harness.
F10 10 AHorn.
F

11 10 A
e

ngine management secondary load supply.
F14 15 AMain beam headlamps.
F15 15 A12 V accessory socket.Table of fuses in the engine
compartment
Changing a fuse

171
Bipper_en_Chap09_aide-rapide_ed02-2014
Marking RatingFunctions
F16 7.5 A
e

ngine management control unit - electronic gearbox control unit and gear\
lever -
t

20 relay coil
F17 15 ASupply for ignition coil - injectors - engine management control unit (\
1.3 HDi)
F18 7.5 AEngine management control unit (1.3 HDi) - T09 relay coil
F19 7.5 AAir conditioning compressor
F20 30 ASupply for heated rear screen, electric door mirrors heater elements
F21 15 AFuel pump (1.4 petrol and 1.3 HDi)
F22 20 A
e

ngine management control unit (1.3 HDi)
F23 20 AABS hydraulic block electrovalves supply
F24 7.5 AABS
F30 15 AFoglamps
F81 60 APre-heat unit (1.3 HDi)
F82 30 A
e

lectronic gearbox pump - electronic gearbox supply
F84 10 A
e

lectronic gearbox control unit and electrovalves
F85 30 ACigar lighter - 12 V accessory socket
F87 7.5 A
Reversing lamps - water in Diesel sensor - airflow sensor - T02, T05, T14, T17 and T19 relay coils

(except 1.3 HDi)
5 A Reversing lamps - water in Diesel sensor - airflow sensor - T02, T05, T14, T17 and T19 relay coils -

battery state of charge sensor (except 1.3 HDi)
9
QUICK HELP
Changing a fuse

172
Bipper_en_Chap09_aide-rapide_ed02-2014

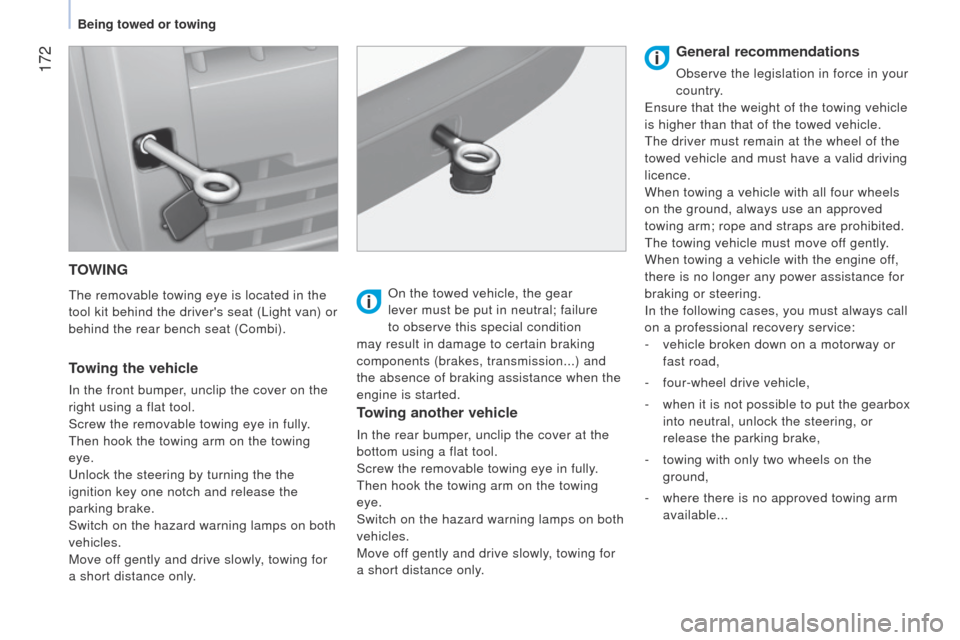

TOWING
the removable towing eye is located in the
tool kit behind the driver's seat ( l ight van) or
behind the rear bench seat (Combi).
Towing the vehicle
In the front bumper, unclip the cover on the
right using a flat tool.
Screw the removable towing eye in fully.
t

hen hook the towing arm on the towing
eye.
u

nlock the steering by turning the the
ignition key one notch and release the
parking brake.
Switch on the hazard warning lamps on both
vehicles.
Move off gently and drive slowly, towing for
a short distance only. On the towed vehicle, the gear
lever must be put in neutral; failure
to observe this special condition
may result in damage to certain braking
components (brakes, transmission...) and
the absence of braking assistance when the
engine is started.
Towing another vehicle
In the rear bumper, unclip the cover at the
bottom using a flat tool.
Screw the removable towing eye in fully.
t

hen hook the towing arm on the towing
eye.
Switch on the hazard warning lamps on both
vehicles.
Move off gently and drive slowly, towing for
a short distance only.
General recommendations
Observe the legislation in force in your
country.
e

nsure that the weight of the towing vehicle
is higher than that of the towed vehicle.
t

he driver must remain at the wheel of the
towed vehicle and must have a valid driving
licence.
When towing a vehicle with all four wheels
on the ground, always use an approved
towing arm; rope and straps are prohibited.
t

he towing vehicle must move off gently.
When towing a vehicle with the engine off,
there is no longer any power assistance for
braking or steering.
In the following cases, you must always call
on a professional recovery service:
-

vehicle broken down on a motorway or

fast road,
-

four-wheel drive vehicle,
-


when it is not possible to put the gearbox

into neutral, unlock the steering, or
release the parking brake,
-

towing with only two wheels on the

ground,
-

where there is no approved towing arm

available...
Being towed or towing

173
Bipper_en_Chap09_aide-rapide_ed02-2014
9
QUICK HELP

174
Bipper_en_Chap10_caracteristique_ed02-2014

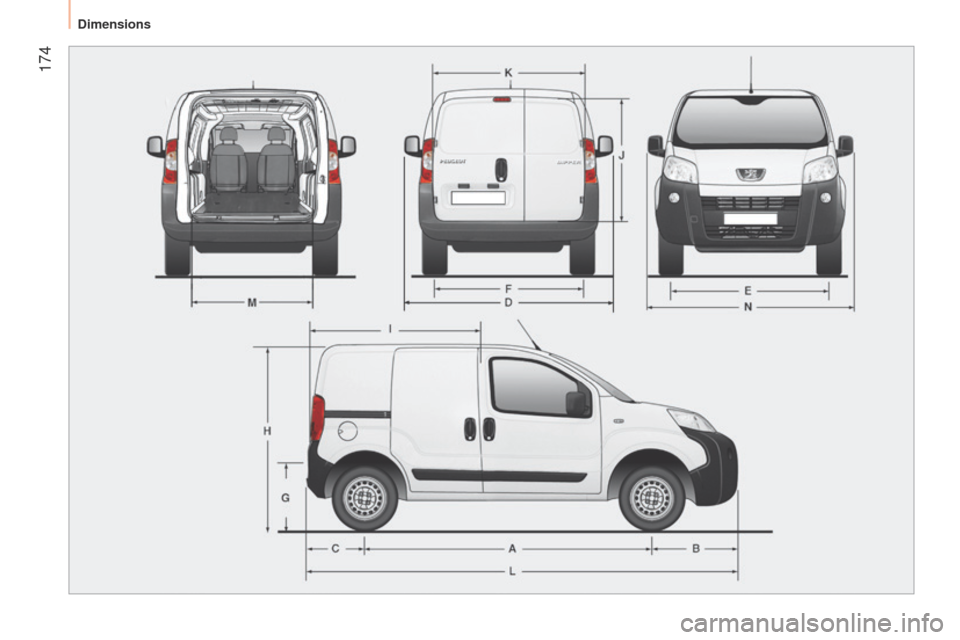

Dimensions
