2014.5 Peugeot Bipper Owner's Manual - RHD (UK, Australia)

175
Bipper_en_Chap10_caracteristique_ed02-2014
DIMENSIONS
the light van "l1" is the standard model, the "l2 - Worksite Pack" version is a model sold according to country.Light van
(in mm)
l

1
l
2 (Worksite Pack)
lOverall length3 8643 881
H Overall height 1 7211 742
Height with roof bars 1 7821 803
A Wheelbase 2 513
B Front overhang 760777
C Rear overhang 591
D Overall width 2 019
Width (with mirrors folded) 1 816
eWidth of front track1 4691 464
F Width of rear track 1 465
gHeight of load sill527544
I Length of interior floor 1 523
J Maximum interior load height 1 205
K Maximum interior width (10 cm from the floor) 1 473
M Interior width between wheel arches 1 046
V

olume (m
3) 2.5
10
Dimensions
TECHNICAL DATA

176
Bipper_en_Chap10_caracteristique_ed02-2014
Dimensions

177
Bipper_en_Chap10_caracteristique_ed02-2014

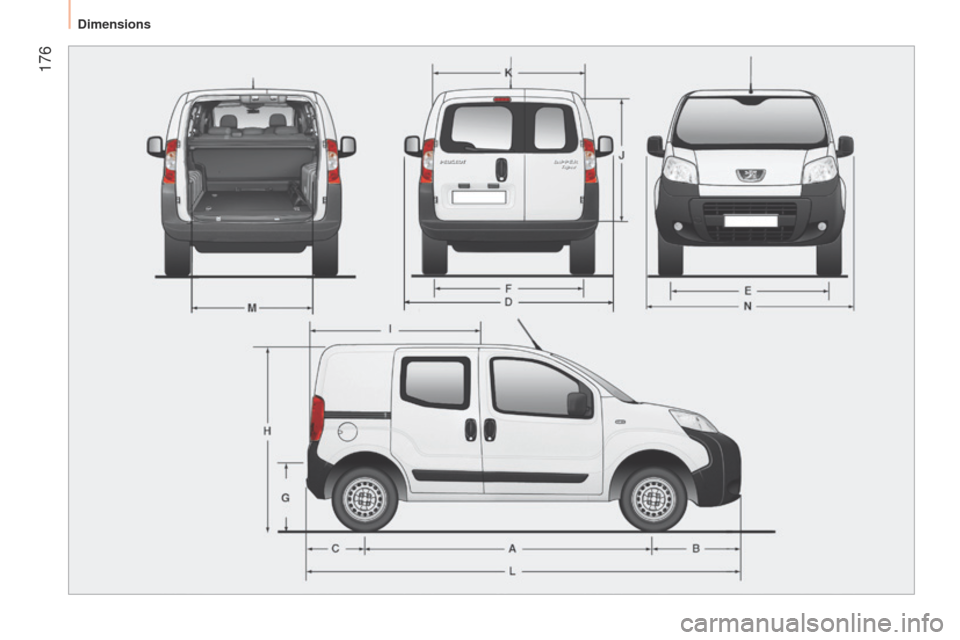

Combi (in mm)
Standard All-terrain
lOverall length 3 9593 970
H Overall height 1 7211 742
Height with roof bars 1 7821 803
A Wheelbase 2 513
B Front overhang 855866
C Rear overhang 591
D Overall width 2 019
Width (with mirrors folded) 1 816
eWidth of front track1 464
F Width of rear track 1 465
gHeight of load sill527544
I Length of interior floor (rear bench seat in place) 743
Length of interior floor (rear bench seat fully folded) 1 130
J Maximum interior load height (under rear shelf) 592
K Maximum interior width (10 cm from the floor) 1 473
M Interior width between wheel arches 1 046
10
Dimensions
TECHNICAL DATA

178
Bipper_en_Chap10_caracteristique_ed02-2014
Dimensions

179
Bipper_en_Chap10_caracteristique_ed02-2014
Combi (in mm)
Standard All-terrain
lOverall length 3 9593 970
H Overall height 1 7211 742
Height with roof bars 1 7941 803
A Wheelbase 2 513
B Front overhang 855866
C Rear overhang 591
D Overall width 2 019
Width (with mirrors folded) 1 816
eWidth of front track1 464
F Width of rear track 1 465
gHeight of load sill527544
I Length of interior floor (rear bench seat in place) 743
Length of interior floor (rear bench seat fully folded) 1 130
J Maximum interior load height (under rear shelf) 592
K Maximum interior width (10 cm from the floor) 1 473
M Interior width between wheel arches 1 046
10
Dimensions
TECHNICAL DATA

180
Bipper_en_Chap10_caracteristique_ed02-2014

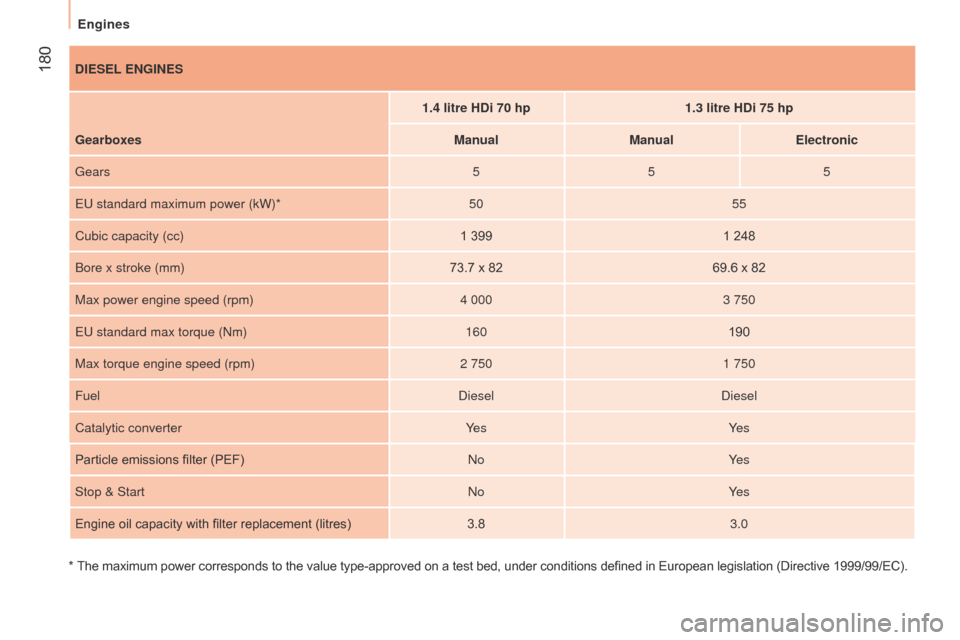

DIESEL ENGINES1.4 litre HDi 70 hp1.3 litre HDi 75 hp
Gearboxes ManualManualElectronic
g

ears 555
eu

standard maximum power (kW)* 5055
Cubic capacity (cc) 1 3991 248
Bore x stroke (mm) 73.7 x 8269.6 x 82
Max power engine speed (rpm) 4 0003 750
eu

standard max torque (Nm) 160190
Max torque engine speed (rpm) 2 7501 750
Fuel DieselDiesel
Catalytic converter Ye sYe s
Particle emissions filter (PEF) NoYe s
Stop & Start NoYe s
Engine oil capacity with filter replacement (litres) 3.83.0
*
The maximum power corresponds to the value type-approved on a t

est bed, under conditions defined in European legislation (Directive 1999/99/EC).
Engines

181
Bipper_en_Chap10_caracteristique_ed02-2014
PETROL ENGINE1.4 litre 75 hp
Gearbox Manual
g

ears 5
eu

standard maximum power (kW)* 54
Cubic capacity (cc) 1 360
Bore x stroke (mm) 75 x 77
Max power engine speed (rpm) 5 200
eu

standard max torque (Nm) 11 8
Max torque engine speed (rpm) 2 600
Fuel
u

nleaded petrol
Stop & Start No
Engine oil capacity with filter replacement (litres) 3.0
*
The maximum power corresponds to the value type-approved on a t

est bed, under conditions defined in European legislation (Directive 1999/99/EC).
Engines
TECHNICAL DATA
10

182
Bipper_en_Chap10_caracteristique_ed02-2014
WEIGHTS AND TOWED LOADS
the maximum weights and towed loads
for your vehicle are given are given in the
registration document, as well as in sales
brochures.
t

hese values are also present on the
manufacturer's plate or label (see the
"Technical data - Identification markings"
section).
t
he kerb weight is equal to the unladen weight
+ driver (75 kg).t he gross train weight and towed load values
indicated apply up to a maximum altitude of
1 000 metres; the towed load mentioned must
be reduced by 10 % for every additional
1 000 metres. High ambient temperatures may result
in a reduction in the performance of
the vehicle to protect the engine; when the
ambient temperature is higher than 37 °C, limit
the towed weight.
towing with a lightly loaded vehicle can
adversely af

fect roadholding.
Braking distances are increased when towing
a trailer.
When towing, the maximum speed allowed is
reduced (comply with the legislation in force in
your country).
For information on the maximum trailer weight
for your vehicle, contact a P
euge O t
dealer or
a qualified workshop.
t

he weight of the braked trailer can be
increased, within the
gt W limit, on condition
that the
g VW of the towing vehicle is reduced
by the same amount.
t

he recommended nose weight is the vertical
load on the towbar ball (removable with or
without tools).
GVW: gross vehicle weight, the maximum
authorised vehicle weight.
GTW: gross train weight, the maximum
authorised weight of vehicle plus trailer.
In all countries, it is essential to comply with
the local legislation on towed loads.
Weights
