2014.5 Peugeot Bipper Owner's Manual - RHD (UK, Australia)

143
Bipper_en_Chap08_verifications_ed02-2014

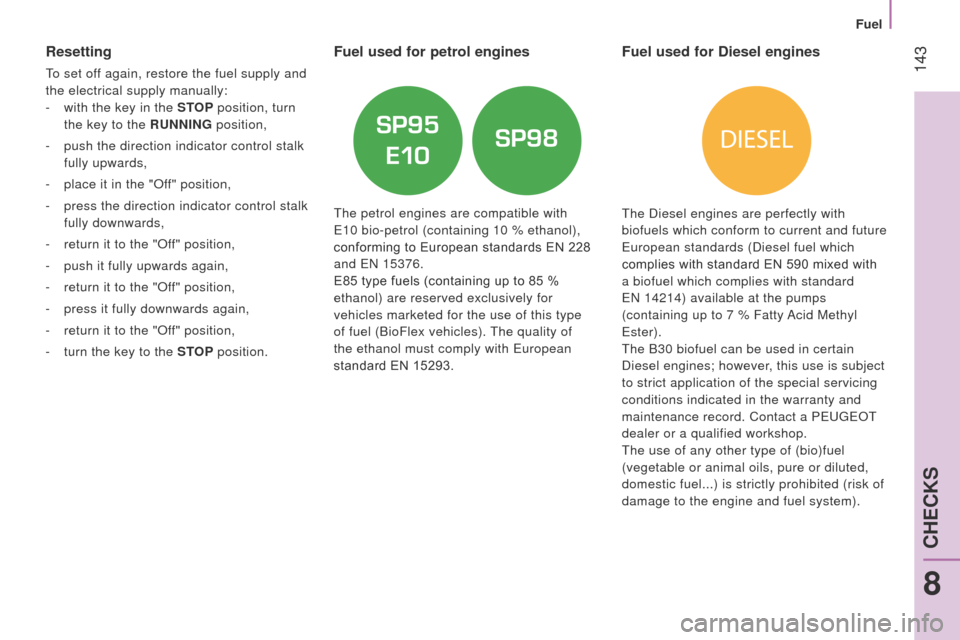

Resetting
to set off again, restore the fuel supply and
the electrical supply manually:
-
with the key in the
STOP position, turn
the key to the RUNNING position,
-

push the direction indicator control stalk

fully upwards,
-

place it in the "Of
f" position,
-

press the direction indicator control stalk

fully downwards,
-

return it to the "Of
f" position,
-

push it fully upwards again,
-


return it to the "Of
f" position,
-

press it fully downwards again,
-


return it to the "Of
f" position,
-

turn the key to the
STOP position.
Fuel used for petrol engines
the petrol engines are compatible with
e
10 bio-petrol (containing 10 % ethanol),
conforming to European standards EN 228
and
e N 15376.
E85 type fuels (containing up to 85 %
ethanol) are reserved exclusively for
vehicles marketed for the use of this type
of fuel (BioFlex vehicles).
t

he quality of
the ethanol must comply with
e uropean
standard EN 15293.
Fuel used for Diesel engines
the Diesel engines are perfectly with
biofuels which conform to current and future
e

uropean standards (Diesel fuel which
complies with standard EN 590 mixed with
a biofuel which complies with standard
e

N 14214) available at the pumps
(containing up to 7 % Fatty Acid Methyl
e

ster).
t

he B30 biofuel can be used in certain
Diesel engines; however, this use is subject
to strict application of the special servicing
conditions indicated in the warranty and
maintenance record. Contact a P
euge O t

dealer or a qualified workshop.
t

he use of any other type of (bio)fuel
(vegetable or animal oils, pure or diluted,
domestic fuel...) is strictly prohibited (risk of
damage to the engine and fuel system).
8
CHECKS
Fuel

144
Bipper_en_Chap08_verifications_ed02-2014

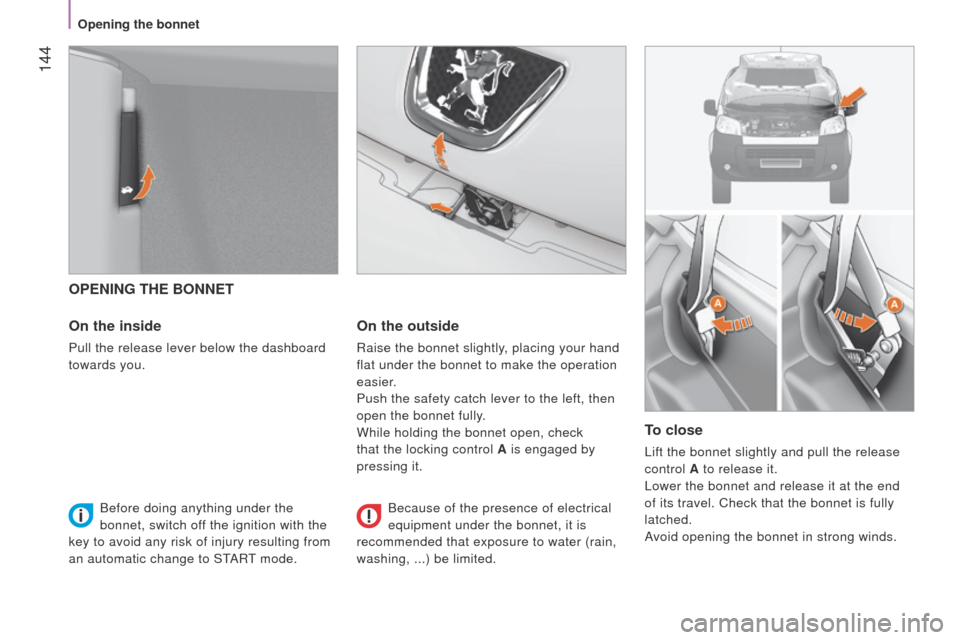

OPENING THE BONNET
On the inside
Pull the release lever below the dashboard
towards you.
On the outside
Raise the bonnet slightly, placing your hand
flat under the bonnet to make the operation
easier.
Push the safety catch lever to the left, then
open the bonnet fully.
While holding the bonnet open, check
that the locking control A is engaged by
pressing it.
To close
lift the bonnet slightly and pull the release
control A to release it.
l

ower the bonnet and release it at the end
of its travel. Check that the bonnet is fully
latched.
Avoid opening the bonnet in strong winds.
Before doing anything under the
bonnet, switch off the ignition with the
key to avoid any risk of injury resulting from
an automatic change to S
t
ARt mode. Because of the presence of electrical


equipment under the bonnet, it is
recommended that exposure to water (rain,
washing, ...) be limited.
Opening the bonnet

145
Bipper_en_Chap08_verifications_ed02-2014

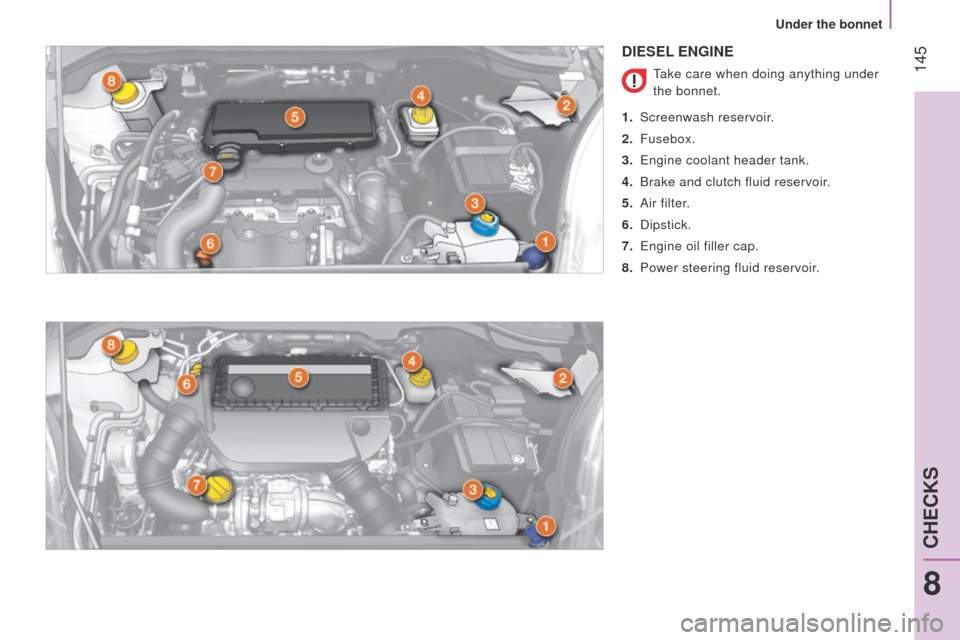

DIESEL ENGINE
take care when doing anything under
the bonnet.
1.

Screenwash reservoir
.
2.

Fusebox.
3.
e
ngine coolant header tank.
4.

Brake and clutch fluid reservoir
.
5.

Air filter
.
6.

Dipstick.
7.
e
ngine oil filler cap.
8.

Power steering fluid reservoir
.
8
CHECKS
Under the bonnet

146
Bipper_en_Chap08_verifications_ed02-2014

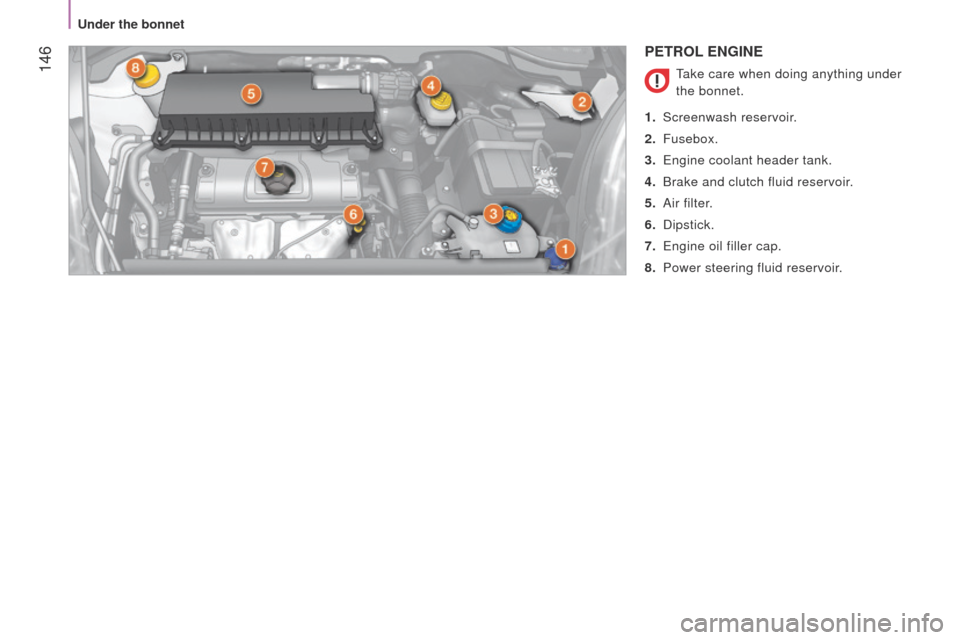

PETROL ENGINE
take care when doing anything under
the bonnet.
1.

Screenwash reservoir
.
2.

Fusebox.
3.
e
ngine coolant header tank.
4.

Brake and clutch fluid reservoir
.
5.

Air filter
.
6.

Dipstick.
7.
e
ngine oil filler cap.
8.

Power steering fluid reservoir
.
Under the bonnet

147
Bipper_en_Chap08_verifications_ed02-2014
these regular maintenance operations will
keep your vehicle in good working order .
Ask for advice from a P
euge O t
dealer or a

qualified workshop or refer to the warranty
and maintenance record provided in the
handbook pack.

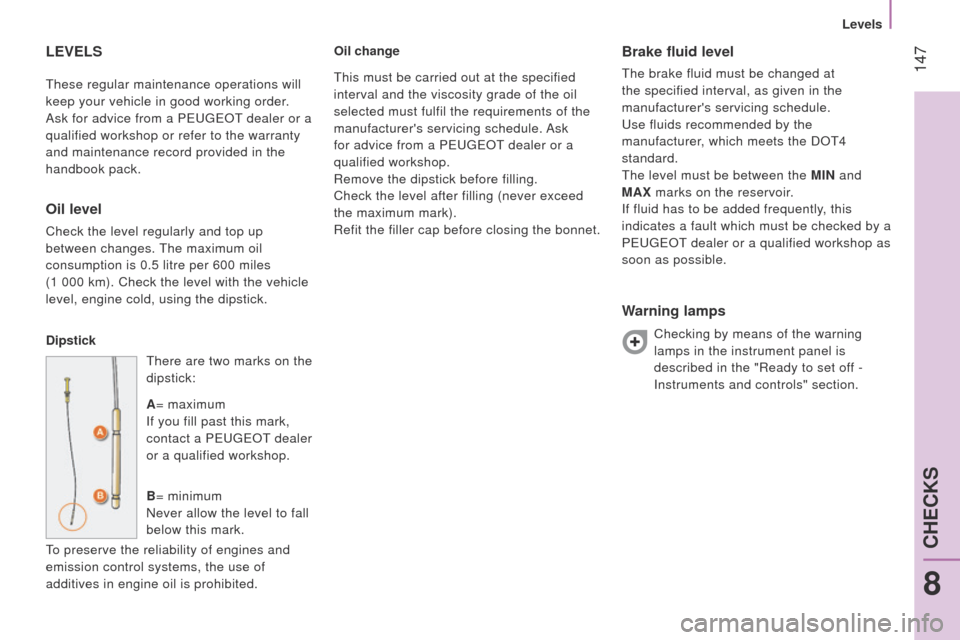

LEVELS
Oil level
Check the level regularly and top up
between changes.
t
he maximum oil
consumption is 0.5 litre per 600 miles
(1 000
km). Check the level with the vehicle
level, engine cold, using the dipstick.
Dipstick
t

here are two marks on the
dipstick:
A = maximum
If you fill past this mark,
contact a P
euge O t
dealer

or a qualified workshop.
B = minimum
Never allow the level to fall
below this mark.
to preserve the reliability of engines and


emission control systems, the use of
additives in engine oil is prohibited. Oil change
Brake fluid level
the brake fluid must be changed at
the specified interval, as given in the
manufacturer's servicing schedule.
u

se fluids recommended by the
manufacturer, which meets the DO
t 4
standard.
t

he level must be between the MIN and
MAX marks on the reservoir.
If fluid has to be added frequently, this
indicates a fault which must be checked by a
P
euge O t
dealer or a qualified workshop as

soon as possible.
Warning lamps
Checking by means of the warning
lamps in the instrument panel is
described in the "Ready to set off -
Instruments and controls" section.
t

his must be carried out at the specified
interval and the viscosity grade of the oil
selected must fulfil the requirements of the
manufacturer's servicing schedule. Ask
for advice from a P
euge
O
t
dealer or a


qualified workshop.
Remove the dipstick before filling.
Check the level after filling (never exceed
the maximum mark).
Refit the filler cap before closing the bonnet.
8
CHECKS
Levels

148
Bipper_en_Chap08_verifications_ed02-2014

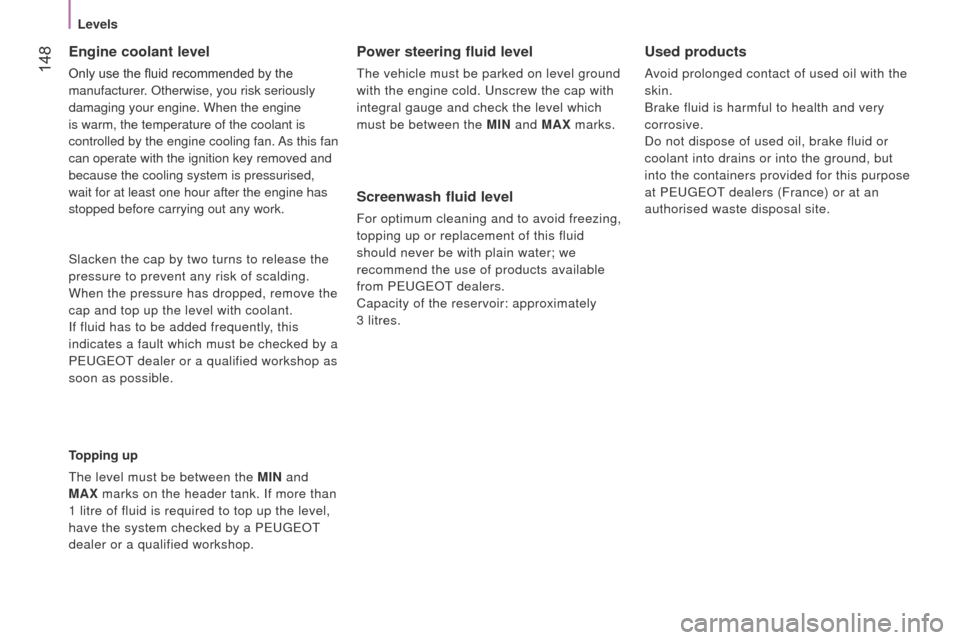

Engine coolant level
Only use the fluid recommended by the
manufacturer. Otherwise, you risk seriously
damaging your engine. When the engine
is warm, the temperature of the coolant is
controlled by the engine cooling fan. As this fan
can operate with the ignition key removed and
because the cooling system is pressurised,
wait for at least one hour after the engine has
stopped before carrying out any work.
Topping up
t
he level must be between the MIN and
MAX marks on the header tank. If more than
1 litre of fluid is required to top up the level,
have the system checked by a P
euge O t

dealer or a qualified workshop.
Power steering fluid level
the vehicle must be parked on level ground
with the engine cold. u nscrew the cap with
integral gauge and check the level which
must be between the MIN and MAX marks.
Screenwash fluid level
For optimum cleaning and to avoid freezing,
topping up or replacement of this fluid
should never be with plain water; we
recommend the use of products available
from P
euge O t
dealers.
Capacity of the reservoir: approximately


3
litres.
Slacken the cap by two turns to release the
pressure to prevent any risk of scalding.
When the pressure has dropped, remove the
cap and top up the level with coolant.
If fluid has to be added frequently, this
indicates a fault which must be checked by a
P
euge
O
t
dealer or a qualified workshop as


soon as possible.
Used products
Avoid prolonged contact of used oil with the
skin.
Brake fluid is harmful to health and very
corrosive.
Do not dispose of used oil, brake fluid or
coolant into drains or into the ground, but
into the containers provided for this purpose
at P
euge O t
dealers (France) or at an

authorised waste disposal site.
Levels

149
Bipper_en_Chap08_verifications_ed02-2014
CHECKS
Bleeding water from the Diesel filter
If this warning lamp comes
on, you must bleed the filter;
otherwise bleed the filter
regularly, every time the engine
oil is changed.
to remove the water
, unscrew the bleed
screw or the water in Diesel sensor, located
at the base of the filter. Operate until all of
the water has flowed out.
t

hen tighten the
bleed screw or the water sensor.
Battery
At the start of winter, have your battery
checked by a P euge O t
dealer or a

qualified workshop.
Air filter and passenger compartment
filter
A blocked passenger compartment filter
may reduce the performance of the
air conditioning system and generate
undesirable odours.
t

he replacement
intervals for these components are indicated
in the warranty and maintenance record.
Depending on the environment (dusty
atmosphere...) and the use of the vehicle
(urban driving...), change them twice as
often if necessary.
Brake pads
Brake pad wear depends on the type of
driving, in particular for vehicles which are
used in town, over short distances. It may
be necessary to check the brake pad wear,
even between services.
u

nless there is a leak on the system, a drop
in the brake fluid level indicates that the
brake pads are worn.
Brake disc / drum wear
For all information on checking the brake
disc / drum wear, contact a P euge O t

dealer or a qualified workshop.
Parking brake
Where the parking brake travel is too great
or there is a reduction in the performance
of the system, the parking brake should be
adjusted, even between services.
Have the system checked by a P
euge O t

dealer or a qualified workshop.
Oil filter
Change the filter regularly, in accordance
with the manufacturer's servicing schedule.
t

he presence of this label, in particular
with the Stop & Start system, indicates the
use of a specific 12 V lead-acid battery
with special technology and specification.
t

he involvement of a P
euge
O
t
dealer


or a qualified workshop is essential when
replacing or disconnecting the battery.
Refer to the "Checks -
u
nder the
bonnet" section.
HDi engines use advanced
technology. All work requires
specialist knowledge, which all P
euge
O
t

dealers have.
8
CHECKS
Checks

150
Bipper_en_Chap08_verifications_ed02-2014
Manual gearbox
the gearbox does not require any
maintenance (no oil change).
Refer to the warranty and maintenance

record for the checking interval for this
component.
Good practice
to check the main levels and certain
components, in accordance with the
manufacturer's servicing schedule, refer to
the pages of the warranty and maintenance
record which correspond to your vehicle's
engine.
Electronic gearbox
the gearbox does not require any
maintenance (no oil change).
Refer to the warranty and maintenance

record for details of the checking interval
for this component.
Only use products recommended by


P
euge O t
or products of equivalent

quality and specification.
In order to optimise the operation of units as
important as the braking system, P
euge O t

selects and of

fers specific products.
In order to avoid damaging the electrical
units, high pressure washing to clean the
engine compartment is strictly prohibited.
After washing the vehicle dampness, or in
winter, ice may form on the brake discs and
pads: braking efficiency may be reduced.
Make some light brake applications to dry
and de-ice the brakes.
Checks
