2014.5 Peugeot Bipper Owner's Manual - RHD (UK, Australia)

63
Bipper_en_Chap03_pret-a-partir_ed02-2014

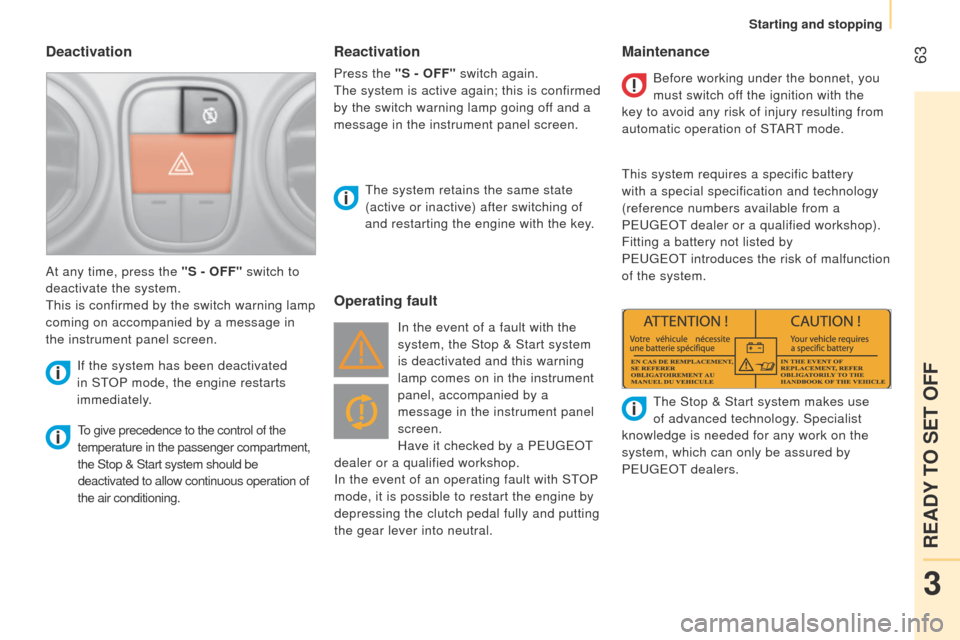

Deactivation
to give precedence to the control of the
temperature in the passenger compartment,
the Stop & Start system should be
deactivated to allow continuous operation of
the air conditioning.
t
he system retains the same state
(active or inactive) after switching of
and restarting the engine with the key.
At any time, press the "S - OFF" switch to
deactivate the system.
t

his is confirmed by the switch warning lamp
coming on accompanied by a message in
the instrument panel screen.
If the system has been deactivated
in St
OP
mode, the engine restarts
immediately.
Operating fault Maintenance
In the event of a fault with the
system, the Stop & Start system
is deactivated and this warning
lamp comes on in the instrument
panel, accompanied by a
message in the instrument panel
screen.
Have it checked by a P
euge O t

dealer or a qualified workshop.
In the event of an operating fault with S

t
OP

mode, it is possible to restart the engine by
depressing the clutch pedal fully and putting
the gear lever into neutral. Before working under the bonnet, you
must switch off the ignition with the
key to avoid any risk of injury resulting from
automatic operation of S t
ARt mode.
t

his system requires a specific battery
with a special specification and technology
(reference numbers available from a
P euge O t
dealer or a qualified workshop).
Fitting a battery not listed by

P euge O t introduces the risk of malfunction
of the system.
t

he Stop & Start system makes use
of advanced technology. Specialist
knowledge is needed for any work on the
system, which can only be assured by
P
euge O t
dealers.
Reactivation
Press the "S - OFF" switch again.
t
he system is active again; this is confirmed
by the switch warning lamp going off and a
message in the instrument panel screen.
3
READY TO SET OFF
Starting and stopping

64
Bipper_en_Chap04_ergonomie_ed02-2014

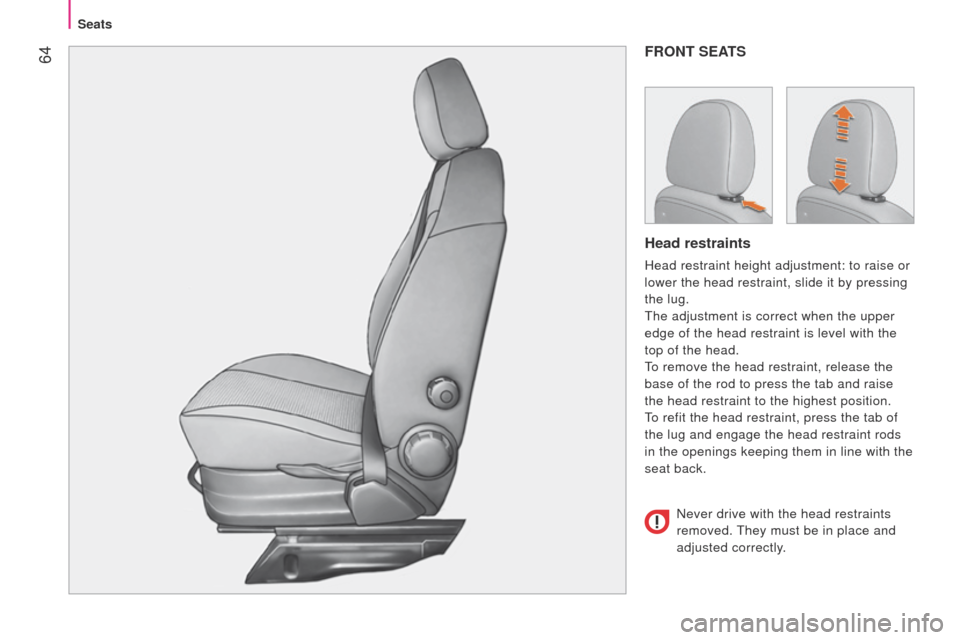

FRONT SEATS
Head restraints
Head restraint height adjustment: to raise or
lower the head restraint, slide it by pressing
the lug.
t
he adjustment is correct when the upper
edge of the head restraint is level with the
top of the head.
to remove the head restraint, release the


base of the rod to press the tab and raise
the head restraint to the highest position.
to refit the head restraint, press the tab of


the lug and engage the head restraint rods
in the openings keeping them in line with the
seat back.
Never drive with the head restraints
removed.
t

hey must be in place and
adjusted correctly.
Seats

65
Bipper_en_Chap04_ergonomie_ed02-2014

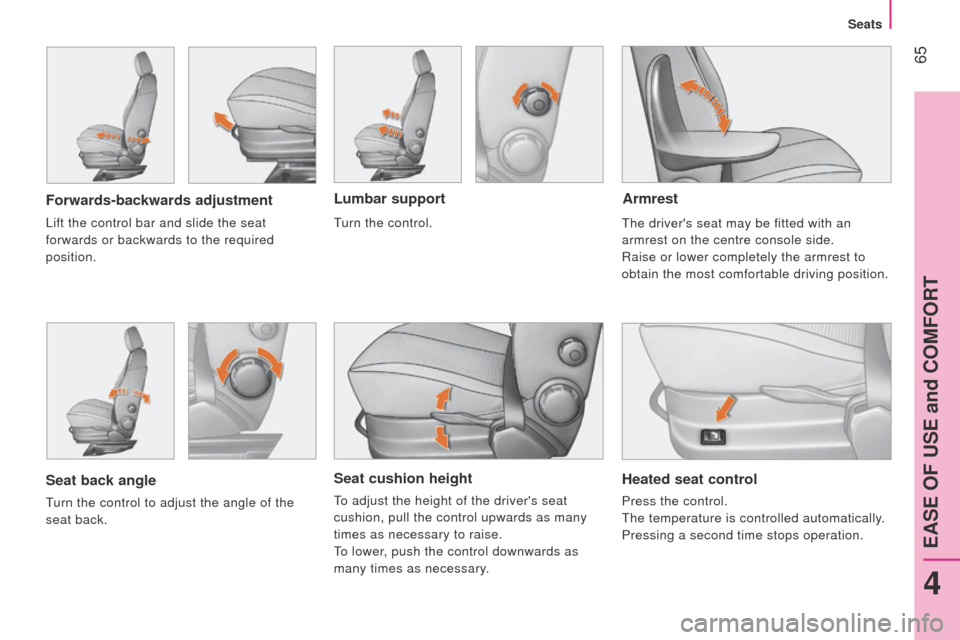

Seat cushion height
to adjust the height of the driver's seat
cushion, pull the control upwards as many
times as necessary to raise.
to lower

, push the control downwards as
many times as necessary.
Forwards-backwards adjustment
Heated seat control
Press the control.
t
he temperature is controlled automatically.
Pressing a second time stops operation.
l

ift the control bar and slide the seat
forwards or backwards to the required
position.
Lumbar support
Seat back angle
turn the control to adjust the angle of the
seat back.
turn the control.
Armrest
the driver's seat may be fitted with an
armrest on the centre console side.
Raise or lower completely the armrest to

obtain the most comfortable driving position.
4
EASE OF USE and COMFORT
Seats

66
Bipper_en_Chap04_ergonomie_ed02-2014
FOLDING FRONT PASSENGER SEATTable position
Press the head restraint to place it in the
lowest position.
Push one of the controls rearwards, located
on each side of the seat back.
l

ower the seat back onto the seat cushion
to the table position.
Folded position
After placing the seat back in the table
position, pull the seat's rear strap while
guiding the folded seat back forwards and
towards the floor.
Returning the seat to the sitting position
Pull the seat's rear strap to unlock the seat.
l
ift the seat from the front and the rear
then guide it forwards to bring it to the table
position.
Push one of the controls, located on each
side of the seat back, rearwards while
pressing on the seat back, then place the
seat back in the upright position.
Press on the seat back firmly to trigger the
locking of the seat on the floor.
Adjust the head restraint using the button on
the side.
Only move the seat when the rear
seats are not occupied.
Before moving the seat backwards,
ensure that there is nothing that might
prevent the full travel of the seat, so as to
avoid the risk of of jamming the seat caused
by the presence of objects on the floor
behind the seat or rear passengers. If the
seat jams, stop the movement immediately.
Seats

67
Bipper_en_Chap04_ergonomie_ed02-2014

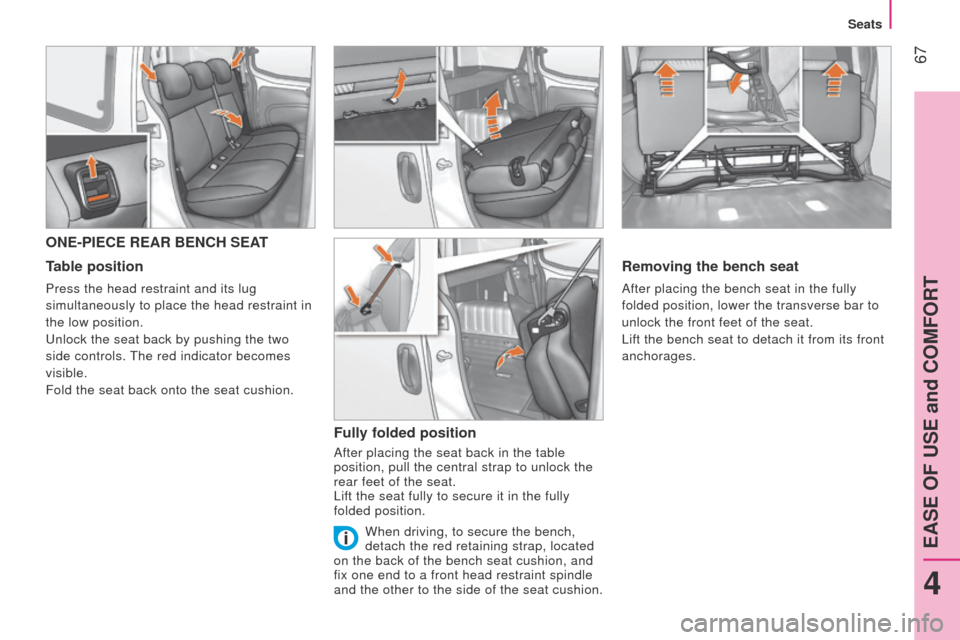

ONE-PIECE REAR BENCH SEAT
Table position
Press the head restraint and its lug
simultaneously to place the head restraint in
the low position.
u
nlock the seat back by pushing the two
side controls.
t

he red indicator becomes
visible.
Fold the seat back onto the seat cushion.
Fully folded position
After placing the seat back in the table
position, pull the central strap to unlock the
rear feet of the seat.
l

ift the seat fully to secure it in the fully
folded position.
Removing the bench seat
After placing the bench seat in the fully
folded position, lower the transverse bar to
unlock the front feet of the seat.
l

ift the bench seat to detach it from its front
anchorages.
When driving, to secure the bench,
detach the red retaining strap, located
on the back of the bench seat cushion, and
fix one end to a front head restraint spindle
and the other to the side of the seat cushion.
4
EASE OF USE and COMFORT
Seats

68
Bipper_en_Chap04_ergonomie_ed02-2014
Returning the bench seat to its position
Put the bench seat in place in its front
anchorages in the fully folded position.
Fold the bench seat to the table position,
the front and rear feet of the seat lock
automatically.
Returning the bench seat to the sitting
position
lift the bench seat back.
take care not to trap the seat belts.
l
ock the seat back by pushing it fully
towards the rear.
t

he red indicator is no
longer visible.
Rear head restraints
the rear head restraints can be removed
and have two positions:
4 high, position for use,
4 low
, storage position.
to raise or lower a head restraint, pull it


forwards sliding it at the same time.
to remove it, place it in the high position,


push the lug and pull it forwards and
upwards.
to refit it, engage the head restraint rods


in the holes taking care to remain in the
centreline of the seat back.
Never drive with the head restraints


removed, they must be in place and
correctly adjusted.
Seats

69
Bipper_en_Chap04_ergonomie_ed02-2014
SPLIT REAR BENCH SEAT
the left-hand side (2/3) or right-hand
side (1/3) of this bench seat can be folded to
adapt the load space in the boot.
Table position
Press the head restraint and its lug
simultaneously to place the head restraint in
the low position.
u

nlock the seat back by pulling the
corresponding side control towards you.
t

he red indicator becomes visible.
Fold the corresponding seat back onto the
seat cushion.
Fully folded position
After placing the seat back in the table
position, pull the corresponding strap to
unlock the rear feet of the seat.
l

ift the seat fully to secure it in the fully
folded position.
Removing the bench seat
After placing the bench seat in the fully
folded position, lower the corresponding
transverse bar to unlock the front feet of the
seat.
l

ift the bench seat to detach it from its front
anchorages.
When driving, to secure the bench,
detach the red retaining strap, located
on the back of the bench seat cushion, and fix
one end to a front head restraint spindle and
the other end to the side of the seat cushion.
4
EASE OF USE and COMFORT
Seats

70
Bipper_en_Chap04_ergonomie_ed02-2014

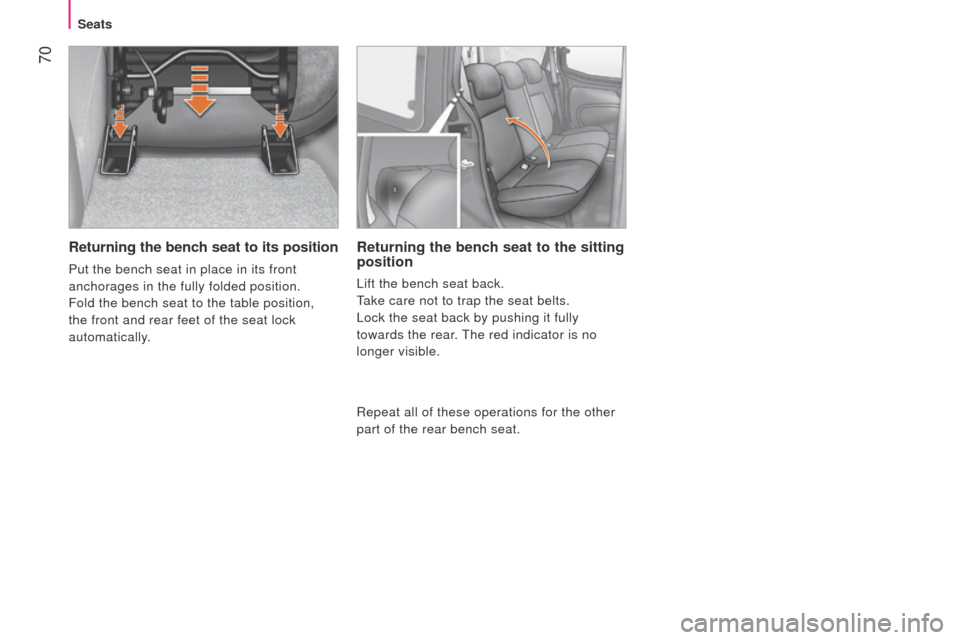

Returning the bench seat to its position
Put the bench seat in place in its front
anchorages in the fully folded position.
Fold the bench seat to the table position,
the front and rear feet of the seat lock
automatically.
Returning the bench seat to the sitting
position
lift the bench seat back.
take care not to trap the seat belts.
l
ock the seat back by pushing it fully
towards the rear.
t

he red indicator is no
longer visible.
Repeat all of these operations for the other
part of the rear bench seat.
