2014.5 Peugeot Bipper Owner's Manual - RHD (UK, Australia)

127
Bipper_en_Chap06_securite_ed02-2014
the child seat function is shared by
the entire P euge O t
range. However
,
each individual model has its own special
features.
DEACTIVATING THE PASSENGER'S FRONT AIRBAG
the warning label present on both sides
of the passenger's sun visor repeats this
advice. In line with current legislation, the
following tables contain this warning in all of
the languages required. Passenger airbag OFF
For information on deactivating the
passenger's front airbag, refer to the
"Airbags" section.
Never install a rearward facing child
restraint system on a seat protected by
an active front airbag.
t
his could cause the
death of the child or serious injury.
If your vehicle is fitted with this function,
the passenger's front airbag must be
deactivated using the SET / Back button,
located in the side control, panel.Refer to the "Safety - Airbags" section.
If your vehicle is not fitted with the
passenger's front airbag deactivation
function, the installation of a "rearward
facing" child seat on the front passenger
seat is strictly prohibited.
t

he passenger must not travel with a child
on their lap.
6
SAFETY
Child safety

AR
B g
НИКОГА НЕ инсталирайте детско столче на седалка с АКТИВИРАНА предна ВЪЗДУШНА ВЪЗГЛАВНИЦА. Това може да причини
СМЪРТ или СЕРИОЗНО НАРАНЯВАНЕ на детето.
CSNIKDY neumisťujte dětské zádržné zařízení orientované směrem dozadu na sedadlo chráněné AKTIVOVANÝM čelním AIRBAGEM. Hrozí
nebezpečí SMRTI DÍTĚTE nebo VÁŽNÉHO ZRANĚNÍ.
DABrug AlDRIg en bagudvendt barnestol på et sæde, der er beskyttet af en AKtIV AIRBAg. BARNet risikerer at blive A lVOR l I gt
KVÆS tet eller DRÆB t.
DeMontieren Sie auf einem Sitz mit AKtIVIeRte M Front-Airbag NI e MA l S einen Kindersitz oder eine Babyschale entgegen der Fahrtrichtung,
das Kind könnte schwere oder sogar tödliche Verletzungen erleiden.
elΜη χρησιμοποιείτε ΠΟΤΕ παιδικό κάθισμα με την πλάτη του προς το εμπρός μέρος του αυτοκινήτου, σε μια θέση που προστατεύεται από
ΜΕΤΩΠΙΚΟ αερόσακο που είναι ΕΝΕΡΓΟΣ. Αυτό μπορεί να έχει σαν συνέπεια το ΘΑΝΑΤΟ ή το ΣΟΒΑΡΟ ΤΡΑΥΜΑΤΙΣΜΟ του ΠΑΙΔΙΟΥ
eNNeVeR use a rearward facing child restraint on a seat protected by an ACtIVe AIRBAg in front of it, DeAt H or S e RIO u S INJ u RY to the
CHI l D can occur
eSNO INStA l AR N u NCA un sistema de retención para niños de espaldas al sentido de la m\
archa en un asiento protegido mediante un
AIRBAG frontal ACTIVADO, ya que podría causar lesiones GRAVES o incluso la MUERTE del niño.
etÄrge MItte KuNAgI paigaldage "seljaga sõidusuunas" lapseistet juhi kõrvalistmele, \
mille eSItuRVAPADI on AKtIVeeRItuD. turvapadja
avanemine võib last t ÕSIS elt või elu OH tl IK ult vigastada.
FIÄlÄ KOSKAAN aseta lapsen turvaistuinta selkä ajosuuntaan istuimelle,\
jonka edessä suojana on käyttöön aktivoitu tu RVAt YYNY. Sen
laukeaminen voi aiheuttaa l APS e N K u O le MAN tai VAKAVAN l O u KKAAN tu MIS e N.
FRNE JAMAIS installer de système de retenue pour enfants faisant face vers l’arrière sur un siège protégé par un COUSSIN GONFLABLE
frontal ACTIVÉ.
Cela peut provoquer la MOR
t de l’

e NFAN t
ou le B
le SS e R g RAV e M e N t
HRNIKADA ne postavljati dječju sjedalicu leđima u smjeru vožnje na sjedalo zaštićeno UKLJUČENIM prednjim ZRAČNIM JASTUKOM. To bi
moglo uzrokovati SMRT ili TEŠKU OZLJEDU djeteta.
HuSOHA ne használjon menetiránynak háttal beszerelt gyermekülést AKTIVÁLT (BEKAPCSOLT) FRONTLÉGZSÁKKAL védett ülésen. Ez a
gyermek HALÁLÁT vagy SÚLYOS SÉRÜLÉSÉT okozhatja.
ItNON installare MAI seggiolini per bambini posizionati in senso contrario\
a quello di marcia su un sedile protetto da un AIRBAg frontale
Att IVAtO. Ciò potrebbe provocare la MORte o F e RI te g RAVI al bambino.
128
Bipper_en_Chap06_securite_ed02-2014
Child safety

ltNIEKADA neįrenkite vaiko prilaikymo priemonės su atgal atgręžtu vaiku ant sėdynės, kuri saugoma VEIKIANČIOS priekinės ORO
PAGALVĖS. Išsiskleidus oro pagalvei vaikas gali būti MIRTINAI arba SUNKIAI TRAUMUOTAS.
lVNEKAD NEuzstādiet uz aizmuguri vērstu bērnu sēdeklīti priekšējā pasažiera sēdvietā, kurā ir AKTIVIZĒTS priekšējais DROŠĪBAS GAISA
SPIlV e NS.
Tas var izraisīt BĒRNA NĀVI vai radīt NOPIETNUS IEVAINOJUMUS.
MtQatt m’ghandek thalli tifel/tifla marbut f’siggu dahru lejn l-Airbag attiva, ghaliex tista’ tikkawza korriment serju jew anke mewt lit-tifel/tifla
NlPlaats NOOIt een kinderzitje met de rug in de rijrichting op een zitplaats waarvan d\
e AIRBA g is IN ge SCHAK el D. Bij het afgaan van de
airbag kan het KIND le V e NS ge VAAR l IJK ge WOND RAK e N
NOInstaller AlDRI et barnesete med ryggen mot kjøreretningen i et sete som er besky\
ttet med en frontal AKtIVeRt KO ll ISJONSP ute ,
BARN et risikerer å bli DR e P t eller HARD t SKAD et.
PlNIGDY nie instalować fotelika dziecięcego w pozycji "tyłem do kierunku jazdy" na siedzeniu wyposażonym w CZOŁOWĄ PODUSZKĘ
POWIETRZNĄ w stanie AKTYWNYM. Może to doprowadzić do ŚMIERCI DZIECKA lub spowodować u niego POWAŻNE OBRAŻENIA
CIAŁA.
PtNuNCA instale um sistema de retenção para crianças de costas para a \
estrada num banco protegido por um AIRBAg frontal ACtIVADO.
Esta instalação poderá provocar FERIMENT OS GRAVES ou a MORTE da CRIANÇA.
RONu instalati NICIODAtA un sistem de retinere pentru copii, dispus cu spatele in directia de me\
rs, pe un loc din vehicul protejat cu AIRBA g
frontal AC t IVAt. Aceasta ar putea provoca MOARte A COPI lulu I sau RANIR e A lui g RAVA.
RuВО ВСЕХ СЛУЧАЯХ ЗАПРЕЩАЕТСЯ использовать обращенное назад детское удерживающее устройство на сиденье, защищенном
ФУНКЦИОНИРУЮЩЕЙ ПОДУШКОЙ БЕЗОПАСНОСТИ, установленной перед этим сиденьем.
Это может привести к ГИБЕЛИ РЕБЕНКА или НАНЕСЕНИЮ ЕМУ СЕРЬЕЗНЫХ ТЕЛЕСНЫХ ПОВРЕЖДЕНИЙ
SKNIKDY neinštalujte detské zádržné zariadenie orientované smerom dozadu na sedadlo chránené AKTIVOVANÝM čelným AIRBAGOM.
Mohlo by dôjsť k SMRTEĽNÉMU alebo VÁŽNEMU PORANENIU DIEŤAŤA.
SlNIKOLI ne nameščajte otroškega sedeža s hrbtom v smeri vožnje, če je VARNOSTNA BLAZINA pred sprednjim sopotnikovim sedežem
AKTIVIRANA. Takšna namestitev lahko povzroči SMRT OTROKA ali HUDE POŠKODBE.
SRNIKADA ne koristite dečje sedište koje se okreće unazad na sedištu zaštićenim AKTIVNIM VAZDUŠNIM JASTUKOM ispred njega, jer mogu
nastupiti SMRT ili OZBILJNA POVREDA DETETA.
SVPassagerarkrockkudden fram MÅSte vara avaktiverad om en bakåtvänd bilbarnstol installeras på de\
nna plats. Annars riskerar barnet att
DÖDAS eller SKADAS A llV AR l I gt.
tRKESİNLKLE HAVA YASTIĞI AKTİF olan ön koltuğa yüzü arkaya dönük bir çocuk koltuğu yerleştirmeyiniz. Bu ÇOCUĞUN ÖLMESİNE veya
ÇOK AĞIR YARALANMASINA sebep olabilir.
129
Bipper_en_Chap06_securite_ed02-2014
6
SAFetY
Child safety

130
Bipper_en_Chap06_securite_ed02-2014

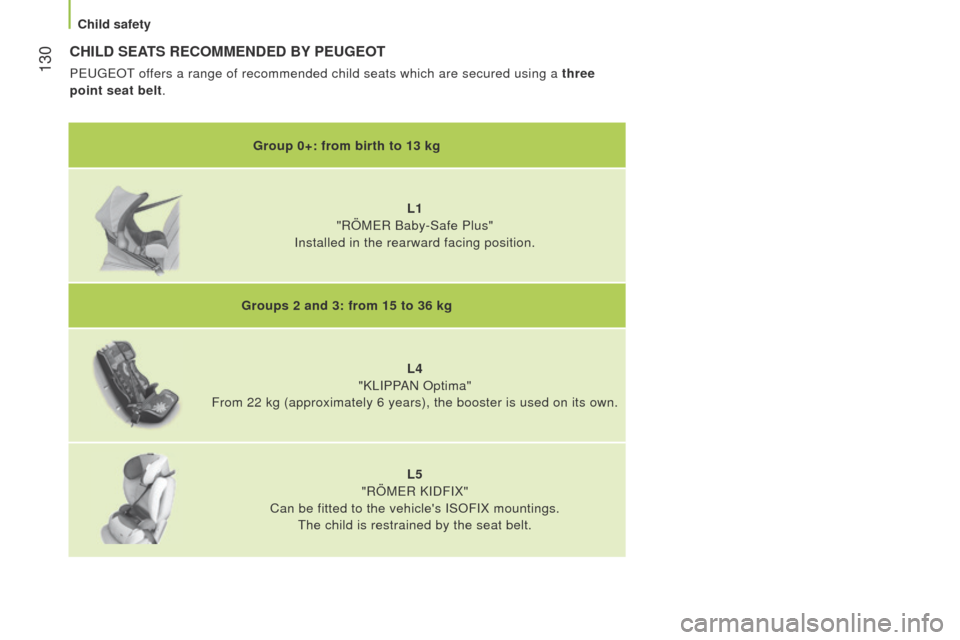

CHILD SEATS RECOMMENDED BY PEUGEOT
PeugeOt offers a range of recommended child seats which are secured using a three
point seat belt.
Group 0+: from birth to 13 kg
L1
"RÖM
e R Baby-Safe Plus"
Installed in the rearward facing position.
Groups 2 and 3: from 15 to 36 kg L4
"K
l IPPAN Optima"
From 22 kg (approximately 6 years), the booster is used on its own.
L5
"RÖM
e R KIDFIX"
Can be fitted to the vehicle's ISOFIX mountings.
t

he child is restrained by the seat belt.
Child safety

131
Bipper_en_Chap06_securite_ed02-2014

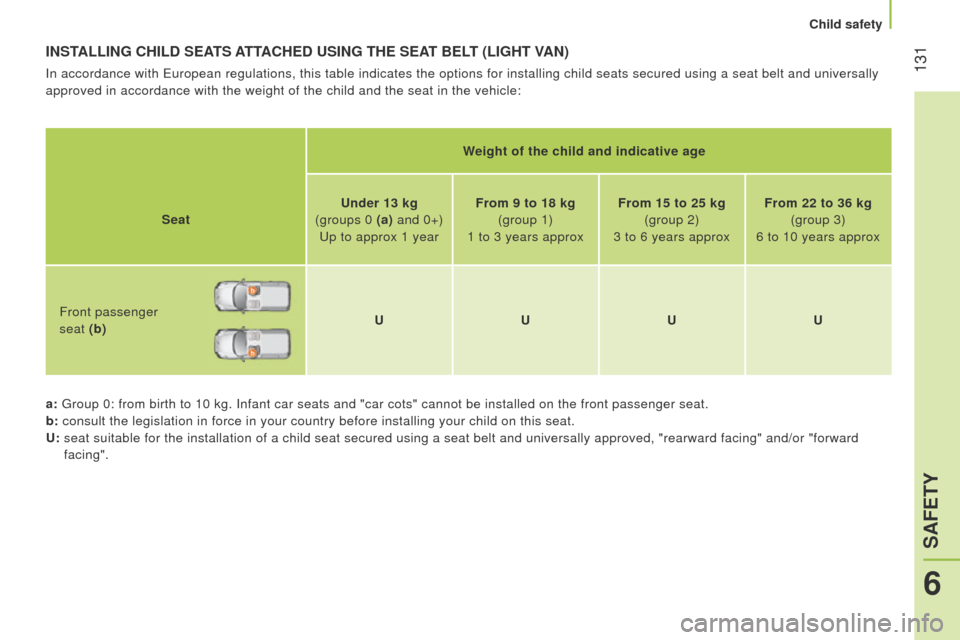

INSTALLING CHILD SEATS ATTACHED USING THE SEAT BELT (LIGHT VAN)
In accordance with european regulations, this table indicates the options for installing chi\
ld seats secured using a seat belt and universally
approved in accordance with the weight of the child and the seat in the \
vehicle:
W
eight of the child and indicative age
Seat Under 13 kg
(groups 0 (a) and 0+)
u

p to approx 1 yearFrom 9 to 18 kg
(group 1)
1 to 3 years approx From 15 to 25 kg
(group 2)
3 to 6 years approx From 22 to 36 kg
(group 3)
6 to 10 years approx
Front passenger
seat (b) U
UUU
a :
g roup 0: from birth to 10 kg. Infant car seats and "car cots" cannot be i\
nstalled on the front passenger seat.
b : consult the legislation in force in your country before installing your\
child on this seat.
U:

seat suitable for the installation of a child seat secured using a seat \
belt and universally approved, "rearward facing" and/or
"forward
facing".
6
SAFETY
Child safety

132
Bipper_en_Chap06_securite_ed02-2014

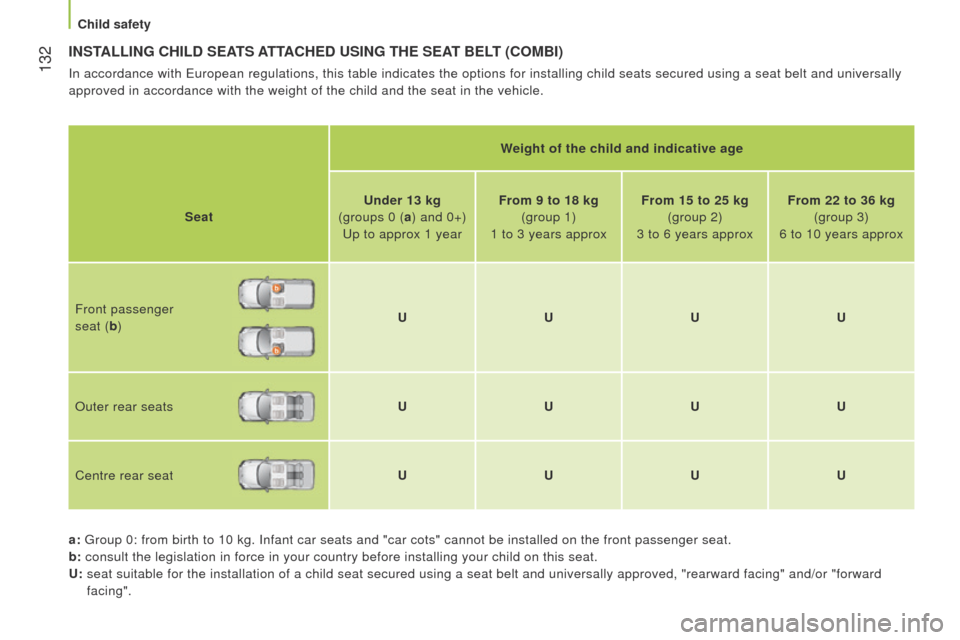

INSTALLING CHILD SEATS ATTACHED USING THE SEAT BELT (COMBI)
In accordance with european regulations, this table indicates the options for installing chi\
ld seats secured using a seat belt and universally
approved in accordance with the weight of the child and the seat in the \
vehicle.
W
eight of the child and indicative age
Seat Under 13 kg

(groups 0 (a ) and 0+)
u

p to approx 1 yearFrom 9 to 18 kg

(group 1)
1 to 3 years approx From 15 to 25 kg

(group 2)
3 to 6 years approx From 22 to 36 kg

(group 3)
6 to 10 years approx
Front passenger
seat (b ) U
UUU
Outer rear seats UUUU
Centre rear seat UUUU
a:
g roup 0: from birth to 10 kg. Infant car seats and "car cots" cannot be i\
nstalled on the front passenger seat.
b: consult the legislation in force in your country before installing your\
child on this seat.
U:

seat suitable for the installation of a child seat secured using a seat \
belt and universally approved, "rearward facing" and/or
"forward
facing".
Child safety

133
Bipper_en_Chap06_securite_ed02-2014
ADVICE ON CHILD SEATS
Children
at the front
the legislation on carrying a child on the
front passenger seat is specific to each
country. Refer to the legislation in force in
your country.
Deactivate the passenger's airbag when a
"rearward facing" child seat is installed on
the front seat.
Otherwise, the child would risk being
seriously injured or killed if the airbag were
deployed.
t

he incorrect installation of a child seat in a
vehicle compromises the child's protection in
the event of an accident.
Check that there is no seat belt or seat belt
buckle under the child seat, as this could
destabilise the seat.
Remember to fasten the seat belts or the
child seat harnesses keeping the slack
relative to the child's body to a minimum,
even for short journeys.
For the installation of a child seat using
the seat belt, ensure that the seat belt is
well tensioned on the child seat and that
it is holding the child seat firmly against
the vehicle's seat. If the passenger seat is
adjustable, move it forward if necessary.
Installing a booster seat
the chest part of the seat belt must be
positioned on the child's shoulder without
touching the neck.
e

nsure that the lap part of the seat belt
passes correctly over the child's thighs.
P
euge O t
recommends the use of a

booster seat which has a back, fitted with a
seat belt guide at shoulder level.
For the optimum installation of a "forward
facing" child seat, ensure that the back of
the child seat is as close as possible to the
backrest of the vehicle's seat, or in contact
if possible.
t

he head restraint must be removed before
installing a child seat with a backrest on the
passenger seat.
e

nsure that the head restraint is stowed or
attached securely so that it is not thrown
around the vehicle in the event of sharp
braking.
Refit the head restraint as soon as the child
seat is removed. As a safety precaution, never leave:
-

one or more children alone and

unsupervised in a vehicle,
-

a child or an animal in a vehicle which

is exposed to the sun, with the windows
closed,
-

the keys within reach of children inside

the vehicle.
to prevent accidental opening of the doors,


use the "Child
l ock".
take care not to open the rear windows by


more than one third.
to protect young children from the rays of


the sun, fit side blinds to the rear windows.
At the rear, always leave sufficient space
between the front seat and:
-

a "rearward facing" child seat,
-


the feet of a child seated in a "forward


facing" child seat.
For this, move the front seat forward and, if
necessary, straighten its backrest as well.
6
SAFETY
Child safety

134
Bipper_en_Chap06_securite_ed02-2014

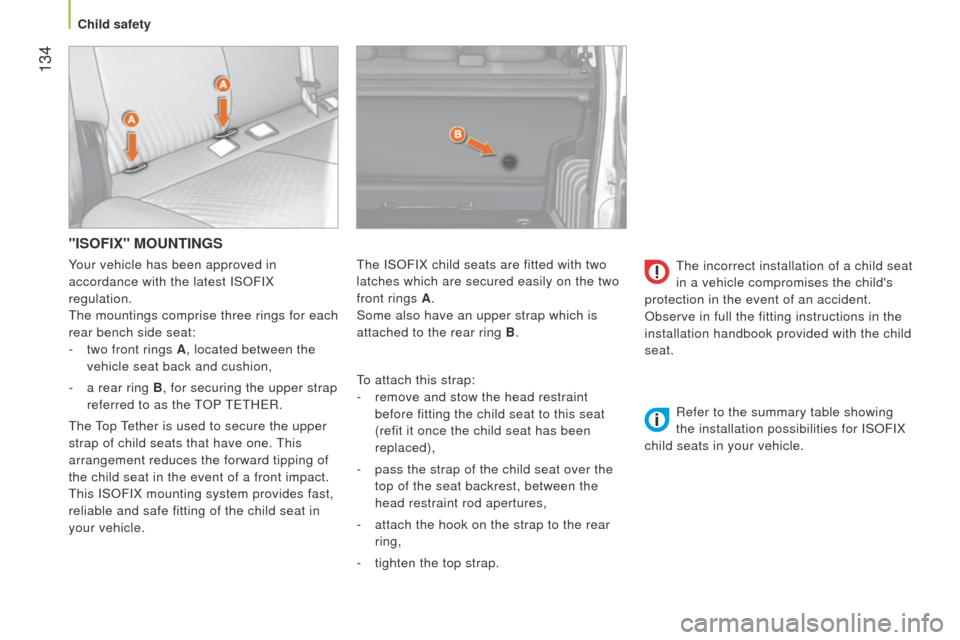

"ISOFIX" MOUNTINGS
to attach this strap:
-
remove and stow the head restraint

before fitting the child seat to this seat
(refit it once the child seat has been
replaced),
-

pass the strap of the child seat over the

top of the seat backrest, between the
head restraint rod apertures,
-

attach the hook on the strap to the rear

ring,
-

tighten the top strap.
Y

our vehicle has been approved in
accordance with the latest ISOFIX
regulation.
t

he mountings comprise three rings for each
rear bench side seat:
-

two front rings

A
, located between the
vehicle seat back and cushion,
-
a rear ring
B , for securing the upper strap
referred to as the
tOP


tet

H
e
R.
t

he
top tether is used to secure the upper


strap of child seats that have one.
t

his
arrangement reduces the forward tipping of
the child seat in the event of a front impact.
t

his ISOFIX mounting system provides fast,
reliable and safe fitting of the child seat in
your vehicle.
t
he incorrect installation of a child seat
in a vehicle compromises the child's
protection in the event of an accident.
Observe in full the fitting instructions in the
installation handbook provided with the child
seat.
Refer to the summary table showing
the installation possibilities for ISOFIX
child seats in your vehicle.
t
he ISOFIX child seats are fitted with two
latches which are secured easily on the two
front rings A .
Some also have an upper strap which is
attached to the rear ring B .
Child safety
