2014.5 Citroen BERLINGO MULTISPACE RHD Owner's Manual

Berlingo_2_VP_en_Chap04_Ergonomie_ed02-2014
 95
rOOF BArS
If you install transverse bars on these bars, refer to the weight values\
indicated
by  the   manufacturer   but   do   not   exceed   75   Kg.
Practical information
EASE OF uSE and cOMFOrt
4

Berlingo_2_VP_en_Chap04_Ergonomie_ed02-2014
96
Automatic switching on/off
The  front   courtesy   lamp   comes   on
when

  the   key   is   removed   from   the
ignition,

  when   the   vehicle   is   unlocked,
when one of the front doors is opened
and for location of the vehicle using the
remote

  control.
It goes off gradually after the ignition
is switched on and when the vehicle is
locked. Front
  seats:   comes   on   when
one of the front doors is
opened.These are switched on and of

f by
means   of   a   manual   switch,   with
the

  ignition   on.
Rear
  seats:   comes   on   when
one of the rear doors is
opened.
If

  the   doors   remain   open   for
a

  few   minutes,   the   courtesy
lamps

  go   off.
Permanently
  off.
Permanently
  on,   ignition   on.
Front courtesy lamp
cOurtESY LAMPS
rear courtesy lamp
Front individual reading lamps
Practical information

Berlingo_2_VP_en_Chap04_Ergonomie_ed02-2014
 97
LOAd SPAcE cOVEr (5 SEAt VE r SIO n)
This rigid shelf conceals the objects stored
  in   the   boot.
r
emoving
Fold   the   load   space   cover.
Detach   it   from   the   notches   A and B
pulling
  it   towards   you.
Raise
  it   and   remove   the   assembly.
Refitting
Place the load space cover in front
of
A and B.
Push it forwards to insert the lugs in
the
  notches.
Unfold and clip into the notches
c .
Folding
From
  the   boot,   fold   the   half-shelf,
raising

  it   to   detach   it   from   the   notch  c . Storing (according to version)
A
location   is   provided   in   the   back   of   the  rear
  seats   to   accommodate   the   load
space

  cover   folded   onto   itself.
Slide it vertically between the side
guides
  located   at   mid   seat   back   height.
Insert
  the   hinge   first,   with   the   free   flaps
turned

  upwards.
This rigid load space cover can
form
  a   shelf.   However,   for   safety
reasons,

  do   not   place   objects
on

  it   which   could   become   dangerous
projectiles

  in   the   event   of   sharp   braking
or

  rear   impact.
Practical information
EASE OF uSE and cOMFOrt
4

Berlingo_2_VP_en_Chap04_Ergonomie_ed02-2014
98
12 Volt socket (120 W Max)
It is advisable to limit the use of this socket  to   avoid   discharging   the   battery.
Protective net
Open the cover located in the hook support.
Fix the top of the net in the notches,
having
  first   turned   the   bar   1/4   of   a   turn.
Ensure that the end of the bar engages
correctly
  in   the   metal   part   of   its
location.
Fix the straps in the locations provided
on

  the   floor.
Tighten
  the   net   using   the   straps.
Stowing rings
Use these rings to secure loads on the
floor.
Practical information

Berlingo_2_VP_en_Chap04_Ergonomie_ed02-2014
 99
rEAr FIttInGS
(7 SEAt VE r SIO n)
c

up holder
Any liquid carried in a cup (mug or other) on board which could spill,
presents   a   risk.
Take
  care.
12 volt socket (120 W max)
It is advisable to limit the use of this socket   to   avoid   discharging   the   battery.
Stowing rings
Use the stowing rings on the floor to secure  and   retain   your   loads   firmly.
The
  seat   belt   anchorages   must   not   be
used

  for   this   purpose.
 It

  is   recommended   that   the   load
is

  immobilised   by   securing   it
firmly

  using   the   stowing   rings   on
the floor

.
Practical information
EASE OF uSE and cOMFOrt
4

Berlingo_2_VP_en_Chap04_Ergonomie_ed02-2014
100

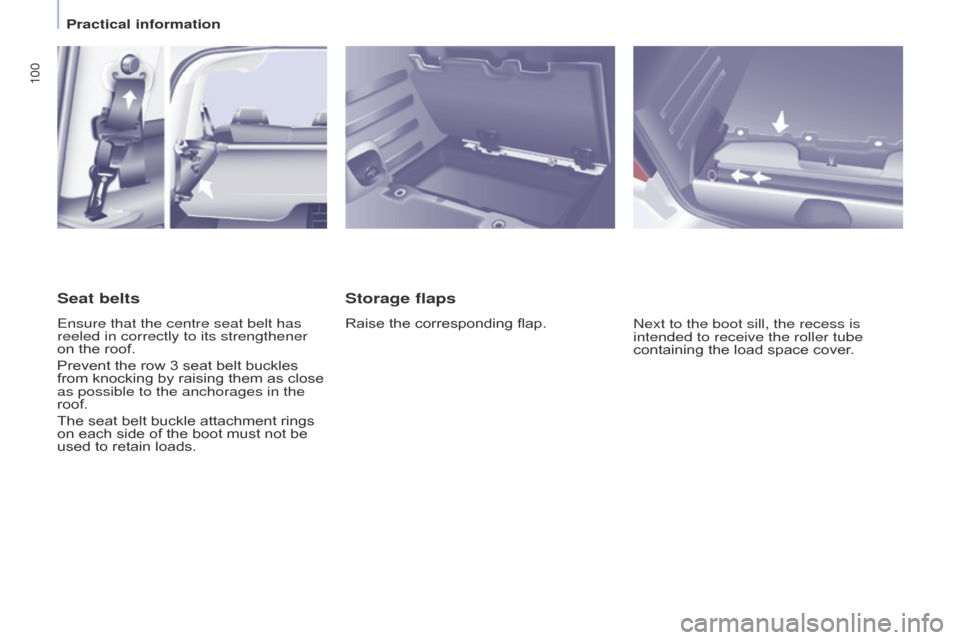

Storage flaps
Raise the corresponding flap.next to the boot sill, the recess is
intended to receive the roller tube
containing
  the   load   space   cover.
Seat belts
Ensure that the centre seat belt has
reeled in correctly to its strengthener
on  the   roof.
Prevent
  the   row   3   seat   belt   buckles
from

  knocking   by   raising   them   as   close
as possible to the anchorages in the
roof.
The

  seat   belt   buckle   attachment   rings
on

  each   side   of   the   boot   must   not   be
used

  to   retain   loads.
Practical information

Berlingo_2_VP_en_Chap04_Ergonomie_ed02-2014
101

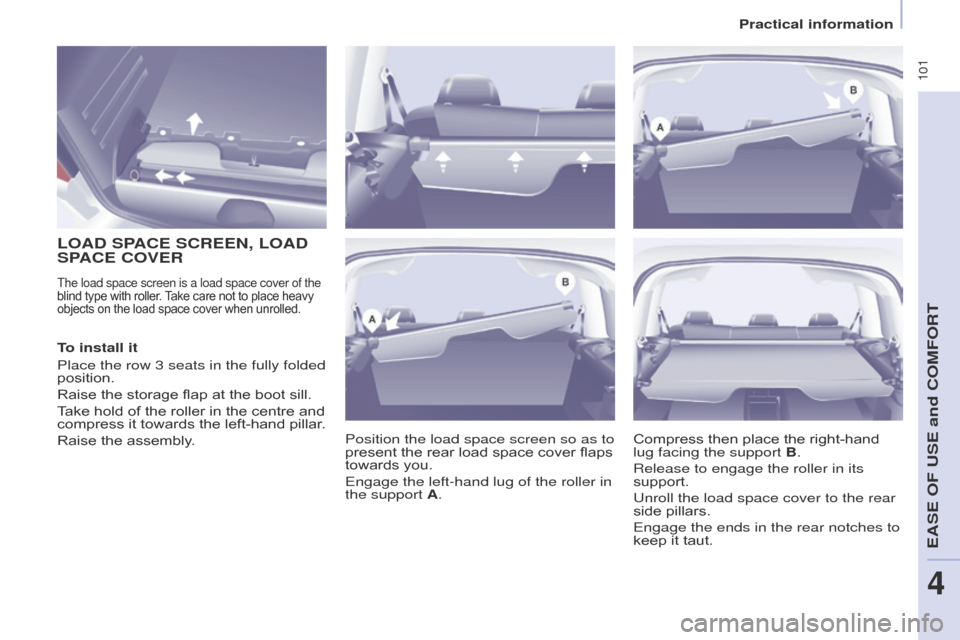

LOAd SPAcE ScrEEn, LOAd
SP A c E c OVE r
The load space screen is a load space cover of the
blind  type   with   roller.  T ake   care   not   to   place   heavy objects

  on   the   load   space   cover   when   unrolled.
Position the load space screen so as to
present  the   rear   load   space   cover   flaps
towards

  you.
Engage the left-hand lug of the roller in
the support A.
to install it
Place the row 3 seats in the fully folded
position.
Raise


the

storage

flap

at

the

boot

sill.
Take

hold

of

the

roller

in

the

centre

and
 compress

it

towards

the

left-hand

pillar.
Raise

the

assembly. Compress
  then   place   the   right-hand  lug facing the support
B.
Release to engage the roller in its
support.
Unroll the load space cover to the rear
side
  pillars.
Engage the ends in the rear notches to
keep
  it   taut.
Practical information
EaSE oF USE and CoMFoRT
4

Berlingo_2_VP_en_Chap04_Ergonomie_ed02-2014
102
to remove it
From   the   boot,   pull   the   load   space
cover

  towards   you   to   release   it   from
the

  side   pillars.
Guide
  the   load   space   cover   as   it   rolls   up.
Remove
  the   clips   of   the   three   flaps
from

  the   base   of   each   row   2   head
restraint.
Compress

  the   roller   to   the   left   to
remove

  it   from   the   support   B.
Raise
  it   and   pivot   it   forwards.to store it
Store it in the recess at the boot sill,
with
  the   two   rear   flaps   uppermost.
First,
  compress   the   load   space   screen
to

  the   left.
Release.
Arrange
  the   two   flaps   and   close   the
storage

  flap.
The

roller

is

fitted

with

three

flaps

permitting


concealment

of

the

boot, whether the row 2 seats
are


in

the

normal

position

or

the

comfort


position.
Each

flap

has

two

clips

which

are

hooked


on

the

base

of

each

head

restraint.
Practical information
