2014.5 Citroen BERLINGO MULTISPACE RHD Owner's Manual

183
Berlingo_2_VP_en_Chap09_Caract-technique_ed02-2014
SLIdInG SIdE dOOrS (mm)
P Useable height 1009
Q Useablewidth 640
- Height under raised tailgate 1892
dimensions
TECHnICaL daTa
9

184
Berlingo_2_VP_en_Chap09_Caract-technique_ed02-2014
EnGInE cHArActErIStIcS
The engine characteristics (capacity,
maximum  power,   maximum   power
speed, fuel, C

o
2 emissions...) for your vehicle are given in the registration
document.
These characteristics correspond
to the values type-approved on a
test

bed,

under

conditions   defined
in European legislation (

d irective
1999/99/EC).
For

more

information,   refer   to   the
manufacturer's


website   or   sales
brochure


for

the
  model.   Contact
a


CITROËN

dealer   or   a   qualified
workshop.
WEIGHtS And tOWE d LOA d S
The weights and towable loads for your
vehicle can be found on the vehicle's
registration
  certificate.
These
  values,   expressed   in   kg,   are
laos

  present   on   the   manufacturer's
plate

  or   label.
The
  kerb   weight   is   equal   to   the   weight
without

  load   +   driver   (75   kg)   +   fuel   tank
filled

  to   90%.
The GTW and towed load values
indicated
  are   valid   up   to   a   maximum
altitude

  of   1000   metres.
The
  value   of
the

  towed   load   mentioned   must   be
reduced by 10 % for each additional
1000

  metres.
With
  load   transfer,   the   braked   trailer
weight can be increased, on condition
that

  the   equivalent   of   this   load   is
removed

  from   the   vehicle   so   that   the
GTW

  is   not   exceeded. High
  ambient   temperatures
may

  result   in   a   reduction   in   the
performance

  of   the   vehicle   in
order

  to   protect   the   engine.   When   the
ambient

  temperature   is   higher   than
37
  °C,   limit   the   towed   weight.
Towing with a lightly loaded
vehicle can adversely affect road
holding.
Towing
  a   trailer   increases   braking
distances.
When

  towing,   the   maximum   permitted
speed

  is   reduced   (comply   with   the
legislation

  in   force   in   the   country).
The
  recommended   nose   weight   is  the downward force on the towball
(removable
  with   or   without   tools).
GVW: gross vehicle weight, the
maximum
  authorised   weight.
G
t W:   gross   train   weight,   the   maximum
weight

  for   vehicle   plus   trailer.
Refer
  to   chapter   9,   "Identification
markings"

  section.
In
  each   country,   it   is   imperative   that
the towed loads authorised by local
legislation

  are   complied   with.
T
o   find
out your vehicle's towing capacities
and its gross train weight, consult a
CITROËN

  dealer.
Weights

185
Berlingo_2_VP_en_Chap09_Caract-technique_ed02-2014
Petrol Engines / Weights
5-seatEngine Gearbox GearsEngine oil
capacity* (litres)
u

nbraked
trailer (kg)
r

ecommended nose
weight (kg)
1.6 90 hp Manual 53.25 735 50
1.6 110 hp Manual53.25 750 55
1.6 V
t
i 100 hp Manual 54.25 690 70
1.6 V

t
i 120 hp Manual 54.25 690 70
7-seat Engine Gearbox GearsEngine oil
capacity*


(litres)
u

nbraked
trailer (kg)
r

ecommended nose
weight (kg)
1.6 110 hp Manual53.25 750 70
1.6 V
t
i 120 hp Manual 54.25 750 70
*

  Capacity   with   filter   replacement.
TECHnICaL daTa
9
Weights

186
Berlingo_2_VP_en_Chap09_Caract-technique_ed02-2014
diesel Engines / Weights
5-seatEngine Gearbox GearsEngine oil
capacity* (litres)
u

nbraked
trailer (kg)
r

ecommended nose
weight (kg)
1.6 H
d i 75 hp Manual 5-740 50
1.6 H
d i 75 hp FAP Manual 5-715 70
1.6 H
d i 90 hp Manual 53.75 740 55
1.6 H
d i 90 hp FAP Manual 53.75 750 55
1.6 H
d i 92 hp E c OManual 53.75 715 70
1.6 H
d i 92 hp FAP Manual 53.75 715 70
1.6 e-H
d I 92 hp
E
c O Manual
5
3.75 690
70
Electronic 6 75070
1.6 e-H
d i 92 hp FAP Manual
5
3.75 690
70
Electronic 6 75070
1.6 H
d i 110 hp FAP Manual 53.75 750 55
1.6 H
d i 112 hp FAP Manual 53.75 735 70
FAP:
  particle   filter.
e-H
d i:
model
  equipped   with   Stop   &   Start.
*
  Capacity   with   oil   filter   replacement.
Weights

 187
Berlingo_2_VP_en_Chap09_Caract-technique_ed02-2014

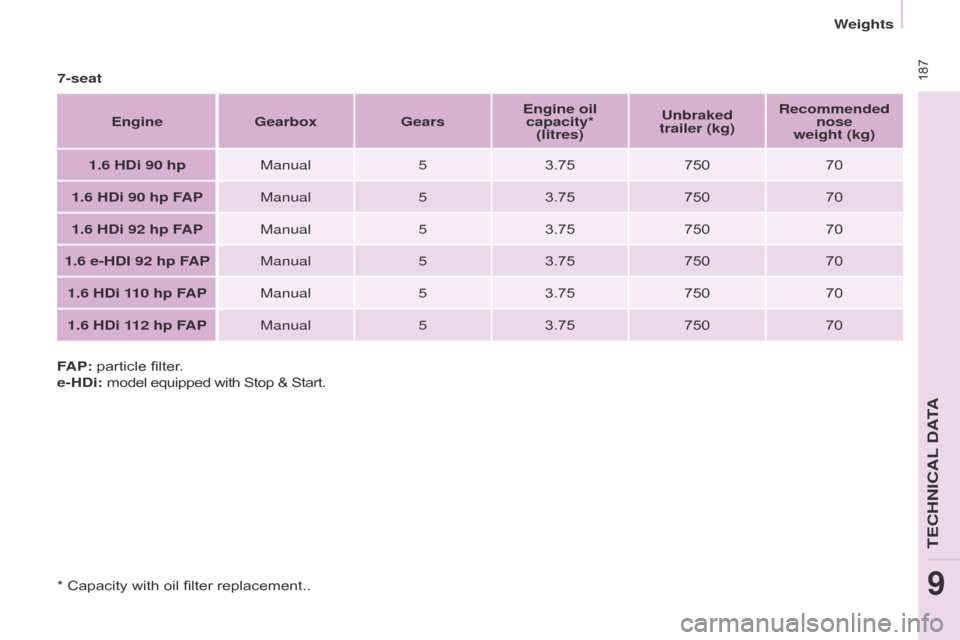

7-seatEngine Gearbox GearsEngine oil
capacity* (litres)
u

nbraked
trailer (kg)
r

ecommended nose
weight (kg)
1.6 H
d i 90 hp Manual 53.75 750 70
1.6 H
d i 90 hp FAP Manual 53.75 750 70
1.6 H
d i 92 hp FAP Manual 53.75 750 70
1.6 e-H
d I 92 hp FAP Manual 53.75 750 70
1.6 H
d i 110 hp FAP Manual 53.75 750 70
1.6 H
d i 112 hp FAP Manual 53.75 750 70
FAP:
  particle   filter.
e-H
d i:
model
  equipped   with   Stop   &   Start.
*
  Capacity   with   oil   filter   replacement..
tEcHnIcAL dAtA
9
Weights

188
Berlingo_2_VP_en_Chap09_Caract-technique_ed02-2014
IdEntIFIcAtIO n MA r KI n GS
A. Manufacturer's plate.c . tyres and paint colour
code.
The label
c ,   on   the   front   door   gives:
-

the wheel and tyre sizes,
-


the
  brands   of   tyres   recommended
by

  the   manufacturer,
-

the tyre pressures (the tyre
pressures

  must   be   checked   when
the tyres are cold, at least once
a month),
-


the
  paint   colour   code.
B. Serial number.
This is engraved on the front right
wheelarch.
Identification markings

10.1
Berlingo_2_VP_en_Chap10a_BTa_ed02-2014
EMErGEncY O r ASSIS tA nc E c ALL

10.2
Berlingo_2_VP_en_Chap10a_BTa_ed02-2014
EMErGEncY O r ASSIS tA nc E c ALL
cItrOËn Localised Emergency call
In an emergency, press this button for more than 2 seconds. Flashing
  of   the   green   LED   and   a   voice   message   confirm
that

  the   call   has   been   made   to   the   CITROËN   Localised
Emergency

  Call   centre*.
Pressing

this   button   again   immediately   cancels   the   call.
The
  green   LED
goes


off.
Pressing

this   button   (at   any   time)   for   more   than   8   seconds   cancels   the
call.
cItrOËn Localised Assistance call
When the ignition is switched on, the green
LED  comes   on   for   3   seconds   indicating   that
the

  system   is   operating   correctly.
If
  the   orange   LED   flashes:   there   is   a   system
fault.
If

  the   orange   LED   is   on   continuously:   the
backup

  battery   must   be   replaced.
In
  either   case,   contact   a   CITROËN   dealer.
Pressing

this

button

again

immediately   cancels   the   request.
The

cancellation

is

confirmed
  by   a   voice   message.
Press

this

button   for   more   than   2   seconds   to   request
assistance


if

the   vehicle   breaks   down.
A


voice

message   confirms   that   the   call   has   been   made*.
Operation of the system
The green LED remains on (without flashing) when communication is established.
  It   goes   off   at   the   end   of   communication.
This
  call   is   dealt   with   by   the   CITROËN   Localised   Emergency   Call   centre
which

  receives   locating   information   from   the   vehicle   and   can   send   a
detailed

  alert   to   the   appropriate   emergency   services.   In   countries   in
which

  the   team   is   not   operational,   or   when   the   locating   service   has
been

  expressly   declined,   the   call   is   dealt   with   directly   by   the   emergency
services

  (112)   without   the   vehicle   location.
If
  an   impact   is   detected   by   the   airbag   control   unit,   and
independently

  of   the   deployment   of   any   airbags,   an   emergency

call

  is   made   automatically.
*

These
  services   are   subject   to   conditions   and   availability.
 Consult

  a   CITROËN   dealer. If
  you   purchased   your   vehicle   outside   the   CITROËN   dealer   network,
we

  invite   you   to   have   a   dealer   check   the   configuration   of   these   services
and,

  if   desired,   modified   to   suit   your   wishes.   In   a   multi-lingual   country,
configuration

  is   possible   in   the   official   national   language   of   your   choice.
For
  technical   reasons,   particularly   to   improve   the   quality   of
T
elematic
services

  to   customers,   the   manufacturer   reserves   the   right   to   carry   out
updates

  to   the   vehicle's   on-board   telematic   system.
If
  you   benefit   from   the   CITROËN   eTouch   offer,   you   also   have   available
additional

services in your MyCITR o Ë n personal space, via the CITR o Ë n
Internet
  website   in   your   country,   accessible   on   www.citroen.com.
