Hybrid system





Car washing machine or tunnel


Some car washing machines or tunnels (where the vehicle is moved for wards on a travelling track) require that the parking brake be "released" during
th
e wash.

Car washing machines or tunnels in which theDiesel engine must be switched off.
With the hybrid system active, Readylamp on, parking brakereleased:- Place the gear selector in position N.- Switch off the engine (press on STA R T/STOP or with thevehicle's key if it does not have Keyless Entry and Starting).The parking brake is applied automatically and the Readylamp goes off in the instrument panel.- Switch on the ignition again (press on START/STOP or with
the key in the intermediate position) without your foot on the brake pedal. The Readylamp remains off. - Release the parking brake using the manual control on the centre console, while keeping your foot on the brake pedal.- Switch off the ignition (press on STA R T/STOP without your foot on the brake pedal, or using the key) checking that the parking brake remains released.
With the hybrid system active, Ready
lamp on, parking brake released:


- Place the gear selector in position N
(Auto or Sport mode).

- Press the brake pedal then the ECO OFF button.



Car washing machines or tunnels in which the Diesel engine must not be switched off.


If the Diesel engine is not running, it restar ts.

If the Diesel engine is running, it remains running without time limit.

48
Hybrid system

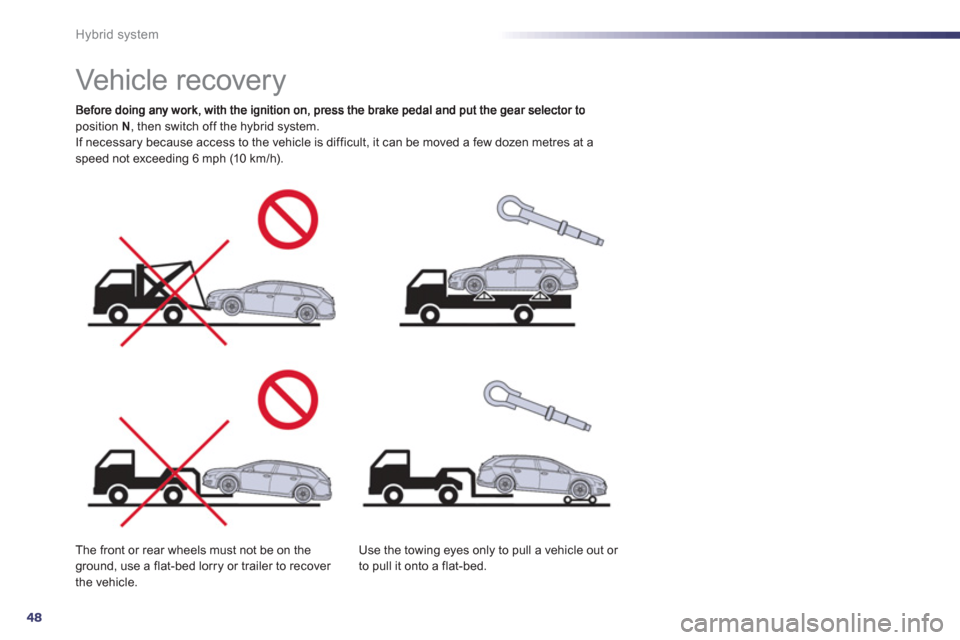

Vehicle recovery
position N
, then switch off the hybrid system.
If necessary because access to the vehicle is difficult, it can be moved a few dozen metres at a speed not exceeding 6 mph (10 km/h).
Th
e front or rear wheels must not be on theground, use a flat-bed lorry or trailer to recover
the vehicle.
Use the towin
g eyes only to pull a vehicle out or
to pull it onto a flat-bed.

1
49
Instruments and controls








Instrument panel
1.
Energy consumption / generation indicator (power available as a percentage) For more information refer to the "Hybrid system" section. 2.Ready lamp.
Indicates that the vehicle is ready to drive. 3.Engine oil temperature gauge. 4. Fuel gauge.
5. Engine coolant temperature gauge.
6.Speedometer (mph or km/h).7. Cruise control or speed limiter settings.
A.Main lighting dimmer. B.
Display of aler t log.
Recall of the service information.
C. Reset the trip distance recorder.

8.
Gear lever position and gear for anelectronic gearbox.
9. Display zone: hybrid flow, alert messages
or state of functions, trip computer.
10.Trip distance recorder (miles or km). 11.Automatic wipersSer vice indicator (miles or km) then,
total distance recorder.
These two functions are displayedsuccessively when switching on the ignition.



Dials and screens
Control buttons

50
Instruments and controls
Indicator and warning
lamps
Visual indicators informing the driver that a system is in operation, switched off or has a
fault.
When the ignition is switched on
Certain warning lamps come on for a few seconds in the instrument panel and/or
instrument panel screen when the vehicle's
ignition is switched on.
When the engine is started, these same
warning lamps should go off.
If they remain on, before moving off, refer to the
information on the warning lamp concerned.

Associated warnings

The switching on of cer tain warning lamps maybe accompanied by an audible signal and a message in the instrument panel screen.
The warning lamps may come on continuously(fixed) or flash.
Certain warning lamps may come on inone of two modes. Only by relating thetype of lighting to the operating status
of the vehicle can it be ascertainedwhether the situation is normal or whether a fault has occurred.
1
2
2
2
3
3
3
2
3
3
With the vehicle stationar y

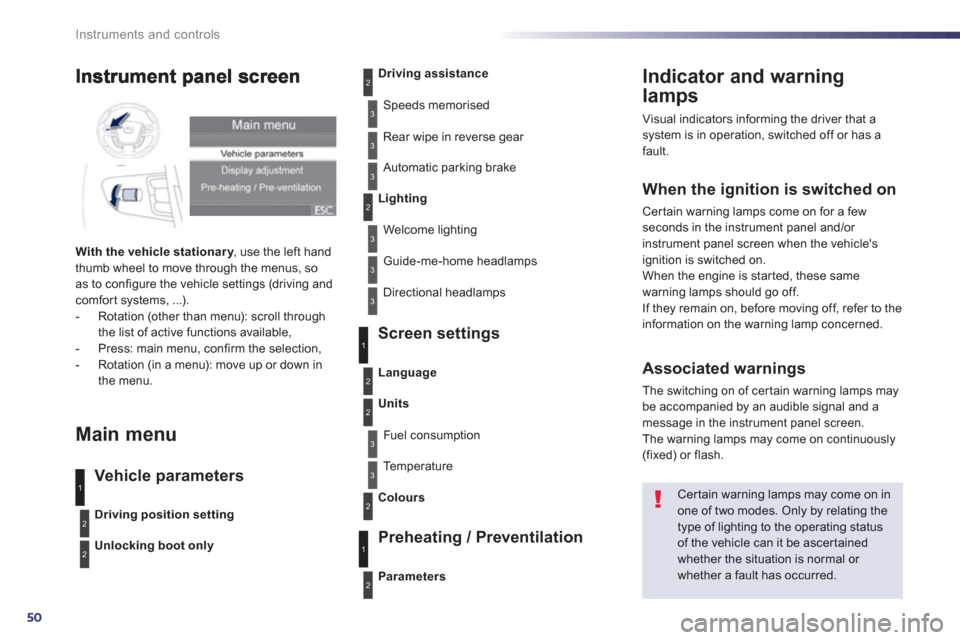

, use the left handythumb wheel to move through the menus, so as to configure the vehicle settings (driving andcomfort systems, ...).
- Rotation (other than menu): scroll through
the list of active functions available,
- Press: main menu, confirm the selection,
- Rotation (in a menu): move up or down in
the menu.
Main menu
Vehicle parameters Screen settin
gs
Preheatin
g / Preventilation
Driving position setting
Unlocking boot only
Driving assistance
Speeds memorised
Rear wipe in reverse
gear
Automatic parkin
g brake
Lighting
Welcome lighting
Guide-me-home headlamps
Directional headlamps
Parameters
Language
Units
Fuel consumption
Te m p e r a t u r e
Colours
3
1
2
2
3
2
3
1
2

1
51
Instruments and controls

Operation indicator lamps

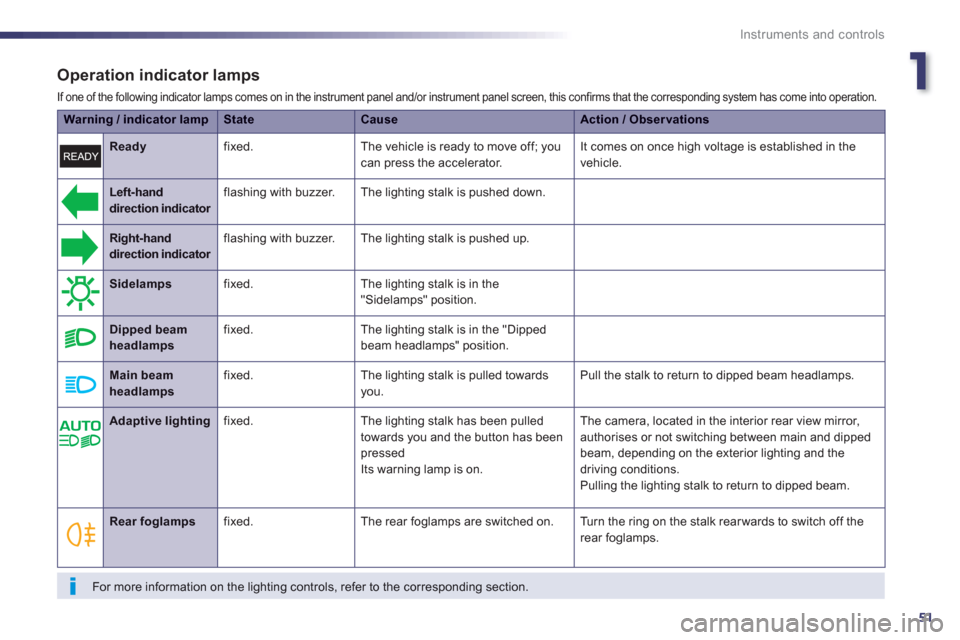

If one of the following indicator lamps comes on in the instrument panel and/or instrument panel screen, this confirms that the corresponding system has come into operation.
Warning / indicator lampStateCauseAction / Observations



Left-handdirection indicator

flashing with buzzer. The lighting stalk is pushed down.



Right-handdirection indicator flashing with buzzer. The lighting stalk is pushed up.



Sidelamps
fixed. The lighting stalk is in the
"Sidelamps" position.


Dipped beamheadlamps
fixed. The lighting stalk is in the "Dipped
beam headlamps" position.


Main beam headlamps fixed. The lighting stalk is pulled towards
you. Pull the stalk to return to dipped beam headlamps.
Ready fixed. The vehicle is ready to move off; you can press the accelerator. It comes on once high voltage is established in the
vehicle.


Rear foglamps
fixed. The rear foglamps are switched on. Turn the ring on the stalk rear wards to switch off the
rear foglamps.

For more information on the lighting controls, refer to the corresponding section.


Adaptive lighting

fixed. The lighting stalk has been pulled
towar
ds you and the button has been pressedIts warning lamp is on. The camera
, located in the interior rear view mirror,
authorises or not switching between main and dippedbeam, depending on the exterior lighting and thedriving conditions.
Pulling the lighting stalk to return to dipped beam.

52
Instruments and controls

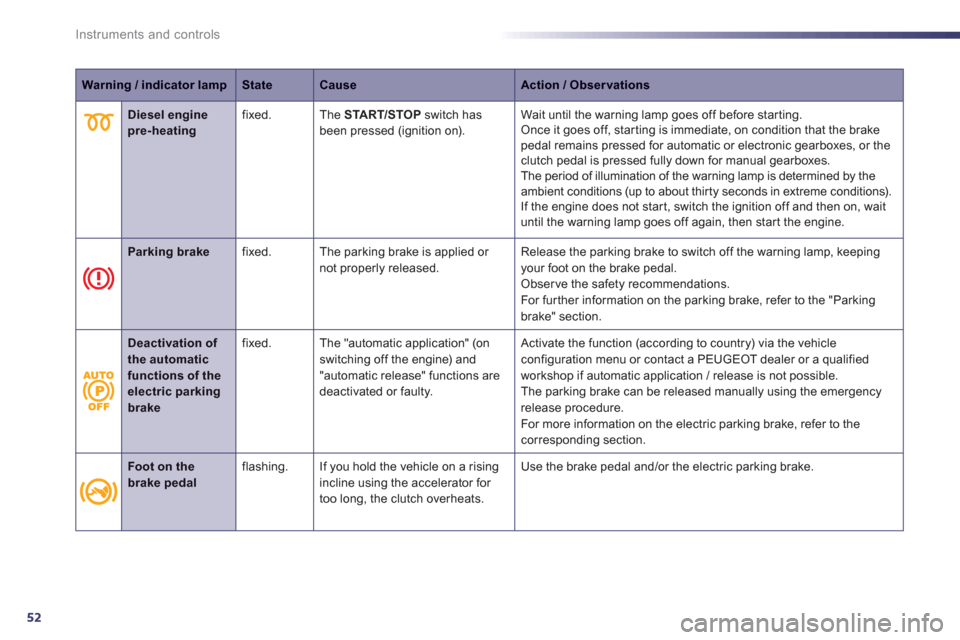

Warning / indicator lampStateCauseAction / Observations


Diesel engine pre-heatingfixed. The START/STOPswitch hasbeen pressed (ignition on).Wait until the warning lamp goes off before star ting.Once it goes off, star ting is immediate, on condition that the brakepedal remains pressed for automatic or electronic gearboxes, or theclutch pedal is pressed fully down for manual gearboxes.
The period of illumination of the warning lamp is determined by theambient conditions (up to about thir ty seconds in extreme conditions).
If the engine does not star t, switch the ignition off and then on, waituntil the warning lamp goes off again, then start the engine.


Parking brakefixed. The parking brake is applied or
not properly released.Release the parking brake to switch off the warning lamp, keepingyour foot on the brake pedal. Observe the safety recommendations.
For fur ther information on the parking brake, refer to the "Parkingbrake" section.
Deactivation of the automatic functions of the electric parkingbrake
fixed. The "automatic application" (on switching off the engine) and"automatic release" functions are
deactivated or faulty. Activate the function
(according to country) via the vehicle configuration menu or contact a PEUGEOT dealer or a qualified workshop if automatic application / release is not possible.
The parking brake can be released manually using the emergencyrelease procedure.
For more information on the electric parking brake, refer to the corresponding section.
Foot on thebrake pedalflashing. If you hold the vehicle on a risingincline using the accelerator for
too long, the clutch overheats.Use the brake pedal and
/or the electric parking brake.

1
53
Instruments and controls
StateCauseAction / Observations

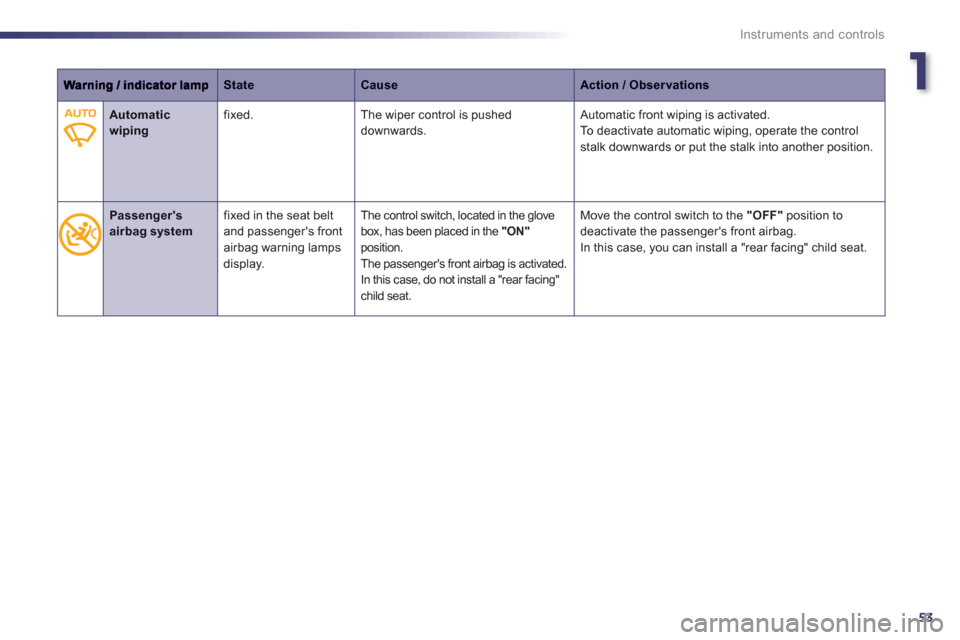

Automatic wiping

fixed. The wiper control is pushed downwards. Automatic front wiping is activated.
To deactivate automatic wiping, operate the controlstalk downwards or put the stalk into another position.



Passenger's airbag system fixed in the seat belt
and passenger's front
airbag warning lampsdisplay.
The control switch, located in the glove box, has been placed in the "ON" position.
The passenger's front airbag is activated. In this case, do not install a "rear facing"child seat.

Move the control switch to the "OFF"
position to
deactivate the passenger's front airbag.
In this case, you can install a "rear facing" child seat.

54
Instruments and controls
Deactivation indicator lamps
If one of the following indicator lamps comes on, this confirms that the corresponding system has been switched off intentionally.This is may be accompanied by an audible signal and a message in the instrument panel screen.
Warning / indicator lampStateCauseAction / Observations


Passenger's airbag systemfixed in the instrumentpanel and/or seat beltand front passenger's airbag warning lamps
display.
The control switch, located in the glove box, is set to the OFF
position.
The passenger's front airbag is deactivated.
Set the control to the "ON"
position to activate the passenger's front airbag.
In this case, do not fit a child seat in the rear-facing position.


Dynamic stabilty controlDSC/ASR
fixed. The button (located on the foldingpanel at the bottom left of the
dashboard) has been pressed. Its
indicator lamp is on.
The DSC/ASR is deactivated.
DSC: d
ynamic stability control.
ASR: anti-slip regulation.Pr
ess the button to activate the DSC/ASR. Its indicator
lamp switches off.
The DSC/ASR system is activated automatically when
the vehicle is started.
After deactivation, the system is reactivated
automatically from approximately 30 mph (50 km/h).
