2013 Peugeot 508 RXH Owner's Manual

10
231
Technical data
Diesel engine2.0 litre HDi163 hp
Gearbox
Electronic gearbox(6-speed)
Model code
8URHC8/P

Cubic capacity (cc)

1 997
Bore x stroke
(mm) 85 x 88

Max power: EU standard
(kW)
* 120

Max power engine speed (rpm) 3 850
Max torque: EU standard
(Nm)300

Max torque en
gine speed (rpm) 1 750

F
uel

Diesel

Catalytic converter
yes

Particle emission filter
yes
Oil capacity (in litres)

Engine (with filter replacement) 5













Engine and gearbox



*
The maximum power corresponds to the value type approved on an engine test bed, under conditions defined by European legislation
(directive 1999/99/EC).

232
Technical data























Weights and towed loads (in kg)

The GTW and towed load values indicated are valid up to a maximum altitude of 1000 metres; the towed load mentioned must be reduced by 10 % for each additional 1000 metres of altitude.
The speed of a towing vehicle must not exceed 60 mph (10 0 km/h) (comply with the legislation in force in your country).
High ambient temperatures may result in a reduction in the performance of the vehicle to protect the engine; if the ambient temperature is above 37 °C,
limit the towed load.
* The kerb wei
ght is equal to the unladen weight + driver (75 kg).
**
The weight of the braked trailer can be increased, within the GTW limit, if the GV W of the towing vehicle is reduced by an equal amount; warning,
towing using a lightly loaded towing vehicle may have an adverse effect on its road holding.
Diesel engine2.0 litre HDi 163 hp
Gearbox

Electronic gearbox(6-speed)
Model code

8URHC8/P


-
Unladen weight1 770



- Kerb weight *

1 845



- Gross vehicle wei
ght (GV W)
2 325



-
Gross train weight (GTW)
on a 12% gradient 3 125


- Braked trailer
(within GTW limit) on a 10% or 12% gradient 800



- Braked trailer **
(with load transfer with the
GTW limit)
1 100



- Unbraked trailer
750



- Recommended nose weight
75

10
233
Technical data





Dimensions (in mm)
conditions.
This value will vary with vehicle load, the nature of the ground surface and the surroundings.
If the driver considers that the vehicle can traverse an obstacle, they assume entire responsibility for this.

234
Technical data























Identifi cation markings Various visible markings for the identification and tracing of your vehicle.
A.Vehicle Identification Number (VIN) under the bonnet.
This number is engraved on the bodyworknear the damper suppor t.


The tyre pressures must be checked when the tyres are cold, at least oncea month.


Low tyre pressures increase fuelconsumption.

B.Vehicle identification Number (VIN) on
the windscreen lower crossmember.This number is indicated on a self-adhesive label which is visible through the
windscreen.
C.Manufacturer's label. The VIN is indicated on a self-destroying
label affixed to the door aper ture, on the driver's side.
D.Tyre/paint label. This label is fitted to the middle pillar, on
the driver's side. It bears the
following information:


- the tyre inflation pressures with and without
load,

- the tyre sizes,

- the brands o
f tyre recommended by the manufacturer,

- the inflation pressure of the spare wheel,

- the paint colour code.
The use of snow chains is onlyauthorised on the front wheels.
The selector must be in 4WD mode.

235

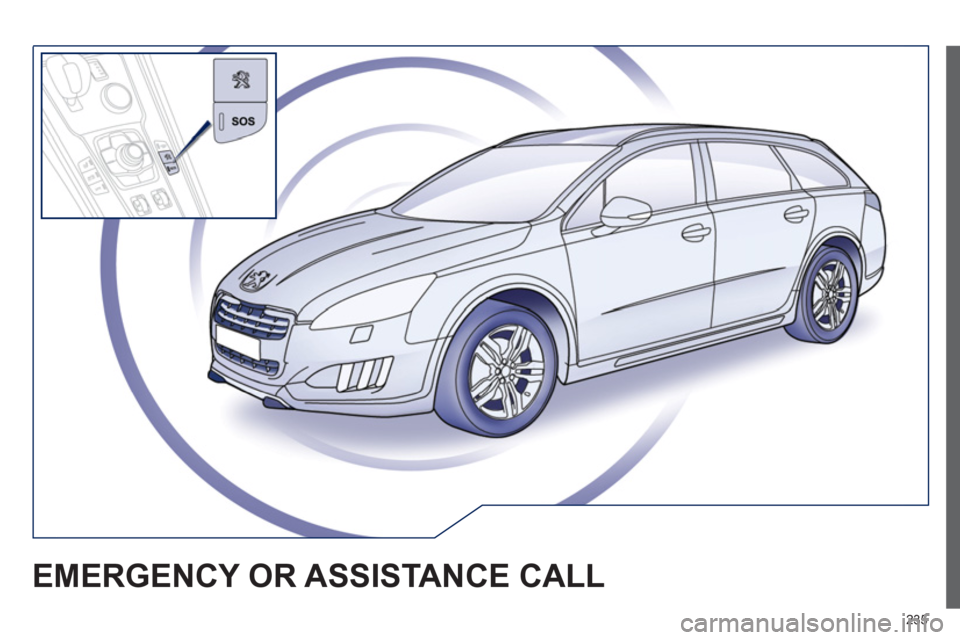

EMERGENCY OR ASSISTANCE CALL

236
EMERGENCY OR ASSISTANCE CALL
In an emergency, press this button for more than2 seconds. Flashing of the green LED and a voice
message confi rm that the call has been made to the
PEUGEOT CONNECT SOS call centre * .
The
green LED remains on (without fl ashing) when communication is established. It goes off at the end of communication.

When the ignition is switched on, the green
LED comes on for 3 seconds indicating that
the system is operating correctly. Pressin
g this button again immediately cancels the request.
The cancellation is confi rmed b
y a voice message.
Press this button for more than 2 seconds to request
assistance if the vehicle breaks down.
A voice message confi rms that the call has been made **
.


OPERATION OF THE SYSTEM Pressing this button again immediately cancels the request. The green LED goes off. Cancellation is confi rmed by a voice message
To cancel a call, tell the PEUGE
OT CONNECT SOS call centre that thecall was a mistake.
PEUGE
OT CONNECT SOS immediately locates your vehicle, starts communication with you in your language ** , and where necessary sends
the appropriate public emergency services ** . In countries where theservice is not available, or when the locating service has been expresslydeclined, the call sent directly to the emergency services (11 2) without the
vehicle location.

If an impact is detected b
y the airbag control unit, and
independently of the deployment of any airbags, an emergency call
is made automatically.
*
Sub
ject to the general conditions for the service available from dealersand to technological and technical limitations.
**

Depending on the geographical cover of PEUGEOT CONNECT SOS,
PEUGEOT CONNECT ASSISTA NCE and the offi cial national languageselected by the owner of the vehicle.
Th
e list of countries covered and PEUGEOT CONNECT services are available from dealers or at www.peugeot.co.uk.
If the oran
ge LED fl ashes: there is a system
fault.
If the oran
ge LED is on continuously: the backup battery must be replaced.
In either case, contact a PEU
GEOT dealer.

I
f you purchased your vehicle outside the PEUGEOT dealer network,
we invite you to have a dealer check the confi guration of these services
and, if desired, modifi ed to suit your wishes. In a multi-lingual country,confi guration is possible in the offi cial national language of your choice.

For technical reasons and in particular to improve the qualit
y of PEUGEOT CONNECT services to customers, the manufacturer reserves
the right to carry out updates to the vehicle's on-board telematic system.

237

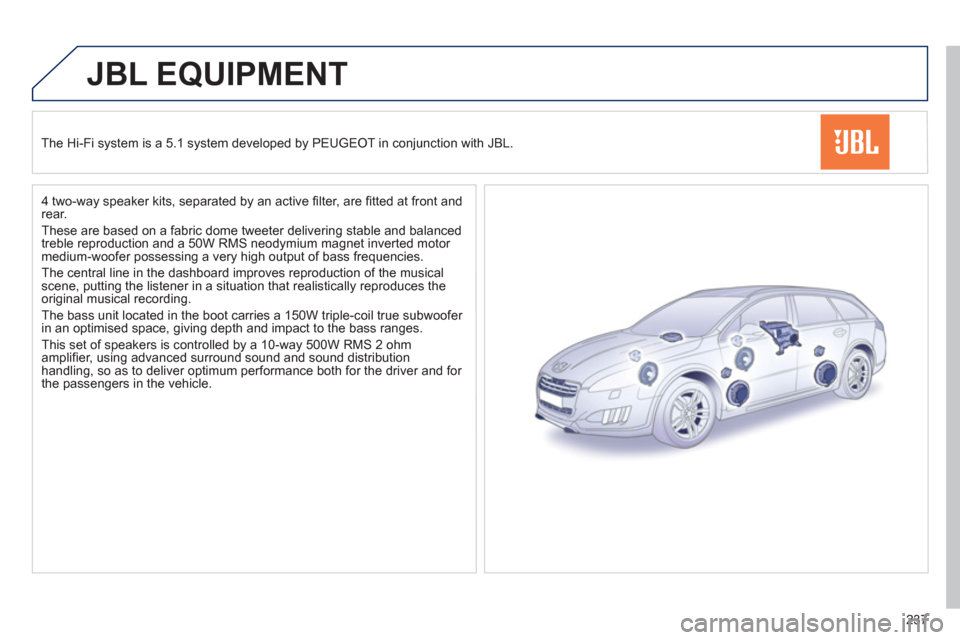

JBL EQUIPMENT
The Hi-Fi system is a 5.1 system developed by PEUGEOT in conjunction with JBL.

4 two-wa
y speaker kits, separated by an active fi lter, are fi tted at front andrear.
These are based on a fabric dome tweeter deliverin
g stable and balanced
treble reproduction and a 50W RMS neodymium magnet inverted motor medium-woofer possessing a very high output of bass frequencies.
The central line in the dashboard improves reproduction o
f the musicalscene, putting the listener in a situation that realistically reproduces theoriginal musical recording.
The bass unit located in the boot carries a 150W tri
ple-coil true subwoofer
in an optimised space, giving depth and impact to the bass ranges.
This set of speakers is controlled b
y a 10-way 500W RMS 2 ohm
amplifi er, using advanced surround sound and sound distribution handling, so as to deliver optimum performance both for the driver and for
the passengers in the vehicle.

238
