2013 Peugeot 508 RXH Owner's Manual

2
79
Access
Lost keys, remote control, electronic key
Visit a PEUGEOT dealer with the vehicle's V5 registration document and your personal identification documents.
The PEUGEOT dealer will be able to retrieve the key code and the transponder code required to order a replacement.
Remote control
The high frequency remote control is a sensitive system; do not operate it while it is in your pocket as there is a possibility that it may unlock the vehicle, without you being aware of it.Do not repeatedly press the buttons of your remote control out of range and out of sight of your vehicle. You run the risk of stopping it fromworking and the remote control would have to be reinitialised.The remote control does not operate when the key is in the ignition, even when the ignition is switched off.
Locking the vehicle
Driving with the doors locked may make access to the passenger compar tment by the emergency ser vices more difficult in an emergency.
As a safety precaution (with children on board), remove the key from the ignition or take the electronic key when you leave the vehicle, even for a short time.
Electrical interference
The Keyless Entry and Starting electronic key may not operate if close to certain electronic devices: telephone, laptop computer, strong magnetic fields, ...
Anti-theft protection
Do not make any modifications to the electronic engine immobiliser system; this could cause malfunctions.Don't forget to turn the steering to engage the steering lock.
When purchasing a second-hand vehicle
Have the key codes memorised by a PEUGEOT dealer, to ensure that the keys in your possession are the only ones which can star t the vehicle.

80
Access
System which protects and provides a deterrentagainst theft and break-ins. It provides the
following types of monitoring:






Alarm
- Exterior perimeter
The system checks for opening of the vehicle.
The alarm is triggered if anyone tries to open a
door, the boot or the bonnet...


- Interior volumetric
The system checks for any variation in the
volume in the passenger compartment.
The alarm is triggered if anyone breaks a
window, enters the passenger compar tment or moves inside the vehicle.

- Tilt

The system checks for any change in the attitude of the vehicle.
The alarm is triggered if the vehicle is lifted,
moved or knocked.


Self-protection function
The system checks for the putting out of ser vice of its components. The alarm is triggered if the battery, the central control unit or the wires of the siren are put out of service or damaged.
For all work on the alarm system,contact a PEUGEOT dealer or aqualified workshop.


Locking the vehicle with full
alarm system


Activation
)Switch off the ignition and get out of the vehicle.
)
Press the locking button on theremote control or lock the vehicle
using the Keyless Entry and Starting system. The monitorin
g system is active: the indicator
lamp on the button flashes once per second.

After the locking button on the remote controlis pressed or the vehicle locked using the
Ke
yless Entry and Starting system, the exterior perimeter monitoring is activated after a delay
of 5 seconds, the interior volumetric monitoring
after 45 seconds and anti-tilt monitoring after 90 seconds.
If an opening (door, boot...) is not closed
fully, the vehicle is not locked but the exterior perimeter monitoring will be activated after a
delay of 45 seconds.
) Press the unlocking button on
the remote control or unlock the
vehicle using the Keyless Entryand Star ting system.

Deactivation of the volumetric monitoring

The volumetric protection system is
deactivated: the indicator lamp in the
button
goes off.

2
81
Access

Locking the vehicle
w
ith exterior perimeter
monitoring only
Deactivate the interior volumetric and anti-liftmonitoring to avoid unwanted triggering of the alarm in certain cases such as:


- leaving a window par tially open,

- washing your vehicle,

- changing a wheel,

- having your vehicle towed,

- transportation by sea.


Deactivation of the interior volumetric and anti-tilt monitoring
)
Switch of the ignition and within ten seconds, press this button until the
indicator lamp is on continuously.) Get out of the vehicle.
)
Press the locking button on the
remote control immediately or
lock the vehicle using the Keyless
Entry and Starting system.
The exterior perimeter monitorin
g alone is
activated: the indicator lamp in the button
flashes once per second.
To b e effective, this deactivation must be carried
out each time the ignition is switched off.
Reactivation of the interior volumetric and anti-tilt monitoring
Tr iggering of the alarm
This is indicated by sounding of the siren and flashing of the direction indicators for thirty seconds.
The monitoring functions remain active until
the alarm has been triggered eleven times in succession.
) Press the unlocking button on
the remote control or unlock thevehicle using the Keyless Entry
and Star ting system to deactivate
the exterior perimeter monitoring.
) Press the locking button on the
remote control or lock the vehicleusing the Keyless Entry and Starting system to activate all the monitoring functions.

The indicator lamp in the button
again flashes once per second.


When the vehicle is unlocked usingthe remote control or unlocked
using the Keyless Entry and Starting
system, rapid flashing of the indicator lamp in the button informs you that the alarmwas triggered during your absence. When
the ignition is switched on, this flashing stopsimmediately.

Failure of the remote control

To deactivate the monitoring functions:
)
Unlock the vehicle using the key in thedriver's door lock. )
Open the door; the alarm is triggered. )
Switch on the ignition; the alarm stops. The
indicator lamp in the button switches off.

Locking the vehicle without
activating the alarm
)
Lock or deadlock the vehicle using the key
in the driver's door lock.




Operating fault


When the ignition is switched on, fixed
illumination of the indicator lamp in the button
indicates a fault in the system.
Have it checked by a PEUGEOT dealer or a qualified workshop.


*

According to country.


Automatic activation *


2 minutes after the last door or the boot is closed, the system is activated automatically. )
To avoid triggering the alarm on enteringthe vehicle, first press the unlocking button on the remote control or unlock the vehicleusing the Keyless Entry and Star ting system.

82
Access

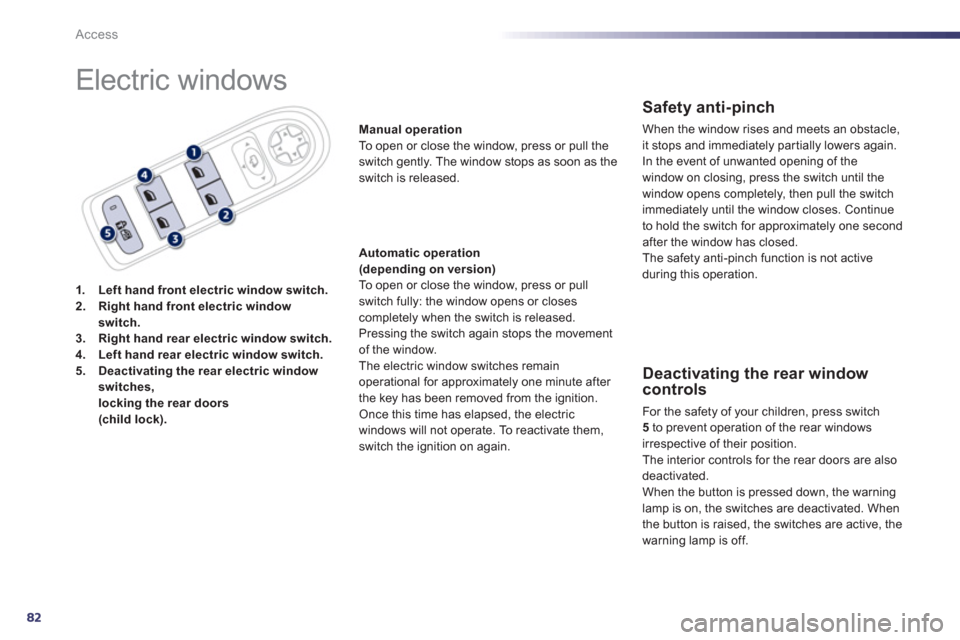

Electric windows
1.Left hand front electric window switch.2.Right hand front electric windowswitch.3.Right hand rear electric window switch.4.Left hand rear electric window switch.5.Deactivating the rear electric window
switches, locking the rear doors (child lock).
Manual operation
To open or close the window, press or pull the
switch gently. The window stops as soon as the
switch is released.
Automatic operation(depending on version) To open or close the window, press or pull
switch fully: the window opens or closescompletely when the switch is released. Pressing the switch again stops the movementof the window.
The electric window switches remain
operational for approximately one minute after
the key has been removed from the ignition.
Once this time has elapsed, the electric
windows will not o
perate. To reactivate them,
switch the ignition on again.

Safety anti-pinch

When the window rises and meets an obstacle, it stops and immediately partially lowers again.
In the event o
f unwanted opening of the
window on closing, press the switch until the
window opens completely, then pull the switch
immediatel
y until the window closes. Continue
to hold the switch for approximately one secondafter the window has closed.
The safety anti-pinch function is not active
during this operation.


Deactivating the rear window controls

For the safety of your children, press switch 5
to prevent operation of the rear windows
irrespective of their position.
Th
e interior controls for the rear doors are also deactivated.
When the button is pressed down, the warninglamp is on, the switches are deactivated. When
the button is raised, the switches are active, the
warning lamp is off.

2
83
Access

Reinitialisation of the
electric windows


Always remove the key from the ignitionwhen leaving the vehicle, even for ashort time. In the event of contact during operation
of the windows, you must reverse themovement of the window. To do this, press the switch concerned.When operating the passenger electric window switches, the driver must ensure that no one is preventing correctclosing of the windows. The driver must ensure that thepassengers use the electric windowscorrectly.Be aware of children when operating the windows.
Followin
g reconnection of the battery, thesafety anti-pinch function must be reinitialised.
The safety anti-pinch function is not active
during these operations:


- lower the window completely, then raise
it, it will rise in steps of a few centimetres
each time the switch is pressed. Repeat
the operation until the window closes
completely,

- continue to press the switch for at least onesecond after reaching this position, window closed.

84
Access

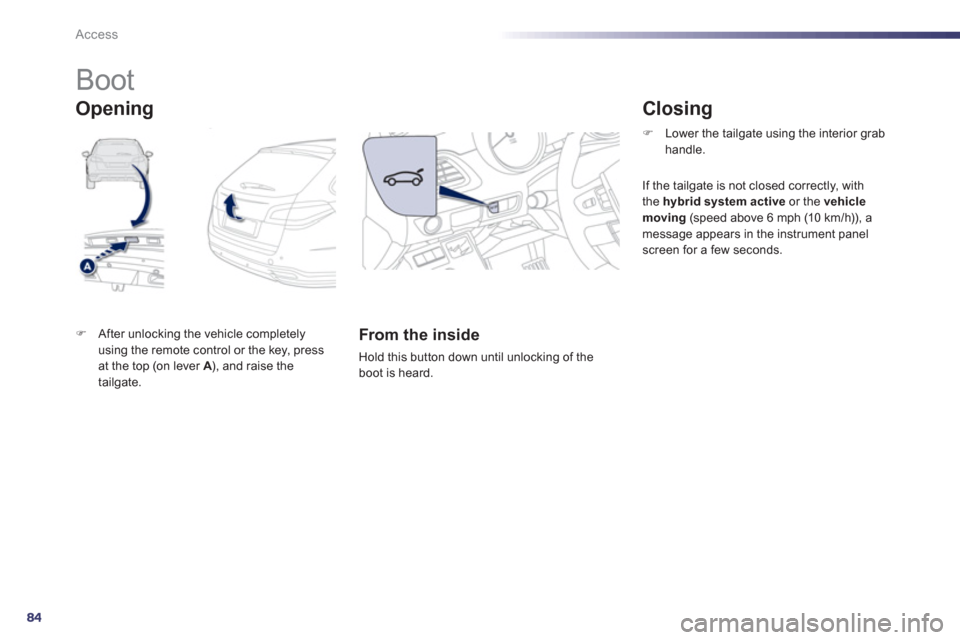

Boot
)After unlocking the vehicle completely using the remote control or the key, pressat the top (on lever A), and raise the Atailgate.



From the inside

Hold this button down until unlocking of the boot is heard.

)Lower the tailgate using the interior grabhandle.
Opening


If the tailgate is not closed correctly, with
the hybrid system active
or the vehicle moving
(speed above 6 mph (10 km/h)), a message appears in the instrument panel screen for a few seconds.


Closing

2
85
Access

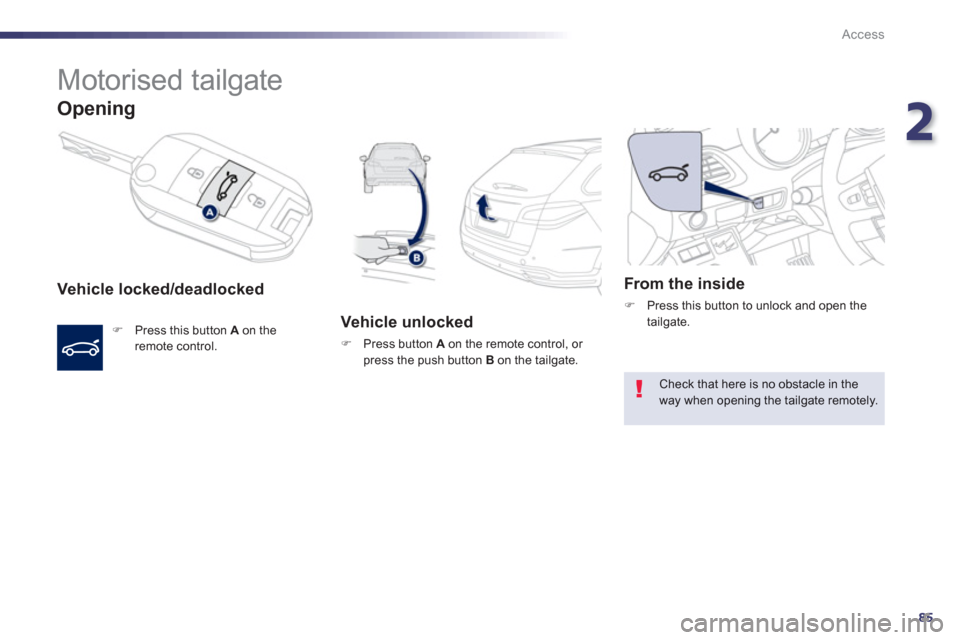

Motorised tailgate
Opening

Vehicle locked/deadlocked
)
Press this button Aon the
remote control.

Vehicle unlocked
)
Press button A
on the remote control, or
press the push button Bon the tailgate.

From the inside
)
Press this button to unlock and open the
tailgate.
Check that here is no obstacle in theway when opening the tailgate remotely.

86

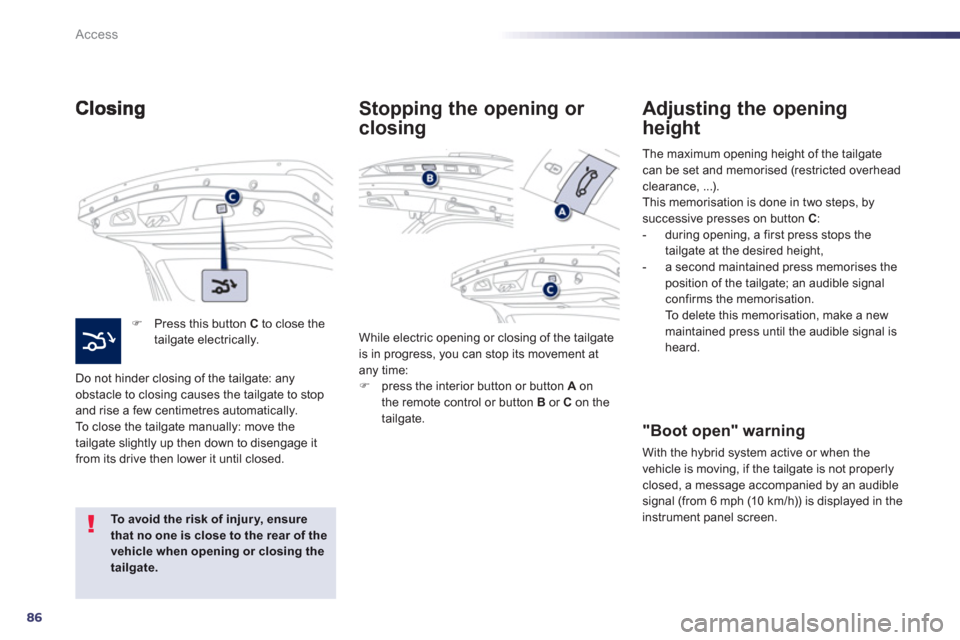

Access
) Press this button C
to close thetailgate electrically.
Do not hinder closin
g of the tailgate: any
obstacle to closing causes the tailgate to stopand rise a few centimetres automatically.To close the tailgate manually: move the
tailgate slightly up then down to disengage itfrom its drive then lower it until closed.
To avoid the risk of injury, ensure
that no one is close to the rear of thevehicle when opening or closing the tailgate.

While electric opening or closing of the tailgate
is in progress, you can stop its movement at
an
y time: ) press the interior button or button A
on
the remote control or button Bor C on thetailgate.


Stopping the opening or
closing
Ad
justing the opening
height
"Boot open" warning

With the hybrid system active or when the
vehicle is moving, if the tailgate is not properly closed, a message accompanied by an audiblesignal (from 6 mph (10 km/h)) is displayed in the instrument panel screen.
The maximum openin
g height of the tailgate
can be set and memorised (restricted overheadclearance, ...).
This memorisation is done in two steps, bysuccessive presses on button C
:


- durin
g opening, a first press stops the
tailgate at the desired height,

- a second maintained press memorises theposition of the tailgate; an audible signal confirms the memorisation.
To delete this memorisation, make a new
maintained press until the audible signal isheard.
